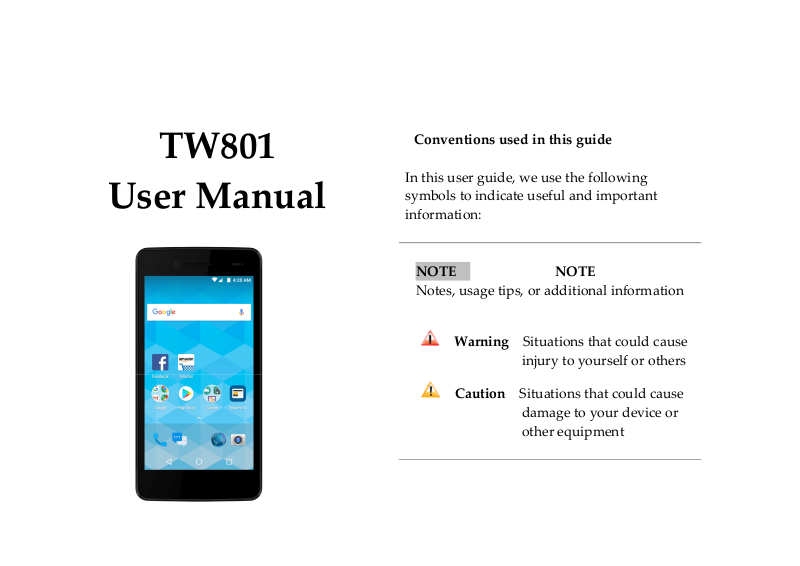

Treswave TW801 Users manual

Download

Page 1

Conventions used in this guide

TW801

In this user guide, we use the following

User Manual

symbols to indicate useful and important information:

NOTE NOTE

Notes, usage tips, or additional information

Warning Situations that could cause

injury to yourself or others

Caution Situations that could cause

damage to your device or other equipment

Page 2

Specifications .................................................. .................................. 3

Basics .................................................................................................. 4

In Box .................................................. ........................................ 4

Phone Overview ........................................................................ 4

Battery ......................................................................................... 4

Turning Phone On or Off ......................................................... 5

Phone Options ........................................................................... 6

Touchscreen Gestures ............................................................... 6

Using the Onscreen Keyboard ................................................. 7

Editing Text ................................................................................ 8

Getting Started .................................................................................. 9

Google Account ......................................................................... 9

Getting to Know the Home Screen........................................ 10

Customizing the Home Screen .............................................. 10

Essential Display Icons ........................................................... 11

Notifications Panel .................................................................. 12

Opening & Switching Between Applications ...................... 12

Sleep Mode............................................................................... 13

Adjusting Volume ................................................................... 14

Searching Your Phone and the Web ...................................... 14

Connecting Your Phone to a Computer ................................ 15

Phone Calls ...................................................................................... 16

Making Calls ............................................................................ 16

Answering or Rejecting Calls ................................................ 17

Using In-Call Options ............................................................. 18

Using Call Log ......................................................................... 18

Listening to Your Voicemail .................................................. 19

Using Voice Dialer .................................................................. 20

Contacts ............................................................................................ 21

About contacts ......................................................................... 21

Opening Your contacts ............................................................ 21

Getting Started ......................................................................... 21

Editing/Deleting Contacts ...................................................... 23

Communicating ....................................................................... 24

Account Setting ........................................................................ 24

Messaging ........................................................................................ 25

About Messaging ..................................................................... 25

Sending Messages ................................................................... 25

Reading Messages ................................................................... 26

Receiving Emergency Alerts Messages ................................. 27

Changing Messaging Settings ............................................... 28

Google .............................................................................................. 29

Gmail .................................................. ...................................... 29

Maps .......................................................................................... 30

Calendar.................................................................................... 32

Play Music ................................................................................ 34

Google Play Store .................................................................... 35

Web ................................................................................................... 37

Chrome ..................................................................................... 37

YouTube ................................................................................... 39

Wi-Fi .......................................................................................... 41

Downloads ............................................................................... 42

Bluetooth .......................................................................................... 43

Using Bluetooth ....................................................................... 43

Disconnecting or Un-pairing from a Bluetooth Device ...... 43

Connecting to a Bluetooth Headset ....................................... 44

Sending and Receiving Information Using Bluetooth ....... 44

Entertainment .................................................................................. 46

Camera/Camcorder .................................................................. 46

Sound Recorder ....................................................................... 47

Tools ................................................................................................. 48

Clock ......................................................................................... 48

Calculator ................................................................................. 48

Settings ............................................................................................. 50

Settings on Your Phone .......................................................... 50

Firmware Upgrade ................................................................... 53

Safety and use .................................................................................. 54

Please read before proceeding ............................................... 54

Limitation of damages .................................................. .......... 54

Page 3

Important health information and safety precautions ........ 55

Regulatory agency identifications ......................................... 61

HEARING AID COMPATIBILITY HAC FOR WIRELESS

TELECOMMUNICATIONS DEVICES ................................ 62

Page 4

Specifications

1. Display

• 5.0 inch FWVGA(854×480) Display

• Capacitive Touch Screen

2. Camera

• Front camera:0.3MP

• Rear camera: 2.0MP

3. Dimensions and Weight

• Dimensions: 146*72.5*9.6mm

• Weight: 160g.

4. Memory

7. Sensors

• Accelerometer, Proximity sensor, Geomagneticsensor

8. Power Management (Performance)

Battery Type Capacity Standby Time

Lithium-

Ion(Li-ion)

2000mAh

Up to 316Hours

(13Days)

Talk Time

Up to

300minutes

• 8GB (ROM)/1GB (RAM)

• External memory : Supports up to 64GB

5. Operating System

• Android 7.1Nougat

6. Connectivity

• WIFI(802.11 b/g/n), Bluetooth4.0

Page 5

Basics

In Box

The TW801 comes with the following items included in the box:

1.Mobile phone

2. Micro USB cable

3. Battery cover

4. Battery

5. USB power adapter 6 .QSG

Phone Overview

Battery

Note that browsing the web frequently, extended data usage, being in a poor signal area, or subjecting the device to extreme temperatures will cause the battery to discharge quicker than normal. To increase battery life, limit your data usage, or turn off GPS and Bluetooth when not required.

Charging your battery

Before you turn on your device and start using it, it is recommended that you charge the battery.

1. Plug the USB cable into the USB power adapter.

2. Plug the power adapter into a standard outlet.

3. Locate the USB port located on the underneath of your

4. Plug the other end of the USB cable into the phone’s

5. The USB icon on the cable should always face up when

NOTE

• It is more efficient to charge the battery with your device powered

• Battery operating time gradually decreases over time.

device.

micro USB port.

connecting the cable to your device as shown.

off.

Page 6

MicroSD Card

Use the microSD card to store your photos, videos, music and certain apps from Google PlayTM Store. You can also move and copy files to your computer from your device.

NOTE

When you insert or remove the microSD card, you should

remove the battery cover.

1. Insert the microSD card

1. Locate the microSD card slot and remove the cover.

Insert the microSD card into the slot with its gold contacts facing right above battery until it clicks

into place.

3. Removing the microSD card while the phone is on

If you need to remove the microSD card while the phone is on, unmount the microSD card first to prevent corrupting or damaging the files in the microSD card.

1. From the Home screen, tap Apps > Settings.

2. Tap Storage >Unmount SD card >OK.

3. Remove the microSD card by following the steps in

“Removing the microSD card”.

Turning Phone On or Off

1. Turning your phone on

1. Press and hold Power/Lock.

NOTE

The first time you use your phone you’ll need to set it up. See

the Getting Started chapter for details.

2. Turning your phone off

2. Removing the microSD card

1. Remove the microSD card cover.

2. Press the microSD card to eject it from the slot then slide it out the rest of the way.

1. If the display is off, press Power/Lock to turn it back on.

2. Press and hold Power/Lock for a few seconds.

3. When Phone options menu appears, tap Power off >OK.

Page 7

Phone Options

1. Silent mode

1. Press and hold Power/Lock to display Phone Options.

2. Tap Silent mode.

• When you select Silent mode, is displayed in the Status bar. Ringtones, alerts, and all audible sounds except media and alarms are silenced.

NOTE

To turn silent mode off, press and hold Power/Lock and then tap .

2. Airplane mode

1. Press and hold Power/Lock to display Phone Options.

2. Tap Airplane mode.

• When you set Airplane mode, is displayed in the Status bar. Wi-Fi, Bluetooth, and mobile network functions are all disabled.

NOTE

To turn airplane mode off, press and hold Power/Lock and then tap Airplane mode again.

Touchscreen Gestures

Tap

Tap andhold

Swipe or slide Quickly drag your finger vertically or

Drag

Flick

Rotate

To select onscreen items such as application and settings icons or press onscreen buttons, simply touch them with your finger. To open available options for the item, simply touch and hold your finger on the screen over the item.

horizontally across the screen.

Tap and hold your finger before you start to drag. While dragging, do not release your finger until the item reaches your desired location.

Flicking the screen is similar to swiping, but you only need to swipe your finger in lighter and quicker strokes. This finger gesture is always in a vertical direction, such as flicking through the contacts or the message lists. For most screens, you can automatically change the screen orientation from portrait to landscape by turning the phone sideways. When entering text, you can turn the phone sideways to bring up a bigger onscreen keyboard.

Page 8

Using the Onscreen Keyboard

You can enter text using the onscreen keyboard. Some applications open the keyboard automatically. In others, tap anywhere in a text field to open the keyboard.

1.Tap each letter on the on-screen keypad.

2.Tap and hold a letter for additional key options (not all keys have additional options). Additional key options include numbers and letters with accent marks. If options are available, you will see a box with all the options shown. Slide your finger to select the character you want.

3.Continueuntilyouhavefinishedtheword.

You can

also

use the following icons:

•Tap 3 while you type. When you release the key,

the lowercase letters reappear.

•Turn caps lock on. double-tap or touch & hold

•Tap 3, so it changes to . Touch shift key again

to return to lowercase.

•

Tap

you can to delete words, tap 4 you can change to

the number and sign keyboard.

•To hide the Android keyboard, press

Back

• When you write a new message, you can tap 2 to skip from the receiver frame to text frame.

NOTE

When you type the notification panel will have a “select input

method” you can set the input methods.

Adding, Editing or Deleting Words in the User Dictionary Sometimes you may need to add a word to the predictive text dictionary, for example, a name or a specialized technical word. If you want to add a word to your User dictionary while entering text, double tap the word to highlight it, then tap and hold the word and select

to dictionary

Add **

Adding a word manually

1. From the Home screen, tap

2. Tap

3. Press

4. Type the word >tap OK.

Language &input>Personal dictionary

Add

Apps

Settings

Editing or deleting a word

Page 9

1. From the Home screen, tap

2. Tap

Language &input>Personal dictionary

Apps

Settings

• To edit words from the dictionary, tap the word you want to edit >

Edit

> Edit the word > Tap OK.

• To delete words from the dictionary, tap the word you

want to delete >

Delete

Editing Text

You can select, copy or cut the text you’ve entered, then paste it in another text field within the user interface.

NOTE

Some applications may offer different text editing methods.

1. Selecting text

1. Tap the text field.

2. Move the cursor to the beginning or end of the desired text by tapping in the location you want the cursor.

3. Tap and hold the text field.

4. Tap

5. Drag your finger to move the text cursor to a letter

Select word

• Or tap

Select all

in the pop-up menu.

to select all the text in the text field.

within the text that you want to select. The selected text is highlighted in orange.

2. Tap and hold the selected text.

3. Tap

Cut

•If you tap

Copy

Cut

in the menu that opens.

, the selected text is removed from thetext field. In this case, the text is saved to theclipboard, so that you can paste it into another text field.

3. Pasting the text

1. Cut or copy the text to paste.

2.Tap the text field where you want to paste the text and move the cursor to your desired location.

• You can paste text that you copied from one application into the text field in any other application.

3. Tap and hold then select

Paste

in the pop up menu.

• The text is inserted after the cursor. The text also remains in the clipboard, so you can paste that same text into another location.

2. Cutting and copying the text

1. Double-click to select the text to cut or copy it.

Page 10

Getting Started

Google Account

You must sign in to a Google account to use Gmail, Google Calendar, and other Google applications; to download applications from Google Play Store; to back up your settings to Google servers; and to take advantage of other Google services on your phone.

1. Registering a Google account

Gmail, Google Play Store, and other applications require a valid Google account for use. You will be prompted to login intoGoogle the first time you use these applications.

1. Tap

2. Enter your Google account

2. Creating a new Google account

1. Tap

2. Enter a password in to the

Existing>Sign in

• If you don’t have a Google account, tap See the next section for more details.

Tap

password

•Password tip: Your password must be a minimum

of 8characters in length.

New Next

> Enter .

fields,then tap

to register your Google account.

New

First name, Last name

Type a password, Confirm

and

Password

and

instead.

> Tap

3. Select will be needed if you forget your password and then enter a

4. Read through Google Terms of Service > Tap

5. Enter the letters shown on the screen > Tap

Finish

Security question

Secondary Email >Create

and enter the

Answer

3. Adding a Google account

1. From the Home screen, tap

2. Tap

3. Tap

4. Tap

5. Enter your Google account

Accounts >Add account Google Sign in

• The TW801 supports multiple Google accounts.

• If you have the same contact across multiple Google accounts, you can merge duplicates into a single item in the contact list.

> Tap to register your Google account.

Existing

Apps

and

Password

, which

I agree

> Tap

Settings

> Tap

Page 11

Getting to Know the Home Screen

1. The Home screen is displayed when the device is in idle mode. You can add your favorite apps, shortcuts, folders and widgets to the Home screen so they’re only a tap away.

2. Press

Home

to return to the center home screen.

1. Home screen customization options

Open the Home screen you want to customize.

2. Moving an item on the Home screen

1. From the Home screen, tap and hold the item you want to move until it vibrates. Don’t lift your finger.

2. Drag the item to a new location on the Home screen.

3. Lift your finger at the location where you want the item.

To add a shortcut for any application to a Home screen,

1. Previewing the Home screens

1. From any Home screen, tap and hold an application.

2.When you choose a desired Home screen, the applicationshifts to the selected Home screen.

Customizing the Home Screen

The Home screens and display wallpaper are customizable.

tap

Apps

, tap and hold the item, then drag it onto a

Home screen.

3. Removing an item from the Home screen

1. From the Home screen, tap and hold an item until it vibrates. Don’t lift your finger. The × Remove icon will appear at the top of the display.

2.Drag the item to ×Remove.

3. When the item turns blue, lift your finger.

4. Changing the Wallpaper of the Home screen

1. From the Home screen, tap and hold any empty area on a Home screen long time.

2. Tap

From the list of menus, Choose a photo from your

3. Tap

WALLPAPERS

camera gallery or memory card storage.

Set wallpaper

Page 12

Essential Display Icons

Synchronized with the

connected

strength

or vibration

Data

It indicates that battery

is remaining

Icon

New Google

MicroSD card is

wireless networks are

Connected to or

1. Status icons

You can tell a lot about your phone when you understand the icons in the Status bar. Here’s what each one means:

Signal strength

No signal

3G network

Wi-Fi signal

web

Vibrate only mode

Speakerphone is on

Silent mode-no audio

2. Notification icons

Notification icons in the Status bar alert you to items that may require your attention such as new messages, calendar event reminders, missed call notifications, etc. Here’s what each one means:

Call in progress

Missed call

New Email

notifications

More (not

displayed)

Downloading data

Uploading data

(animated)

General Warning

No microSD card

installed

Airplane mode

synchronizing

Bluetooth is on

Storage is

insufficient

Microphone is muted

Connected to a

computer via USB

cable

Talk instant

being prepared

message

New voicemail

New message

New Gmail

Upcoming event

Alarm is set

Wi-Fi is on and

available

disconnected

Song is playing

from VPN

Page 13

Notifications Panel

When you receive a new notification, an icon will be displayed in your status bar at the top of your screen.

2. Closing the Notifications panel

Drag the bottom bar of the panel up. Or just press

Back

Opening & Switching Between

1. Viewing and responding to Notifications

1. Tap and hold Status bar, and then slide your finger downward to open the Notifications panel.

Applications

1. Opening and closing the Applications List

1. From the Home screen, tap

2. To close, press

Home

2. Switching to a recently used application

1. From any screen, tap recently used application.

Recent apps

Apps

Back

. Scroll to see all

2. If you have multiple notifications, you may need to scroll to see them all.

3. Tap a notification to respond to it.

Page 14

2.Tap an icon to open the application or press to return to your previous screen.

Back

4. Activating Secure Screen Lock

Sleep Mode

Sleep mode saves battery power by turning off your display. You will still receive messages and calls when the display is turned off.

1. Switching to Sleep mode

1. Press

2. Your phone automatically turns off the display after a period of inactivity. To customize the screen timeout settings, from theHome screen, tap

Settings

2. Waking up from Sleep mode

1.Your phone automatically wakes up when you have an

2. To wake it up manually, press to unlock the screen as described below.

Power/Lock

Display >Sleep

incoming call.

to switch your phone to Sleep mode.

Apps

Power/Lock

. You’ll need

1. From the Home screen, tap

2. Tap

security >screen lock

• If you have already configured the screen lock, tap

screen lock

to change how to lock or unlock

your screen.

Tap Pattern, PIN, Password, or Face Unlock. Then enter

a custom pattern, PIN or password as prompted.

•If you select ‘None’, screen unlock security iscancelled

Apps >Settings

3. Unlocking the screen

On the lock screen, tap the unlock icon and slide your finger in the direction of the arrows to unlock the screen. The screen unlocks automatically when you answer an incoming call.

NOTE

If you have set up a screen unlock pattern, pin, or password,

you will be asked to draw the pattern on the screen or enter the PIN or password to access the phone software.

Page 15

Adjusting Volume

Ringtone and Media volume are independent of each other and adjusted separately.

1. Adjusting the ringer volume

From the Home screen, press

down

on the right side of the phone to

adjustthe ringer volume to your desired level.

• While in the lowest ringer volume level, press

Volume up

Volume down

to Vibrate mode. To set your phone to Silent mode, you can press

Volume down

• While in the Silent mode or Vibrate mode, press

Volume up

once to switch to ringtone mode.

2. Adjusting the media volume

While playing music, watching a video or using preloaded or downloaded games or applications, press

Volume up orVolume down

phone to adjust the media volume.

3. Adjusting the earpiece volume for phone

Volume up

Volume

once to set your phone

once again.

on the right side of the

2. Tap

Sound >Volumes

3. Drag the volume sliders left or right to adjust your phone’s Ringtone, Media, and Alarm. Your phone plays a sample tone at the selected volume level while you drag the slider.

4. When you’re done, tap

Back

Home

Searching Your Phone and the Web

The search key is a powerful part of the TW801’s software and enables you to quickly locate files, contacts, and applications. You can also search the web using your favorite web search service.

1. Tap

2. Begin entering text, or tap a previously used search term.

• As you enter the text, matching items on your phone and suggestions from Google web search will appear on the screen.

3. Tap a suggestion to go directly to that result.

Apps

Google

calls

During a phone call, press

Volume up

Volume down

4. Adjusting the volume via Settings menu

1. From the Home screen, tap

Apps >Settings

Page 16

Connecting Your Phone to a Computer

1. Copying files to/from the microSD card

You can copy your music, photos, and other files to the microSD card of your phone.

NOTE This option is available only when a microSD card is

inserted into the slot of your phone. While your phone is connected to a computer, USB Mass storage mode prevents you from using applications that access the memory card.

1. Connect your phone to your computer using the supplied USB cable.

2. Open the Notifications panel >tap USB options.

3. On your computer, the connected phone is recognized as a removable hard drive.

4. Navigate to the removable drive and open it.

5. Do one of the following:

• Copy the files from the computer to the microSD card’s root folder.

• Copy the files from the phone’s microSD card to a folder in your computer.

6. After copying the files, un-mount the removable drive (that is, your phone) as required by your computer’s operating system to safely remove your phone.

7. After you have un-mounted the removable drive, you can disconnect the phone from the computer.

Page 17

Phone Calls

Making Calls

The simplest way to make a call is to dial the number directly. You can also call numbers listed in your call log or Contacts list.

1. Making a call from the dialer screen

1. From the Home screen, tap

Apps >Phone

2. Tap the number you want to dial.

• If you make a mistake, tap to erase a single character. Tap and hold to erase the entire string.

3. Tap

Dial

• The Calling screen is shown and appears in the

Status bar while the call is active.

• To change the volume during a call, press

Volume down

4. To end the call, tap

End Call

2. Entering a Pause/Wait

Pause and wait options can help you dial additional numbers such as a voicemail password, or phone banking system menus.

1. From the Home screen, tap

2. Tap the number you wish to dial >tap

Option>Add2-sec pause orAdd wait

•

Add 2-sec pause

: Your phone will wait for 2 seconds

then continue to dial the remaining numbers automatically.

Phone

. Or tap

Volume up

•

Add wait

: Your phone will wait with the message,

‘Send the following tone?’ until

Send

is tapped, then continue dialing the remaining numbers.

3. Making an international call

1. From the Home screen, tap

2. Tap and hold 0 until the international prefix ‘+’ appears.

3. Tap the country code, area code, and phone number.

4. Tap

Dial

Phone

4. Calling a number from the Call log

Your phone logs all incoming and outgoing calls.

1. From the Home screen, tap

2. Tap

Dial

at the right of any entry to dial.

Phone >Call log

• Calls are listed with the most recent at the top.

• Calls to the same phone number are grouped together.

• Scroll up or down to view additional entries in the log.

• If you want to edit a number before calling, tap

and hold the desired number, and then tap

Edit number before call

5. Making a call from the Contact list

1. From the Home screen, tap

Apps >People

2. Scroll through the contact list.

• To find a specific contact, you can search by tapping

. Enter the name of the contact you’re

Phone

> . Or tap

Page 18

searching for. As you type, contacts with matching names appear below the search box. Or you can use the tab on the right hand side of the screen to scroll through the alphabetical contacts.

3. Tap the contact you want to call.

4. Tap the phone or mobile number.

6. Making an emergency call

Your phone supports international emergency numbers such as 911. Emergency calling is supported anywhere the phone has a network signal.

1. Making an emergency call

1. From the Home screen, tap

2.Tap the emergency number for your location. This is usually

3. Tap

Dial

911, *911

4. To end the emergency call, tap

2. Making an emergency call while the phone is locked

1. When your phone is no service status,

button is displayed on the lock screen. Tap

call

2. Tap the emergency number for your location. This is

usually

911, *911

#911

Phone

End Call

Emergency call

Emergency

number not stored in your Contacts, only the default caller ID icon and phonenumber are shown.

All incoming calls are recorded in the Call log. If you miss a call, you receive a reminder notification.

1. Answering or rejecting an incoming call

1. Drag the icon in the direction of the arrows to answer the call.

• If you were already in a call, the first call is placed on hold during answering the new call.

• To silence the ringer before answering the call, press either of the volume keys.

NOTE

The caller you reject is sent directly to your voicemail box to leave a message.

3. Tap

4. To end the emergency call, tap

Dial

End Call

Answering or Rejecting Calls

When you receive a phone call, the screen displays the caller’s name, phone number, and caller ID icon (if stored in Contacts). When you receive a phone call from a phone

Page 19

Tap

Dial Pad

to enter additional numbers

You can turn the speakerphone off by tapping

border and the Ongoing Call icon turns blue in

2. Checking missed calls

• If you miss a call, is displayed in the Status bar.

• If you open the Notifications panel, you will see the number of missed calls. Tap the notification to be taken to the call log and view detailed information.

NOTE

To avoid damaging your hearing,do not hold the phone up to your ear when the speakerphone is on.

Using Call Log

Using In-Call Options

When a call is in progress, the following options are available:

Dial Pad

Mute

Audio

Bluetooth

during your call.

You can unmute the microphone by tapping Mute icon again.

the Speaker icon again.

When a Bluetooth device is paired and connected to your phone, you can conduct all calls using Bluetooth for hands-free conversation. When using Bluetooth headset during a call, the current call screen has a blue

the Status bar. Tap Bluetooth icon to toggle in-call audio to and from the Bluetooth accessory.

The phone stores the numbers of all incoming and outgoing calls in the Call log. The Call log displays the details of the call including time, date, and duration.

1. Opening the Call log

1. From the Home screen, tap

• Calls are listed with the most recent at the top. Calls of the same phone number are grouped together. Scroll to view earlier entries in the log.

NOTE

You can tap and hold the desired number in the call log

list to select options such as Call, View contact, Edit

number before call, Send amessage, Add to contacts, Call

details, Copy number, Block number.

Phone >Call log

Page 20

4. Sending a text message from the Call log

2. Calling a number from the Call log

1. From the Home screen, tap

1. If you want to call a number directly ,tap at the right of the entry.Orselect a contact > tap

• If you want to edit a number before calling, tap

and hold the desired entry, and then tap

number before call

Phone >Call log

Dial

Option>Edit

3. Adding a phone number from your Call log to your Contacts list

1. From the Home screen, tap

2. Tap the desired entry >

3. In the list of contacts that opens, tap

contact

4. Tap

or add to an existing contact.

Done

Add to contacts

Phone >Call log

Create new

1. From the Home screen, tap

2. Tap the contact >

3. Enter your message and tap to

Send text message

Phone >Call log

Send

5. Clearing the Call log

1. From the Home screen, tap

2. Tap

• To remove just one entry from the Call log, tapthe

Option>Call log>Tap >Clear call log >OK

entry. In the pop up options, tap

Delete icon>OK

Phone >Call log

Call details>click

Listening to Your Voicemail

Voicemail application is displayed only when phone calls are available. When you have a new voicemail message,

appears in the Status bar.

1. Calling your voicemail from the Dial Pad

1. From the Home screen, tap

2. Tap your phone number and tap Dial.

Phone

2 Calling your voicemail from the Notification

panel

1. Open the Notifications panel and tap

” New voicemail”

Page 21

Using Voice Dialer

You can use the Voice Search application or Voice Dialer application to place a phone call by speaking the name of a contact or a phone number.

1. From the Home screen, tap

contacts

Phone

• If you have a Bluetooth headset that supports “voice-recognition” or “voice-dialing,” you may be able to open Voice Search by pressing and holding your headset’s main button and dial by voice using your headset. For details, see your headset manual.

2. Say the name of the contact you want to call

• Or, follow one of the suggestions for dialing a number

or controlling your phone in other ways.

Page 22

Contacts

About contacts

Contacts give you quick and easy access to the people you want to reach. Contacts from Google accounts are also downloaded and synced with the Contact list.

You can manage your communications with your contacts via phone, messaging, and email without the need to jump from one app to another.

Opening Your contacts

Open contacts to add, view, and communicate with your friends and acquaintances.

1. From the Home screen, tap

• All of your contacts are displayed alphabetically in a scrolling list.

• You can use the tab on the right hand side of

thescreen, or flick your finger up or down to scroll quickly.

Getting Started

1. Adding a new contact

1. From the Home screen, tap

2. Tap ALL

3. If you have more than one account, select an account then enter the information for the contact.

• Tap > select

Gallery

Take photo

to add a picture.

Apps

Choose photo from

contacts

• Enter your contact’s information.

4. Tap

Saving a phone number from the Dial Pad

1. From the Home screen, tap

2. Enter the number >Tap

3. Enter the information for the contact>tap

Storing a contact using Call log

1. From the Home screen, tap

2. Tap

3. Tap

4. If you have more than one account, tap the account

Done

Phone

Create new contact

Call log

save >

Add to contacts

Create new contact

where you want to save the contact >enter the information for the contact > tap

>tap the number you want to

or select an existing contact.

Done

Apps >Phone

Done

2. Importing / Exporting / Sharing contacts

Importing contacts from your microSD card

If you have contacts stored in vCard format on themicroSD card, you can import them into Contacts on your phone.

1. From the Home screen, tap

2. Tap

3. Tap

4. If you have more than one account on your phone,

5. Tap the vCard files on the microSD card.The contacts

Option>Import/Export

Import from .vcf file

select the desired account.

are imported.

Apps

contacts

Page 23

Exporting contacts to your microSD card

1. From the Home screen, tap

Apps

contacts

2. Tap

3. Tap

4. Select contacts, tap

Option>Import/Export

Export to .vcf file

to confirm.

• This process creates a file containing all your selected contacts with a .vcf extension on your microSD card.

Sharing visible contacts

1. From the Home screen, tap

2. Tap

3. Tap

Option>Import/Export

Share all contacts

> Select

Apps

contacts

Bluetooth

3. Viewing details about a contact

1. From the Home screen, tap

2. Tap the contact whose details you want to view.

3. Tap the communication icon to start dialing, texting, or emailing the contact.

Apps

contacts

Gmail

4. Search for a contact

1. From the Home screen, tap

2. Tap

3.Start entering the contact’s name. As you type, contacts with matching names appear below the search box.

4. Tap the matching contact in the list to open

Apps

contacts

Page 24

Editing/Deleting Contacts

1. Editing contact details

1. From the Home screen, tap

2. Tap the contact you want to edit >Tap

3. Edit the contact information.

4. Tap

Done

2. Setting a contact’s default phone

Apps

contacts

Edit contact

1. From the Home screen, tap

2. Tap the desired contact> Tap

3. Tap

Option>Set ringtone

Apps

contacts

Edit contact

• Tap a ringtone from the list to play when the contact calls. A sample of the ringtone is played.

4. Tap OK.

number/email

Setting a contact’s default phone number

The default phone number is used when you initiate a call or text message by tapping and holding a contact.

1. From the Home screen, tap

Apps >contacts

2. Find the desired contact > Tap and hold the phone number to designate it as the default phone number.

3. Tap

Set default

• The default phone number is indicated with a

checkmark.

Setting a contact’s default email

The default email is used when you send an email from the list by tapping and holding a contact.

1. From the Home screen, tap

Apps >contacts

2. Find the desired contact > Tap and hold the email

address to designate it as the default email address.

3. Tap

Set default

• The default email is indicated with a checkmark.

3. Setting a ringtone for a contact

4. Adding a contact to your favorites

1. From the Home screen, tap

2. Tap the desired contact >Tap .

• To remove a contact from your favorites list, tap

contacts

>tap the desired contact >Tap .

Apps

contacts

5. Linking contacts

1. From the Home screen, tap

2. Tap the contact you want to save. The others will merge into this file. This is the contact you will see in contacts after linking.

3. Tap

Edit contact

>Tap

Option>link

4. Tap the contact you want to join with the first contact. The information from the second contact is added to

the first contact, and the second contact is hidden.

Apps

contacts

6. Deleting a contact

1. From the Home screen, tap

2. Tap the contact you want to delete, tap

Option>Delete

3. Tap OK.

Apps

contacts

Page 25

Communicating

1. Sending text message

1. From the Home screen, tap

2. Tap and hold the contact you want to send >tap .

• The Primary Phone Number is used, or you are prompted to choose a phone number.

2. Making calls

1. From the Home screen, tap

2. Tap and hold the contact to call >

• The Primary Phone Number is used, or you are

prompted to choose a phone number.

3. Connecting by using Quick Contact

1. From the Home screen, tap

2. Tap the icon or photo next to your desired contact >tap the desired communication method.

•Only the icons relevant to your contact’s data are displayed.

•If there are too many icons to fit on the screen, drag

to the left or right to select an icon.

Apps

contacts

tap the number

Apps

contacts

locations. This address book will be used throughout the user interface.

• If you register two or more accounts, you can merge

address books from the multiple accounts into one address book.

2. Contact List Display and SettingsOptions

1. From the Home screen, tap

2. Tap

• All contacts display in the contacts list.

3. Tap

• Sort list by: Select

Option>Contacts to display

Option>Settings

First name

• View contact names as: Select

name first

• About Contacts: Build version, Open source licenses, Privacy policy, Terms of service.

Apps

Last name

contacts

First name first

Last

Account Setting

1. Working with Google accounts

1. From the Home screen, tap

2. Tap

Menu>Manage accounts

• After registering your Google account, your online Google contacts are synchronized to your phone. Changes made online or on the phone are automatically synchronized and updated in both

Apps

contacts

Page 26

Import Temple

Some default

text

Messaging

About Messaging

Use Messaging to send text messages (SMS) and multimedia messages (MMS) to other mobile phones and email addresses.

1. From the Home screen, tap

On the Messaging screen, your sent and received messages are neatly grouped into conversations, by contact names or phone number. You can:

• Scroll up or down the list of conversations by flicking

your finger on the screen.

• Tap a contact name or number to view the

conversation history.

• Tap the photo or to open additional menu options.

Apps

Messaging

3. Enter the phone number in the Tofield. Fill in one or more recipients. You can:

• Enter the first few letters of a contact name or phone number. Matching contacts are displayed. Continue typing or tap a name or phone number from the search results.

• Tap > Select message recipients from your contact list >Ok.

4. Tap

Type message

• Tap

>enter your message. to see more options.

Add subject Add subject.

Attach

Send Send the message.

Insert smiley Insert a smiley in the message.

Discard Delete the message in progress.

Attach Media Files or a Slideshow within the message.

Sending Messages

1. Sending a Text Message

NOTE

1. From the Home screen, tap

2. Tap

Depending on your billing plan, if you exceed the single

text message character limit, you will be billed for multiple

messages.

Create New message

Apps

Messaging

5. Tap to

• Tap

NOTE

Send

Back

to save the message as a draft.

Your text message automatically becomes a multimedia message on below condition:

• Add subject

• Attach an item

Page 27

2. Sending a multimedia message (MMS)

Save to SIM card

To save the message to SIM card

To call the message sender

To compose a multimedia message, start by creating a new text message. Then simply add an attachment.

1. From the Home screen, tap

2. Tap

Create New message

3. Enter the phone number in the Tofield. Or select recipients from the contact list.

4. Tap

Type message

> enter your message. Tap to

add the message template.

5. Tap

Attach

> choose the type of attachment.

• Pictures Select a photo.

• Capture picture Capture a new photo.

• Videos Select a video.

• Capturevideo Record a new video.

• Audio Select an audio file.

• Record audio Record a new audio file.

Apps

Messaging

3. When you finish editing, tap

Send

Reading Messages

1. From the Home screen, tap

Apps

2. Tap a message thread.

3. Tap and hold an individual message to see more options.

Call icon

Add to Contacts

Forward

To save the phone number or email address to Contacts. (Only on messages from unkown number)

To forward a message. Enter a recipient, edit the content of the message as needed >tap Send.

Messaging

• Slideshow

6. From the message body, tap:

•

View

: To view the attached item.

•

Replace

•

Remove

7. Tap

• Tap

Send MMS

Back

3. Resuming a draft message

1. From the Home screen, tap

2. Tap the message indicated by “ editing.

Create a slideshow from up to 10 of your photos.

: To change attached files.

: To remove attached files.

to save it as a draft.

Apps

Draft

Messaging

” to resume

Copy message text To copy text from a message.

View message details To view details about a message.

Delete message To delete a message.

1. Deleting a message thread

1. From the Home screen, tap

2. Tap and hold to select the message thread, tap

Delete thread

• If you want delete all message threads, tap and hold a message thread and select all,tap

3. Tap

2. Searching messages

Delete

1. From the Home screen, tap

2. Tap

to search.

Apps >Messaging

Delete all threads

Apps >Messaging

Page 28

3. Enter the search term >tap

3. Replying to a message

1. From the Home screen, tap

2. Tap the received message > tap your message.

3. Tap

Send

Apps

Messaging

Type message

> enter

Receiving Emergency Alerts Messages

Emergency Alerts service allows you to receive automatic alerts in times of crisis (e.g., earthquake, hurricanes, etc.). Wireless Emergency Alerts (WEA), also known as CMAS, is a part of a national alerting system called IPAWS (Integrated Public Alert and Warning System) that enables emergency management officials to rapidly disseminate the warnings and safety information via text alerts to wireless phones based on the phones’ geographic location, The Federal Emergency Management Agency or FEMA is responsible for receiving the alerting information and forwarding the alerts to participating wireless carriers such as Sprint. Such alerts may come from the President of the United States; the National Weather Service, state or county public safety officials. This system is integrated into the same national alerting services that serve television and radio today.For more information regarding WEA/CMAS please go to: FEMA website. http://www.fema.gov/emergency/ipaws/projects.shtm#6

1. Receiving Emergency Alerts Messages

1. From the Home screen, tap

Apps >Messaging

2. Tap Emergency alerts message you want to view.Emergency alert messages are indicated with

Emergency alert icon.

• If Emergency alert arrives on your phone during a call, is displayed in the Status bar. If Presidential Emergency Alert, emergency alert icon will flashes. If non-Presidential, Emergency alert icon is static icon.

• Only the Presidential Emergency Alert icon is displayed under the Time/Date on the unlock/lock screen.

• If you are on an Emergency alert message screen

in the Messaging application, the following options are removed ordisabled : and

Call

Reply, Forward

• If you have power cycled your phone and a Presidential Emergency Alert has not been viewed, the PresidentialEmergency Alert icon will continue to flash when the device is powered on again.

Page 29

Changing Messaging Settings

save per message thread. When the limit

Tap to set the number of multimedia

Set alert reminder to once, every 2 minutes,

Speak alert

Set to

use text

-to-

speech to speak

1. From the Home screen, tap

2. Tap

Option>Settings

1. Storage settings

Delete old

messages

Text message

limit

Multimedia

message

limit

Check to delete older messages in a thread when messaging memory or thread limits are reached. Uncheck to keep all messages. You may need to manually delete messages if the messaging memorylimit is reached.

Tap to set the number of messages to

is reached, older textmessages are deleted if ‘Delete old messages’ is checked.

messages to save per message thread. When the limit is reached,older multimedia messages are deleted if ‘Delete old messages’ is checked.

2. Multimedia message (MMS) settings

Auto-retrieve

Uncheck to download only the heading of multimedia messages. You will need to tap the MMS message heading and manually download each MMS message. You may want to use this feature when roamingor when connected to a slow data network.

Apps

Messaging

MMS

Validity

period

Set MMS Validity period to Maximum or Two days

3. Notification settings

Select a ringtone to sound when you

Sound

Vibrate

receive new message notifications.

Set the phone to vibrate every time you receive a new message notification, only when silent mode, or never.

4. Receive Emergency Alerts

Show extreme

threats

Show Severe

alerts

Show Amber

alerts

Turn on

notifications

Alert reminder

message

Set to receive Extreme Emergency Alerts.

Set to receive Severe Emergency Alerts.

Set to receive Amber Emergency Alerts.

Set to display emergency alert broadcasts

every 15 minutes or off

emergency alert messages

Page 30

3.Enter a name or address in the Tofield. To

Google

Gmail

1. Opening your Inbox and Reading your Gmail

The inbox is your default Gmail view. All your received emails are delivered to your inbox.

1. From the Home screen, tap

2. Tap the email you want to read.

• Tap to star the email.

• If the sender is a friend in Google Talk, you can see your friend’s online status.

• Tap

Archive Delete

to archive the message.

to delete the message from your inbox.

• Slid left and right to see the previous or next message

in the list.

Replying to or forwarding an email message

1. From the Home screen, tap

2. When reading a message:

• To reply to the sender, tap .

• To reply to all message recipients, tap

Option>Reply all

• To forward the message, tap

2. Sending a new email

1. From the Home screen, tap

2. From any message list, tap .

Apps >Gmail

Option> forward

Apps >Gmail

send the email to several recipients,

separate each email address with a comma.

4. Enter a subject in the

5. Type the message text in the

• To attach an image file, Tap

file

>select the picture you want to attach.

6. Tap

Send

• To save the message as a draft, tap

draft

Subject

field.

Compose Mail

Option>Attach

Option>Save

field.

3. Working with Multiple Email Messages

You can archive, delete or label groups of email messages at the same time.

1. From the Home screen, tap

Apps >Gmail

2. From any message list, check the box next to the email messages you want to work with.

Tap

Most viewed, Top rated, Most discussed

favorite

2. Searching for videos

1. From the Home screen, tap

2. Tap

Apps

YouTube

3. Enter the search criteria >tap to search.

4. Scroll through the search results and tap a video to watch it.

3. Watching videos

1. From the Home screen, tap

2. Tap a video to begin playback.

• Tap the video to pause or resume playback.

• Tap

Info, Related videos

about the video.

• Rotate your phone to watch the video in fullscreen view. You can also double-tap the video to toggle full-screen view on and off.

Favorites Add the video to your Favorites.

Add to

New

playlist

Share the video via Bluetooth, Messaging,

Add your new playlist.

Gmail

Apps

Comments

YouTube

to learn more

1. To shoot and upload a new video

1. From the Home screen, tap

Apps

YouTube

2. Tap . The Camera will open in video mode.

Top

3. Tap to start recording > tap to stop recording.

4. Enter a title for the video and more details > tap

Upload

2. To upload an existing video

1. From the Home screen, tap

2. Tap

Option>Upload

. The Gallery will open.

Apps

YouTube

3. Tap the video you want to upload.

4. Enter the title for the video and more details >tap

Upload

5. Sharing videos

1. From the Home screen, tap

2. Tap a video to play.

3. Tap

4. Tap the application you want to use to share the video.

Apps

YouTube

6. YouTube settings

You can change the following settings for YouTube on your phone.

1. From the Home screen, tap

2. Tap

Option>Settings

Apps

YouTube

4. Uploading videos

Page 42

High quality on

Caption font size

when

Specify network preferences for

Clear search

Remove previous YouTube

networks

Preload watch

Open the YouTube Help Center

feedback form

Service

YouTube Terms

General settings

Search settings

Preloading

mobile

Uploads

history

SafeSearch

filtering

Preload

subscriptions

later

Help

Check if you prefer to watch videos in high resolution by default when connected to mobile networks. Watch videos in standard mode to reduce startup time and data use. This setting has no effect if you are connected to a Wi-Fi network, where videos are always shown in higher resolution.

Set the preferred text size viewing video captions.

uploads.

video search results.

Select if you want Google SafeSearch filtering to block some results when you search for videos. Settings are: Block no search results (Don’t filter), only explicit or offensive videos (Moderate), or both explicit and offensive text and videos (Strict)

Enable preload to fetch videos in advance while on Wi-Fi and charging, so you can enjoy watching them later on slow

in your phone’s Browser.

About

Google Mobile

Feedback

Terms of

YouTube

Application

version

Open a YouTube in your phone’s Browser.

Display the Google Mobile Terms of Service.

Display the YouTube Terms of

Display the Google Mobile Privacy Policy.

Display the YouTube Privacy Policy.

The YouTube application version number installed on your phone.

Wi-Fi

1. Turning Wi-Fi on and connecting to a wireless network

1. From the Home screen, tap

2. Tap

3. Select the

Wireless & networks >Wi-Fi

Wi-Fi

check box to turn Wi-Fi on.

4. The network names and security settings of detected Wi-Fi networks are displayed.

5. Tap a Wi-Fi network to connect.

• If you selected a network that is secured, enter the security key and then tap network type and security settings, you may also

Apps >Settings

Connect

. Depending on the

Page 43

need to enter more information or choose a security certificate.

2. Connecting to a Wi-Fi network with EAPTLS security

You may need to install a network certificate to your phone before you can connect to a Wi-Fi network with EAP-TL Sauthentication protocol.

1. Save the certificate file to the root folder of the microSD card.

2. From the Home screen, tap

3. Tap

security >Install from SD card

Apps >Settings

4. Select the network certificate needed to connect to the EAP-TLS network.

5. After the certificate is installed, follow the steps in the previous section to connect to the Wi-Fi network.

3. Checking wireless network status

1. From the Home screen, tap

2. Tap

Wi-Fi

Apps >Settings

3. Tap the wireless network that the phone is currently connected to.

A message box is then displayed showing the Wi-Fi network name, status, speed, signal strength, and more.

4. Connecting to another Wi-Fi network

1. From the Home screen, tap

2. Tap

Wi-Fi

Apps >Settings

3. Detected Wi-Fi networks are displayed in the Wi-Fi networks section. To manually scan for available WiFi networks, on the Wi-Fi settings screen, tap

Scan

• To set advanced settings, on the Wi-Fi settings screen,

tap

Option>Advanced

4. Tap another Wi-Fi network to connect to it.

Downloads

Images, files and other items you download in Browser,

Gmail, is stored on your phone. You can view, manage or delete what you have downloaded.

1. Opening Downloads

1. From the Home screen, tap

2. Tap an item you want to view it.

• Check the checkbox of the item you want to delete and then tap

• Tap

Delete

Option

to select

Sort by size

Apps >Downloads

Sort by date

2. Viewing a file

1. From the Home screen, tap

2. Tap the file you want to open.

• Turn your phone left or right to view the file in upright (portrait) or sideways (landscape) orientation.

Apps >Downloads

3. Working with files

1. From the Home screen, tap

2. Tap the file you want to manage.

3. Tap

• Tap

Option Share Delete

Share, Delete

to share the selected file.

to delete the selected file.

Apps >Downloads

Page 44

Bluetooth

Using Bluetooth

Bluetooth is a short-range wireless communications technology that devices can use to exchange information over a distance of about 30 feet. The most common Bluetooth devices are headphones, hands-free car kits, and portable devices, including laptops and cell phones.

1. Turning Bluetooth on or off

1. From the Home screen, tap

Bluetooth

2. Check or uncheck Bluetooth to turn it on or off.

2. Changing the phone’s Bluetooth name

The phone name identifies your phone to other devices.

1. From the Home screen, tap

2. Tap

3. If Bluetooth isn’t turned on, check Bluetooth to turn it on.

4. Tap your phone in the dialog box >OK.

Bluetooth

Option>Rename this device

3. Pairing your phone with a Bluetooth device

1. From the Home screen, tap

2. If Bluetooth isn’t turned on, check Bluetooth to turn it on.

3. Tap

4. Tap the ID of the other device to pair them.

Bluetooth >Search for devices

Bluetooth devices is displayed.

Apps >Settings

>Enter the name for

Apps >Settings

. A list of nearby

4. Connecting to a Bluetooth device

Once paired, your phone will automatically connect whenever it detects a paired Bluetooth device. You can also manually connect Bluetooth devices as follows:

1. From the Home screen, tap

2. If Bluetooth isn’t turned on, check Bluetooth to turn it on.

3. Tap

4. When the phone and the device are connected, the

Bluetooth >Search for devices

device is displayed as connected in the list.

Apps >Settings

Disconnecting or Un-pairing from a Bluetooth Device

1. Disconnecting a Bluetooth device

1. From the Home screen, tap

2. Tap

3. In the Bluetooth devices section, tap and hold the

4. Tap

Bluetooth

device name to disconnect.

Forget

2. Un-pairing from a Bluetooth device

You can make your phone forget its pairing connection with another Bluetooth device.

1. From the Home screen, tap

2. Tap

3. In the Bluetooth devices section, tap of the device

4. Tap

Bluetooth

name to un-pair.

Un-pair

Apps >Settings

Page 45

Connecting to a Bluetooth Headset

1. From the Home screen, tap

2. Tap

Bluetooth

3. If Bluetooth isn’t turned on, check Bluetooth to turn it on.

4. Tap

Search for devices

. Your phone will start to scan

for Bluetooth devices within range.

5. When you see the name of your headset displayed in the Bluetooth devices section, tap the name.

Your phone then automatically tries to pair with the Bluetooth device.

6. If automatic pairing fails, enter the passcode supplied with your headset.

1. Reconnecting a headset

1. Put the Bluetooth device in pairing mode.

2. From the Home screen, tap

3. Tap

4. If Bluetooth isn’t turned on, check Bluetooth to turn it

5. Tap the device’s name in the Bluetooth devices section.

6. If prompted to enter a passcode, try 0000 or 1234, or

Bluetooth

on.

consult the headset documentation to find the passcode.

Apps >Settings

Sending and Receiving

You can use Bluetooth to transfer information between your phone and another Bluetooth-enabled device such as a phone or laptop computer. You can send the following types of information, depending on the device you are

sending to:

• Images and videos

• Contacts

• Audio files

To send files, your phone must have a microSD card installed.

NOTE

The first time you transfer information between your phone

and another device, you need to enter or confirm a security passcode. Your phone and the other device are then paired, and you will not need to exchange passcodes to transfer information in the future.

1. On your phone, open the application that contains the item you want to send.

2. Follow the steps for the type of the application, select

Send File

3. If you are prompted to turn on Bluetooth, tap

Send

in the menu. Then select

Bluetooth

Turn on

4. Tap the name of the receiving device.

5. On the receiving device, accept the file.

Information Using Bluetooth

1. Receiving information from another device

Page 46

Your device is capable of receiving a wide variety of file types with Bluetooth, including photos, music tracks, and documents such as PDFs.

To receive files from another device, your phone must have a microSD card installed.

1. From the Home screen, tap

2. Tap

3. If Bluetooth isn’t turned on, check Bluetooth to turn it

4. Tap the name of the bluetooth to make the device

5. On the sending device, send one or more files to your

6. If a Bluetooth authorization request is displayed on

7. When your phone receives a file transfer request

8. When the transfer is complete, a notification is

Bluetooth

on.

available.

phone.

your phone, enter the same passcode on both your phone and the other device, or confirm the autogenerated passcode.

notification, slide down the notifications panel, and then tap

displayed. To open the file immediately, slide down the notifications panel, and tap the notification.

Apps >Settings

Page 47

Entertainment

Color effect

None, Mono, Sepia, Negative

d tag

SD Card

GPS

location

Off / On

Activate to use your phone’s location-based services. Take pictures wherever you are an them with the location.

Camera/Camcorder

You can take pictures and shoot videos with Camera/Camcorder.Photos and videos captured with the camera will be stored on the internal memory.

1. Opening Camera

• From the Home screen, tap

• Or, when in Camcorder mode, tap to choose change to camera.

2. Camera settings

When in Camera mode, Camera settings are displayed on screen. Before taking the photo, you can adjust your camera settings or leave the controls in automatic mode.

1. From the Home screen, tap

2. Tap

Tap the setting you want to change.

General settings

Option

Exposure +2, +1, 0, -1, -2

Picture size 3M Pixels, 2M Pixels, 1M Pixels,

Picture quality Super fine, Fine, Normal

Camerasettings Restore defaults

. The settings open over the screen.

VGA, QVGA

Apps >Camera

White

balance

Storage

Phone/

Auto, Incandescent, Daylight,

Fluorescent, Cloudy.

To set the storage location

3. Tap screento close the settings menus.

3. Taking a picture

1. From the Home screen, tap

Apps >Camera

2. Frame your subject on screen.

• Tap . The camera brings the image into focus. When the image is in focus, the camera takes a picture.

The picture you just took is briefly previewed full-screen, and then is displayed as a thumbnail in the lower left corner. Tap the thumbnail to view, share, or work with your pictures in Gallery.

4. Opening Camcorder

•When you’re in Camera mode, tap to choose change to camcorder.

Camcorder

1. Camcorder settings

When in Camcorder mode, Camcorder settings are displayed on screen. Before recording, you can

Page 48

adjust your camcorder settings or leave them in

Color effect

None, Mono, Sepia, Negative

30 minutes

High (30m), Low (30m), MMS (Low, 15s), YouTube

automatic mode.

Tap

• Tap

Option

screen

. The settings open over the screen.

to close the settings menus

Tap the setting you want to change.

Sound Recorder

1. Opening Sound Recorder.

1. From the Home screen, tap

Recorder

2. Tap to start recording a voice clip.

Apps

Sound

General settings

White

balance

Video

quality

Video quality WVGA, VGA, CIF, QVGA,

Video Encoder MPEG4, H263, H264

AudioEncoder AMRNB, AAC

Video duration 30 seconds (MMS), 10 minutes,

Camera settings Restore defaults

Auto, Incandescent, Daylight,

Fluorescent, Cloudy.

(High, 10m), Custom

NOTE

Depending on the selected video quality, not all video quality

and video encoder options may be available.

2. Recording videos

1. From the Home screen, tap

>choose .

2. Frame the scene where you want to start recording.

3. Tap to start recording.

Apps >Camera>

tap

3. Tap to stop recording.

• To save the voice clip, enter voice record name > tap

Done

• To discard the voice clip, tap

Discard

• Tap to listen to the recording.

4. Tap to stop recording.

An image from your most recent video is displayed as a thumbnail at the top right. Tap the thumbnail to view, share, or work with your videos in Gallery.

Page 49

1. From the Home screen, tap

mode

in silent mode.

Snooze duration

Set how long Clock

waits before playing an

Volume

button

Set the side button behavior for alarms.

Apps >Clock

Tools

Clock

1. Opening the Clock

1. From the Home screen, tap

• The Clock application opens and displays the date, time and other useful information.

•Tap

Set alarm

to set alarm.

2. Managing Alarms

1. Adding a new alarm

1. From the Home screen, tap

2. Tap

3. To change the alarm time, scroll up and down to type the number. Then toggle AM/PM >

4. Check the checkbox, ‘

5. Edit

and

2. Editing an alarm

Set alarm>Add alarm

Turn alarm on

Turn alarm on, Time, Repeat, Ringtone, Vibrate

Label >Ok

Apps >Clock

Set

’.

2. Tap > Tap an existing alarm.

3. Turn the alarm on or off by checking or unchecking the checkbox, ‘ alarm list, set alarms are underlined in green.

4. Edit

Time, Repeat, Ringtone, Vibrate

Label >Done

. Or tap

Turn alarm on

Delete

to remove the alarm >OK.

’. In the

and

3. Changing alarm settings

1. From the Home screen, tap

2. Tap >tap

Alarm in silent

Alarm volume Set the volume of alarms.

Auto-silence Alarm will silence after 10 minutes

Set default

ringtone

Option>Settings

Check to play alarms even when the phone is

alarm again.

Set ringtone default

Apps >Clock

4.Stopping an alarm

1. When the alarm sounds, tap

•Tap

Snooze

of time.

to repeat the alarm after a specified length

Dismiss

to stop the alarm.

Calculator

Using Calculator

1. From the Home screen, tap

2. Enter numbers and arithmetic operators.

Apps

Calculator

Page 50

• Tap

Option>Advanced panel

• Tap and hold the Calculator’s display to open a text editing menu. You can cut, copy, and select text for use in Calculator or other Applications.

• Tap

Clear history

to delete the last number or operator

you entered. Tap and hold

DELETE

to delete

everything in the display.

Page 51

Settings

data

network

The settings include Data enable, Data

you can choose use only 2G network

Emergency

Select the types of emergency alerts to

Phone

Select the ringtone to sound when you

Vibrate when

Vibrate when the ringtone ring out.

Dail pad touch

tones

Check to play tones when using dial pad.

Settings on Your Phone

Control and customize phone settings on the Settings screen.

1. From the Home screen, tap

Settings

• Wireless & networks

Wi-Fi/ Wi-

Fi settings

Bluetooth/

Bluetooth

settings

Data usage

Wi-Fi On / Off. Set up and manage Wi-Fi networks. For details about working with these settings, see “Wi-Fi”.

Bluetooth On / Off. For details about working with these settings, see “Bluetooth”. This setting you can see mobile data and wi-fi statistics, and you can turn on or turn off the data.

Apps

Sound

Volume

ringtone

Default

notification

Set the volume of ringtones that sound when you receive a phone call or notification, media (music, videos, and so on), and alarms.

receive a phone call.

Select the ringtone to sound when you receive a notification.

VPN

settings

Airplane

mode

Mobile

alerts

Set up and manage Virtual Private Networks (VPNs).

Airplane mode On / Off. Check to turn off all the phone’s radios that transmit voice or data.

roaming, Access Point Names. And

display

ring

Touch sound Check to play sound when touching the

panel.

Screen lock

sounds

Vibrate on

touch

Emergency

tone

Check to play sounds when locking and unlocking the screen.

When touch the panel will vibrate.

Select the Emergency tone

Page 52

Display

Brightness

Adjusting the brightness of the screen.

rotate

card

remove it.

Primary

Switch primary storage.

Access to

Screen lock

Configure your phone to require a pattern,

Owner info

Show owner info on lock screen, you can

type

visible

Device

ors

View or deactivate device administrators.

Manage

apps

Manage and remove installed applications.

Auto-

screen

Wallpaper You can set wallpaper.

Sleep Adjust the delay before the screen

Font size You can set the size of display.

Automatically switch the orientation of the screen as you turn the phone sideways or even upside down.

automatically turns off.

Storage

Storage manager, you can see the SD card and the phone space.

Unmount SD

Erase SD card Erases all data on the SD card, such as

Mount SD

card

Erase Phone

storage

Unmout the SD card so you can safely

music and photos.

Add SD card.

Erases all data on the phone storage, such as music and photos.

Location

location

GPS

satellites

Wi-Fi &

mobile

network

location

Security

Make

passwords

Let apps that have asked your permission use your location information.

Let apps use GPS on your phone to pinpoint your location.

Let apps use Google’s location service to estimate your location faster. Anonymous location data will be collected and sent to Google.

PIN, or password to unlock your screen.

text to display on the lock screen. Show password characters as you enter them.

Battery

Tap Battery you can see how much the apps using the battery and the all battery.

Apps

administrat

Unknown

sources

Check to allow installation of non-Market applications.

Page 53

Trusted

Install from

Select the language to use for the text on your phone.

Set Vibrate on key

press, Sound on key

press,

Text

-to-

output

You can set the Text

-to-

speech output.

Automatic

When reinstalling an app, restore backed up settings

Format

When talkback is on, your device provides spoken

Power button

credentials

Display trusted CA certificates.

restore

and data.

Install certificates from SD card.

SD card

Clear

You can remove all credentials.

ccredential

Language &input

language

Personal

dictionary

Android

keyboard

Add or delete the words suggested when entering text.

Popup on key-press, Touch to correct words, Auto- capitalization, Show settings key, Voice input, Input languages, Quick fixes, Show suggestions or Auto- complete. For details about working with these settings, see “Using the onscreen keyboard”.

Voice

You can set the voice search.

speech

Pointer

You can set the speed of point.

speed

Back&reset

Back up my data

Back up

account

Back up app data, Wi-Fi passwords, and other settings to Google servers.

Backing up to debug-only private cache.

Factory

Eraser all data on phone and reset.

data reset

Accounts

You can add an account for Corporate, Email, Facebook,

Google, and Twitter.

Date & time

Automatic

Use network-provided time zone.

time zone

Use 24-hour

Display the time using 24-hour format.

format

choose date

Select the format for displaying date.

Accessibility

Talkback

feedback to help blid and low-vision users. For example, it describes what you touch, select, and activate.

Large text Let the word large or normal

When the icon is on, you can press power on/off

ends call

Auto-rotate

screen

Speak

passwords

icon ends call.

Let the phone auto rotate .

If you set the passwords, you can speak password unlock the phone.

Page 54

Touch &hold

Set the time of touch &hold short, medium, long.

Enhance web

date

Kernel version

Check the Kernel version.

delay

If you install scripts from Google that make their

accessibility

web content more accessible.

About phone

System updates You can upgrade your system to up-to-

version.

Status Information about your Phone number,

signal, etc.

Legal information Legal information about Open source

licenses and Google legal.

Model number Check the Model number.

Android version Check the android version.

Baseband version Check the baseband version.

Software version The phone’s build number.

Hardware

version

Firmware Upgrade

You can check hardware version.

1. Make sure the target device is power on with a fully charged battery.

2. Tap to go to Settings>

update

About phone

and tap

System

3. Upgrade according to tips.

4. During the period of update, the target device will automatically reboot for TWO times. Please don’t operate the device until the update is completed.

Page 55

Safety and use

Please read before proceeding

THE BATTERY IS NOT FULLY CHARGED WHEN YOU TAKE IT OUT OF THE BOX. DO NOT REMOVE THE BATTERY PACK WHEN THE PHONE IS CHARGING. YOUR WARRANTY IS INVALIDATED IF YOU DISASSEMBLE OR ATTEMPT TO DISASSEMBLE THE DEVICE.

1. Privacy restrictions

Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your phone.

2. Disclaimers

ANY WEATHER, STOCK, OR OTHER INFORMATION, DATA, OR DOCUMENTATION (“ACCESSED INFORMATION”) ARE PROVIDED “AS IS” AND WITHOUT ANY WARRANTY OR ANY TECHNICAL SUPPORT. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, UNIMAX COMMUNICATIONS MOBILE AND ITS AFFILIATES expressly disclaim any and all representations and warranties, arising by law or

otherwise, related to the Accessed Information, including without limitation any express or implied

representation or warranty of merchantability, fitness for a particular purpose, non-infringement, quality, accuracy, completeness, effectiveness, reliability, or usefulness. Without limiting the foregoing, it is further understood that UNIMAX COMMUNICATIONS Mobile and its Affiliates are not responsible for any use of the Accessed Information or the results arising from such use and that you use such information at your own risk.

Limitation of damages

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL UNIMAX COMMUNICATIONS MOBILE OR ITS AFFILIATES BE LIABLE TO YOU, ANY USER, OR THIRD PARTY FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, INCIDENTAL OR PUNITIVE DAMAGES OF ANY KIND, ARISING IN CONTRACT, TORT, OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, INJURY, LOSS OF REVENUE, LOSS OF GOODWILL, LOSS OF BUSINESS OPPORTUNITY, LOSS OF DATA, AND/OR LOSS OF PROFITS, REGARDLESS OF THE FORESEEABILITYTHEREOF OR WHETHER UNIMAX COMMUNICATIONS MOBILE OR ITS AFFILIATES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. AND IN NO EVENT SHALL THE TOTAL

Page 56

LIABILITY OF UNIMAX COMMUNICATIONS MOBILE OR ITS AFFILIATES EXCEED THE AMOUNT RECEIVED FROM YOU, REGARDLESS OF THE LEGAL THEORY UNDER WHICH THE CAUSE OF ACTION IS BROUGHT. THE FOREGOING DOES NOT AFFECT ANY STATUTORY RIGHTS WHICH MAY NOT BE DISCLAIMED.

connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances.

Important health information and safety precautions

When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product. To reduce the risk of bodily injury, electric shock, fire and damage to the equipment, observe the following precautions.

1. Electrical safety

This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product.

2. Safety precautions for proper grounding installation

Connecting to improperly grounded equipment can result in

an electric shock to your device.

This product is equipped with a USB Cable for connecting with desktop or notebook computer. Be sure your computer is properly grounded (earthed) before

3. Safety precautions for power supply unit

1. Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product.

This product should be operated only with the following designated power supply unit(s).

Travel charge: Input: 100-240V, 50/60Hz,

0.3A Output: 5V, 2000mA

2. Handle battery packs carefully

This product contains a Lithium-ion polymer or Lithium-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 140°F (60°C).

Danger of explosion if battery is incorrectly replaced. To

reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature

Page 57

above 140°F (60°C), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.

3. Take extra precautions

• Keep the battery or device dry and away from water or any liquid as it may cause a short circuit.

• Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation.

• The phone should only be connected to products that bear the USB-IF logo or have completed the USB-IF compliance program.

• Do not use a battery that appears damaged, deformed, or discolored, or the one that has any rust on its casing, overheats, or emits a foul odor.

• Always keep the battery out of the reach of babies and small children, to avoid swallowing of the battery. Consult the doctor immediately if the battery is swallowed.

• Only use the battery with a charging system that has

been qualified with the system per this standard,

IEEE-Std-172 5-2006. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard.

•Replace the battery only with another battery that has been qualified with the system per this standard, IEEE-Std-172

5-2006. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard.

• Avoid dropping the phone or battery. If the

phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.

• If the battery leaks:

• Do not allow the leaking fluid to come in contact with skin or clothing. If already in contact, flush the affected area immediately with clean water and seek medical advice.

• Do not allow the leaking fluid to come in contact with eyes. If already in contact, DO NOT rub; rinse with clean water immediately and seek medical advice.

• Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion.

Page 58

4. Safety precautions for direct sunlight

Keep this product away from excessive moisture and extreme temperatures. Do not leave the product or its battery inside a vehicle or in places where the temperature may exceed 140°F (60°C), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle.

5. Prevention of hearing loss

Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time.

6. Safety in aircraft

Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when on board an aircraft, remember to turn off your rf on your phone by switching to Airplane Mode.

7. Environment restrictions

Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains

chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.

8. Explosive atmospheres

When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Users are advised not to use the equipment at refueling points such as service or gas stations, and are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. These include fueling areas, below deck on boats, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders.

9. Road safety

Full attention must be given to driving at all times in order to reduce the risk of an accident. Using a phone while driving(even with a hands free kit) causes distraction and can lead to an accident.You must comply with local laws and regulations restricting the use of wireless devices while driving.

10. Safety precautions for RF exposure

• Avoid using your phone near metal structures (for example, the steel frame of a building).

Page 59

• Avoid using your phone near strong electromagnetic sources, such as microwave ovens, sound speakers, TV and radio.

• Use only original manufacturer-approved accessories, or accessories that do not contain any metal.

• Use of non-original manufacturer-approved accessories may violate your local RF exposure guidelines and should be avoided.

11. Interference with medical equipment functions

This product may cause medical equipment to malfunction. The use of this device is forbidden in most hospitals and medical clinics.

If you use any other personal medical device, consult the manufacturer of your device to determine if they are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information. Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.

12. Non-ionizing radiation

Your device has an internal antenna. This product should be operated in its normal-use position to ensure the radioactive performance and safety of the interference. As with other mobile radio transmitting equipment, users are advised that for satisfactory operation of the equipment and for the safety of personnel, it is recommended that no part of the

human body be allowed to come too close to the antenna during operation of the equipment.

Use only the supplied integral antenna. Use of unauthorized or modified antennas may impair call quality and damage the phone, causing loss of performance and SAR levels exceeding the recommended limits as well as result in noncompliance with local regulatory requirements in

your country. To assure optimal phone performance and ensure human exposure to RF energy is within the guidelines set forth in the relevant standards, always use your device only in its normal-use position. Contact with the antenna area may impair call quality and cause your device to operate at a higher power level than needed. Avoiding contact with the antenna area when the phone is IN USE optimizes the antenna performance and the battery life.

13. Electrical safety

Accessories

• Use only approved accessories.

• Do not connect with incompatible products or accessories.

• Take care not to touch or allow metal objects, such as coins or key rings, to contact or short circuit the battery terminals.

Connection to a car

Seek professional advice when connecting a phone interface to the vehicle electrical system.

Page 60

Faulty and damaged products

• Do not attempt to disassemble the phone or its accessory.

• Only qualified personnel must service or repair the phone or its accessory.

14. General precautions

You alone are responsible for how you use your phone and any consequences of its use. You must always switch off your phone wherever the use of a phone is prohibited. Use of your phone is subject to safety measures designed to protect users and their environment.

Avoid applying excessive pressure to the device Do not apply excessive pressure on the screen and the device to prevent damaging them and remove the device from your pants’ pocket before sitting down. It is also recommended that you store the device in a protective case and only use the device stylus or your finger when interacting with the touch screen. Cracked display screens due to improper handling are not covered by the warranty.

Device getting warm after prolonged use When using your device for prolonged periods of time, such as when you’re talking on the phone, charging the battery or browsing the Web, the device may become warm. In most cases, this condition is normal and therefore should not beinterpreted as a problem with the device.

Heed service markings Except as explained elsewhere in the Operating or Service documentation, do not service any product yourself.

Service neededon components inside the device should be done by an authorized service technician or provider.

Protect your phone

• Always treat your phone and its accessories with care and keep them in a clean and dust-free place.

• Do not expose your phone or its accessories to open flames or lit tobacco products.

• Do not expose your phone or its accessories to liquid, moisture or high humidity.

• Do not drop, throw or try to bend your phone or its accessories.

• Do not use harsh chemicals, cleaning solvents, or

aerosols to clean the device or its accessories.

• Do not paint your phone or its accessories.

• Do not attempt to disassemble your phone or its

accessories, only authorized personnel must do so.

• Do not expose your phone or its accessories to extreme temperatures, minimum -4°F (-20°C) and maximum 122°F (50°C).

• Please check local regulations for disposal of electronic products.

• Do not carry your phone in your back pocket as it could break when you sit down. Damage requiring service Unplug the product from the electrical outlet and refer servicing to an authorized service technician or provider under thefollowing conditions:

Page 61

• Liquid has been spilled or an object has fallen into the product.

• The product has been exposed to rain or water.

• The product has been dropped or damaged.

• There are noticeable signs of overheating.

• The product does not operate normally when you follow the operating instructions.

Avoid hot areas

The product should be placed away from heat sources such as radiators, heat registers, stoves, or other products (includingamplifiers) that produce heat.

Avoid wet areas

Never use the product in a wet location. Avoid using your device after a dramatic change in temperature

When you move your device between environments with very different temperature and/or humidity ranges, condensation may form on or within the device. To avoid damaging the device, allow sufficient time for the moisture to evaporate before using the device. NOTICE: When taking the device from lowtemperature conditions into a warmer environment or from high-temperature conditions into a cooler environment, allow the device to acclimate to room temperature before turning on power.

Avoid pushing objects into product

Never push objects of any kind into cabinet slots or other openings in the product. Slots and openings are provided for ventilation. These openings must not be blocked or covered.

Air bags

Do not place a phone in the area over an air bag or in the air bag deployment area. Store the phone safely before driving your vehicle.

Mounting accessories

Do not use the product on an unstable table, cart, stand, tripod, or bracket. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

Avoid unstable mounting

Do not place the product with an unstable base.

Use product with approved equipment

This product should be used only with personal computers and options identified as suitable for use with your equipment.

Adjust the volume

Turn down the volume before using headphones or other audio devices.

Cleaning Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth forcleaning, but NEVER use water to clean the LCD screen. Small children

Do not leave your phone and its accessories within the reach of small children or allow them to play with it. They could hurtthemselves or others, or could accidentally damage the phone. Your phone contains small parts with sharp edges that may cause an injury or which could become detached and create a choking hazard.

Repetitive motion injuries

Page 62

To minimize the risk of RSI, when Texting or playing games with your phone:

• Do not grip the phone too tightly

• Press the buttons lightly

• Make use of the special features in the handset which minimize the number of buttons which have to be pressed, such as message templates and predictive text.

• Take lots of breaks to stretch and relax.

Operating machinery Full attention must be given to operating the machinery in order to reduce the risk of an accident.

Loud noise

This phone is capable of producing loud noises which

may damage your hearing.

Emergency calls

This phone, like any wireless phone, operates using radio signals, which cannot guarantee connection in all conditions. Therefore, you must never rely solely on any wireless phone for emergency communications.

Regulatory agency

This mobile phone has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures：

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment.

identifications

1. FCC Regulations:

This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

2. RF Exposure Information (SAR)

This mobile phone meets the government’s requirements

for exposure to radio waves. This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless mobile phones

Page 63

Absorption Rate, or SAR. The SAR limit set by the FCC is

1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station, the lower the power output. The highest SAR value for the model phone as reported to the FCC when tested for use at the ear is 0.90 W/kg and when worn on the body, as described in this user guide, is

0.73 W/kg (Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements.) While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID:

2AP6Q-TW801.

For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with an accessory that contains no metal and the positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. If you do no t use a body-worn

accessory and are not holding the phone at the ear, position the handset a minimum of 1.5 cm from your body when the phone is switched on.

HEARING AID COMPATIBILITY HAC FOR WIRELESS TELECOMMUNICATIONS DEVICES

THIS PHONE HAS A HAC RATING OF M4/T3 WHAT IS HEARING AID COMPATIBILITY?

The Federal Communications Commission has implemented rules and a rating system designed to enable people who wear hearing aids to more effectively use these wireless telecommunications devices. The standard for compatibility of digital wireless phones with hearing aids is set forth in American National Standard Institute (ANSI) standard C63.19. There are two sets of ANSI standards with ratings from one to four (four being the best rating): an “M” rating for reduced interference making it easier to hear conversations on the phone when using the hearing aid microphone, and a “T” rating that enables the phone to be used with hearing aids operating in the tele-coil mode thus reducing unwanted background noise.

HOW WILL I KNOW WHICH WIRELESS PHONES ARE HEARING AID COMPATIBLE?

The Hearing Aid Compatibility rating is displayed on the

wireless phone box. A phone is considered Hearing Aid Compatible for acoustic coupling (microphone mode) if it has an “M3” or “M4” rating. A digital wireless phone is considered Hearing Aid

Page 64

Compatible for inductive coupling (tele-coil mode) if it has a “T3” or “T4” rating.

HOW WILL I KNOW IF MY HEARING AID WILL WORK WITH A PARTICULAR DIGITAL WIRELESS PHONE?

You’ll want to try a number of wireless phones so that you can decide which works the best with your hearing aids. You may also want to talk with your hearing aid professional about the extent to which your hearing aids are immune to interference, if they have wireless phone shielding, and whether your hearing aid has a HAC ratio
