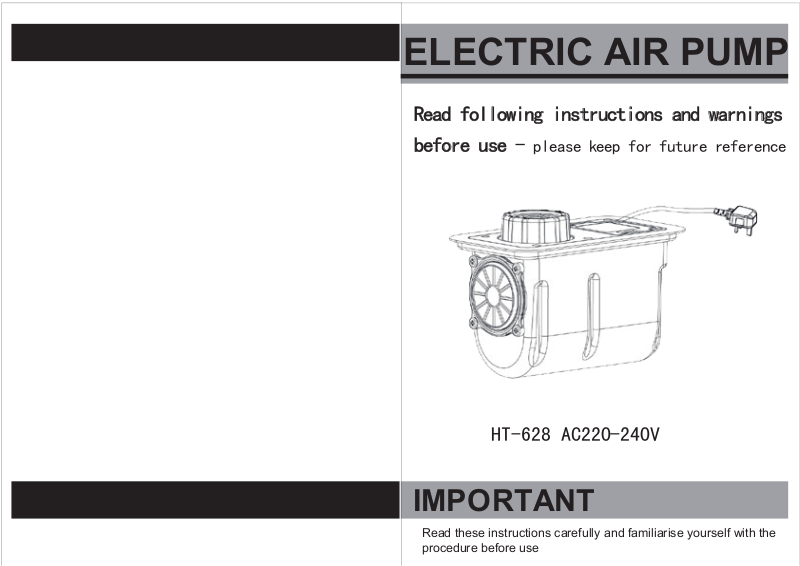

Page 1
ELECTRIC AIR PUMP
Read following instructions and warnings
before use -
please keep for future reference
HT-628 AC220-240V
TNATR OPMI
Read these instructions carefully and familiarise yourself with the
procedure before use
Page 2
IMPORTANT SAFETY INSTRUCTIONS
Read all instruction before use and keep for future reference.
1
Power supply must be AC 220V ~ 240V
This pump is not designed for continuous use
Extended operation over 5 minutes can overheat and damage the pump
Keep the air pump out of the reach of children
Do not obstruct the inflation / deflation port and keep them ventilated all
the time
To reduce the risk of fire or electric shock, do not use this fan with any
solid – state speed control device.
IMPORTANT
4
Where possible recycle unwanted materials instead of disposing
of them as waste.All parts and package should be sorted,taken
to a recycling center and disposed of in an environmentally friendly
manner.
Unplug from outlet when not in
This appliance has a polarized plug. To reduce the risk of electric shock,
this plug is intended to fit in a polarized outlet only one way, if the plug
does not fit fully in the outlet, reverser the plug. If it still does not fit contact
a qualified electrician, Do not attempt to defeat this safety feature
This pump have limiting temperature protection,
long time, it will lead to overheat and stop working to protect the pump.
Please take a break for 30 minutes before you next use.
use and before cleaning or servicing
when the pump working
1
Page 3
IMPORTANT SAFETY INSTRUCTIONS
USE INSTRUCTIONS
2
To reduce the risk, contact qualified electrician to repair or replace the damage
cord immediately
Carefully follow the instruction on inflatable item when inflating
Never exceed recommended pressure,otherwise,serious injury might be
caused by the bursting item
Never leave pump unattended while the pump is in use
Do not keep / use the pump in wet condition
Never allow sands, small rocks, etc. to be sucked into inflation / deflation port
when using the pump
Never look inside or point the inflation / deflation port towards eyes when the
pump is working
Stop at least 30 minutes after continuous use for 5 minutes
To reduce the risk of fire or electric shock, do not use this fan with any solid state speed control device
Never attempt to put hand or fingers into the inflation / deflation port at any
time
Do not disconnect the pump with wet hands and do not to force the supply cord
Do not move the pump with aid of supply cord
If the pump is not used, please turn off
Do not use or stop the use if the pump is damaged, especially the supply cord
and the case
The airbed may be wiped clean using a mild cleaning solution and a damp cloth.
Do not use bleach. Do not use harsh or abrasive cleaners.
A periodically maintenance of the pump is necessary
The airbed do not put down near hot surfaces,eg.hotplate,oven etc.Because
the material can smelt
The pump should not be impeded by covering the ventilation openings with
items, such as newspaper, table - cloths, curtains, etc.
WARNING
3
Open the wire box cover, connect power plug into AC 220V - 240V power supply.Turn the
arrow to INFLATE port(FIG1), then the pump starts to work,After the air bed fully inflated,turn
off the switch.Make sure the arrow at “OFF”when close(FIG3).In order to avoid the wire
breakage,please put the wire into the box after using.
OFF
4
Open the wire box cover , connect the power plug into AC 220V - 240V power supply.Turn the
arrow to DEFLATE port(FIG2),then the pump starts deflate. Turn off the switch after deflating.
Make sure the arrow at “OFF” when close(FIG3).In order to avoid the wire breakage,please put
the wire into wire box after using.
TO INFLATE ITEMS
INFLATE
AT
DEFALTE
(FIG1)
OFF
INFLATE
DEFALTE
(FIG2)
TO DEFLATE ITEMS
INFLATE
OFF
T
DEFALTE
(FIG3)
Technical Data
Model No
Marterial
Power
Input Volt
Pressure
HT - 628
ABS
130W
AC 220V - 240V
0.46PSI
2
Airflow
350L/Min
3
Page 4
Guarantor: Argos Limited
489 - 499 Avebury Boulevard
Central Milton Keynes
MK9 2NW
