Page 1

TRENDnet User’s Guide

Cover Page

Page 2

TRENDnet User’s Guide

Table of Contents

Thank you for purchasing your new TRENDnet PoE Web Smart Switch!

Please note: The scope of this user's guide encompasses multiple products with varying features. Images, artwork, and other specificities including port count, interfaces etc. may not be identical to the model you purchased. Please consult the specific model specifications for your unit for a full list of supported features.

Table of Contents

PoE Web Smart Switch Series Product Overview ............................. 1

TEG-3102WS Overview .................................................................................................. 1

Package Contents ............................................................................................................... 1

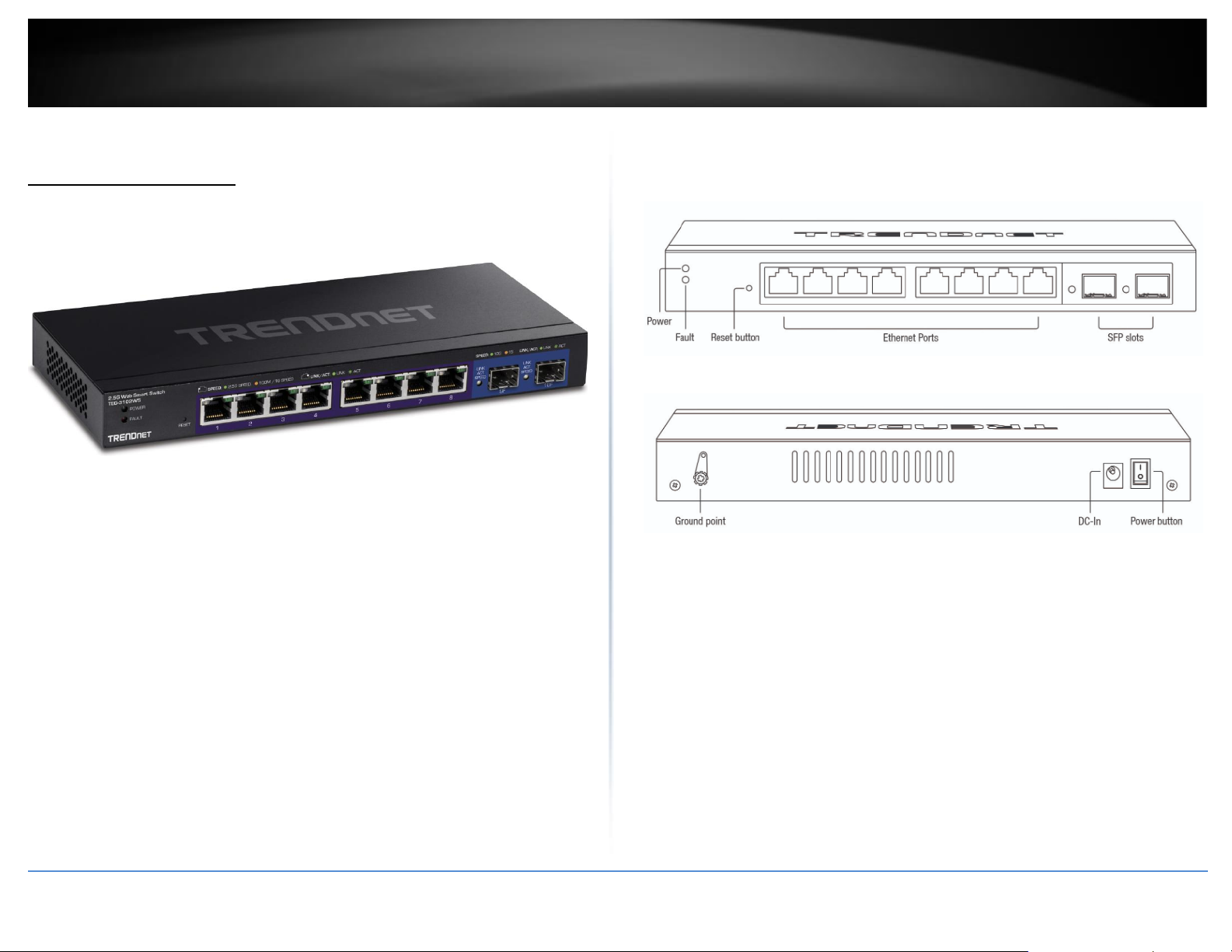

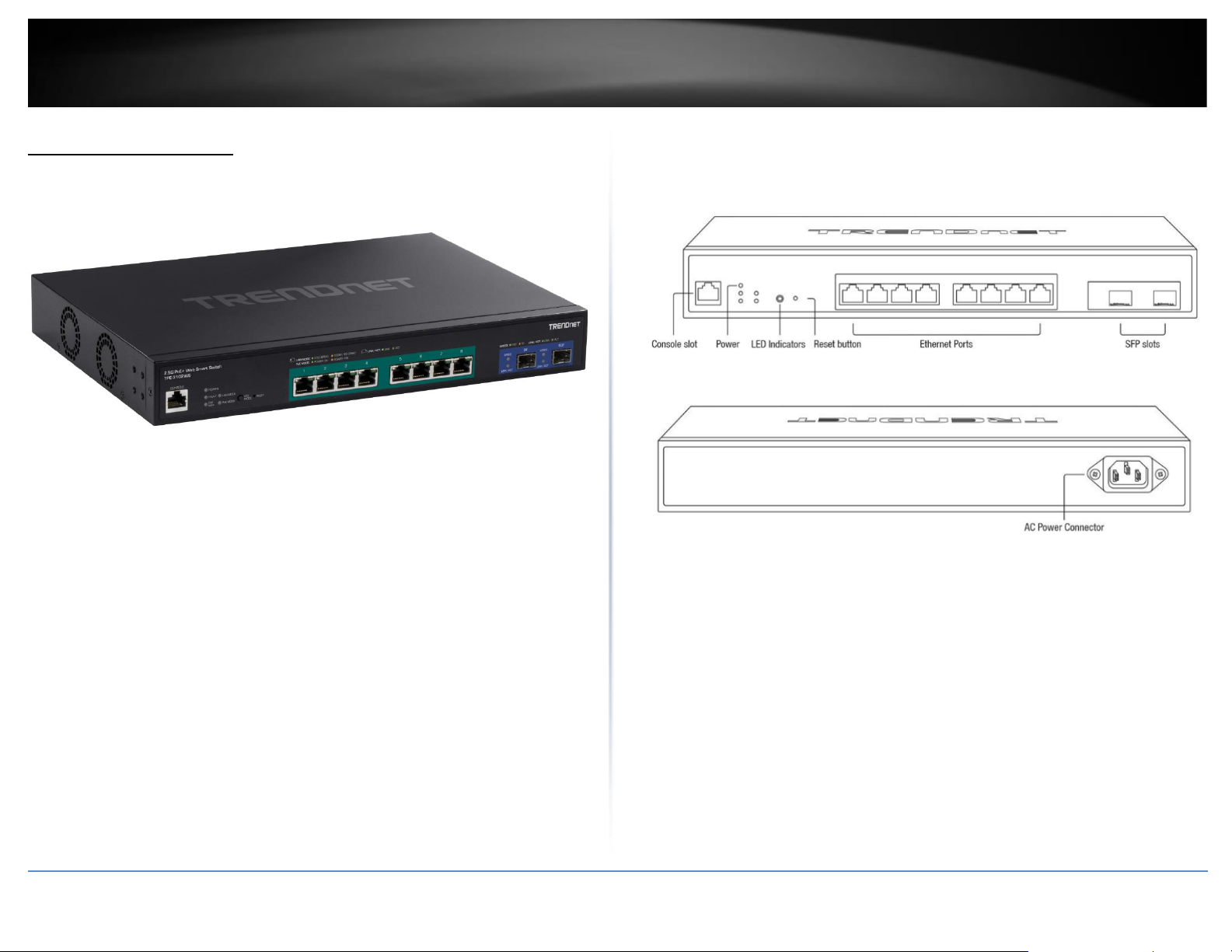

TPE-3102WS Hardware Features ....................................................................................... 1

TPE-3102WS Overview .................................................................................................. 3

Package Contents ............................................................................................................... 3

TPE-3102WS Hardware Features ....................................................................................... 3

TPE-3524S / TPE-3524SF Overview ............................................................................... 5

Package Contents ............................................................................................................... 5

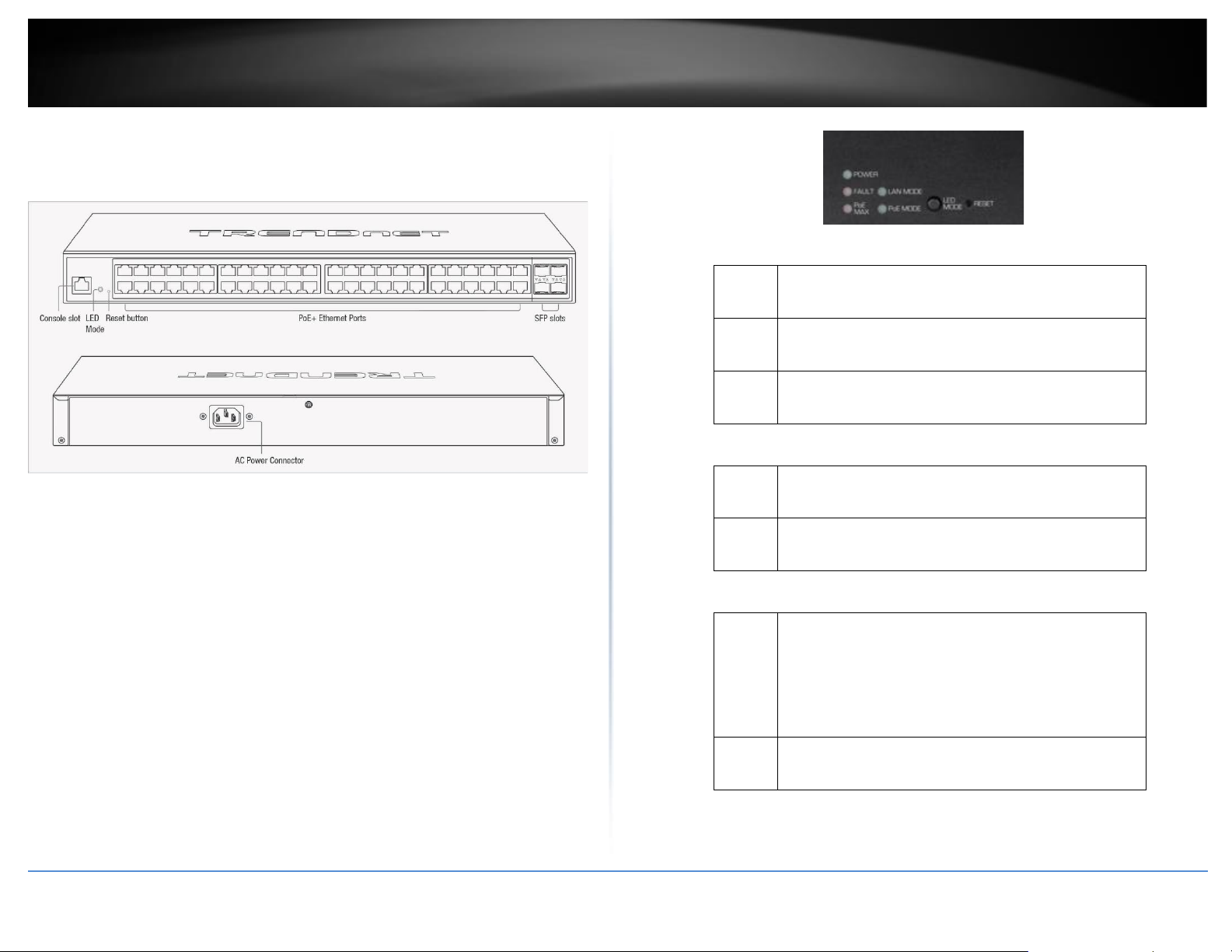

TPE-3524S / TPE-3524SF Hardware Features .................................................................... 6

TEG-7124WS Overview .................................................................................................. 8

Package Contents ............................................................................................................... 8

TEG-7124WS Hardware Features ...................................................................................... 8

TEG-3524S Overview ................................................................................................... 10

Package Contents ............................................................................................................. 10

TEG-3524S Hardware Features ........................................................................................ 10

Switch Installation ........................................................................ 12

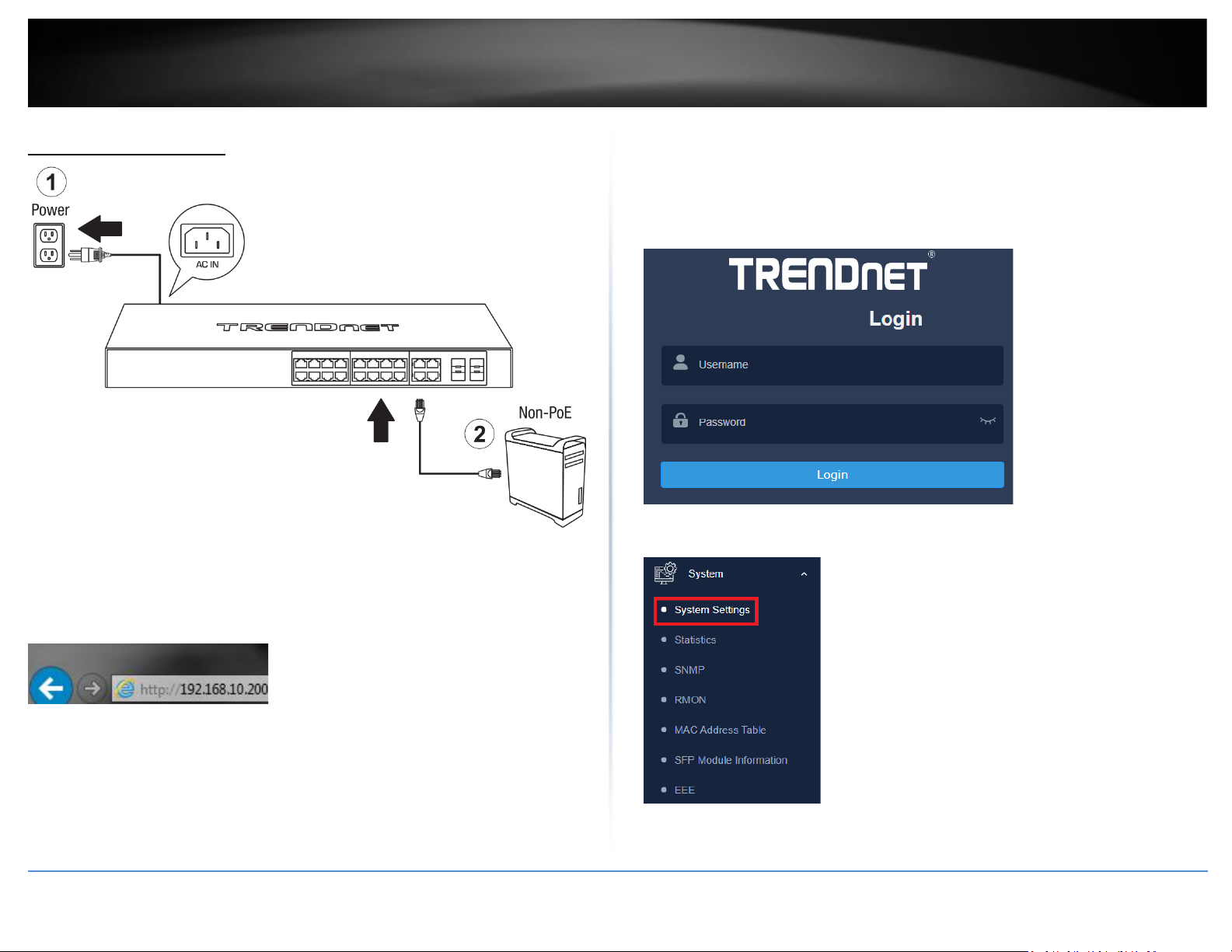

Desktop Hardware Installation .................................................................................... 12

Rack Mount Hardware Installation .............................................................................. 12

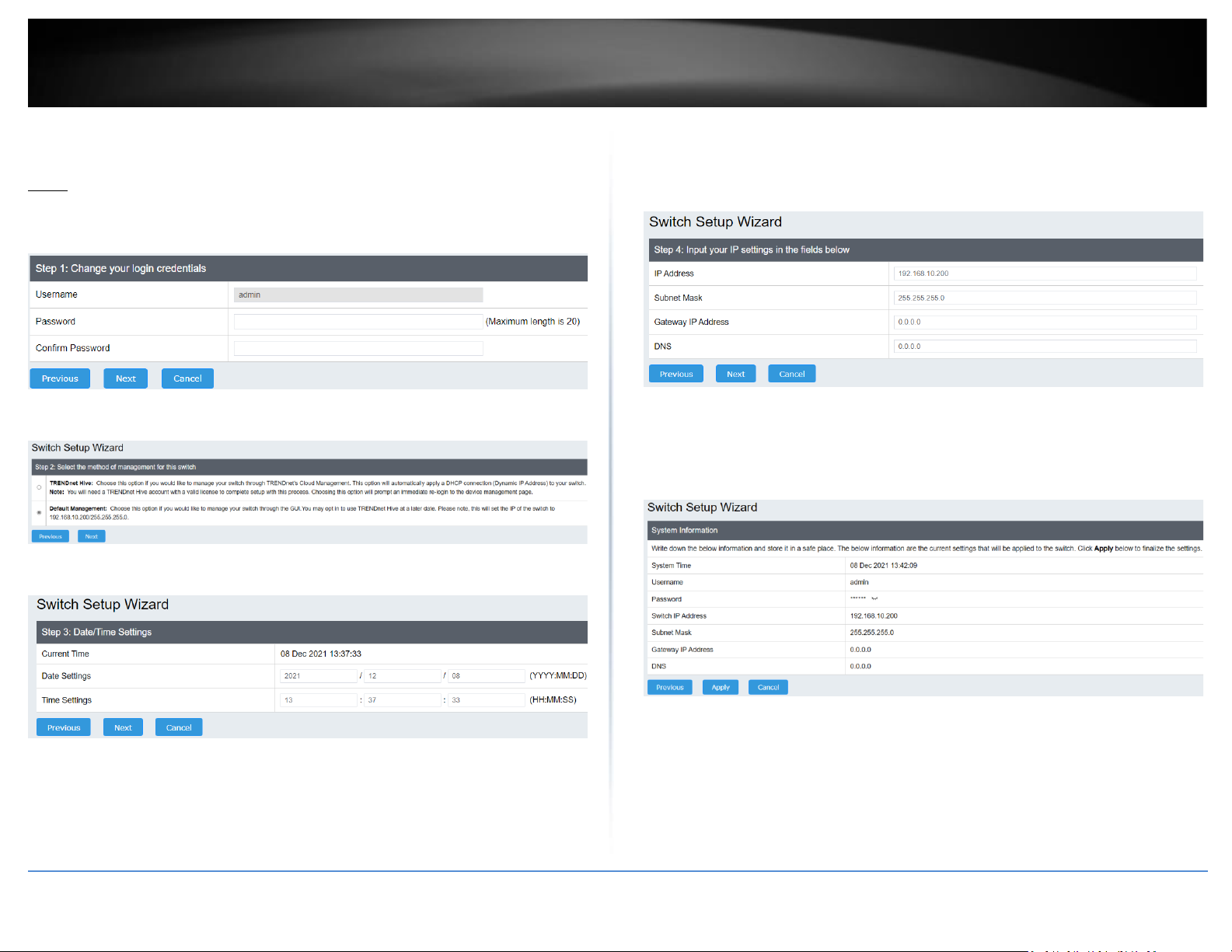

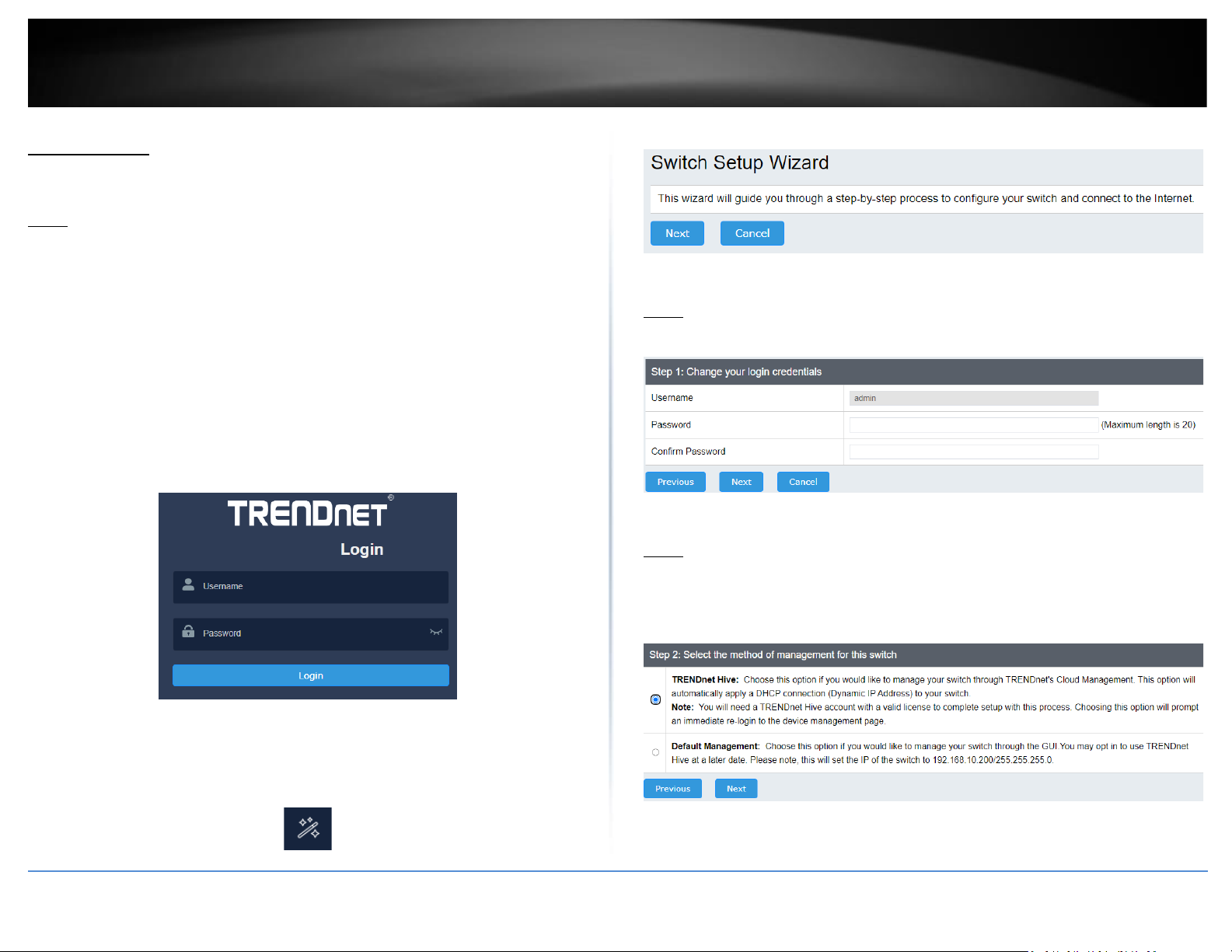

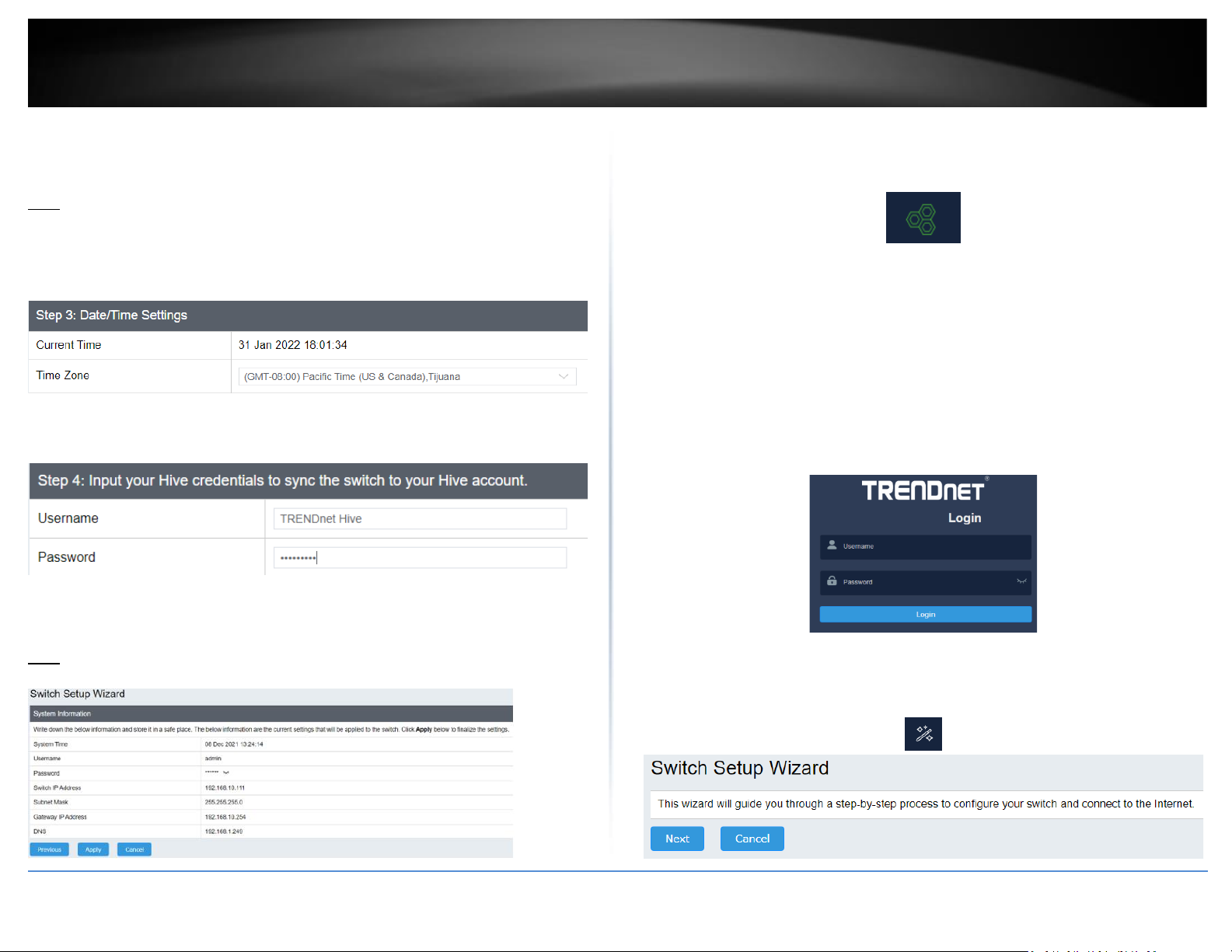

Setup Wizard ............................................................................................................... 13

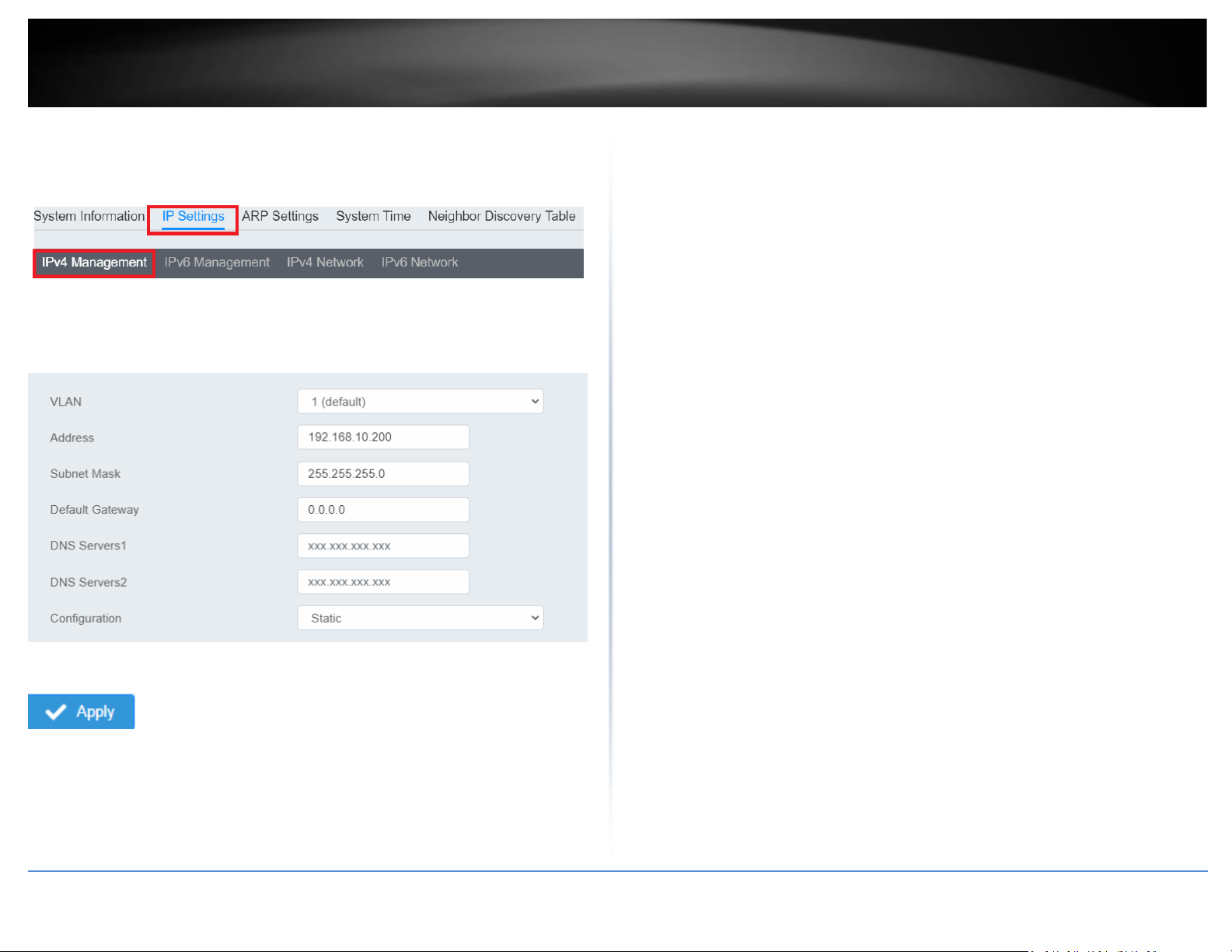

Basic IP Configuration .................................................................................................. 16

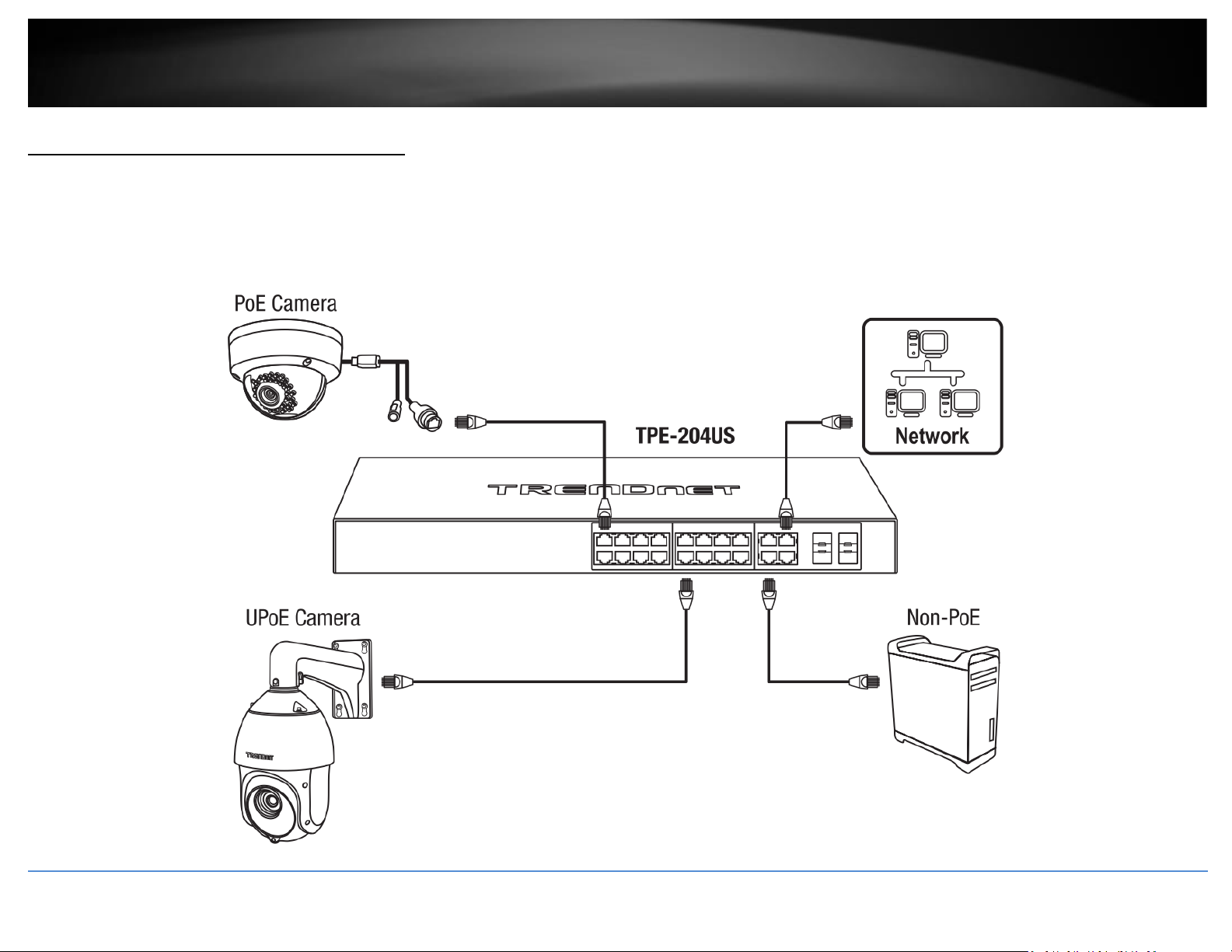

Connect additional devices to your switch .................................................................. 18

Access your switch management page........................................................................ 19

Dashboard ................................................................................................................... 19

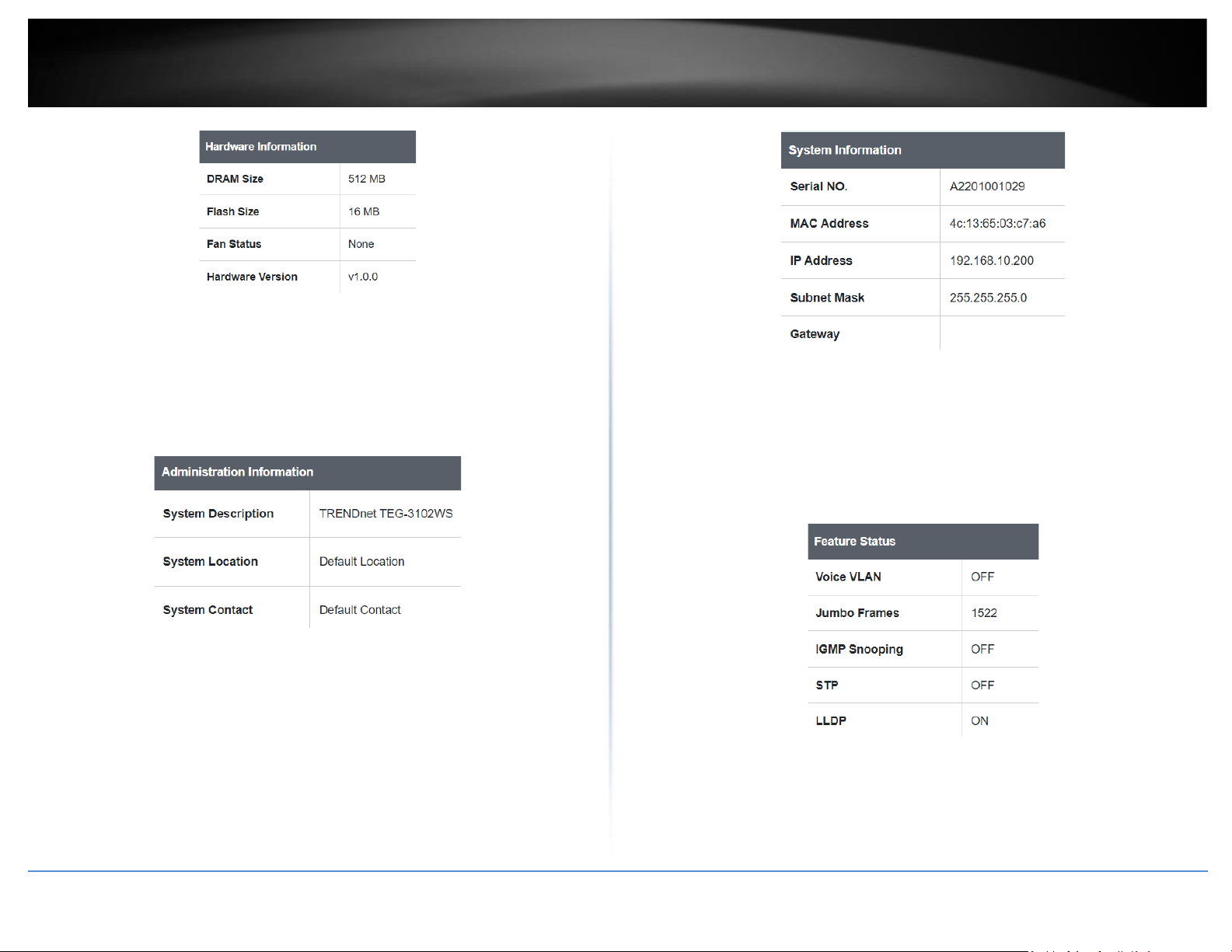

View your switch status information ............................................................................... 19

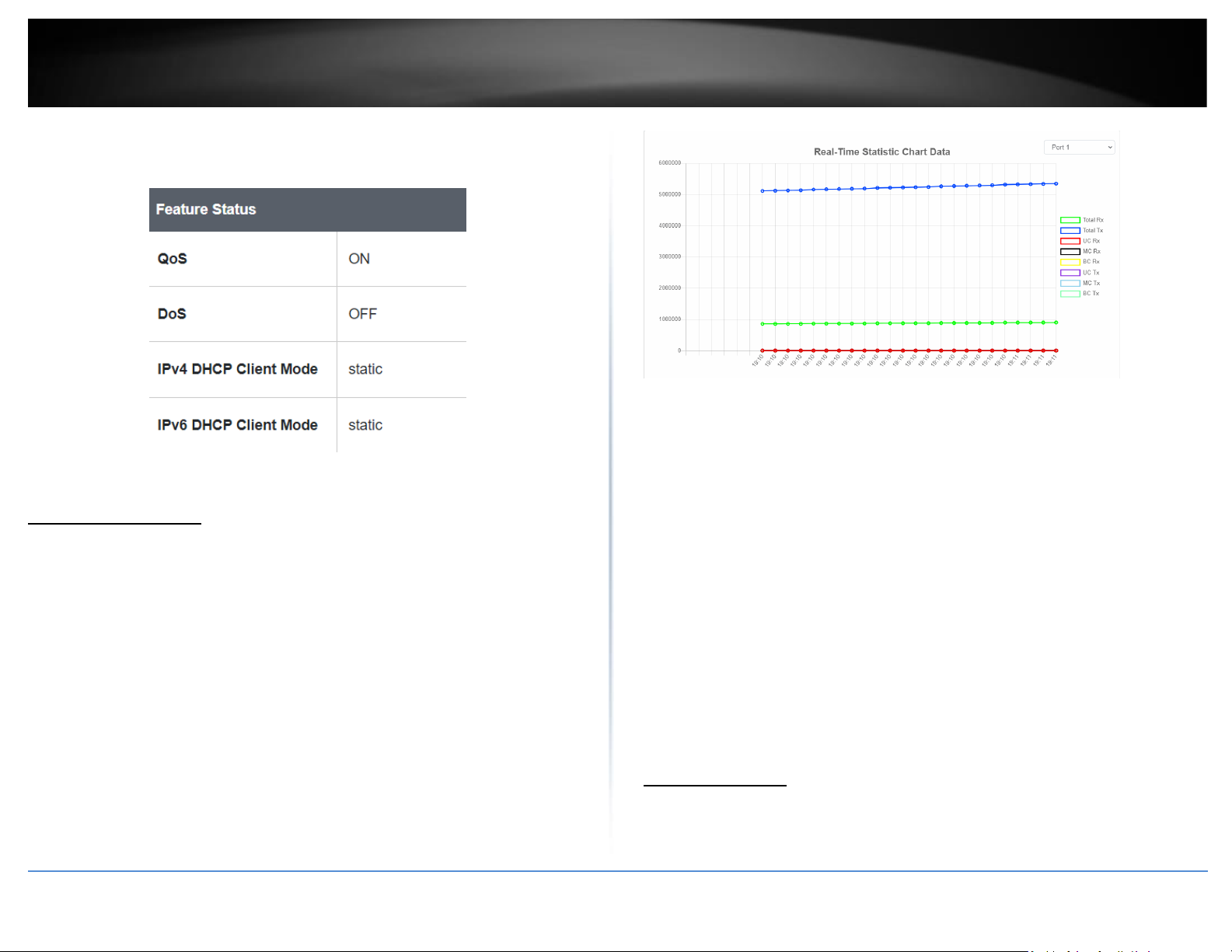

Real-time Statistics ...................................................................................................... 21

View your switch status information ............................................................................... 21

Page 3

TRENDnet User’s Guide

Table of Contents

System .......................................................................................... 21

System Settings ............................................................................................................ 21

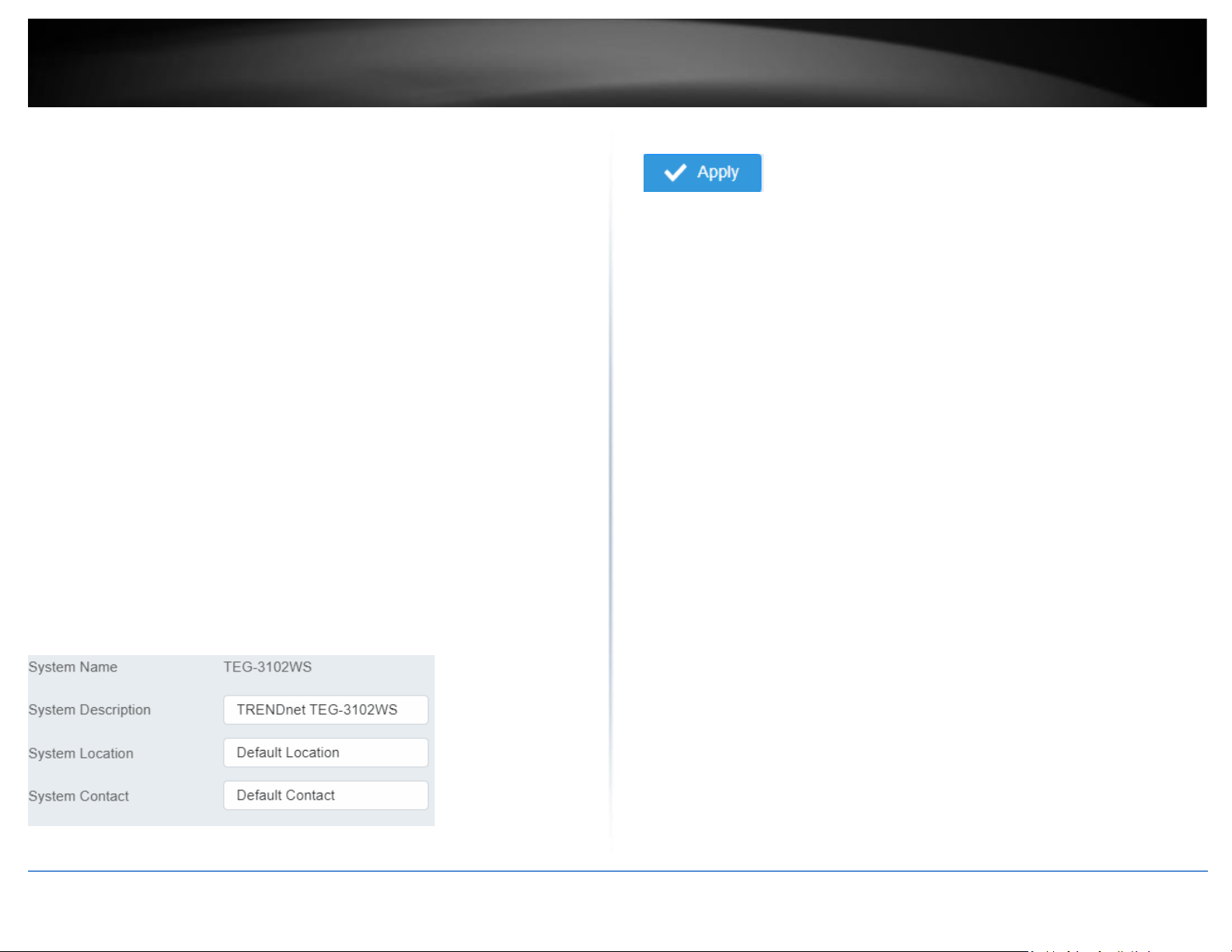

Set your system information ............................................................................................ 21

L3 Feature .................................................................................................................... 23

IPv4 Interface ................................................................................................................... 23

IPv4 ARP Aging Time ........................................................................................................ 24

IPv4 Static ARP ................................................................................................................. 24

System Time ..................................................................................................................... 25

SNMP ............................................................................................ 26

Global Settings ................................................................................................................. 26

User List ............................................................................................................................ 26

Community List ................................................................................................................ 27

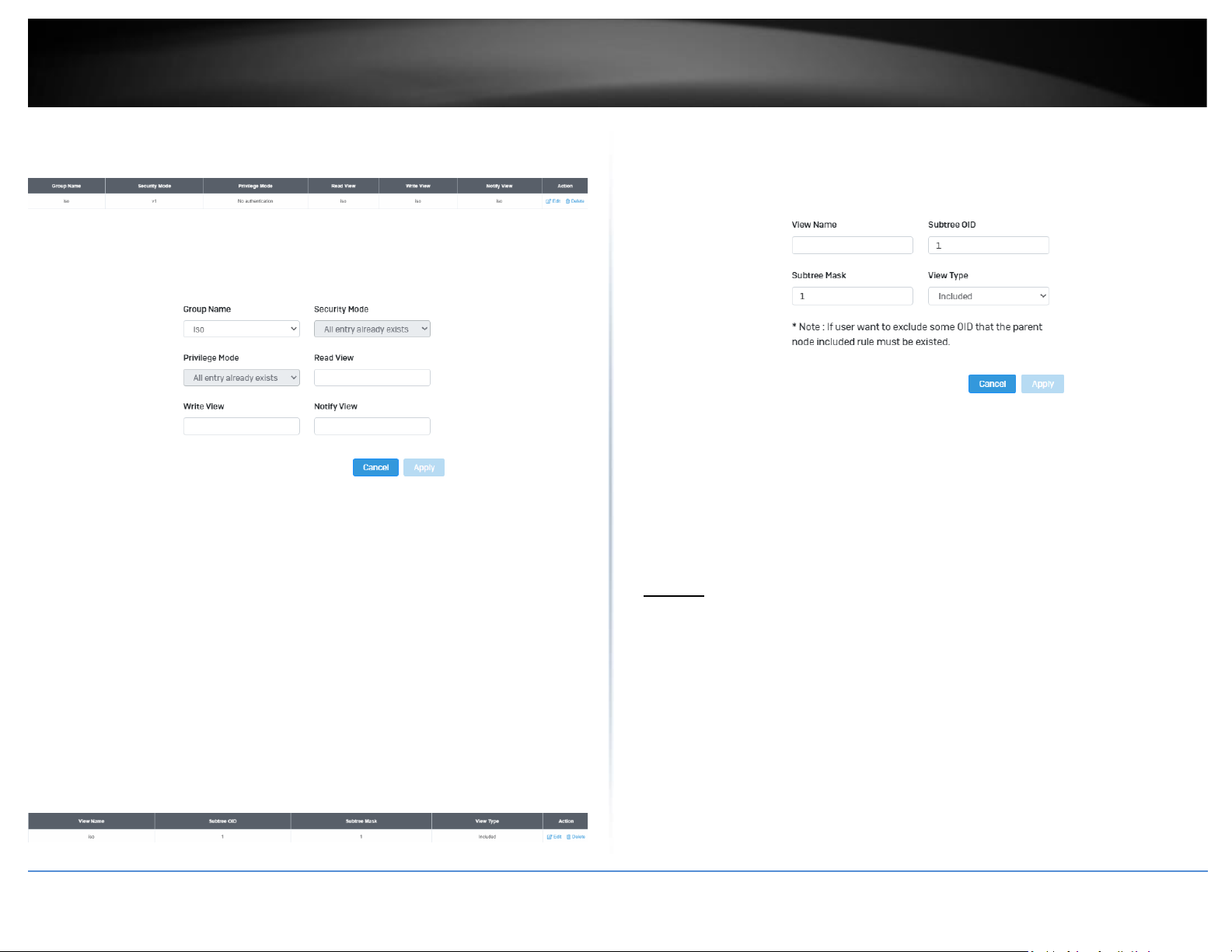

Group List ......................................................................................................................... 27

Access List ........................................................................................................................ 27

View List ........................................................................................................................... 28

RMON .......................................................................................................................... 28

Statistics ........................................................................................................................... 28

Event List .......................................................................................................................... 29

Event Log Table ................................................................................................................ 30

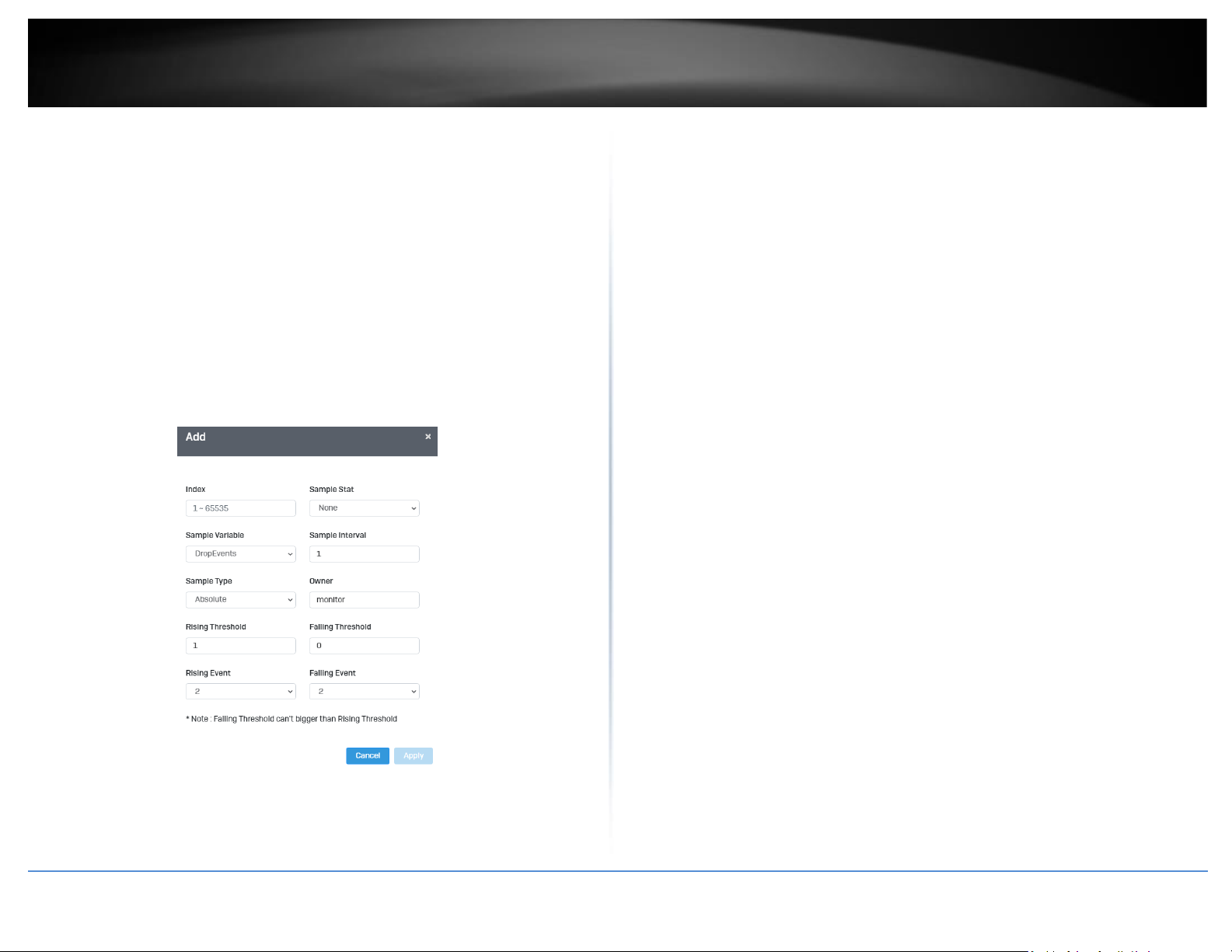

Alarm List ......................................................................................................................... 30

History .............................................................................................................................. 31

History Log Table .............................................................................................................. 32

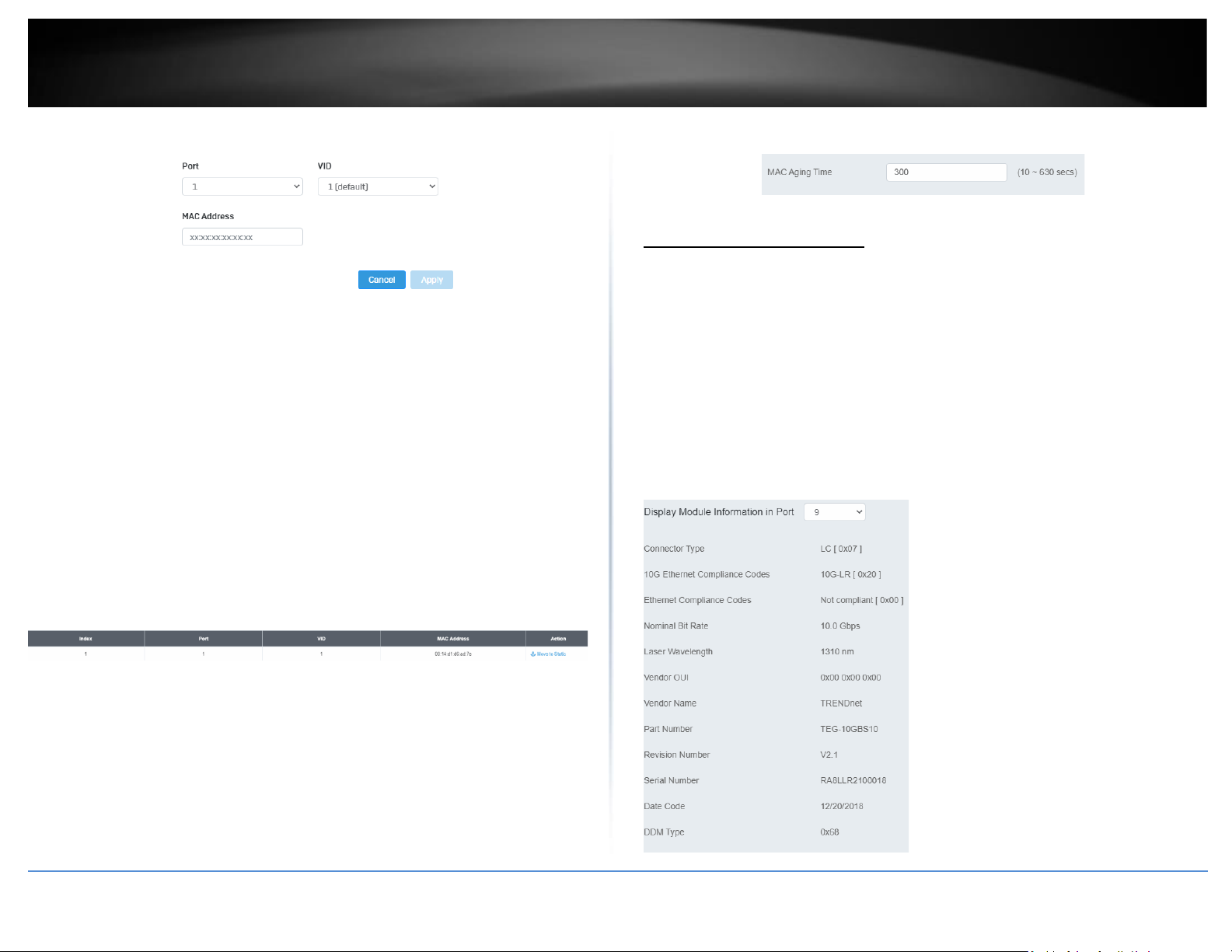

MAC Address Table ...................................................................................................... 32

Static MAC Address .......................................................................................................... 32

Dynamic MAC Address ..................................................................................................... 33

MAC Aging Time ............................................................................................................... 33

SFP Module Information .............................................................................................. 33

Module & DDM ................................................................................................................ 33

IEEE 802.3az EEE .......................................................................................................... 34

Enable IEEE 802.3az Power Saving Mode ........................................................................ 34

Network........................................................................................ 35

Physical Interface......................................................................................................... 35

Configure Physical Interfaces ........................................................................................... 35

Port Isolation .................................................................................................................... 36

Mirroring .......................................................................................................................... 36

Jumbo Frames .................................................................................................................. 37

VLAN Settings .............................................................................................................. 38

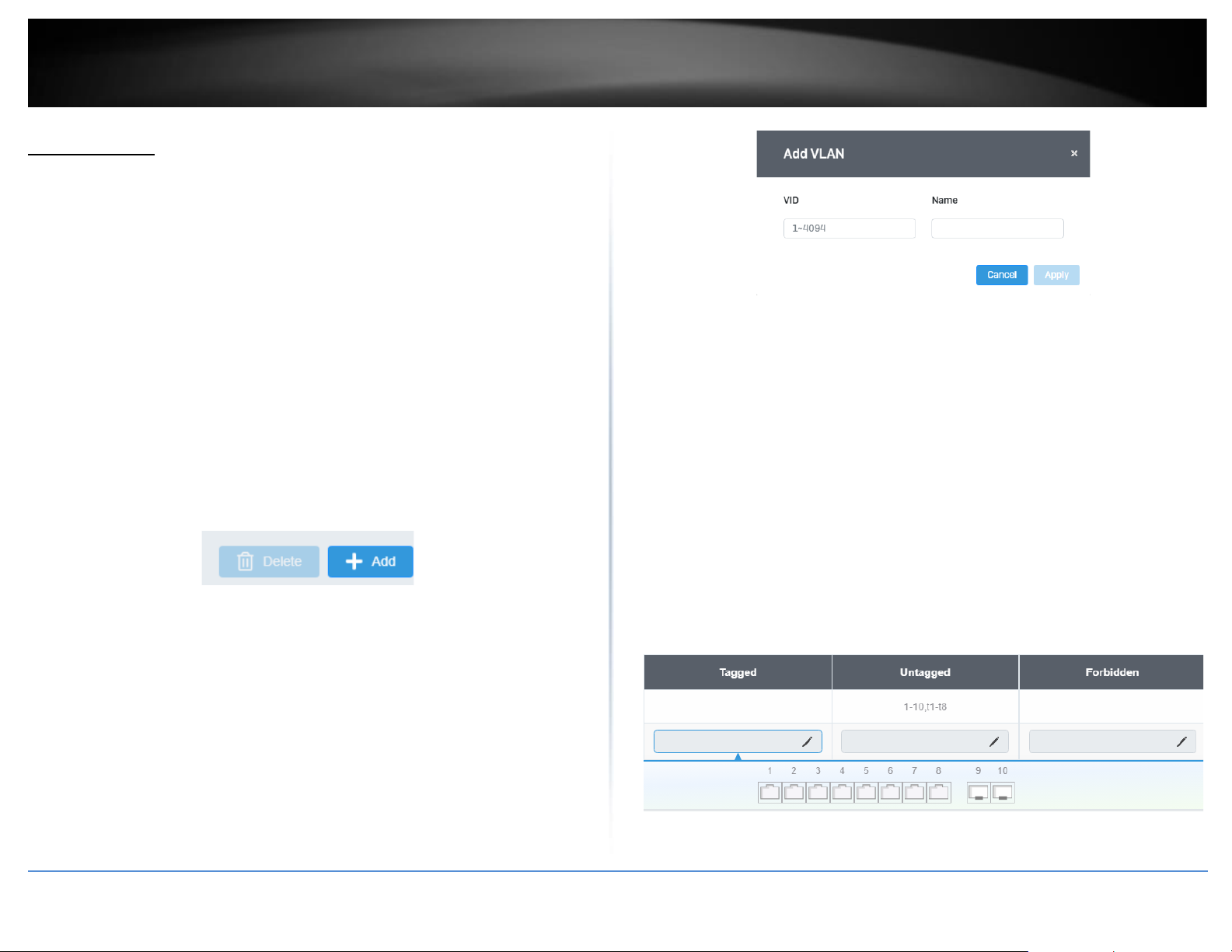

802.1Q VLAN .................................................................................................................... 38

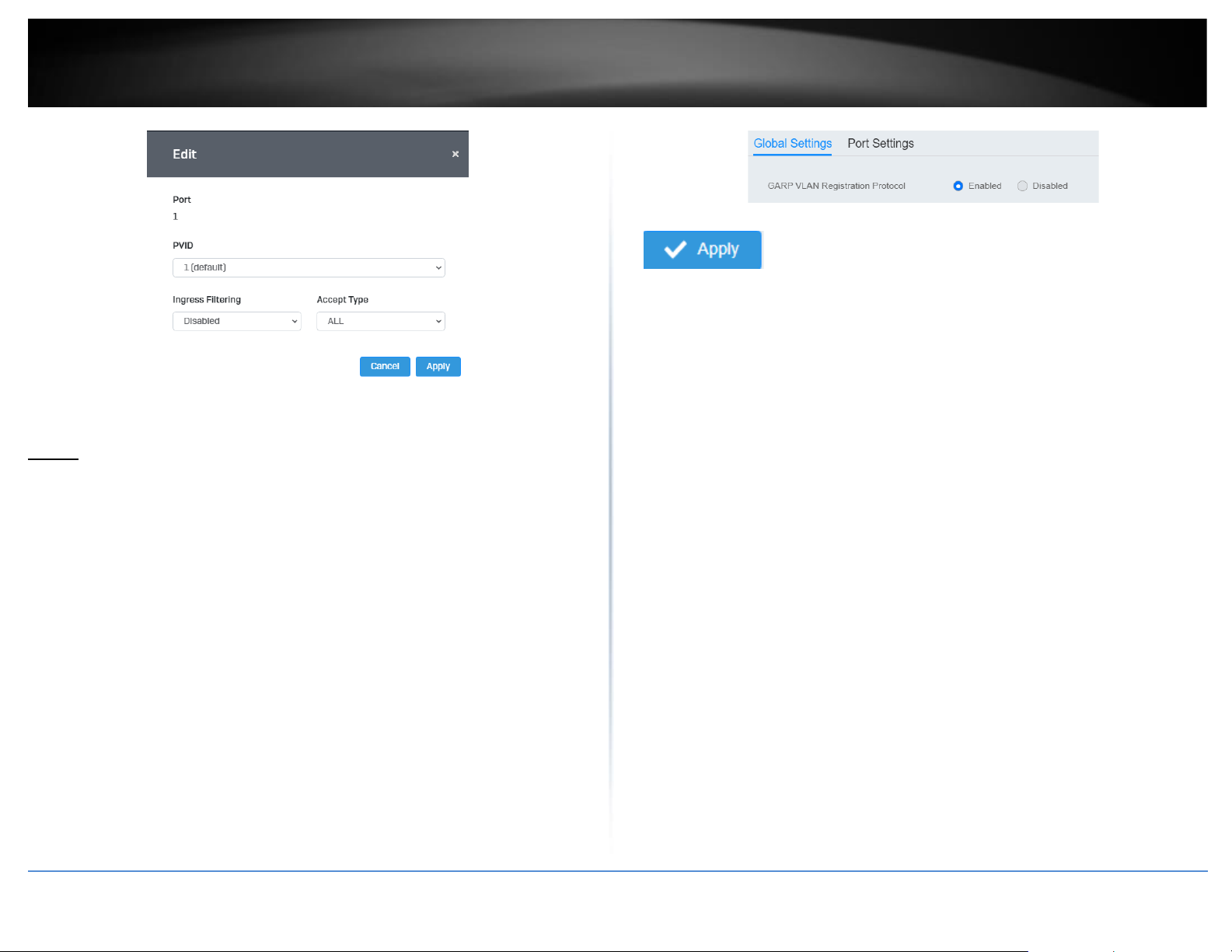

PVID & Ingress Filter ........................................................................................................ 39

GVRP ............................................................................................................................ 40

Protocol ............................................................................................................................ 40

Port Settings ..................................................................................................................... 40

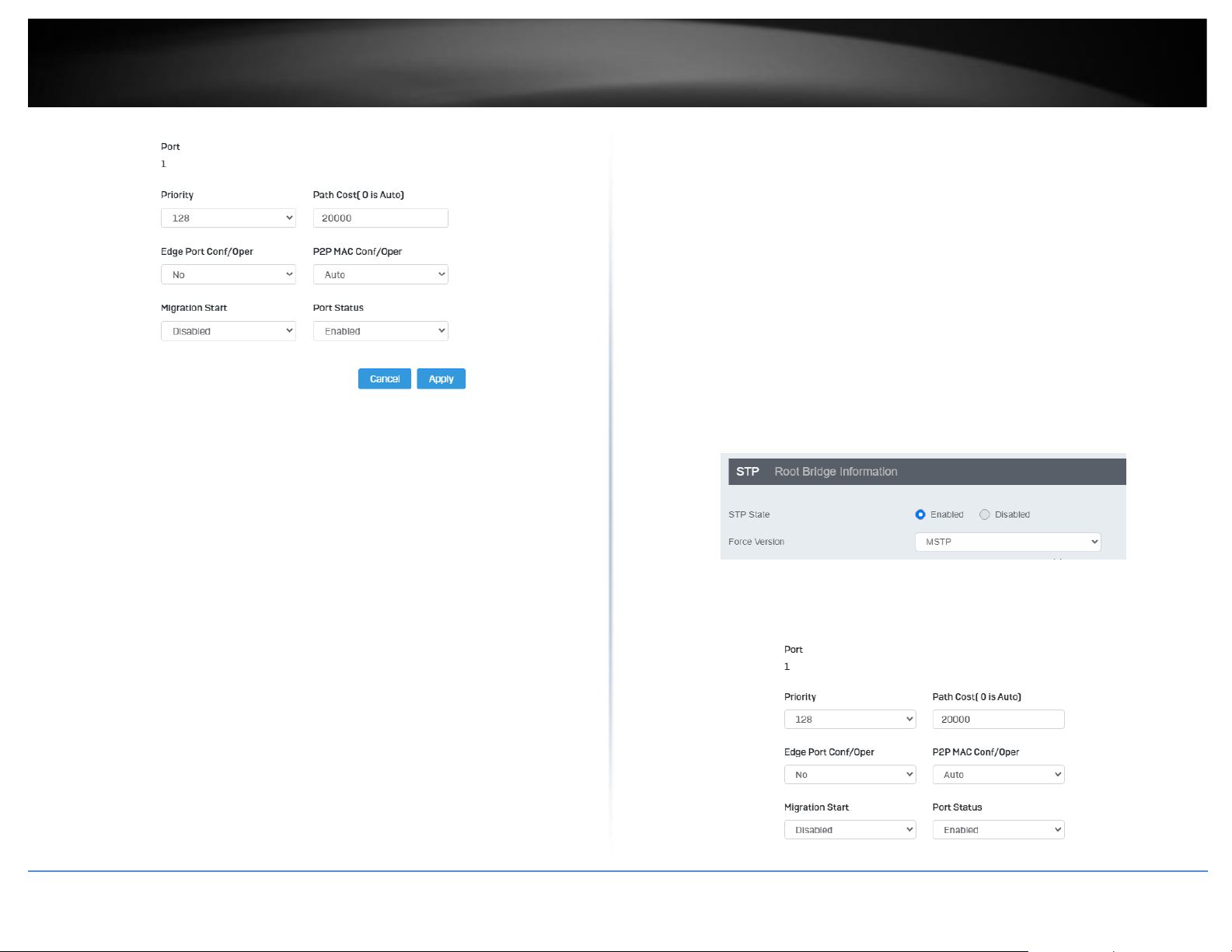

Spanning Tree .............................................................................................................. 41

Protocol ............................................................................................................................ 41

Root Bridge Information .................................................................................................. 42

RSTP Port Settings ............................................................................................................ 42

CIST Port Settings ............................................................................................................. 43

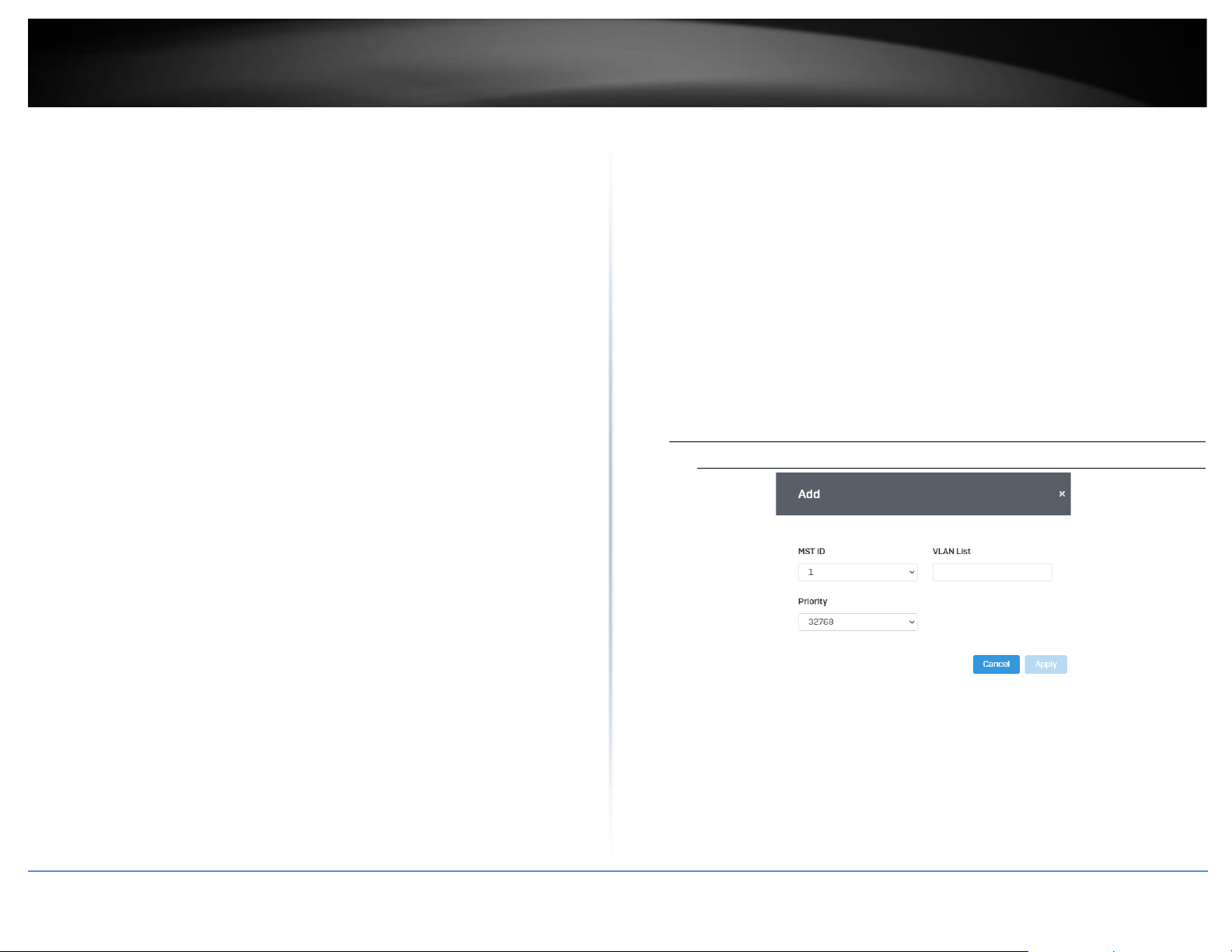

MST .................................................................................................................................. 44

MST Port Settings ............................................................................................................. 45

Trunk ............................................................................................................................ 46

Settings ............................................................................................................................ 46

LACP ................................................................................................................................. 46

LACP Timeout ................................................................................................................... 47

IGMP Snooping ............................................................................................................ 47

Global Settings ................................................................................................................. 47

Fast Leave ........................................................................................................................ 47

VLAN Settings ................................................................................................................... 48

Querier Settings ............................................................................................................... 48

Router Settings ................................................................................................................ 49

MLD Snooping ............................................................................................................. 49

Global Settings ................................................................................................................. 49

Fast Leave ........................................................................................................................ 49

VLAN Settings ................................................................................................................... 50

Querier Settings ............................................................................................................... 50

Page 4

TRENDnet User’s Guide

Table of Contents

Router Settings ................................................................................................................. 50

Loopback Detection ..................................................................................................... 51

Global Settings ................................................................................................................. 51

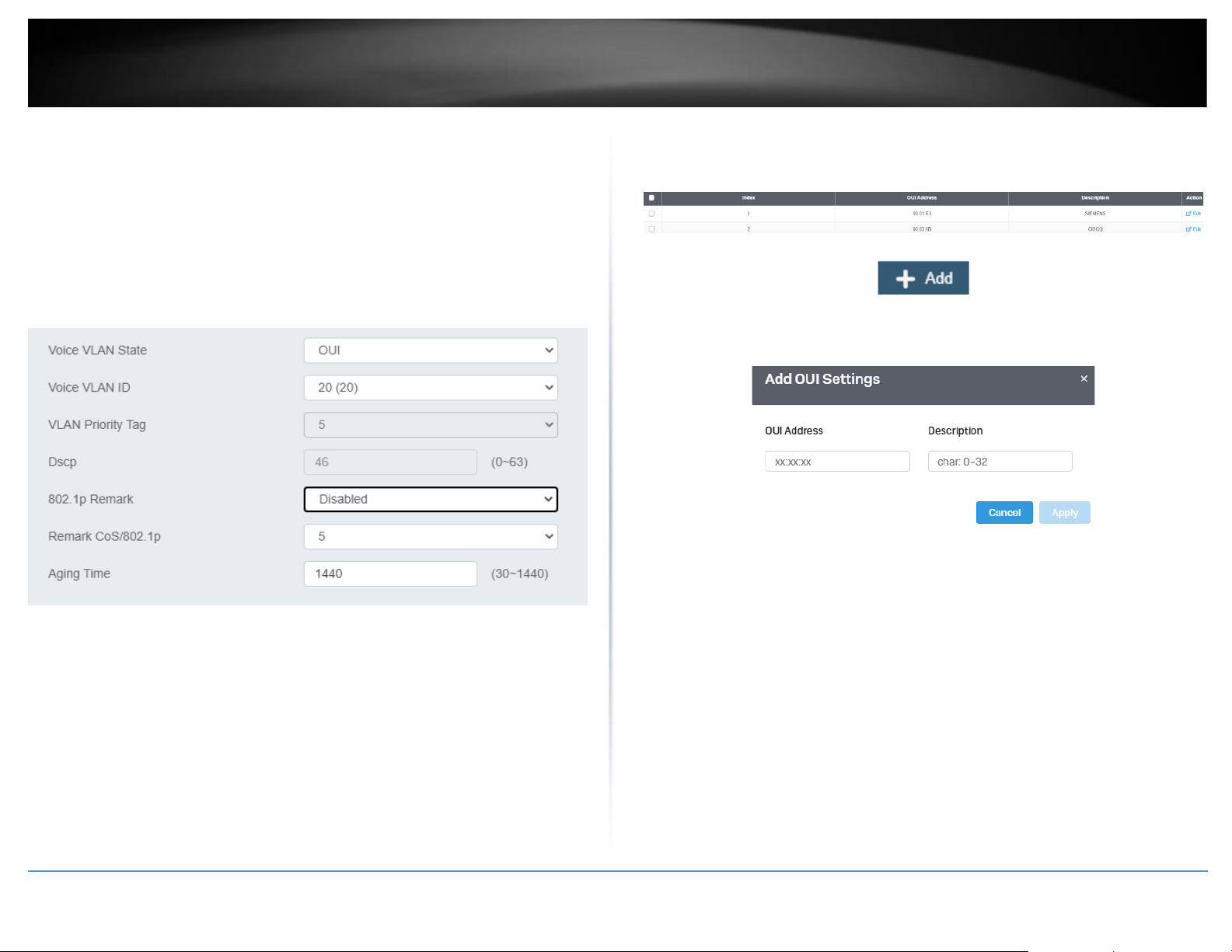

Voice VLAN .................................................................................................................. 51

Global Settings ................................................................................................................. 52

OUI Settings ..................................................................................................................... 53

Port Settings ..................................................................................................................... 53

LLDP ............................................................................................................................. 54

Enable and configure LLDP ............................................................................................... 54

Settings............................................................................................................................. 54

Multicast Filtering ........................................................................................................ 55

Enable Multicast Filtering ................................................................................................ 55

Administration ............................................................................................................. 55

Changing login credentials ............................................................................................... 55

Logs .............................................................................................................................. 56

Settings............................................................................................................................. 56

Remote Logging ............................................................................................................... 56

Log Table .......................................................................................................................... 56

QoS (Quality of Service) ................................................................ 56

Global Settings ............................................................................................................. 57

Set QoS settings ............................................................................................................... 57

CoS ............................................................................................................................... 57

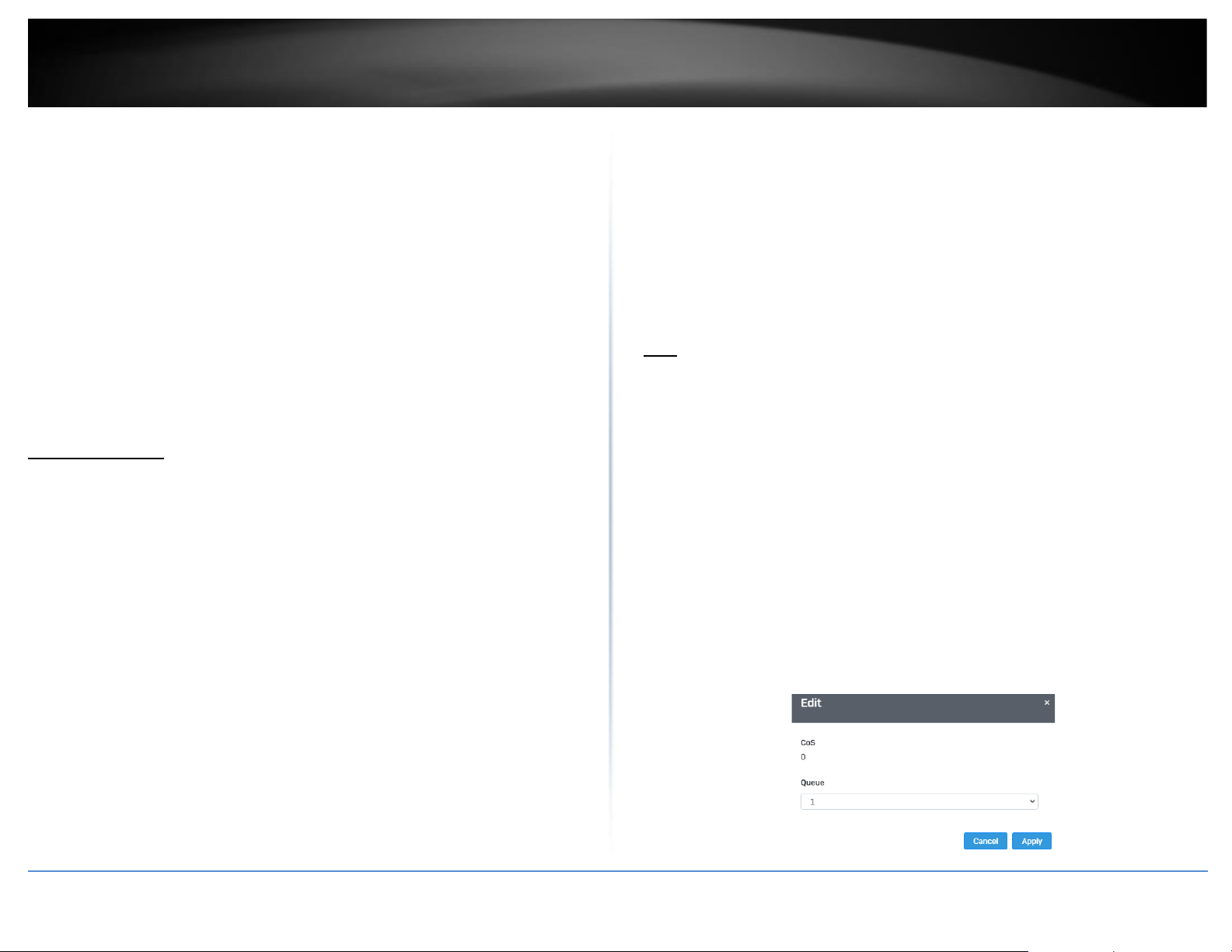

Set CoS priority settings ................................................................................................... 57

DSCP Mapping ............................................................................................................. 58

Set DSCP (Differentiated Services Code Point) Class Mapping settings ........................... 58

Port CoS ....................................................................................................................... 58

Set Port Priority ................................................................................................................ 58

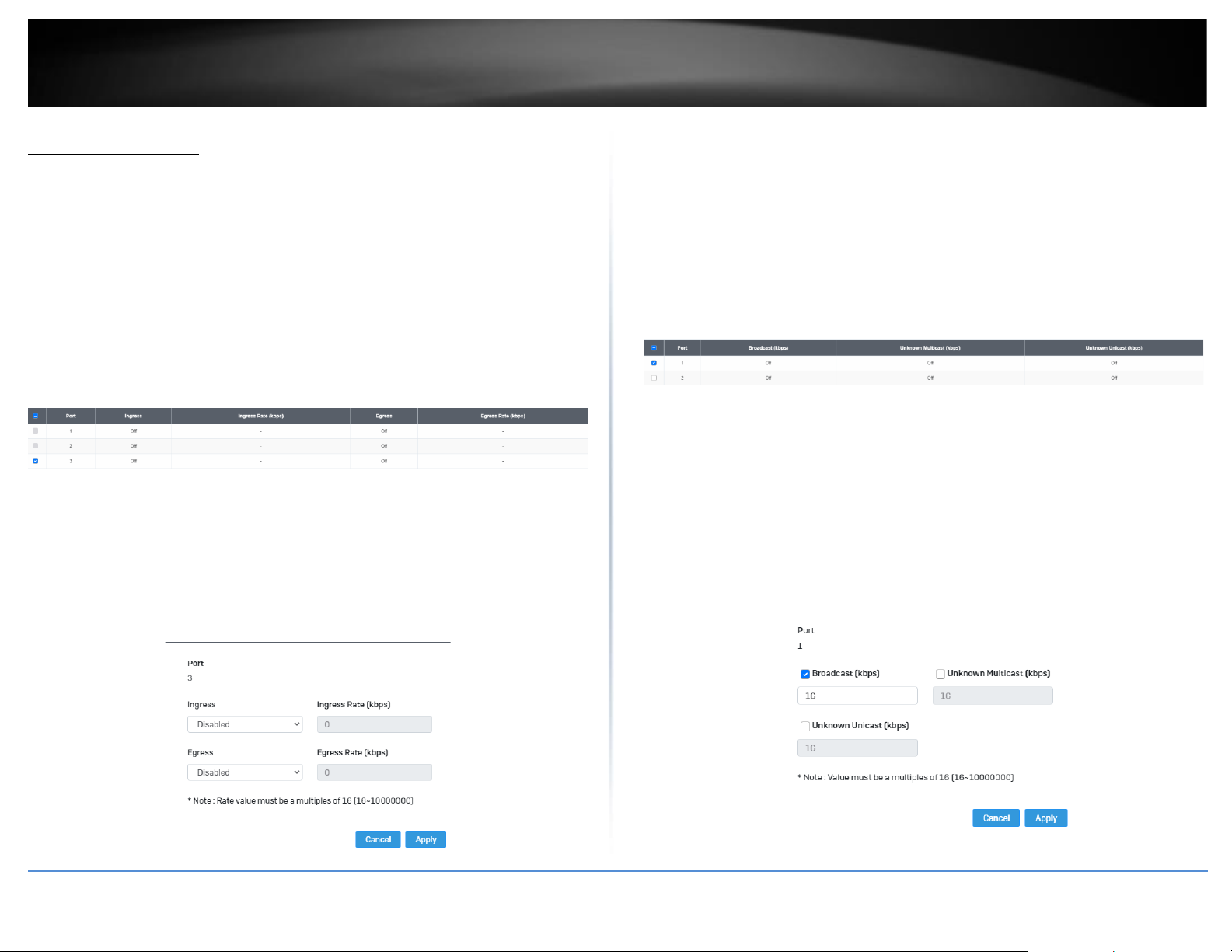

Bandwidth Control ....................................................................................................... 59

Bandwidth Control ........................................................................................................... 59

Storm Control................................................................................................................... 59

PoE (Power over Ethernet) ............................................................ 60

Power over Ethernet ................................................................................................... 60

Configure PoE Budget ...................................................................................................... 61

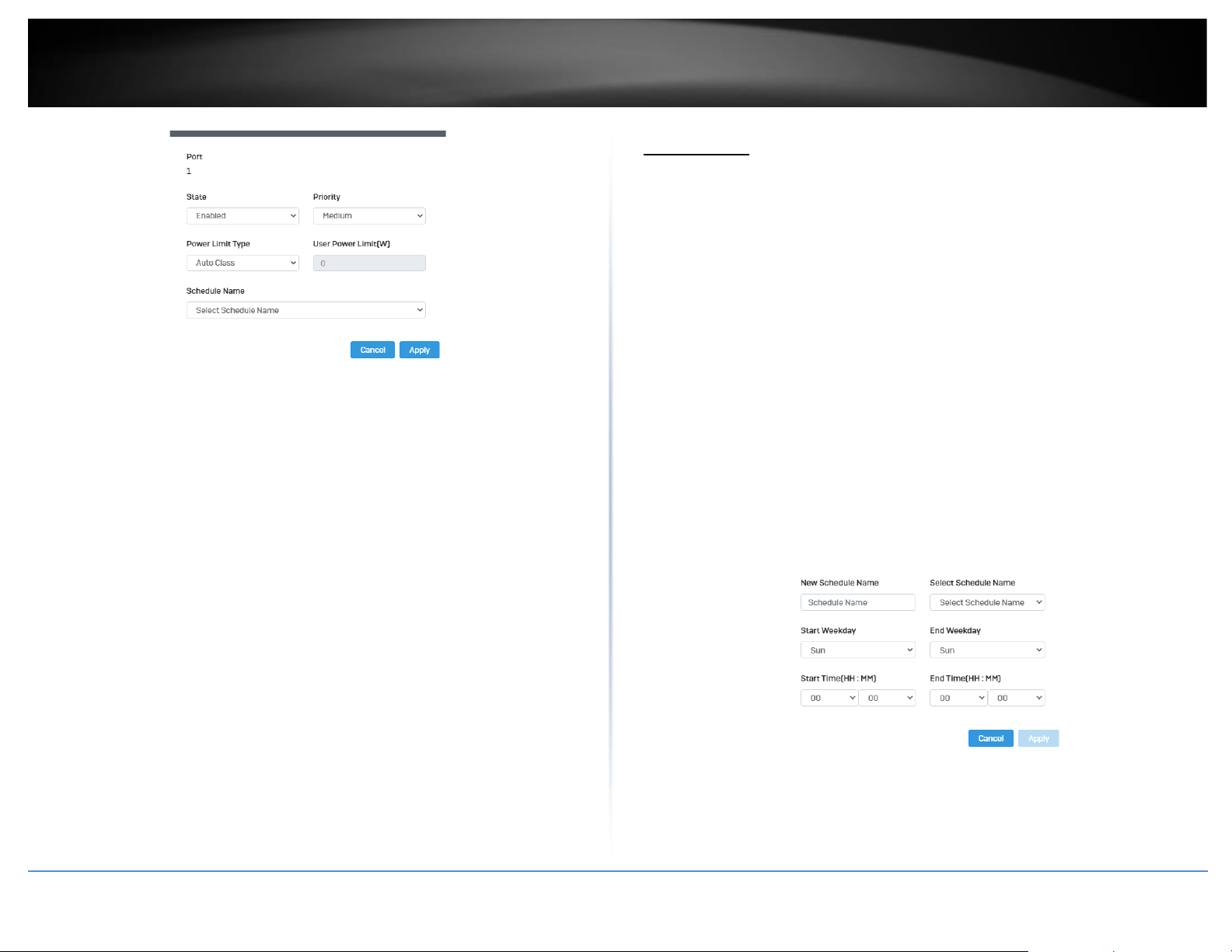

Configure PoE Port Settings ............................................................................................. 61

Flick Reboot ..................................................................................................................... 62

Time Range .................................................................................................................. 62

Configure PoE Time Range ............................................................................................... 62

PD Lifeguard ................................................................................................................ 63

Configure PD Alive Check ................................................................................................. 63

Advanced Configuration .................................................................................................. 63

Security ........................................................................................ 64

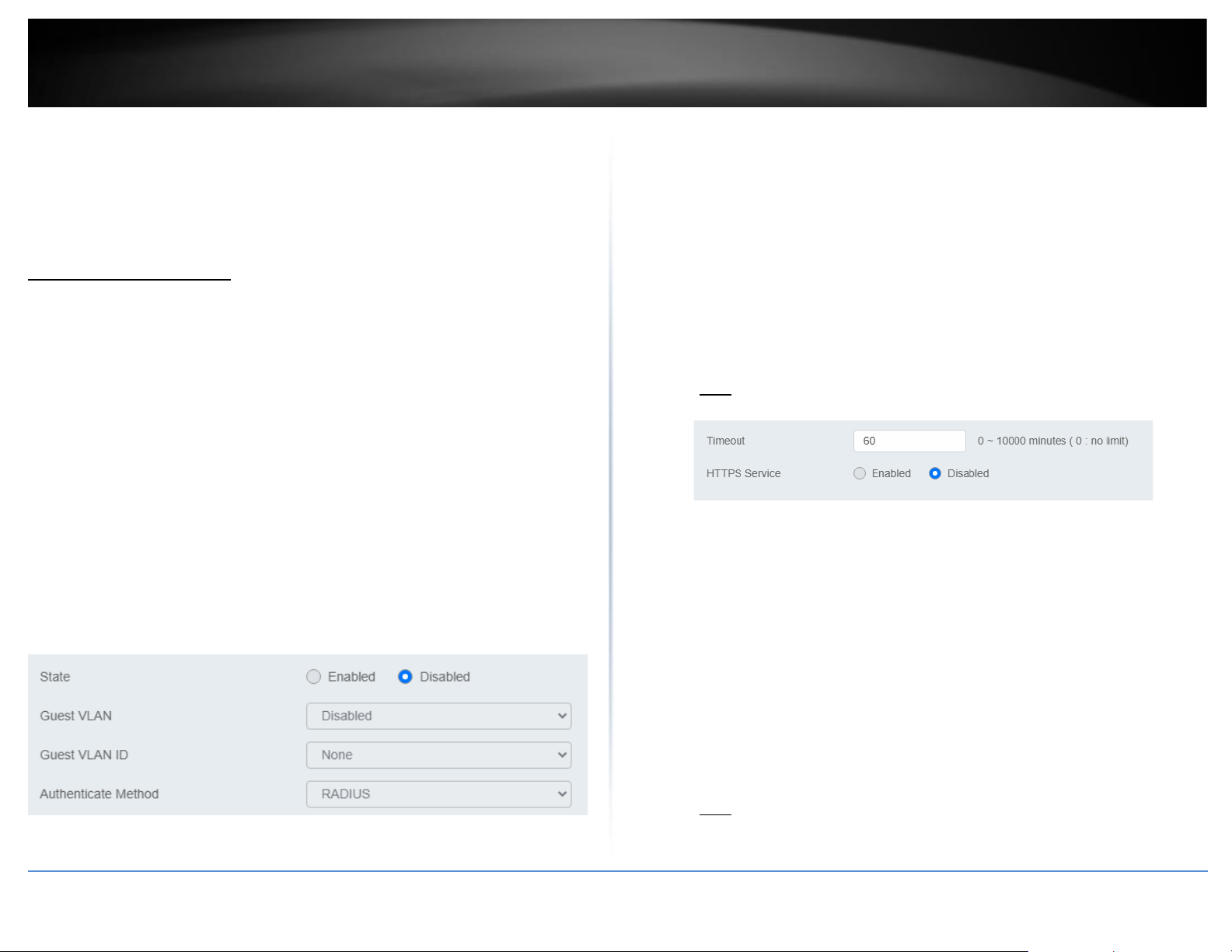

802.1X Authentication ................................................................................................. 64

Set 802.1X ........................................................................................................................ 64

Timeout ............................................................................................................................ 64

CLI Timeout ...................................................................................................................... 64

Port Security..................................................................................................................... 65

Access Control: Creating MAC ACL .................................................................................. 65

Access Control: Configuring MAC ACL ............................................................................. 65

Access Control: Creating IPv4 ACL ................................................................................... 66

Access Control: Configuring IPv4 ACL .............................................................................. 66

Access Control: Creating IPv6 ACL ................................................................................... 67

Access Control: Configuring IPv6 ACL .............................................................................. 67

Port Binding ..................................................................................................................... 68

Dial-in User .................................................................................................................. 68

Create Dial-In Users (Local Authentication Method) ....................................................... 68

RADIUS ......................................................................................................................... 69

Add Radius Servers (RADIUS Authentication Method) .................................................... 69

TACACS+ ...................................................................................................................... 69

Add TACACS+ Servers (TACACS+ Authentication Method) .............................................. 69

Page 5

TRENDnet User’s Guide

Table of Contents

DHCP Snooping ............................................................................................................ 70

Settings............................................................................................................................. 70

VLAN ................................................................................................................................. 71

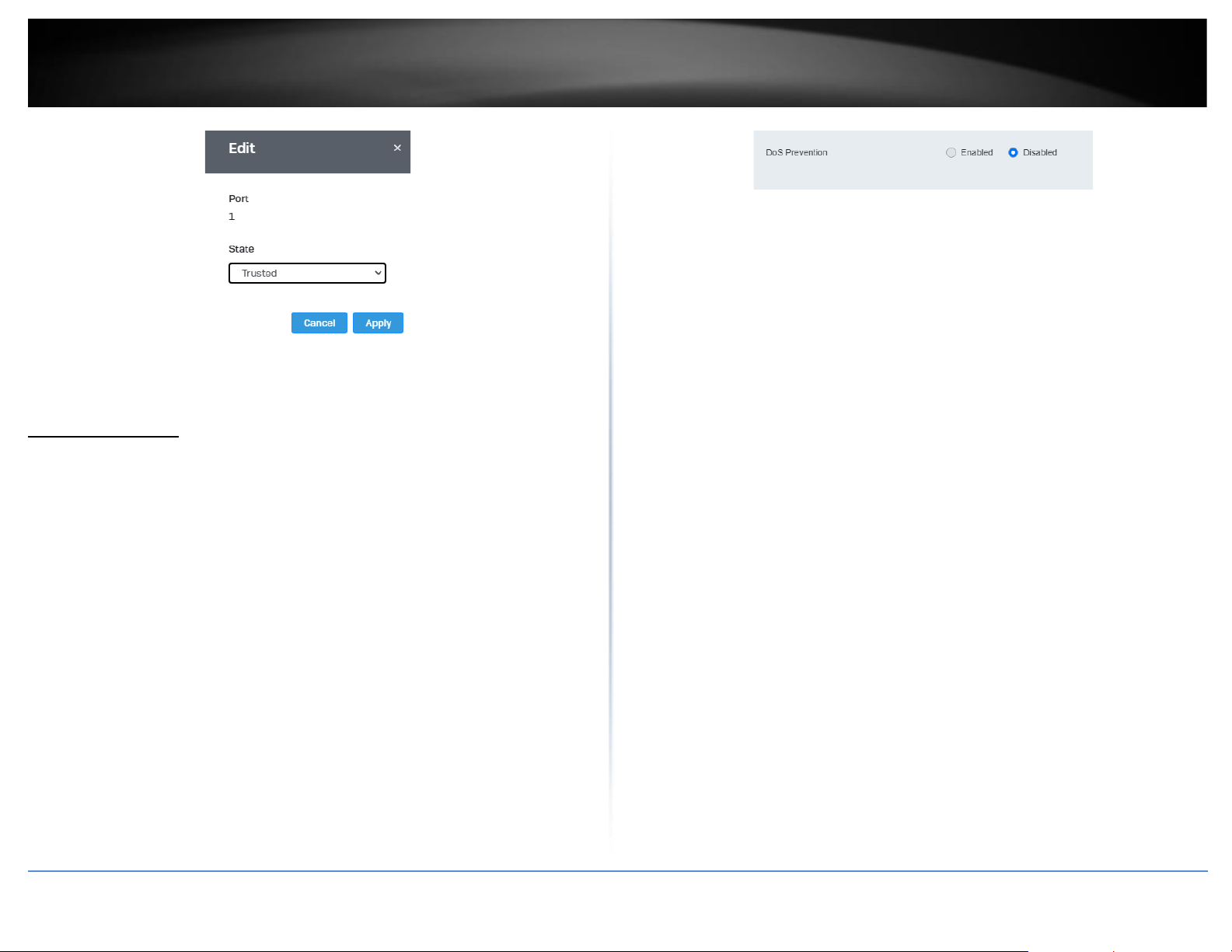

Trusted Port Interfaces .................................................................................................... 71

Denial of Service .......................................................................................................... 72

Denial of Service (DoS) ..................................................................................................... 72

Tools ............................................................................................. 73

Firmware Upgrade ....................................................................................................... 73

Upgrade your switch’s firmware ...................................................................................... 73

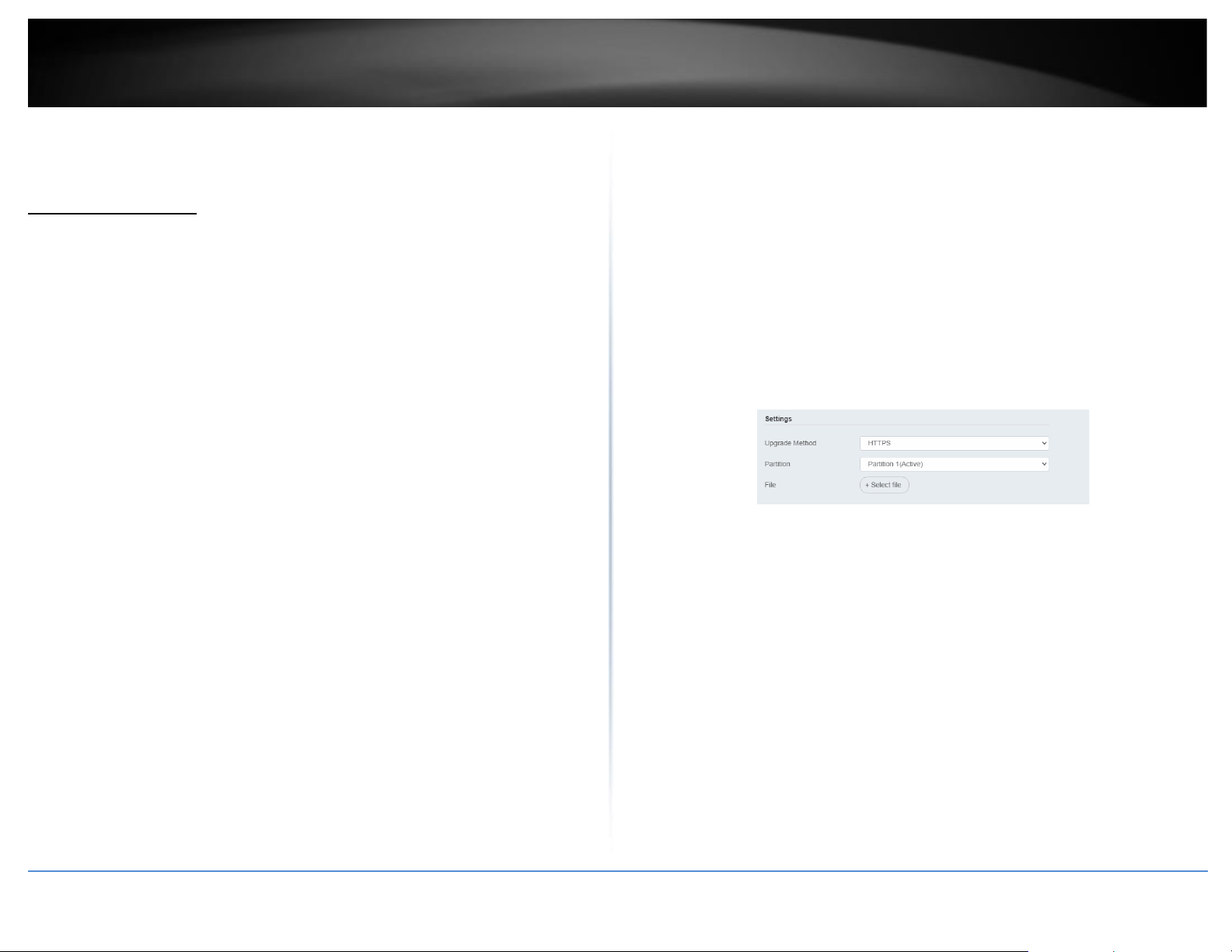

Firmware Upgrade via HTTP Settings ............................................................................... 73

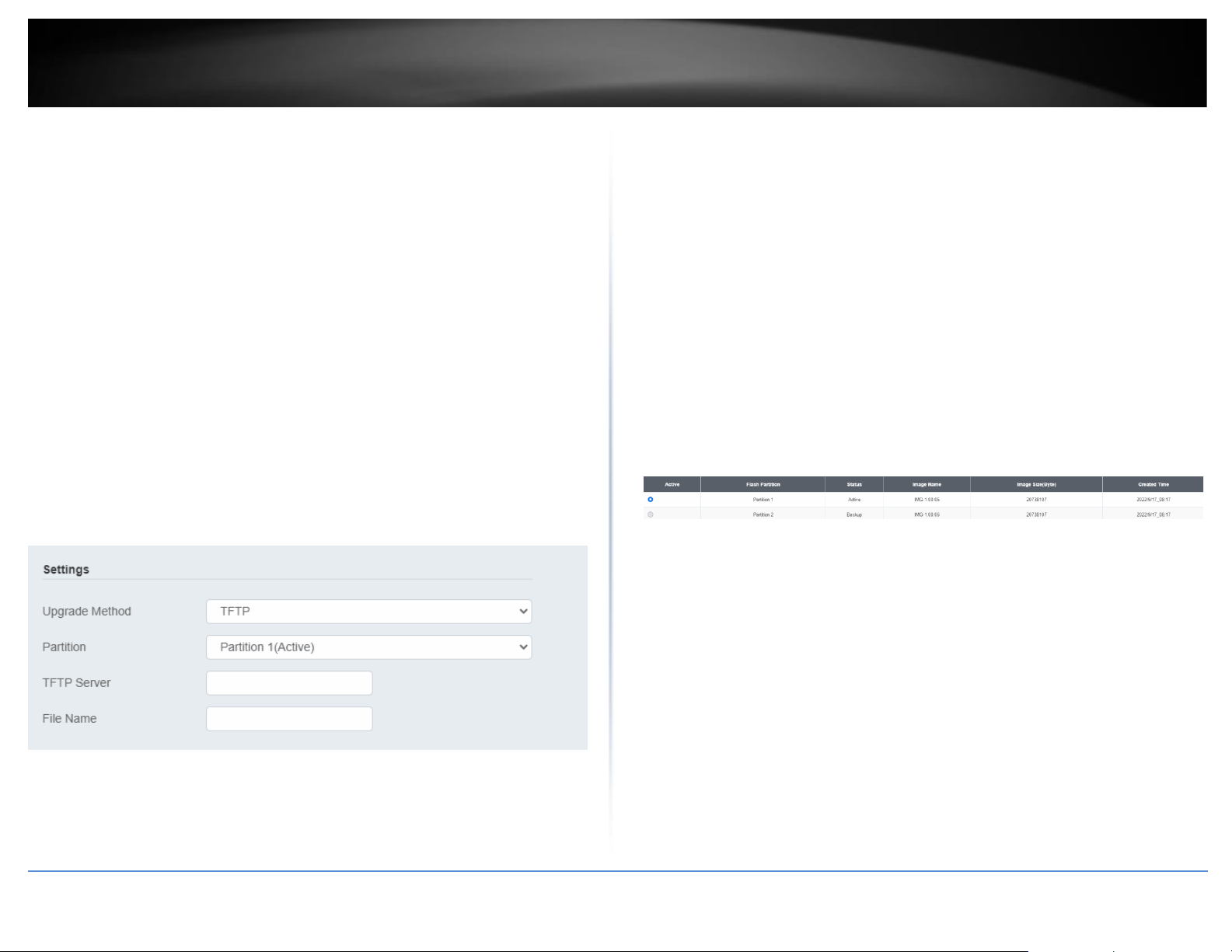

Firmware Upgrade via TFTP Settings ............................................................................... 73

Dual Image ....................................................................................................................... 74

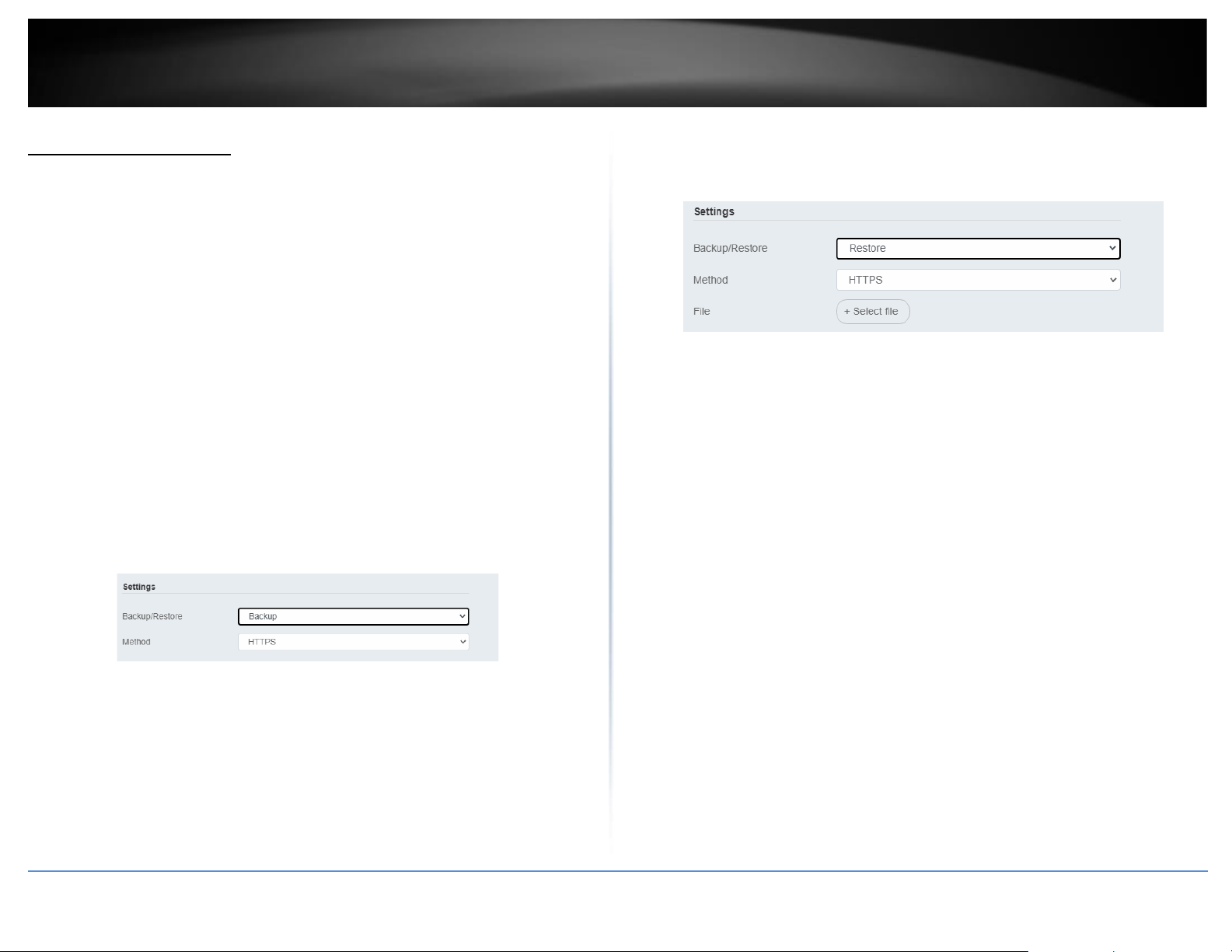

Config Backup Restore ................................................................................................. 75

Config Backup/Restore .................................................................................................... 75

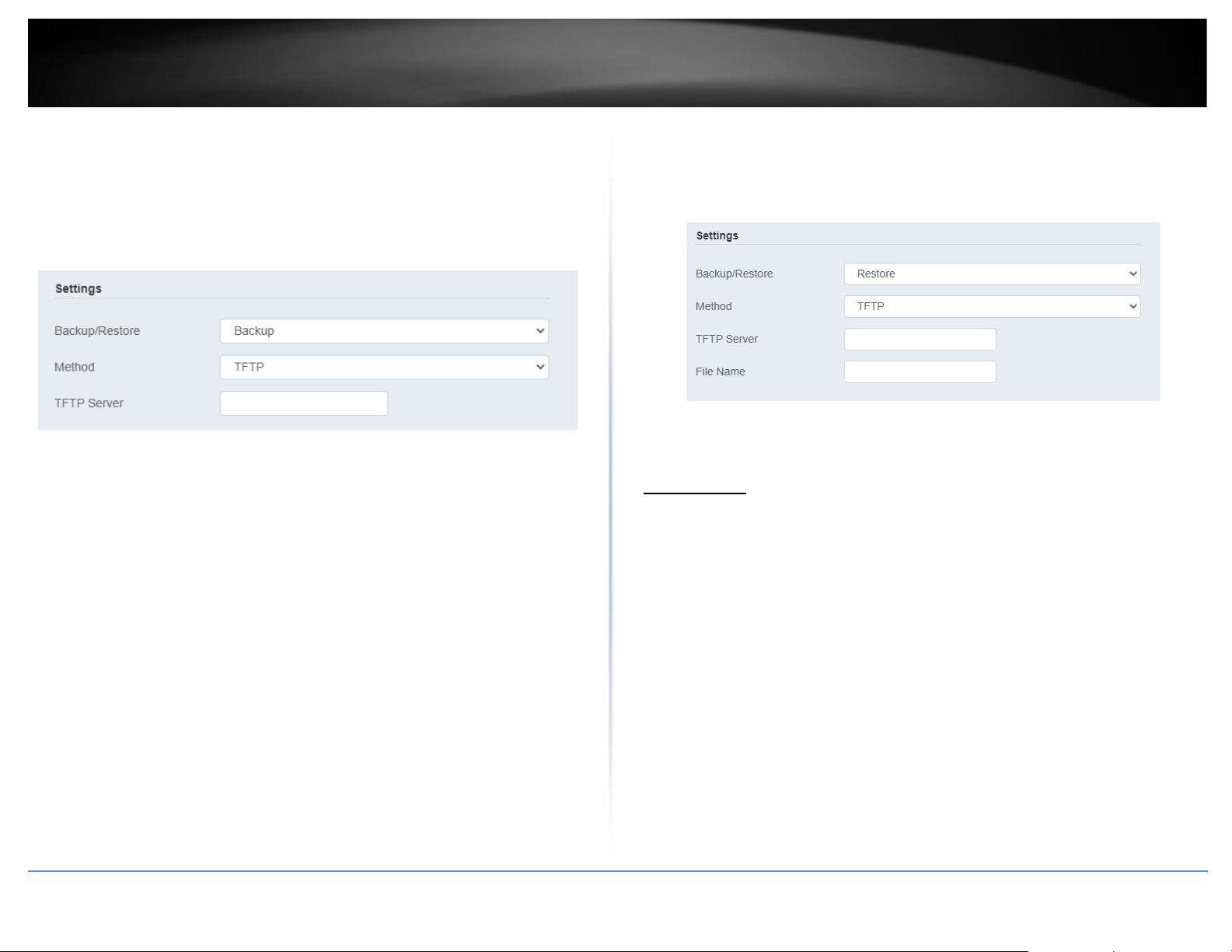

Backup/Restore via HTTP Settings ................................................................................... 75

Backup/Restore via TFTP Settings .................................................................................... 75

Diagnostics ................................................................................................................... 76

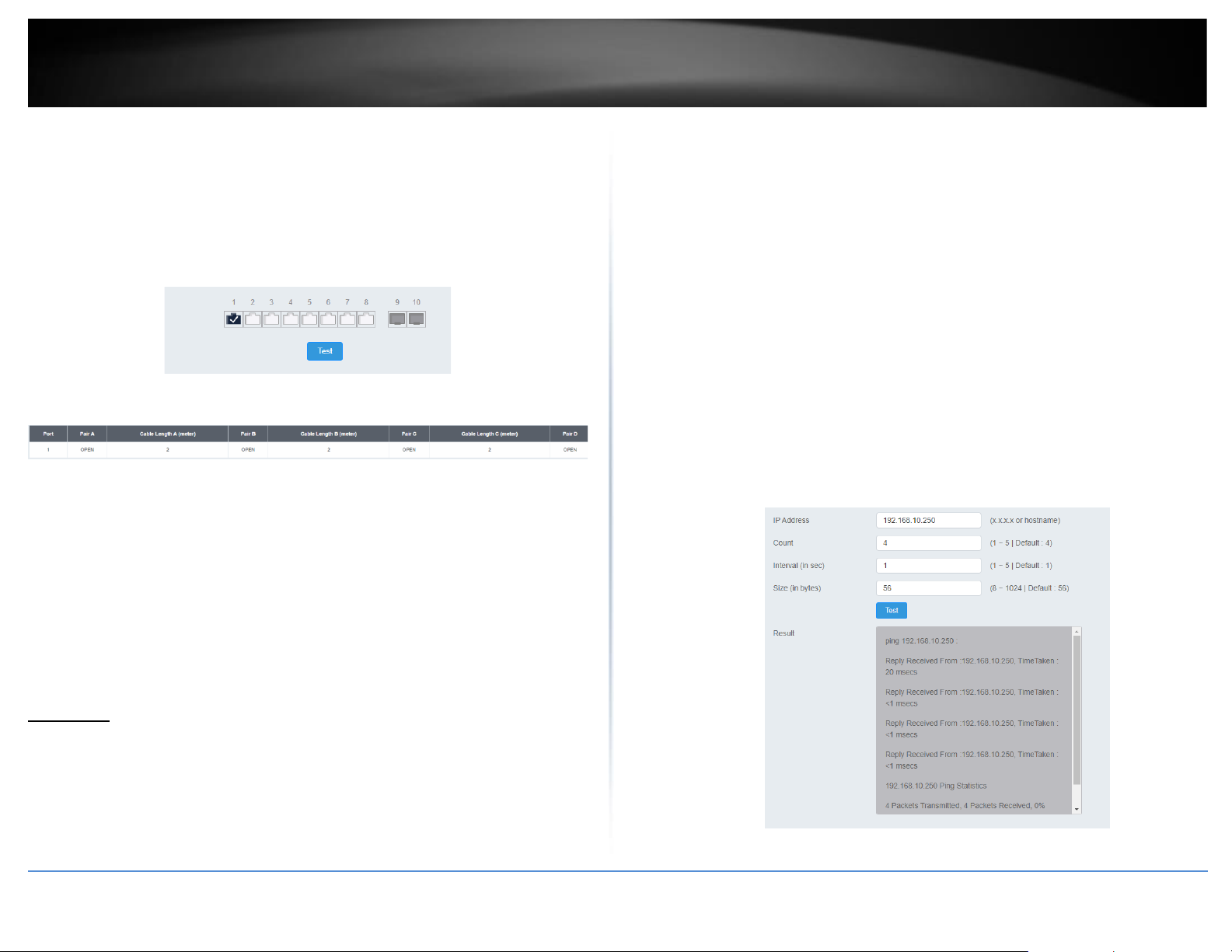

Cable Diagnostics Test ..................................................................................................... 76

Ping Test ...................................................................................................................... 77

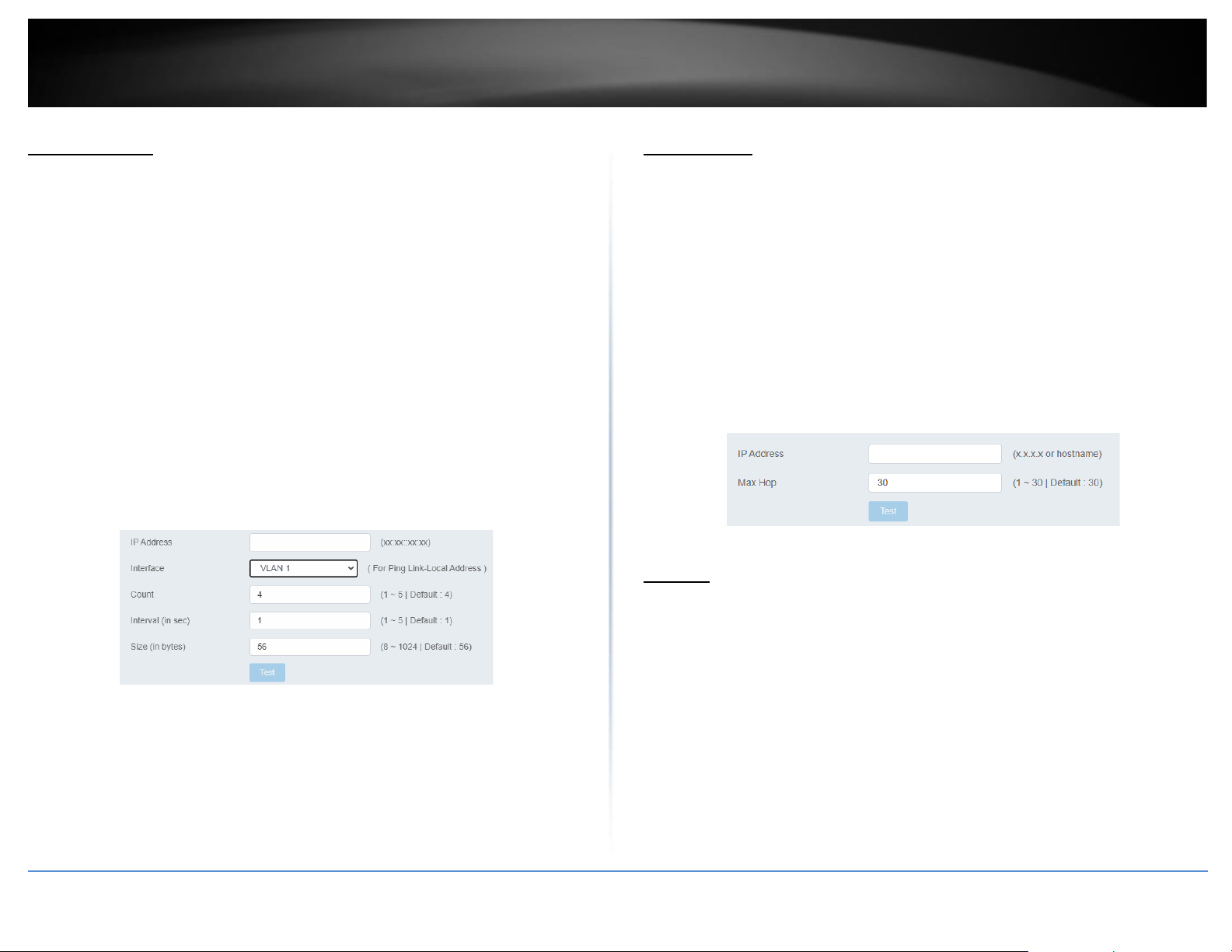

Network Connectivity Test (Ping Tool) ............................................................................. 77

IPv6 Ping Test............................................................................................................... 78

Network Connectivity Test (Ping Tool) ............................................................................ 78

Trace Route ................................................................................................................. 78

Reboot ......................................................................................................................... 78

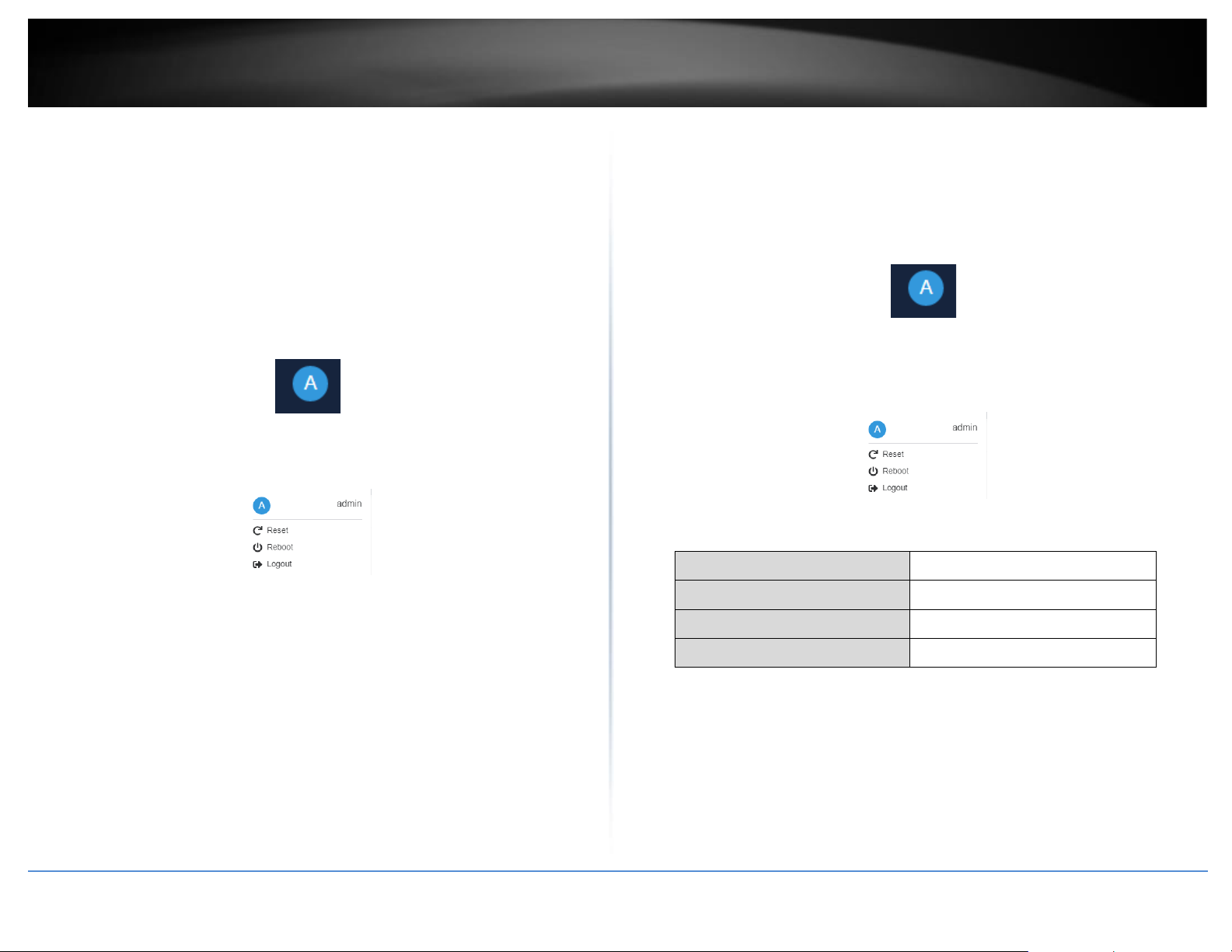

Reboot/Reset to factory defaults .................................................................................... 78

Hardware Features and Specifications ........................................... 80

Web Smart Switch Series Software Specifications .......................... 82

Quick Installation Guide Troubleshooting ...................................... 84

Page 6

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

PoE Web Smart Switch Series Product Overview

TEG-3102WS Overview

TEG-3102WS

Package Contents

In addition to your switch, the package includes:

• Quick Installation Guide

• Power adapter (12V DC, 1.5A)

If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased.

TPE-3102WS Hardware Features

Front View

Rear View

• Power and Fault LED – LED indicators for power and fault.

• Reset Button – Press and hold the button 1~3 seconds and release to

reboot the device. Pressing the button more than 5 seconds will reset the switch to factory defaults. The ports LEDs will turn off to indicate that the reset was initiated.

• Ethernet Ports (1-8) – Connect network devices at 2.5Gbps / 1Gbps /

100Mbps speed.

• SFP Slots (9-10) – Supports optional 10Gbps or 1Gbps mini-GBIC SFP

modules for uplink or downlink connections.

• Ground Point – Switch can be grounded from this point

• DC-In

Page 7

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

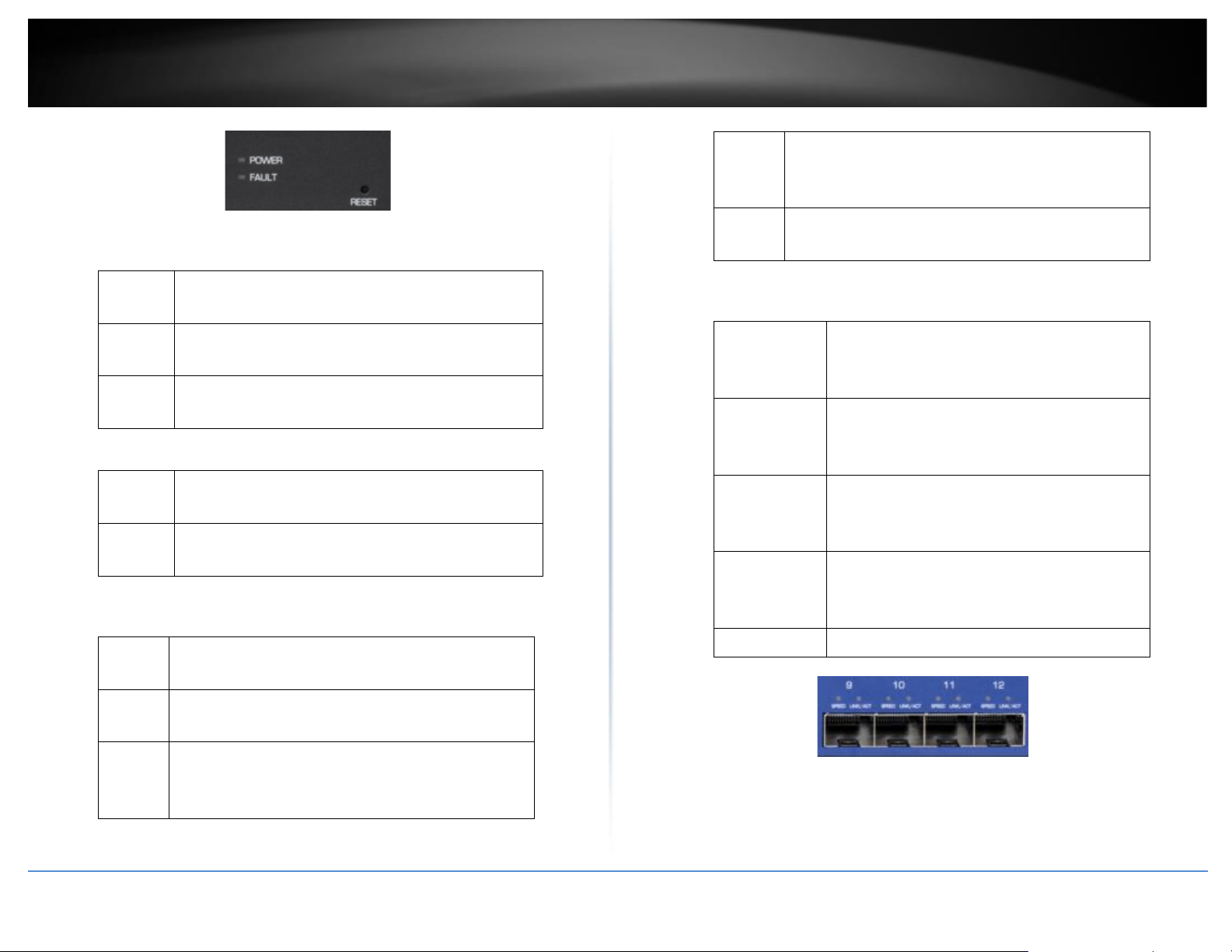

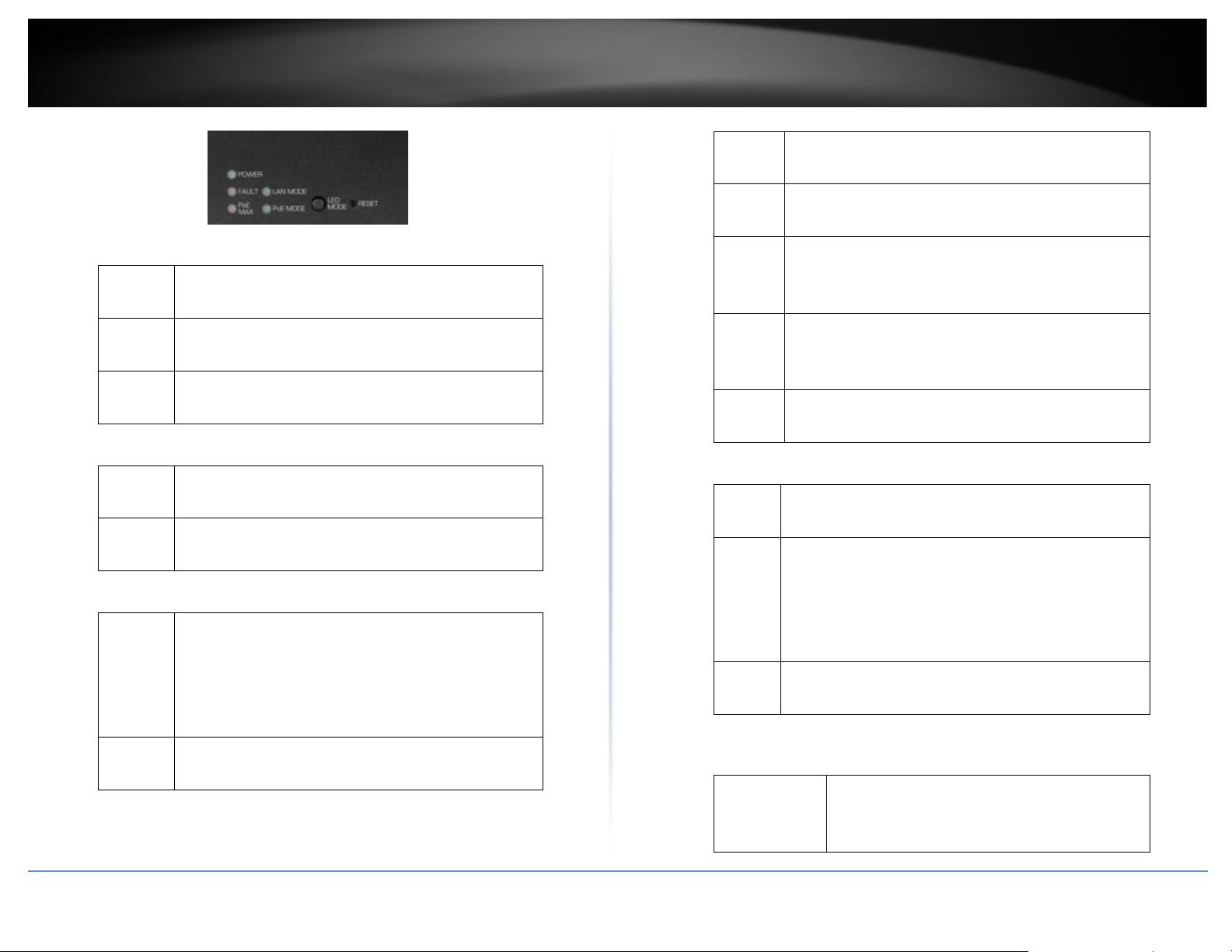

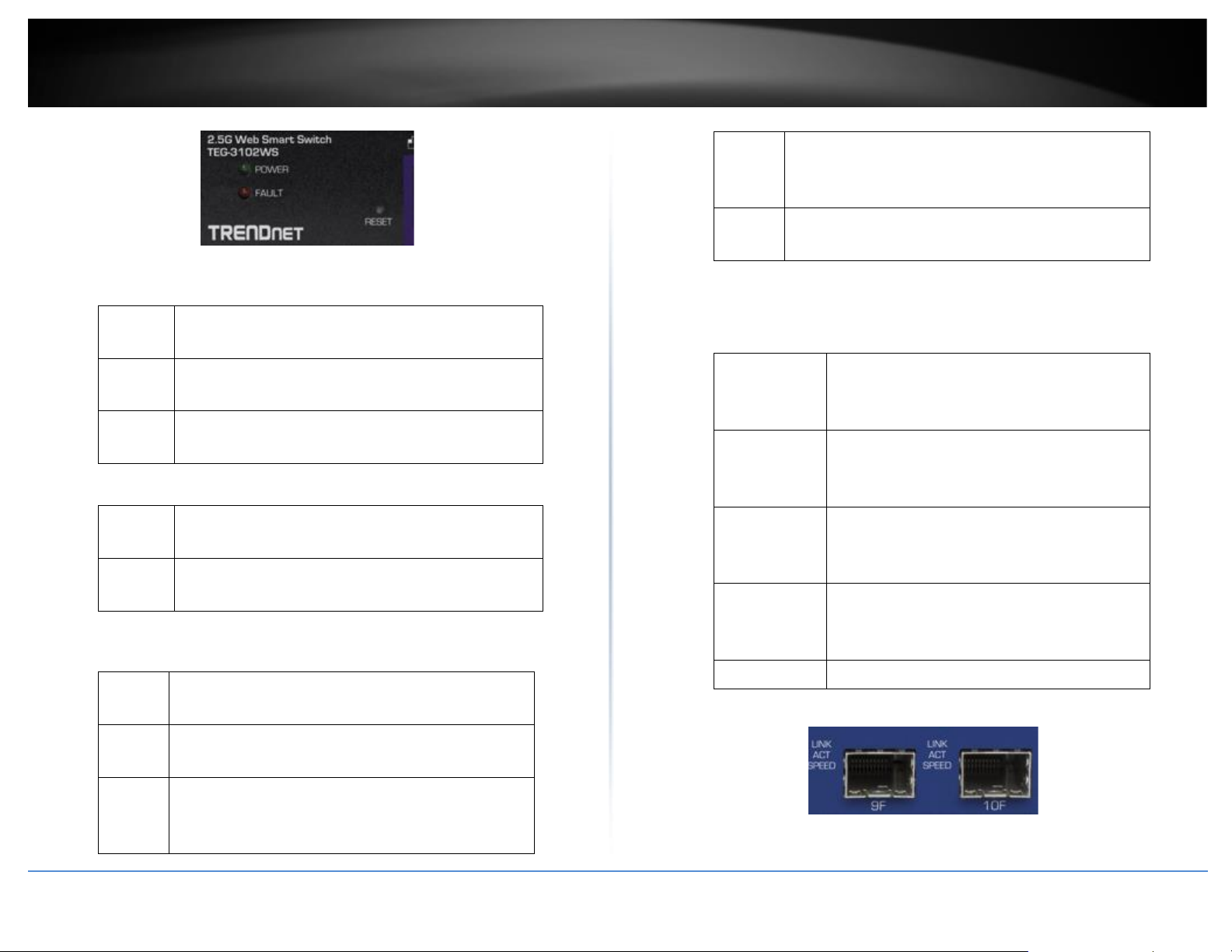

Diagnostic LEDs

• Power LED

When the Power LED is on, the device is receiving power.

Off

When the Power LED is off, the power adapter is not connected or the device is not receiving power.

Blinking

When the Power LED is blinking, the switch is receiving power and is botting up

• Fault LED

Amber On

When the Fault LED is on, there is an error with the switch.

Off

When the Fault LED is off, there is no error with the switch.

• Ethernet Port LEDs (1-8)

Green on

When the Green LED is on, the respective port is connected to a 2.5Gbps Ethernet network.

Amber on

When the Green LED lights on, the respective port is connected to a 100/1000Mbps Ethernet network.

Green Blinking

When the LED is blinking green, the port is transmitting or receiving data on the network at

2.5Gbps speed.

Amber Blinking

When the LED is blinking amber, the port is transmitting or receiving data on the network at 100/1000Mbps speed.

Off

When the LED is off, the respective port is disconnected.

• SFP Slots (9-10)

Link/Activity

Green on

When the SFP LED is on, the link established using the SFP module is operating at 10Gbps speed.

Green blinking

When the SFP LED is blinking, the port is transmitting or receiving data on through the 10Gbps link established.

Amber on

When the SFP LED is on, the link established using the SFP module is operating at 1000Mbps speed.

Amber blinking

When the SFP LED is blinking, the port is transmitting or receiving data on through the 1000Mbps link established.

Off : No link established.

Page 8

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

TPE-3102WS Overview

TPE-3102WS

Package Contents

In addition to your switch, the package includes:

• Quick Installation Guide

• Power Cord (1.8m / 6 ft.)

• Rack mount kit

If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased.

TPE-3102WS Hardware Features

Front View

Rear View

• Power & LED indicators – Displays switch activities

• LED Mode – Switches the LED indicators between PoE mode and

Link/Activity mode.

• Reset Button – Press and hold the button 1~3 seconds and release to

reboot the device. Pressing the button more than 5 seconds will reset the switch to factory defaults. The ports LEDs will turn off to indicate that the reset was initiated.

• Mode Button – Press the mode button to change LED indicators to

display Link/Activity Mode, or PoE Mode.

• Ethernet Ports (1-8) – Connect either network PoE+ or non-PoE devices

at 2.5Gbps / 1Gbps / 100Mbps speeds.

• SFP Slots (9-10) – Supports optional 10Gbps or 1Gbps mini-GBIC SFP

modules for uplink or downlink connections.

Page 9

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

Diagnostic LEDs

• Power LED

When the Power LED is on, the device is receiving power.

Off

When the Power LED is off, the power adapter is not connected or the device is not receiving power.

Blinking

When the Power LED is blinking, the switch is receiving power and is botting up

• Fault LED

Amber On

When the Fault LED is on, there is an error with the switch.

Off

When the Fault LED is off, there is no error with the switch.

• PoE MAX (Power over Ethernet Max.)

Amber On

When reaching near the max PoE power budget provided 240W or above, the LED will turn on and the system will not provide power additional PD (PoE client devices) after max PoE budget is reached.

Off

When the PoE power provided is below the 240W PoE power budget.

• Gigabit Ethernet PoE+ Port LEDs (1-8)

Green on

When the Green LED is on, the respective port is connected to a 2.5Gbps Ethernet network.

Amber on

When the Green LED lights on, the respective port is connected to a 100/1000Mbps Ethernet network.

Green Blinking

When the LED is blinking green, the port is transmitting or receiving data on the network at

2.5Gbps speed.

Amber Blinking

When the LED is blinking amber, the port is transmitting or receiving data on the network at 100/1000Mbps speed.

Off

When the LED is off, the respective port is disconnected.

• Gigabit Ethernet Port PoE+ LEDs (1-8)

Green on

When the Green LED is on, the connected device is receiving power.

Amber on

When the Amber LED lights on, the connected PoE device is not receiving power. The cause is either insufficient power budget, or due to Class/PowerLimit restrictions in the PoE configurations.

Off

When the LED is off, the respective port is either not connected to a PoE device or is disconnected.

• SFP Slots (9-10)

Green on

When the SFP LED is on, the link established using the SFP module is operating at 10Gbps speed.

Page 10

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

Green blinking

When the SFP LED is blinking, the port is transmitting or receiving data on through the 10Gbps link established.

Amber on

When the SFP LED is on, the link established using the SFP module is operating at 1000Mbps speed.

Amber blinking

When the SFP LED is blinking, the port is transmitting or receiving data on through the 1000Mbps link established.

Off No link established.

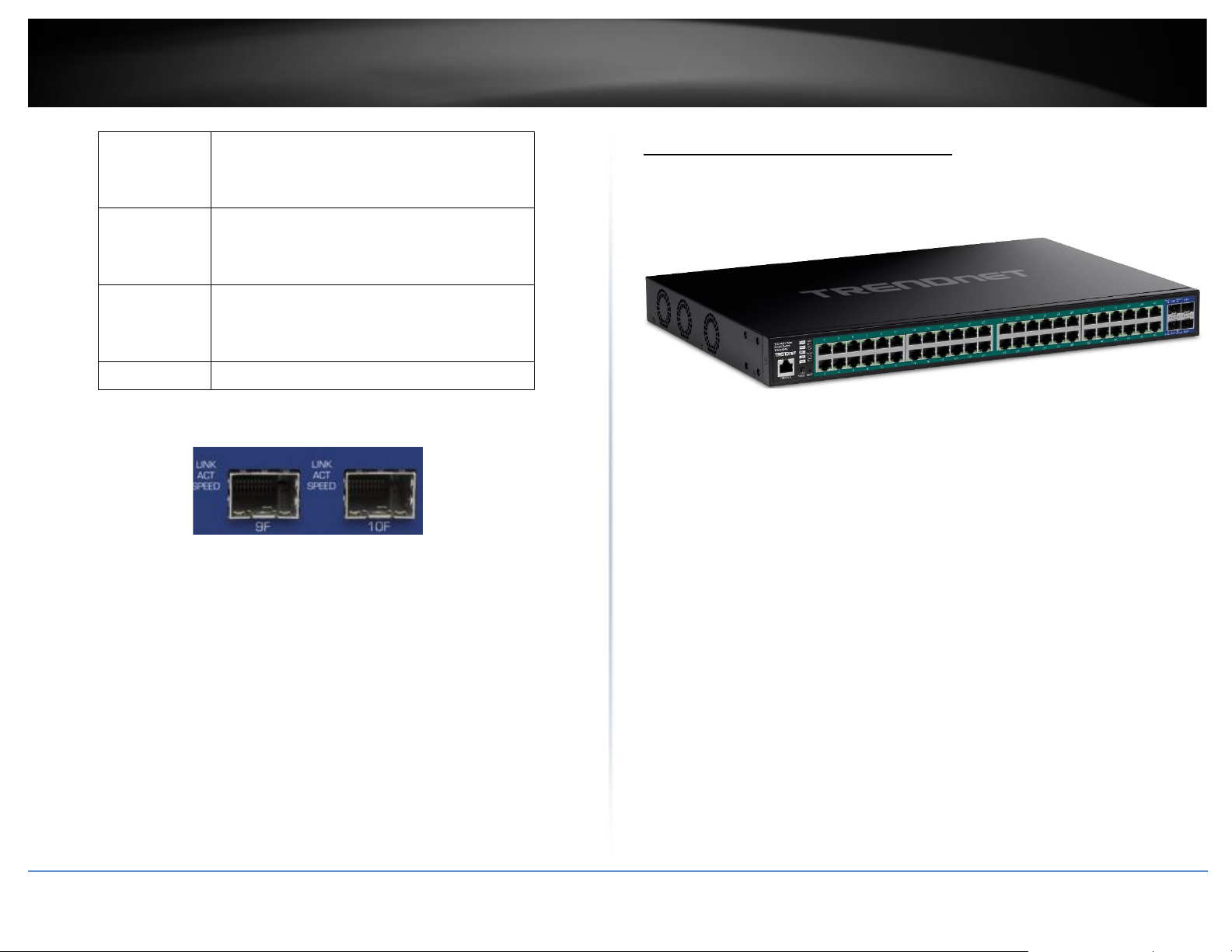

TPE-3524S / TPE-3524SF Overview

TPE-3524S / TPE-3524SF

Package Contents

In addition to your switch, the package includes:

• Quick Installation Guide

• Power Cord (1.8m / 6 ft.)

• Rack mount kit

If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased.

Page 11

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

TPE-3524S / TPE-3524SF Hardware Features

Front View

Rear View

• Power & LED indicators – Displays switch activities

• LED Mode – Switches the LED indicators between PoE mode and

Link/Activity mode.

• Reset Button – Press and hold the button 1~3 seconds and release to

reboot the device. Pressing the button more than 5 seconds will reset the switch to factory defaults. The ports LEDs will turn off to indicate that the reset was initiated.

• Mode Button – Press the mode button to change LED indicators to

display Link/Activity Mode, or PoE Mode.

• Ethernet Ports (1-48) – Connect either network PoE+ or non-PoE devices

at 2.5Gbps / 1Gbps / 100Mbps speeds.

• SFP Slots (49-52) – Supports optional 10Gbps or 1Gbps mini-GBIC SFP

modules for uplink or downlink connections.

Diagnostic LEDs

• Power LED

When the Power LED is on, the device is receiving power.

Off

When the Power LED is off, the power adapter is not connected or the device is not receiving power.

Blinking

When the Power LED is blinking, the switch is receiving power and is botting up

• Fault LED

Amber On

When the Fault LED is on, there is an error with the switch.

Off

When the Fault LED is off, there is no error with the switch.

• PoE MAX (Power over Ethernet Max.)

Amber On

When reaching near the max PoE power budget provided 240W or above, the LED will turn on and the system will not provide power additional PD (PoE client devices) after max PoE budget is reached.

Off

When the PoE power provided is below the 240W PoE power budget.

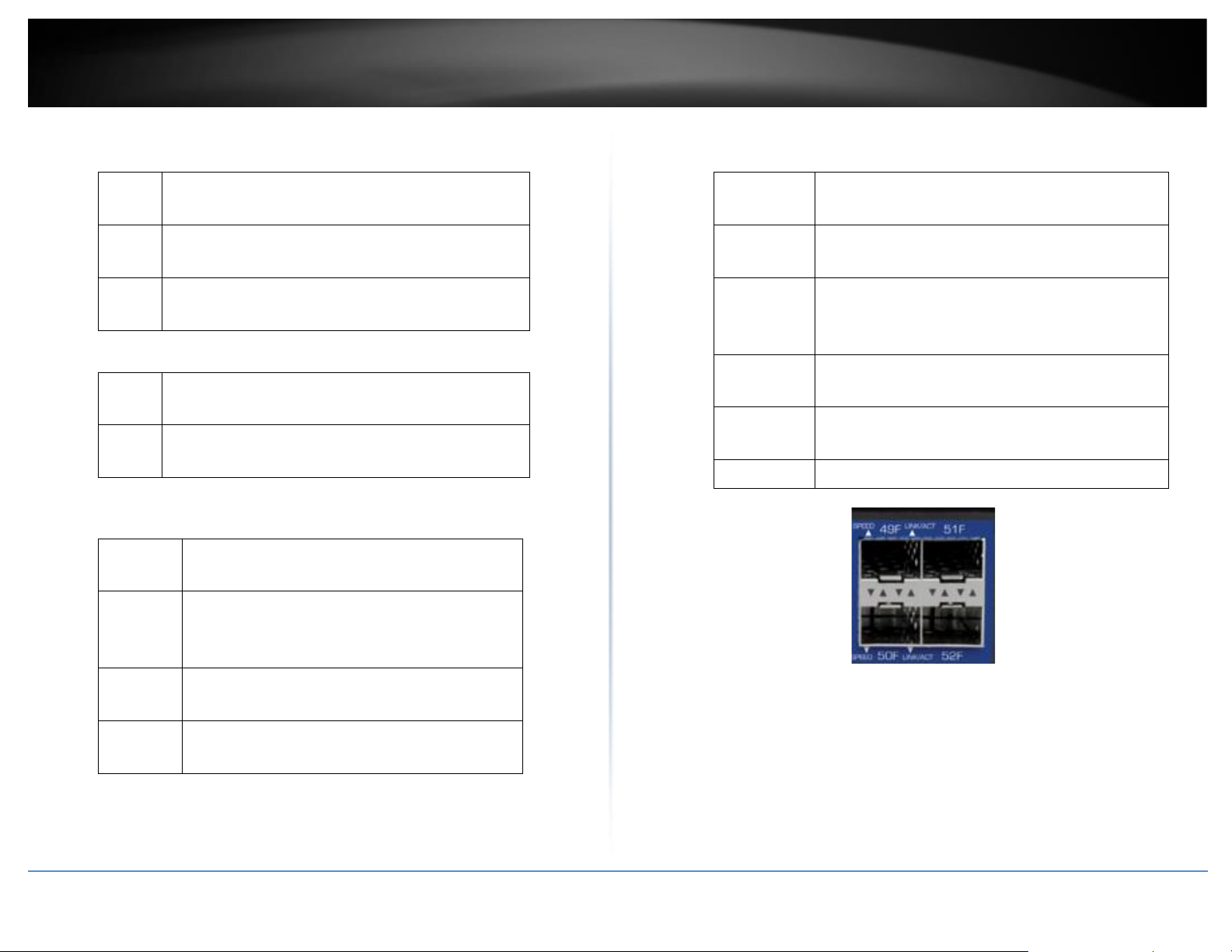

• LAN Mode: Gigabit Ethernet PoE+ Port LEDs (1-48)

Page 12

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

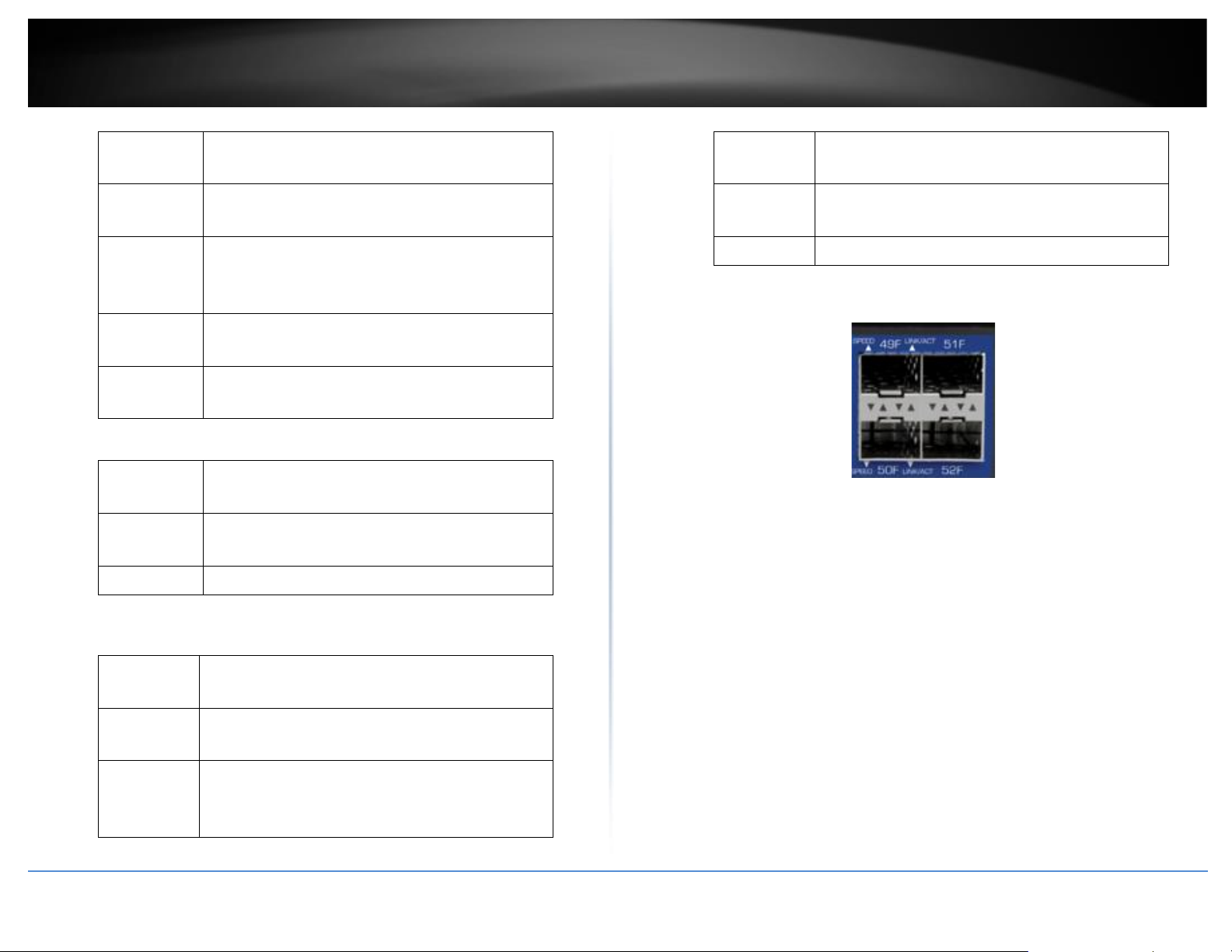

Green on Solid

When the Green LED is on, the respective port is connected on a Gigabit Speed

Off

10/100Mbps is connected or there is no link established

Green Blinking Link/Act

When the LED is blinking green, the port is transmitting or receiving data on the network at Gigabit speed.

Green Link/Act Solid

When the LED is solid green, there is a link established

Off

When the LED is off, the respective port is disconnected.

• PoE Mode: Gigabit Ethernet Port PoE+ LEDs (1-48)

Green on

When the Green LED is on, the connected device is receiving power.

Green Solid

When the LED is solid Green, there is a power error

Off

No Power device is connected

• SFP Slots (49-52)

Green

When the SFP LED is on, the link established using the SFP module is operating at 10Gbps speed.

Amber

When the SFP LED is on, the link established using the SFP module is operating at 1000Mbps speed.

Off

When the SFP LED is on, the link established using the SFP module is operating at 10/100Mbps speed or there is no link

Green blinking

When the SFP LED is blinking, the port is transmitting or receiving data

Green Solid

When the SFP LED is solid, there is a link connected

Off

No link established.

Page 13

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

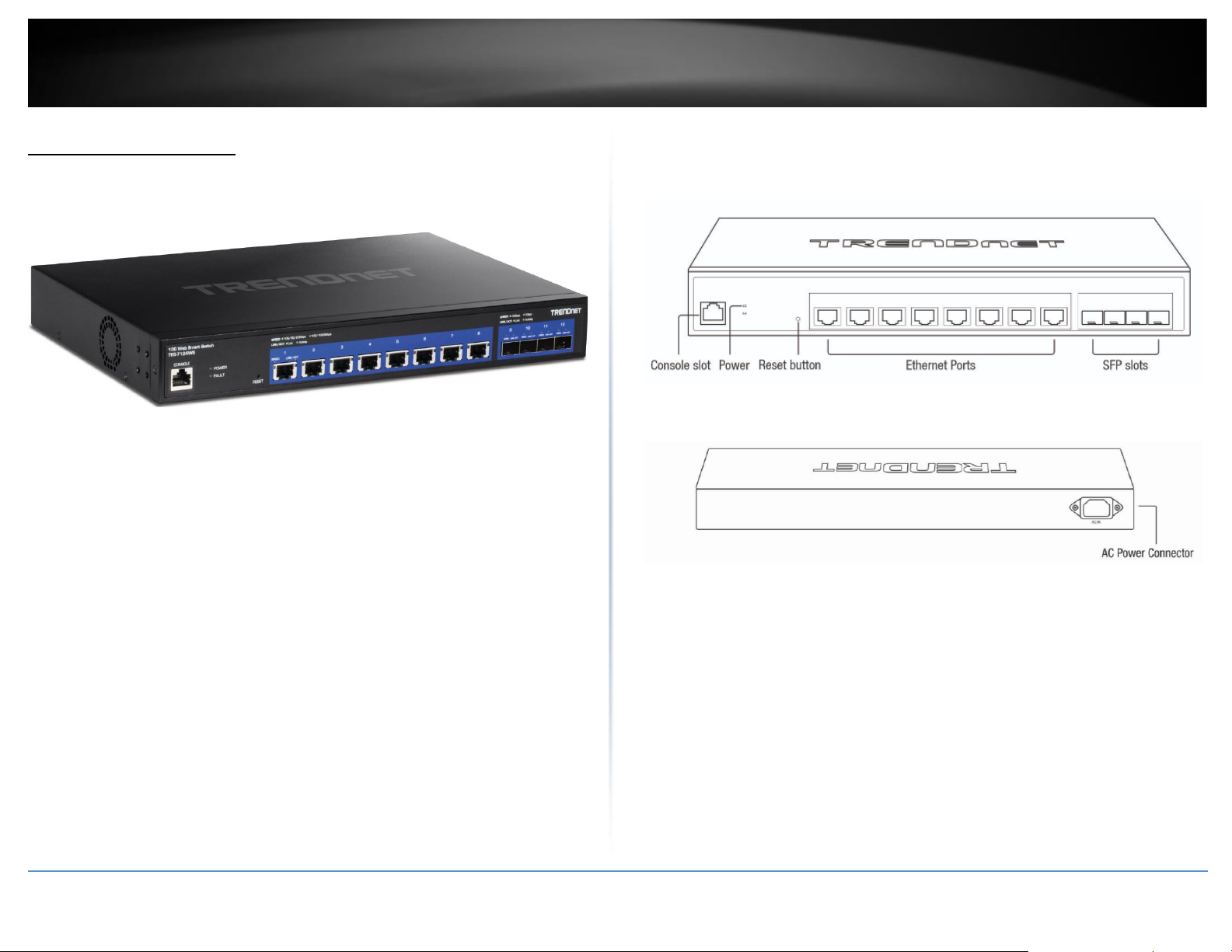

TEG-7124WS Overview

Package Contents

In addition to your switch, the package includes:

• Quick Installation Guide

• Power cord (1.8 m / 6 ft.)

• Rack mount kit

If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased.

TEG-7124WS Hardware Features

Front View

Rear View

• Power LED Indicator – LED indicators for power and fault

• Reset Button – Press and hold the button 1~3 seconds and release to

reboot the device. Pressing the button more than 5 seconds will reset the switch to factory defaults. The ports LEDs will turn off to indicate that the reset was initiated.

• Ethernet Ports (1-8) – Connect network devices at 10Gbps / 5Gbps

2.5Gbps / 1Gbps / 100Mbps speeds.

• SFP Slots (9-12) – Supports optional 10Gbps or 1Gbps mini-GBIC SFP

modules for uplink or downlink connections.

Page 14

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

Diagnostic LEDs

• Power LED

When the Power LED is on, the device is receiving power.

Off

When the Power LED is off, the power adapter is not connected or the device is not receiving power.

Blinking

When the Power LED is blinking, the switch is receiving power and is botting up

• Fault LED

Amber On

When the Fault LED is on, there is an error with the switch.

Off

When the Fault LED is off, there is no error with the switch.

• Ethernet Port LEDs (1-8)

Green on

When the Green LED is on, the respective port is connected to a 2.5/5/10Gbps Ethernet network.

Amber on

When the Green LED lights on, the respective port is connected to a 100/1000Mbps Ethernet network.

Green Blinking

When the LED is blinking green, the port is transmitting or receiving data on the network at

2.5/5/10Gbps speed.

Amber Blinking

When the LED is blinking amber, the port is transmitting or receiving data on the network at 100/1000Mbps speed.

Off

When the LED is off, the respective port is disconnected.

• SFP Slots (9-10)

Green on

When the SFP LED is on, the link established using the SFP module is operating at 10Gbps speed.

Green blinking

When the SFP LED is blinking, the port is transmitting or receiving data on through the 10Gbps link established.

Amber on

When the SFP LED is on, the link established using the SFP module is operating at 1000Mbps speed.

Amber blinking

When the SFP LED is blinking, the port is transmitting or receiving data on through the 1000Mbps link established.

Off : No link established.

Page 15

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

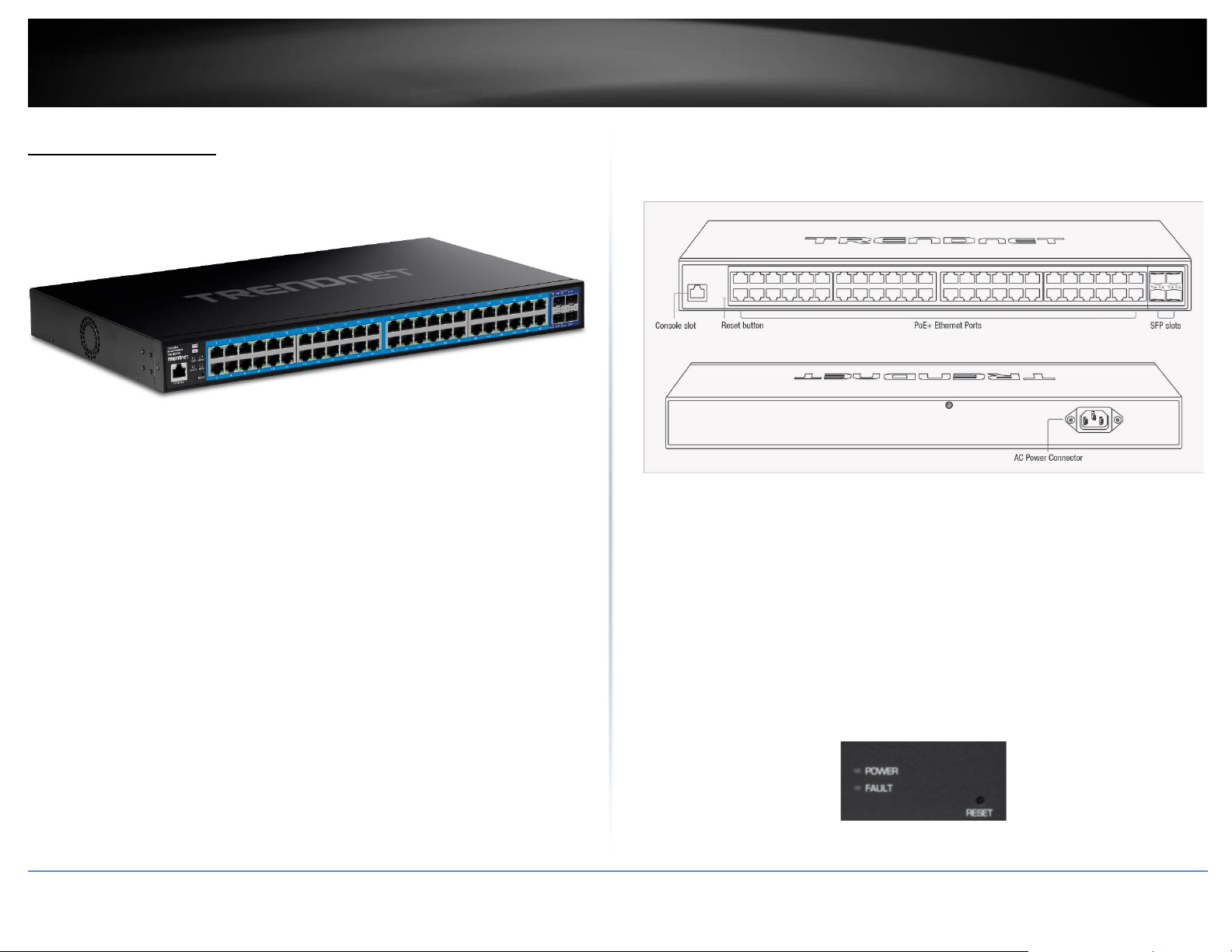

TEG-3524S Overview

Package Contents

In addition to your switch, the package includes:

• Quick Installation Guide

• Power cord (1.8 m / 6 ft.)

• Rack mount kit

If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased.

TEG-3524S Hardware Features

Front View

Rear View

• Power LED Indicator – LED indicators for power and fault

• Reset Button – Press and hold the button 1~3 seconds and release to

reboot the device. Pressing the button more than 5 seconds will reset the switch to factory defaults. The ports LEDs will turn off to indicate that the reset was initiated.

• Ethernet Ports (1-48) – Connect network devices at 10Gbps / 5Gbps

2.5Gbps / 1Gbps / 100Mbps speeds.

• SFP Slots (49-52) – Supports optional 10Gbps or 1Gbps mini-GBIC SFP

modules for uplink or downlink connections.

Page 16

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

Diagnostic LEDs

• Power LED

When the Power LED is on, the device is receiving power.

Off

When the Power LED is off, the power adapter is not connected or the device is not receiving power.

Blinking

When the Power LED is blinking, the switch is receiving power and is botting up

• Fault LED

Amber On

When the Fault LED is on, there is an error with the switch.

Off

When the Fault LED is off, there is no error with the switch.

• Ethernet Port LEDs (1-48)

Green on

When the Green LED is on, the respective port is connected at 1000Mbps speed

Off

When the LED is off, the respective port is either connected at 10/100Mbps or there is No Link

Green Blinking

When the LED is blinking green, the port is transmitting or receiving data on the network.

Green Solid

When the LED is solid green, there is a connection between the device and the switch

• SFP Slots (49-52)

Green

When the SFP LED is on, the link established using the SFP module is operating at 10Gbps speed.

Amber

When the SFP LED is on, the link established using the SFP module is operating at 1000Mbps speed.

Off

When the SFP LED is on, the link established using the SFP module is operating at 10/100Mbps speed or there is no link

Green blinking

When the SFP LED is blinking, the port is transmitting or receiving data

Green Solid

When the SFP LED is solid, there is a link connected

Off

No link established.

Page 17

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

Switch Installation

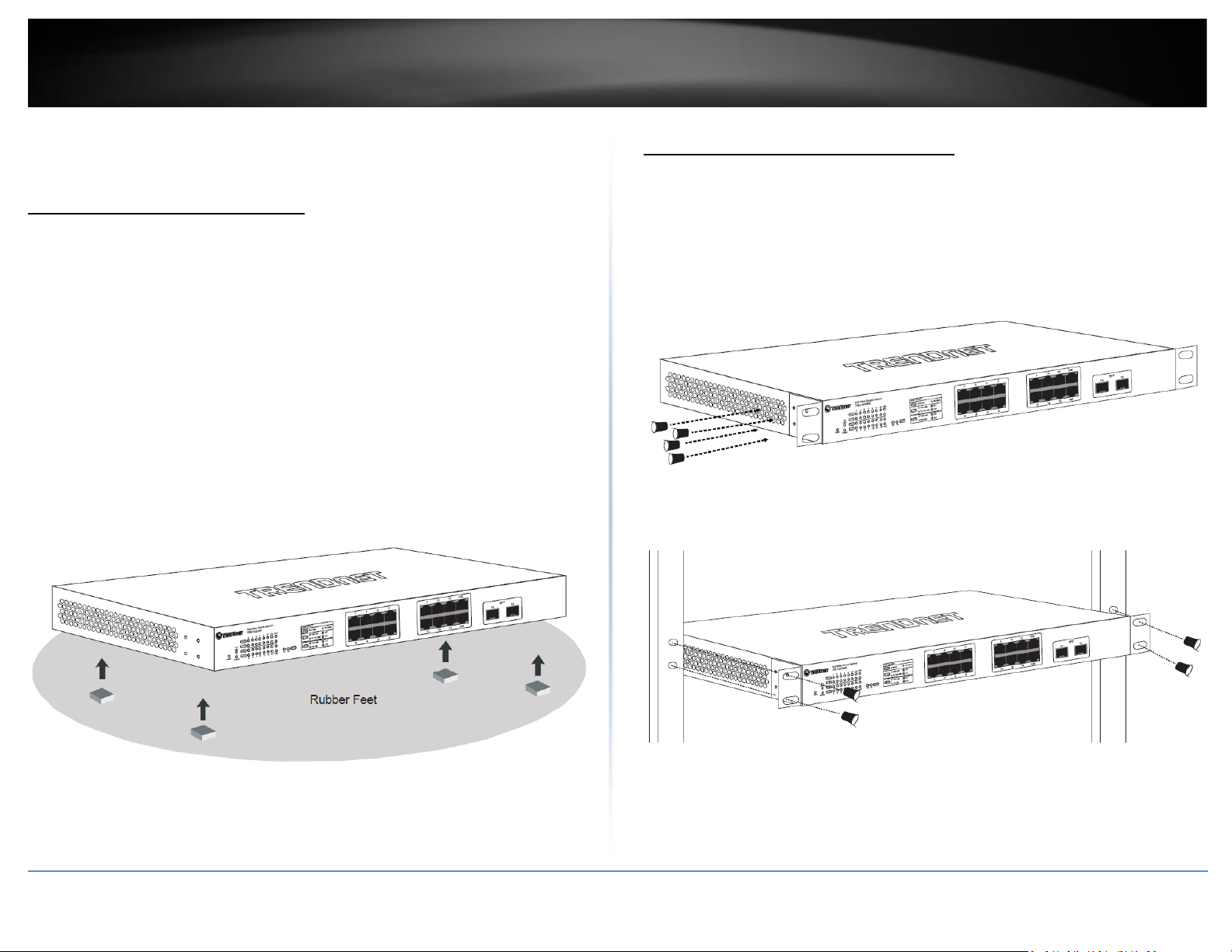

Desktop Hardware Installation

The site where you install the hub stack may greatly affect its performance. When installing, consider the following pointers:

Note: Your switch model may be different than the one shown in the example illustrations.

• Install the Switch in a fairly cool and dry place.

• Install the Switch in a site free from strong electromagnetic field generators (such

as motors), vibration, dust, and direct exposure to sunlight.

• Leave at least 10cm of space at the front and rear of the hub for ventilation.

• Install the Switch on a sturdy, level surface that can support its weight, or in an

EIA standard-size equipment rack. For information on rack installation, see the next section, Rack Mounting.

• When installing the Switch on a level surface, attach the rubber feet to the

bottom of each device. The rubber feet cushion the hub and protect the hub case from scratching.

Rack Mount Hardware Installation

The switch can be mounted in an EIA standard-size, 19-inch rack, which can be placed in a wiring closet with other equipment. Attach the mounting brackets at the switch’s front panel (one on each side), and secure them with the provided screws.

Note: The switch model may be different than the one shown in the example illustrations.

Then, use screws provided with the equipment rack to mount each switch in the rack.

Page 18

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

Setup Wizard

Section A: Configuring the switch with TRENDnet Hive Cloud Management Note: Configuration with TRENDnet Hive Cloud Management requires an existing

network with Internet access and DHCP server for automatic IP addressing. The switch must be configured to reach the Internet in order to connect to your TRENDnet Hive Cloud Management account.

1. Assign a static IP address to your computer’s network adapter in the subnet of

192.168.10.x (e.g. 192.168.10.25) and a subnet mask of 255.255.255.0.

2. Open your web browser, and type the IP address of the switch in the address bar, and then press Enter. The default IP address is 192.168.10.200.

3. Enter the User Name and Password, and then click Login. By default: User Name: admin Password: admin

Note: User name and password are case sensitive.

4. Select Next to move onto the next screen Note: If the switch setup wizard does not appear, you can click the setup wizard button

in the top right section of the switch management page to access the switch setup wizard.

5. Change your login password and click Next. The default password is admin. Note: If entering a new password, please note that you will need to use the new

password when logging into the switch management page for local management access moving forward.

6. For the method of management, select TRENDnet Hive. Note: Configuration with TRENDnet Hive Cloud Management requires an existing network with Internet access and DHCP server for automatic IP addressing. The switch must be configured to reach the Internet in order to connect to your TRENDnet Hive Cloud Management account.

Page 19

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

7. After selecting TRENDnet Hive, click Next and change your computer’s network adapter settings to obtain an IP address automatically to continue the rest of the setup wizard.

Note: After selecting the TRENDnet Hive option and clicking Next, the switch will immediately change the switch default IP address settings to DHCP and optain IP address settings from your existing network.

8. Select your Time Zone, then click Next.

9. Enter the user account credentials for your TRENDnet Hive Cloud Management account to register the switch with your account, then click Next.

10. The summary page will display all of the configuration settings that were applied through the setup wizard. Click Apply to complete the setup wizard.

Note: You may want to note the new password and IP address settings for local management access to the switch.

10. To verify the switch is now successfully registered with your TRENDnet Hive Cloud Management account, the Hive button in the top right will be green to indicate successful registration.

Section B: Configuring the switch for local network management

1. Assign a static IP address to your computer’s network adapter in the subnet of

192.168.10.x (e.g. 192.168.10.25) and a subnet mask of 255.255.255.0.

2. Open your web browser, and type the IP address of the switch in the address bar, and then press Enter. The default IP address is 192.168.10.200.

3. Enter the User Name and Password, and then click Login. By default: User Name: admin Password: admin

Note: User name and password are case sensitive.

4. Select Next to move onto the next screen Note: If the switch setup wizard does not appear, you can click the setup wizard button

in the top right section of the switch management page to access the switch setup wizard.

Page 20

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

5. Change your login password and click Next. The default password is admin. Note: If entering a new password, please note that you will need to use the new

password when logging into the switch management page for local management access moving forward.

6. For the method of management, select Default Management.

7. Configure the switch date and time settings, then click Next.

8. Configure the switch IP address, subnet mask, gateway IP address, and DNS settings to match the requirements of your existing network using the fields provided, then click Next.

Note: If the switch IP address settings are changed to a different IP network subnet such

as 192.168.1.x, 192.168.2.x, etc. your computer’s network adapter settings will need to

be changed match the new IP address settings configured on the switch in order to access the switch management page.

9. The summary page will display all of the configuration settings that were applied through the setup wizard. Click Apply to complete the setup wizard.

Note: You may want to note the new password and IP address settings for local management access to switch.

Page 21

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

Basic IP Configuration

3. Assign a static IP address to your computer’s network adapter in the subnet of

192.168.10.x (e.g. 192.168.10.25) and a subnet mask of 255.255.255.0.

4. Open your web browser, and type the IP address of the switch in the address bar, and then press Enter. The default IP address is 192.168.10.200.

5. Enter the User Name and Password, and then click Login. By default: User Name: admin Password: password

Note: User name and password are case sensitive.

6. Click System, and then click System Settings.

Page 22

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

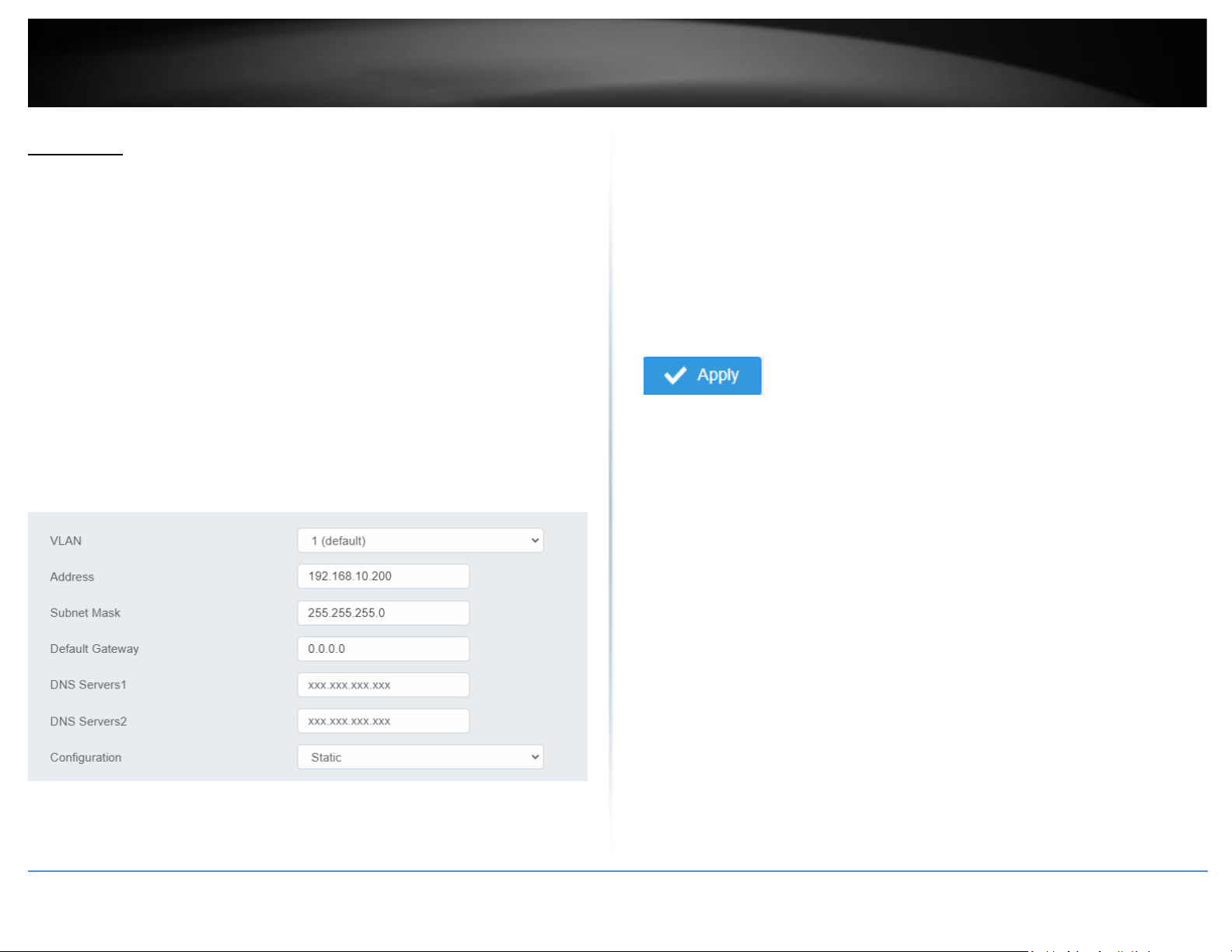

7. Click IP Settings and then click IPv4 Management.

8. Configure the switch’s IP address settings to be within your network subnet, then click Apply to save your settings.

Note: All other functions of this page will be explained in detail in its respective section.

Note: Be sure to re-log back into the switch using the new IP address and save the configuration to your flash.

Page 23

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

Connect additional devices to your switch

You can connect computers or other network devices to your switch using Ethernet cables to connect them to one of the available Gigabit Ethernet Ports, Gigabit Ethernet PoE Ports, Gigabit Ethernet PoE+ Ports, Gigabit Ethernet UPoE Ports, or SFP Ports. Check the status of the LED indicators on the front panel of your switch to ensure the physical cable connection from your computer or device. You can use either the Gigabit Ethernet ports or SFP connections as network uplinks. (SFP modules sold separately)

Note: If you encounter issues connecting to your network, there may be a problem with your computer or device network settings. Please ensure that your computer or device network settings (also called TCP/IP settings) are configured properly within the network subnet your switch is connected.

Note: Your switch model may be different than the one shown in the example illustrations.

Page 24

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

Access your switch management page

Note: Your switch default management IP address http://192.168.10.200 is accessed through the use of your Internet web browser (e.g. Internet Explorer®, Firefox®, Chrome™, Safari®, Opera™) and will be referenced frequently in this User’s Guide.

Throughout this user’s guide, the term Web Configuration will be used to reference

access from web management page.

1. Open your web browser and go to its IP address (default: http://192.168.10.200). Your switch will prompt you for a user name and password.

2. Enter the user name and password. By default: User Name: admin

Password: password

Note: User Name and Password are case sensitive.

Dashboard

View your switch status information

Dashboard

You may want to check the general system information of your switch such as firmware version, boot loader information and system uptime. Other information includes H/W version, RAM/Flash size, administration information, IPv4 and IPv6 information.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Dashboard.

Switch Information

• System Uptime – The duration your switch has been running continuously

without a restart/power cycle (hard or soft reboot) or reset.

• Firmware: The current software or firmware version your switch is running.

• Boot Loader – The current boot loader version your switch is running.

Hardware Information

• DRAM Size: Displays your switch RAM memory size.

• Flash Size: Displays your switch Flash memory size.

• Fan Status: Displays the current status of your switch’s fan

• Hardware Version: Displays your switch’s current hardware version

Page 25

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

Administration Information

• System Description – Displays the identifying system name of your switch. This

information can be modified under the System section.

• System Location - Displays the identifying system location of your switch. This

information can be modified under the System section.

• System Contact – Displays the identifying system contact or system administrator

of your switch. This information can be modified under the System section.

System MAC Address, IPv4 Information

• Serial No: Displays the serial number of the switch

• MAC Address: Displays the switch system MAC address.

• IP Address – Displays the current IPv4 address assigned to your switch.

• Subnet Mask – Displays the current IPv4 subnet mask assigned to your switch.

• Default Gateway – Displays the current gateway address assigned to your switch.

IPv6 Information

• Voice VLAN: Displays if your switch has Voice VLAN enabled or disabled

• Jumbo Frames: Displays the size of Jumbo Frames that is supported.

• IGMP Snooping: Displays if your switch has IGMP Snooping enabled or disabled

• STP: Displays the current status of STP

• LLDP: Displays the current status ofLLDP

Automatic Network Features

• QoS: Displays if your switch has QoS enabled or disabled

• DoS: Displays if your switch has DoS enabled or disabled

• IPv4 DHCP Client Mode: Displays if your switch IPv4 address setting is set to

DHCP client.

Page 26

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

• IPv6 DHCP Client Mode: Displays if your switch IPv6 address setting is set to

DHCP client.

Real-time Statistics

View your switch status information

Dashboard > Real-time Statistics

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Dashboard, then click on Real-time Statistics. The switch view shows the

ports that are connected. Select Status, Duplex, Speed, or PoE to display which ports are currently using the selected feature.

3. Select the port from the drop down menu to review the current settings.

• Total(Rx): The total number of packets received

• Total(TX): The total number of packets transmitted

• UC (Rx): The number of Unicast packets received

• MC(Rx): The number of Multicast packets received

• BC(Rx): The number of Broadcast packets received

• UC(Tx): The number of Unicast packets transmitted

• MC(Tx): The number of Multicast packets transmitted

• BC(Tx): The number of Broadcast packets transmitted

System

System Settings

Set your system information

System > System Settings

Page 27

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

This section explains how to assign a name, location, and contact information for the switch. This information helps in identifying each specific switch among other switches in the same local area network. Entering this information is optional.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, and click on System Management.

3. Review the settings. When you have completed making changes, click Apply to save

the settings.

• System Name - Specifies the Switch model. You cannot change this parameter.

• System Object ID - Indicates the unique SNMP MIB object identifier that

identifies the switch model. You cannot change this parameter.

• System Description - Specifies a name for the switch, the name is optional and

may contain up to 255 characters.

• System Location - Specifies the location of the switch. The location is optional

and may contain up to 255 characters.

• System Contact - Specifies the name of the network administrator responsible

for managing the switch. This contact name is optional and may contain up to 255 characters.

4. Click Apply.

Note: Clicking Apply will save all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied.

Page 28

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

L3 Feature

IPv4 Interface

System > System Settings > IP Settings

This section allows you to change your switch IPv4 address settings and additionally create and assign the aforementioned address to VLANs. Typically, the IP address settings should be changed to match your existing network subnet in order to access the switch management page on your network.

Default Switch IPv4 Address: 192.168.10.200 Default Switch IPv4 Subnet Mask: 255.255.255.0

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, System Settings, and then IP Settings.

4. To change the IPv4 IP address associated with a specific VLAN, select the VLAN ID

from the drop down menu under VLAN.

5. Review the settings. When you have completed making changes, click Apply to save

the settings.

• VLAN: Select the VLAN ID you wish to configure. .

• Address: Enter the new switch IP address you would like to statically assign.

(e.g. 192.168.200.200)

• Subnet Mask: Enter the new switch subnet mask. (e.g. 255.255.255.0)

• Default Gateway: Enter the IP address of your gateway device (ie: router)

• DNS Servers 1 / DNS Servers 2: Enter the IP address of a DNS server to use. (ie:

8.8.8.8.8 for Google’s DNS server)

• Configuration: Select Static to statically assign an IP address and subnet mask,

select DHCP to automatically request one from your networks DHCP server.

6. At the top right of the screen, click Apply.

Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied.

Page 29

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

IPv4 ARP Aging Time

System > System Settings > ARP Settings

This section allows you to set the timeout for the switch’s ARP Table per each

configured VLAN.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, System Settings, and then ARP Settings.

3. Edit the Max Retries and Timeout

4. At the top right of the screen, click Apply.

Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied.

IPv4 Static ARP

System > System Settings > ARP Settings > ARP Table

This section allows you to statically set ARP entries per each configured VLAN.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, System Settings, ARP Settings and then ARP Table.

3. To add a static ARP entry, click Add to fill out the fields and then press Apply. To

delete an entry, press Delete in the lower table.

• Address: enter the IP address you would like to statically set to the ARP table.

• MAC Address: enter the MAC address that you would like to assign to the IP

entered above.

• Interface: Select the VLAN ID to add the ARP entry to

4. At the bottom of the left hand panel, click Apply.

5. Click the Apply button on the top right of the screen.

Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied.

Page 30

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

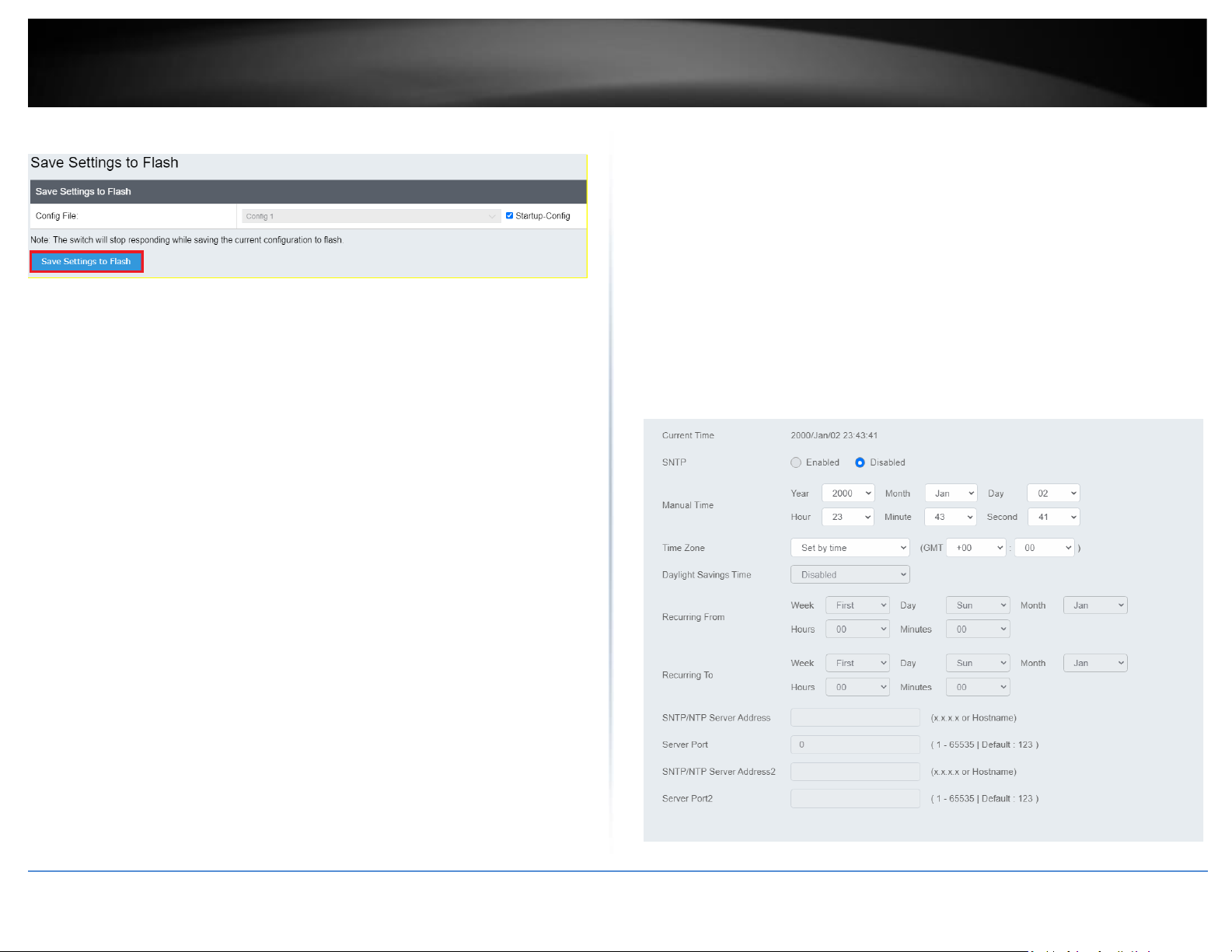

System Time

System > System Settings > System Time

This setting allows you to configure your IPv4/IPv6 DNS server settings for the purpose or resolving hostnames. For example, when specifying your SNTP server time settings via domain name, the switch will not be able to resolve the SNTP domain name specified until you configure the switch DNS server setting.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, then click on System Settings, and click on System Time.

3. Review the settings below and click Apply to save your settings.

Page 31

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

• Current Time: Displays the current time that is saved on your switch

• SNTP: Enable to allow the switch to automatically pull the time from an

SNTP/NTP Address, and select disable to manually input the time.

• Manual Time: Manually input the current date and time

• Time Zone: Sets the current time zone you are in

• Daylight Savings Time: Enable to set if daylight savings is on and disable if it is

not currently in daylight savings

• Recurring From / Recurring To: Configures when daylight savings goes into

effect and when it ends.

• SNTP/NTP Server Address: Sets the primary and back up SNTP/NTP Server

Address

• Server Port: Sets the port that the switch needs to access.

4. At the top right of the screen, click Apply.

Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied.

SNMP

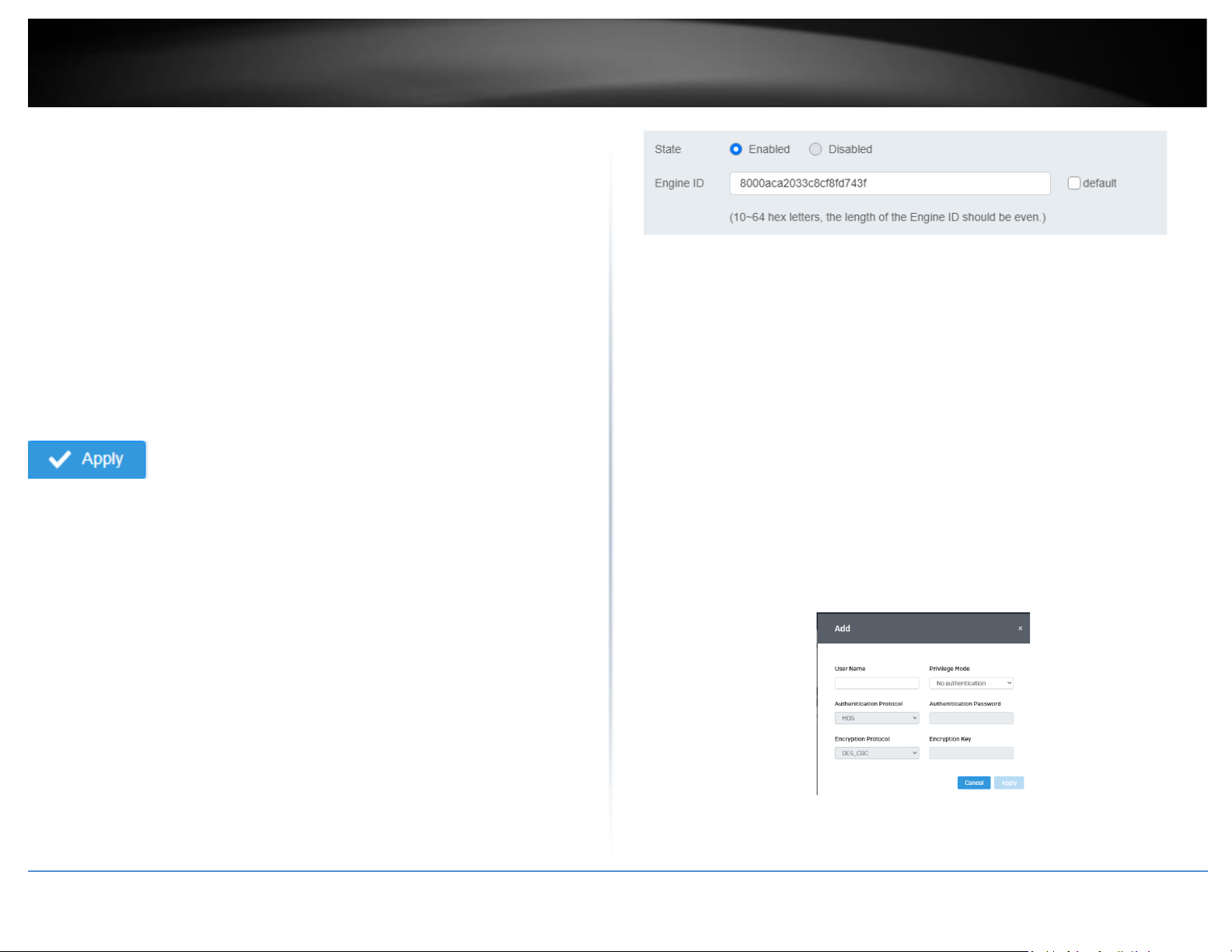

Global Settings

System > SNMP > Global Setting

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on SNMP, and click on Global Settings.

3. Select Enabled to enable SNMP or Disabled to disable it.

4. Input the SNMP OID engine

User List

System > SNMP > User List

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on SNMP, and click on User List.

3. Click Add to add username to the user list.

4. Review the settings and click Apply.

• User Name: Enter the User Name to grant access to

Page 32

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

• Privilege Mode: Select the level of privilege given

• Authentication Protocol: Select the type of protocol used for authentication

• Authentication Password: Input the password for the SNMP user

• Encryption Protocol: Select the encryption protocol type

• Encryption Key: Input the encryption key

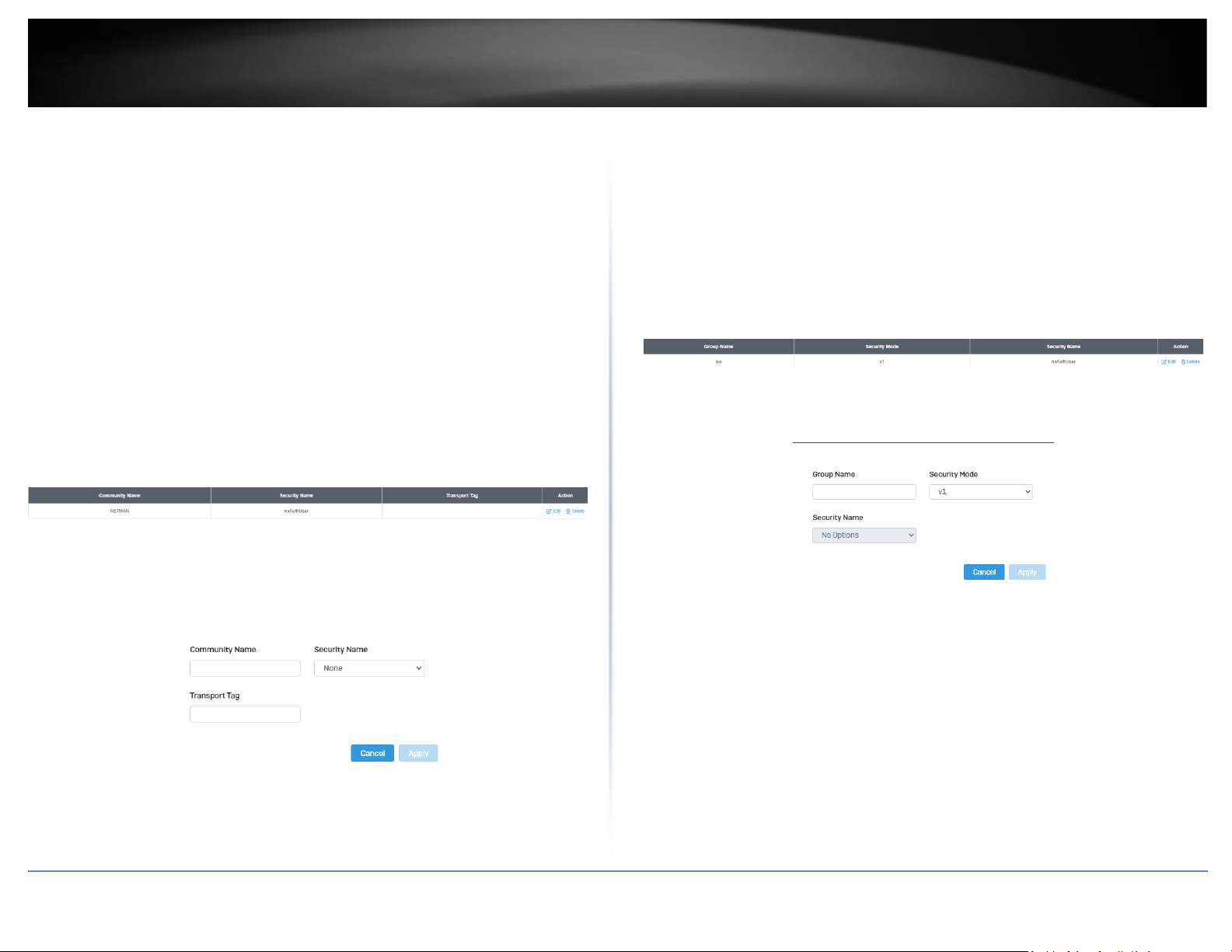

Community List

System > SNMP > Community List

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on SNMP, and click on Community List.

3. Select Edit to edit the selected community name or Delete to delete it.

4. To add a new entry, click the Add button

5. Review the settings and click Apply,

• Community Name: Input the community name for the new entry

• Security Name: Select the security type

• Transport Tag: Input the transport tag in the field

Group List

System > SNMP > Group List

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on SNMP, and click on Group List.

3. Select Edit to edit the selected group name or Delete to delete it.

4. Click Add to add username to the user list.

5. Review the settings and click Apply,

• Group Name: Input the desired group name

• Security Mode: Select the security mode for this SNMP group

• Security Name: Select the Security name from the drop down menu

Access List

System > SNMP > Access List

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on SNMP, and click on Access List.

Page 33

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

3. Select Edit to edit the selected group name or Delete to delete it.

4. Click Add to add username to the user list.

5. Review the settings and click Apply,

• Group Name: Select from the list of group names in the drop down menu

• Security Mode: Select from the drop down menu the level of security

• Read View: Input the items that are readable for this group

• Write View: Input the items that can be modified by this group

View List

System > SNMP > View List

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on SNMP, and click on View List.

3. Select Edit to edit the selected group name or Delete to delete it.

4. Click Add to add username to the user list.

5. Review the settings and click Apply,

• View Name: Input the view name

• Subtree OID: Input the OID to be used

• Subtree Mask: Input the Subtree Mask

• View Type: Select Included or Excluded from the drop down menu

RMON

Statistics

System > RMON > Stat List

You can remotely view individual port statistics with RMON by using your SNMP NMS software and the RMON portion of the MIB tree.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on RMON, and click on Stat List.

3. Click Add to add the entry to the table

Page 34

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

4. Review the settings and click Apply.

• Index: This parameter specifies the ID number of the new group. The range is 1

to 65535.

• Data Source: This parameter specifies the port where you want to monitor the

statistical information of the Ethernet traffic.

• Owner: This parameter is used to identify the person who created an entry. It is

primarily intended for switches that are managed by more than one person, and is an optional field.

In the list, you can click Delete to delete the entry.

• Statistic group— This group is used to view port statistics remotely with SNMP

programs.

• History group— This group is used to collect histories of port statistics to

identify traffic trends or patterns.

• Event group— This group is used with alarms to define the actions of the

switch when packet statistic thresholds are crossed.

• Alarm group—This group is used to create alarms that trigger event log

messages or SNMP traps when statistics thresholds are exceeded.

Event List

System > RMON > Event List

The RMON (Remote Monitoring) MIB is used with SNMP applications to monitor the operations of network devices. This Event group is used with alarms to define the actions of the switch when packet statistic thresholds are crossed.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on RMON and click on Event List.

3. Click the Add button on the top right to enable RMON. Review and edit your settings. Click Apply to save settings.

• Index: This parameter specifies the ID number of the new group. The range is 1

to 65535.

Page 35

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

• Event: Select the type of event that will trigger the alarm

• Description: Provide a name for this rule

• Owner: This parameter is used to identify the person who created an entry. It is

primarily intended for switches that are managed by more than one person, and is an optional field

4. In the list, you can click Edit to modify an entry or click Delete or delete the entry.

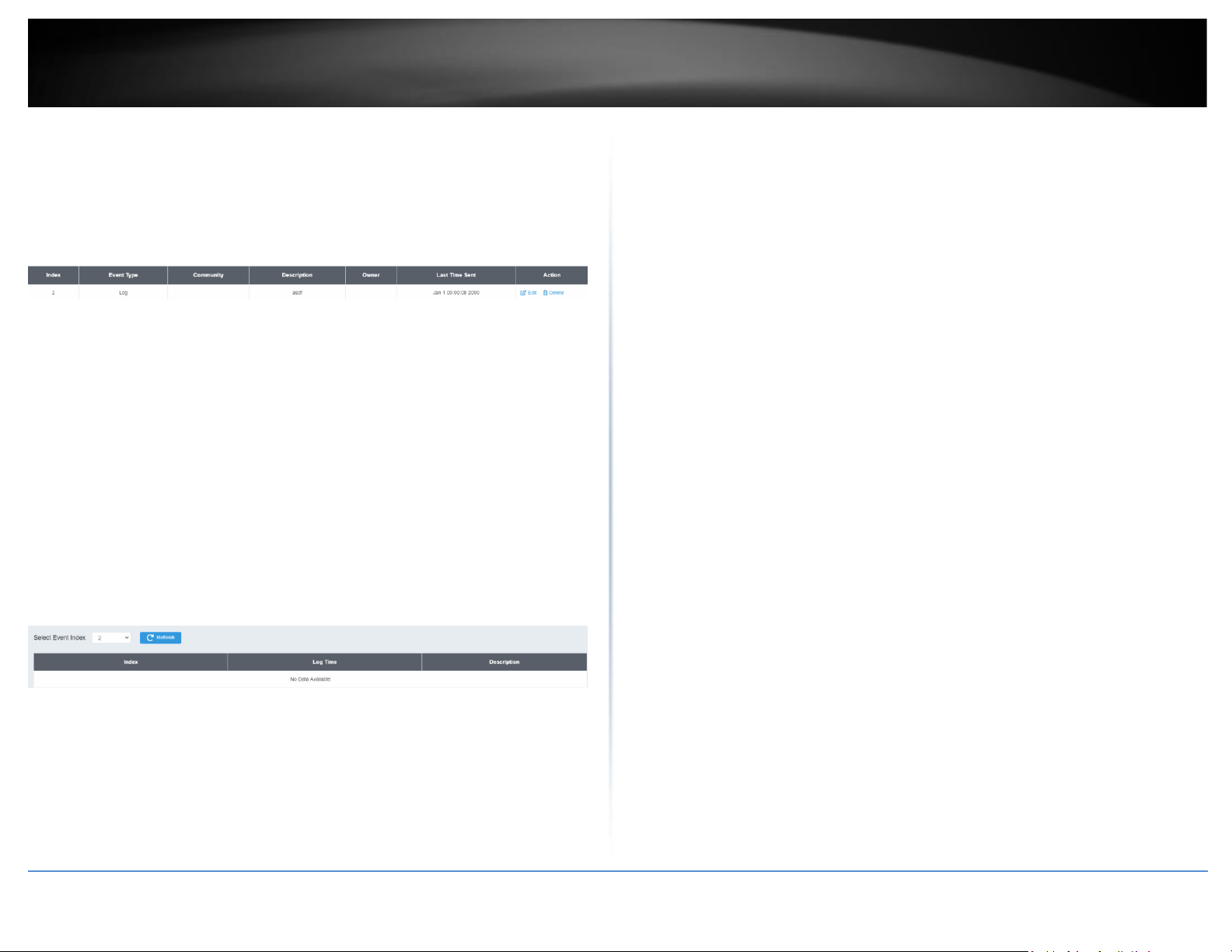

Event Log Table

System > RMON > Event Log Table

Any RMON events that were triggered will be displayed here.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on RMON, and click on Event Log Table.

3. Select the Event Index from the drop-down menu. Click the Refresh button if the page

needs to be refreshed.

Alarm List

System > RMON > Alarm List

RMON alarms are used to generate alert messages when packet activity on designated ports rises above or falls below specified threshold values. The alert messages can take

the form of messages that are entered in the event log on the switch or traps that are sent to your SNMP NMS software or both.

RMON alarms consist of two thresholds. There is a rising threshold and a falling threshold. The alarm is triggered if the value of the monitored RMON statistic of the designated port exceeds the rising threshold. The response of the switch is to enter a message in the event log, send an SNMP trap, or both. The alarm is reset if the value of the monitored statistic drops below the falling threshold.

The frequency with which the switch samples the thresholds of an alarm against the actual RMON statistic is controlled by a time interval parameter. You can adjust this interval for each alarm.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on RMON, and click on Alarm List.

3. Review the settings.

• Index: This parameter specifies the ID number of the new group. The range is 1

to 65535.

• Sample Interval: This parameter specifies the time (in seconds) over which the

data is sampled. Its range is 1 to 2147483647 seconds.

• Sample Variable: This parameter specifies the RMON MIB object that the event

is monitoring.

• Sample type: This parameter defines the type of change that has to occur to

trigger the alarm on the monitored statistic. There are two choices from the pull-down menu - Delta value and Absolute value. Delta value- setting compares a threshold against the difference between the current and previous values of the statistic. Absolute value- setting compares a threshold against the current value of the statistic.

• Owner: This parameter is used to identify the person who created an entry. It is

primarily intended for switches that are managed by more than one person, and is an optional field

• Rising Threshold: This parameter specifies a specific value or threshold level of

the monitored statistic. When the value of the monitored statistic becomes

Page 36

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

greater than this threshold level, an alarm event is triggered. The parameter’s range is 1 to 2147483647.

• Falling Threshold: This parameter specifies a specific value or threshold level of

the monitored statistic. When the value of the monitored statistic becomes less than this threshold level, an alarm event is triggered. The parameter’s range is 1 to 2147483647.

• Rising Event: This parameter specifies the event index for the rising threshold.

Its range is 1 to 65535. This field is mandatory and must match an Event Index that you previously entered in “Events”.

• Falling Event: This parameter specifies the event index for the falling threshold.

Its range is 1 to 65535. This field is mandatory and must match an Event Index that you previously entered in “Events”.

Click Apply to add the entry to the table.

History

System > RMON > History List

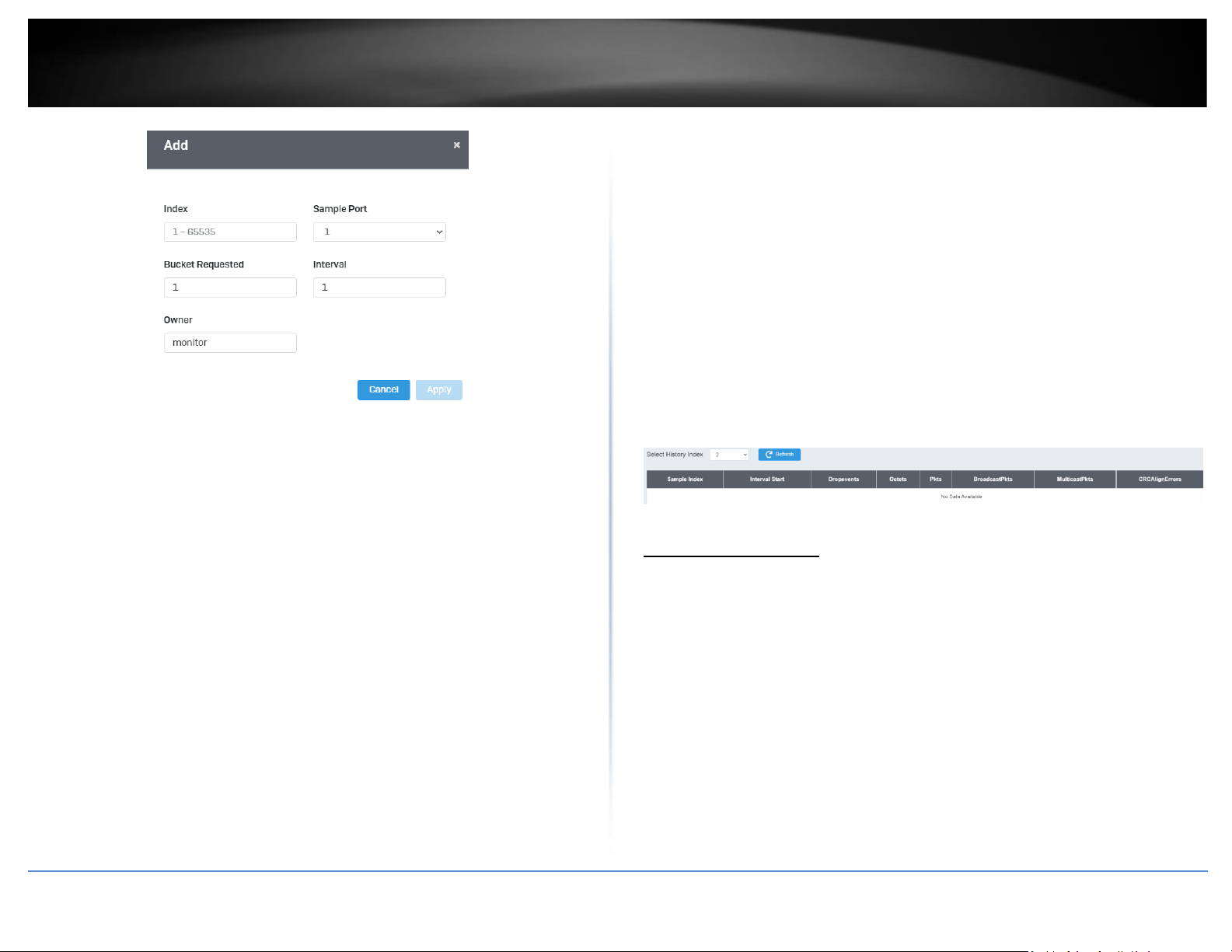

RMON histories are snapshots of port statistics. They are taken by the switch at predefined intervals and can be used to identify trends or patterns in the numbers or types of ingress packets on the ports on the switch. The snapshots can be viewed with your SNMP NMS software with the history group of the RMON portion of the MIB tree.

A history group is divided into buckets. Each bucket stores one snapshot of statistics of a port. A group can have from 1 to 50 buckets. The more buckets in a group, the more snapshots it can store.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on RMON, and click on History.

3. Review the settings.

• Index: This parameter specifies the ID number of the new group. The range is 1

to 65535.

• Sample Port: This parameter specifies the port where you want to monitor the

statistical information of the Ethernet traffic.

• Buckets Requested: This parameter defines the number of snapshots of the

statistics for the port. Each bucket can store one snapshot of RMON statistics. Different ports can have different numbers of buckets. The range is 1 to 50 buckets.

• Interval: This parameter specifies how frequently the switch takes snapshots of

the port’s statistics. The range is 1 to 3600 seconds (1 hour). For example, if you want the switch to take one snapshot every minute on a port, you specify an interval of sixty seconds.

• Owner: This parameter is used to identify the person who created an entry. It is

primarily intended for switches that are managed by more than one person, and is an optional field.

Click Add to add the entry to the table.

Page 37

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

History Log Table

System > RMON > History Log Table

RMON History Logs are accessed from this section. RMON History logs can be filtered by RMON Index.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on RMON, and click on History Log Table.

3. Select the History Index from the drop-down menu. Click the Refresh button if the

page needs to be refreshed.

MAC Address Table

Static MAC Address

System > MAC Address Table > Static MAC Address

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on MAC Address Table, and click on Static MAC Address.

3. Click Add to configure a new static MAC address

4. Review the settings and click Apply.

Page 38

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

• Port: Select the port where the MAC address will reside.

• VID: Select the VLAN ID where the MAC address will reside

Note By default, all switch ports are part of the default VLAN, VLAN ID 1

• MAC Address: Enter the MAC address of he device to add

Dynamic MAC Address

System > MAC Address Table > Dynamic MAC Address

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on MAC Address Table, and click on Dynamic MAC Address.

3. The table currently displays the MAC address of devices connected to the switch. To move a MAC address to Static MAC Address, click Move to Static

MAC Aging Time

System > MAC Address Table > MAC Aging Time

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on MAC Address Table, and click on MAC Aging Time.

3. Enter the duration in seconds for MAC Aging Table

SFP Module Information

Module & DDM

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on System, click on SFP Module Information , and select either Module or DDM.

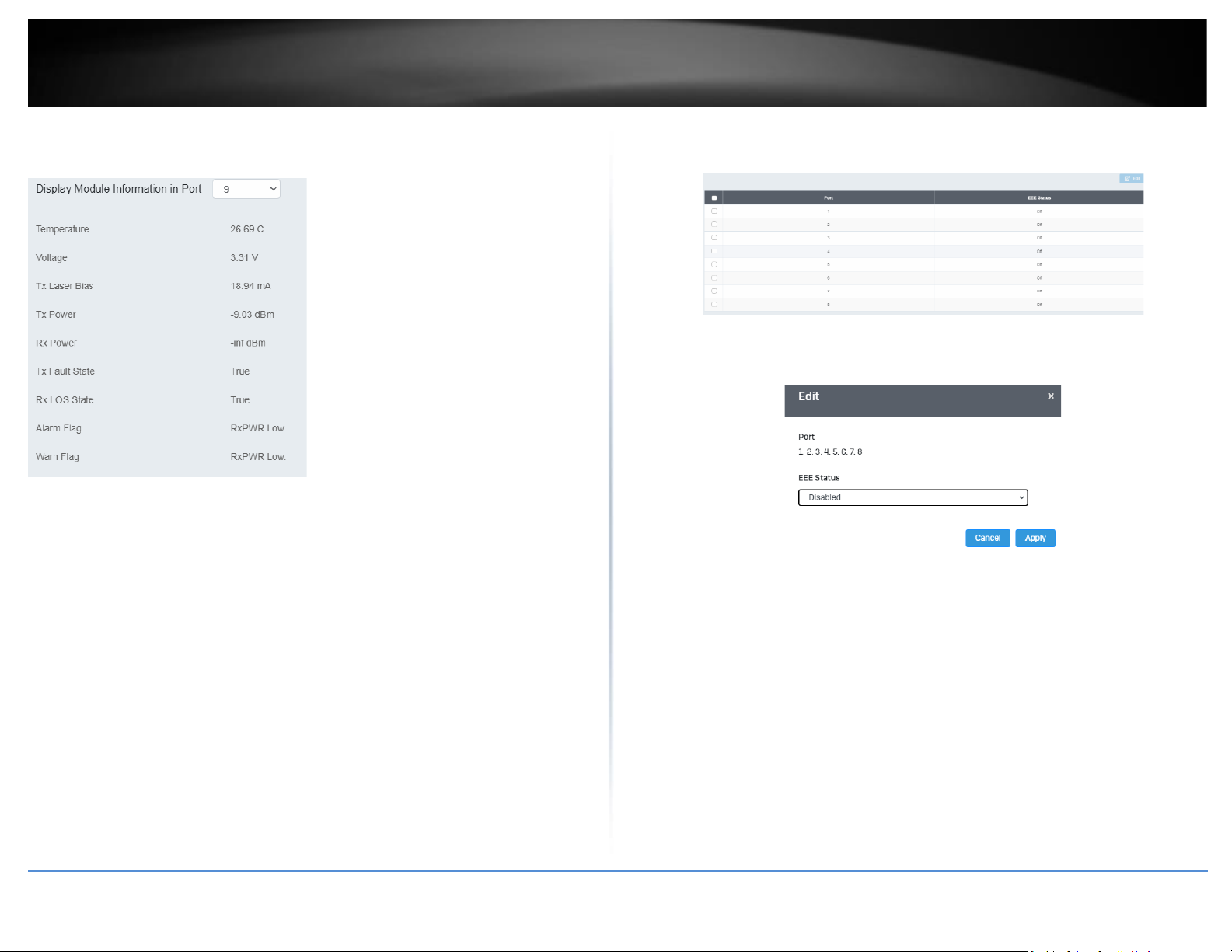

3. Module and DDM displays additional information of the SFP module that’s connected in the SFP slots.

Module:

Page 39

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

DDM:

IEEE 802.3az EEE

Enable IEEE 802.3az Power Saving Mode

System > EEE

The IEEE 802.3 EEE standard defines mechanisms and protocols intended to reduce the energy consumption of network links during periods of low utilization, by transitioning interfaces into a low-power state without interrupting the network connection. The transmitted and received sides should be IEEE802.3az EEE compliance. By default, the switch disabled the IEEE 802.3az EEE function. Users can enable this feature via the IEEE802.3az EEE setting page.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Tools and click on EEE.

3. Select the port you would like to turn on or off the IEEE 802.3az. To select all the ports, click the box on the top left. Click Edit to modify the options.

4. Select Enable or Disabled from the drop down menu to turn on or turn off the IEEE

802.3az settings for the selected ports.

5. Click the Apply button to save the settings to the flash.

Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied.

Page 40

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

Network

Physical Interface

Configure Physical Interfaces

Network > Physical Interface

This section allows you to configure the physical port parameters such as speed, duplex, flow control, and jumbo frames. This section also reports the current link status of each port and negotiated speed/duplex. Additionally you will be able to set your BPDU ports for Spanning Tree Configuration and EAP ports for 802.1x port-based authentication configuration.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Network, click on Physical Interface, and click on Port.

3. Review the settings. Click Apply to save changes.

• Port - Specifies the port number. The All value indicates ports 1 through 10 on

the Switch. You cannot change this parameter. You can use the All column value in the Port column to apply, Mode, Flow Control, and Description settings to all ports at the same time.

• Link Status - This parameter indicates the status of the link between the port

and the end node connected to the port. The possible values are:

o Link up -This parameter indicates a valid link exists between the port

and the end node.

o Link down -This parameter indicates the port and the end node have

not established a valid link.

• Mode: This parameter indicates the speed and duplex mode settings for the

port. You can use this parameter to set the speed and duplex mode of a port. The possible settings are:

o Auto -This parameter indicates the port is using Auto-Negotiation to

set the operating speed and duplex mode. The actual operating speed and duplex mode of the port are displayed in parentheses (for example, “1000/F” for 1000 Mbps full duplex mode) after a port establishes a link with an end node.

o Auto (1000F) -This parameter indicates the port is configured for

1000Mbps operation in Auto-Negotiation mode.

o 10G/Full – This parameter indicates the port is configured for 10Gbps

operation in full-duplex mode

o 2.5G Full – This parameter indicates the port is configured for 2.5Gbps

operation in full-duplex mode.

o 1000/Full -This parameter indicates the port is configured for

1000Mbps operation in full-duplex mode.

o 100/Full -This parameter indicates the port is configured for 100Mbps

operation in full-duplex mode.

Note: When selecting a Mode setting, the following points apply:

o When a twisted-pair port is set to Auto-Negotiation, the end node should

also be set to Auto-Negotiation to prevent a duplex mode mismatch.

o A switch port using Auto-Negotiation defaults to half-duplex if it detects

that the end node is not using Auto-Negotiation. This can result in a mismatch if the end node is operating at a fixed duplex mode of full-duplex. To avoid this problem when connecting an end node with a fixed duplex mode of full-duplex to a switch port, disable Auto-Negotiation on the port and set the port’s speed and duplex mode manually.

o The only valid setting for the SFP ports is Auto-Negotiation.

• Flow Control: This parameter reflects the current flow control setting on the

port. The switch uses a special pause packet to notify the end node to stop transmitting for a specified period of time. The possible values are:

o Enabled - This parameter indicates that the port is permitted to use

flow control.

o Disabled - This parameter indicates that the port is not permitted to

use flow control.

Page 41

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

• Description: This parameter offers the ability to name the device that’s

connected to it

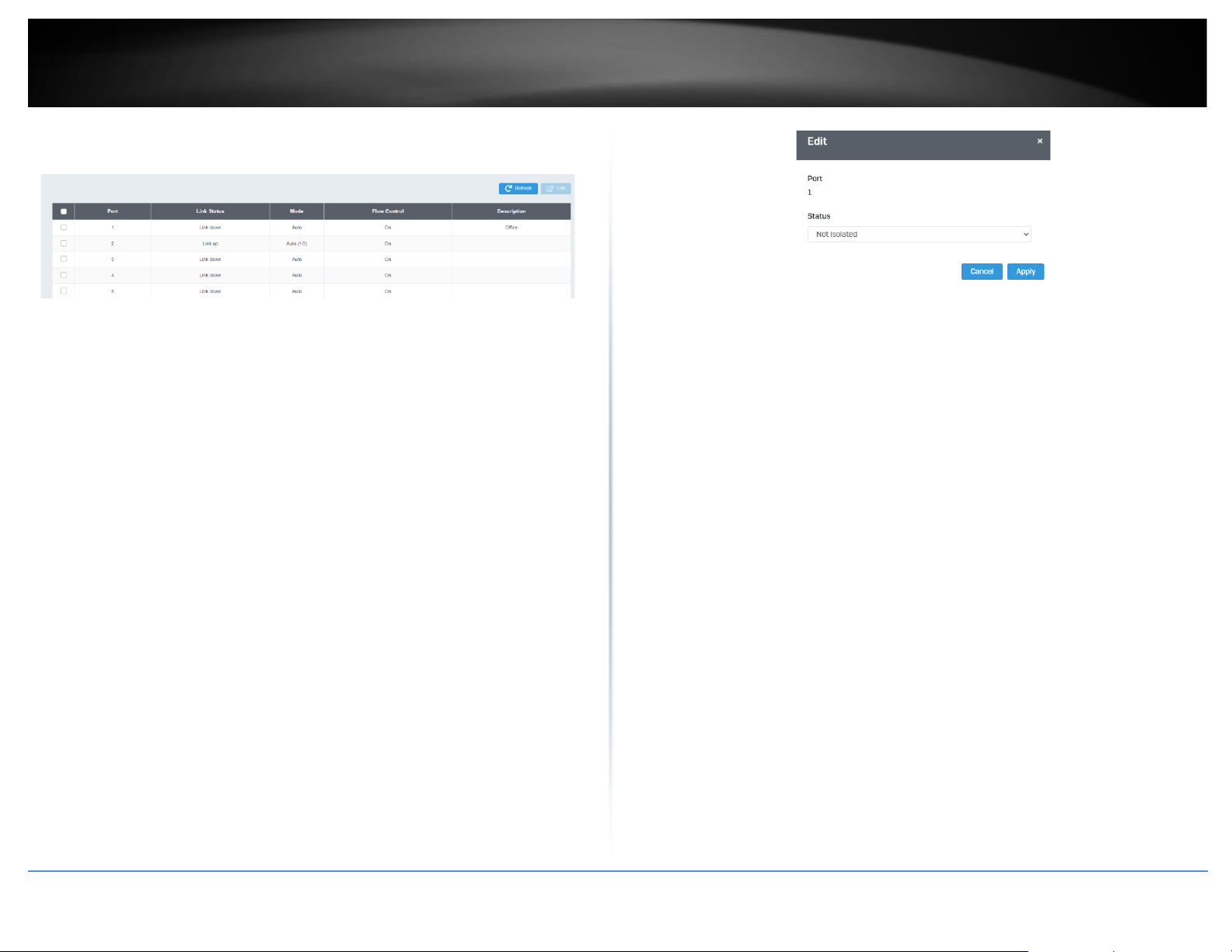

Port Isolation

Network > Physical Interface > Port Isolation

Port isolation prevents traffic from being sent between specific ports.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Network, click on Physical Interface, and click on Port Isolation.

3. Select the port you would like to be edit. You may also select all ports by selecting All column.

4. Select from the drop down menu to either Isolate or Not Isolate for the specified port and click Apply to save your settings.

Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied.

Mirroring

Network > Physical Interface > Mirror

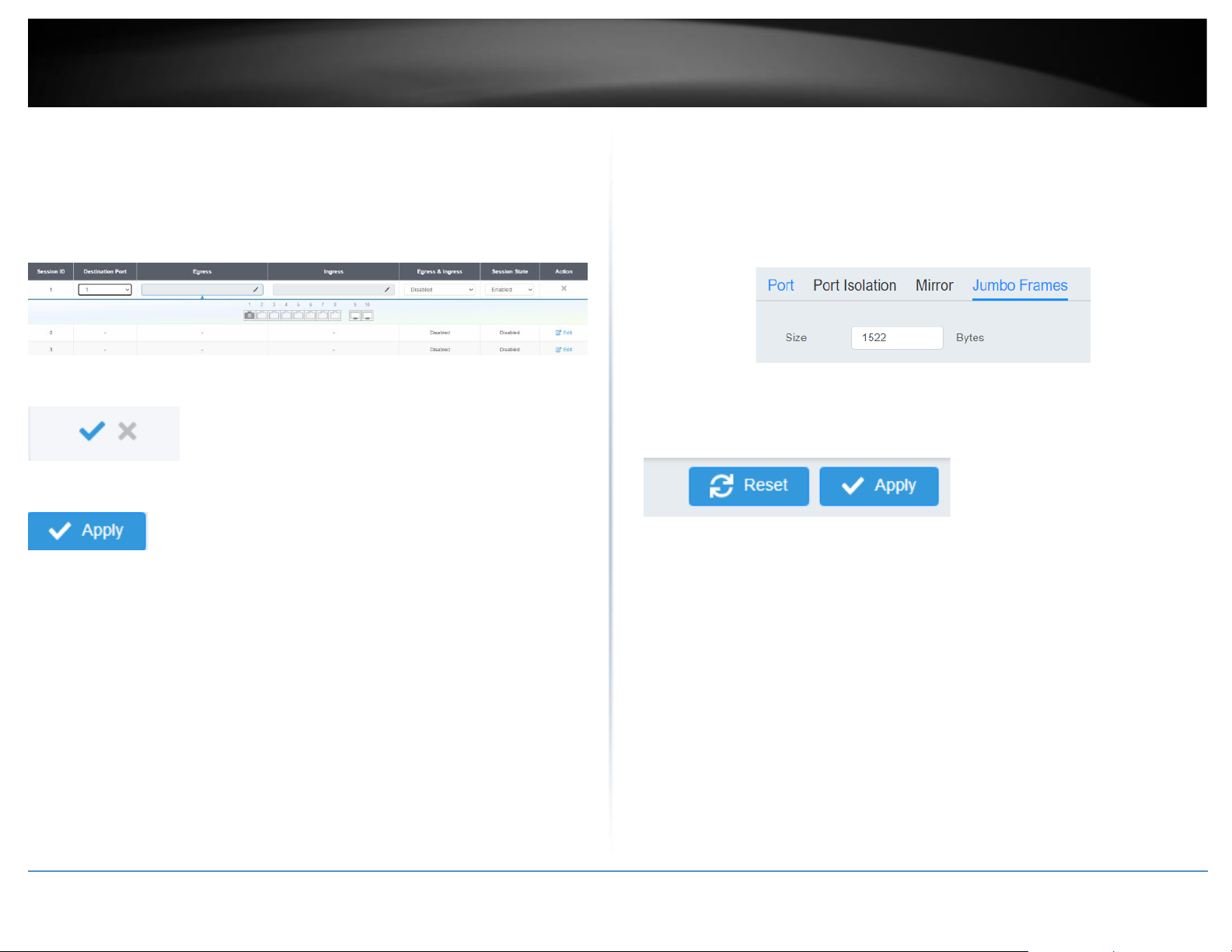

Port mirroring allows you to monitor the ingress and egress traffic on a port by having the traffic copied to another port where a computer or device can be set up to capture the data for monitoring and troubleshooting purposes.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Network, then click on Physical Interface, and click on Mirror.

3. Review the settings. Click Apply to save changes.

• Edit – Click to edit the selected session ID.

• Session State – Click the drop-down and list and select one of the following

options:

o Enable - This parameter activates the Port Mirroring feature and the

rest of the configuration parameters become active on the page.

o Disable - This parameter de-activates the Port Mirroring feature and

the rest of the configuration parameters become inactive on the page.

• Destination Port – Click the drop-down and list and select the port to send the

copied ingress/egress packets/data. (e.g. Computer or device with packet capture or data analysis program.)

Page 42

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

Check the port to monitor or copy inormation from. (Source) To copy data received on a specific port, select the port number(s) under the Ingress

Port section or you could click All to copy data received on all ports. To copy data transmitted on specific port, select the port number under the Egress Port

section or you could click All to copy data transmitted on all ports.

4. At the right hand panel, click the check mark to save your settings.

5. At the top right of the screen, click Apply.

Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied.

Jumbo Frames

Network > Physical Interface > Jumbo Frames

This section lets you input the size of the Jumbo Frames that can be accepted by the switch.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Network, then click on Physical Interface, and click on Jumbo Frames.

3. Enter the size of the Jumbo Frames to be accepted by the switch (in Bytes).

Note: The value of the Jumbo Frames needs to be between 1522 and 10240 Bytes. By default the value is 1522 Bytes.

4. Click Reset to reset the size of the Jumbo Frames to its default value. To save your new Jumbo Frame size, click Apply.

Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied.

Page 43

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

VLAN Settings

802.1Q VLAN

Network > VLAN Settings > 802.1Q

A VLAN is a group of ports that can be anywhere in the network, but communicate as though they were in the same area.

VLANs can be easily organized to reflect department groups (such as R&D, Marketing), usage groups (such as e-mail), or multicast groups (multimedia applications such as video conferencing), and therefore help to simplify network management by allowing users to move devices to a new VLAN without having to change any physical connections.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Network, click on VLAN Settings, and click on 802.1Q.

3. Click on Add to create a new VLAN.

3. Review the settings.

• VID – Enter the VLAN ID for the new VLAN.

• Name – Enter the VLAN name.

Note: By default, the default VLAN VID 1 is set as the Management VLAN.

• Cancel – Deletes the current settings

• Apply – Apply the new settings

In the sections Static Tagged, Static Untagged, and Not Member, you can add the type of VLAN ports to add to the new VLAN (Tagged or Untagged) and assign ports that are not members (Forbidden) of the new VLAN.

Tagged/Untagged/Not Member VLAN Ports

On a port, the tag information within a frame is examined when it is received to determine if the frame is qualified as a member of a specific tagged VLAN. If it is, it is eligible to be switched to other member ports of the same VLAN. If it is determined that the frame’s tag does not conform to the tagged VLAN, the frame is discarded.

Since these VLAN ports are VLAN aware and able to read VLAN VID tagged information on a frame and forward to the appropriate VLAN, typically tagged VLAN ports are used for uplink and downlink to other switches to carry and forward traffic for multiple VLANs across multiple switches. Tagged VLAN ports can be included as members for multiple VLANs. Computers and other edge devices are not typically connected to tagged VLAN ports unless the network interface on these device can be enabled to be VLAN aware.

Select the tagged VLAN ports to add to the new VLAN.

Page 44

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

Untagged VLAN ports are used to connect edge devices (VLAN unaware) such as computers, laptops, and printers to a specified VLAN. It is required to modify the Port VID settings accordingly for untagged VLAN ports under Bridge > VLAN > Port Settings. (e.g. If the VID for the VLAN is 2, the PVID should also be set to 2)

Select the untagged VLAN ports to add to the new VLAN.

Select the Forbidden ports to restrict from the new VLAN.

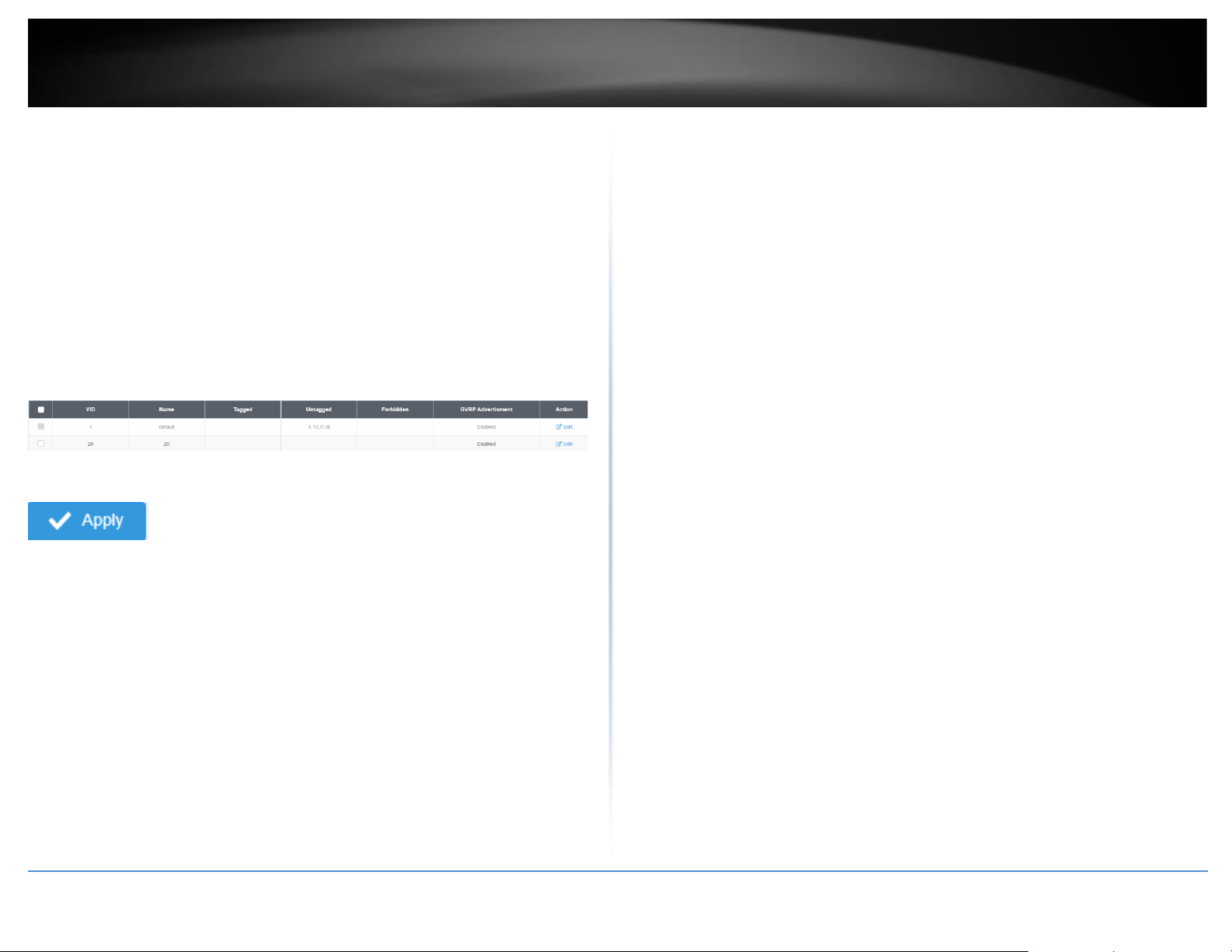

Click Apply to save the new VLAN to the table.

In the list, you can click Edit to modify an entry

Note: The default VLAN VID1 cannot be removed.

4. At the top of the right hand panel, click Apply.

Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied

PVID & Ingress Filter

Network > VLAN Settings > PVID & Ingress Filter

In this section, you can modify the port VID settings, acceptable frame types, and ingress filtering.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Network, click on VLAN Settings, and click on PVID & Ingress Filter.

3. Select the port would like to modify and click Edit to modify an entry.

4. Review the settings for each port. Click Apply to save settings.

• Port – Displays the selected port

• PVID – Select the correct VLAN ID. Note: Required for untagged VLAN ports.

• Ingress Filtering –Click the drop-down list and select Enabled to enable ingress

filtering or Disabled to disable ingress filtering.

• Acceptable Frame Type – Click the drop-down list and select which type of

frames can be accepted.

o All – The port can accept all frame types. o Tagged – The port can accept tagged frames only. Untagged frames

are discarded.

o Untagged– The port can accept untagged frames and frames with

tagged priority information only such as 802.1p.

Note: Modifying settings in the row marked All, will apply the settings to all ports.

Page 45

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

4. At the bottom, click Apply to save the changes made.

GVRP

Protocol

Network > GVRP > Global Settings

The GVRP VLAN Registration Protocol (GVRP) allows network devices to share VLAN information and to use the information to modify existing VLANs or create new VLANs, automatically. This makes it easier to manage VLANs that span more than one switch. Without GVRP, you have to manually configure your switches to ensure that the various parts of the VLANs can communicate with each other across the different switches. With GVRP, which is an application of the Generic Attribute Registration Protocol (GARP), this is done for you automatically.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Network, click on GVRP, and click on Global Settings.

3. Select Enabled under GARP VLAN Registration Protocol to to activate GVRP or

disabled to deactivate GVRP. Click Apply to save the settings.

4. At the top of the right hand panel, click Apply.

Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied.

Port Settings

Network > GVRP > Port Settings

This section will allow you to select which ports will have GVRP enabled or will be restricted from using GVRP.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Network, click on GVRP and click on Port Settings.

3. Select the port to modify the settings.

3. Review the settings for each port. Click Apply to save the settings.

• Port - This parameter displays the ports on the switch.

• JoinTime - This parameter is the GARP Join Timer. Its range is 10 - 4999000

milli-seconds.

• LeaveTime - This parameter is the GARP Leave Timer. Its range is 10 - 9999000

milli-seconds. This timer must be set in relation to the GVRP Join Timer according to the following equation:

GARPLeaveTimer >= (GARPJoinTimer X 2) + 10

Page 46

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

• LeaveAllTime - This parameter is the GARP Leave All Timer. Its range is 10 -

10000000 milli-seconds. This timer must be set in relation to the GVRP Leave Timer according to the following equation:

GARPLeaveAllTimer > (GARPLeaveTimer + 10)

4. At the bottom of the right hand panel, click Apply.

Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied

Spanning Tree

Protocol

Network > Spanning Tree > Global Settings > STP

Spanning Tree Protocol (STP) provides network topology for any arrangement of bridges/switches. STP also provides a single path between end stations on a network, eliminating loops. Loops occur when alternate routes exist between hosts. Loops in an extended network can cause bridges to forward traffic indefinitely, resulting in increased traffic and reducing network efficiency.

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Network, click on Spanning Tree, click on Global Settings, and click on STP.

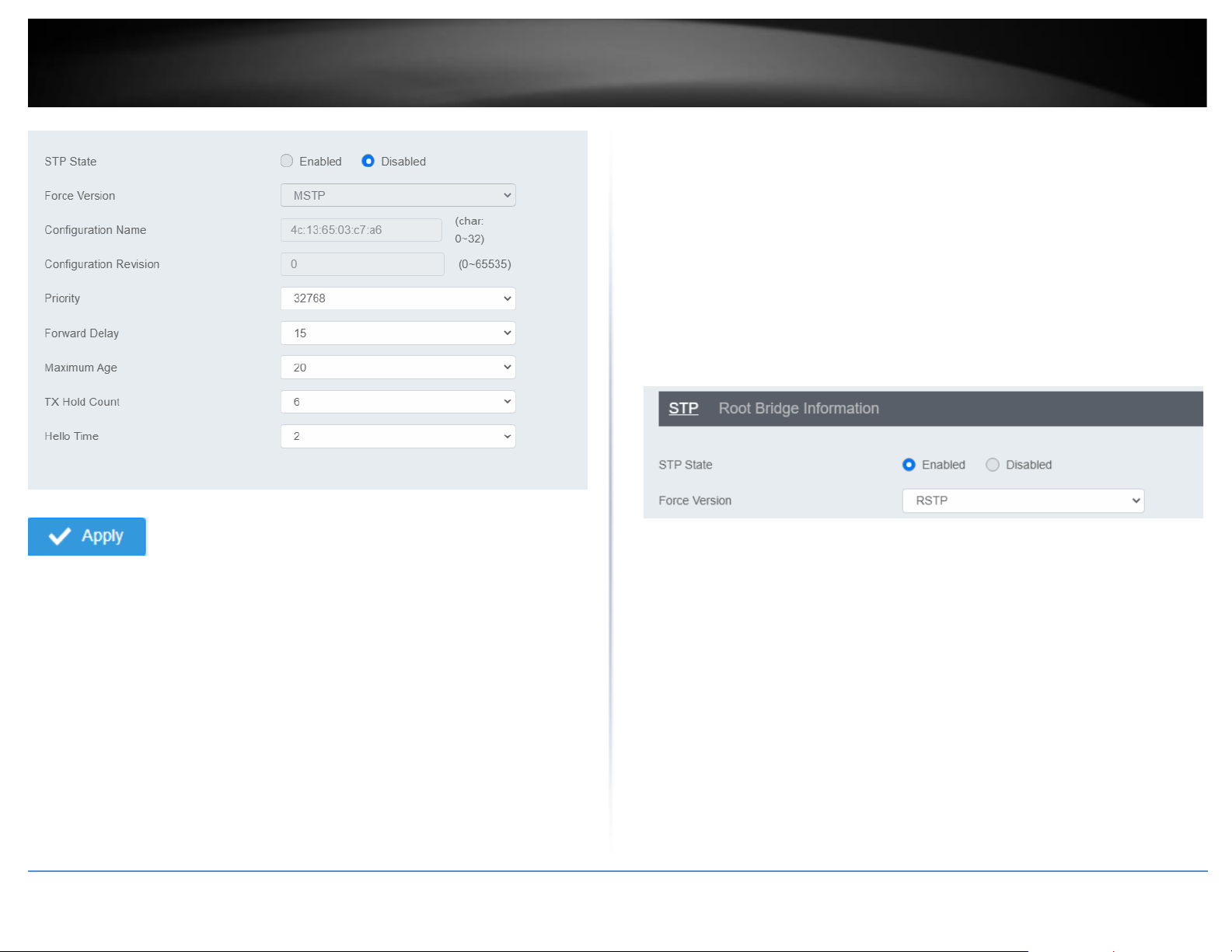

3. Review the settings. Click Apply to save changes.

• STP State: Select Enabled to Enable Spanning Tree Protocol, or Disabled to

disable STP.

• Force Version: Select MSTP or RSTP from the drop-down menu

• Configuration Name: Name the current STP

• Configuration Revision: Assign a revision number

• Priority: The Priority has a range 0 to 61440 in increments of 4096. To make

this easier for you, the Web Management Utility divides the range into increments. You specify the increment that represents the desired bridge priority value.

• Forward Delay: The Forward Delay defines the time that the bridge spends in

the listening and learning states. Its range is 4 - 30 seconds.

• Maximum Age: The Maximum Age defines the amount of time a port will wait

for STP/RSTP information. MSTP uses this parameter when interacting with STP/RSTP domains on the boundary ports. Its range is 6 - 40 seconds

• TX Hold Count: The Transmit Hold Count specifies the maximum number of

BPDUs that the bridge can send per second. Its range is 1 - 10.

• Hello Time: The Hello Time is frequency with which the root bridge sends out a

BPDU.

Page 47

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

4. At the top right panel, click Apply.

Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied

Root Bridge Information

Network > Spanning Tree > Global Settings > Root Bridge Information

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Network, click on Spanning Tree, click on Global Settings, and click on Root Bridge Information.

3. Displays the current settings made under STP.

RSTP Port Settings

Network > Spanning Tree > RSTP Port Settings

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Network, click on Spanning Tree, click on Global Settings, and click on STP.

3. Select RSTP from the drop down menu on Force Version

4. Click on RSTP Port Settings and select the port(s) to configure and click Edit.

5. Review the settings and click Apply to save your changes.

Page 48

TRENDnet User’s Guide

Multi-Gig Web Smart Switch Series

• Priority: Indicates the port priority. If two paths have the same port cost, the

bridges must select a preferred path. In some instances this can involve the use of the port priority parameter which is used as a tie breaker when two paths have the same cost. The range for port priority is 0 to 240. As with bridge priority, this range is broken into increments, in this case multiples of 16. To select a port priority for a port, you enter the desired value. Table 1 lists the values that are valid.

• Path Cost: This defines a metric that indicates the relative cost of forwarding

packets to the specified port list. Port cost can be set automatically or as a metric value. Define a value between 1 and 200000000 to determine the external cost. The lower the number, the greater the probability the port will be chosen to forward packets. The default port cost: 100Mbps port = 200000. Gigabit port = 20000.

• Edge Port Conf/Oper: Indicates if a port is connected to an edge device in the

network topology or not. Select Yes designates the port is an edge port, and No to designate the port is not an edge port.

• P2P MAC Conf/Oper: P2P ports are similar to edge ports, however, they are

restricted in that a P2P port must operate in full-duplex. Auto allows the port to have P2P status whenever possible and operate as if the P2P status were true. Selecting Yes indicates a P2P shared link is available. Selecting No means the port cannot maintain a P2P link.

• Migration: Enabled indicates the port is configured to accept RSTP and

Disabled indicates the port is not configured to accept RSTP.

• Status: Select Enabled to enable the status to be shown or Disabled to disable

this feature.

CIST Port Settings

Network > Spanning Tree > CIST Port Settings

1. Log into your switch management page (see “Access your switch management page” on page 5).

2. Click on Network, click on Spanning Tree, click on Global Settings, and click on STP.

3. Select MSTP from the drop down menu on Force Version

4. Click on Cist Port Settings and select the port(s) to configure and click Edit.

5. Review the settings and click Apply to save your changes.

Page 49
