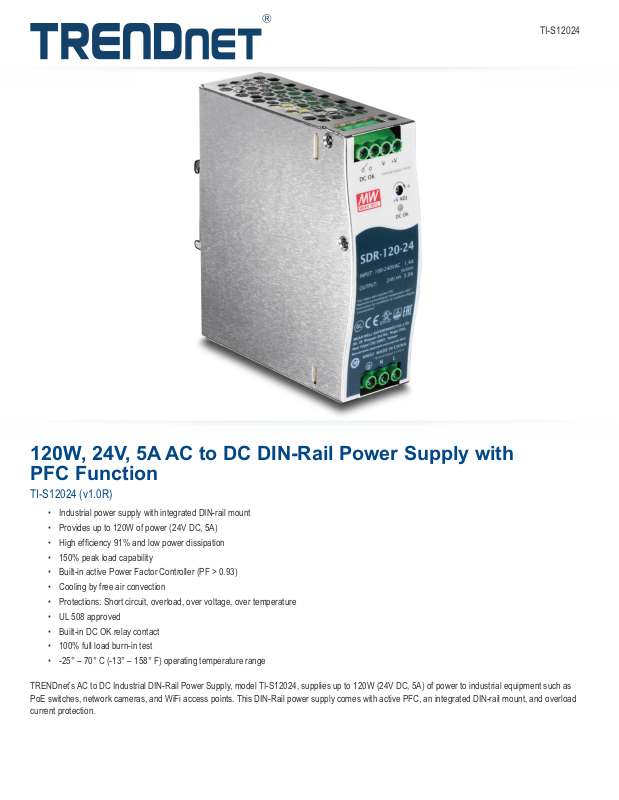

TRENDnet TI-S12024 Specsheet
TI-S12024
120W, 24V, 5A AC to DC DIN-Rail Power Supply with
PFC Function
TI-S12024 (v1.0R)
• Industrial power supply with integrated DIN-rail mount
• Provides up to 120W of power (24V DC, 5A)
• High efficiency 91% and low power dissipation
• 150% peak load capability
• Built-in active Power Factor Controller (PF > 0.93)
• Cooling by free air convection
• Protections: Short circuit, overload, over voltage, over temperature
• UL 508 approved
• Built-in DC OK relay contact
• 100% full load burn-in test
• -25° – 70° C (-13° – 158° F) operating temperature range
TRENDnet’s AC to DC Industrial DIN-Rail Power Supply, model TI-S12024, supplies up to 120W (24V DC, 5A) of power to industrial equipment such as
PoE switches, network cameras, and WiFi access points. This DIN-Rail power supply comes with active PFC, an integrated DIN-rail mount, and overload
current protection.
TI-S12024
Industrial Applications
Power network devices for manufacturing,
general industrial, warehousing,
surveillance, and corporate applications.
120W Power
Provides up to 120W (24V DC, 5A) of
power for PoE devices such as switches,
network cameras, and access points
Active PFC
Built-in active Power Factor Controller
(PFC, PF > 0.93) helps eliminate
unusable reactive power
Protection
Overload, short circuit, over voltage,
over temperature
Full Load Test
This power supply undergoes a 100%
full load burn-in test
120W Power
Provides up to 120W (24V DC, 5A) of
power for PoE devices such as switches,
network cameras, and access points.
Passive Cooling
Cooling by free air convection
DIN-Rail Mount
Metal enclosure with integrated DIN-rail
mount
Operating Temperature
Designed for industrial environments
with an operating temperature range of
-25° – 70° C (-13° – 158° F)
Safety Certifications
Certified for UL 508 and TUV
EN60950-1
Operating Temperature
Designed for industrial environments with
an operating temperature range of -25° –
70° C (-13° – 158° F).
Electro Magnetic Emission/Immunity
Compliance to EN55011, EN55022
(CISPR22), EN61204-3 Class B,
EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6,
8, 11, EN55024, EN61000-6-2,
EN61204-3, heavy industry level, criteria
A, SEMI F47, and GL approved
Vibration Resistant
Rated for vibration (IEC 60068-2-6)
LED Indicator
LED indicator confirms power to the unit
Specifications
Interface • Input: 88 – 264V AC, 57 – 63Hz, 1.8A 124 – 370V DC
Housing • DIN-rail mount
Special Features • DC OK relay contact
Operating
Temperature
Operating
Humidity
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted
herein.
• Output: 120W, 24V, 5A
• DIN-rail: TS-35/7.5 or 15
• Power LED indicator
• 150% peak load capacity
• Short circuit/overload/over voltage/over temperature protection
• Protection type: shutdown and repower
• -25° – 70° C (-13° – 158° F)
• Max. 95% non-condensing
20675 Manhattan Place • Torrance • CA 90501 • USA • T: 1-888-326-6061 • F: 1-310-961-5511 • sales@trendnet.com • www.TRENDnet.com
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject
to change at any time, without notice. For the most recent product information please visit http://www.trendnet.com. Copyright © TRENDnet. All Rights Reserved.
MTBF • 2,899,000 hours
Dimensions • 40 x 125 x 114mm (1.6 x 4.9 x 4.5 in.)
Weight • 670g (23.6 oz.)
Certifications
(Mean Well)
Warranty • 3 year
• CE
• UL 508CB 60950-1
• TUV EN60950-1
PACKAGE CONTENTS
• TI-S12024 (Mean Well SDR-120-24)
Updated: 11/9/2018
