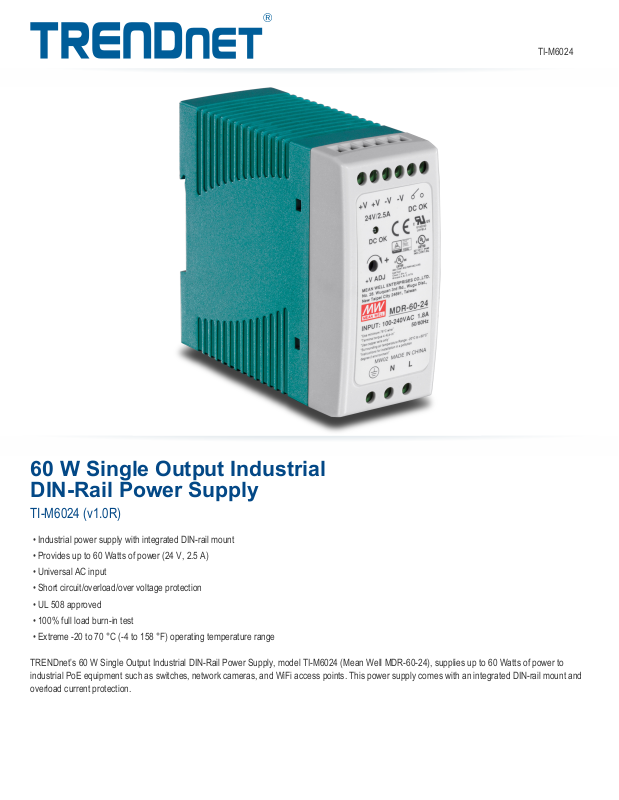

Page 1
TI-M6024
60 W Single Output Industrial
DIN-Rail Power Supply
TI-M6024 (v1.0R)
• Industrial power supply with integrated DIN-rail mount
• Provides up to 60 Watts of power (24 V, 2.5 A)
• Universal AC input
• Short circuit/overload/over voltage protection
• UL 508 approved
• 100% full load burn-in test
• Extreme -20 to 70 °C (-4 to 158 °F) operating temperature range
TRENDnet’s 60 W Single Output Industrial DIN-Rail Power Supply, model TI-M6024 (Mean Well MDR-60-24), supplies up to 60 Watts of power to
industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with an integrated DIN-rail mount and
overload current protection.
Page 2
TI-M6024
60 Watt Power
Provides up to 60 Watts (24 V, 2.5 A) of power for
PoE devices such as switches, network cameras, and
access points.
Overload Protection
Overload/short circuit/over voltage protection
Full Load Test
This power supply undergoes a 100 % full load burn-in
test
Passive Cooling
Cooling by free air convection
DIN-Rail Mount
Metal enclosure with integrated DIN-rail mount
Extreme Temperatures
Rated for an operating temperature range of -20 to 70
°C (-4 to 158 °F)
Safety Certifications
Certified for UL 508, UL 60950-1, TUV EN60950-1,
and Class I, Div. 2 Group A, B, C, D hazardous
locations T4
Electro Magnetic Emission/Immunity
Compliance to EN55011, EN55022 (CISPR22),
EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3,
4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3,
heavy industry level, and criteria A
Vibration Resistant
Rated for vibration (IEC 60068-2-6)
LED Indicator
LED indicator confirms power to the unit
Page 3
Specifications
Interface
• Input: 100-240 V AC, 50/60 Hz, 1.8 A 120-370 V DC
• Output: 60 Watts, 24 V, 2.5 A
• DIN rail: TS-35/7.5 or 15
Housing
• Metal case
• DIN-rail mount
• LED indicator confirms power to the unit
Special Features
• DC OK relay contact
• Short circuit/overload/over voltage protection
• Protection type: shut down and repower
Operating Temperature
• - 20 to 70 °C (- 4 to 158 °F)
Operating Humidity
• Max. 90 % non-condensing
TI-M6024
MTBF
• 2,992,000 hours
Dimensions
• 40 x 100 x 90 mm (1.6 x 3.9 x 3.5 in.)
Weight
• 300 g (10.6 oz.)
Certifications
• CE
• UL 508
• UL 60950-1
• CB 60950-1
• TUV EN60950-1
• Class I, Div. 2 hazardous locations T4
Warranty
• 1 year limited
Package Contents
• TI-M6024 (Mean Well MDR-60-24)
20675 Manhattan Place • Torrance • CA 90501 • USA • T: 1-888-326-6061 • F: 1-310-961-5511 • [email protected] • www.TRENDnet.com
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice. For the most
recent product information please visit http://www.trendnet.com. Copyright © TRENDnet. All Rights Reserved.
Updated: 11/12/2015
