Trendnet TIM-128 User Manual

Download

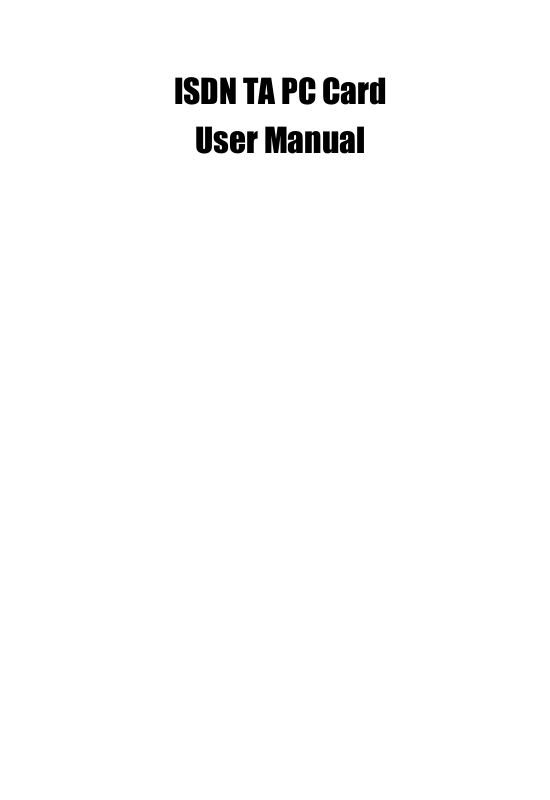

ISDN TA PC Card
User Manual

INTRODUCTION

The ISDN TA PC Card brings the latest in mobile communication technology with flexibility and convenience. With the wide range ISDN signaling protocols switches supports, mobile experts may enjoy the mobile communication across the world and the high speed digital service.
Pentium 75 or above
At least 30MB free hard disk space
At least 16MB RAM
PCMCIA Type II/III slot
PCMCIA Card Services and Socket Services v.2.1 or higher pre-installed
Windows 95/98/2000 or Windows NT pre-installed

Specifications

Standard

PCMCIA 2.1 & JEIDA 4.1 compliant

ISDN standards

Basic Rate Access (2B+D) S/T-Interface:
Compliant with ITU-T I.430
D-channel:
ITU-T Q.921, Q.931
ETSI NET3
B-channel:
V.120, V.110, X.75/T.70NL/ISO8208 Async-to-Sync PPP conversion Multilink PPP, 56 K Modem (CAPI only) G3 fax (CAPI only)
- 1 -
Voice (CAPI only)

Line Rate

64/56 Kbps on 1 B-channel
128/112 Kbps on 2 B-channel (PPP/MP)
64/56Kbps on 1 B-channel
16Kbps on D-channel

ISDN Network & Switch Compatibility

National ISDN-1 (NI-1)
AT&T 5ESS Custom
Northen Telecom DMS-100 Custom
DSS1 (Euro-ISDN)
INS-Net 64

Application Program Interface Supported

VCOMM
WinISDN
CAPI 2.0
NDIS WAN

Operating System Supported

Windows 95 and OSR2
Windows 98
Windows 2000
Windows NT 4.0

Physical Specifications

RJ-45 ISDN line interface
Dimension: 85.6 x 54 x 5 (mm) PCMCIA Type II
- 2 -

Parts Names

ISDN Network Connection Cable
15-pin PC Card Connector
- 3 -

HARDWARE INSTALLATION

If you are using the ISDN TA PC Card under Windows 95/98/2000, Do NOT insert the PCMCIA card until after the software installation is completed.
1. Align the PC card with the arrow sign pointing toward the computer’s
PCMCIA slot.
2. Connect the 15-pin PC card connectors with the two exposed end of the
PC card. Push evenly and steadily until the units ‘click’.
3. Connect the ISDN line to the opposite end of the ISDN Network
Connection Cable. Note: If your NT1 box does not have 100 ohm resistor,
terminator resistor (optional) is required and should be
then the 100 used as a connector to connect the ISDN line with the ISDN Network
Connection Cable. Consult your dealer if the 100 not included in the package.
ΩΩΩΩ
Ω
terminator resistor is
- 4 -
Connects to ISDN TA PC Card
Connects to ISDN TA PC Card
or
Connects to ISDN line
Terminal resistor
Connects to ISDN line
- 5 -

FIRST THING TO KNOW ABOUT SOFTWARE INSTALLATION

The ISDN TA PC Card is designed to support a wide bandwidth of interfaces/drivers for a total solution in different environments. The software setup procedures accordingly vary from interfaces/drivers to interfaces/drivers. To help you set up the software efficiently, the software installation is organized by interfaces under
Windows 95/98/2000
respectively.
The following figures are illustrated as guideline-like flow charts. If something goes wrong, track down the flow to check if there is any procedure missing while setting up; and move to the corresponding section for details.
Windows 95/98/2000
Hyper Terminal
DUN
CAPI NDISVCOMM
RVS-COM
Center
and
Windows NT
VCOMM Port
Driver
* PPP *
V.110 V.120
*
CAPI 2.0
Interface
* PPP * V.110
V.120
* *
X.75 Modem
* * Eurofile Transfer * G3 FAX over ISDN
NDIS Port
Driver
* PPP
ISDN Low
Level Driver
The blocked area indicate that after when
(see section titled “
Installing Device Driver
setup.exe
has been executed
”), the Phone Dialer VCOMM Port driver, CAPI 2.0 and the ISDN Low Level Driver were also installed. You may then use Phone Dialer or the functions with VCOMM directly.
For CAPI mode, however, it is required to install RVS.COM Center
beforehand to enable the functions with CAPI.
For NDIS mode, unless the NDIS Port Driver has been installed, the
ISDN Low level Driver won’t be able to work.
- 6 -
Windows NT
Hyper Terminal
DUN
CAPI NDIS
RVS-COM
Center
CAPI 2.0
Interface
* PPP * Modem over ISDN * G3 Fax * Voice application
NDIS Port
Driver
* PPP
ISDN Low
Level Driver
The blocked area indicate that after when
(see section titled “
Installing Device Driver
setup.exe
”), the Phone Dialer CAPI mode and NDIS were also installed. You may then use Phone Dialer or the functions with NDIS mode directly.
For CAPI mode, however, it is required to install RVS.COM Center
beforehand to enable the functions with CAPI.
has been executed
- 7 -

SOFTWARE INSTALLATION FOR WINDOWS 95/98/2000

Installing the Device Driver

1. Insert the device driver compact disc or disks by sequence into your
computer.
2. Double-click
3. Double-click the drive whichever contains the device driver. For example,
if you are using disks, insert the disks into drive A, double-click
Floppy (A:)
and double-click folder Windows 2000.
4. Double-click
automatically. Follow the on-screen instruction. While for installation under Windows 2000, remember to close the following window to continue.
5. When finished, click the
your computer. Before your computer is reset, insert the PCMCIA card into your PCMCIA socket.
My Computer
”
. Or if you are using compact disc, select the CD-ROM drive
Setup.exe
.
when in Windows 95/98, or
Win9x
. The installation program will proceed
button, and you will be asked to restart
Finish
Win2000
“
3½
for
6. When Windows restart, Windows will automatically detect the new
device.
- 8 -
7. For Windows 2000, the following picture will also appear afterwards.
Click
to continue.
Yes
8. Select the appropriate protocol in Windows 2000. Click
. Follow the
Next
on-screen instruction to finish setting.

Installing the Application Programs

Before you start, make sure the type of your Application Program Interface. The Application Program Interface (API) is used as the interface between the hardware (ISDN TA PC Card) and the application programs. Before performing the installation, make sure the type of API matching your system. The currently supported APIs are VCOMM, NDIS, and CAPI. Move to the specific section titled the appropriate API for your need for installation.

VCOMM Mode

COM port is commonly used for connecting to the external ISDN devices. With the VCOMM COM port emulation, the ISDN multifunction PC Card works exactly like an ISDN TA (Terminal Adapter) external box, which can
- 9 -
run with traditional terminal program packages, such as Windows 95 Hyper Terminal, Procom Plus for Windows, Telix, pcAnywhere, etc., to hook up to the on-line services and bulletin boards. In this mode, ISDN AT commands are usually used to drive the ISDN multifunction PC Card.
Making PPP Connection (Basic Internet)
1. Go to
2. Select
My Computer
Dial-Up Networking
.
.
Double-click
Make a New Connection
, a
dialogue box will appear as shown below.
3. Name the new connection appropriately.
4. Select
Intelligent PCMCIA ISDN TA (modem)
.
5. Enter in the area code and phone number of your Internet Service Provider
(ISP). Leave out the ‘-‘. (Example: ‘1234567’ NOT ‘123-4567’ ) Typically, the country and area codes are not required and should be disabled.
- 10 -
6. From the
connection. Select of
“Use area code and Dialing Properties”
Dial-Up Networking
Properties
window right-click your newly created
. On the
General
tab, cancel the selection
and click OK.
7. From the
Click
Config
Start
menu, select
Programs.
Select
Configuration Utility
. A dialogue box will prompt you to change the settings to
fit your needs.
8. Select the proper switch type corresponding to your need. Switch Type
varies between countries. Although you have the option of “
- 11 -
Automatic
.
”
as a selection, it is highly recommended that you chose a specific selection, to reduce the chance of incompatibility. Typically the selections are as follows:
Areas Switch Types
Canada & United States Northern Telecom & NI-1
Japan INS Net 64
Taiwan DSS1 (ETSI)
Europe DSS1 (ETSI)
9. Enter the ISDN phone numbers and the Service Profile Identifier. Number
(SPID) will be supplied by your local ISDN telephone company.
[NOTE: With the
“INS Net 64”
&
"DSS1 (ETSI)”
switch types, there are no SPID’s to be entered.]
10. Now you are ready to connect the ISDN TA PC card to your system.
Refer to the Hardware Installation section for details.
Making Multilink PPP Connections
The Intelligent ISDN TA PC Card supports the combining of two 64 Kbps data channels into the equivalent of a single 128 Kbps line, which is known as Multi-Link connection. To make the multilink PPP connections, firstly the PPP connection has to be completed, and the hardware (the ISDN TA PC Card) has been properly installed. Perform the following steps to proceed.
1. Go to the
Execute
2. Open “
CONFIG
General
menu. Point to
Start
.
” tab. Click “
3. Apply the other settings, “
available.
Making V.110 Connections
1. Execute “
2. Select the
protocol
” in “
3. Make sure
4. Double-click “
” in
Config
COM Port Setting
Configuration Utility
st
1
COM port setting
Dial-Up Networking
Make New Connection
Program
MP Enabled
BOD Enabled
tab. Select “
”.
is well installed.
”.
- 12 -
. Select
” in “
PPP Setting
” and “
.
Configuration Utility
”.
Second Phone No
” for “
V.110
B-Channel
.
.” if
5. Name the new connection appropriately. For example, “V.110”.
6. Select “
device
7. Click
Configure
box. Click
Intelligent PCMCIA ISDN TA (modem)
” box.
, and specify the V.110 user rate in the
.
Next
” in the “
Maximum speed
Maximum speed=1200 V.110 user rate = 1200 bps.
Maximum speed=2400 V.110 user rate = 2400 bps.
Maximum speed=4800 V.110 user rate = 4800 bps.
Maximum speed=9600 V.110 user rate = 9600 bps.
Maximum speed=19200 V.110 user rate = 19200 bps.
Maximum speed=38400 V.110 user rate = 38400 bps.
Maximum speed=57600 V.110 user rate = 57600 bps*
* Available only for Japan
If the maximum speed you selected is not listed above, the system will
automatically adapt the V.110 user rate to the default setting at 38400 bps.
8. Enter the ISDN phone number of the remote party that you want to call.
9. Click “
”, and click “
Next
” to complete the setting.
Finish
Making V.120 Connections
Select a
1. Execute “
2. Select
3. Go to
COM Port Setting
st
in “
1
COM port setting
My Computer
Config
” in “
Configuration Utility
tab. Select “
”.
. Make sure “
”.
” for “
V.120
B-Channel protocol
Dial-Up Networking
” (DUN) is well
installed.
4. Double-click
Make New Connection
.
5. Name the new connection appropriately. For example, “V.120”.
6. Select “
device
Intelligent PCMCIA ISDN TA (modem)
” box.
- 13 -
” in the “
”
Select a
7. Click “
Configure
“
Maximum speed
speed at higher than 64000 bps, such as 115200 or higher). Click “
” button, and give the appropriate settings. Ignore the
” setting (but you are still recommended to set to the
Next
8. Enter the ISDN phone number of the remote party that you want to call.
”.
9. Click “
”, and click “
Next
” to complete the setting.
Finish
Making Multi-destination Connections
The Intelligent ISDN TA PC Card enables the connections between the different destinations with two different protocols at the same time. For example, you can separately and independently use one ISDN B-Channel (say B1-Channel) with PPP protocol to connect to ISP, and the other B-Channel (say B2-Channel) with V.110 or V.120 to connect to the corporate network in head quarter or branches. This feature lets the ISDN TA PC Card fully utilize the ISDN two B-Channel resources.
1. Set up the PPP connection for the first application. Refer to the “
Connection (method 1)
” section for setting details.
PPP
2. Set up the second application, for example, V.120:
(a) Add the 2
Enter “
Check “
nd
COM port.
Control Panel
”. Click “
Other
” Æ “
Next
Modem
”.
”. Click “
Add
” button.
Check “Don’t detect my modem; I will select it from a list”. Click
“Next”.
Select “
Intelligent ISDN
PCMCIA ISDN TA (modem)
Select “
ISDN_2
nd
_COM
” in “
” in “
”. Click “
Manufacturers
Models
Next
”. Click “
”.
”, and “
Next
Intelligent
”.
Click “
Now you can find “
Finish
”.
Intelligent PCMCIA ISDN TA (modem)
“Control Panel” Æ “Modem”.
(b) Follow the steps in “
V.120 Connection
PCMCIA ISDN TA (modem) #2
” section. Select “
Intelligent
” for V.120 connection setting at
step (6).
(c) Finish the other steps to complete the V.120 connection settings.
- 14 -
#2” in

CAPI Mode

Before starting any applications in CAPI mode, the RVS-COM “CommCenter” is required to be executed. If the RVS.COM is not yet installed on your computer, perform the following procedures.
Installing RVS.COM Lite
1. Insert the RVS-COM compact disc into your CD-ROM drive. Press
when the opening screen appears.
2. Follow the on-screen instruction to proceed.
Yes
3. When finished, the installation program will restart your computer. When
your computer is restarted, the following screen will appear.
- 15 -
4. Click
Express configuration main line>
. Follow the on-screen instruction
to finish the installation.
5. To make sure if the RVS-COM has been well installed, you may check by
going to the “
RVS ISDN Internet PPP
Start
menu->
Settings->Control Panel->Modems
” exists in there as illustrated below.
to see if
- 16 -
Making PPP connections
1. Execute
2. Click “
RVSCommCenter
Make new Connection
”.
” in the
Dial-Up Networking
the new connection appropriately, for example, “ “
RVS ISDN Internet PPP
”.
folder. Name
RVS_PPP
”. Select
- 17 -
3. Click
Configure
…. Select “
RVS Port (COM#)
”. Click OK.
4. Click
5. Click “
. Enter the ISDN phone number of your ISP. Click
Next
”. Now you are ready for Internet access through CAPI.
Finish
Next
.
Making Multilink PPP Connections
There are two ways to setup the ISDN PC Card for Multilink PPP (MP or MLP) connections through CAPI mode.
Method 1
1. Execute
RVSCommCenter
.
2. Complete the PPP connection setup in the previous section.
3. Execute
4. Open the
other settings, “
Config.
(Start->Programs->Configuration Utility).
General
tab. Click “
BOD Enabled
MP Enabled
” and “
Second Phone No
” in “
PPP Setting
.” if available.
”. Apply the
5. Now you are ready for Internet access.
- 18 -
Method 2
1. Execute
RVSCommCenter
”. Click the
Service
2. When the above dialog box appear, check
3. Go to
.
Add
4. Select “
5. Select “
6. Select “
My computer
Other Modem
Don't detect my modem; I will select it from a list
RVS Datentechnik
. Select
”. Click “
Control Panel
”.
Next
” – “
RVS ISDN Internet PPP
tab.
nd
COM port
2
. Double-click
and click OK.
”. Click
. Click
Next
Next
Modem
”. Click
.
.
- 19 -
7. Select the RVS COM ISDN port that you just added. Click
Next
.
8. Click “
Finish
”.
9. Now you can see “
“
Control Panel
” Æ “
RVS ISDN Internet PPP #2
Modem
”.
- 20 -
” in the modem list in
10. Enter “
Dial-Up Networking
” folder in
My Computer
.
11. Click “
Make new Connection
appropriately. For example, “
Internet PPP
”. Click
Next.
”, and name the new connection
RVS_MP
”. Select the modem “
RVS ISDN
12. Enter the ISDN phone number your ISDN ISP. Click Next to finish.
- 21 -
13. Right-click the new connection in
Dial-Up Network
. Click
Property
.
14. Click the “
Select
RVS ISDN Internet PPP #2
Multilink
” tab. Check “
PPP settings.
Making V.110 Connections
1. Execute “
CommCenter
”. And make sure all the settings are well and
correctly configured.
Use additional device
”. Click
Add.
”. Click OK to complete the Multilink
2. Go to
My Computer
. Make sure
Dial-Up Networking
(DUN) is well
installed.
3. Double-click “
Make New Connection
”.
4. Name the new connection appropriately. For example, “RVS_V.110”.
5. Select “
6. Click “
speed
RVS ISDN V.110
Configure
” button, and specify the V.110 user rate in “
” box. Click “
Next
” in “
”.
Select a device
” box.
Maximum speed=1200 V.110 user rate = 1200 bps.
Maximum speed=2400 V.110 user rate = 2400 bps.
- 22 -
Maximum
Maximum speed=4800 V.110 user rate = 4800 bps.
Maximum speed=9600 V.110 user rate = 9600 bps.
Maximum speed=19200 V.110 user rate = 19200 bps.
Maximum speed=38400 V.110 user rate = 38400 bps.
Maximum speed=57600 V.110 user rate = 57600 bps*
* Available only for Japan
If the maximum speed you selected is not in the above list, the system will automatically adapt the V.110 user rate to the default setting at 38400 bps.
7. Enter the ISDN phone number of the remote party that you want to call.
8. Click “
”, and click “
Next
” to complete the setting.
Finish
Making V.120 Connections
1. Execute “
CommCenter
”. And make sure all the settings are well and
correctly configured.
2. Double-click “
Make New Connection
”.
3. Name the new connection appropriately. For example, “V.120”.
4. Select “
5. Click “
“
RVS ISDN V.120
Configure
Maximum speed
” button, and give the appropriate settings. Ignore the
higher than 64000 bps, such as 115200 or higher). Click “
6. Click “
Next
”.
” in the “
Select a device
” box.
” setting (you are recommended to set to the speed at
”.
Next
7. Enter the ISDN phone number of the remote party that you want to call.
8. Click “
”, and click “
Next
” to complete the setting.
Finish
Making X.75 Connections
1. Execute “
CommCenter
”. And make sure all the settings in the tab are
well and correctly configured.
2. Enter “
transparent
Control Panel
”. Click “
” Æ “
Modems
Proprieties
”. Select “
RVS ISDN X.75
” button. Make sure the COM port
setting is correctly assigned.
- 23 -
3. Run Windows 95 “
For example, “
RVS_X75
Hypertrm
”. Name the new connection appropriately.
”. Click “
OK”
.
4. Enter the ISDN phone number that you want to connect to.
5. Select “
RVS ISDN X.75 transparent
” in “
Connect using”
box. Click
“OK”.
6. Click “
” button to make dialing.
Dial
After establish the ISDN link, you can use the data transmission protocol, such as Z-modem or X-modem, for data transfer.
For servers which support X.75 T.70NL protocol, you have to choose “
ISDN X.75 T.70NL
” in the above setup steps.
RVS
EuroFile Transfer Applications
1. Start RVS
mode), check calling party. Check
CommCenter
Accept calls
. If your are to act as an answering party (host
, otherwise disselect this box to act as the
Eurofile transfer
.
2. Start the RVS
TransferMaster
. The
New Connection
- 24 -
dialog appears.
3. Select, by opening the list of the field Name, another party that has
already been saved, or enter a Name for a new other party. Enter the Phone number of the other party and check
Eurofile transfer
. Click
Next
.
Other party uses ISDN
4. Enter the details for the connection in the
Connect
.
- 25 -
Connect To
dialog box. Click
5. The connection will be established and you will then see the folder that
the other party has made available to you for access. Use Drag & Drop or the Clipboard (Copy / Paste) to transfer files between Explorer windows or the Desktop on your PC and the folder on the other party's PC, and vice versa. Access any sub-folders on the remote PC by double-clicking on the symbols. To disconnect, select click the
Disconnect
symbol.
Disconnect
from the
Connection
menu, or
6. If you have entered new connection data you are prompted to save the
connection data when you is then added to the selection list of the field Name in the dialog box
Connection
.
RVS TransferMaster. The new other party
Exit
New
Making “Modem over ISDN” Connections
Using RVS-COM Softmodem
1. Start RVS
2. Open
Softmodem
3. Open the
CommCenter
tab. Select appropriate ISDN voice encoding scheme for
ISDN
.
tab. Check
Use Softmodem
your location. Generally, you should select “ countries, and “
4. Run “
Config
Mu-law
” in “
” for N. America.
Configuration Utility
”.
. Click OK.
A-law
” for European
- 26 -
5. Open “
Switch type
” tab. Choose appropriate “
Voice Encoding
” scheme.
Now you are ready to use the RVS-COM’s Softmodem function. Refer to the RVS-COM on-line documentation for application details.
Making G3 Fax over ISDN
1. Start
2. Open the
CommCenter
SoftwareFax
receive a fax. Or select “
.
tab. Select “
Use SoftwareFax to receive fax
Use SoftwareFax to send fax
” to
” to send a fax.
3. Open “ISDN” tab. Select appropriate ISDN voice encoding scheme for
your location. Generally, you should select “ countries, “
Mu-law
” for North America
” for European
A-law
- 27 -
4. Open the
Service
tab. Select
Accept calls
- 28 -
. Select
. Click OK.
Fax
Sending a fax
1. Start
Create New Fax
in the RVS-COM group programs. Click OK.
1. Follow the on-screen instruction to enter the necessary information.
When all set, RVS will send out the fax for you automatically.
- 29 -
Receiving a fax
1. Wait for incoming fax calls.
2. You can go to
to read the incoming fax.
Inbox
Voice Applications
The voice applications included are:
1. Digital answering machine
2. ISDN Phone (acts like a telephone set, that you can communicate with the
remote parties over ISDN line)
To fully use the voice applications, especially the ISDN Phone service, a full­duplex audio device (sound card) is required. Full-duplex means, that your audio device can handle incoming and outgoing sound signals simultaneously (i.e. you can listen and talk at the same time). If you do not have full-duplex, then you can only hear from the caller. However, this will still let you run the answering machine function.
- 30 -
Digital Answering Machine
1. Start RVS
2. Open the
3. Open the
CommCenter
Service
tab, select the appropriate ISDN voice coding scheme for
ISDN
.
tab. Check
Accept calls
. Check
Answerphone
your location. A-law is usually used in European countries, and Mu-law for North America.
.
4. Make sure all the other settings in “
RVS CommCenter
” are correctly
configured. Click Ok.
5. Run “
6. Open “
” in “
Config
Switch type
Configuration Utility
”. Choose appropriate “
”.
Voice Encoding
” scheme. The setting should be consistent with RVS-COM in step (3). Perform the following steps to record
Voice recording
1. Start
Telephone
function bar to toggle to the ON state. (for the
utility.)
Phone
in RVS-COM program group. Click the
state is for
OFF
- 31 -
Answerphone
ISDN
2. Click
Settings
to record/edit your greeting message.
The incoming voice message will be stored in “
”. Double-click the
Inbox
received voice mails to play back the messages.
ISDN Phone
1. Start RVS-COM “
2. Open the
Answerphone
3. Open the
Service
check box.
tab, select the appropriate ISDN voice coding scheme for
ISDN
CommCenter
tab. Clear the selections of the
”.
Accept calls
your location. A-law is generally used in European countries, and Mu-law for North America.
- 32 -
and the
4. Make sure all the other settings in “
configured. Click OK.
CommCenter
” are correctly
5. Run “
6. Open “
” in “
Config
Switch type
Configuration Utility
”. Choose appropriate “
”.
Voice Encoding
” scheme. The setting should be consistent with RVS-COM in step (3).
7. Start
8. Click “
for “
Answering machine
Telephone
Answerphone
in “
RVS-COM Lite
” function bar to the
” services).
” program group.
state (for the ON state is
OFF
9. Connect the microphone and speakerphone to the audio interface(s) on
your laptop.
When the calls come in, the “
button to pick up the calls. When finished, click “
Accept
RVS Phone
” will appear automatically. Click
Hang Up
” to end the
connections.

NDIS Mode

Installing the NDIS driver
NDIS is dedicatedly designed for Internet connections with Microsoft ISDN Accelerator Pack. For Windows 95/98 environment, perform the following steps to install the NDIS driver. While for Windows 2000, NDIS driver will be
automatically installed when the device driver is installed onto your system, your may just skip the following procedures.
1. Make sure ISDN Accelerator Pack is pre-installed, and the PC Card is
firmly seated.
2. Go to
Control Panel
3. Select “No” for “
hardware
4. Select “
5. Select “
ISDN TA (Net)
”. Click “
Network adapters
Intelligent
” in “
. Select
Add New Hardware
. Click
Next
.
Do you want Windows to search for your new
”.
Next
” in “
Manufacturers
Models
” in “
Hardware types
”. Click “OK”.
- 33 -
” list. Click “
”, and “
”.
Next
Intelligent PCMCIA
6. Click “
Finish
”.
7. Click “
8. Select the appropriate ISDN “
Next”
.
Switch protocol
”. Click “
Next
”. (The settings will be used for “Dial-Up Networking” utility through NDIS WAN application program interface.)
9. Enter the ISDN phone number(s). Click “
10. Click “
”. When system prompts to ask for updating Windows and
Finish
Next
”.
NDIS drivers, enter the correct driver path(s) to complete the installation.
Making PPP Connections
1. Make sure “
Dial-Up Networking
2. Double-click “
Make New Connection
” (DUN) is well installed.
”.
3. Name the new connection appropriately. For example, “PPP_NDIS”.
4. Select “
device
Click “
ISDN-Line#
” box. Click “
”
Next
” (in this case “ISDN-Line0”) in the “
Configure
” to check and configure the other settings.
Select a
5. Type the ISDN phone number of your ISP that you want to call.
6. Click “
”, and click “
Next
” to complete the setting.
Finish
7. Now you can use the Internet application software, for example, Microsoft
Internet Explorer or Netscape Communicator, to connect to ISP.
- 34 -
Making Multilink PPP Connections
1. When the PPP connection settings “
method 2
” in the previous section is completed, right-click the NDIS connection icon in DUN and select “
Properties”
select “
2. Click
“Settings”
additional devices”
(or click the NDIS connection icon, then click “
Properties
”).
button in “
. Click
Add
General”
settings folder. Select “
, and specify the additional device name
- 35 -
File
”, then
Use
and the secondary phone number, if available, for making Multi-Link PPP connections.
3. Click “
4. Open the “
to finish the Multi-Link PPP settings.
OK”
Server Types”
folder and complete all the TCP/IP settings accordingly, refer to the information provided by your Internet Service Provider (ISP). Click “
OK”
.
5. Now you can use the Internet application software, for example, Microsoft
Internet Explorer or Netscape Communicator, to connect to ISP with Multilink PPP mode.
- 36 -

SOFTWARE INSTALLATION FOR WINDOWS NT4.X

Installing the Device Driver

1. Go to
open the
Control Panel
Control Panel
. (You may go to the
folder.)
menu, select
Start
Setting
to
2. Select
3. Select
4. The following dialog box will appear. Click
Network
Adapter
to continue.
. A
Network
tab. Click
dialog box will appear as illustrated below.
.
Add…
Have Disk…
and click
OK
- 37 -
5. If you are using disks to install the device driver, insert the disk into your
free floppy drive and type in the drive name, for example, A:, to continue. Or if you are using compact disk to install, insert the compact disk into your computer and type in the CD-ROM drive letter followed by
winnt\driver
, and click OK to continue.
6. When
the Select OEM Option
dialog box appear, click OK to continue.
7. The following dialog box will prompt you to change the I/O and IRQ
settings. You may refer to the Hardware Detection to know the available addresses to avoid any conflicts with your system. (Go to the Click
Programs
Detection
.)
. Select
Configuration Utili
ty. Open
menu.
Start
Hardware
- 38 -
8. Press
automatically.
to continue. The installation program will proceed
OK
9. When finished, a
Access Services (RAS)
10. When the
Network
Setup Message
will prompt you to invoke
setup. Press OK to continue.
dialog box appear, select the
- 39 -
Services
Remote
tab.
11. Select
will appear.
Remote Access Service
. Click
Properties
. The following figure
12. Select
Add... ISDN1 – ISDN_TA ISDN_TA
When the
Add RAS Device
and click OK. Press
. When completed, press
- 40 -
Continue
dialog box appear, select
again to add
Add...
ISDN2-
. You will be prompted to
the
Network
dialog box again. Click
to continue. The installation
Close
program will continue automatically. When finished, Windows will prompt you to restart your computer. Click
to continue.
Yes
- 41 -

Installing the Application Programs

Before you start, make sure the type of your Application Program Interface. The Application Program Interface (API) is used as the interface between the hardware (ISDN TA PC Card) and the application programs. Up to date, the available Application Program Interface for Windows NT are NDIS and CAPI. Make sure the type of API matching your system. Move to the specific section titled the appropriate API for your need for installation.

NDIS Mode

1. Insert the application software disk or compact disc into your computer.
2. Go to the
menu. Click
Start
Run
.
3. If you are using compact disc to install the application software, type in
the CD-ROM drive letter followed by using disk, type in
a:setup
. The
Configuration Utility
winnt\ntap\setup
. Or if you are
installation
program will proceed automatically.
4. Follow the on-screen instruction to continue. When finished. Windows
will prompt you to restart your computer. Click
to restart your
Finish
computer.
5. For Windows NT does not support hot swap, remember to insert the PC
card in the PCMCIA socket of your computer while you are restarting your computer.
- 42 -
Internet Access
1. Go to
2. Click
My Computer
to name the phonebook. Enter in the name properly.
New...
. Select
Dial-Up Networking
.
3. Shift to the next tab to enter in the required data as illustrated below.
4. When finished, click OK. Select
5. When the
Connect to ISDN
dialogue appears, you are on the Internet.
to continue.
Dial
- 43 -

CAPI Mode

Installing RVS-COM Lite
Make sure the RVS-COM Lite “
CommCenter
” has been executed before start any application in CAPI mode. For details, refer to the previous section with the same title in the Windows 95/98 environment.
Applications
All the applications applied in Windows NT can be executed as in Windows 95/98. For better illustrations, refer to the previous sections with the same titles.
Making PPP connections
1. Run RVS-COM “
2. Enter “
3. Select “
4. Select “
“
Next
“
Next
Control Panel
Don't detect my modem; I will select it from a list
”.
RVS Datentechnik
”.
CommCenter
” Æ “
”.
Modems
” – “
”. Click “
Add
” button.
RVS ISDN Internet PPP
”. Click
”. Click
5. Select the COM port that is identical to the COM port assignment in
“
Windows Port
6. Click “
Finish
7. Now you will see “
”. Click “
Next
”.
”.
RVS ISDN Internet PPP
” in the modem properties
list.
8. Click “
9. Click “
10. Click “
11. Select “
”.
Close
”, when “
Yes
” in “
Add
COM# RVS ISDN Internet PPP
“OK”.
12. Click “
Continue
13. Run RVS-COM “
14. Double click “
Dial-Up Networking
Modem Setup
Remote Access Setup
” window pops-up.
” dialog window.
” in RAS device list. Click
”. Then, re-start Windows NT.
CommCenter
”.
- 44 -
” in “
My Computer
”.
15. If you are not new of using Dial-up Networking, click “
” command
New
button. If this is your first connection, just skip it. Give a name for the new connection. For example, “
RVS_PPP
”. Click “
Next
”.
16. Select “
17. Select
Send my plain text password…
“RVS ISDN Internet PPP (COM#)
18. Give the phone number that you want to dial to. Click “
19. Click “
20. Click “
”.
Finish
” to make connection immediately. Or click “
Dial
” (recommended). Click “
”. Click “
Next
Next
”.
”.
Close
Next
” to wait
for later PPP applications.
Making Multilink PPP connections
1. Perform the above steps in the previous section to complete the PPP
connection.
2. Run RVS-COM “
CommCenter
”. If only one COM port is assigned, you
have to add another ISDN port.
3. Click the “
local PC
port. Click “
4. Make sure the second ISDN port “
” command button. Select “
Add
”. Click “
Next
”. Assign a free COM port for the second ISDN
Next
”. Click “
Finish
”.
ISDN2
An ISDN channel on your
” is activated (the check box is
selected). Click “OK”.
5. Enter “
6. Select “
“
”.
Next
Control Panel
Don’t detect my modem; I will select it from a list
” Æ “
Modems
”. Click “
Add
” button.
”. Click
”.
7. Select “
“
”.
Next
RVS Datentechnik
” – “
RVS ISDN Internet PPP
8. Select the COM port that you just assigned at step (2). Click “
9. Click “
10. Now you will see “
properties listed in “
11. Click “
12. Click “
Finish
”, when “
Yes
” in “
Add
”.
RVS ISDN Internet PPP #2
Control Panel
Modem Setup
Remote Access Setup
” Æ “
Modems
” window appears.
” dialog box.
- 45 -
” in the modem
”. Click “
Close
Next
”. Click
”.
”.
13. Select “
“OK”.
COM# RVS ISDN Internet PPP #2
” in RAS device list. Click
14. Click “
Continue
15. Run RVS-COM “
16. Double click “
17. If you are not new of using Dial-up Networking, click “
”. Then, re-start Windows NT.
CommCenter
Dial-Up Networking
”.
” in “
My Computer
”.
New
” command button. If this is your first connection, just skip it. Give the new connection name. For example, “
18. Select “
19. Select
Send my plain text password…
“RVS ISDN Internet PPP (COM#)
RVS_MP
20. Give the phone number that you want to dial to. Click “
21. Click “
22. Click “
23. Select “
“
Multiple Lines
24. Click “
25.
Internet PPP #2…
26. Click “
”.
Finish
” command button.
More
Edit entry and modem properties
” in “
Configure…
Dial using
” command button. Enable (tick) “
” box.
).
Phone numbers…
”. Give the 2
”. Click “
Next
”.
” (recommended). Click “
”. Click “
”. Open “
Next
Next
Basic
”.
”.
” tab. Select
RVS ISDN
nd
ISDN phone number for your Multilink PPP connections, if any. If your ISP just support single phone number for Multilink PPP connections, you must enter the number here. Click “
”. Click “OK” to complete the configuration.
Add
Next
”.
Making “Modem over ISDN” Connections (Using CAPI software)
Using RVS-COM Softmodem
1. Run RVS-COM “
2. Enter “
Softmodem
CommCenter
” tab. Enable “
”.
Use Softmodem
”. Click “
Apply
” and
“OK”.
3. Open “
your location. Generally “
” for North America.
law
4. Run “
Config
” tab. Select appropriate ISDN voice encoding scheme for
ISDN
” is for European countries, and “
A-law
” in “
Configuration Utility
- 46 -
”.
Mu-
5. Open “
Switch type
”. Choose appropriate “
Voice Encoding
” scheme. The
setting should be consistent with RVS-COM in step (3).
Now you are ready to use the RVS-COM’s Softmodem function. Refer to the RVS-COM on-line documentation for application details.
Making G3 Fax over ISDN
1. Start
2. Open the
CommCenter
SoftwareFax
receive a fax. Or select “
.
tab. Select “
Use SoftwareFax to receive fax
Use SoftwareFax to send fax
” to
” to send a fax.
3. Open “ISDN” tab. Select appropriate ISDN voice encoding scheme for
your location. Generally, you should select “ countries, “
4. Open the
Sending a fax
1. Start
Create New Fax
Mu-law
Service
” for North America
tab. Select
Accept calls
in the RVS-COM group programs. Click OK.
. Select
Fax
” for European
A-law
. Click OK.
2. Follow the on-screen instruction to enter the necessary information.
When all set, RVS will send out the fax for you automatically.
Receiving a fax
3. Wait for incoming fax calls.
4. You can go to
to read the incoming fax.
Inbox
- 47 -

ISDN AT COMMANDS

Besides using can alternatively use ISDN TA PC Card.
More specifically, AT commands are usually issued to the ISDN TA PC Card to control the TA's operation and configuration. AT commands can only be entered while the TA is in command mode. The format for entering AT commands is:
where X is the AT command, and n is the specific value for that command.
↵ means pressing the ENTER button.
Any command issued is acknowledged with a response in either text or numeric values. If the commands and command-values are correct, the message will appear; otherwise
This chapter describes how to use the AT commands for the users who need special parameters in order to meet their applications. Refer to the appendix for the detailed ISDN AT command definition.

Using ISDN AT Commands

As mentioned above, you can use ISDN TA PC card through AT besides except through communication software carefully every time, because they can cause your software to loose its ability to control the modem. When you do find any AT command causes ISDN TA maul-function, turn the computer off and then on. That will reset most of the AT command settings to the factory defaults.
configuration utility
ISDN AT command
ATXn ↵
as described in the previous section, you
to configure and use the Intelligent
ERROR
message will prompt.
OK
In order to use an AT command, you need to have done the following:
1. Run your communication software.
2. Configure the software for the appropriate COM port and IRQ setting if
necessary.
3. Enter terminal mode (aka command mode, local mode, or directmode.).
This is usually the mode that communications software starts up. Then, type the AT command for you needs, then press
AT!C0=0<Enter>
Set the ISDN TA to connect to AT&T
- 48 -
key. For example,
Enter
5ESS switch
AT!Z=9<Enter>
AT&N0=0<Enter>
Select async to sync PPP Conversion
Select Single-Link PPP mode
Mostly the AT commands can also be entered in the same command
line. For example,
AT!C0=0!Z=9&N0=0<Enter>
As shown above, it is not necessary to put spaces between the commands (there is no space between AT,
!C0=0, !Z=9
, and
&N0=0)
.
The ISDN TA usually returns an response at the next line if it understands the command. The response is usually OK or unless the AT command has other extended messages. Add
ERROR
&Wn
at the end of the AT command string to save the changes to ISDN TA’s memory (refer to AT&Wn commands for details), otherwise the changes will get lost when you restart or shut down the computer. Type
AT&F&Wn<Enter>
if you get lost in the AT command and want to
go back to the factory default settings.
Exception:
Do not proceed the following commands with an AT prefix or end it by pressing
Enter
.
+++ Escape sequence
The escape sequence allows the modem to exit data mode and enter on-line command mode. While in on-line command mode, you may communicate directly to your modem using AT commands. Once you are finished, you may return to data mode using the ATO command.
- 49 -

APPENDIX: ISDN AT COMMAND

Command Description
ATA
ATB?
ATBn n=0
n=1
n=2
n=3
n=4
n=5
n=6
n=7
n=8
Note : The V.110 rate is depend on the DTE speed . When HyperTerminal
ATD<number>
ATDM<number>
Go off-hook (answer the incoming call immediately)
Display V.110 user rate for out-going calls
V.110 user rate: 600 bps
V.110 user rate: 1200 bps
V.110 user rate: 2400 bps
V.110 user rate: 4800 bps
V.110 user rate: 9600 bps
V.110 user rate: 19200 bps
V.110 user rate: 38400 bps
V.110 user rate: 48000 bps
V.110 user rate: 57600 bps (for Japan only)
open , if DTE speed is 600 , 1200 , 2400 , 4800 ,9600 ,19200 ,38400 ,48000, and 57600 . Key in "ATB?" will display the matchV.110 rate, If DTE speed is not in one of the V.110 legal rate , then the "ATB?" will be set to default speed 38400 .
Make ISDN data calls, e.g. ATD5551000
Make modem calls over ISDN line, e.g. ATDM5551000
ATDT<number>
ATDV<number>
ATDSn
ATDL
ATEn n=0
n=1
Dial out the ISDN phone number, e.g. ATDT5551000
Make ISDN Phone voice calls, e.g. ATDV5551000
Dial out the pre-stored phone number (n=0, 1, 2,.). Refer to AT&Zn=<number> command for phone number storage
Re-dial the last ISDN phone number
Echo in command mode is disabled
Echo in command mode is enabled
- 50 -
ATH
Hang up the ISDN data calls
ATH1
ATH3
ATI3
ATO
AT!C0=n
n=00
n=01
n=02
n=05
n=06
AT!C6=n
AT!C2=n
AT!N0=n
Disconnect ISDN Phone voice calls
Disconnect ISDN data calls and ISDN Phone voice calls
View driver version
Return to connection (on-line) mode
ISDN D-channel protocol and switches selection
AT&T 5ESS Custom
Northern Telecom DMS-100 Custom
ETSI Europe ISDN
U.S. National ISDN-1 (NI-1), factory default
INS 64 , for Japan
Set Service Profile ID 0 (SPID 0), where " n" is the SPID number up to 20 characters. Example, ISDN phone number: 5551000 SPID 0: 0555100001
Set Service Profile ID 1 (SPID 1), where " n" is the SPID number up to 20 characters. Example, ISDN phone number: 5553000 SPID 1: 0555300001
Set ISDN Directory Number 0 (DN 0), where "n" is the ISDN phone number. Example, DN 0: 5551000 => n=5551000
AT!N1=n
AT!Q=n n=0
n=4
AT!V=n n=0
n=1
n=2
Set ISDN Directory Number 1 (DN 1), where "n" is the ISDN phone number. Example, DN 1: 5553000 => n=5553000
Set B-channel speed to 64 K
Set B-channel speed to 56 K
The incoming voice-grade calls are answered by ISDN Phone
The incoming voice-grade calls are answered by modem (Modem over ISDN)
Enable audio speech
- 51 -
n=3
Enable 3.1K Hz audio
AT!Z=n
n=05
n=06
n=09
B-channel protocol selection
V.120
V.110
Async to Sync PPP conversion
Note: The "!" commands are used to change certain fundamental configuration parameters which are changed very infrequently - often, only once at installation. Using these "!" commands during normal operation with the telephone line connected to the Terminal Adapter (TA) can cause unpredictable results. It is best to issue the "!" commands when the TA is not connected to the ISDN network to avoid confusion between the TA and ISDN network. The recommended procedure for using the "!" commands is as follows:(1) Disconnect the ISDN phone line from the TA. (2) Issue the "!" commands to set the correct value for the "!" command related parameters.(3) Issue the AT&Wn" command to store the parameters changed during step (2) in the user profile ".(4) Reconnect the ISDN phone line.(5) Reset or reboot the ISDN sub-system with the updated configuration parameters.
- 52 -
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
