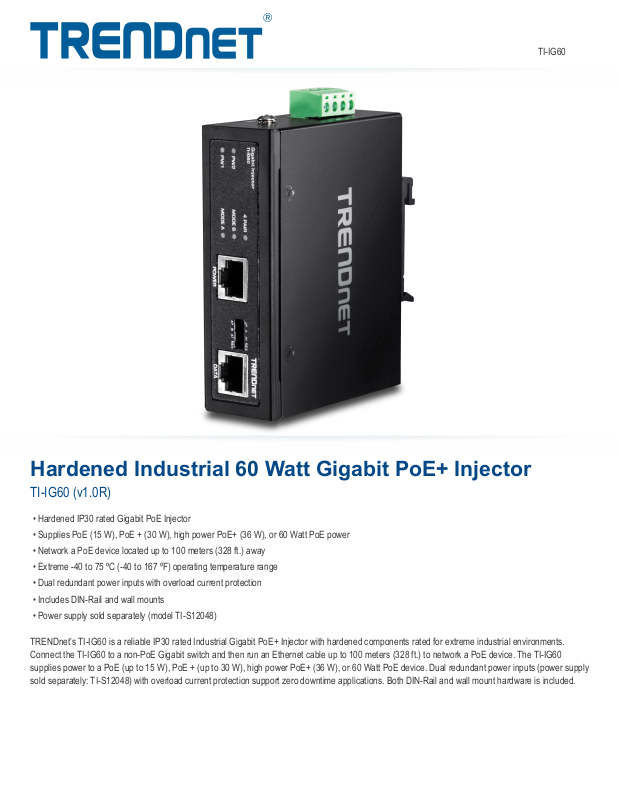

TI-IG60
Hardened Industrial 60 Watt Gigabit PoE+ Injector
TI-IG60 (v1.0R)
• Hardened IP30 rated Gigabit PoE Injector
• Supplies PoE (15 W), PoE + (30 W), high power PoE+ (36 W), or 60 Watt PoE power
• Network a PoE device located up to 100 meters (328 ft.) away
• Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
• Dual redundant power inputs with overload current protection
• Includes DIN-Rail and wall mounts
• Power supply sold separately (model TI-S12048)
TRENDnet’s TI-IG60 is a reliable IP30 rated Industrial Gigabit PoE+ Injector with hardened components rated for extreme industrial environments.
Connect the TI-IG60 to a non-PoE Gigabit switch and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG60
supplies power to a PoE (up to 15 W), PoE + (up to 30 W), high power PoE+ (36 W), or 60 Watt PoE device. Dual redundant power inputs (power supply
sold separately: TI-S12048) with overload current protection support zero downtime applications. Both DIN-Rail and wall mount hardware is included.
Page 2
TI-IG60
Plug and Play
Plug and play PoE network devices
PoE
Supplies power to a PoE (up to 15 W), PoE + (up to 30 W), high power
PoE+ (36 W), or 60 Watt PoE device
Gigabit Ports
1 x Gigabit Ethernet port and 1 x PoE+ Gigabit Ethernet port
Extension Distance
Extends a PoE network connection up to 100 meters (328 ft.)
DIP Switches
DIP Switch 1: 2- pair PoE/PoE+ or 4-pair 60/72 Watt PoE
DIP Switch 2: Mode A (endspan PD support) or Mode B (midspan PD
support)
DIP Switch 3: PoE+ (30 Watt) or high power PoE+ (36 Watt)
DIP Switch 4: Reserved
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall mount
hardware
Redundant Power
Dual redundant power inputs with overload current protection (power
supply sold separately: model TI-S12048)
Extreme Temperatures
Hardened converter is rated for an operating temperature range of -40 to
75 ºC (-40 to 167 ºF)
Electro Magnetic Compliance
Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class
A standards
Certifications
Rated for information technology (ITE) equipment (EN55022/24) and
industrial, scientific, and medical (ISM) Equipment (EN55011)
Shock and Vibration Resistant
Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and
vibration (IEC 60068-2-6)
Grounding Point
Grounding point protects equipment from external electrical surges
LED indicators
LED indicators confirm PoE and network connectivity
Networking Solution
Page 3
Specifications
Standards
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
Device Interface
• 1 x Gigabit port
• 1 x PoE+ Gigabit port
• 4-pin removable terminal block
• LED indicators
• DIN-Rail mount
• Wall mount
• Grounding point
Data Transfer Rate
• Ethernet: 10 Mbps (half duplex), 20 Mbps (full
duplex)
• Fast Ethernet: 100 Mbps (half duplex), 200 Mbps
(full duplex)
• Gigabit: 2000 Mbps (full duplex)
Special Features
• Hardened components rated for extreme
temperatures
• Dual redundant power inputs
• Auto-Negotiation
• ESD 8 KV and Surge 6 KV protection
Power
• Input: 48 – 56 V DC
• Compatible power supply: TI-S12048 (sold
separately)
• Consumption: Max. 72 Watts
PoE
• PoE budget: 60 Watts
• Pin 1,2 for power+ and pin 3,6 for power- (mode A)
• Pin 4,5 for power+ and pin 7,8 for power- (mode B)
DIP Switch
• 2 pairs (30 / 36 watts) or 4 pairs (60 / 72 watts)
• Mode A or Mode B
• High or standard power
• Reserved (no function)
Terminal Block
• Redundant power inputs, 4 pin
• Wire range: 0.34 mm^2 to 2.5 mm^2
• Solid wire (AWG): 12-24/14-22
• Stranded wire (AWG): 12-24/14-22
• Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm
• Wire strip length: 7 – 8 mm
MTBF
• 510,304 hours
Housing
• IP30 metal case
• DIN-Rail mount
• Wall mount
TI-IG60
• Grounding point
• 8 KV ESD protection
• 6 KV surge protection
Operating Temperature
• - 40 to 75 °C (-40 to 167 °F)
Operating Humidity
• Max. 95 % non-condensing
Dimensions
• 104 x 82 x 32 mm. (4.1 x 3.2 x 1.2 in.)
Weight
• 138 g (4.8 oz.)
Certifications
• CE
• FCC
• IEC EN60950-1
• Shock (IEC 60068-2-27)
• Freefall (IEC 60068-2-32)
• Vibration (IEC 60068-2-6)
Warranty
• 3 year limited
Package Contents
• TI-IG60
• Quick Installation Guide
• Removable terminal block
• DIN-Rail and wall mount kit
