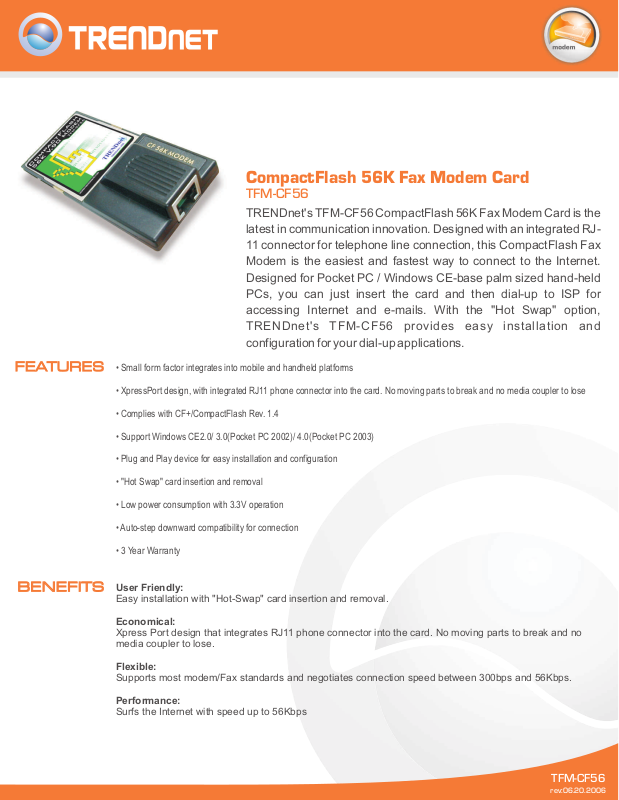

Trendnet TFM-CF56 Datasheet

FEATURES

CompactFlash 56K Fax Modem Card

TFM-CF56

TRENDnet's TFM-CF56 CompactFlash 56K Fax Modem Card is the latest in communication innovation. Designed with an integrated RJ11 connector for telephone line connection, this CompactFlash Fax Modem is the easiest and fastest way to connect to the Internet. Designed for Pocket PC / Windows CE-base palm sized hand-held PCs, you can just insert the card and then dial-up to ISP for accessing Internet and e-mails. With the "Hot Swap" option, TRENDnet's TFM-CF56 provides easy installation and configuration for your dial-up applications.

Small form factor integrates into mobile and handheld platforms

•

• XpressPort design, with integrated RJ11 phone connector into the card. No moving parts to break and no media coupler to lose

• Complies with CF+/CompactFlash Rev. 1.4

• Support Windows CE2.0/ 3.0(Pocket PC 2002)/ 4.0(Pocket PC 2003)

• Plug and Play device for easy installation and configuration

BENEFITS

• "Hot Swap" card insertion and removal

• Low power consumption with 3.3V operation

• Auto-step downward compatibility for connection

• 3 Year Warranty

User Friendly:

Easy installation with "Hot-Swap" card insertion and removal.

Economical:

Xpress Port design that integrates RJ11 phone connector into the card. No moving parts to break and no media coupler to lose.

Flexible:

Supports most modem/Fax standards and negotiates connection speed between 300bps and 56Kbps.

Performance:

Surfs the Internet with speed up to 56Kbps

TFM-CF56

rev:06.20.2006

CompactFlash 56K Fax Modem Card

TFM-CF56

SPECIFICATIONS

Hardware

Card Type

Modem Standards Fax Standards

Error Control

Data Compression

Dialing Methods

Operation Modes

Power Consumption

Dimensions (W x H x D)

Temperature

Humidity

Certifications

• CF+ / CompactFlash Rev. 1.4

• Hayes AT Command Set, V.90, K56Flex, V.34+, V.34, V.32bis, V.32, V.23, V.22bis, V.22/Bell 212A, V.21/Bell 103

• Group III, V.29, V.27ter, V.21 Channel 2, V.17, EIA Class 1 Commends

• V.42bis, MNP 5

• Tone and Pulse

• Asynchronous, Full Duplex, Automatic and Manual Call Originate, Automatic and Manual Answer

• Active Mode: 140mA

• Sleep Mode: 90mA

• 88 x 42 x 15 mm (3.46 x 1.65 x 0.59 inch)

• Operating: 0° - 55° C (32° - 131° F)

• Storage: -25° - 70° C (-13° - 158° F)

• 10% - 90% (no-condensing)

• FCC Class B, CE
