Trendnet TFC-210MSC, TFC-210MST, TFC-210S20D3, TFC-210S20D5, TFC-2000MSC QUICK INSTALLATION GUIDE

Quick Installation Guide

TFC-1000

TFC-210 Series

TFC-2000 Series

Table of Contents

Table of Contents

English ...........................................................................................

1. Before You Start

2. Product Details ......................................................................

3. ............................................................

Hardware Installation

LLCF Function ................................................................................

Technical Specifications .................................................................

Troubleshooting ..............................................................................

....................................................................

1

1
2
3

9

11

13

Version 02.13.2007

1. Before You Start

TFC-1000 Fiber Converter Chassis for TFC-210 and TFC-2000
Series Converters:

Package Contents

TFC-1000
Quick Installation Guide
AC Power Cord
Mounting Bracket and Screws

TFC-210 or TFC-2000 Series Fiber Converter:

Package Contents

Fiber Converter
Quick Installation Guide
AC Power Supply (9V DC, 700mA)

1

English

2. Product Detail

10/100Base-TX to 100Base-FX Fiber Converters

Model Name

Multi/

Single-Mode

Fiber

Connector

Distance

WavelengthPower Budget

TFC-210MST

TFC-210MSC

TFC-210S20D3

TFC-210S30

TFC-210S20D5

Multi-Mode

Single-Mode
Single/
Bidirectional

Single-Mode

ST (Duplex)

SC (Duplex)

SC (Simplex)

2Km

30Km

20Km

1310nm
(1270nm ~ 1380nm)

1310nm
(1260nm ~ 1360nm)

TX:1310nm
(1280nm ~ 1355nm)
RX:1550nm
(1530nm ~ 1570nm)

TX:
(1530nm ~ 1570nm)
RX:1310nm
(1280nm ~ 1355nm)

1550nm

50/125um: 7.5dBm

62.5/125um: 11dBm

50/125um: 8.5dBm

62.5/125um: 8.5dBm

9/125um: 12dBm

1000Base-T to 1000Base-SX/LX Fiber Converters

Model Name

Multi/

Single-Mode

Fiber

Connector

Distance

Wavelength

Power Budget

TFC-2000MSC

TFC-2000S20

TFC-2000S10D3

TFC-2000S50

TFC-2000S10D5

Multi-Mode

Single-Mode
Single/
Bidirectional

Single-Mode

SC (Duplex)

SC (Simplex)

550M

50Km

20Km

220M

10Km

850nm
(830nm ~ 860nm)

1310nm
(1270nm ~ 1355nm)

1550nm
(1520nm ~ 1580nm)

TX:1310nm
(1280nm ~ 1355nm)
RX:1550nm
(1530nm ~ 1570nm)

TX:
(1530nm ~ 1570nm)
RX:1310nm
(1280nm ~ 1355nm)

1550nm

50/125um:8.5dBm

9/125um:15dBm

9/125um:12dBm

9/125um:19dBm

62.5/125um:8.5dBm

English

2

3. Hardware Installation

Installing Two Stand Alone Fiber Converters

1. Connect the fiber cable to
the Fiber Converters.

2. Connect an RJ-45 Ethernet
cable from the Ethernet port
on the fiber converters to an
Ethernet port on your switch
(e.g TE100-S24R or
TEG-S240TX).

3. Connect the power adapter
to the back of the fiber
converter.

Note:
– Cabling:

Multi-Mode Optic Cable: TFC-210MST, TFC-210MSC, TFC-2000MSC
Single-Mode Optic Cable: TFC-210S30, TFC-210S50, TFC-2000S30,
TFC-2000S50
Single Strand Optic Cable for TFC-210S20D3/D5, TFC-210S10D3/D5

– The TX and RX cables must be reversed on the opposing Fiber

connection.

– The TFC-210S20D3 must be paired with the TFC-210S20D5. The

TFC-2000S10D3 must be paired with the TFC-2000S10D5.

– The TX and FX ports on the TFC-2000 series do not support auto

negotiation. The opposing Copper and Fiber connection must be
Gigabit.

3

English

Installing a Fiber Converter to a Switch

1. Connect the fiber cable from
the Fiber Converter to a
Fiber Switch
(e.g. TE100-S810Fi)

2. Connect an RJ-45 Ethernet
cable from the Ethernet port
on the Fiber Converters to
an Ethernet port on your
Switch (e.g. TE100-S24R or
TEG-240TX).

3. Connect the power adapter
to the back of the Fiber
Converter.

Note: This application does not apply to the TFC-210S20D3,
TFC-210S20D5, TFC-2000S10D3 and TFC-2000S10D5.

4

English

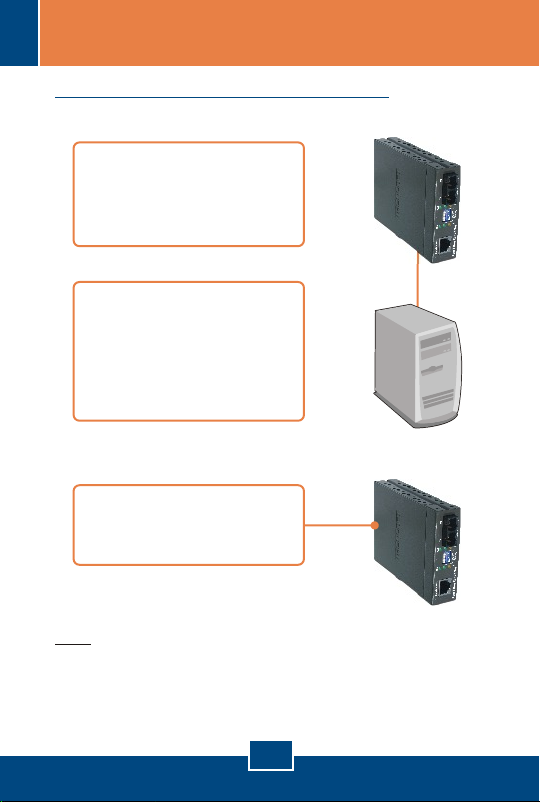

Installing a Fiber Converter to a PC

1. Connect the fiber cable from
the Fiber Converter to a PC
with a Fiber Adapter (e.g.
TE100-PCIFX+)

2. Connect an RJ-45 Ethernet
cable from the Ethernet port
on the Fiber Converters to
an Ethernet port on your
Switch (e.g. TE100-S24R or
TEG-240TX).

3. Connect the power adapter
to the back of the Fiber
Converter.

Note: This application does not apply to the TFC-210S20D3,
TFC-210S20D5, TFC-2000S10D3 and TFC-2000S10D5.

5

English

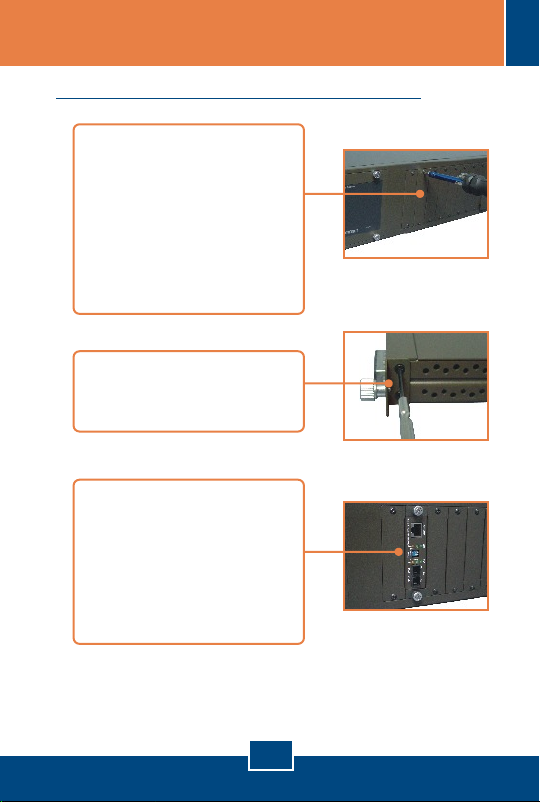

Installing Fiber Converter in a Chassis

1. Using a screwdriver
unscrew the Module Bay
Cover from the desired bay
on the Chassis and remove
the cover. Save the screw
and cover in case you need
to cover up the module bay
in the future.

2. Attach the Mounting Bracket
to the side of Fiber
Converter.

3. Slide the Fiber Converter
into an available slot. Install
the Fiber Converter with the
fiber port near the bottom of
the Chassis. Then fasten
the screws to secure the
Fiber Converter.

6

English

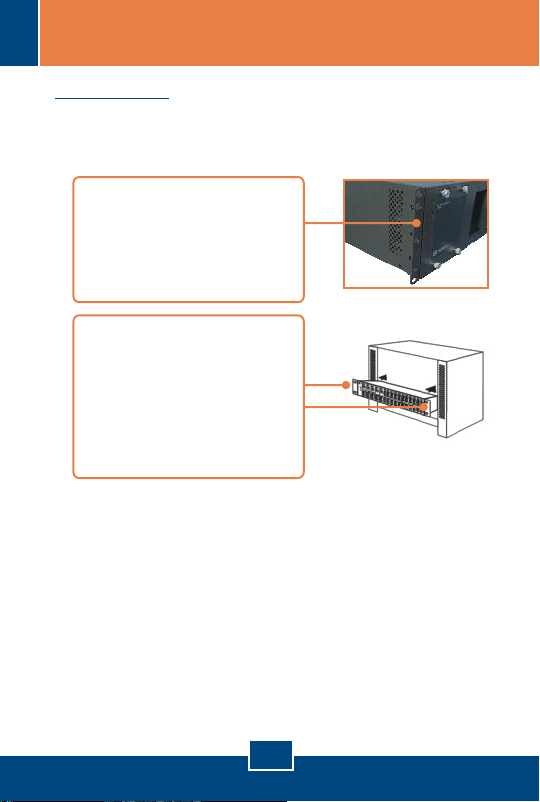

Rack Mount

The Chassis can be mounted in an EIA standard-size, 19-inch
rack, which can be placed in a wiring closet with other equipment.

1. Attach the mounting
brackets to the Chassis's
front panel (one on each
side), and secure them with
the provided screws.

2. Carefully position the
Chassis onto the rack. Align
the bracket to the screw
holes on the rack, then use
the screws provided with the
equipment rack to mount the
Chassis.

7

English

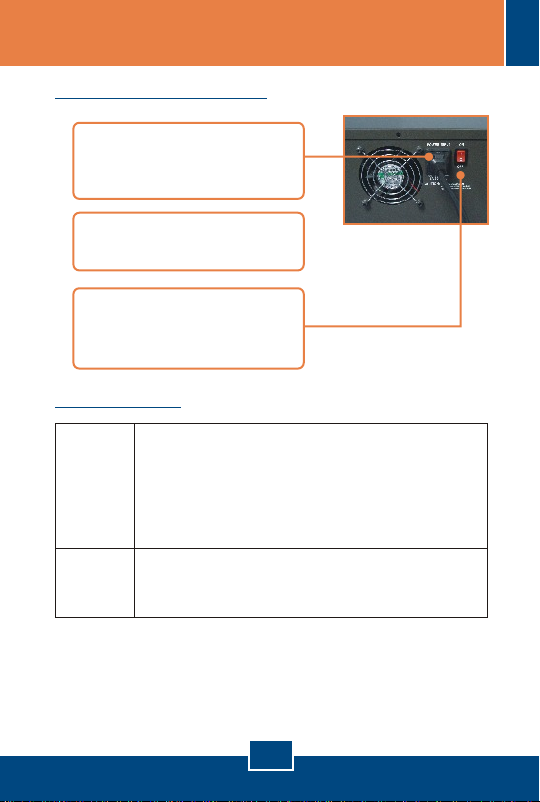

Connecting the Power

1. Connect the supplied power
cord to the back of the
Chassis.

2. Connect the power cord into
a power outlet.

3. Flip the switch to the ON
position to power up the
Chassis.

DIP Switches

Switch 1: ON: TX Full Duplex Mode

TFC-210
series

Switch 2: ON: FX Half Duplex OFF: FX Full Duplex
Switch 3: ON: LLCF Enable OFF: LLCF Disable
Switch 4: ON: Pure Mode OFF: Switch Mode

OFF: TX Auto-Negotiation

TFC-2000
series

*After changing the DIP Switch settings, power cycle the Fiber Converter.
**LLCF stands for Link Loss Carry Forward.

Switch 1: ON: TX LLCF Enable OFF: TX LLCF (Disable)
Switch 2: ON: Fiber LLCF Enable

OFF: Fiber LLCF (Disable)

8

English

LLCF Function

LLCF allows the network administrator to quickly
troubleshoot the network connection based on the LEDs on
the Fiber Converters. When the TX port link is down, the

converter will force the fiber port link to shutdown. When the fiber
port link is down, the converter will force the TX port link to
shutdown.

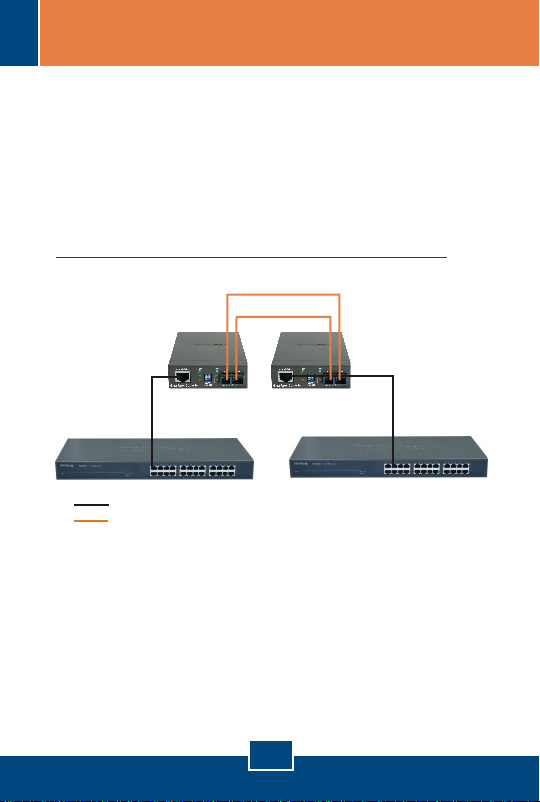

LLCF (Link Loss Carry Forward) Diagram

Cable 2

Cable 3

Cable 1

Copper Cable

Fiber Cable

Media

Converter 1

Media

Converter 2

Cable 4

Below are examples on how to read the LLCF Function Table:
Example 1: If LLCF is enabled on Fiber Converter 1 and disable
on Media Converter 2, when Cable 1 link is down, Fiber Converter
1's Copper and Fiber LED and Fiber Converter 2's Fiber LED will
shut off. Fiber Converter 2's Copper LED remains on.
Example 2: If LLCF is disabled on both Fiber Converters, when
Cable 4 link is down, Fiber Converter 1's Copper and Fiber LED
and Fiber Converter 2's Fiber LED remains on. Fiber Converter
2's Copper LED will shut off.

9

LLCF (Link Loss Carry Forward) Function
Table

Media
Converter 1
LLCF Enable

Media
Converter 2
LLCF Enable

Media
Converter 1
LLCF Enable

Media
Converter 2
LLCF Disable

Media
Converter 1
LLCF Disable

Media
Converter 2
LLCF Enable

Media
Converter 1
LLCF Disable

Media
Converter 2
LLCF Disable

Cable 1 Link Down

Cable 2 Link Down

Cable 3 Link Down

Cable 4 Link Down

Cable 1 Link Down

Cable 2 Link Down

Cable 3 Link Down

Cable 4 Link Down

Cable 1 Link Down

Cable 2 Link Down

Cable 3 Link Down

Cable 4 Link Down

Cable 1 Link Down

Cable 2 Link Down

Cable 3 Link Down

Cable 4 Link Down

Media Converter 1

Copper

LED

OFF

OFF

OFF OFFOFFOFF

OFF OFF

OFF ON

OFF ON

ON ON OFF ON

OFF

ON OFF

OFF

ON

ON OFFON ON

Media Converter 2

Fiber

Copper

LED

LED

OFFOFF OFF

OFF

OFF OFF OFF

OFF OFFOFF

OFF ON

OFF OFF

ON ON ON

OFF OFF

ON ON ON

OFF OFF

ON

ON

Fiber

LED

OFFOFF

OFFOFFON OFF

OFFOFFON OFF

OFFOFFON

10

Specifications

TFC-210 series:
IEEE 802.3 10Base-T

Standards:

LED Indicators:

Cable :

Dimensions:

Weight:

Power:

Temperature:

Humidity:

Certifications:

IEEE 802.3u 100Base-TX & 100Base-FX

TFC-2000 series:
1000Base-T, 1000Base-SX/LX, IEEE 802.3ab/ 802.3z

TFC-210 series:
Power; 100Mbps, Full Duplex/ Collision, Link/Activity

TFC-2000 series:
Power; 1000Mbps, Full Duplex/ Collision, Link/Activity

TFC-210 series:

10Base-T – UTP/STP Cat. 3, 4, 5
100Base-TX – UTP/STP Cat 5
100Base-FX – Multi-Mode –

62.5/125ìm or 50/125ìm Multi-Mode Fiber Optic Cable
100Base-FX – Single-Mode –
9/125ìm Single-Mode Fiber Optic Cable

TFC-2000 series:

1000Base-T – UTP/STP: Cat. 5e or Cat. 6
1000Base-SX– Multi-Mode –

50/125ìm or 62.5/125ìm Multi-Mode Fiber Optic Cable
1000Base-LX– Single-Mode –
9/125ìm Single-Mode Fiber Optic Cable

85mm × 125mm × 25mm (W × D × H)

Around 300 g (10 oz.)

9VDC, 700mA External Power Adapter

Operating: 0°C ~ 40°C (32°F ~ 104°F)
Storage: -25°C ~ 70°C (-13°F ~ 158°F)

10 ~ 90%, non-condensing

CE, FCC

Fiber Converters

11

Capacity:

Material:

Power:

Power Consumption:

Cooling:

Dimensions:

Weight:

Temperature:

Humidity:

Certification:

Fiber Chassis

Ten bays for housing up to Ten media converters

Metal

AC 100~240V AC, 50/60Hz

90 Watts (Max)

One Fan

440 mm × 266mm × 133 mm (W × D × H)
Standard 19” Rack Mount Size (3U)

6.4 kg (14.2 lb.)

Operating: 0°C ~ 40°C (32°F ~ 104°F)
Storage: -25°C ~ 70°C (-13°F ~ 158°F)

10 ~ 90%, non-condensing

CE, FCC

12

Troubleshooting

After connecting the Fiber Converter, the LEDs do not turn on. What

Q1:

should I do?

First, check that the power outlet is receiving power. Second, make

A1:

sure the power adapter is firmly connected to the Fiber Converter and
the power outlet. Third, make sure the Ethernet and the Fiber cables
are connected.

All the LEDs are on, but I can't make a connection. What should I do?

Q2:

First, verify that you are using the proper fiber cable (e.g. multi-

A2:

mode fiber cable for multi-mode converters; single-mode fiber cables for
single-mode converters). Second, verify that the TX and RX cables
have been reversed on the opposite Fiber connection. Third, power
down the Fiber Converters and the switches. Wait 15 seconds, then
plug the switches and the Fiber Converters back in.

What is the maximum distance that is supported by the Fiber Converter?

Q3:

Please refer to Product Detail for distance information.

A3:

After connecting the Chassis to a power outlet, the LEDs do not turn on.

Q4:

First, check that the power outlet is receiving power. Second, make

A4:

sure the power cord is firmly connected to the chassis and the power
outlet. Third, make sure the power switch is flipped to the ON position.

If you still encounter problems or have any questions please contact TRENDnet's
Technical Support Department.

13

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship,
under normal use and service, for the following lengths of time from the date of
purchase.

Fiber Chassis / Fiber Converters

- 5-Year Warranty

If a product does not operate as warranted above during the applicable
warranty period, TRENDnet shall, at its option and expense, repair the
defective product or deliver to customer an equivalent product to replace the
defective item. All products that are replaced will become the property of
TRENDnet. Replacement products may be new or reconditioned.

TRENDnet shall not be responsible for any software, firmware, information, or
memory data of customer contained in, stored on, or integrated with any
products returned to TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or
attempt to service the product through any unauthorized service center. This
warranty is voided if (i) the product has been modified or repaired by any
unauthorized service center, (ii) the product was subject to accident, abuse, or
improper use (iii) the product was subject to conditions more severe than those
specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within the
applicable warranty period for a Return Material Authorization (RMA) number,
accompanied by a copy of the dated proof of the purchase. Products returned
to TRENDnet must be pre-authorized by TRENDnet with RMA number marked
on the outside of the package, and sent prepaid, insured and packaged
appropriately for safe shipment.

14

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT
OPERATE AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY
SHALL BE, AT TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE
FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN
LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN
FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE,
INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. TRENDNET NEITHER ASSUMES NOR
AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER
LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS
TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN
THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR
ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR
TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY
OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW
TRENDNET ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY
LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING
NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL,
OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR
PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH
THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE,
FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES,
AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF
THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS
DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF
ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL
PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the
state of California.

Note: AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry a
1-Year Warranty

15

Certifications

This equipment has been tested and found to comply with FCC and CE
Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including
interference that may cause undesired operation.

Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you
Local Authority or Retailer for recycling advice.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY
TO OPERATE THE EQUIPMENT.

ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador
de alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al
mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador
de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria
existente en el pais o zona de instalación.

TRENDnet Technical Support

Toll Free Telephone: [phone]

.

US Canada

24/7 Tech Support

Europe (Germany France Italy Spain Switzerland UK)

Toll Free Telephone: [phone]

English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET

Telephone: +(31) (0) 20 504 05 35

Worldwide

English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET

. . . . .

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com

20675 Manhattan Place
Torrance, CA 90501

USA

Copyright ©2007. All Rights Reserved. TRENDnet.
