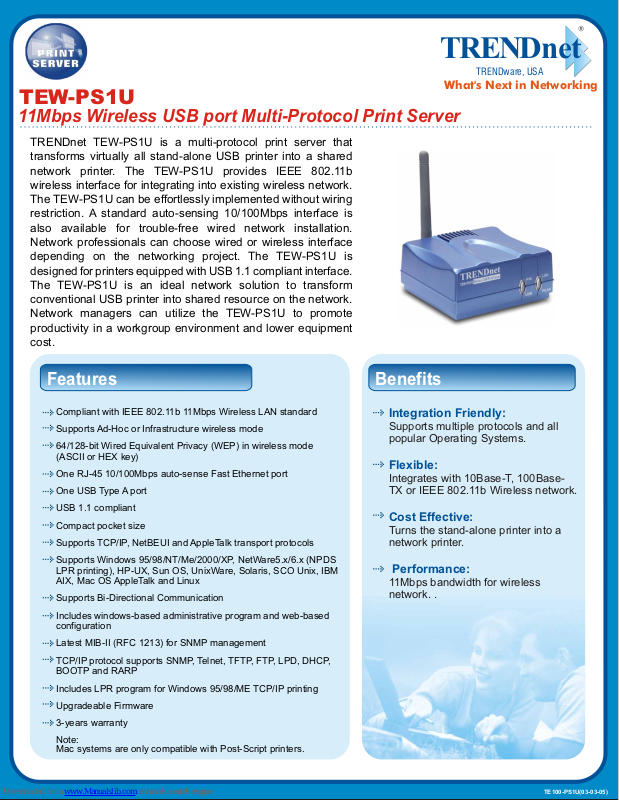

TEW-PS1U

11Mbps Wireless USB port Multi-Protocol Print Server

TRENDnet TEW-PS1U is a multi-protocol print server that transforms virtually all stand-alone USB printer into a shared network printer. The TEW-PS1U provides IEEE 802.11b wireless interface for integrating into existing wireless network. The TEW-PS1U can be effortlessly implemented without wiring restriction. A standard auto-sensing 10/100Mbps interface is also available for trouble-free wired network installation. Network professionals can choose wired or wireless interface depending on the networking project. The TEW-PS1U is designed for printers equipped with USB 1.1 compliant interface. The TEW-PS1U is an ideal network solution to transform conventional USB printer into shared resource on the network. Network managers can utilize the TEW-PS1U to promote productivity in a workgroup environment and lower equipment cost.

TRENDware, USA

Features Benefits

Compliant with IEEE 802.11b 11Mbps Wireless LAN standard

Supports Ad-Hoc or Infrastructure wireless mode

64/128-bit Wired Equivalent Privacy (WEP) in wireless mode (ASCII or HEX key)

One RJ-45 10/100Mbps auto-sense Fast Ethernet port

One USB Type A port

USB 1.1 compliant

Compact pocket size

Supports TCP/IP, NetBEUI and AppleTalk transport protocols

Supports Windows 95/98/NT/Me/2000/XP, NetWare5.x/6.x (NPDS LPR printing), HP-UX, Sun OS, UnixWare, Solaris, SCO Unix, IBM AIX, Mac OS AppleTalk and Linux

Supports Bi-Directional Communication

Includes windows-based administrative program and web-based configuration

Latest MIB-II (RFC 1213) for SNMP management

TCP/IP protocol supports SNMP, Telnet, TFTP, FTP, LPD, DHCP, BOOTP and RARP

Includes LPR program for Windows 95/98/ME TCP/IP printing

Upgradeable Firmware

3-years warranty

Note: Mac systems are only compatible with Post-Script printers.

Integration Friendly:

Supports multiple protocols and all popular Operating Systems.

Flexible:

Integrates with 10Base-T, 100BaseTX or IEEE 802.11b Wireless network.

Cost Effective:

Turns the stand-alone printer into a network printer.

Performance:

11Mbps bandwidth for wireless network. .

TE100-PS1U(03-03-05)

TEW-PS1U

11Mbps Wireless USB port Multi-Protocol Print Server

SPECIFICATIONS

LAN Standards:

•

IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX

•

ANSI/IEEE 802.3 NWay auto-negotiation

LAN Port:

•

Auto-negotiating NWay UTP/STP RJ-45 port

Wireless Standard:

•

IEEE 802.11b 11Mbps 2.4GHz DSSS ISM band

Wireless Mode:

•

Ad-Hoc, Infrastructure

Wireless Encryption:

•

64/128-bit WEP with ASCII or HEX key

Wireless Data Rate:

•

11Mbps, 5.5Mbps, 2Mbps, 1Mbps (auto-fallback)

Antenna:

•

2dBi diversity fixed antenna (length = 87 mm / 3.5 inches)

Printer Interface:

USB Type A Male, USB 1.1 compliant

•

Supported Protocols:

• TCP/IP, NetBEUI, and AppleTalk/EtherTalk

Network Cables:

• Cat.3, 4, 5 UTP/STP for 10Base-T (100 meters max.)

• Cat.5 UTP/STP for 100Base-TX (100 meters max.)

LED Indicator:

• Power, LAN, USB, WLAN

Power:

• External Power Supply 5V DC 2.4A

Dimensions:

• 90 x 90 x 40 mm (3.54 x 3.54 x 1.57 inches); (not including antenna)

Weight:

• approx. 141.7 g. (5 Oz.)

Temperature:

• Operating0°~50°C (32°~122°F)

• Storage: -25°~55°C (-13°~131°F)

Humidity:

• Operating 10%~90%

• Storage: 5%~95% (non-condensing @ 30°C/86°F)

Emission:

• FCC class B, CE class B, VCCI Class B

NETWORKING SOLUTIONS

Notebook with

TEW-301PC

h e

l t

p a A

m F

r l s o

es C

i W

T C E W

- 1

N D

n e

T S R E N D

w ar e ,U

Workstation with

TEW-303PI

TEW-PS1U

PT 3I 3

-0

e n D

U , e r

a w D

N E

R T

TEW-IA04O

TE100-S8P

TEW-310APBX

Printer

To Order Please Call:

1-888-326-6061

100Mbps
