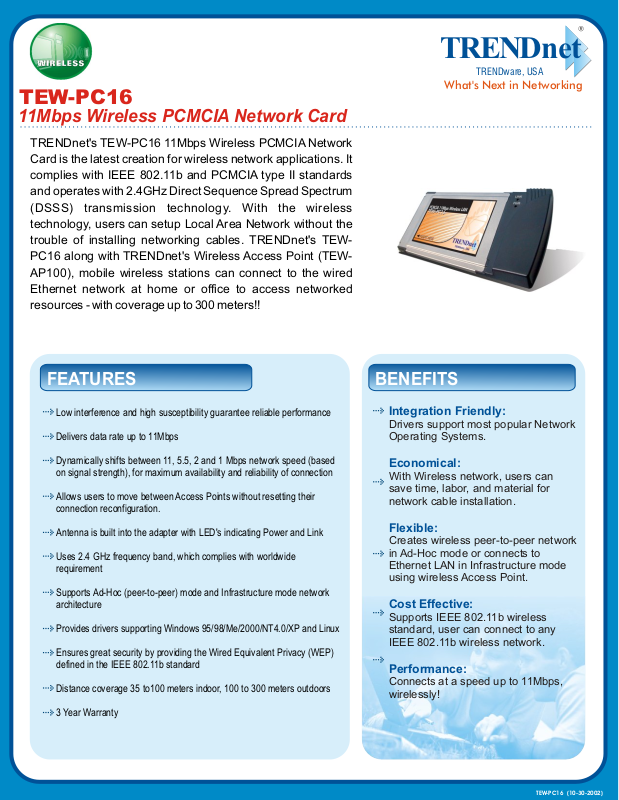

Trendnet TEW-PC16 User Manual

TEW-PC16

11Mbps Wireless PCMCIA Network Card

TRENDnet's TEW-PC16 11Mbps Wireless PCMCIA Network
Card is the latest creation for wireless network applications. It
complies with IEEE 802.11b and PCMCIA type II standards
and operates with 2.4GHz Direct Sequence Spread Spectrum
(DSSS) transmission technology. With the wireless
technology, users can setup Local Area Network without the
trouble of installing networking cables. TRENDnet's TEW­PC16 along with TRENDnet's Wireless Access Point (TEW­AP100), mobile wireless stations can connect to the wired
Ethernet network at home or office to access networked
resources - with coverage up to 300 meters!!

TRENDnet

TRENDware, USA

What's Next in Networking

Low interference and high susceptibility guarantee reliable performance

Delivers data rate up to 11Mbps

Dynamically shifts between 11, 5.5, 2 and 1 Mbps network speed (based
on signal strength), for maximum availability and reliability of connection

Allows users to move between Access Points without resetting their
connection reconfiguration.

Antenna is built into the adapter with LED's indicating Power and Link

Uses 2.4 GHz frequency band, which complies with worldwide
requirement

Supports Ad-Hoc (peer-to-peer) mode and Infrastructure mode network
architecture

Provides drivers supporting Windows 95/98/Me/2000/NT4.0/XP and Linux

Ensures great security by providing the Wired Equivalent Privacy (WEP)
defined in the IEEE 802.11b standard

Distance coverage 35 to100 meters indoor, 100 to 300 meters outdoors

BENEFITSFEATURES

Integration Friendly:

Drivers support most popular Network
Operating Systems.

Economical:

With Wireless network, users can
save time, labor, and material for
network cable installation.

Flexible:

Creates wireless peer-to-peer network
in Ad-Hoc mode or connects to
Ethernet LAN in Infrastructure mode
using wireless Access Point.

Cost Effective:

Supports IEEE 802.11b wireless
standard, user can connect to any
IEEE 802.11b wireless network.

Performance:

Connects at a speed up to 11Mbps,
wirelessly!

3 Year Warranty

TEW-PC16 (10-30-2002)

TEW-PC16

TEW-PC16

11Mbps Wireless PCMCIA Network Card

11Mbps Wireless PCMCIA Network Card

SPECIFICATIONS

Card Type:

• Extended PCMCIA Type II

Standards:

• IEEE 802.11b WLAN Standard &

PCMCIA 2.1 and JEIDA 4.2 Standard

Data Rate:

• 11Mbps, 5.5Mbps, 2Mbps, 1Mbps

Module Technique:

• Direct Sequence Spread Spectrum

(DSSS), BPSK, QPSK, CCK

Antenna:

• Dielectric (Internal)

Media Access Protocol:

• IEEE 802.11

Frequency:

• 2.4 to 2.4835GHz (Industrial

Scientific Medical Band)

Output Power:

• 12dBm (typical)

Power Consumption:

• DC +3.3V/+5V, 220mA (+3.3V)

Channels:

• 12 Channels

Dimensions:

• 115 x 54 x 11.5 mm

(4.53 x 2.13 x 0.45
inch)

Weight:

• 56.7g (2.0 oz.)

Temperature:

• Operating: 0° - 55° C (32° - 131° F)

• Storage: -25° - 70° C (-13° - 158° F)

Humidity:

• 10% - 90% (no-condensing)

Certification:

• FCC, CE

NETWORKING SOLUTIONS

To Order Please Call:

1-888-326-6061

PRODUCT INFORMATION

TEW-AP100plus: Wireless Access Point with Built in
External Dipole Antenna

TEW-AP100: Wireless Access Point

TEW-PC16: 11Mbps Wireless LAN PCMCIA Card

TEW-PS3: 3-port Wireless Ethernet Print Server

TEW-USB: 11Mbps Wireless USB Adapter

ORDERING INFORMATION

TRENDware International, Inc.

3135 Kashiwa Street
Torrance, CA. 90505. USA
Tel: [phone]
Fax: [phone]

www.TRENDNET.com

Web:
Email: [e-mail]
