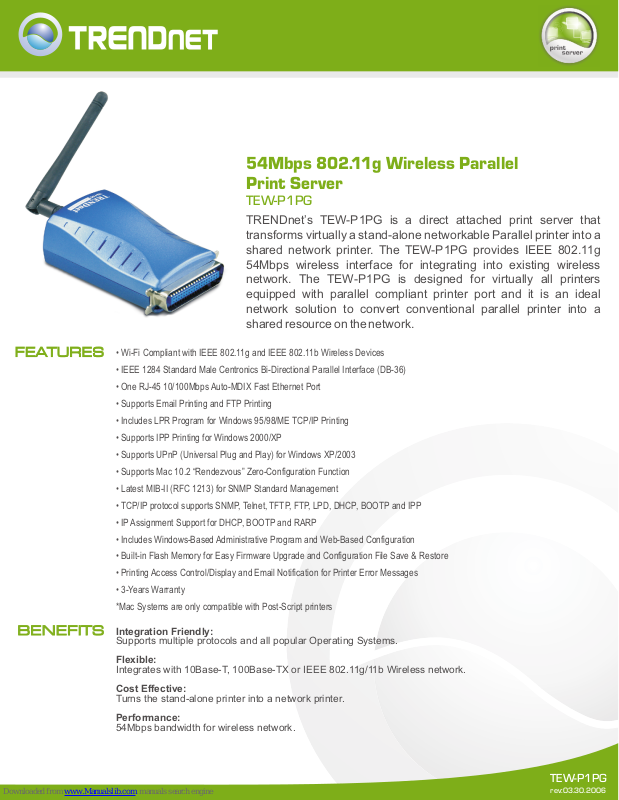

TRENDnet TEW-P1PG - DATA SHEETS Datasheet

54Mbps 802.11g Wireless Parallel Print Server

TEW-P1PG

TRENDnet’s TEW-P1PG is a direct attached print server that transforms virtually a stand-alone networkable Parallel printer into a shared network printer. The TEW-P1PG provides IEEE 802.11g 54Mbps wireless interface for integrating into existing wireless network. The TEW-P1PG is designed for virtually all printers equipped with parallel compliant printer port and it is an ideal network solution to convert conventional parallel printer into a shared resource on the network.

FEATURES

BENEFITS

• Wi-Fi Compliant with IEEE 802.11g and IEEE 802.11b Wireless Devices

• IEEE 1284 Standard Male Centronics Bi-Directional Parallel Interface (DB-36)

• One RJ-45 10/100Mbps Auto-MDIX Fast Ethernet Port

• Supports Email Printing and FTP Printing

• Includes LPR Program for Windows 95/98/ME TCP/IP Printing

• Supports IPP Printing for Windows 2000/XP

• Supports UPnP (Universal Plug and Play) for Windows XP/2003

• Supports Mac 10.2 “Rendezvous” Zero-Configuration Function

• Latest MIB-II (RFC 1213) for SNMP Standard Management

• TCP/IP protocol supports SNMP, Telnet, TFTP, FTP, LPD, DHCP, BOOTP and IPP

• IP Assignment Support for DHCP, BOOTP and RARP

• Includes Windows-Based Administrative Program and Web-Based Configuration

• Built-in Flash Memory for Easy Firmware Upgrade and Configuration File Save & Restore

• Printing Access Control/Display and Email Notification for Printer Error Messages

• 3-Years Warranty

*Mac Systems are only compatible with Post-Script printers

Integration Friendly:

Supports multiple protocols and all popular Operating Systems.

Flexible:

Integrates with 10Base-T, 100Base-TX or IEEE 802.11g/11b Wireless network.

Cost Effective:

Turns the stand-alone printer into a network printer.

Performance:

54Mbps bandwidth for wireless network.

TEW-P1PG

rev:03.30.2006

54Mbps 802.11g Wireless Parallel Print Server

TEW-P1PG

SPECIFICATIONS

Hardware

Standards

Printer Interface LAN Port

CPU/ SDRAM / Flash ROM

LED

Transport Protocol

TCP/IP Protocol Supported

OS Support

Management

Power

Dimensions/Weight

Temperature

Humidity

Certification

Wireless

Frequency

Module Technique

Operating Mode/ Encryption

Antenna

Data Rate

Channel

• Wired: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX • Wireless: IEEE 802.11g/b

• IEEE 1284 Male Centronics (DB-36)

• 10/100Mbps Auto-Negotiation UTP/STP RJ-45 Port

• RDC R2880 100MHz / 8MByte / 2MByte

• Power, LPT, Link/Act

• TCP/IP, SMB, NetBEUI, AppleTalk

• BOOTP, SNMP, Telnet, TFTP, FTP, LPD, RARP, DHCP, IPP

• Windows 95/98(SE)/ME/NT/2000/XP/2003 • Netware 5.x NDPS LPR Remote Printing (TCP/IP)

• HP-UX Unix, Sun OS, Solaris, SCO Unix, AIX • Unixware, Linux & Mac OS (AppleTalk)

• PS Utility or Web-Browser Configuration

• 5V DC 2.5A External Power Adapter

• 90 x 52 x 30mm (3.5 x 2 x 1.25 inches) Not including antenna. /70 g (2.5 oz.)

• Operating: 0°~50°C (32°~122°F) • Storage: -25°~55°C (-13°~131°F)

• 10%~90% (non-condensing)

• CE, FCC

• 2.4 ~ 2.4835 GHz (Industrial Scientific Medical Band)

• 802.11b: CCK (11 and 5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) 802.11g: OFDN •

• Ad-Hoc or Infrastructure / 64/128-Bit WEP, WPA

• 2dBi Detached Reverse-SMA (Male) Diversity Antenna (Length: 87mm/3.5inches)

• IEEE 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps

• IEEE 802.11b: 11Mbps, 5.5Mbps, 2Mbps and 1Mbps (Auto Fallback)

• 1~11 Channels (US Version) , 1~13 Channels (EU Version)

NETWORKING SOLUTIONS

54Mbps 802.11g

Wireless Parallel

Print Server

(TEW-P1PG)

Internet

Cable/DSL

Notebook with

Wireless PC Card

(TEW-421PC)

Cable/DSL 802.11g

54Mbps Wireless Router

(TEW-431BRP)

Modem

Workstation with

Wireless PCI Adapter

(TEW-423PI)

54Mbps Wireless

Parallel

Printer

PACKAGE CONTENTS

• TEW-P1PG

• Quick Installation Guide

• Utility CD-ROM

• Power Adapter (5V DC, 2.4A)
