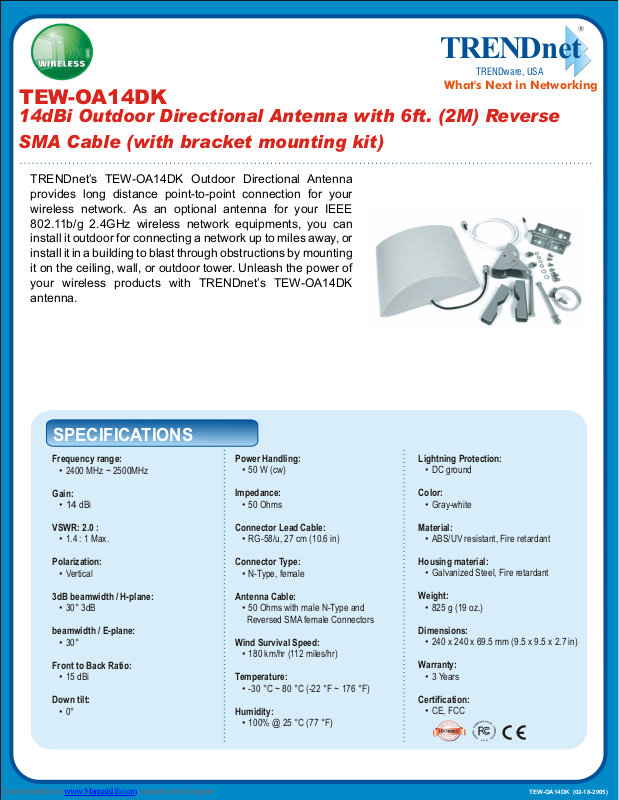

TRENDnet TEW-OA14DK Specifications
TRENDnet
TRENDware, USA
What's Next in Networking
TEW-OA14DK
14dBi Outdoor Directional Antenna with 6ft. (2M) Reverse
SMA Cable (with bracket mounting kit)
TRENDnet’s TEW-OA14DK Outdoor Directional Antenna
provides long distance point-to-point connection for your
wireless network. As an optional antenna for your IEEE
802.11b/g 2.4GHz wireless network equipments, you can
install it outdoor for connecting a network up to miles away, or
install it in a building to blast through obstructions by mounting
it on the ceiling, wall, or outdoor tower. Unleash the power of
your wireless products with TRENDnet’s TEW-OA14DK
antenna.
SPECIFICATIONS
Frequency range:
• 2400 MHz ~ 2500MHz
Gain:
• 14 dBi
VSWR: 2.0 :
• 1.4 : 1 Max.
Polarization:
• Vertical
3dB beamwidth / H-plane:
• 30° 3dB
beamwidth / E-plane:
• 30°
Front to Back Ratio:
• 15 dBi
Down tilt:
• 0°
Power Handling:
• 50 W (cw)
Impedance:
• 50 Ohms
Connector Lead Cable:
• RG-58/u, 27 cm (10.6 in)
Connector Type:
• N-Type, female
Antenna Cable:
• 50 Ohms with male N-Type and
Reversed SMA female Connectors
Wind Survival Speed:
• 180 km/hr (112 miles/hr)
Temperature:
• -30 °C ~ 80 °C (-22 °F ~ 176 °F)
Humidity:
• 100% @ 25 °C (77 °F)
Lightning Protection:
• DC ground
Color:
• Gray-white
Material:
• ABS/UV resistant, Fire retardant
Housing material:
• Galvanized Steel, Fire retardant
Weight:
• 825 g (19 oz.)
Dimensions:
• 240 x 240 x 69.5 mm (9.5 x 9.5 x 2.7 in)
Warranty:
• 3 Years
Certification:
• CE, FCC
TEW-OA14DK (02-18-2005)
TEW-OA14DK
TEW-OA14DK
14dBi Outdoor Directional Antenna with 6ft. (2M) Reverse
14dBi Outdoor Directional Antenna with 6ft. (2M) Reverse
SMA Cable (with bracket mounting kit)
SMA Cable (with bracket mounting kit)
Networking Solution
14dBi Outdoor Directional Antenna Kit
Internet
Cable/DSL
Modem
54Mbps 802.11g
Wireless Access Point
(TEW-430APB)
Cable/DSL 4-Port
Broadband Router
(TW100-S4W1CA)
Workstation with
TE100-PCIWN
(TEW-OA14DK)
10/100Mbps Switch
(TE100-S16)
54Mbps 802.11g
Wireless Access Point
(TEW-430APB)
Workstations with
TE100-PCIWN
PATTERN
Server with
TE100-PCIWN
Workstation with
TE100-PCIWN
Building 1 Building 2
54Mbps
10/100Mbps
Server with
TE100-PCIWN
RELATED PRODUCT
TEW-IA04O:
4 dBi Omni Indoor Antenna
TEW-IA06D:
6 dBi Directional Indoor Antenna
TEW-OA08OK:
8dBi Outdoor Omni-Directional Antenna Kit
NOTE:
For optimal results in extending your wireless range with wireless antenna
installations, we recommended that you consult a professional installer for site
survey, safety precautions, and proper installation.
ORDERING INFORMATION
TRENDware International, Inc.
3135 Kashiwa Street
Torrance, CA. 90505. USA
Tel: 310-891-1100
To Order Please Call:
1-888-326-6061
TRENDnet is a registe red trademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in t his
document pertain to TRENDware products and is subject to change a t any time, without notice. For the most recent product information please visit
Copyright TRENDware International, Inc. 2005. All Rights Reserved.
©
