TRENDnet TEW-OA14D Mounting Instructions

TEW-OA14D 14 dBi Outdoor High Gain Directional Panel Antenna for 2.4 ISM Band

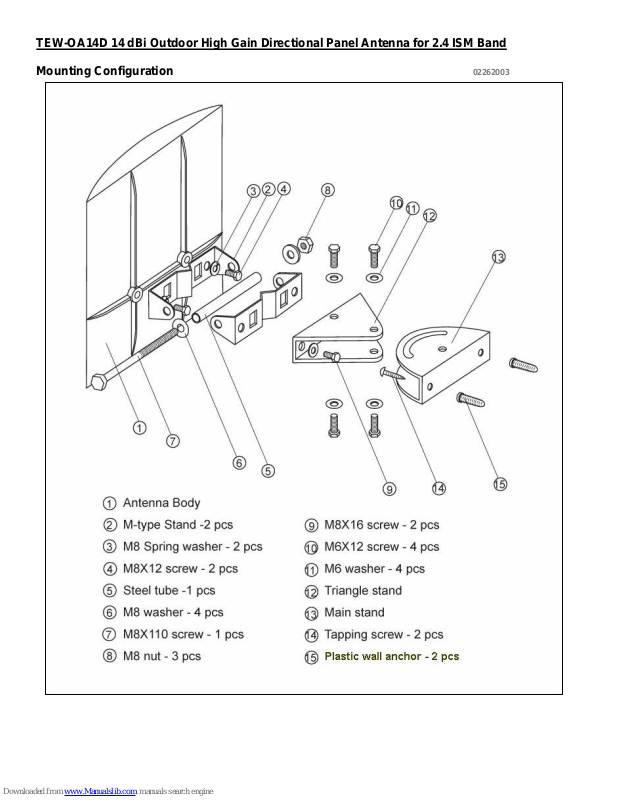

Mounting Configuration 02262003

Installation note

Warning!
Please observe all safety rules when assembling and installing the antenna. TRENDware
will not be responsible for any damaged done by/to the antenna during/after the
installation.

Wall-Mounting

1. Read through this instruction to get an idea of the process.

2. Open the hardware bags carefully and put the hardware in separate groups. If the
hardware is pre-assembled, please disassemble it.

3. Use the two M8 x 12 screws (4) and M8 spring washers (3) to mount one of the M-Type
Stands (2) to the antenna body.

4. Securely mount the Main Stand (13) on the wall with two tapping screws (14). Use the
Plastic Wall Anchors (15) when necessary.

5. Assemble the other M-Type Stand and the Triangle Stand (12) with two M8x16 screws, two
M8 washers (6), and two M8 nuts.

6. Install the assembly in step 3 to the Main Stand (in step 2) with four M6x12 screws (10) and
four M6 washers (11). Do not tighten the screws, so you can rotate the Triangle Stand
alone the Main Stand’s curved slots.

7. Connect the antenna body’s M-Type Stand (from step 1) to the M-Type Stand in step 4 with
the M8x110 screw (7), steel tube (5), M8 washer (6), and install the M8 nut (8) on the
M8x110 loosely (loose enough for you to adjust the antenna angle).

8. Adjust the antenna angles and then tighten all the nuts/bolts. Be careful not to over tighten

the nuts and bolts.

Pole-Mounting

If you are mounting the antenna on the pole, you will need to use the Clamp Blocks, the long
bolts, and the washers (instead of the Main Stand and the Triangle Stand). The blocks, the
bolts, and the washers are not shown in the picture on the first page.

1. Read through this instruction to get an idea of the process.

2. Open the hardware bags carefully and put the hardware in separate groups. If the
hardware is pre-assembled, please disassemble it.

3. Use the two M8 x 12 screws (4) and M8 spring washers (3) to mount one of the M-Type
Stands (2) to the anten na body.

4. Assemble the other M-Type Stand and one of the Clamp Blocks with two M8x16 screws,
two M8 washers (6), and two M8 nuts.

5. Mount the assembly in step 2 and the other Clamp Block to the pole and tighten them with
the long bolts, nuts, and washers.

6. Connect the antenna body’s M-Type Stand (from step 1) to the M-Type Stand in step 3 with
the M8x110 screw (7), steel tube (5), M8 washer (6), and install the M8 nut (8) on the
M8x110 loosely (loose enough for you to adjust the antenna angle).

7. Adjust the anten na angles and then tighten all the nuts/bolts. Be careful not to over tighten
the nuts and bolts.

If you have any questions, please feel free to contact us.
