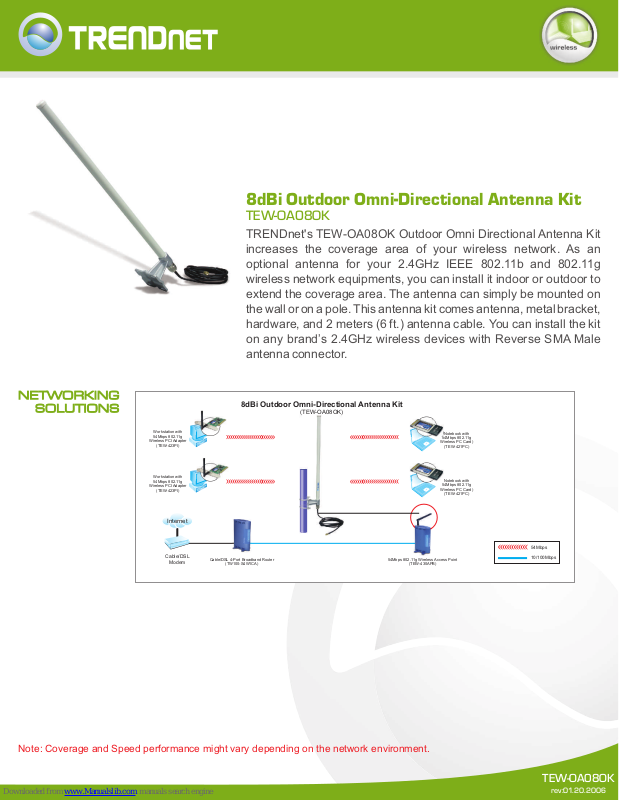

TRENDnet TEW-OA08OK - DATA SHEETS Datasheet
8dBi Outdoor Omni-Directional Antenna Kit
TEW-OA08OK
TRENDnet's TEW-OA08OK Outdoor Omni Directional Antenna Kit
increases the coverage area of your wireless network. As an
optional antenna for your 2.4GHz IEEE 802.11b and 802.11g
wireless network equipments, you can install it indoor or outdoor to
extend the coverage area. The antenna can simply be mounted on
the wall or on a pole. This antenna kit comes antenna, metal bracket,
hardware, and 2 meters (6 ft.) antenna cable. You can install the kit
on any brand’s 2.4GHz wireless devices with Reverse SMA Male
antenna connector.
NETWORKING
SOLUTIONS
Workstation with
54Mbps 802.11g
Wireless PCI Adapter
(TEW-423PI)
Workstation with
54Mbps 802.11g
Wireless PCI Adapter
(TEW-423PI)
Internet
Cable/DSL
Modem
8dBi Omni-Directional Antenna Kit
Outdoor
Cable/DSL 4-Port Broadband Router
(TW100-S4W1CA)
(TEW-OA08OK)
Notebook with
54Mbps 802.11g
Wireless PC Card)
(TEW-421PC)
Notebook with
54Mbps 802.11g
Wireless PC Card)
(TEW-421PC)
54Mbps 802.11g Wireless Access Point
(TEW-430APB)
54Mbps
10/100Mbps
Note: Coverage and Speed performance might vary depending on the network environment.
TEW-OA08OK
rev:01.20.2006
8dBi Outdoor Omni-Directional Antenna Kit
TEW-OA08OK
SPECIFICATIONS
Hardware
Frequency range
Gain
VSWR
Polarization
HPBW/horizontal
HPBW/vertical
Power Handling
Impedance
Connector Type (Included)
Antenna Cable Type
Antenna Cable (Optional)
Wind Survival Speed
Lightning Protection
Color
Material
Housing Material
Weight
Temperature
Humidity
Dimensions
Warranty
Certification
• 2400 MHz ~ 2500MHz
• 8.0 dBi
• 2.0 : 1 Max.
• Linear, Vertical
• 360°
• 15°
• 50 W (cw)
• 50 Ohms
• N-Type Female • 2m(6ft.) HDF-200 (TEW-2000F)
• N-Type male to Reversed SMA Female • Attenuation : 1.1dB
• 8M (26 ft.) HDF-200(Model# TEW-8000F) • Attenuation: 4.5dB
• 180 Km/h (112 Miles/h)
• DC ground
• Gray-white
• Fiberglass
• PCB mirco stripe
• 400g (14 oz.)
• -40°C ~ 80°C (-40°F ~ 176°F)
• 100% @ 25°C (77°F)
• 520 x 62 x 79.5mm (20.47 x 3.13 x 2.44 inches)
• 3-Year
• CE, FCC
PATTERNS
NOTE:
For optimal results in extending your wireless range with
wireless antenna installations, we recommended that you
consult a professional installer for site survey, safety
precautions, and proper installation.
PACKAGE CONTENTS
• TEW-OA08OK
• Quick Installation Guide
• Mounting U Clamp Bracket Kit
• 2M (6 ft.) Antenna Cable ( TEW-2000F)
RELATED PRODUCTS
TEW-IA04O
TEW-IA06D
TEW-OA14DK
4 dBi Omni Indoor Antenna
6 dBi Directional Indoor Antenna
14dBi Outdoor Directional Antenna with 6ft. (2M)
Reverse SMA Cable (with bracket mounting kit)
