TRENDnet TEW-452BRP User Manual

Quick Installation Guide

TEW-452BRP

Troubleshooting

I inserted the Easy Go CD-ROM into my computer's CD-ROM drive and the installation menu does not appear

Q1:

automatically. What should I do?

If the installation menu does not appear automatically, click Start, click Run, and type D:\Autorun.exe where

A1:

"D" in "D:\Autorun.exe" is the letter assigned to your computer's CD-ROM Drive. And then click OK to start the I
nstallation.

How can I get into the TEW-452BRP web configuration page?

Q2:

After you install the TEW-452BRP Wireless Router, you can access the web configuration page by opening

A2:

your web browser and entering http://192.168.1.1 into the web browser's address bar, where http://192.168.1.1 is

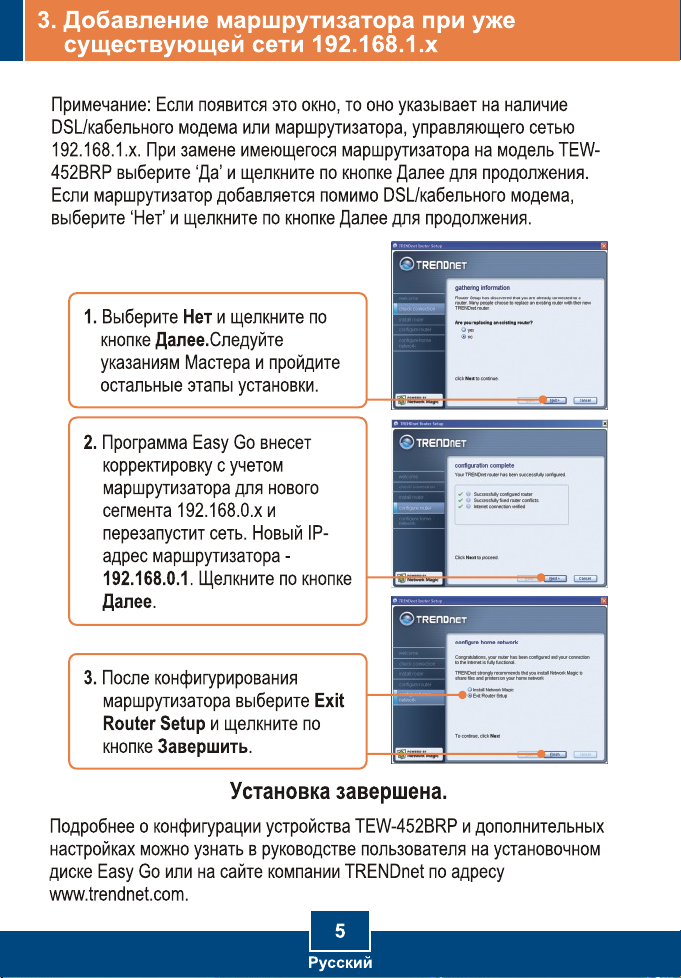

the default IP address of the TEW-452BRP Wireless Router. If you follow the installation instructions in section 3
for adding the router behind an existing 192.168.1.x network, type in http://192.168.0.1 into the web browser's
address bar. The default user name and password is admin.

I am not sure what type of Internet Account Type I have for my Cable/DSL connection. How do I find out?

Q3:

Contact your Internet Service Provider's (ISP) Customer Service for the correct information.

A3:

I received an error while running the Install Wizard. What should I do?

Q4:

Make sure that your computer's CD-ROM is in working condition. Also verify that all cable connections are

A4:

secure and that you are able to connect to the Internet, and then retry installing the router. During setup, the Install
Wizard will check the operation of your network adapter and Internet connection.

All the settings are correct, but I can not make a wireless connection to the Router. What should I do?

Q5:

First, double check that the WLAN light on the Router is lit. Second, power cycle the TEW-452BRP. Unplug

A5:

the power to the TEW-452BRP. Wait 15 seconds, then plug the power back in to the TEW-452BRP. Third, log into
the TEW-452BRP by entering http://192.168.1.1 into the web browser's address bar. If you follow the installation
instructions in section 3 for adding the router behind an existing 192.168.1.x network, type in http://192.168.0.1
into the web browser's address bar. Click on Wireless. Make sure Enabled is selected. Fourth, contact the
manufacturer of your wireless network adapter and make sure the wireless network adapter is configured with the
proper SSID.

After I finish installing the router, then Network Magic Installation Wizard appears. What should I do?

Q6:

Network Magic is an optional bonus program. It works with your router to setup, manage, repair and protect

A6:

your home network. To install Network Magic, select Install Network Magic, click Next and then follow the
Installation Wizard instructions. If you do not want to install Network Magic, select Exit Router Setup and then
click Finish.

If you still encounter problems or have any questions regarding the TEW-452BRP, please refer to the User's Guide
included on the Easy Go Setup CD-ROM or contact Trendnet's Technical Support Department.

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may cause undesired
operation.

Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

6

TRENDnet Technical Support

.

US Canada

Toll Free Telephone: [phone]

24/7 Tech Support

Europe (Germany France Italy Spain Switzerland UK)

Toll Free Telephone: [phone]

English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET

. . . . .

Worldwide

Telephone: +(31) (0) 20 504 05 35

English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET

Product Warranty Registration

Please take a moment to register your product online.
Go to TRENDnet’s website at http://www.trendnet.com

3135 Kashiwa Street
Torrance, CA 90505
USA

Copyright ©2006. All Rights Reserved. TRENDnet.
