TRENDnet TEW-435BRM User Manual
TEW-435BRM
802.11g Wireless
ADSL Router
802.11g/802.11b Wireless Access Point
ADSL Modem
NAT Router
4-Port Switching Hub
User's Guide
Table of Contents
CHAPTER 1 INTRODUCTION .............................................................................................1
TEW-435BRM Features ................................................................................................... 1
Package Contents ..............................................................................................................3
Physical Details.................................................................................................................. 4
CHAPTER 2 INSTALLATION............................................................................................... 6
Requirements..................................................................................................................... 6
Procedure ........................................................................................................................... 6
CHAPTER 3 SETUP ................................................................................................................8
Overview ............................................................................................................................ 8
Configuration Program ....................................................................................................9
Setup Wizard ................................................................................................................... 10
Home Screen .................................................................................................................... 12
LAN Screen......................................................................................................................13
Wireless Screen................................................................................................................ 15
Password Screen.............................................................................................................. 18
CHAPTER 4 PC CONFIGURATION .................................................................................. 19
Overview ..........................................................................................................................19
Windows Clients.............................................................................................................. 19
Macintosh Clients............................................................................................................ 31
Linux Clients.................................................................................................................... 31
Other Unix Systems......................................................................................................... 31
Wireless Station Configuration...................................................................................... 32
CHAPTER 5 OPERATION AND STATUS ......................................................................... 33
Operation ......................................................................................................................... 33
Status Screen.................................................................................................................... 33
Connection Status - PPPoE & PPPoA........................................................................... 36
Connection Details - Dynamic IP Address .................................................................... 37
Connection Details - Fixed IP Address.......................................................................... 38
CHAPTER 6 ADVANCED FEATURES .............................................................................. 39
Overview ..........................................................................................................................39
Internet............................................................................................................................. 39
Dynamic DNS (Domain Name Server) .......................................................................... 41
Firewall Rules ..................................................................................................................43
Firewall Services.............................................................................................................. 49
Options ............................................................................................................................. 51
Schedule............................................................................................................................ 52
Virtual Servers.................................................................................................................53
CHAPTER 7 ADVANCED ADMINISTRATION ............................................................... 55
Overview ..........................................................................................................................55
PC Database.....................................................................................................................56
Config File........................................................................................................................ 60
Logs................................................................................................................................... 61
E-mail ...............................................................................................................................63
Diagnostics .......................................................................................................................65
Remote Admin ................................................................................................................. 66

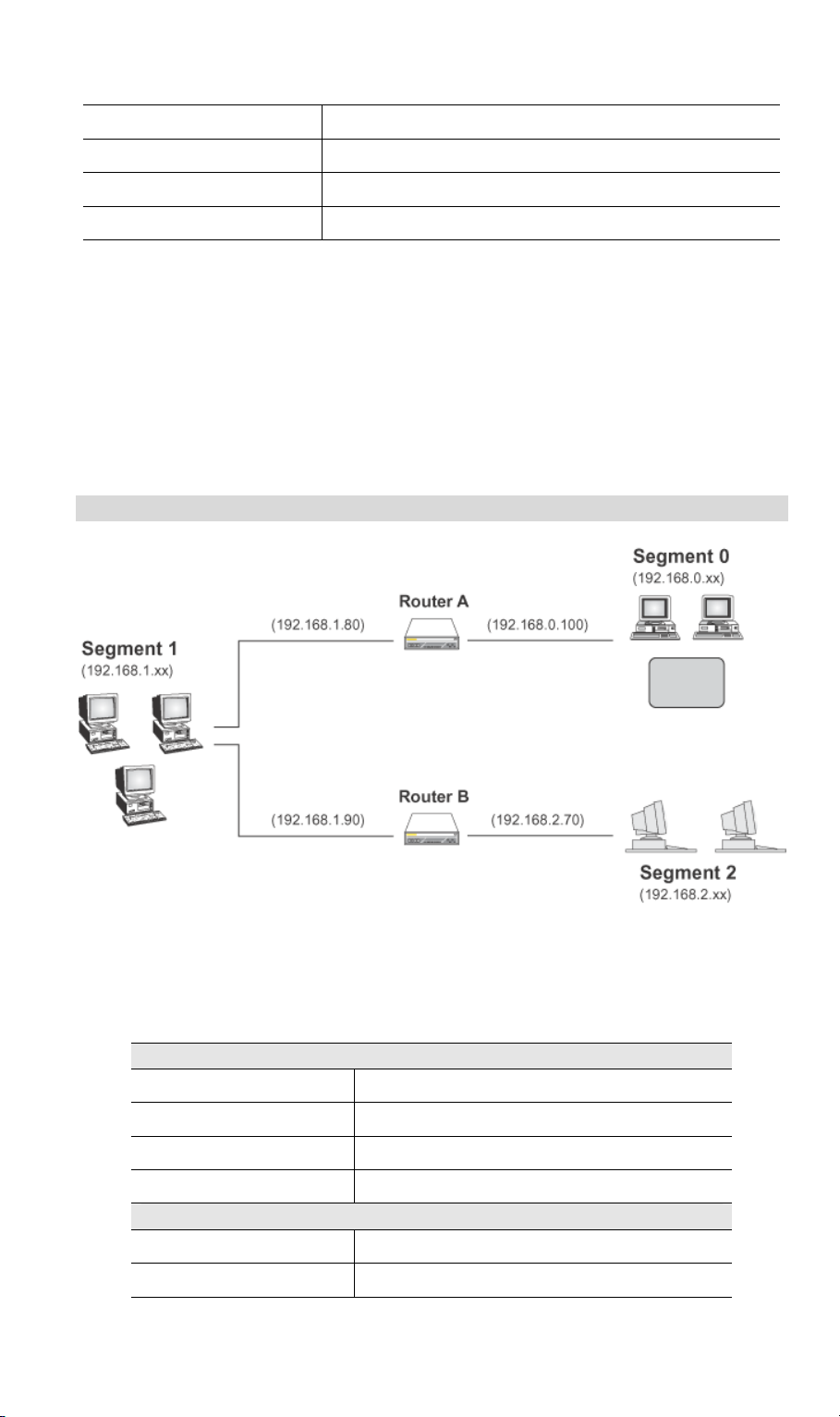

Routing ............................................................................................................................. 68
Upgrade Firmware.......................................................................................................... 72
i
APPENDIX A TROUBLESHOOTING ................................................................................ 73
Overview ..........................................................................................................................73
General Problems............................................................................................................ 73
Internet Access.................................................................................................................73
Wireless Access................................................................................................................ 74
APPENDIX B ABOUT WIRELESS LANS.......................................................................... 75
Modes ............................................................................................................................... 75
BSS/ESS............................................................................................................................ 75
Channels........................................................................................................................... 76
WEP.................................................................................................................................. 76
Wireless LAN Configuration.......................................................................................... 76
APPENDIX C SPECIFICATIONS .......................................................................................77
Multi-Function TEW-435BRM...................................................................................... 77
Wireless Interface............................................................................................................ 77
Regulatory Approvals ..................................................................................................... 78
P/N: 9560MV0037
Copyright 2003. All Rights Reserved.
Document Version: 1.2
All trademarks and trade names are the properties of their respective owners.
ii
Chapter 1
Introduction
This Chapter provides an overview of the TEW-435BRM's features and capabilities.
Congratulations on the purchase of your new TEW-435BRM. The TEW-435BRM is a multifunction device providing the following services:
ADSL Modem.
•
Shared Broadband Internet Access for all LAN users.
•
Wireless Access Point for 802.11b and 802.11g Wireless Stations.
•
4-Port Switching Hub for 10BaseT or 100BaseT connections.
•
TEW-435BRM
1
Figure 1: TEW-435BRM
TEW-435BRM Features
The TEW-435BRM incorporates many advanced features, carefully designed to provide
sophisticated functions while being easy to use.
Internet Access Features
• Shared Internet Access. All users on the LAN or WLAN can access the Internet
through the TEW-435BRM, using only a single external IP Address. The local (invalid) IP
Addresses are hidden from external sources. This process is called NAT (Network Address Translation).
Built-in ADSL Modem. The TEW-435BRM has a built-in ADSL modem, supporting
•
all common ADSL connections.
•
IPoA, PPPoE, PPPoA, Direct Connection Support. The TEW-435BRM supports
all common connection methods.
1
Wireless ADSL Router User Guide
Auto-detection of Internet Connection Method. In most situations, the TEW-
•
435BRM can test your ADSL and Internet connection to determine the connection method
used by your ISP.
Fixed or Dynamic IP Address. On the Internet (WAN port) connection, the TEW-
•
435BRM supports both Dynamic IP Address (IP Address is allocated on connection) and
Fixed IP Address.
Advanced Internet Functions
• Application Level Gateways (ALGs). Applications which use non-standard connec-
tions or port numbers are normally blocked by the Firewall. The ability to define and
allow such applications is provided, to enable such applications to be used normally.
•

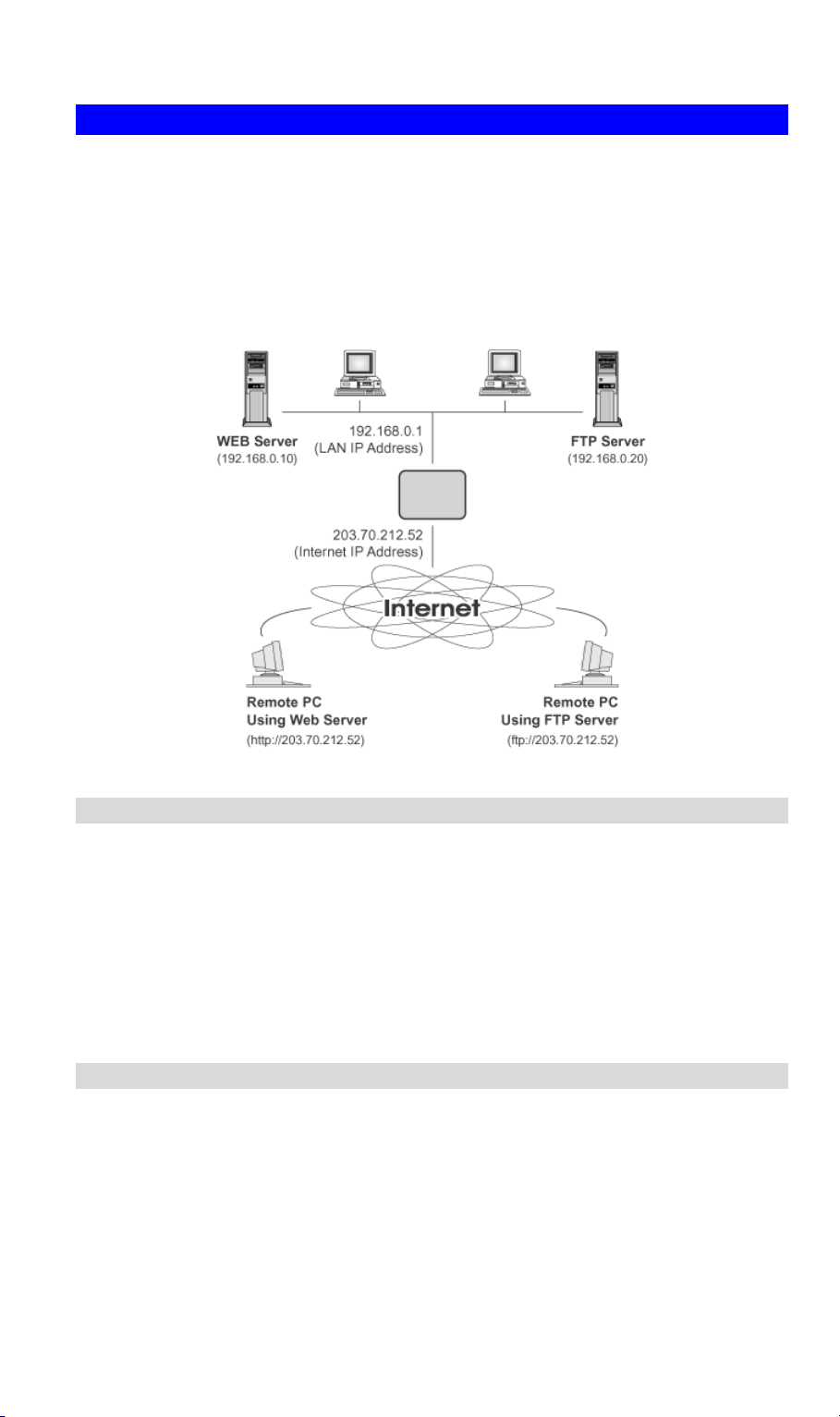

Virtual Servers. This feature allows Internet users to access Internet servers on your
LAN. The required setup is quick and easy.
•
URL Filter. Use the URL Filter to block access to undesirable Web sites by LAN users.
Logs. Define what data is recorded in the Logs, and optionally send log data to a Syslog
•
Server. Log data can also be E-mailed to you.
•
Firewall. As well as the built-in firewall to protect your LAN, you can define Firewall
Rules to determine which incoming and outgoing traffic should be permitted.
•
Dynamic DNS Support. DDNS, when used with the Virtual Servers feature, allows
users to connect to Servers on your LAN using a Domain Name, even if you have a dynamic IP address which changes every time you connect.
VPN Pass through Support. PCs with VPN (Virtual Private Networking) software
•
using PPTP, L2TP and IPSec are transparently supported - no configuration is required.
Wireless Features
• Standards Compliant. The TEW-435BRM complies with the IEEE802.11g (DSSS)
specifications for Wireless LANs.
•
Supports both 802.11b and 802.11g Wireless Stations. The 802.11g standard
provides for backward compatibility with the 802.11b standard, so both 802.11b and
802.11g Wireless stations can be used simultaneously.
Speeds to 54Mbps. All speeds up to the 802.11g maximum of 54Mbps are supported.
•
WEP support. Support for WEP (Wired Equivalent Privacy) is included. Key sizes of
•
64 Bit and 128 Bit are supported.
•
Wireless MAC Access Control. The Wireless Access Control feature can check the
MAC address (hardware address) of Wireless stations to ensure that only trusted Wireless
Stations can access your LAN.
Simple Configuration. If the default settings are unsuitable, they can be changed
•
quickly and easily.
LAN Features
• 4-Port Switching Hub. The TEW-435BRM incorporates a 4-port 10/100BaseT switch-
ing hub, making it easy to create or extend your LAN.
•
DHCP Server Support. Dynamic Host Configuration Protocol provides a dynamic IP
address to PCs and other devices upon request. The TEW-435BRM can act as a DHCP
Server for devices on your local LAN and WLAN.
2
Introduction
Configuration & Management
• Easy Setup. Use your WEB browser from anywhere on the LAN or WLAN for configu-
ration.
•
Configuration File Upload/Download. Save (download) the configuration data from
the TEW-435BRM to your PC, and restore (upload) a previously-saved configuration file
to the TEW-435BRM.
Remote Management. The TEW-435BRM can be managed from any PC on your LAN.
•
And, if the Internet connection exists, it can also (optionally) be configured via the Internet.
Network Diagnostics. You can use the TEW-435BRM to perform a Ping or DNS
•
lookup.
Security Features
• Password - protected Configuration. Optional password protection is provided to
prevent unauthorized users from modifying the configuration data and settings.
•
Wireless LAN Security. WEP (Wired Equivalent Privacy) is supported, as well as
Wireless access control to prevent unknown wireless stations from accessing your LAN.
•
NAT Protection. An intrinsic side effect of NAT (Network Address Translation) tech-
nology is that by allowing all LAN users to share a single IP address, the location and
even the existence of each PC is hidden. From the external viewpoint, there is no network,
only a single device - the TEW-435BRM.
Firewall. All incoming data packets are monitored and all incoming server requests are
•
filtered, thus protecting your network from malicious attacks from external sources.
•
Protection against DoS attacks. DoS (Denial of Service) attacks can flood your
Internet connection with invalid packets and connection requests, using so much bandwidth and so many resources that Internet access becomes unavailable. The TEW435BRM incorporates protection against DoS attacks.
Package Contents
The following items should be included:
• The TEW-435BRM Unit
• 1 Cat-5 Ethernet (LAN) cable
• 1 RJ-11 (ADSL) cable
• Power Adapter
• Quick Installation Guide
• CD-ROM containing the on-line manual.
If any of the above items are damaged or missing, please contact your dealer immediately.
3
Wireless ADSL Router User Guide
Physical Details
Front-mounted LEDs
Figure 2: Front Panel
Power LED
(Green)
Status LED
(Yellow)
LAN
WLAN LED On – Wireless enabled.
WAN On - ADSL connection is available.
On - Power on.
Off - No power.
Off - Normal operation.
Blinking - This LED blinks during start up, and during a Firmware Up-
grade.
For each port, there are 2 LEDs, to indicate the connection speed
(10BaseT or 100BaseT) of each port.
• 100BT - This will be ON if the LAN connection is using 100BaseT,
and Blinking if data is being transferred via the corresponding LAN
port.
• 10BT - This will be ON if the LAN connection is using 10BaseT, and
Blinking if data is being transferred via the corresponding LAN port.
• If neither LED is on, there is no active connection on the corresponding LAN port.
Off - No Wireless connections currently exist.
Flashing - Data is being transmitted or received via the Wireless access
point. This includes "network traffic" as well as user data.
Off - No ADSL connection.
Flashing - Data is being transmitted or received via the ADSL connection.
4
Rear Panel
Introduction
Figure 3: Rear Panel
Power port
10/100BaseT
LAN connections
Reset Button
(Reset to Defaults)
WAN port
(ADSL port)
Connect the supplied power adapter here.
Use standard LAN cables (RJ45 connectors) to connect your PCs to
these ports.
Note:
Any LAN port on the TEW-435BRM will automatically function as
an "Uplink" port when required. Just connect any port to a normal
port on the other hub, using a standard LAN cable.
This button will reset the TEW-435BRM to the factory default
settings.
To do this, press and hold the Reset Button for five (5) seconds, until
the Status LED is lit, then release the Reset Button, and wait the
TEW-435BRM to restart using the factory default values.
Connect this port to your ADSL line.
5
Chapter 2
Installation
This Chapter covers the physical installation of the TEW-435BRM.
Requirements
• Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors.
• TCP/IP protocol must be installed on all PCs.
• For Internet Access, an Internet Access account with an ISP, and a DSL connection.
• To use the Wireless Access Point, all Wireless devices must be compliant with the IEEE
802.11g or IEEE 802.11b specifications.
Procedure
2
Figure 4: Installation Diagram
1. Choose an Installation Site
Select a suitable place on the network to install the TEW-435BRM.
For best Wireless reception and performance, the TEW435BRM should be positioned in a central location with
minimum obstructions between the TEW-435BRM and the
PCs.
Also, if using multiple Access Points, adjacent Access
Points should use different Channels.
6
Installation
2. Connect LAN Cables
Use standard LAN cables to connect PCs to the Switching Hub ports on the TEW435BRM. Both 10BaseT and 100BaseT connections can be used simultaneously.
If required, connect any port to a normal port on another Hub, using a standard LAN cable.
Any LAN port on the TEW-435BRM will automatically function as an "Uplink" port
when required.
3. Connect ADSL Cable
Connect the supplied ADSL cable from to the WAN port on the TEW-435BRM (the RJ11
connector) to the ADSL terminator provided by your phone company.
4. Power Up
Connect the supplied power adapter to the TEW-435BRM and power up.
Use only the power adapter provided. Using a different one may cause hardware damage
5. Check the LEDs
• The Power LED should be ON.
• The Status LED should flash, then turn Off. If it stays on or blinking after 60 seconds,
there is a hardware error.
• For each LAN (PC) connection, one of the LAN LEDs should be ON (provided the PC is
also ON.)
• The WLAN LED should be ON
• The WAN LED should be ON if ADSL line is connected.
For more information, refer to Front-mounted LEDs in Chapter 1.
7
Chapter 3
Setup
This Chapter provides Setup details of the TEW-435BRM.
3
Overview
This chapter describes the setup procedure for:
• Internet Access
• LAN configuration
• Wireless setup
• Assigning a Password to protect the configuration data.
PCs on your local LAN may also require configuration. For details, see Chapter 4 - PC Configuration.
Other configuration may also be required, depending on which features and functions of the
TEW-435BRM you wish to use. Use the table below to locate detailed instructions for the
required functions.
To Do this: Refer to:
Configure PCs on your LAN. Chapter 4:
PC Configuration
Check TEW-435BRM operation and Status. Chapter 5:
Operation and Status
Use any of the following Advanced features:
• Internet
• Dynamic DNS
• Firewall Rules
• Firewall Services
• Schedule
• Virtual Servers
Use any of the following Administration Configuration
settings or features:
• PC Database
• Config File
• Logs
• E-mail
• Diagnostics
• Remote Admin
• Routing
• Upgrade Firmware
Chapter 6:
Advanced Features
Chapter 7
Advanced Administration
8
Setup
Configuration Program
The TEW-435BRM contains an HTTP server. This enables you to connect to it, and configure
it, using your Web Browser. Your Browser must support JavaScript.
The configuration program has been tested on the following browsers:
• Netscape V4.08 or later
• Netscape 7
• Internet Explorer V5.01 or later
Preparation
Before attempting to configure the TEW-435BRM, please ensure that:
• Your PC can establish a physical connection to the TEW-435BRM. The PC and the TEW435BRM must be directly connected (using the Hub ports on the TEW-435BRM) or on
the same LAN segment.
• The TEW-435BRM must be installed and powered ON.
• If the TEW-435BRM's default IP Address (192.168.0.1) is already used by another device,
the other device must be turned OFF until the TEW-435BRM is allocated a new IP Address during configuration.
Using your Web Browser
To establish a connection from your PC to the TEW-435BRM:
1. After installing the TEW-435BRM in your LAN, start your PC. If your PC is already
running, restart it.
2. Start your WEB browser.
3. In the Address box, enter "HTTP://" and the IP Address of the TEW-435BRM, as in this
example, which uses the TEW-435BRM's default IP Address:
HTTP://192.168.0.1
4. When prompted for the User name and Password, enter values as follows:
• User name admin
• Password password
9
Wireless ADSL Router User Guide
If you can't connect
If the TEW-435BRM does not respond, check the following:
• The TEW-435BRM is properly installed, LAN connection is OK, and it is
powered ON. You can test the connection by using the "Ping" command:
• Open the MS-DOS window or command prompt window.
• Enter the command:
ping 192.168.0.1
If no response is received, either the connection is not working, or your
PC's IP address is not compatible with the TEW-435BRM's IP Address.
(See next item.)
• If your PC is using a fixed IP Address, its IP Address must be within the range
192.168.0.2 to 192.168.0.254 to be compatible with the TEW-435BRM's default IP Address of 192.168.0.1. Also, the Network Mask must be set to
255.255.255.0. See Chapter 4 - PC Configuration for details on checking your
PC's TCP/IP settings.
• Ensure that your PC and the TEW-435BRM are on the same network segment.
(If you don't have a router, this must be the case.)
• Ensure you are using the wired LAN interface. The Wireless interface can only
be used if its configuration matches your PC's wireless settings.
Setup Wizard
The first time you connect to the TEW-435BRM, the Setup Wizard will run automatically.
(The Setup Wizard will also run if the TEW-435BRM's default settings are restored.)
1. Step through the Wizard until finished.
• You need the data supplied by your ISP. Most connection methods require some data
input.
• The common connection types are explained in the following table.
2. On the final screen of the Wizard, run the test and check that an Internet connection can be
established.
3. If the connection test fails:
• Check all connections, and the front panel LEDs.
• Check that you have entered all data correctly.
10
Common Connection Types
Type Details ISP Data required
Setup
Dynamic
IP Address
Your IP Address is allocated
automatically, when you connect
to you ISP.
Static (Fixed)
IP Address
Your ISP allocates a permanent
IP Address to you.
Usually, the connection is "Always on".
PPPoE, PPPoA You connect to the ISP only when
required. The IP address is
usually allocated automatically.
a) ADSL parameters (VPI and
VCI) may be required, if they
cannot be detected automatically.
b) Some ISP's may require you to
use a particular Hostname or
Domain name, or MAC (physical)
address.
a) ADSL parameters (VPI and
VCI) may be required, if they
cannot be detected automatically.
b) IP Address allocated to you,
and related information, such as
Network Mask, Gateway IP
address, and DNS address.
a) ADSL parameters (VPI and
VCI) may be required, if they
cannot be detected automatically.
b) User name and password are
always required.
c) If using a Static (Fixed) IP
address, you need the IP address
and related information (Network
Mask, Gateway IP address, and
DNS address)
IPoA
(IP over ATM)
Normally, the connection is
"Always on".
a) ADSL parameters (VPI and
VCI) may be required, if they
cannot be detected automatically.
b) IP Address allocated to you,
and related information, such as
Network Mask, Gateway IP
address, and DNS address.
11
Wireless ADSL Router User Guide
Home Screen
After finishing the Setup Wizard, you will see the Home screen. When you connect in future,
you will see this screen when you connect. An example screen is shown below.
Figure 5: Home Screen
Main Menu
The main menu, on the left, contains links to the most-commonly used screen. To see the links
to the other available screens, click "Advanced" or "Administration".
The main menu also contains two (2) buttons:
• Log Out - When finished, you should click this button to logout.
• Restart - Use this if you wish to restart the TEW-435BRM. Note that restarting the
Router will break any existing connections to or through the Router.
Navigation & Data Input
• Use the menu bar on the left of the screen, and the "Back" button on your Browser, for
navigation.
• Changing to another screen without clicking "Save" does NOT save any changes you may
have made. You must "Save" before changing screens or your data will be ignored.
On each screen, clicking the "Help" button will
display help for that screen.
12
LAN Screen
Use the LAN link on the main menu to reach the LAN screen. An example screen is shown
below.
Figure 6: LAN Screen
Data - LAN Screen
TCP/IP
Setup
IP Address
Subnet Mask
DHCP Server
DHCP
IP address for the TEW-435BRM, as seen from the local LAN. Use the
default value unless the address is already in use or your LAN is using
a different IP address range. In the latter case, enter an unused IP
Address from within the range used by your LAN.
The default value 255.255.255.0 is standard for small (class "C")
networks. For other networks, use the Subnet Mask for the LAN
segment to which the TEW-435BRM is attached (the same value as the
PCs on that LAN segment).
• If Enabled, the TEW-435BRM will allocate IP Addresses to PCs
(DHCP clients) on your LAN when they start up. The default (and
recommended) value is Enabled.
• If you are already using a DHCP Server, this setting must be
Disabled, and the existing DHCP server must be re-configured to
treat the TEW-435BRM as the default Gateway. See the following
section for further details.
• The Start IP Address and Finish IP Address fields set the values
used by the DHCP server when allocating IP Addresses to DHCP
clients. This range also determines the number of DHCP clients
supported.
See the following section for further details on using DHCP.
What DHCP Does
A DHCP (Dynamic Host Configuration Protocol) Server allocates a valid IP address to a
DHCP Client (PC or device) upon request.
• The client request is made when the client device starts up (boots).
• The DHCP Server provides the Gateway and DNS addresses to the client, as well as
allocating an IP Address.
13
Wireless ADSL Router User Guide
• The TEW-435BRM can act as a DHCP server.
• Windows 95/98/ME and other non-Server versions of Windows will act as a DHCP client.
This is the default Windows setting for the TCP/IP network protocol. However, Windows
uses the term Obtain an IP Address automatically instead of "DHCP Client".
• You must NOT have two (2) or more DHCP Servers on the same LAN segment. (If your
LAN does not have other Routers, this means there must only be one (1) DHCP Server on
your LAN.)
Using the TEW-435BRM's DHCP Server
This is the default setting. The DHCP Server settings are on the LAN screen. On this screen,
you can:
• Enable or Disable the TEW-435BRM's DHCP Server function.
• Set the range of IP Addresses allocated to PCs by the DHCP Server function.
You can assign Fixed IP Addresses to some devices
while using DHCP, provided that the Fixed IP Addresses
are NOT within the range used by the DHCP Server.
Using another DHCP Server
You can only use one (1) DHCP Server per LAN segment. If you wish to use another DHCP
Server, rather than the TEW-435BRM's, the following procedure is required.
1. Disable the DHCP Server feature in the TEW-435BRM. This setting is on the LAN screen.
2. Configure the DHCP Server to provide the TEW-435BRM's IP Address as the Default
Gateway.
To Configure your PCs to use DHCP
This is the default setting for TCP/IP for all non-Server versions of Windows.
See Chapter 4 - Client Configuration for the procedure to check these settings.
14
Setup
Wireless Screen
The TEW-435BRM's settings must match the other Wireless stations.
Note that the TEW-435BRM will automatically accept both 802.11b and 802.11g connections,
and no configuration is required for this feature.
To change the TEW-435BRM's default settings for the Wireless Access Point feature, use the
Wireless link on the main menu to reach the Wireless screen. An example screen is shown
below.
Data - Wireless Screen
Identification
Regulatory
Domain
Station name
SSID
(ESSID)
Select the correct domain for your location. It is your responsibility to
ensure:
• That the TEW-435BRM is only used in domains for which is
licensed.
• That you select the correct domain, so that only the legal channels
for that domain can be selected.
This is the same as the "Device Name" for the TEW-435BRM.
• If using an ESS (Extended Service Set, with multiple access
points) this ID is called an ESSID (Extended Service Set Identifier).
• To communicate, all Wireless stations should use the same
SSID/ESSID.
Figure 7: Wireless Screen
15
Wireless ADSL Router User Guide
Options
Mode
Channel No.
Broadcast SSID
WEP data
encryption
Select the desired mode:
• g & b - Both 802.11.g and 802.11b Wireless stations will be able
to use the TEW-435BRM.
• g only - Only 802.11g Wireless stations can use the TEW-
435BRM.
• b only - Only 802.11b connections are available. 802.11g Wire-
less Stations will only be able to use the TEW-435BRM if they are
fully backward-compatible with the 802.11b standard.
• Select the Channel you wish to use on your Wireless LAN.
• If you experience interference (shown by lost connections and/or
slow data transfers) you may need to experiment with different
channels to see which is the best.
• If using multiple Access Points, adjacent Access Points should use
different Channels to reduce interference.
If enabled, the TEW-435BRM will broadcast its SSID. This allows
Wireless Stations will a "null" (blank) SSID to detect and use the
correct SSID.
Disable this feature if you do not want Wireless stations to be able to
do this.
• WEP (Wired Equivalent Privacy) status will display "Disabled" if
WEP is not being used, otherwise it will display "64 Bit" or "128
Bit" depending on the WEP key size being used. If WEP is used,
data is Encrypted before being transmitted, making communication more secure.
• Click the "Configure WEP" button to access the WEP sub-screen,
and view or change the WEP settings.
Configure WEP
Button
Access Point
Enable Wireless
Access Point
Allow access
by …
Set Stations
Button
Click this button to view the WEP sub-screen. See the following
section for more details.
Enable this if you want to use Wireless Access Point function. If
disabled, no Wireless stations can use the Access Point function, and
all connections must be make via the wired LAN.
Use this feature to determine which Wireless stations can use the
Access Point. The options are:
• All Wireless Stations - All wireless stations can use the access
point, provided they have the correct SSID and WEP settings.
• Trusted Wireless stations only - Only wireless stations you
designate as "Trusted" can use the access point, even if they have
the correct SSID and WEP settings.
This feature uses the MAC address to identify Wireless stations.
The MAC address is a low-level network identifier which is
unique to each PC or network device.
To define the trusted wireless stations, use the "Set Stations" button.
Click this button to manage the trusted PC database.
16
WEP Screen
This screen is accessed by clicking the "Configure WEP" button on the Wireless screen.
Figure 8: WEP Screen
Setup
Data - WEP Screen
WEP Data Encryption
WEP Data
Encryption
Authentication
Type
Default Key
Key Value Enter the key value or values you wish to use. The Default Key is
Select the option to match other Wireless Stations:
• Disabled - data is NOT encrypted before being transmitted.
• 64 Bit - data is encrypted, using the default key, before being
transmitted. You must enter at least the default key. For 64 Bit Encryption, the key size is 10 chars in HEX (0~9 and A~F).
• 128 Bit - data is encrypted, using the default key, before being
transmitted. You must enter at least the default key. For 128 Bit
Encryption, the key size is 26 chars in HEX (0~9 and A~F).
Normally, this should be left at the default value of "Automatic". If
changed to "Open System" or "Shared Key", ensure that your Wireless
Stations use the same setting.
Select the key you wish to be the default. Transmitted data is
ALWAYS encrypted using the Default Key; the other Keys are for
decryption only.
You must enter a Key Value for the Default Key.
required, the other keys are optional. Other stations must have the
same key.
Passphrase
If desired, you can generate a key from a phrase, instead of entering
the key value directly. Enter the desired phrase, and click the "Generate Keys" button.
17
Wireless ADSL Router User Guide
Password Screen
The password screen allows you to assign a password to the TEW-435BRM.
Figure 9: Password Screen
Old Password Enter the existing password in this field.
New password Enter the new password here.
Verify password Re-enter the new password here.
You will be prompted for the password when you connect, as shown below.
Figure 10: Password Dialog
• The "User Name" is always admin
• Enter the password for the TEW-435BRM, as set on the Password screen above.
18
Chapter 4
PC Configuration
This Chapter details the PC Configuration required on the local ("Internal")
LAN.
4
Overview
For each PC, the following may need to be configured:
• TCP/IP network settings
• Internet Access configuration
• Wireless configuration
Windows Clients
This section describes how to configure Windows clients for Internet access via the TEW435BRM.
The first step is to check the PC's TCP/IP settings.
The TEW-435BRM uses the TCP/IP network protocol for all functions, so it is essential that
the TCP/IP protocol be installed and configured on each PC.
TCP/IP Settings - Overview
If using the default TEW-435BRM settings, and the default Windows
TCP/IP settings, no changes need to be made.
• By default, the TEW-435BRM will act as a DHCP Server, automatically providing a
suitable IP Address (and related information) to each PC when the PC boots.
• For all non-Server versions of Windows, the default TCP/IP setting is to act as a DHCP
client.
If using a Fixed (specified) IP address, the following changes are required:
• The Gateway must be set to the IP address of the TEW-435BRM
• The DNS should be set to the address provided by your ISP.
If your LAN has a Router, the LAN Administrator must reconfigure the Router itself. Refer to Chapter 8 - Ad-
vanced Setup for details.
19
Wireless ADSL Router User Guide
Checking TCP/IP Settings - Windows 9x/ME:
1. Select Control Panel - Network. You should see a screen like the following:
Figure 11: Network Configuration
2. Select the TCP/IP protocol for your network card.
3. Click on the Properties button. You should then see a screen like the following.
Figure 12: IP Address (Win 95)
Ensure your TCP/IP settings are correct, as follows:
Using DHCP
To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. Using this is recommended. By default, the TEW-435BRM will act as a
DHCP Server.
Restart your PC to ensure it obtains an IP Address from the TEW-435BRM.
Using "Specify an IP Address"
If your PC is already configured, check with your network administrator before making the
following changes:
20
PC Configuration
• On the Gateway tab, enter the TEW-435BRM's IP address in the New Gateway field and
click Add, as shown below. Your LAN administrator can advise you of the IP Address
they assigned to the TEW-435BRM.
Figure 13: Gateway Tab (Win 95/98)
• On the DNS Configuration tab, ensure Enable DNS is selected. If the DNS Server Search
Order list is empty, enter the DNS address provided by your ISP in the fields beside the
Add button, then click Add.
Figure 14: DNS Tab (Win 95/98)
21
Wireless ADSL Router User Guide
Checking TCP/IP Settings - Windows NT4.0
1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as
shown below.
Figure 15: Windows NT4.0 - TCP/IP
2. Click the Properties button to see a screen like the one below.
22
Loading...
