1. Prepare for Installation
Thank you for purchasing the TEW-431BRP. This router will allow you to share
your internet connection with multiple users while its advanced security
features protect your network from intruders and hackers.
This guide will help you set up and configure your wireless router. Following the
installation instructions should be quick and easy. If you run into problems,
please refer to the Troubleshooting section or the more detailed installation
procedures on the User's Guide CD-ROM. If you need further technical
support, please visit www.TRENDNET.com or call by phone.
Verify Package Contents
Please make sure you have everything in the box:
TEW-431BRP
Cable/DSL 4-Port Wireless Firewall Router
Quick Installation Guide
Guide d'installation rapide du
Routeur sans fil câble/DSL à 4 ports avec pare-feu
Anleitung zur Schnellinstallation des
DSL/Kabel 4-Port Wireless Firewall Router
Guía de Instalación Rápida
Enrutador cortafuegos inalámbrico Cable/DSL de 4 puertos
Руководство по быстрой установке
4-портового Cable/DSL-маршрутизатора-брандмауэра беспроводных сетей
Version 10.21.04
TRENDnet
TRENDware, USA
What's Next in Networking
Copyright ©2004. All Rights Reserved. TRENDware International, Inc.
TEW-431BRP
CD-ROM Quick Installation Guide
4
AC Power Adapter RJ-45 Ethernet (LAN) Cable
Verify Equipment
Before installing the router you should have:
1. A Cable/DSL Modem with an Ethernet Port Set-up.
2. An Activated Broadband Internet Account.
3. A Web Browser such as Internet Explorer (5.0 or higher) or
Netscape Navigator (4.7 or higher).
4. An RJ-45 Network Cable for each computer connected to the router.
5. A computer with TCP/IP Protocol installed.
6. Computers(s) with Client for Microsoft Networks Service installed.
English
Collect Internet Service Provider (ISP)
Information

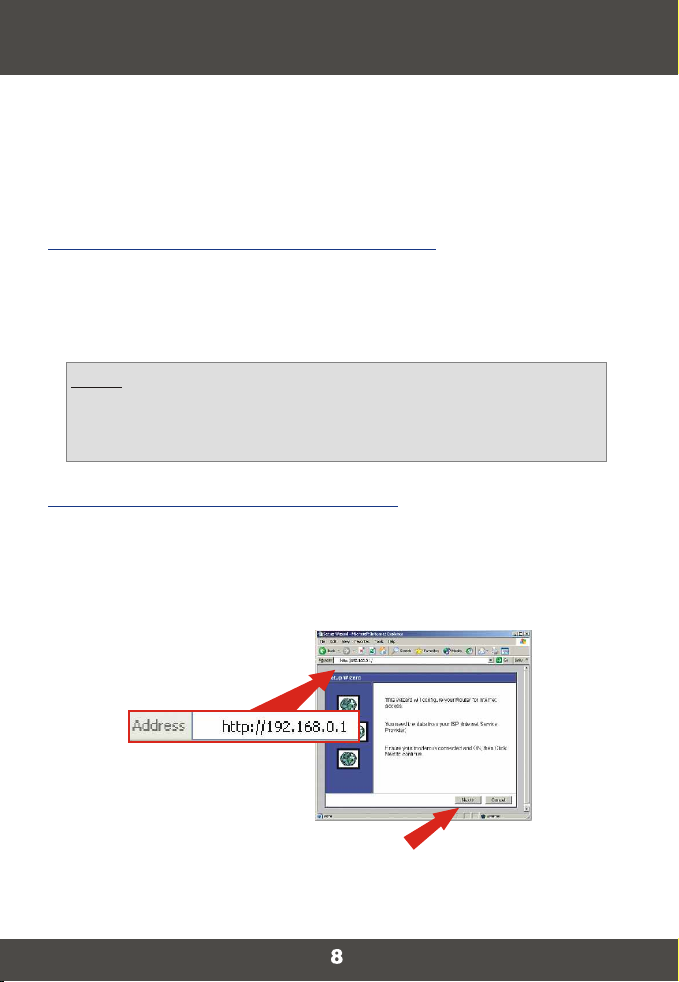

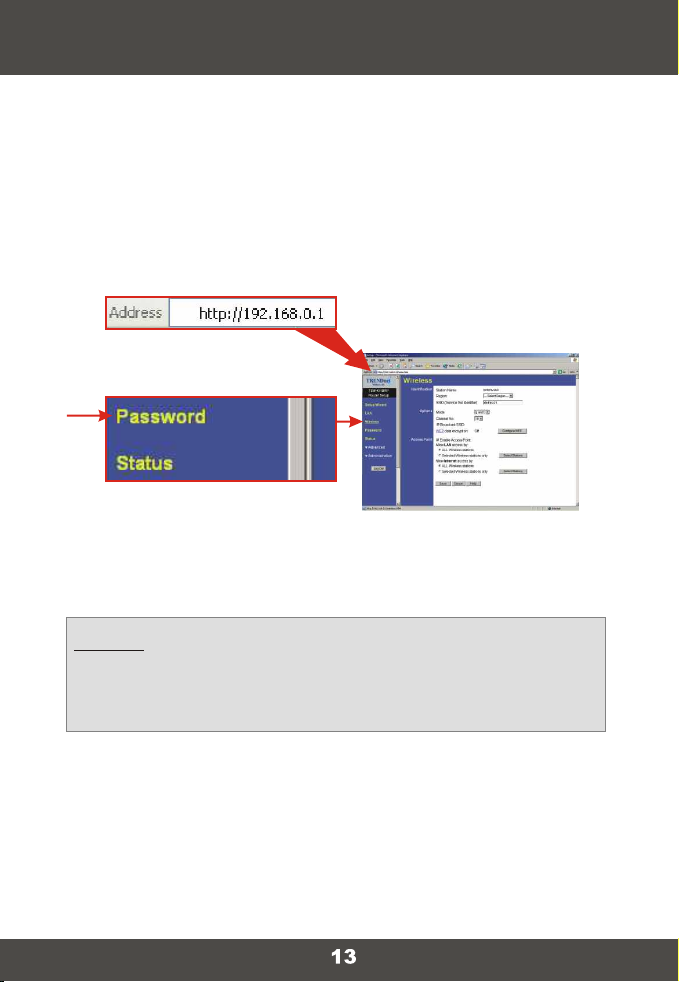

During the installation of your router, the setup wizard will ask you for specific
Internet Service Provider (ISP) information your ISP should have provided you
with. The information is different based on your type of Cable or DSL Internet
Connection. Please verify your Internet connection type and ensure you have
the following information:

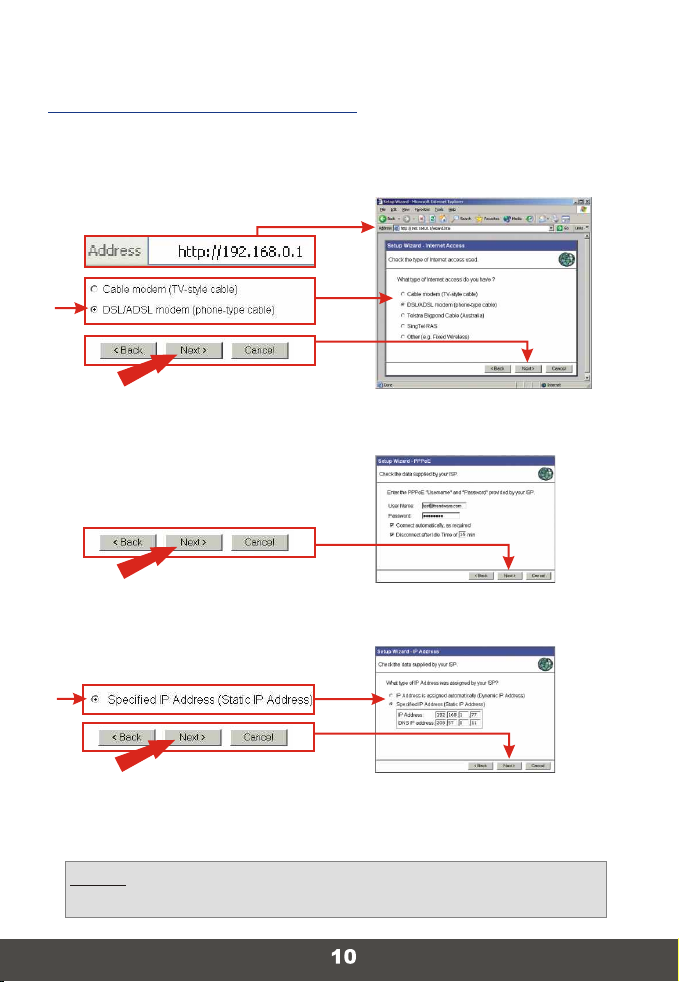

A. Dynamic IP Cable Connection
Nothing required. IP address will automatically be assigned by the ISP.
B. Static or Fixed IP Cable Connection
Internet IP Address:____.____.____.____
Subnet Mask: ____. ____. ____. _____
Gateway IP Address:____.____.____._____
Primary DNS:____.____._____.______
Secondary DNS:_____._____._____.____
C. PPPoE DSL Connection
Login Name:______________
Password:________________
D. PPTP DSL Connection
Login Name:_______________
Password:_________________
(eg. 215.24.24.129)
E. MAC Address Cable Connection
Your ISP's Registered MAC Address for your Internet
Account:___.____.____.____ .____.____
(The MAC Address is normally associated with the Cable/DSL modem
or the Network Card in the PC)
(eg. 12-AB-CD-EE-34-EF)
English
2. Install Hardware
1. Connect one RJ-45 network cable from the Modem's Ethernet port to the
WAN port on the Router.
2. Connect a different RJ-45 network cable from one of the Router's LAN ports
to your computer's network port.
3. Power on your Cable/DSL modem.
4. Power on your router.
5. Power on your computer.
POWER
3
2 1
Verify Hardware Installation
Check to make sure the following router front panel lights are on: Power, WAN,
and at least one of the LAN port LED should be lit for each wired computer
connected to the router.
POWER
WAN
LAN
English

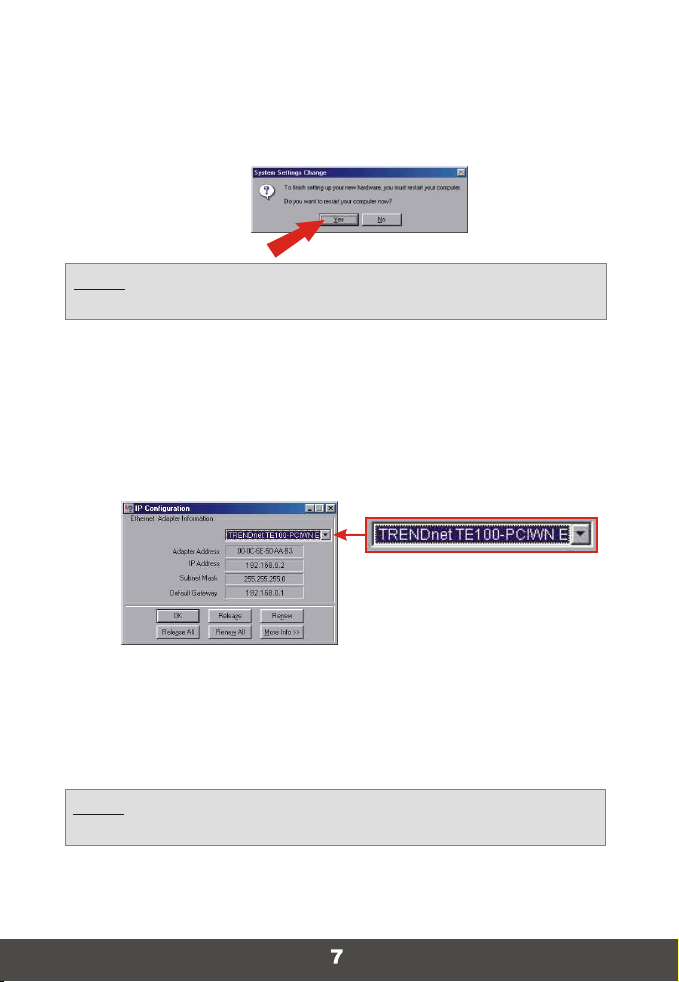

3. Configure the computer's TCP/IP
Settings
Windows 2000/XP

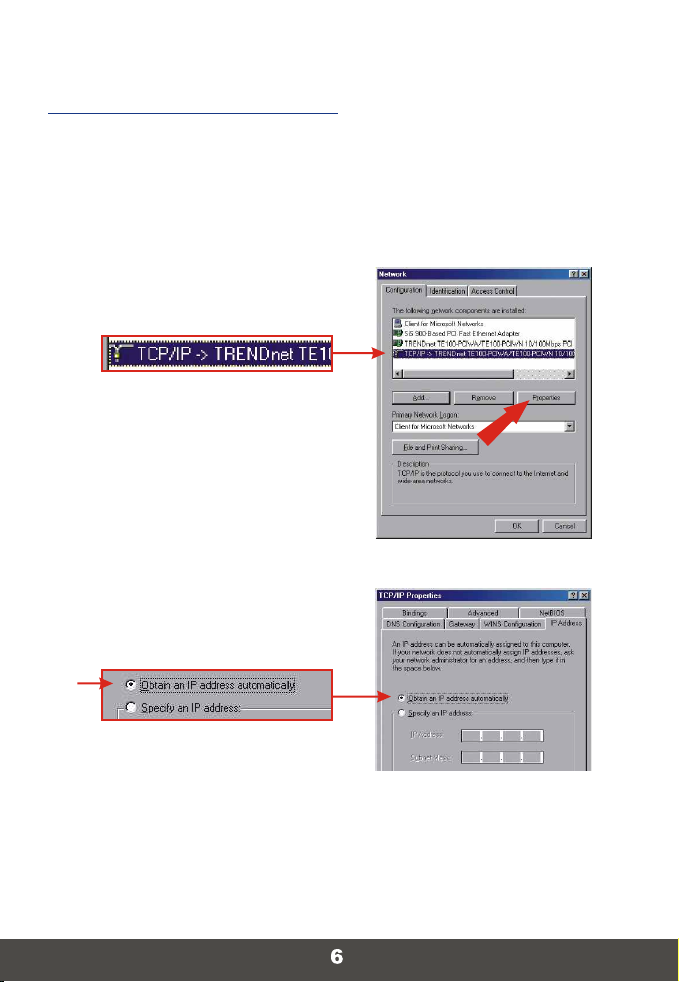

1. Click Start; click Settings and click on Control Panel.
2. Double-Click the Network Connections icon.
3. Right-Click on the Local Area Connection icon, and then click on
Properties. The Local Area Connection Properties box will appear.
4. Under the General Configuration Tab, locate and select TCP/IP and then
click Properties. The Internet Protocol (TCP/IP) Properties box will appear.
NOTE: If you have a Fixed IP address connection, write down the
existing IP addresses from the following sections before you make any
changes.
5. Click on Obtain an IP address automatically and Obtain DNS Server
address automatically.
English
