Page 1
• 5 x 2.5GBASE-T ports
• IEEE 802.3bz (2.5G) compliant
• Backwards compatible with 10/100/1000Mbps devices
• 25Gbps switching capacity
• Fanless design eliminates noise
• Wall mountable for installation flexibility
• Lifetime Warranty

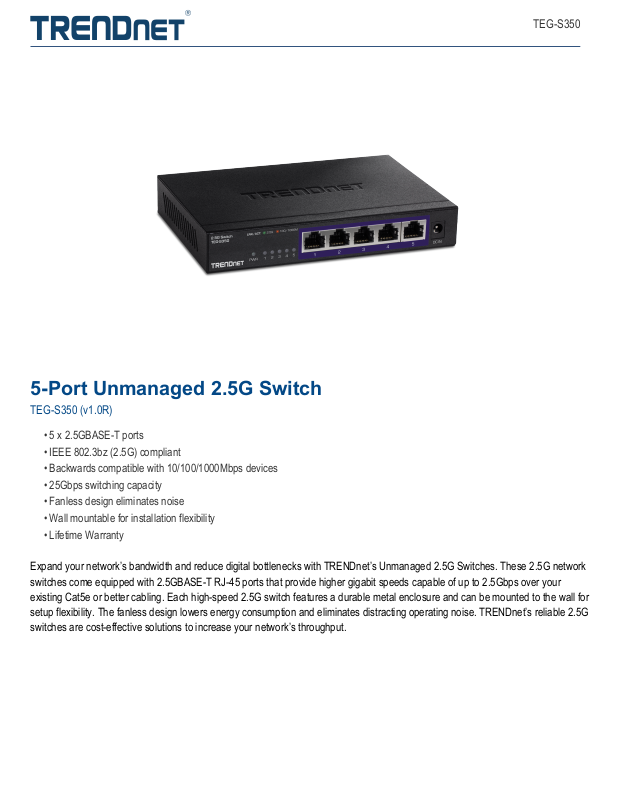

TEG-S350
5-Port Unmanaged 2.5G Switch
TEG-S350 (v1.0R)
Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s Unmanaged 2.5G Switches. These 2.5G network
switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your
existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for
setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G
switches are cost-effective solutions to increase your network’s throughput.
Page 2
TEG-S350
2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports that
provide higher gigabit speeds capable of up to
2.5Gbps over existing Cat5e or better cabling.
NETWORKING SOLUTION
Wall Mountable
The 2.5G switches feature metal housing with
a convenient wall mountable design for greater
installation flexibility.
Fanless
The fanless design of the 2.5G switches lowers
energy consumption costs and eliminates
operating noise.
Page 3
FEATURES
Standards
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3z
• IEEE 802.3ab
• IEEE 802.3az
• IEEE 802.3bz
Device Interface
• 5 x 2.5GBASE-T ports (100Mbps/1Gbps/
2.5Gbps)
• LED indicators
Data Transfer Rate
• Ethernet: 10Mbps (half duplex), 20Mbps (full
duplex)
• Fast Ethernet: 100Mbps (half duplex),
200Mbps (full duplex)
• Gigabit: 2000Mbps (full duplex)
• 2.5 Gigabit: 5Gbps (full duplex)
Performance
• Switching Capacity: 25Gbps
• RAM Buffer: 1.5MB
• MAC Address Table: 16K entries
• Forwarding Rate: 18.6Mpps (64-byte packet
size)
• Jumbo Frames: 12KB
Special Features
• Wall-Mountable
Power
• Input: 100 – 240V AC, 50/60 Hz, 0.5A
• Output: 12V DC, 1A external power adapter
• Max. Consumption: 9.5
Fan/Acoustics
• Fanless design
MTBF
• 674,176 hours
Operating Temperature
• 0° – 40° C (32° – 104° F)
Operating Humidity
• Max. 90% non-condensing
Dimensions (L x W x H)
• 160 x 25 x 109mm (6.29 x 0.98 x 4.29 in.)
Weight
• 414g (14.6 oz.)
Certifications
• FCC
• CE
Warranty
Package Contents
• TEG-S350
• Quick Installation Guide
• Power adapter (12V DC, 1.5A)
TEG-S350
Easy Installation
No configuration needed, simply
connect network devices to the 2.5G
Ethernet switch
Housing Design
Sturdy metal housing
LED Indicators
LED indicators on this 2.5G switch
conveys port status
SPECIFICATIONS
2.5G Ports
Equipped with 2.5GBASE-T RJ-45
ports that provide higher gigabit
speeds capable of up to 2.5Gbps over
existing Cat5e or better cabling
Wall Mountable
Features a convenient wall mountable
design for greater installation flexibility
Fanless
Fanless design lowers energy
consumption and eliminates operating
noise
Jumbo Frame
Sends larger packets, or Jumbo
Frames (up to 12KB) for increased
performance
TRENDnet offers a lifetime warranty for all of its metal-enclosed network switches that have been purchased in the United States/Canada on or after 1/1/2015. Cooling fan and internal power supply carry a one-year
warranty.
20675 Manhattan Place • Torrance • CA 90501 • USA • T: 1-888-326-6061 • F: 1-310-961-5511 • [email protected] • www.TRENDnet.com
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at
any time, without notice. For the most recent product information please visit http://www.trendnet.com. Copyright © TRENDnet. All Rights Reserved.
• Lifetime
Updated: 2/8/2021
