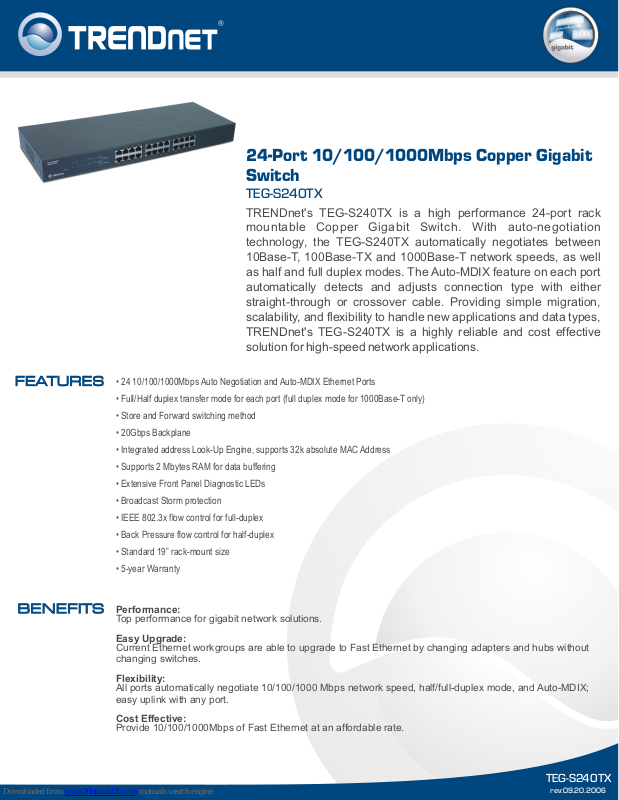

24-Port 10/100/1000Mbps Copper Gigabit Switch

TEG-S240TX

TRENDnet's TEG-S240TX is a high performance 24-port rack mountable Copper Gigabit Switch. With auto-negotiation technology, the TEG-S240TX automatically negotiates between 10Base-T, 100Base-TX and 1000Base-T network speeds, as well as half and full duplex modes. The Auto-MDIX feature on each port automatically detects and adjusts connection type with either straight-through or crossover cable. Providing simple migration, scalability, and flexibility to handle new applications and data types, TRENDnet's TEG-S240TX is a highly reliable and cost effective solution for high-speed network applications.

FEATURES

BENEFITS

• 24 10/100/1000Mbps Auto Negotiation and Auto-MDIX Ethernet Ports

•

Full/Half duplex transfer mode for each port (full duplex mode for 1000Base-T only)

•

Store and Forward switching method

•

20Gbps Backplane

•

Integrated address Look-Up Engine, supports 32k absolute MAC Address

•

Supports 2 Mbytes RAM for data buffering

•

Extensive Front Panel Diagnostic LEDs

•

Broadcast Storm protection

•

IEEE 802.3x flow control for full-duplex

•

Back Pressure flow control for half-duplex

•

Standard 19” rack-mount size

•

5-year Warranty

Performance:

Top performance for gigabit network solutions.

Easy Upgrade:

Current Ethernet workgroups are able to upgrade to Fast Ethernet by changing adapters and hubs without changing switches.

Flexibility:

All ports automatically negotiate 10/100/1000 Mbps network speed, half/full-duplex mode, and Auto-MDIX; easy uplink with any port.

Cost Effective:

Provide 10/100/1000Mbps of Fast Ethernet at an affordable rate.

TEG-S240TX

rev:09.20.2006

Page 2

24-Port 10/100/1000Mbps Copper Gigabit Switch

TEG-S240TX

SPECIFICATIONS

Hardware

LAN Standards

Cabling

Protocol

Topology

Data Transfer Rate

Data RAM Buffers

Filtering Address Table

Diagnostic LEDs

Power Consumption

Dimensions (W x H x D)

Weights

Temperature

Humidity

Certifications

• IEEE 802.3 10Base-T, 802.3u 100Base-TX and 802.3ab 1000Base-T

• Ethernet: Cat. 3, 4, 5, UTP/STP. EIA/TIA-568 100 ohm, 100 meters max.

• Fast Ethernet: Cat. 5, UTP/STP, EIA/TIA-568 100 ohm, 100 meters max.

• Gigabit Ethernet: Cat.5 or better, UTP/STP, EIA/TIA-568 100ohm, 100 meters max.

• CSMA/CD

• Star

• Ethernet: 10Mbps (Half-Duplex), 20Mbps (Full-Duplex)

• Fast Ethernet: 100Mbps (Half-Duplex), 200Mbps (Full-Duplex)

• Gigabit Ethernet: 2000Mbps (Full-Duplex)

• 2MB per device

• 32K entries per device

• Power, Link/Act, 1000M, 100M

• 100~240VAC 50/60Hz, Internal Universal Switching Power, 55 Watts. Max.

• 440 x 210 x 44 mm (17.3 x 8.27x 1.73 inch) (W x H x D)

• 3Kg (6.6 lb)

• Operating: 0° ~ 40° C (32° ~ 104°F). ; Storage: -10° ~ 70° C (14° ~ 158°F)

• 10% ~ 90% (non-condensing)

• FCC, CE
