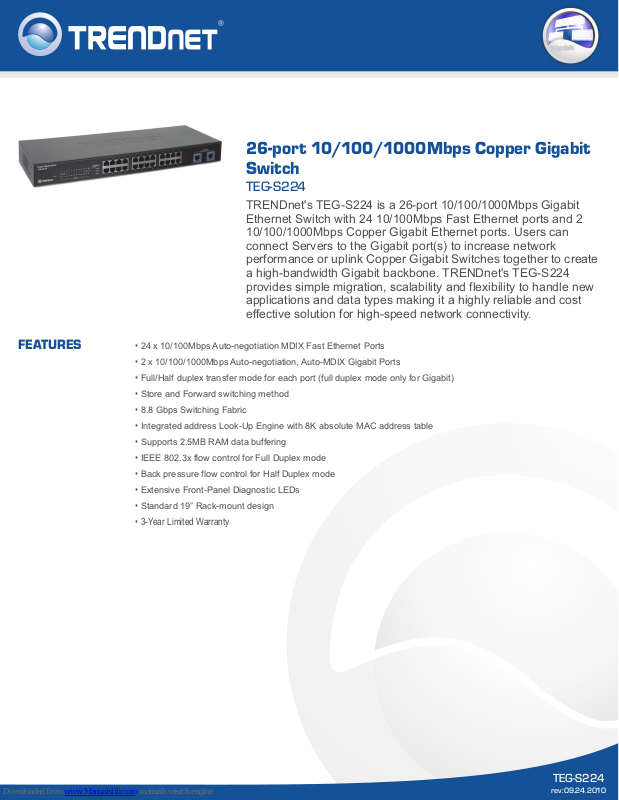

gigabit

26-port 10/100/1000Mbps Copper Gigabit Switch

TEG-S224

TRENDnet's TEG-S224 is a 26-port 10/100/1000Mbps Gigabit Ethernet Switch with 24 10/100Mbps Fast Ethernet ports and 2 10/100/1000Mbps Copper Gigabit Ethernet ports. Users can connect Servers to the Gigabit port(s) to increase network performance or uplink Copper Gigabit Switches together to create a high-bandwidth Gigabit backbone. TRENDnet's TEG-S224 provides simple migration, scalability and flexibility to handle new applications and data types making it a highly reliable and cost effective solution for high-speed network connectivity.

FEATURES

• 24 x 10/100Mbps Auto-negotiation MDIX Fast Ethernet Ports

• 2 x 10/100/1000Mbps Auto-negotiation, Auto-MDIX Gigabit Ports

• Full/Half duplex transfer mode for each port (full duplex mode only for Gigabit)

• Store and Forward switching method

• 8.8 Gbps Switching Fabric

• Integrated address Look-Up Engine with 8K absolute MAC address table

• Supports 2.5MB RAM data buffering

• IEEE 802.3x flow control for Full Duplex mode

• Back pressure flow control for Half Duplex mode

• Extensive Front-Panel Diagnostic LEDs

• Standard 19” Rack-mount design

• 3-Year Limited Warranty

TEG-S224

rev:09.24.2010

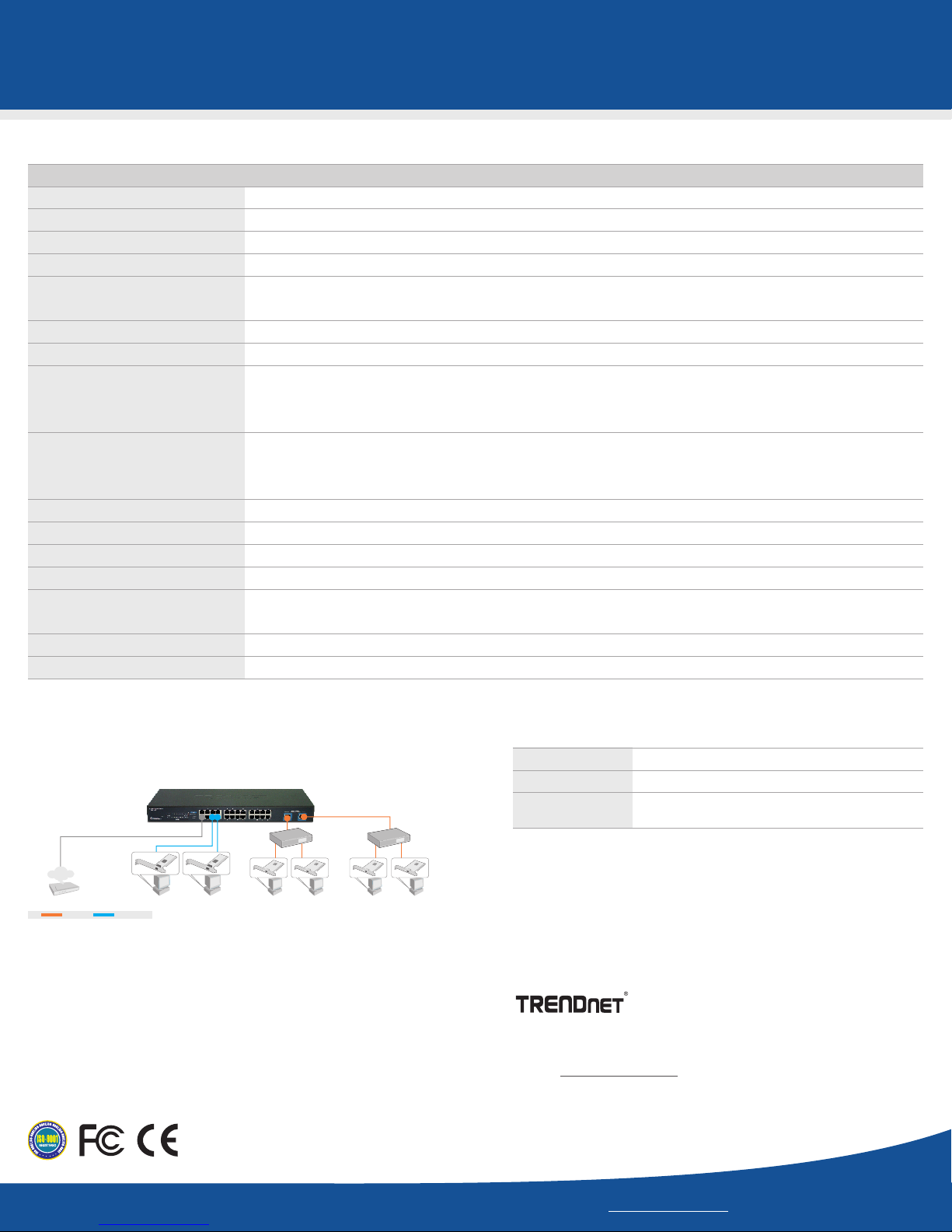

Page 2

26-port 10/100/1000Mbps Copper Gigabit Switch

TEG-S224

SPECIFICATIONS

Hardware

LAN Standards

Network Media

Protocol

Topology

LAN Port

Address Table

Data RAM buffer

Data Transfer Rate

Diagnostic LEDs

Power Consumption

Power Supply

Dimensions

Weight

Temperature

Humidity

Certifications

• IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Full Duplex Flow Control

• Ethernet: UTP/STP Cat. 3, 4, 5, Fast Ethernet: UTP/STP Cat. 5 , Gigabit : UTP/STP Cat. 5, Cat 5E (Recommend)

• CSMA/CD

• Star

• 24 x 10/100Mbps Auto Negotiation, Auto-MDIX Fast Ethernet ports

• 2 x 10/100/1000Mbps Auto Negotiation, Auto MDIX Gigabit ports

• 8K entries per device

• 2.5MB per device

• Ethernet: 10/20Mbps – Half/Full-Duplex

• Fast Ethernet: 100/200Mbps – Half/Full Duplex

• Gigabit Ethernet: 1000/2000Mbps – Half/Full Duplex

• Per Unit: Power System

• Per Fast Ethernet Port: Link/ACT, 100M (port 1~24)

• Per Gigabit Ethernet Port: Link/ACT, 1000M, 100M (port 25, 26)

• 11.75 Watts. Max

• 100-240V AC, 50/60Hz Internal Universal Power Supply

• 440 x 140 x 44 mm (17.32" x 5.5" x 1.73")

• 4.7 lb

• Operating: 0°~ 40°C (32°~ 104°F)

• Storage: -10°~ 70°C (14°~ 158°F)

• 10% ~ 90% (no-condensing)

• FCC CE,

NETWORKING SOLUTIONS

Internet

Cable/DSL

Modem Router

1000Mbps

26-Port 10/100/1000Mbps Copper Gigabit Switch

Workstations with 10/100Mbps Ethernet Card

10/100Mbps

(TE100-PCIWN)

(TEG-S224)

Workstation with Copper Gigabit PCI Adapter

(TEG-PCITXR)

5-Port 10/100/1000Mbps

Copper Gigabit Switch

(TEG-S50TXE)

Workstations with Copper Gigabit PCI Adapter

(TEG-PCITXR)
