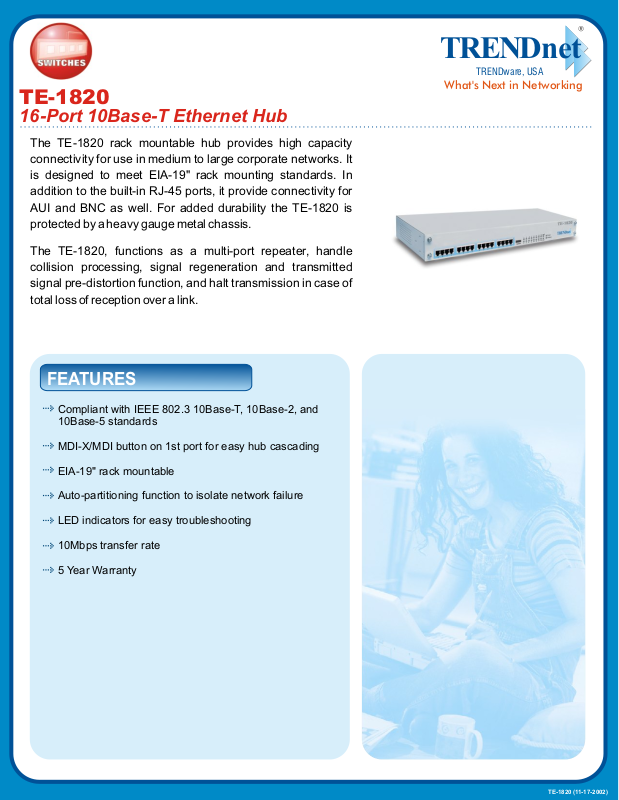

Trendnet TE-1820 Datasheet
TE-1820
16-Port 10Base-T Ethernet Hub
The TE-1820 rack mountable hub provides high capacity
connectivity for use in medium to large corporate networks. It
is designed to meet EIA-19" rack mounting standards. In
addition to the built-in RJ-45 ports, it provide connectivity for
AUI and BNC as well. For added durability the TE-1820 is
protected by a heavy gauge metal chassis.
The TE-1820, functions as a multi-port repeater, handle
collision processing, signal regeneration and transmitted
signal pre-distortion function, and halt transmission in case of
total loss of reception over a link.
TRENDnet
TRENDware, USA
What's Next in Networking
FEATURES
Compliant with IEEE 802.3 10Base-T, 10Base-2, and
10Base-5 standards
MDI-X/MDI button on 1st port for easy hub cascading
EIA-19" rack mountable
Auto-partitioning function to isolate network failure
LED indicators for easy troubleshooting
10Mbps transfer rate
5 Year Warranty
TE-1820 (11-17-2002)
TE-1820
TE-1820
16-Port 10Base-T Ethernet Hub
16-Port 10Base-T Ethernet Hub
SPECIFICATIONS
Standards:
• IEEE 802.3 10Base-T, 10Base-2,
and 10Base-5
Ports:
• 16 RJ-45, 1 BNC, and 1 AUI
Input Power:
• AC 100V to 250V 50/60Hz, auto-selecting
Power Consumption:
• 18W
Dimensions:
• 483mm x 44mm x 125mm
(including mounting brackets)
Weight:
• 2.0kg
Operating Temperature:
• 0° to 55° C
Operating Humidity:
• 10% to 90% non-condensing
Emissions:
• FCC class A
Certifications:
• UL, CSA
U
R
L
®
PRODUCT INFORMATION
TE-1420:
12-Port 10Base-T Ethernet Hub
TE-1820:
16-Port 10Base-T Ethernet Hub
TE-2620:
24-Port 10Base-T Ethernet Hub
ORDERING INFORMATIONORDERING INFORMATION
R
TRENDnet
TRENDware, USA
TRENDware International, Inc.
3135 Kashiwa Street
Torrance, CA. 90505. USA
Tel: 310-891-1100
Fax: 310-891-1111
Web:
Email: sales@trendware.com
To Order Please Call:
1-888-326-6061
TRENDnet is a registered treademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this
document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit
Copyright TRENDware International, Inc. 2004. All Rights Reserved.
©
http://www.TRENDNET.com.
