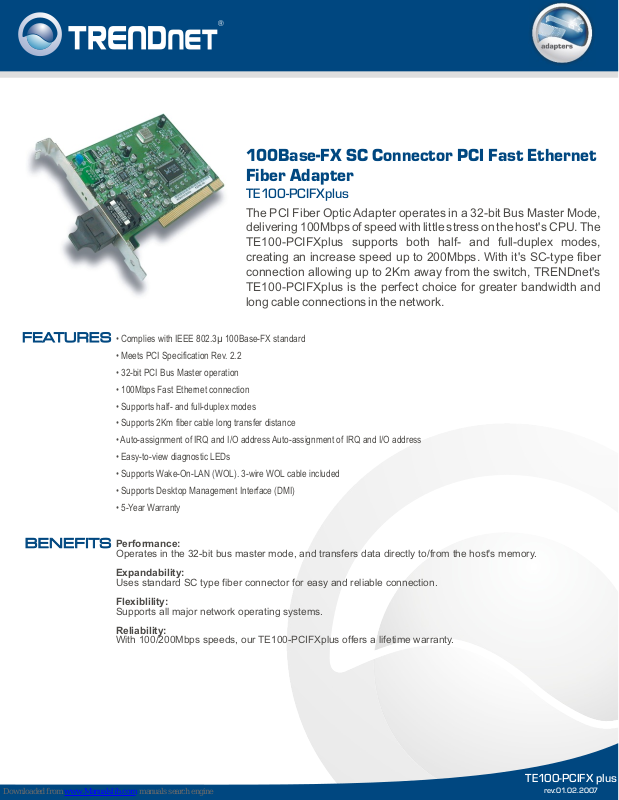

Page 1
100Base-FX SC Connector PCI Fast Ethernet
Fiber Adapter
TE100-PCIFXplus
The PCI Fiber Optic Adapter operates in a 32-bit Bus Master Mode,
delivering 100Mbps of speed with little stress on the host's CPU. The
TE100-PCIFXplus supports both half- and full-duplex modes,
creating an increase speed up to 200Mbps. With it's SC-type fiber
connection allowing up to 2Km away from the switch, TRENDnet's
TE100-PCIFXplus is the perfect choice for greater bandwidth and
long cable connections in the network.
FEATURES
BENEFITS
• Complies with IEEE 802.3µ 100Base-FX standard
• Meets PCI Specification Rev. 2.2
• 32-bit PCI Bus Master operation
• 100Mbps Fast Ethernet connection
• Supports half- and full-duplex modes
• Supports 2Km fiber cable long transfer distance
• Auto-assignment of IRQ and I/O address Auto-assignment of IRQ and I/O address
• Easy-to-view diagnostic LEDs
• Supports Wake-On-LAN (WOL). 3-wire WOL cable included
• Supports Desktop Management Interface (DMI)
• 5-Year Warranty
Performance:
Operates in the 32-bit bus master mode, and transfers data directly to/from the host's memory.
Expandability:
Uses standard SC type fiber connector for easy and reliable connection.
Flexiblility:
Supports all major network operating systems.
Reliability:
With 100/200Mbps speeds, our TE100-PCIFXplus offers a lifetime warranty.
TE100-PCIFX plus
rev:01.02.2007
Page 2
100Base-FX SC Connector PCI Fast Ethernet Fiber Adapter
TE100-PCIFXplus
SPECIFICATIONS
Hardware
Standards
Data Transfer Rate
Protocol
Connectors
Diagnostic LEDs
Network Drivers
Power Consumption
Dimensions
Weight
Temperature
Humidity
Certifications
• IEEE 802.3µ 100Base-FX
• 100Mbps (half-duplex) / 200Mbps (full-duplex)
• CSMA/CD
• Multimode SC fiber connector
• Link and Activity
• Novell Netware 3.x/4.x, ODI driver, NetWare Client 32, Windows for Workgroups, Windows 95/98/2000/NT/XP,
IBM OS/2 Warp Server, Linux, NDIS driver, and other major network operating systems
• 5 VDC, 700mA Max
• 135 x 121 mm (5.31 x 4.76 inches)
• 85 g (3 oz)
• Operating: 0° to 40°C (32°F to 104°F)
• Storage: -25° to 70°C (-13°F to 158°F)
• 10% to 90% (non-condensing)
• FCC, CE, VCC1
NETWORKING SOLUTIONS
RELATED PRODUCTS
TE100-PCIFXplus
TE100-S88FX
TE100-S86FX
TE100-S81FX
TE100-TF
100Base-FX SC Connector PCI Fast Ethernet Fiber Adapter
8-port 100Base-FX Switch with SC Connector
2-port 10/100Base-TX and 6-port 100Base-FX Switch
with SC Connector
7-port 10/100Base-TX and 1-port 100Base-FX
Mini Fiber Switch
ProXpress 100Mbps Fast Ethernet Transceiver
