Page 1
print
servers

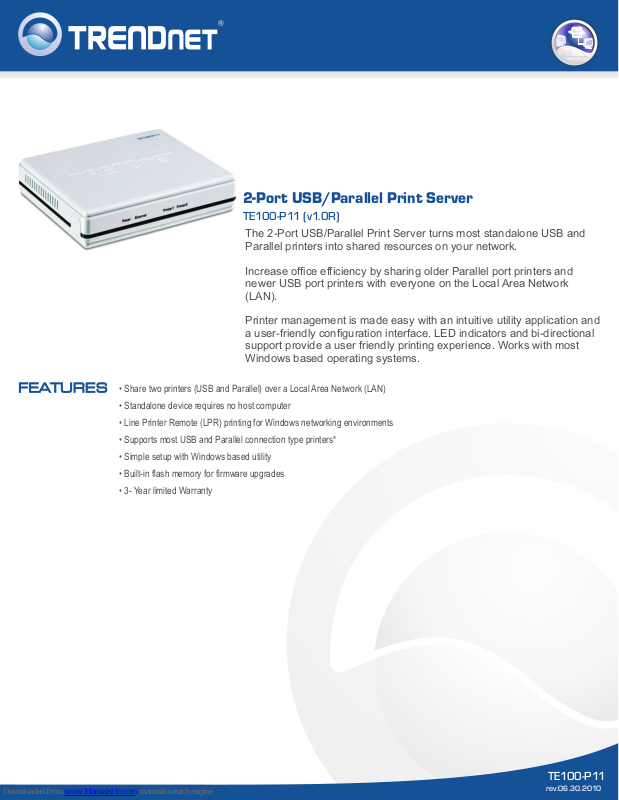

2-Port USB/Parallel Print Server
TE100-P11 (v1.0R)
The 2-Port USB/Parallel Print Server turns most standalone USB and
Parallel printers into shared resources on your network.
Increase office efficiency by sharing older Parallel port printers and
newer USB port printers with everyone on the Local Area Network
(LAN).
Printer management is made easy with an intuitive utility application and
a user-friendly configuration interface. LED indicators and bi-directional
support provide a user friendly printing experience. Works with most
Windows based operating systems.
FEATURES
• Share two printers (USB and Parallel) over a Local Area Network (LAN)
• Standalone device requires no host computer
• Line Printer Remote (LPR) printing for Windows networking environments
• Supports most USB and Parallel connection type printers*
• Simple setup with Windows based utility
• Built-in flash memory for firmware upgrades
• 3- Year limited Warranty
TE100-P11
rev:06.30.2010
Page 2
2-Port USB/Parallel Print Server
TE100-P11 (V1.0R)
SPECIFICATIONS
Hardware
Standards
Printer Interface
LAN Port
Diagnostic LEDs
TCP/IP Protocol Supported
Supported OS
Management
Power
Power Consumption
Dimensions
Weight
Temperature
Humidity
• Wired: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
• USB 2.0, 1.1 compliant, USB Type A port, DB- 25 parallel port
• 1 x 10/100Mbps Auto-Negotiation RJ-45 port
• Power, Ethernet, Printer 1, Printer 2
• TCP/IP, DHCP, NetBEUI, and Appletalk
• Windows 2000/XP/2003 Server/Vista (32-Bit), Mac OS
• Windows based utility or Web based configuration
• 5V DC 2A external power adapter
• 1.2W max (with one printer connector)
• 135 x 105 x 30mm (4.3 x 4.1 x 1.1 inches)
• 200g (7oz.)
• Operating: 0°~40°C (32°~104°F)
• 10%~85% (non-condensing)
• Storage: -25°~70°C (-4°~158°F)
NETWORKING SOLUTIONS
2-Port USB/Parallel Print Server
(TE100-P11)
4-Port Gigabit Firewall Router
Internet
Parallel
Printer
10/100Mbps
USB
Printer
Cable/DSL
Modem
Workstation with
10/100Mbps PCI Adapter
(TE100-PCIWN)
(TWG-BRF114)
Worstation with
10/100Mbps PCI Adapter
(TE100-PCIWA)
PACKAGE CONTENTS
• TE100-P11
• Multi-Language Quick Installation Guide
• CD-ROM (Utility and User's Guide)
• Power adapter (5V DC, 2A)
RELATED PRODUCTS
TEW-P11G
TEG-S5
TWG-BRF114
Wireless 2-Port USB/Parallel Print Server
5-Port Gigabit Switch
4-Port Firewall Router
ORDERING INFORMATION
20675 Manhattan Place,Torrance, CA 90501 USA
Tel: 1-310-961-5500
Fax: 1-310-961-5511
www.trendnet.com
Web:
Email: [email protected]
To Order Please Call:
1-888-326-6061
