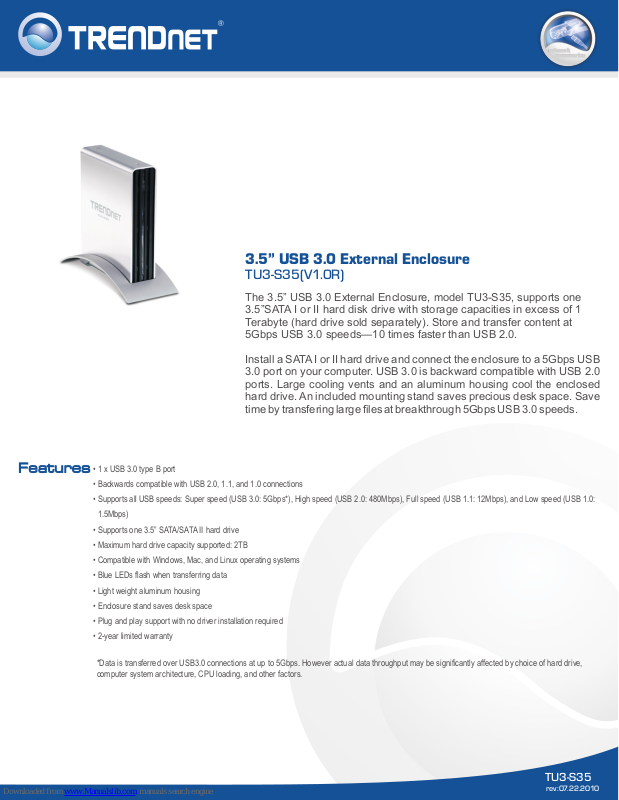

3.5” USB 3.0 External Enclosure

TU3-S35(V1.0R)

The 3.5” USB 3.0 External Enclosure, model TU3-S35, supports one

3.5”SATA I or II hard disk drive with storage capacities in excess of 1 Terabyte (hard drive sold separately). Store and transfer content at 5Gbps USB 3.0 speeds—10 times faster than USB 2.0.

Features

Install a SATA I or II hard drive and connect the enclosure to a 5Gbps USB

3.0 port on your computer. USB 3.0 is backward compatible with USB 2.0 ports. Large cooling vents and an aluminum housing cool the enclosed hard drive. An included mounting stand saves precious desk space. Save time by transfering large files at breakthrough 5Gbps USB 3.0 speeds.

• 1 x USB 3.0 type B port

• Backwards compatible with USB 2.0, 1.1, and 1.0 connections

• Supports all USB speeds: Super speed (USB 3.0: 5Gbps*), High speed (USB 2.0: 480Mbps), Full speed (USB 1.1: 12Mbps), and Low speed (USB 1.0:

1.5Mbps)

• Supports one 3.5” SATA/SATA II hard drive

• Maximum hard drive capacity supported: 2TB

• Compatible with Windows, Mac, and Linux operating systems

• Blue LEDs flash when transferring data

• Light weight aluminum housing

• Enclosure stand saves desk space

• Plug and play support with no driver installation required

• 2-year limited warranty

*Data is transferred over USB3.0 connections at up to 5Gbps. However actual data throughput may be significantly affected by choice of hard drive, computer system architecture, CPU loading, and other factors.

TU3-S35

rev:07.22.2010

3.5” USB 3.0 External Enclosure

TU3-S35(V1.0R)

SPECIFICATIONS

Hardware

USB Standards

External Ports

HD Interface

Compatible drives

HD Capacity

Supported OS

Data Rate

HD Transfer Rate

Power Switch

Power Consumption

Dimensions (L x W x D)

Weight

Enclosure Material

Temperature

Humidity

Certifications

• USB 3.0

• 1 x USB 3.0 Type B port

• 1x SATA/SATA II

• 3.5 in. SATA/SATA II

• 2TB (max.)

• Windows 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), 2000

• Super speed: 5Gbps* (USB 3.0)

• Full speed: 12Mbps (USB 1.1)

• SATA II: up to 3Gb/sec

• On/off

• Max. 0.75w

• 133.35 x 38.1 x 196.85mm (5.25 x 1.5 x 7.75in.)

• 560g (19.75oz)

• Aluminum and PVC

• Operating: 10°C ~ 40°C (50°F ~ 104°F)

• Max. 90% (Non-condensing)

• CE, FCC

• Backwards compatible with USB 2.0, v1.1, and 1.0

• SATA I: up to 1.5Gb/sec

• Mac OS X v10.4 to 10.6 • Linux

• High speed: 480Mbps (USB 2.0)

• Low speed: 1.5Mbps (USB 1.0)

• Storage: -10°C ~ 80°C (14°F ~ 176°F)

NETWORKING SOLUTION

3.5” USB 3.0 External Enclosure

(TU3-S35)

2-Port USB 3.0

ExpressCard Adapter

(TU3-H2EC)

TU3-C10 USB 3.0 Cable

2-Port USB 3.0

PCI Express Adapter

(TU3-H2PIE)

PACKAGE CONTENTS

• TU3-S35

• Multi-Language Quick Installation Guide

• CD-ROM (User's Guide)

• USB 3.0 Type A to Type B cable(1.8m / 6ft)

• Power Adapter (12V, 2A)

• Hard drive mounting screws

• Stand
