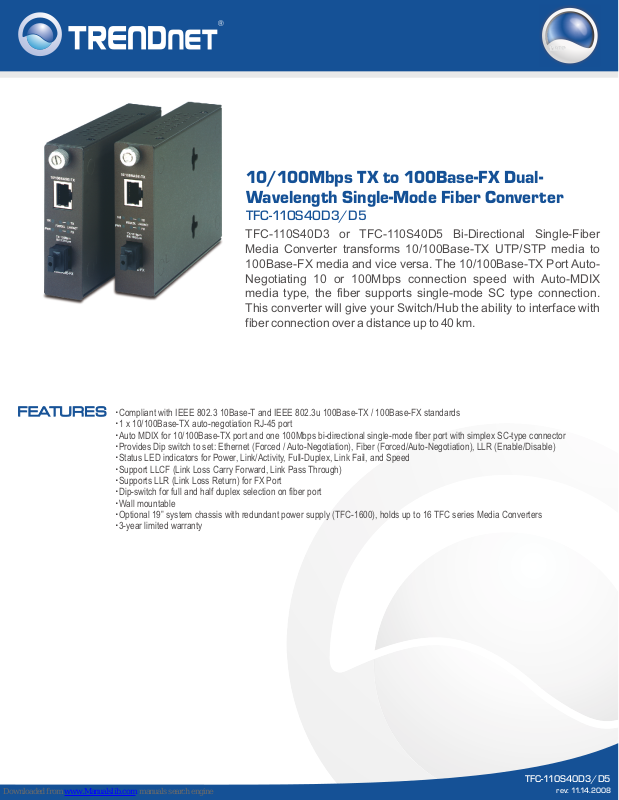

10/100Mbps TX to 100Base-FX Dual­Wavelength Single-Mode Fiber Converter

TFC-110S40D3/D5

TFC-110S40D3 or TFC-110S40D5 Bi-Directional Single-Fiber
Media Converter transforms 10/100Base-TX UTP/STP media to
100Base-FX media and vice versa. The 10/100Base-TX Port Auto­Negotiating 10 or 100Mbps connection speed with Auto-MDIX
media type, the fiber supports single-mode SC type connection.
This converter will give your Switch/Hub the ability to interface with
fiber connection over a distance up to 40 km.

FEATURES

!

Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards

!

1 x 10/100Base-TX auto-negotiation RJ-45 port

!

Auto MDIX for 10/100Base-TX port and one 100Mbps bi-directional single-mode fiber port with simplex SC-type connector

!

Provides Dip switch to set: Ethernet (Forced / Auto-Negotiation), Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)

!

Status LED indicators for Power, Link/Activity, Full-Duplex, Link Fail, and Speed

!

Support LLCF (Link Loss Carry Forward, Link Pass Through)

!

Supports LLR (Link Loss Return) for FX Port

!

Dip-switch for full and half duplex selection on fiber port

!

Wall mountable

!

Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters

!

3-year limited warranty

TEW-503PI (07-28-2005)

TFC-110S40D3/D5

rev: 11.14.2008

10/100Mbps TX to 100Base-FX Dual-Wavelength Single-Mode Fiber Converter

TFC-110S40D3/D5

SPECIFICATIONS

Hardware

Standard

Network Media

Protocol

Ports

Dip Switch

Transfer Rate
Diagnostic LED

Power Adapter

Power Consumption

Dimensions

Weight

Temperature

Humidity

Safty Emissions

• IEEE 802.3 10Base-T • IEEE 802.3u 100Base-TX, 100Base-FX

• 10Base-T: UTP Cat. 3, 4, 5, EIA/TIA-568 100-ohm STP • 100Base-TX: UTP Cat. 5, EIA/TIA-568 100-ohm STP

• 100Base-FX: 9/125μm or 10/125μm Single-Fiber Optic Cable, up to 40km

• CSMA/CD

• 1 x 10/100Base-TX RJ-45 Port • 1 x 100Base-FX Single-Fiber Bi-Directional Port SC Connector

• TX: Duplex Mode, Auto Negotiation or Manual, Speed, LLCF (enable/disable)

• FX: Duplex Mode, LLR (enable/disable), LLCF

• 10Base-T : 10Mbps/20Mbps (Half/Full Duplex) • 100Base-TX : 100Mbps/200Mbps (Half/Full Duplex)

• Per Unit : Power • Per Port : Link/Activity, FDX/HDX, Link Fail, Speed (only for TX Port)

• 7.5V DC, 1.5A External Power Adapter

• 7.2 watts (max)

• 120 x 88 x 25mm (4.7 x 3.46 x 0.98 inches)

• 354g (12.5oz)

• Operating : 0° ~ 40° C (32° ~ 104° F) • Storage : -25° ~ 70° C (-13° ~ 158° F)

• 5% ~ 90% RH

• FCC,CE

Model Name

TFC-110S40D3

TFC-110S40D5

Wavelength

TX: 1310nm; RX: 1550nm

TX: 1550nm; RX: 1310nm

Pout

-15dBm

-18dBm

Sensitivity

-32dB

-32dB

Power

17dBm

14dBm

PACKAGE CONTENTS

• TFC-110S40D3/D5

• Power Adapter

• User’s Guide

RELATED PRODUCTS

TFC-110S20D3/D5

TFC-1000S10D3/D5

10/100Mbps TX to 100Base-FX Dual-Wavelength
Single-Mode Fiber Converter

1000Base-T to1000Base-LX Single-Mode Fiber
Converter (10Km) with SC-Type Connector

ORDERING INFORMATION
