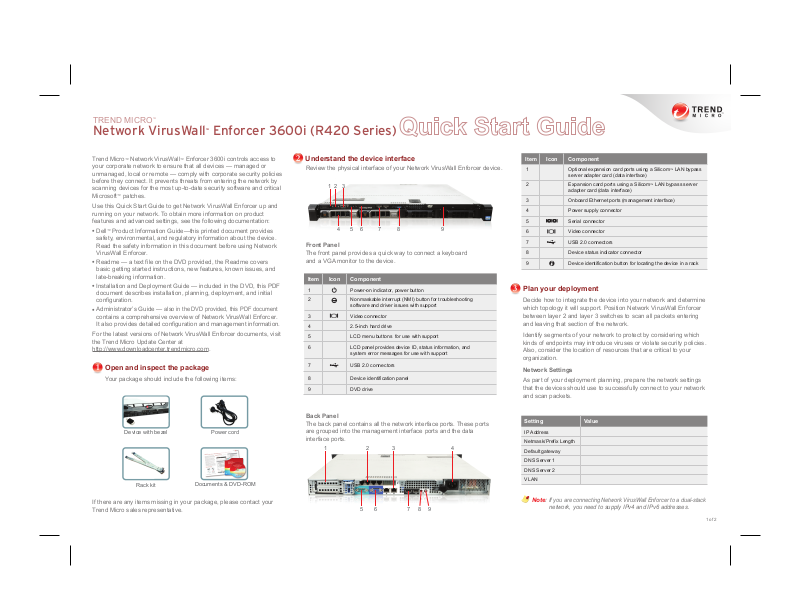

Page 1
TREND MICRO
TM
Network VirusWallTM Enforcer 3600i (R420 Series)
Understand the device interface
Trend Micro™ Network VirusWall™ Enforcer 3600i controls access to
your corporate network to ensure that all devices — managed or
unmanaged, local or remote — comply with corporate security policies
before they connect. It prevents threats from entering the network by
scanning devices for the most up-to-date security software and critical
Microsoft™ patches.
Use this Quick Start Guide to get Network VirusWall Enforcer up and
running on your network. To obtain more information on product
features and advanced settings, see the following documentation:
Dell™ Product Information Guide—this printed document provides
safety, environmental, and regulatory information about the device.
Read the safety information in this document before using Network
VirusWall Enforcer.
Readme — a text file on the DVD provided, the Readme covers
basic getting started instructions, new features, known issues, and
late-breaking information.
Installation and Deployment Guide — included in the DVD, this PDF
document describes installation, planning, deployment, and initial
configuration.
Administrator’s Guide —
also in the DVD provided, this PDF document
contains a comprehensive overview of Network VirusWall Enforcer.
It also provides detailed configuration and management information.
For the latest versions of Network VirusWall Enforcer documents, visit
the Trend Micro Update Center at
http://www.downloadcenter.trendmicro.com.
1
Open and inspect the package
Your package should include the following items:
2
Review the physical interface of your Network VirusWall Enforcer device.
3
1 2
5
6 8 974
Front Panel
The front panel provides a quick way to connect a keyboard
and a VGA monitor to the device.
Item Icon
1
2
3
4
5
6
7
8
9
Component
Power-on indicator, power button
Nonmaskable interrupt (NMI) button for troubleshooting
software and driver issues with support
Video connector
2.5-inch hard drive
LCD menu buttons for use with support
LCD panel provides device ID, status information, and
system error messages for use with support
USB 2.0 connectors
Device identification panel
DVD drive
Item Icon
1
2
3
4
5
6
7
8
9
3
Plan your deployment
Component
Optional expansion card ports using a Silicom
server adapter card (data interface)
Expansion card ports using a Silicom
adapter card (data interface)
Onboard Ethernet ports (management interface)
Power supply connector
Serial connector
Video connector
USB 2.0 connectors
Device status indicator connector
Device identification button for locating the device in a rack
™
™
LAN bypass
LAN bypass server
Decide how to integrate the device into your network and determine
which topology it will support. Position Network VirusWall Enforcer
between layer 2 and layer 3 switches to scan all packets entering
and leaving that section of the network.
Identify segments of your network to protect by considering which
kinds of endpoints may introduce viruses or violate security policies.
Also, consider the location of resources that are critical to your
organization.
Network Settings
As part of your deployment planning, prepare the network settings
that the devices should use to successfully connect to your network
and scan packets.
Device with bezel Power cord
Rack kit
Documents & DVD-ROM
If there are any items missing in your package, please contact your
Trend Micro sales representative.
Back Panel
The back panel contains all the network interface ports. These ports
are grouped into the management interface ports and the data
interface ports.
1
2 3 4
5 6 7 98
Setting
IP Address
Netmask/Prefix Length
Default gateway
DNS Server 1
DNS Server 2
VLAN
Note:
If you are connecting Network VirusWall Enforcer to a dual-stack
network, you need to supply IPv4 and IPv6 addresses.
Value
1 of 2
Page 2
TREND MICRO
TM
Network VirusWallTM Enforcer 3600i (R420 Series)
4
Mount the device
Mount the Network VirusWall Enforcer device to a standard 19-inch
four-post rack cabinet or place it on a stable surface as a
freestanding device. When mounting the device, allow at least two
inches clearance in all directions for cooling. For detailed
instructions, see the Installation and Deployment Guide.
After mounting the device, attach a VGA monitor and a keyboard to
the device. These peripherals will allow you to access the
Preconfiguration console, where you can configure the device for
network connection and remote management.
5
Log on to the Preconfiguration console
Import: Before connecting the device to a power source, see the
safety information in the Dell Product Information Guide
and the device specifications in the Installation and
Deployment Guide.
To log on to the Preconfiguration console:
1. Power on the device and the attached VGA monitor. A few
minutes after powering on the device, the attached monitor will
display the Preconfiguration console. If the console does not
display, press CTRL+R.
2. To get full access to the Preconfiguration console, type the
default administrator user name and password.
User name: admin
Password: admin
6
Configure the device
You can quickly assign Network VirusWall Enforcer a fixed IP
address using the Preconfiguration console. You will need the
information you prepared in step 3.
To configure device settings:
1. On the Main Menu of the Preconfiguration console, select
Device Settings.
2. Type a host name that properly represents the device in
the network.
3. Type or select the necessary IP address settings.
4. After specifying the device settings, select Return to main menu
and press ENTER.
5. Select Save and Log Off. A confirmation message displays.
6. Click OK.
Note: You can register Network VirusWall Enforcer to Trend Micro
™
Control Manager
additional information about Control Manager and connecting
the device to your network, see the Administrator’s Guide.
7
Connect the device to the network
After performing initial configuration, connect the device to
your network.
To connect Network VirusWall Enforcer to your network:
1. Disconnect the device from its power source.
2. Connect one end of a network cable to a port in the data
interface and the other to a segment of your network.
3. Reconnect the device to a power source and power it on.
Note: For information on selecting the right ports and specifying
interface speeds and duplex modes, see the Installation
and Deployment Guide.
8
Log on to the Web console and change the
from the Preconfiguration console. For
default passwords
Secure the console by immediately changing the passwords to the
default "admin", "poweruser", and "operator" accounts.
To log on to the console and change the passwords:
1. Open the Web console from a computer that can access the
device. To do this, go to the following URL using Internet Explorer
6.0 or later:
http://<Device IP address>
Note: When specifying an IPv6 address as part of a URL,
enclose the IPv6 address in square brackets.
2. Log on to the Web console using the default “admin” account.
User name: admin
Password: admin
3. Click Account Management in the Administration menu.
4. Click the name of the account to edit.
5. Type the new password and retype it for confirmation.
Note: Use passwords that are at least 8 characters long and a
combination of upper and lower case letters, numbers,
punctuation marks, and other special characters. Avoid
using words in the dictionary, names, and dates.
6. Click Save.
9
Activate and update the device
Ensure that the device can connect to the Internet and then activate
your license. After activation, you will be able to perform updates.
To activate and update your device:
1. If necessary, configure proxy server settings so the device can
connect to the Internet. Click Proxy Settings in the
Administration menu.
2. Activate the device license. Click Product License in the
Administration menu.
3. If you are using a Control Manager server as a local update
server, specify the URL of the server so the device can download
updates from this server. Click Update Source in the
Updates menu.
4. Perform an update of Network VirusWall Enforcer pattern and
program files. Click Manual in the Updates menu. You may need
to reset the device after the update.
5. Schedule automatic pattern and engine updates. Click
Scheduled in the Updates menu.
10
Define your own policies and test your deployment
After updating components, you can create multiple policies
directed at different types of endpoints and traffic. You can define
policies for different IP address ranges, ports, and users. If you
have multiple policies, only the first policy that matches an endpoint
will apply to the endpoint. During policy creation, you will also need
to define how you will deploy the Threat Management Agent and
how often endpoints are assessed for compliance.
To get a better understanding of component updates and policy
enforcement, consult the Administrator’s Guide.
© 2013 by Trend Micro Incorporated. All rights reserved. No part of this publication may be
reproduced, photocopied, stored on a retrieval system, or transmitted without the prior written
consent of Trend Micro Incorporated. Trend Micro, Network VirusWall, Control Manager, and
the t-ball logo are trademarks or registered trademarks of Trend Micro Incorporated. All other
company and/or product names may be trademarks or registered trademarks of their owners.
Information contained in this document is subject to change without notice.
Item Code: NVEQ45918/130329
