Page 1
TM
TREND MICRO
Network VirusWallTM Enforcer 1200
Getting Started Guide
Page 2
Page 3
Trend Micro Incorporated reserves the right to make changes to this document and to
the products described herein without notice. Before installing and using the
software, please review the readme files, release notes, and the latest version of the
applicable user documentation, which are available from the Trend Micro Web site
at:
http://www.trendmicro.com/download
Trend Micro, the Trend Micro t-ball logo, VirusWall, Trend Micro Control Manager,
Trend Micro Damage Cleanup Services, Trend Micro Outbreak Prevention Services,
and TVCS are trademarks or registered trademarks of Trend Micro, Incorporated.
All other product or company names may be trademarks or registered trademarks of
their owners.
Copyright© 2003-2007 Trend Micro Incorporated. All rights reserved.
Document Part No. NVEM1267/60313
Release Date: January 2007
Protected by U.S. Patent No. 5,623,600 and pending patents.
Page 4
The user documentation for Trend Micro Network Virus Wall 1200 is intended to
introduce the main features of the software and installation instructions for your
production environment. You should read through it prior to installing or using the
software.
Detailed information about how to use specific features within the software are
available in the online help file and the online Knowledge Base at Trend Micro’s
Web site.
Trend Micro is always seeking to improve its documentation. Your feedback is
always welcome. Please evaluate this documentation on the following site:
http://www.trendmicro.com/download/documentation/rating.asp
Page 5
Contents
Preface
Network VirusWall Enforcer 1200 Documentation .......................... P-2
About This Getting Started Guide ..................................................... P-3
Audience ............................................................................................ P-4
Document Conventions...................................................................... P-4
Chapter 1: Getting Started
Package Contents ............................................................................... 1-2

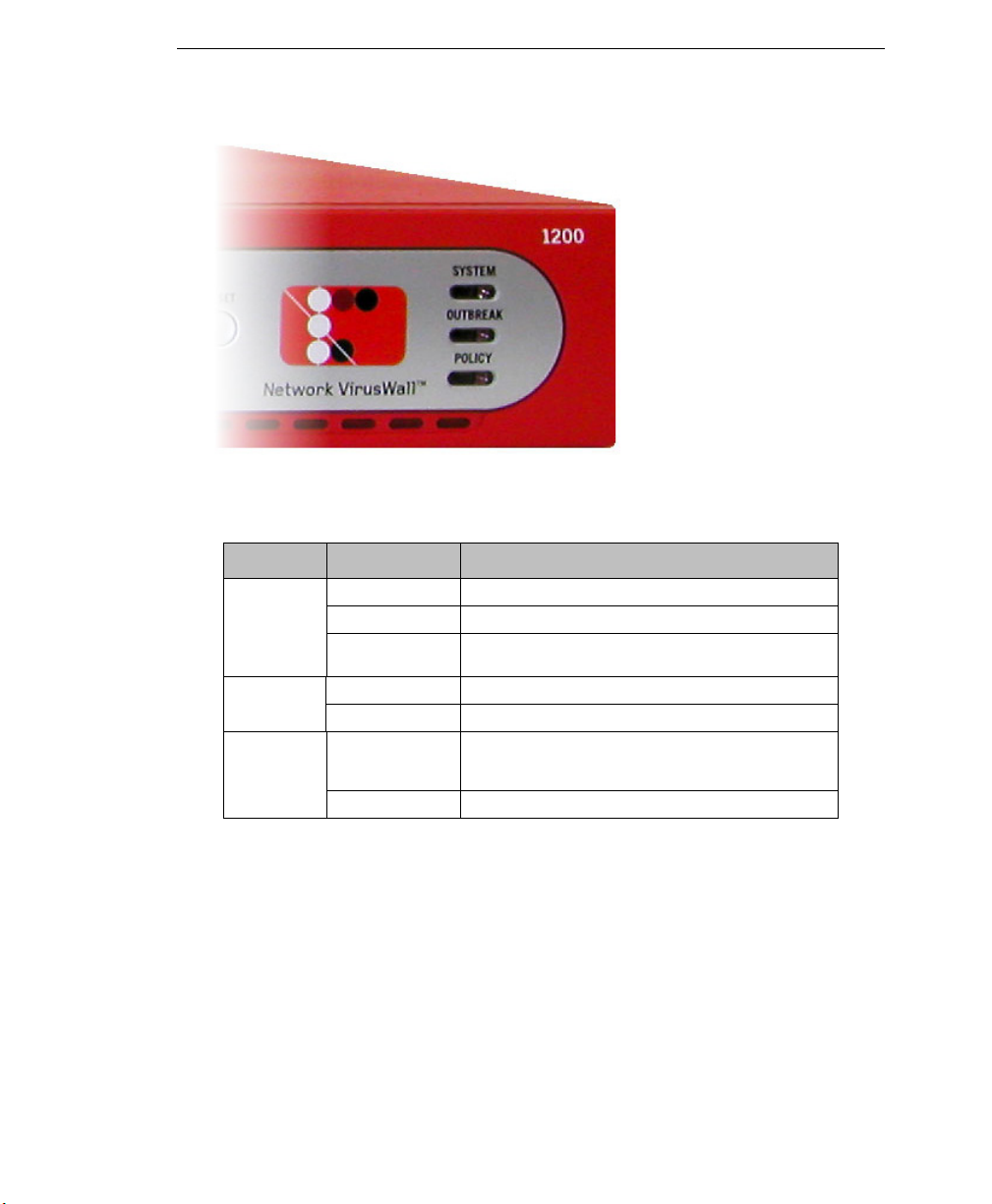

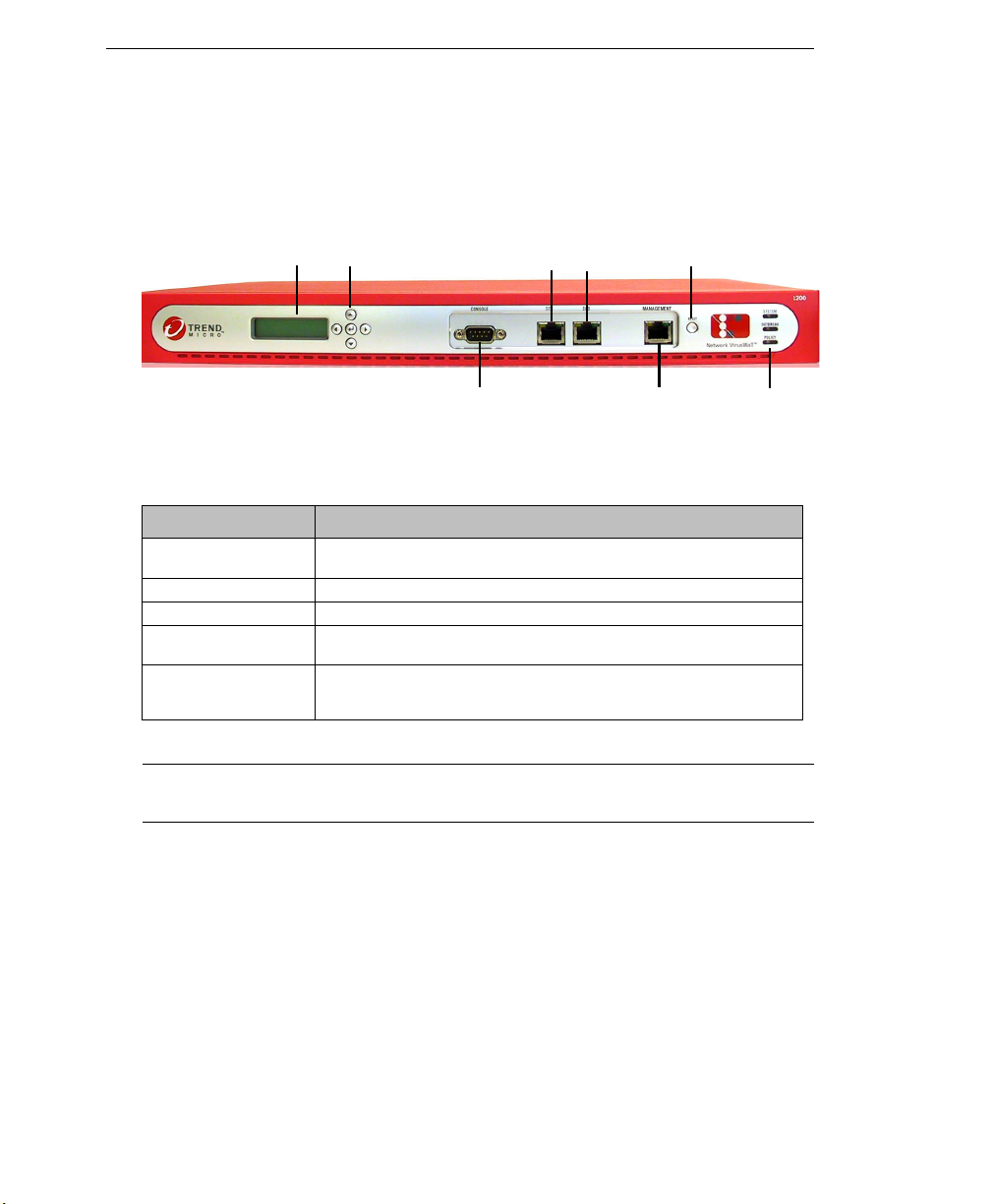

Network VirusWall Enforcer 1200 Front Panel ............................ 1-4
LED Indicators ............................................................................ 1-4

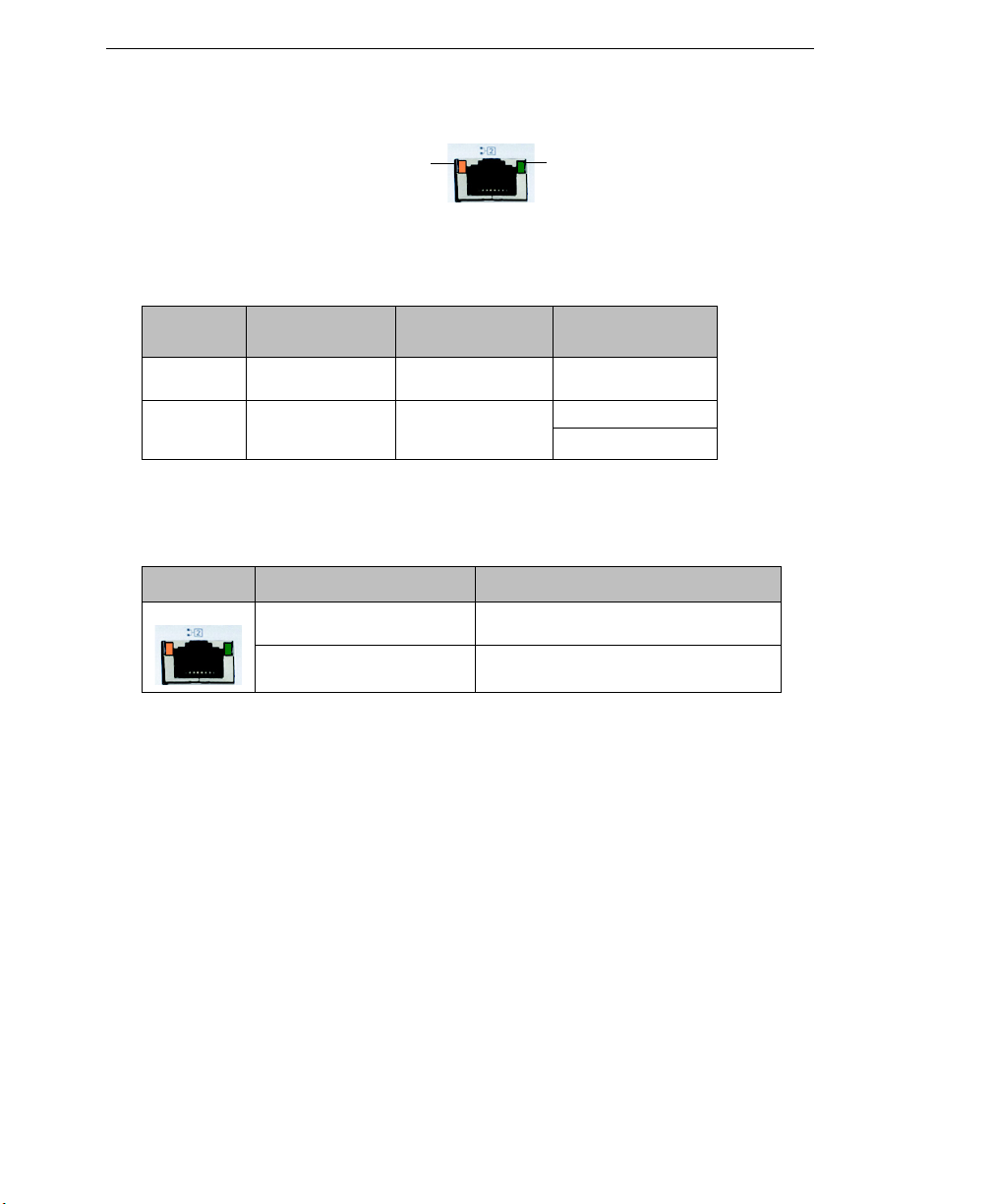

Port Indicators ............................................................................. 1-5

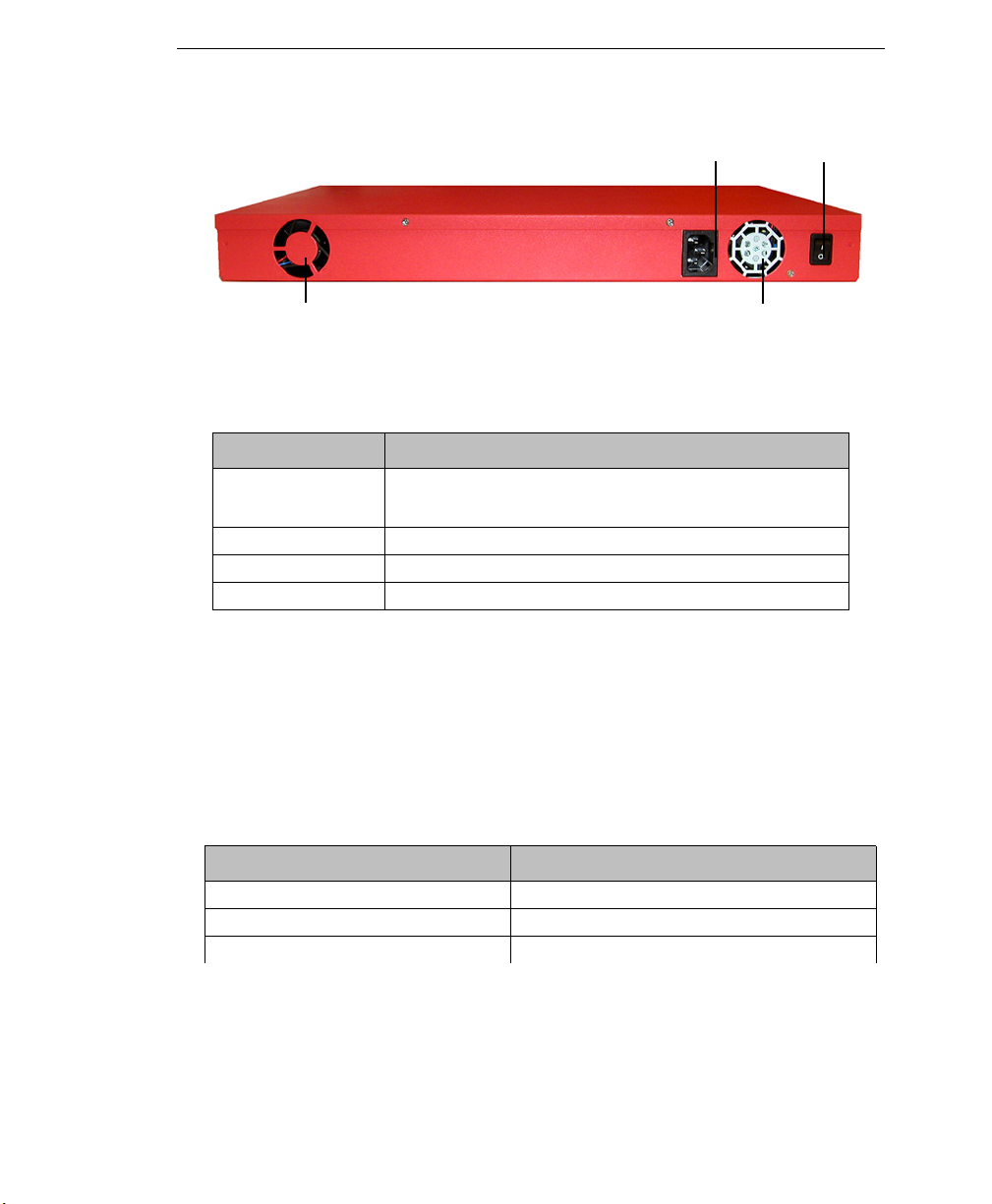

Network VirusWall Enforcer 1200 Back Panel ............................. 1-6
Dimensions and Weight ................................................................. 1-7
Power Requirements and Environmental Specifications ............... 1-7
Chapter 2: Introducing Trend Micro™ Network VirusWall™
Enforcer 1200
Network VirusWall Enforcer 1200 .................................................... 2-2
Introducing Network VirusWall Enforcer 1200-specific Terms ....... 2-3
Trend Micro Network VirusWall Enforcer 1200 Web Console ........ 2-4
Understanding Network VirusWall Enforcer Ports ........................... 2-5

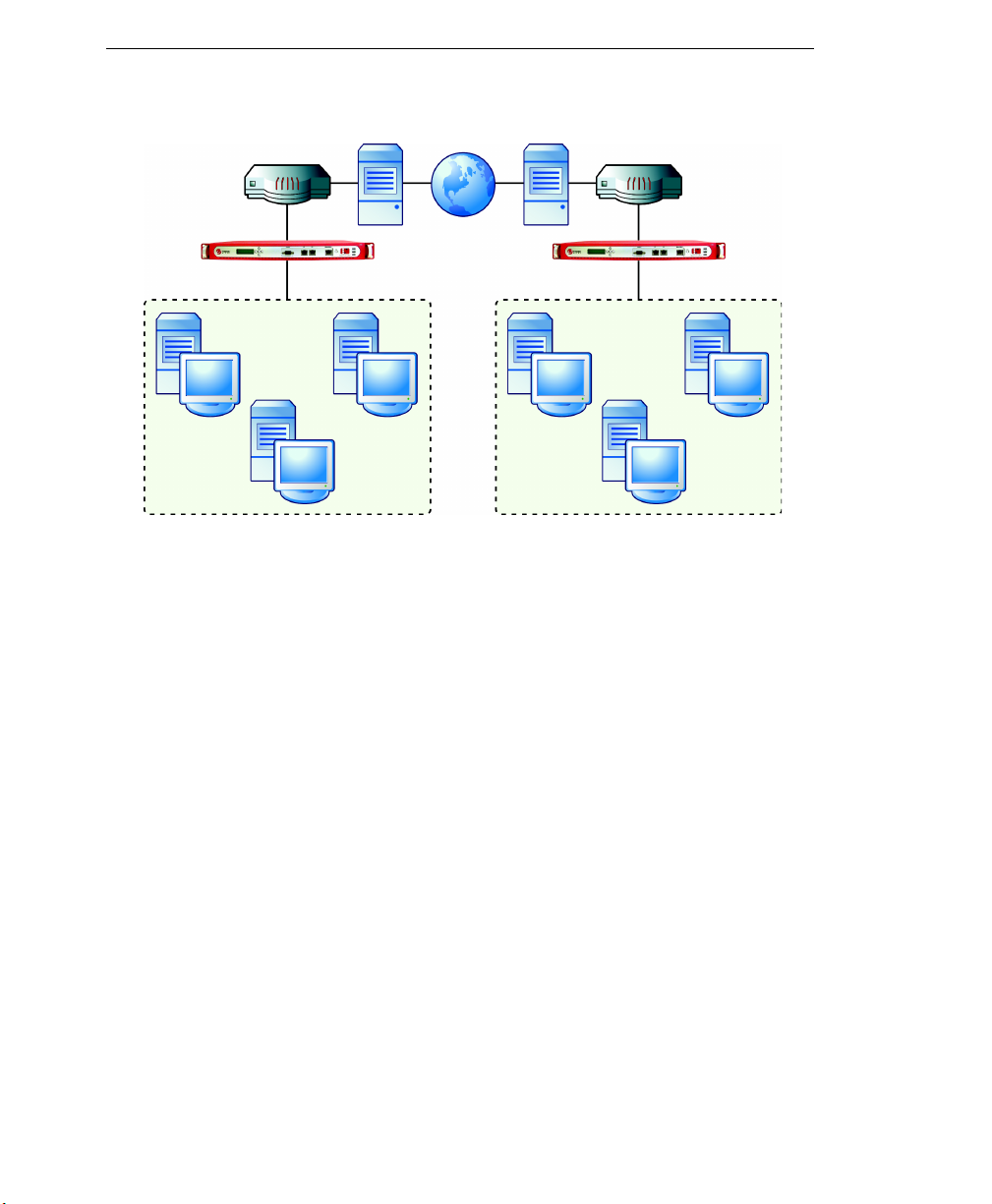

Deployment Overview ....................................................................... 2-5
i
Page 6
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Chapter 3: Deploying Network VirusWall™ Enforcer 1200
Planning for Deployment ...................................................................3-2
Deployment Overview ...................................................................3-2
Phase 1: Plan the Deployment ..................................................... 3-3
Phase 2: Perform Preconfiguration .............................................3-3
Phase 3: Manage Network VirusWall Enforcer 1200 Devices ... 3-3
Deployment Notes ..........................................................................3-4
Identifying What to Protect ................................................................3-5
Remote Access Endpoints .............................................................. 3-5
Guest Endpoints .............................................................................3-9
Key Network Segments/Important Network Assets ......................3-9

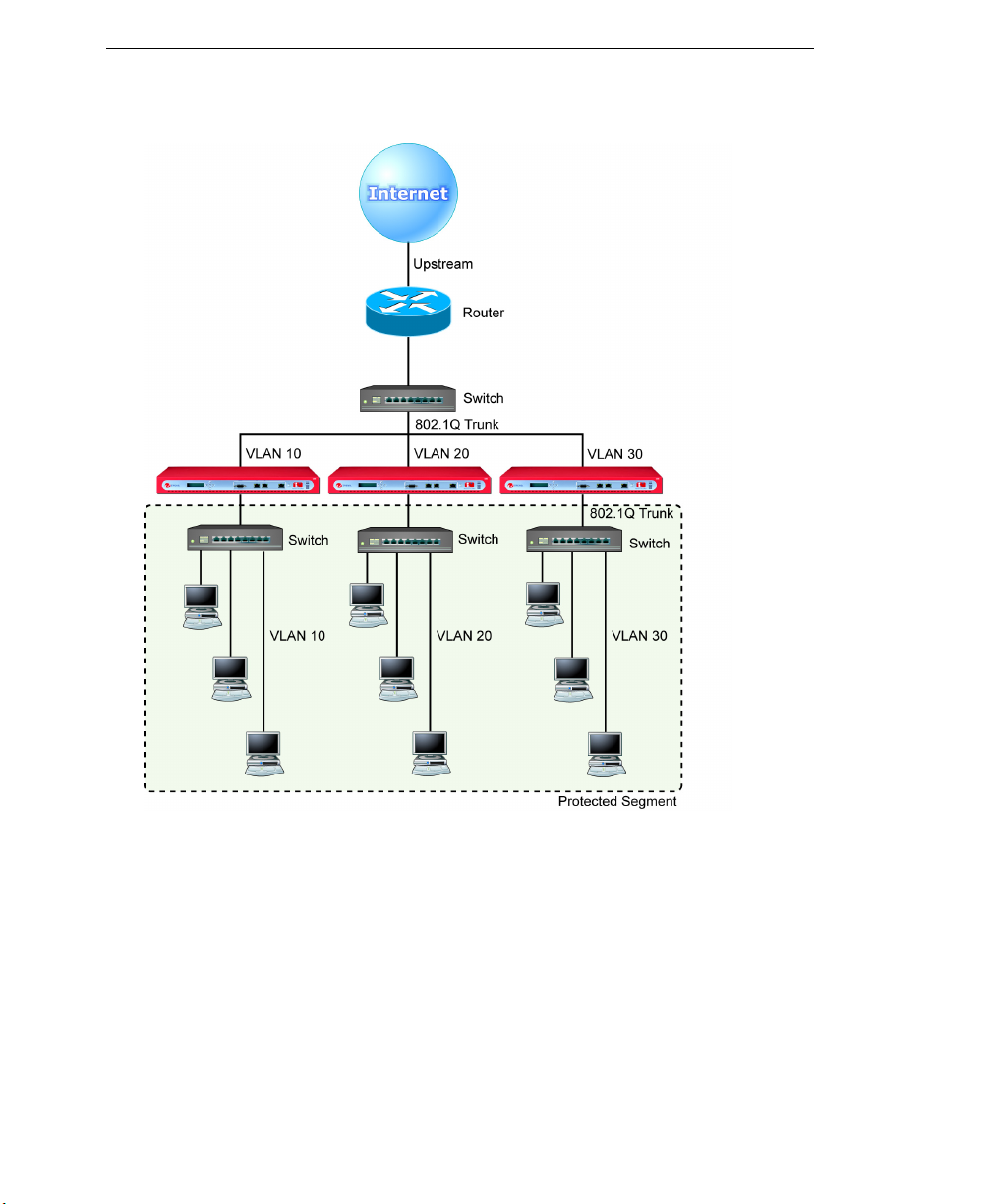

Dual-switch VLAN Environment ................................................3-11
Single-switch VLAN Environment ..............................................3-14
Planning for Network Traffic ...........................................................3-15
Determining the Number of Devices to Deploy ..........................3-15
Conducting a Pilot Deployment ....................................................... 3-16
Choosing a Pilot Site ....................................................................3-16
Creating a Contingency Plan ........................................................3-16
Deploying and Evaluating your Pilot ...........................................3-16
Redefining Your Deployment Strategy ............................................ 3-17
Deploying Network VirusWall Enforcer 1200 .................................3-17

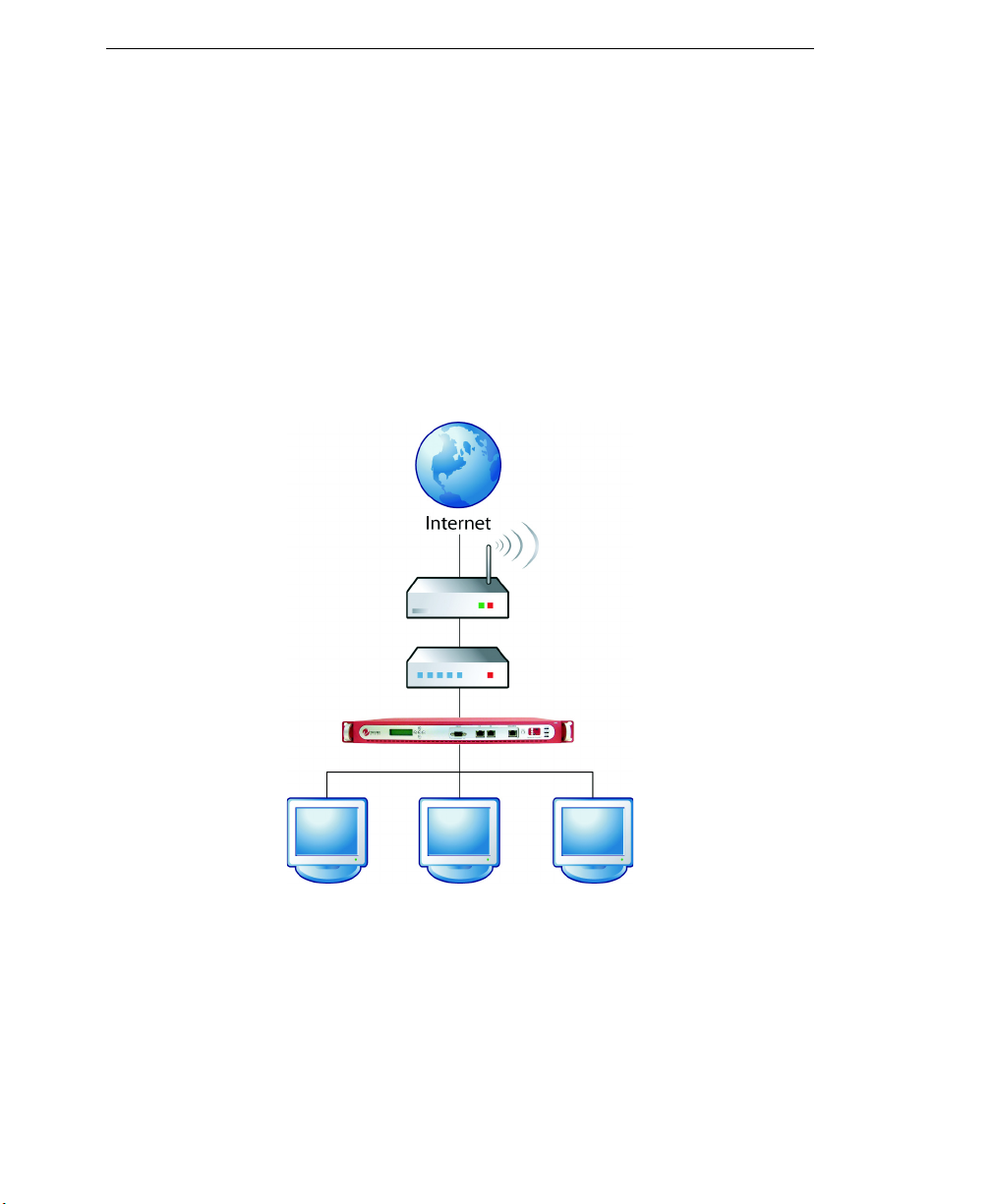

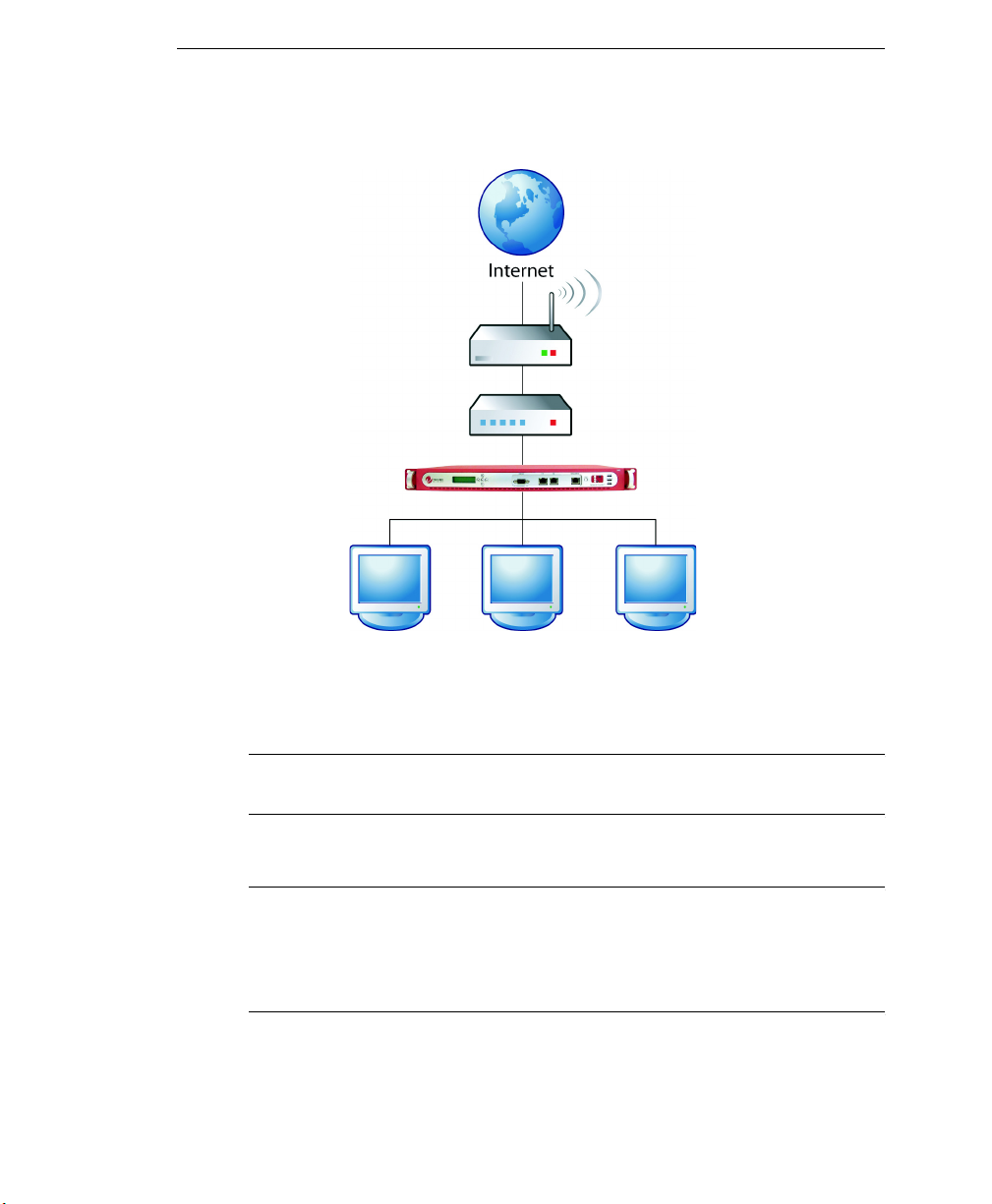

A Basic Deployment Scenario .....................................................3-18
Failopen Deployment .......................................................................3-18
Chapter 4: Preparing for Preconfiguration
Preparing for Preconfiguration ...........................................................4-2
Network VirusWall Enforcer 1200 Initial Tasks ................................4-2
Chapter 5: Preconfiguring Network VirusWall Enforcer 1200
Understanding Preconfiguration .........................................................5-2
Choosing the Preconfiguration Method ..............................................5-3

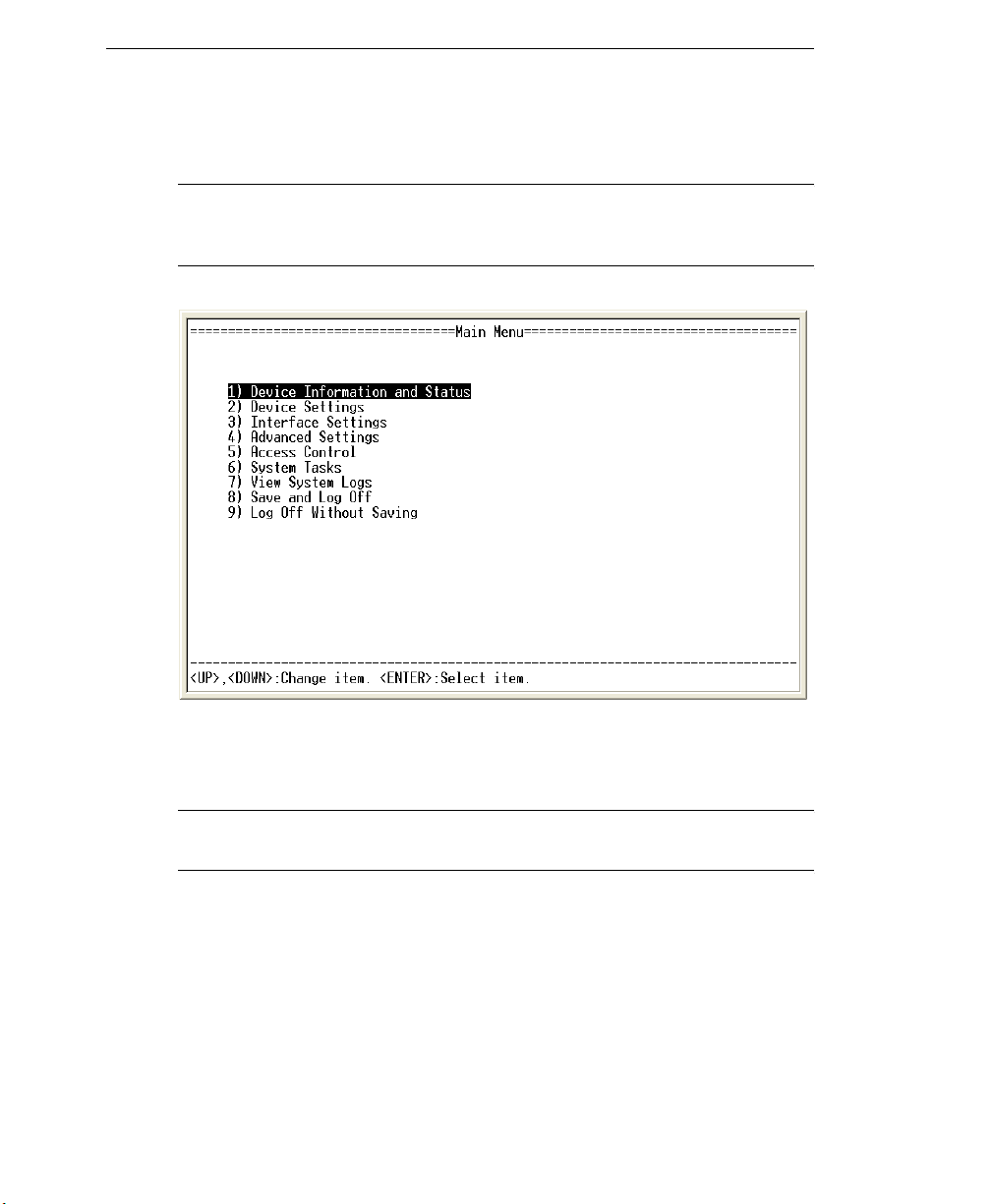

Using the Preconfiguration Console ..............................................5-3
Using the LCD Module ..................................................................5-3
Performing Preconfiguration Using the Preconfiguration Console .... 5-5
Preparing the Preconfiguration Console ........................................5-6
Logging on the Preconfiguration Console ..................................... 5-7
Configuring Device Settings ........................................................5-11
ii
Page 7

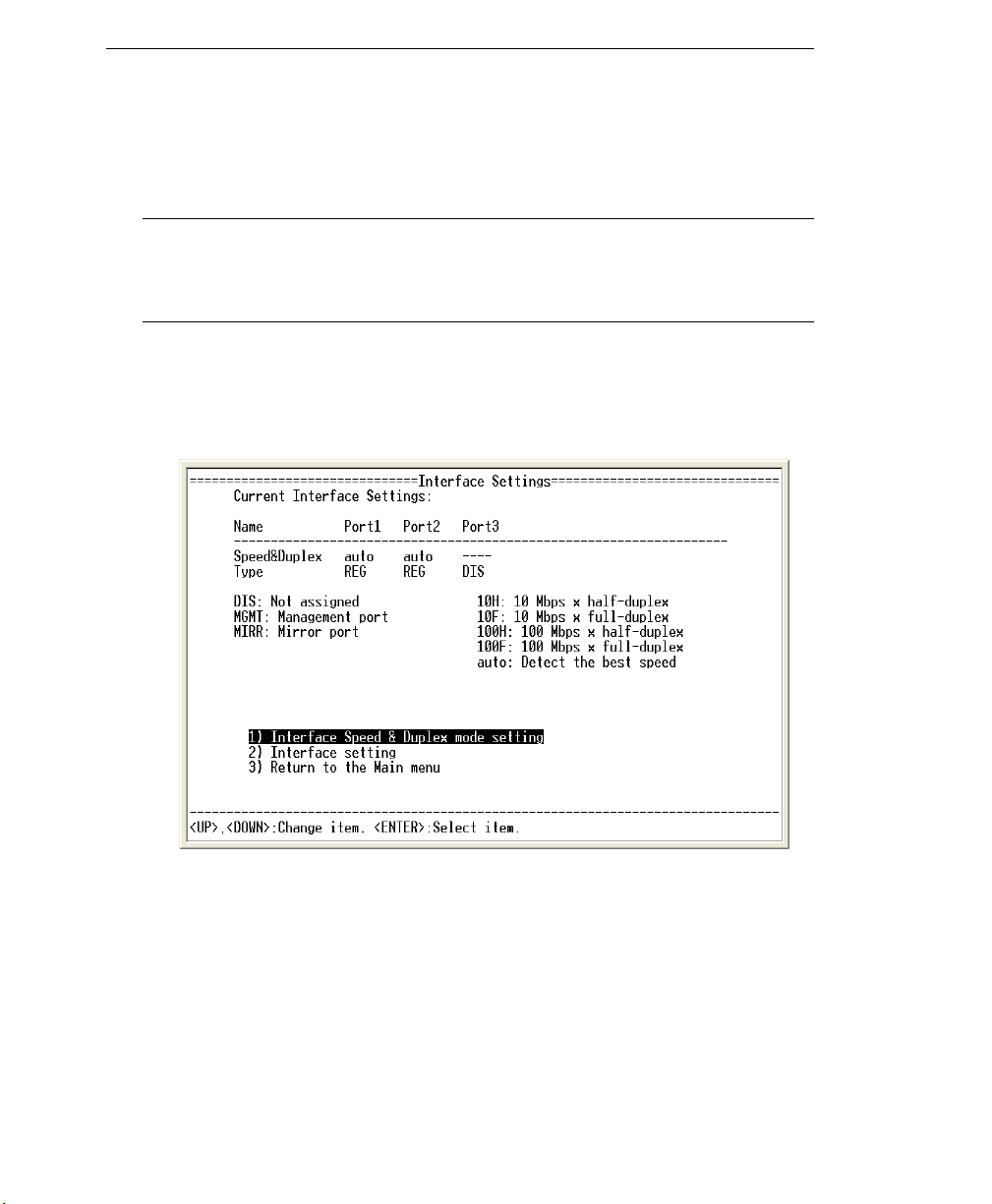

Setting the Interface Speed and Duplex Mode ............................ 5-14
Logging off the Preconfiguration Console .................................. 5-15
Performing Preconfiguration Using the LCD Module ..................... 5-16
Connecting to the Network .............................................................. 5-18
Chapter 6: Configuring Network VirusWall Enforcer 1200
Configuring PEAgent Settings for Manual Deployment ................... 6-2
Updating Components Manually ....................................................... 6-7
Chapter 7: Troubleshooting Preconfiguration
Device Issues ...................................................................................... 7-2
Contacting Technical Support ............................................................ 7-3
Index
Contents
iii
Page 8
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
iv
Page 9
Preface
Preface
Welcome to the Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started
Guide. This book contains basic information about the tasks you need to perform to
deploy the device. It is intended for novice and advanced users of Network VirusWall
who want to plan, deploy, and preconfigure Network VirusWall Enforcer 1200.
This preface discusses the following topics:
• Network VirusWall Enforcer 1200 Documentation on page 2
• About This Getting Started Guide on page 3
• Audience on page 4
• Document Conventions on page 4
P-1
Page 10
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Network VirusWall Enforcer 1200
Documentation
The Network VirusWall Enforcer 1200 documentation consists of the following:
• Online Help—Web-based documentation that is accessible from the device Web
console
The Online Help contains explanations about device components and features.
• Upgrade Guide (UG)—PDF documentation that is accessible from the Solutions
CD for Network VirusWall Enforcer 1200 or downloadable from the Trend
Micro Web site.
The UG contains explanations about upgrading from previous Network
VirusWall 1200 versions to Network VirusWall Enforcer 1200.
• Getting Started Guide (GSG)—PDF documentation that is accessible from the
Solutions CD for Network VirusWall Enforcer 1200 or downloadable from the
Trend Micro Web site
This GSG contains instructions on deploying the device, a task that includes
planning, testing, and preconfiguration. See About This Getting Started Guide for
chapters available in this book.
If you are planning a large-scale deployment or have a complex network
architecture and need more details about product architecture, refer to the
Network VirusWall Enforcer 1200 Administrator’s Guide.
• Administrator’s Guide (AG)—PDF documentation that is accessible from the
Solutions CD for Network VirusWall Enforcer 1200 or downloadable from the
Trend Micro Web site
The AG contains explanation of device architecture and instructions on how to
configure and administer the device using the applicable management tools.
Topics include Frequently Asked Questions (FAQs), Troubleshooting, and
Glossary chapters.
Tip: Trend Micro recommends checking the corresponding link from the Update Center
(http://www.trendmicro.com/download) for updates to the device
documentation and program file.
P-2
Page 11
About This Getting Started Guide
The Network VirusWall Enforcer 1200 Getting Started Guide discusses the following
topics:
• Introducing Trend Micro™ Network VirusWall™ Enforcer 1200—an overview
of the device and its components
• Getting Started—details of the actual device and its specifications, including
instructions for mounting and powering on the device
• Deploying Network VirusWall™ Enforcer 1200—recommendations to help you
plan for the deployment of one or more devices
• Preconfiguring Network VirusWall Enforcer 1200—step-by-step instructions on
how to install Trend Micro Control Manager and the necessary patches, including
considerations and procedures on how to perform preconfiguration
• Troubleshooting Preconfiguration—troubleshooting tips for issues encountered
during preconfiguration
Preface
P-3
Page 12
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Audience
The Network VirusWall Enforcer 1200 documentation assumes a basic knowledge of
security systems, including:
• Antivirus and content security protection
• Network concepts (such as IP address, netmask, topology, LAN settings)
• Various network topologies
• Network devices and their administration
• Network configuration (such as the use of VLAN, SNMP)
Document Conventions
To help you locate and interpret information easily, the documentation uses the
following conventions.
CONVENTION DESCRIPTION
ALL CAPITALS Acronyms, abbreviations, and names of certain com-
Bold Menus and menu commands, command buttons,
Italics References to other documentation
Monospace Examples, sample command lines, program code,
Note:
Tip:
WA R NI N G !
TABLE 1. Conventions used in the documentation
P-4
mands and keys on the keyboard
tabs, options, and tasks
Web URL, file name, and program output
Configuration notes
Recommendations
Reminders on actions or configurations that should be
avoided
Page 13
Chapter 1
Getting Started
This chapter guides you through setting up and powering on a Network VirusWall™
Enforcer device.
This chapter contains the following topics:
• Package Contents on page 1-2
After completing the procedures in this chapter, proceed by:
• Conducting a Pilot Deployment on page 3-16
• Deploying Network VirusWall Enforcer 1200 on page 3-17
• Redefining Your Deployment Strategy on page 3-17
• Performing Preconfiguration Using the Preconfiguration Console on page 5-5
1-1
Page 14
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Package Contents
Figure 1-1 illustrates the package contents.
Network VirusWall 1200
Console Cable (RS-232)
FIGURE 1-1. The package contents
Tip: Refer to Table 1-1 to check whether the package is complete. If any of the
Power Cord
Rack Ears
Ethernet Cable
(RJ-45 Crossover)
Document Set
items are missing, please contact Trend Micro support (See Contacting
Technical Support on page 7-3).
1-2
Page 15
Getting Started
Table 1-1 specifies each item:
QUANTITY ITEM DESCRIPTION
1 unit Network VirusWall
1 piece Power cord Supplies power to the device (length is 79 in/200 cm).
1 piece Ethernet cable (RJ-45
1 piece Console cable (RS-232) Connects the device to the computer used during
1 set Rack Ears Mounts a Network VirusWall Enforcer 1200 to a standard
1 CD Trend Micro Solutions CD
Enforcer 1200
crossover cable)
for Network VirusWall
Enforcer 1200
The device.
Connects a device to a computer used during Rescue
Mode (length is 39 in/100 cm).
preconfiguration (length is 79 in/200 cm).
19 in rack cabinet.
Contains patches, hot fix installers, tools, and
documentation.
The PDF documentation includes:
• Trend Micro Network VirusWall Enforcer 1200 Upgrade
Guide
• Trend Micro Network VirusWall Enforcer 1200Getting
Started Guide
• Trend Micro Network VirusWall Enforcer 1200
Administrator’s Guide
Note: Refer to Troubleshooting in the Administrator’s
Guide for instructions on how to use these tools.
2 books
1 sheet
Trend Micro Network
VirusWall Enforcer 1200
Upgrade Guide
Trend Network VirusWall
Enforcer 1200 Getting
Started Guide
Trend Micro Network
VirusWall Enforcer 1200
Safety Sheet
Printed Trend Micro Network VirusWall Enforcer 1200
Upgrade Guide, Trend Micro Network VirusWall Enforcer
1200 Getting Started Guide, and Safety Sheet.
TABLE 1-1. Network VirusWall Enforcer 1200 package contents
1-3
Page 16
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Network VirusWall Enforcer 1200 Front Panel
The front panel of Network VirusWall Enforcer 1200 contains a Liquid Crystal
Display (LCD), panel, ports, and LEDs.
port
RESET
LEDs
LCD module and panel
CONSOLE
Port 1 Port 2
Management/Mirror
FIGURE 1-2. Network VirusWall Enforcer 1200 front panel
The following table describes each front panel element:
ELEMENT DESCRIPTION
Liquid Crystal Display
(LCD)
Panel 5-button control panel that provides LCD navigation.
RESET Button Resets the device.
Ports 1, 2 The Network VirusWall Enforcer 1200 documentation refers to each
Management Port Connect to this port to access the Network VirusWall Enforcer
TABLE 1-2. Front panel description
Note: The LCD and Control Panel elements are collectively referred to as the LCD
module (or LCM console).
A 2.6 in x 0.6 in (65 mm x 16 mm) dot display LCD that is capable of
displaying messages in 2 rows of 16 characters each.
port by its number (for example, port 1 or 2).
Preconfiguration console. This port can also be used as a mirror
port.
LED Indicators
Network VirusWall Enforcer 1200 has three light-emitting diodes (LEDs) that
indicate the
1-4
SYSTEM, POLICY, and OUTBREAK status.
Page 17
FIGURE 1-3. SYSTEM, POLICY, and OUTBREAK LED indicators
The following table shows the possible behavior for each LED element:
LED STATE DESCRIPTION
SYSTEM Red– flashing Device is booting.
Red– steady Power-On Self-Test (POST) error.
Green– steady Network VirusWall Enforcer 1200 program file
OLICY Green– flashing Network Scan, or Policy Enforcement is enabled
P
Off (no color) No multiple policy scan.
UTBREAK Green– steady Outbreak Prevention Services (OPS) is disabled
O
Red– flashing OPS is enabled.
TABLE 1-3. Network VirusWall Enforcer 1200 LED indicators
(firmware) is ready.
when Control Manager manages Network
VirusWall Enforcer 1200.
Getting Started
Port Indicators
Network VirusWall Enforcer 1200 has two user-configurable copper-based Ethernet
ports. Each Ethernet port has an indicator that allows you to determine the port’s
current state. Figure 1-4 illustrates the indicators of a port.
1-5
Page 18
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Ind. 1 Ind. 2
FIGURE 1-4. Port indicators 1 and 2
Table 1-4 lists the description for each port component.
INDICATOR
N
UMBER
1 ACT / BYPASS
2 10 Mbps / 100
NAME STATE DESCRIPTION
Status LED
Mbps
LINK Status LED
No LED status LAN Bypass LED
Green– steady 10 Mbps LED
100 Mbps LED
TABLE 1-4. Port indicator description
Table 1-5 shows the possible states for each Network VirusWall Enforcer 1200 port
based on the speed and duplex mode settings.
PORT STATE DESCRIPTION
Link Indicator 1– orange, flashing Network packet transmission/receiving
Indicator 2– green, steady Port speed is 10 Mbps or 100 Mbps.
active.
TABLE 1-5. Network VirusWall Enforcer 1200 port indicators
Network VirusWall Enforcer 1200 Back Panel
The back panel of Network VirusWall Enforcer 1200 contains a power receptacle,
power switch, and fan vents.
1-6
Page 19
Getting Started
AC power receptacle
Fan vent (exhaust)
FIGURE 1-5. Network VirusWall Enforcer 1200 back panel
The following table describes each back panel element:
ELEMENT DESCRIPTION
AC Power
Receptacle
Power Switch Powers the device on and off.
Fan Vent (Intake) Intake cooling vent for the device.
Fan Vent (Exhaust) Exhaust cooling vent for the device.
Connects to the power outlet and the device using the power
cord (included in the package, see Package Contents on page
1-2).
TABLE 1-6. Back panel description
Dimensions and Weight
Power switch
Fan vent (intake)
The following specifications apply to Network VirusWall Enforcer 1200:
Power Requirements and Environmental Specifications
The following settings apply to Network VirusWall Enforcer 1200:
ELEMENT SPECIFICATION
AC input voltage 90 to 264 VAC (115/230 nominal)
AC input current (90 VAC) 4.0 A
AC input current (180 VAC) 2.0 A
TABLE 1-7. Network VirusWall Enforcer 1200 power
requirements and environmental specifications
1-7
Page 20
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
ELEMENT SPECIFICATION
Frequency 47 to 63 Hz (50/60 nominal)
ORMAL OPERATING AMBIENT TEMPERATURE (AT SEA LEVEL)
N
Minimum (operating and idle) 41 °F (5 °C)
Maximum (operating, power supply on) 113 °F (45 °C)
Maximum (idle, AC power supply on,
main power supply off)
104 °F (40 °C)
Maximum rate of change 50 °F per hour (10 °C per hour)
TORAGE TEMPERATURE (AT SEA LEVEL)
S
Minimum -40 °F (-40 °C)
Maximum 158 °F (70 °C)
Maximum rate of change 68 °F per hour (20 °C per hour)
UMIDITY
H
Maximum (operating) 80% non-condensing
Maximum (non-operating) 95% non-condensing
TABLE 1-7. Network VirusWall Enforcer 1200 power
requirements and environmental specifications
1-8
Page 21
Chapter 2
Introducing Trend Micro™ Network VirusWall™ Enforcer 1200
This chapter introduces Trend Micro Network VirusWall Enforcer 1200 and provides
an overview of its components and deployment.
The topics discussed in this chapter include:
• Network VirusWall Enforcer 1200 on page 2-2
• Introducing Network VirusWall Enforcer 1200-specific Terms on page 2-3
• Trend Micro Network VirusWall Enforcer 1200 Web Console on page 2-4
• Understanding Network VirusWall Enforcer Ports on page 2-5
• Deployment Overview on page 2-5
2-1
Page 22
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Network VirusWall Enforcer 1200
Network VirusWall Enforcer 1200 is an outbreak prevention appliance that helps
organizations stop network viruses (Internet worms), block high-threat
vulnerabilities during outbreaks, and quarantine and clean up infection sources.
Network VirusWall Enforcer 1200, deployed at the network layer, uses
threat-specific knowledge from Trend Micro to protect against threats as they enter
the network. The device scans all the traffic on a specific network segment and
applies one policy to an endpoint based on a first-match rule.

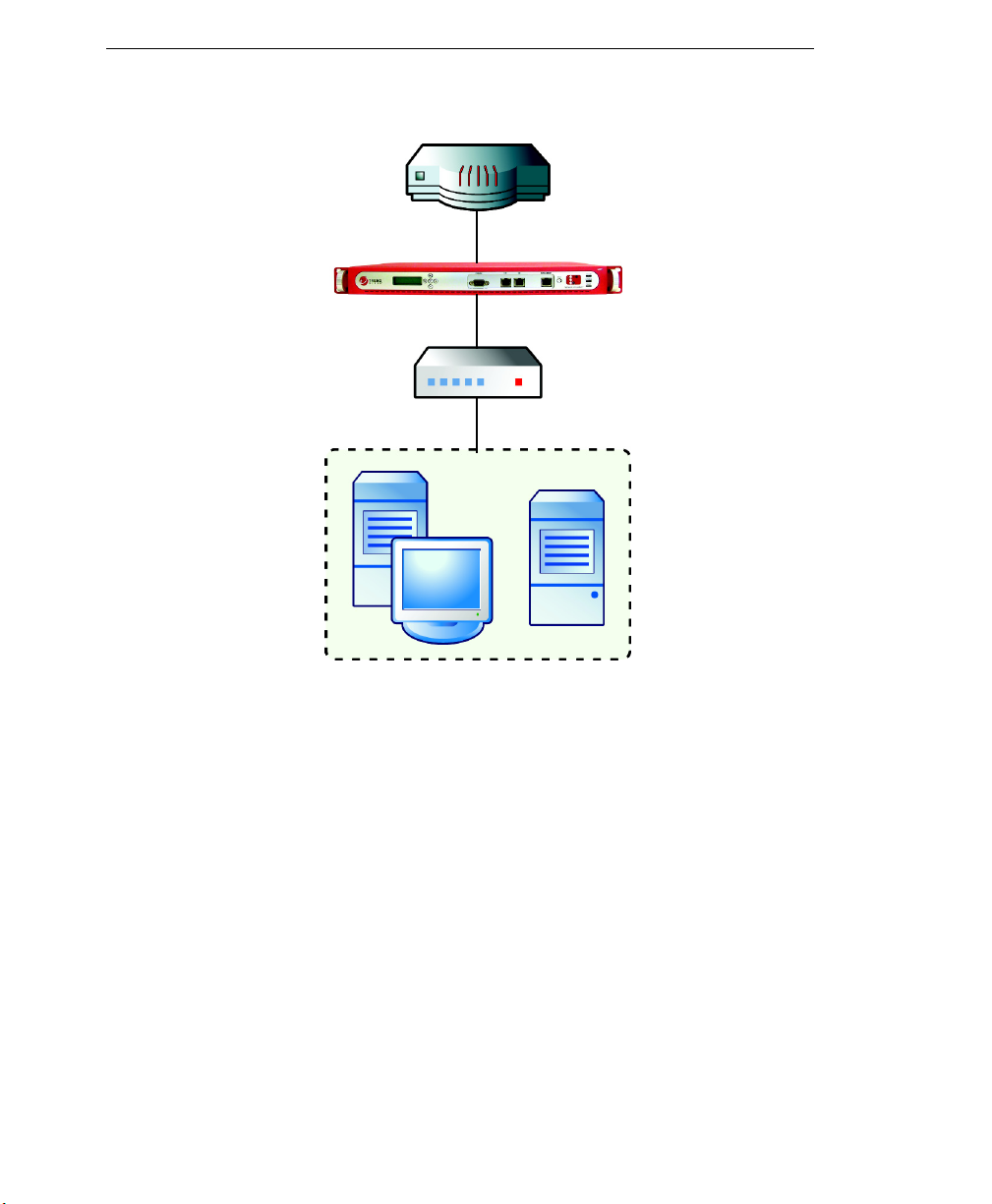

Network VirusWall 1200
Port 1
Port 2
Protected Network

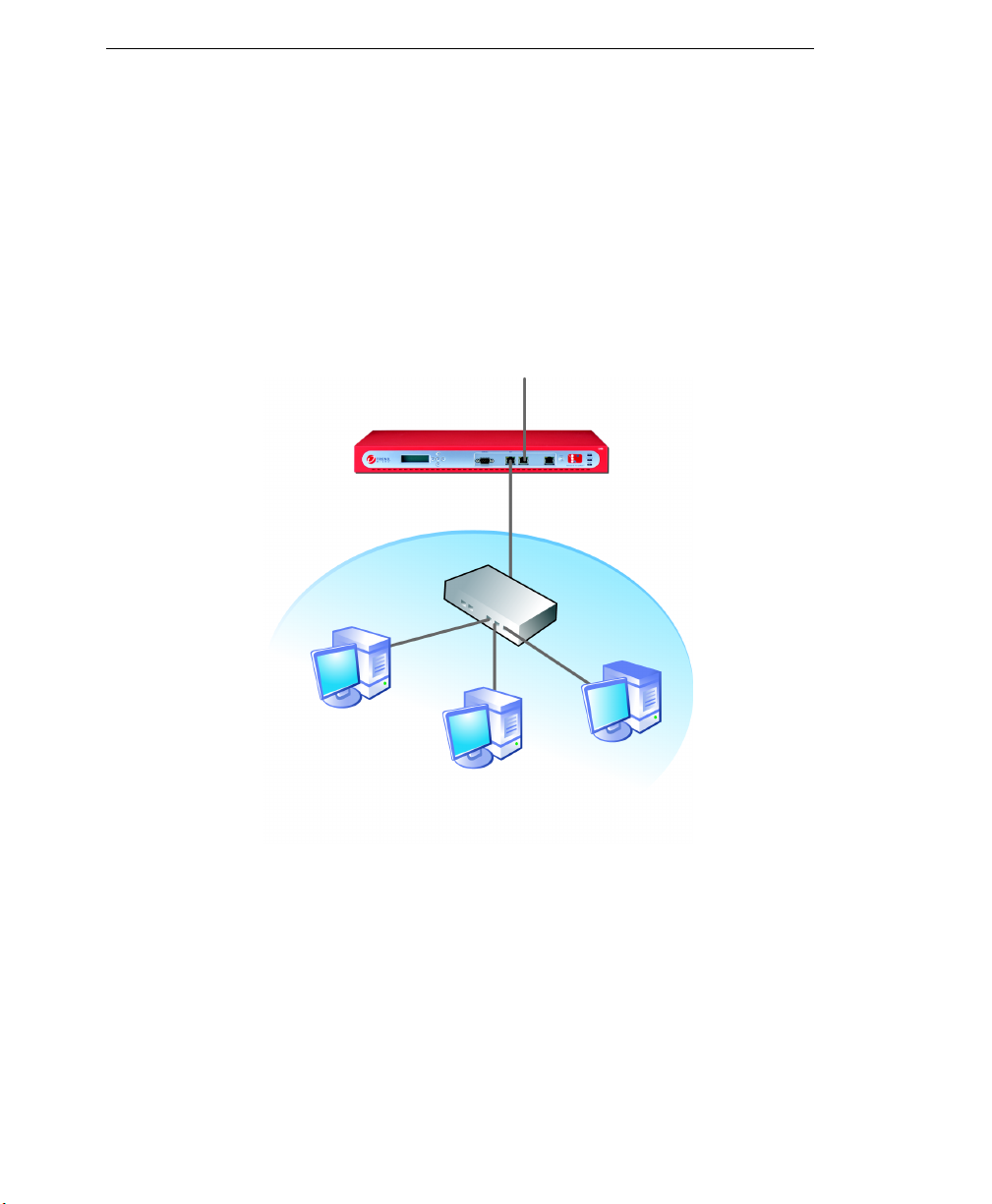

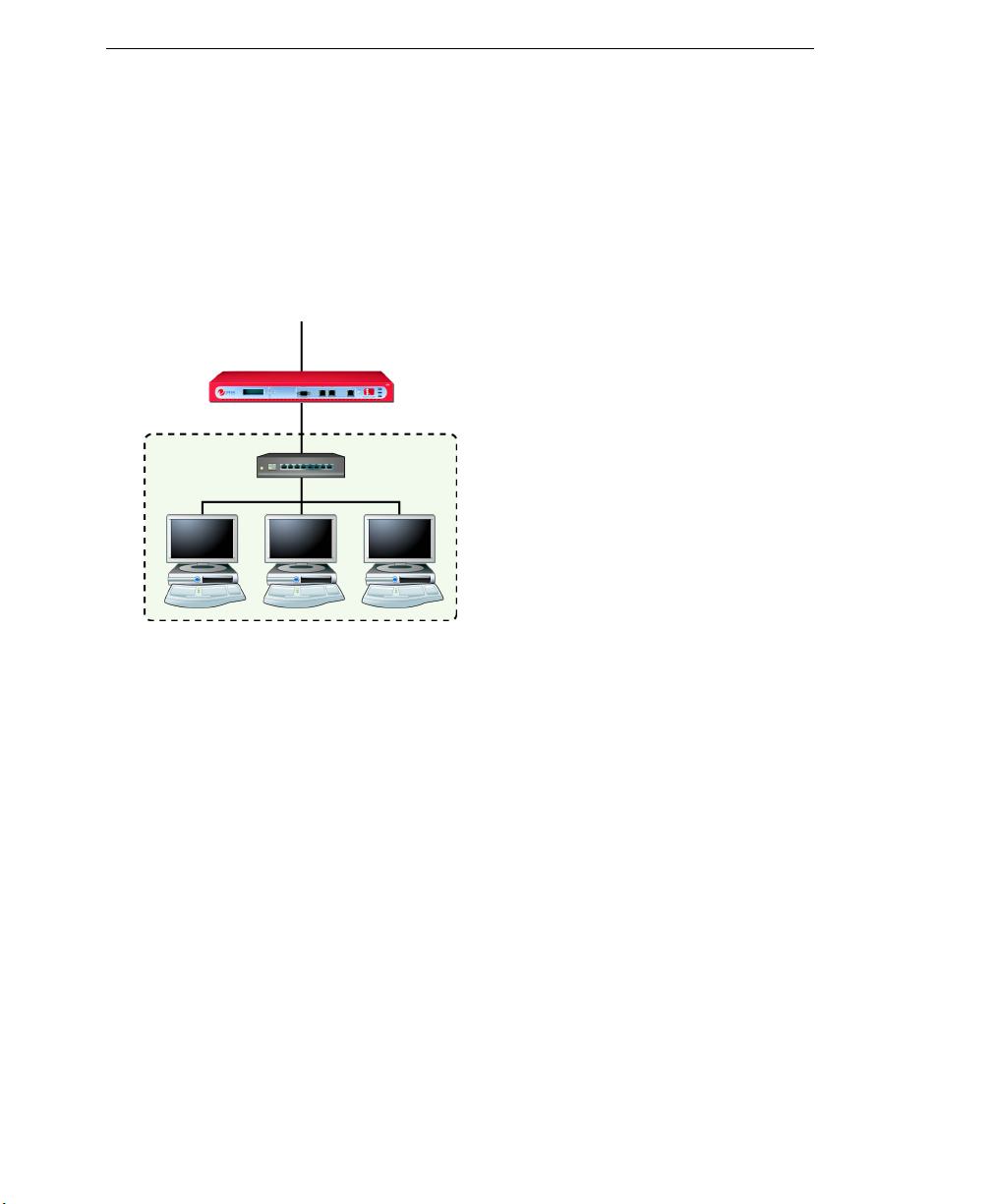

FIGURE 2-1. Network VirusWall Enforcer 1200 in a typical network
deployment
Refer to Understanding Network VirusWall Enforcer 1200 in the Administrator’s
Guide for product function, architecture, and other details.
2-2
Page 23
Introducing Trend Micro™ Network VirusWall™ Enforcer 1200
Introducing Network VirusWall Enforcer 1200-specific Terms
Before proceeding to the next section, take note of the following terms introduced in
this chapter (also available in Glossary in the Administrator’s Guide):
Ethernet—residing on the device’s front panel, these ports link to other devices
(usually Layer 2 or Layer 3 devices)
The documentation sometimes refers to Copper Gigabit Ethernet ports as ports or
interfaces (see Understanding Network VirusWall Enforcer Ports on page 2-5). You
can specify the following port types for each physical port:
Failopen —a fault-tolerance solution, also known as LAN bypass, that allows the
Network VirusWall Enforcer 1200 device to continue to pass traffic if a software or
hardware failure occurs within the device.
Note: For more information on, see Failopen Deployment on page 3-18.
2-3
Page 24
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Trend Micro Network VirusWall Enforcer 1200 Web Console
The Network VirusWall Enforcer 1200 Web console provides central management
for Network VirusWall Enforcer 1200 devices on your network. The Web console
gives you the tools to configure and enforce security policies for an entire
organization. This enables you to react quickly to network virus emergencies from
nearly anywhere using the Web console.
After preconfiguration, the Web console enables you to perform the following
Network VirusWall Enforcer 1200 administrative tasks:
• Analyze your network’s protection against viruses
• Update components and settings
• Enforce security policies (following the first-match rule, only one policy applies
to an endpoint at a time)
• View and manage logs
• Manage the device
For guidance on administering devices from the Web console, see the Network
VirusWall Enforcer 1200 Administrator’s Guide.
2-4
Page 25
Introducing Trend Micro™ Network VirusWall™ Enforcer 1200
Understanding Network VirusWall Enforcer Ports
Network VirusWall Enforcer 1200 supports two ports— 2 copper Ethernet ports.
Deployment Overview
Network VirusWall Enforcer 1200 deployment consists of the following steps:
1. Deciding on the deployment strategy
Deploying Network VirusWall™ Enforcer 1200 provides the basic deployment
and strategies. This chapter aims to help you determine the strategy you will take
to deploy Network VirusWall Enforcer 1200.
2. Preparing for preconfiguration
Preparing for Preconfiguration discusses the initial preconfiguration tasks that
you need to perform to successfully deploy the device.
3. Preconfiguring Network VirusWall Enforcer 1200
Preconfiguring Network VirusWall Enforcer 1200 provides instructions to guide
you during device preconfiguration.
4. Configuring Network VirusWall Enforcer 1200
Configuring Policy Enforcement and Device Settings of the Administrator’s
Guide includes instructions to help you configure the basic settings after
preconfiguration.
2-5
Page 26
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide

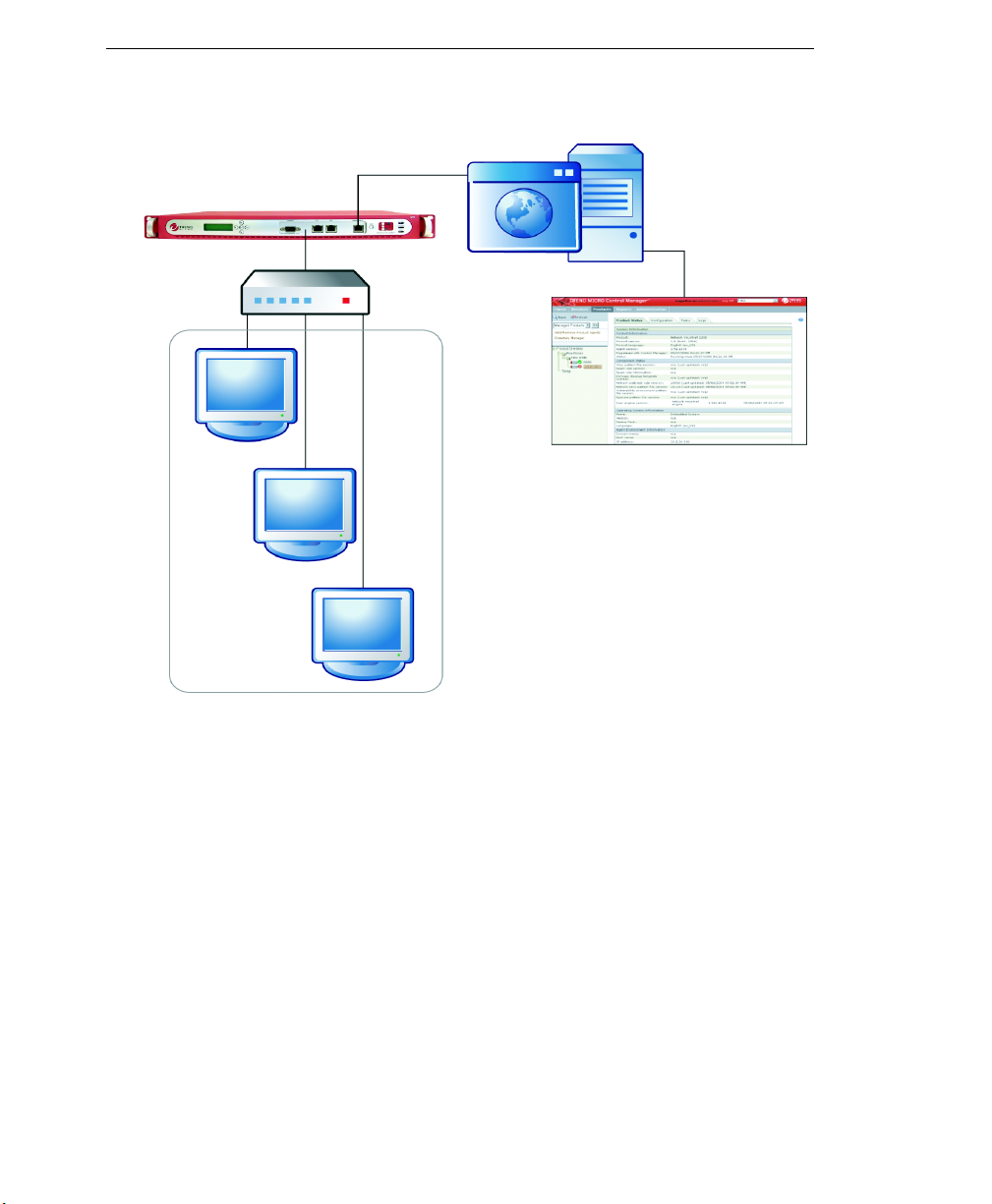

FIGURE 2-2. Network VirusWall Enforcer 1200 after deployment
Understanding Network VirusWall Enforcer 1200 of the Administrator’s Guide
provides details about the following concepts:
• Antivirus capabilities
• Policy Enforcement using the first-match rule
• Endpoints
After checking the package contents and device’s physical specifications in Getting
Started, proceed to Deploying Network VirusWall™ Enforcer 1200 for deployment
considerations and sample deployment strategies.
2-6
Page 27
Chapter 3
Deploying Network VirusWall™ Enforcer 1200
Before beginning to configure a Network VirusWall Enforcer 1200 device, plan how
to integrate the device into your network. Determine which topology it will support.
This chapter explains how to plan for the deployment of Network VirusWall Enforcer
1200 devices. It also provides application and deployment scenarios to facilitate
understanding of the various ways the device can help protect and secure your
network.
This chapter contains the following topics:
• Planning for Deployment on page 3-2
• Identifying What to Protect on page 3-5
• Planning for Network Traffic on page 3-15
• Conducting a Pilot Deployment on page 3-16
• Redefining Your Deployment Strategy on page 3-17
• Deploying Network VirusWall Enforcer 1200 on page 3-17
• Failopen Deployment on page 3-18
3-1
Page 28
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Planning for Deployment
To take advantage of the benefits Network VirusWall Enforcer 1200 can bring to
your organization, you will need an understanding of the possible ways to deploy one
or more devices. This section provides deployment overview and considerations.
Deployment Overview
Follow three stages of deployment to successfully install the device(s).
PHASE 1: PLAN DEPLOYMENT
Gather network information
Identify your deployment strategy
Conduct a pilot deployment
Redesign your deployment strategy
PHASE 2: PERFORM PRECONFIGURATION
Perform initial preconfiguration tasks
Perform preconfiguration
Connect the device to your network
3-2
PHASE 3: MANAGE DEVICES
Deploy components
Configure basic settings
Page 29
Deploying Network VirusWall™ Enforcer 1200
Phase 1: Plan the Deployment
During phase 1, plan how to best deploy the device(s) by completing these tasks:
• Determine the segments of your network that are in the greatest need of
protection
• Plan for network traffic, considering the location of devices critical to your
operations such as email, Web, and application servers
• Determine both the number of devices needed to meet your security needs
and their locations on the network
• Conduct a pilot deployment on a test segment of your network
• Redefine your deployment strategy based on the results of the pilot
deployment
Phase 2: Perform Preconfiguration
During phase 2, start implementing the plan you created in phase 1. Perform the
following tasks:
• Perform the initial preconfiguration tasks (See Network VirusWall Enforcer
1200 Initial Tasks on page 4-2)
• Perform preconfiguration on the device(s) (See Performing
Preconfiguration Using the Preconfiguration Console on page 5-5)
• Connect the device(s) to your network (See Connecting to the Network on
page 5-18)
Phase 3: Manage Network VirusWall Enforcer 1200 Devices
During phase 3, manage Network VirusWall Enforcer 1200 devices from the Web
console. You can perform the following tasks:
• Create and manage policies to protect your network
• Update device components
• View summaries and logs to analyze your network
• Configure device settings
Tip: This Getting Started Guide discusses phases 1 and 2. Refer to Network VirusWall
Enforcer 1200 Administrator’s Guide for instructions relating to phase 3.
3-3
Page 30
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Deployment Notes
Consider the following when planning for a deployment:
• All traffic to and from a network segment has to go through the device
To protect an organization from network threats, position the device to key places
on your network. The device should be able to scan all network traffic to prevent,
detect, or contain threats.
• Each of the interfaces supports the following port speed and duplex mode
settings:
• 10Mbps x half-duplex
• 10Mbps x full-duplex
•
Both the connected L2/L3 and Network VirusWall Enforcer 1200 devices should have
the same interface setting and duplex mode. Otherwise, the half-duplex mode setting
will take effect. To help guarantee the correct interface setting and duplex mode
implementation, modify both the L2/L3 and Network VirusWall Enforcer 1200 devices
to have the same setting.
The device supports IP addresses belonging to any classes
(that is, class A, B, or C)
Tip: Although each range is in a different class, you are not required to use any
particular range for your internal network. It is a good practice, though,
because it greatly diminishes the chance of an IP address conflict.
• 100Mbps x half-duplex
• 100Mbps x full-duplex
• Policy Enforcement support various actions for non-compliant or infected
endpoints
3-4
Page 31
Deploying Network VirusWall™ Enforcer 1200
Identifying What to Protect
Position Network VirusWall Enforcer 1200 between layer 2 (L2) or layer 3 (L3)
devices.
Identify segments of your network to protect by considering which kinds of
endpoints may introduce viruses or violate security policies. Also, consider the
location of resources that are critical to your organization. The following are
examples:
• Remote endpoints that access your internal network resources
• Guest endpoints that temporarily connect to your network
• Key network segments/important network assets, such as places on the network
that contain email, Web, and application servers including endpoint computers
Remote Access Endpoints
Remote endpoints access internal network resources in the same manner as the
endpoints already on your network and comprise essentially another internal network
segment. You must consider whether to protect remote endpoints as you do internal
endpoints.
There are two types of remote endpoints:
• Dial-up/home users – often telecommuters who use a dial up or DSL
connection to access your network
• External business units – offices located outside of the organization but who
still need access to resources on your organization’s main network
A home user could establish a dialup connection or a Virtual Private Network (VPN)
connection to access a company’s internal network resources. Most likely, business
units would establish a VPN connection.
3-5
Page 32
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide

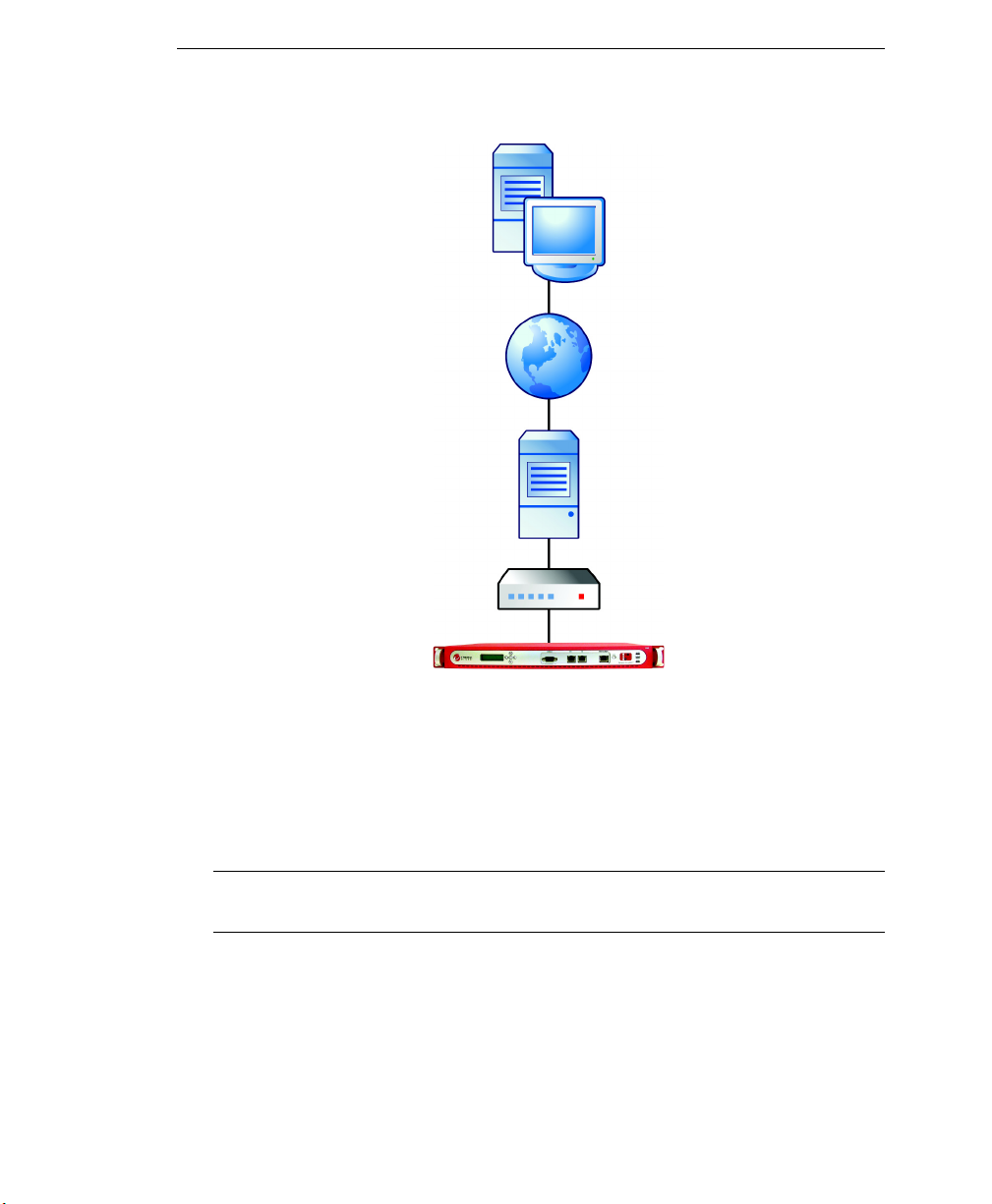

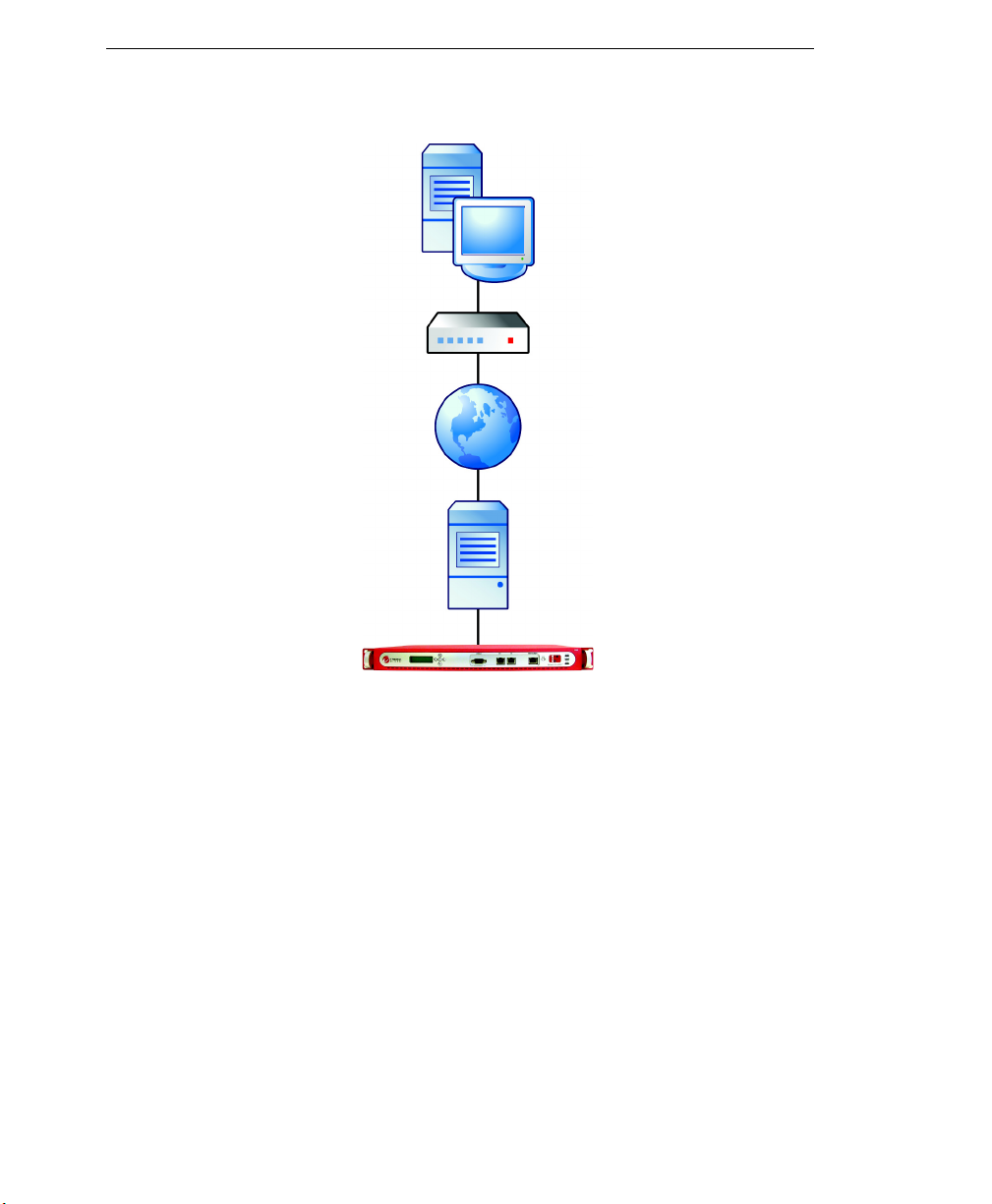

FIGURE 3-1 Dial-up service deployment scenario
Figure 3-1 illustrates a dialup connection between a home user and an organization’s
internal network. A RAS server, the point where the dialup connection terminates, is
connected to a
REGULAR port (See Introducing Network VirusWall Enforcer
1200-specific Terms on page 2-3 for information about different types of ports). This
means that all packets going between the RAS server and the LAN pass through the
device. Once the home user establishes a connection with the RAS server, it
essentially becomes part of the internal network as illustrated in the basic deployment
scenario (See A Basic Deployment Scenario on page 3-18). The home user accesses
both network resources and the Internet in the same way internal endpoints do.
3-6
Page 33
Deploying Network VirusWall™ Enforcer 1200
FIGURE 3-2 Endpoint to site VPN deployment scenario
Figure 3-2 illustrates a connection between a home user and an organization’s
internal network, only though a VPN server, which is connected to a
REGULAR port
(See Introducing Network VirusWall Enforcer 1200-specific Terms on page 2-3 for
information about different types of ports). In this configuration, the home user’s
VPN connection is considered to be part of the internal network.
Note: Network VirusWall Enforcer 1200 must be behind the VPN server, which encrypts
and decrypts VPN traffic.
The recommended settings for this scenario are the same as the settings for the
dial-up user scenario (see Figure 3-1).
3-7
Page 34
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
FIGURE 3-3. Site to site VPN deployment scenario
Figure 3-3 illustrates a VPN connection between two business units. As in the home
user scenario, a VPN server is connected to a
REGULAR port on each device (See
Introducing Network VirusWall Enforcer 1200-specific Terms on page 2-3 for
information about different types of ports).
3-8
Page 35
Deploying Network VirusWall™ Enforcer 1200
Guest Endpoints
Guest endpoints are endpoints that do not belong to an internal network domain.
They are often visitors who temporarily access your network resources through their
portable computers. Guest endpoints represent an especially high risk because they
are outside of your network security scope and therefore may inadvertently violate
virus-protection policies and even introduce viruses to the network.

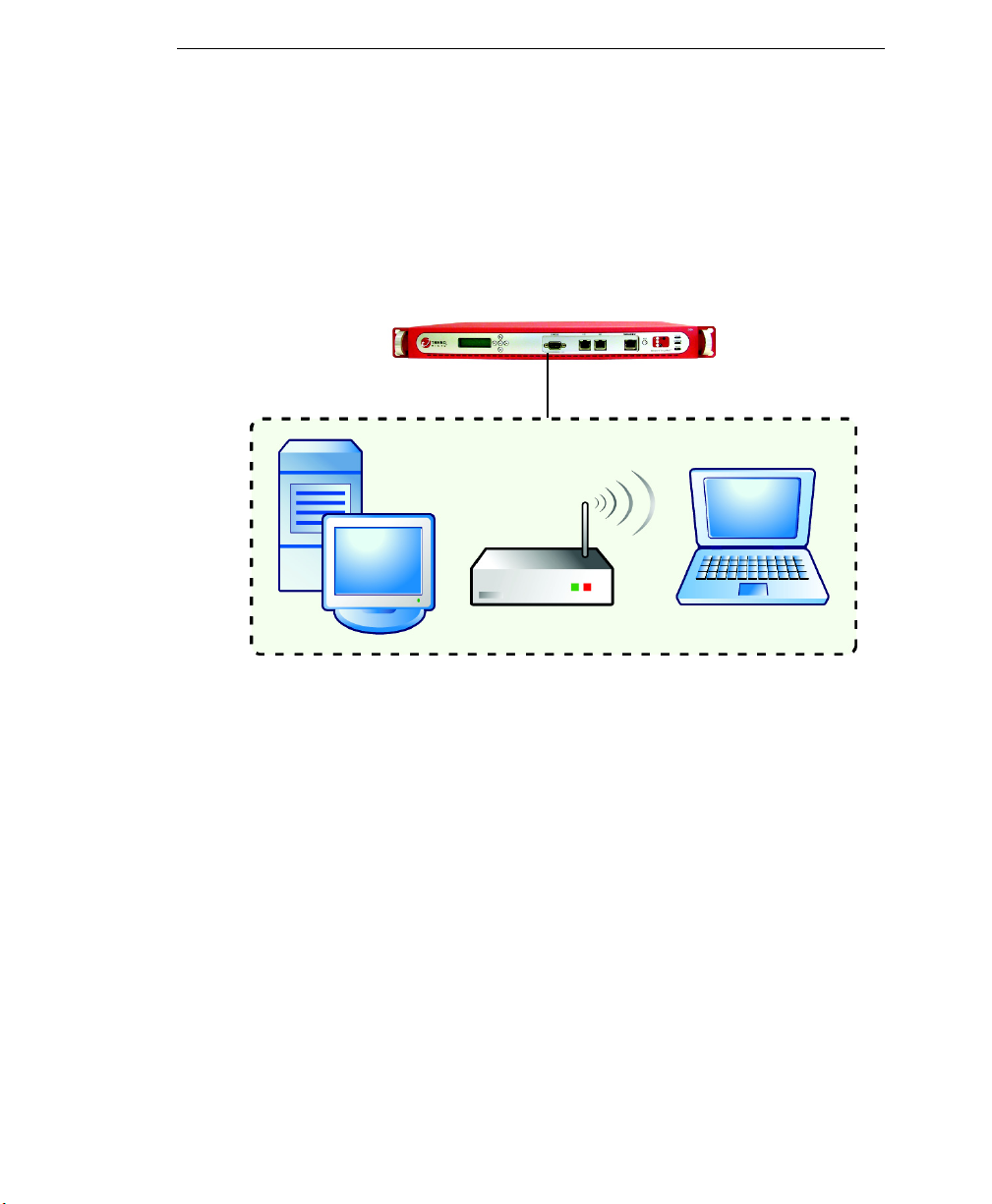

FIGURE 3-4. Guest network deployment scenario
Figure 3-4 illustrates a segment of an internal network especially for guest endpoints.
A wireless access point, switch, or hub is connected to the
Introducing Network VirusWall Enforcer 1200-specific Terms on page 2-3 for
information about different types of ports). This type of topology ensures that the
device scans all traffic before it leaves the guest network segment and makes
isolation of the guest segment possible in the event of a virus outbreak.
REGULAR port (See
Key Network Segments/Important Network Assets
Key network segments need to be protected from network-based threats. This may
include a group of endpoint machines or network resources that are critical to the
functioning of your organization, such as email, Web, and application servers.
3-9
Page 36
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
FIGURE 3-5. Key network segments scenario
Key Network Segments/Important Network Assets on page 3-9 illustrates a segment of
an internal network containing email and Web servers, including endpoints. An
internal switch or hub is connected to a
REGULAR port (See Introducing Network
VirusWall Enforcer 1200-specific Terms on page 2-3 for information about different
types of ports), creating a segment where all packets going in and out of the segment
can be scanned. Installing the device in this position adds the benefits of virus
scanning and segment isolation in the event of a virus outbreak.
Another advantage is that it can guard against attacks that not only originate on the
Internet, but also attacks that may originate from within your organization’s network.
Since traffic first passes through the device before reaching the email and Web
servers, the device can scan and detect infected packets that come from endpoints on
the LAN.
3-10
Page 37
Deploying Network VirusWall™ Enforcer 1200
Dual-switch VLAN Environment
Network VirusWall Enforcer 1200 must be placed in line on the physical network to
be able to provide security. In most situations, this means between an upstream
switch and one or more downstream switches.
Most VLAN configurations will utilize two switches. Single-switch VLAN
configurations are possible; for more information refer to Single-switch VLAN
Environment on page 3-14. The figures in this section illustrate multiple downstream
switches in a flat topology; however, a single in line configuration is also possible.
In Figure 3-6, The devices are installed between an upstream switch and downstream
switches. This configuration is appropriate when multiple VLANs carry moderate
network traffic, and the upstream switch carries high-bandwidth traffic.
Note: Ensure that Spanning Tree Protocol (STP) is enabled. If STP is not enabled,
packets may loop for an indefinite period.
3-11
Page 38
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
FIGURE 3-6. Multiple VLAN segments with each device protecting one
segment
In Figure 3-6, the devices are installed on an 802.1Q trunk line between two
switches.
3-12
Page 39
Deploying Network VirusWall™ Enforcer 1200

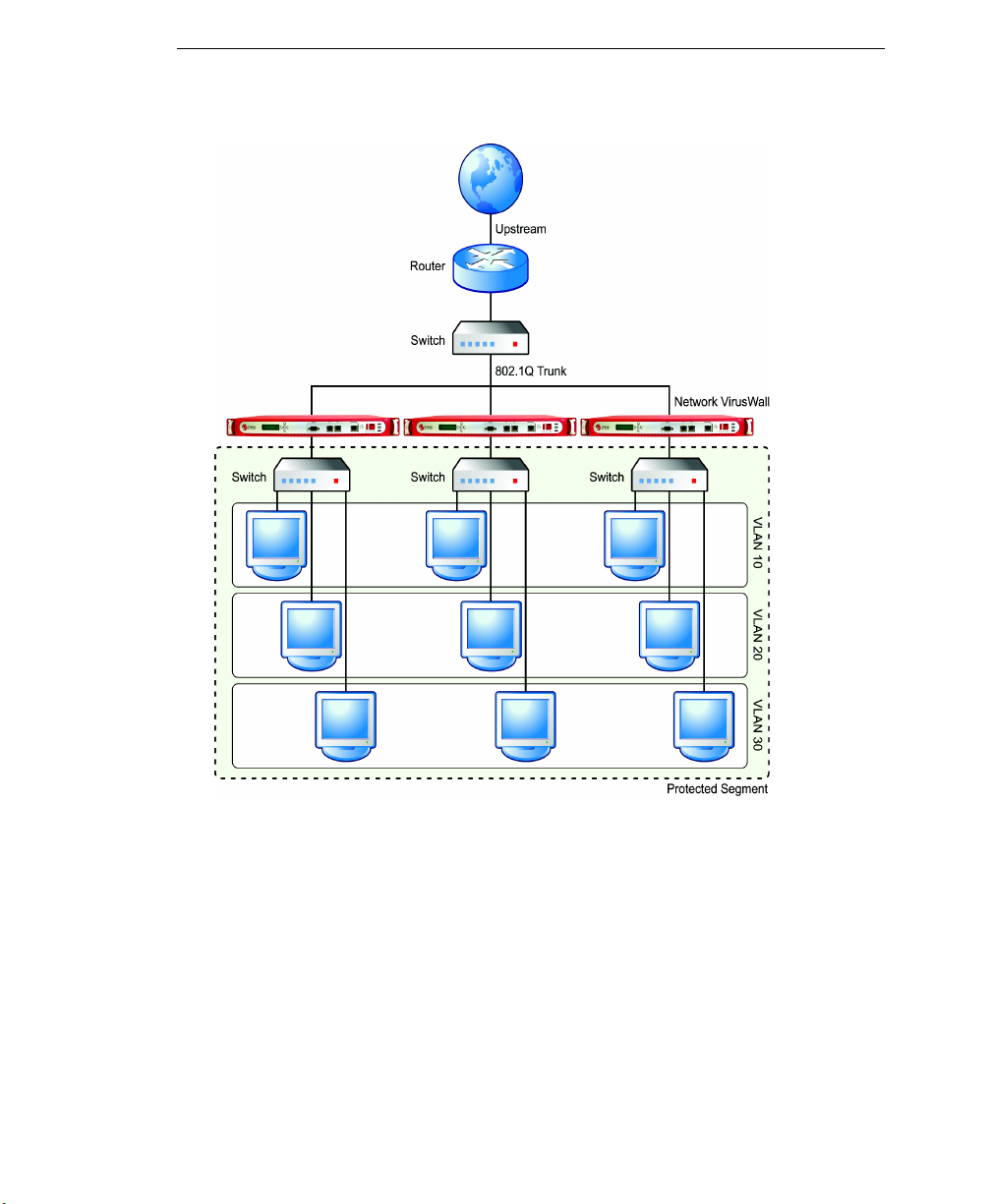

FIGURE 3-7. Multiple VLAN segments with each device protecting all
segments
3-13
Page 40
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Single-switch VLAN Environment
An example of a single switch configuration may have the following properties:
• Is only possible when using a switch that can be configured to carry individual
VLAN traffic on specific physical ports
• VLAN 20 is assigned to ports 1 and 2 on the switch
• The upstream network is connected to port 2 on the switch
• The
REGULAR port on Network VirusWall Enforcer 1200 is connected to port 1 on
the switch
FIGURE 3-8. Single-switch VLAN environment
3-14
Page 41
Deploying Network VirusWall™ Enforcer 1200
Planning for Network Traffic
The scenario presented in Key Network Segments/Important Network Assets on page
3-9 is also a good example of how to plan for network traffic. There is a strategic
advantage to positioning the device in front of resources that endpoints access
regularly, such as an email or Web server. Because many viruses make their way onto
networks through email attachments and Web browsers, forcing traffic to pass
through the device significantly reduces the risk of virus infection. Identify other
places on your network through which large amounts of traffic pass and consider
positioning the device at points where it can scan the most amount of traffic.
Determining the Number of Devices to Deploy
Determine the number of devices that best meets your security requirements. This
depends upon many factors, including the following:
• Existing Network topology– based on your network topology, identify the
segments you want the device to protect (see Identifying What to Protect on page
3-5)
• Existing network device interfaces– because the device handles 10/100Mbps or
1Gbps Fast Ethernet traffic, identify the network device interfaces that handle the
same type of traffic and can therefore connect to Network VirusWall Enforcer
1200 devices
• Desired effectiveness of protection– to lower the risk of a virus outbreak
spreading, segment several sections of your network with Network VirusWall
Enforcer 1200 devices
• Desired degree of performance– consider the number of endpoints and the
amount of traffic the device can handle
3-15
Page 42
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Conducting a Pilot Deployment
Trend Micro recommends conducting a pilot deployment in a controlled environment
to help you understand how the device features work, determine how the device can
help your organization accomplish its security goals, and estimate the level of
support you will likely need after a full deployment. A pilot deployment also
provides feedback to help you redesign your deployment plan.
Perform the following tasks to conduct a pilot deployment:
• Choose a pilot site
• Create a contingency plan
• Deploy and evaluate your pilot
Choosing a Pilot Site
Choose a pilot site that matches your planned deployment. This includes other
devices on your network such as switches and firewalls, other antivirus installations,
such as Trend Micro
simulate the type of topology that would serve as an adequate representation of your
production environment.
™ OfficeScan™ 5.0 or later, and Control Manager™ 3.5. Try to
Creating a Contingency Plan
Trend Micro recommends creating a contingency plan in case there are issues with
the installation, operation, or upgrade of the device. Consider your network’s
vulnerabilities and how you can retain a minimum level of security if issues arise.
Deploying and Evaluating your Pilot
Deploy and evaluate the pilot based on expectations regarding both security
enforcement and network performance. Create a list of items that meet and do not
meet the expected results experienced through the pilot process.
3-16
Page 43
Deploying Network VirusWall™ Enforcer 1200
Redefining Your Deployment Strategy
Identify the potential pitfalls and plan accordingly for a successful deployment.
Consider especially how the device performed with the antivirus installations on your
network. This pilot evaluation can be rolled into the overall production and
deployment plan.
Deploying Network VirusWall Enforcer 1200
This section provides an example of a few basic deployment scenarios (see page
3-18) and deployment strategies:
Tip: See Network VirusWall Enforcer 1200 Initial Tasks on page 4-2 for checklists
on how to prepare a device for deployment.
3-17
Page 44
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
A Basic Deployment Scenario
The device can be installed on a network that contains Ethernet devices such as hubs,
switches, and routers. Deploy Network VirusWall Enforcer 1200 between a switch
that leads to the public network and a switch that protects a segment of the Local
Area Network (LAN). It can also be installed between an edge switch and a hub.
Figure 3-9 illustrates a basic deployment scenario.
to the public network
Protected
Network
FIGURE 3-9. Basic deployment
switch/hub
A layer 2 (L2) or layer 3 (L3) device is connected to a REGULAR port.
Network VirusWall Enforcer 1200 protects your network as follows:
• Prevents endpoints that violate your security policies from gaining access to
resources
• Isolates the endpoints in the event of a virus infection.
Failopen Deployment
Failopen deployment with Network VirusWall Enforcer 1200 has changed from
previous versions of Network VirusWall.
To successfully deploy Network VirusWall Enforcer 1200 for failopen:
1. Deploy Network VirusWall Enforcer 1200 between two switches.
3-18
Page 45
Deploying Network VirusWall™ Enforcer 1200
2. Trend Micro recommends connecting Network VirusWall Enforcer 1200 to the
switches using straight-through cables.
3. Trend Micro recommends configuring the switches to use Rapid Spanning Tree
Protocol (RSTP 802.1w) to lower the impact on the network when failopen
occurs (under five seconds).
When using the standard Spanning Tree Protocol (STP 802.1D) the network has
a longer convergence time when failopen occurs (about 30 to 50 seconds).
3-19
Page 46
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
3-20
Page 47
Chapter 4
Preparing for Preconfiguration
Preconfiguring the device requires that you are connected to Network VirusWall
Enforcer 1200.
This chapter contains the following topics:
• Preparing for Preconfiguration on page 4-2
• Network VirusWall Enforcer 1200 Initial Tasks on page 4-2
Preconfiguring Network VirusWall Enforcer 1200 requires the completion of related
tasks.
To perform preconfiguration:
1. Plan and determine the deployment strategy (see page 3-2).
2. Prepare the device (see page 4-2).
3. Perform preconfiguration (see page 5-1).
Deploying Network VirusWall™ Enforcer 1200 on page 3-1 discusses step 1, the
succeeding sections discuss step 2, and Preconfiguring Network VirusWall Enforcer
1200 on page 5-1 provides instructions for step 3.
4-1
Page 48
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Preparing for Preconfiguration
Complete the following tasks before preconfiguring the device:
• If you are upgrading from a previous version of Network VirusWall refer to the
Network VirusWall Enforcer 1200 Upgrade Guide before continuing.
• Network VirusWall Enforcer 1200 initial tasks (See Network VirusWall Enforcer
1200 Initial Tasks on page 4-2).
Network VirusWall Enforcer 1200 Initial Tasks
Complete the following tasks before you preconfigure Network VirusWall Enforcer
1200:
• Determine the admin account password
Tip: There are two accounts available– Admin and PowerUser. All accounts
use admin and poweruser respectively, as their default password.
• Prepare a computer that has terminal communications software, such as
HyperTerminal for Windows ( See Preparing the Preconfiguration Console on
page 5-6).
4-2
Page 49
Chapter 5
Preconfiguring Network VirusWall Enforcer 1200
This chapter contains the following topics:
• Understanding Preconfiguration on page 5-2
• Choosing the Preconfiguration Method on page 5-3
• Performing Preconfiguration Using the Preconfiguration Console on page 5-5
• Performing Preconfiguration Using the LCD Module on page 5-16
• Connecting to the Network on page 5-18
Preconfiguring a Network VirusWall Enforcer 1200 device requires the completion
of the following tasks:
1. Select the console to use during preconfiguration (see page 5-3).
2. Prepare and access the Preconfiguration console (see page 5-6).
3. Configure device settings (see page 5-11).
4. Set the interface speed and duplex mode (see page 5-14).
5-1
Page 50
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Understanding Preconfiguration
As stated in Preparing for Preconfiguration starting on page 4-1, preconfiguring the
device requires the completion of Network VirusWall Enforcer 1200-related tasks.
To perform preconfiguration:
1. Plan and determine the deployment strategy (see Deploying Network VirusWall™
Enforcer 1200 on page 3-1).
2. Perform preconfiguration (see instructions starting on Using the
Preconfiguration Console on page 5-3).
3. Perform configuration tasks (see Configuring Policy Enforcement and Device
Settings in the Administrator’s Guide).
After completing the initial configuration tasks (see Preparing for Preconfiguration
on page 4-1), use the Preconfiguration console to proceed with preconfiguration.
After the preconfiguration procedure of the device is complete, you can then
administer Network VirusWall Enforcer 1200 using the Web console. Refer to
Configuring Policy Enforcement and Device Settings of the Administrator’s Guide.
5-2
Page 51
Preconfiguring Network VirusWall Enforcer 1200
Choosing the Preconfiguration Method
Preconfigure the device through the:
• Preconfiguration console
• LCD module (also known as the LCM console)
Using the Preconfiguration Console
The Preconfiguration console is a terminal communications program that allows you
to configure or view any preconfiguration setting. These settings include:
• Interface settings
• Network settings
• System logs
Examples of a terminal interface are HyperTerminal for Windows. To access the
Preconfiguration console remotely using SSH, use Putty or Secure Shell Client
applications.
Using the terminal interface, you can preconfigure all device settings. If you do not
have access to a computer with terminal communications software, use the LCD
module panel to perform preconfiguration. See Performing Preconfiguration Using
the Preconfiguration Console on page 5-5 for details on how to use the
Preconfiguration console.
Using the LCD Module
Use the LCD and control panel on the front of the device to configure only Network
VirusWall Enforcer 1200 network settings, such as the IP address. See Performing
Preconfiguration Using the LCD Module on page 5-16 for details on how to use the
LCD module.
5-3
Page 52
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
For a comparison of these two methods, see Table 5-1.
WHAT YOU CAN DO
Set the Network VirusWall Enforcer
1200 IP address, netmask, Gateway
address, and DNS addresses
Lock/unlock LCD module panel controls
View system logs
Initialize the device to default settings
Reset the device
Restore default settings (factory
settings)
Configure the interface speed and
duplex mode
View device settings
Enable/disable SSH access
Pattern/Engine rollback
Allow changes to take effect
immediately
Register to Control Manager
PRECONFIGURATION
CONSOLE
(Need to log off)
MODULE
TABLE 5-1. Comparison of available consoles for preconfiguration
LCD
5-4
Page 53
Preconfiguring Network VirusWall Enforcer 1200
Performing Preconfiguration Using the Preconfiguration Console
Preconfiguring the device using the Preconfiguration console requires the completion
of the following tasks:
Tip: Check whether you have completed the Network VirusWall Enforcer 1200
Initial Tasks on page 4-2 before starting with the following steps.
1. Prepare the Preconfiguration console (see page 5-6).
2. Log on to the Preconfiguration console (see page 5-7).
3. Configure the device settings (see page 5-11).
4. Set the interface speed and duplex mode (see page 5-14).
5-5
Page 54
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Preparing the Preconfiguration Console
The computer you choose for preconfiguration must have terminal configuration
software such as HyperTerminal for Windows.
To prepare the Preconfiguration console:
1. Connect one end of the included console cable to the CONSOLE port on the
back panel of the device and the other end to the serial port (COM1, COM2, or
other COM port) on a computer.
2. Open HyperTerminal.
a. Click Start > Programs > Accessories > Communications >
HyperTerminal.
HyperTerminal prompts you for location information.
b. Click Cancel when prompted for dial-up location information.
c. Type the information and press ENTER to type information in the terminal
interface.
Tip: Trend Micro recommends configuring HyperTerminal properties so that
the backspace key is set to delete.
d. On the HyperTerminal window, click File > Properties.
e. Click the Settings tab.
f. Under Backspace key sends, select Del.
3. To prepare HyperTerminal for optimal use, set the following properties:
• Bits per second: 115200
• Data Bits: 8
• Parity: None
• Stop bits: 1
• Flow control: None
• Emulation: VT100
5-6
Page 55
Preconfiguring Network VirusWall Enforcer 1200
Logging on the Preconfiguration Console
After preparing the terminal application, you are ready to access the Preconfiguration
console.
To access the Preconfiguration console:
1. Power on the device and wait for a welcome message to appear on the LCM
panel (approximately 1-2 minutes).
To power-on a device:
a. Connect the power cord to the AC power receptacle.
b. Connect the power cord to an electrical outlet.
Tip: See Power Requirements and Environmental Specifications on page
1-7 for device power requirements and environmental specifications.
c. Push the power switch to the On position. The Welcome message appears
when the system is successfully powered on.
5-7
Page 56
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
2. Press ENTER. The User name logon prompt displays. If the screen does not
display, type Ctrl + ’R’ or Ctrl + ’L’.
5-8

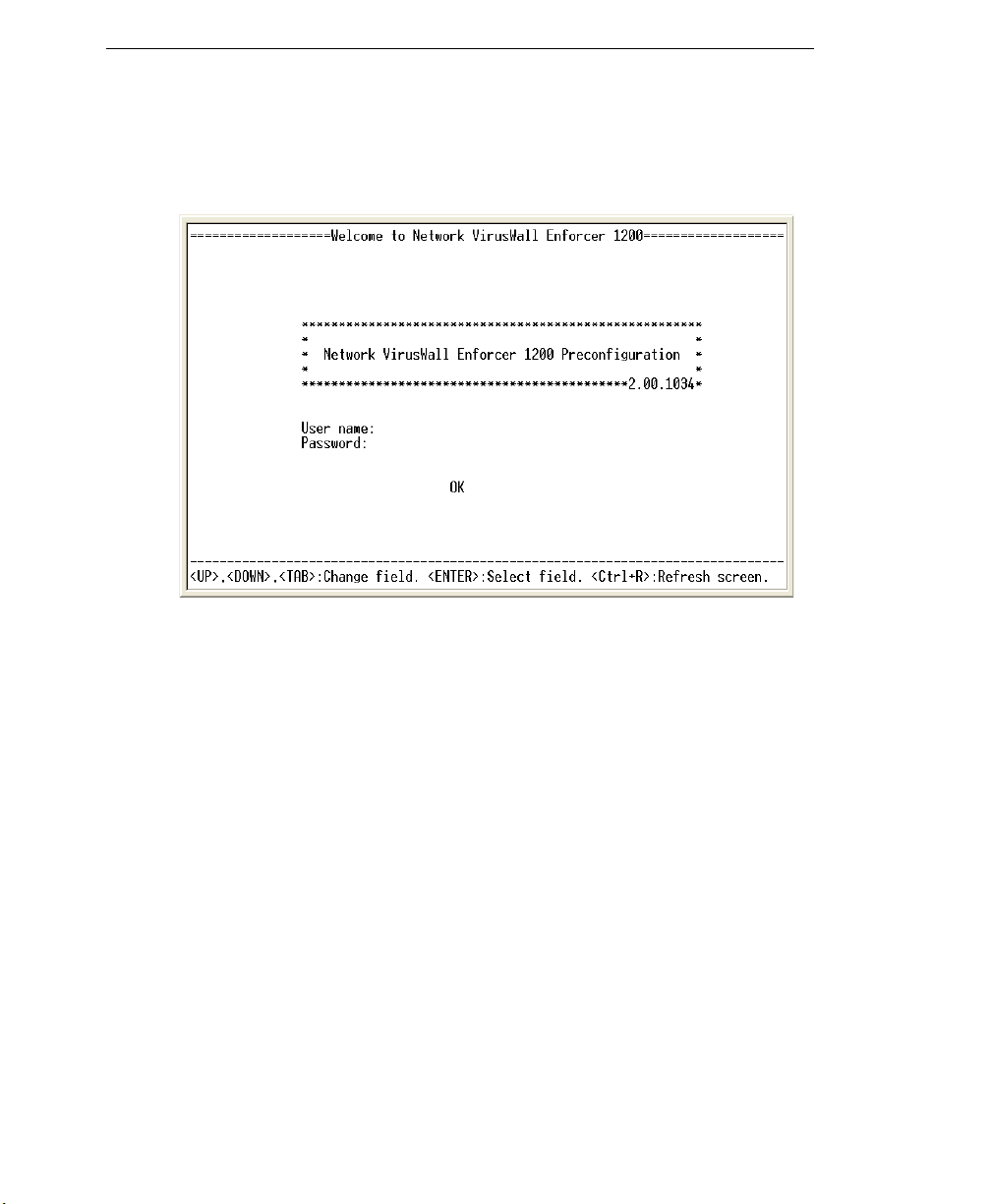

FIGURE 5-1. The Preconfiguration console logon prompt
Page 57
Preconfiguring Network VirusWall Enforcer 1200
3. Type the default administrator user name and its corresponding password:
User name: admin
Password: admin
Note: Change the default password to a secure password immediately after logging
for the first time. Only administrators and power users can login to the
Preconfiguration console. Modifying the Preconfiguration Console Accounts
in the Administrator’s Guide provides details about the admin and
poweruser accounts.
Use this login for full access to all preconfiguration features.
Tip: See admin password misplaced or forgotten on page 7-2 for tips on how
to troubleshoot a missing or forgotten password.
5-9
Page 58
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
4. After logging on, the Main Menu appears.
Note: The Preconfiguration console has a timeout value of 3 minutes. If the console
is idle for three minutes, it automatically logs off the account. After 3 attempts
to login, there will be a short time period before you can try again.
5-10
FIGURE 5-2. The Preconfiguration console Main menu
For instructions on how to log off the Preconfiguration console, see page 5-15.
Tip: Proceed by configuring the device settings, which include the device host
name and IP settings.
Page 59
Preconfiguring Network VirusWall Enforcer 1200
Configuring Device Settings
Immediately after logging onto the Preconfiguration console for the first time,
change the default password to a secure password from the Web console. After
changing the password, use the Device Settings menu to configure the Network
VirusWall Enforcer 1200 host name that appears on the Web console and the
Network VirusWall Enforcer 1200 network settings.
To configure the device settings:
1. On the Main Menu of the Preconfiguration console, type 2 to select Device
Settings. The Device Setting Summary appears.

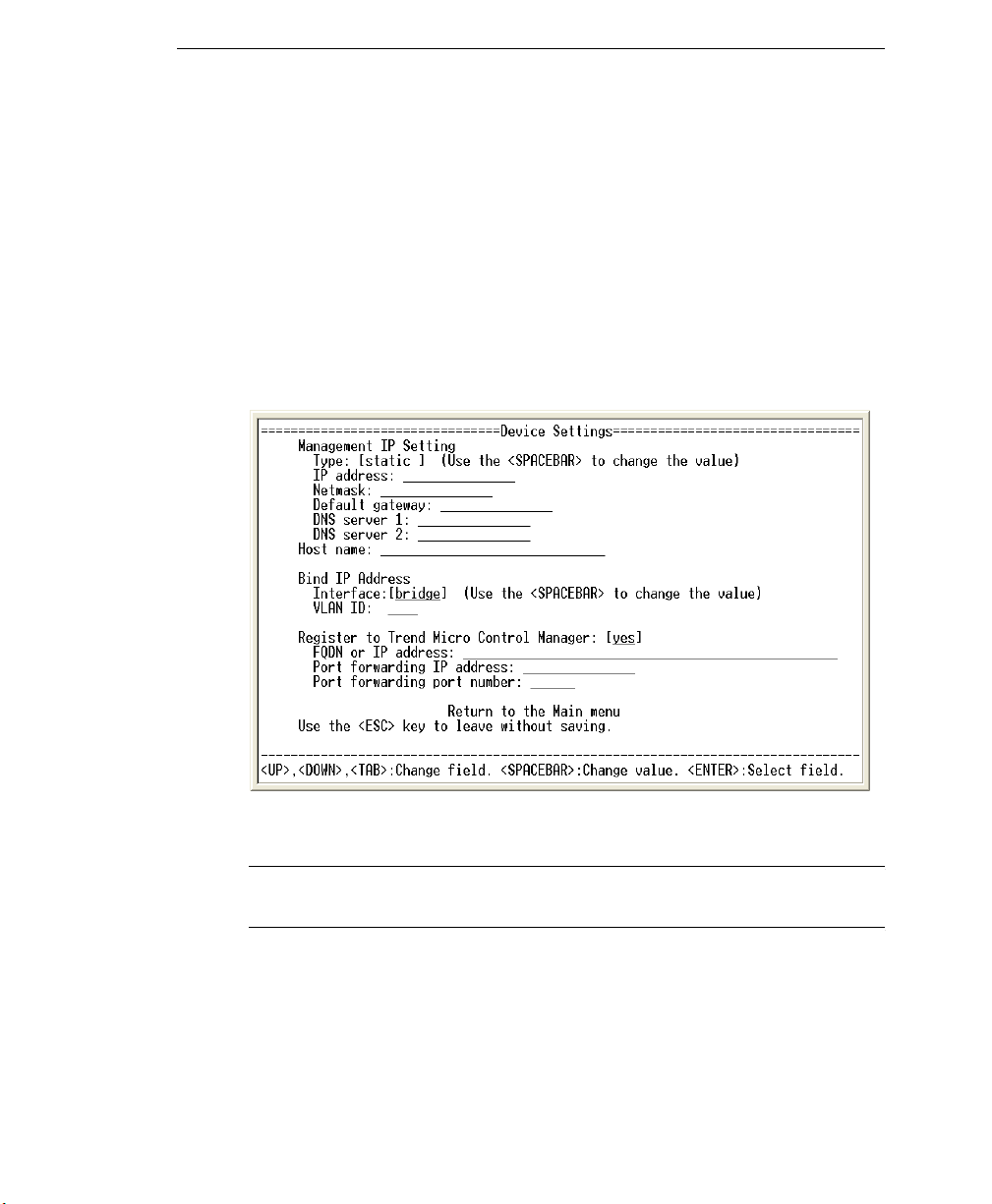

FIGURE 5-3. Network VirusWall Enforcer Device Settings
Note: When configuring the device for the first time, the factory default settings
appear.
2. Type or select the Management IP setting details under Management IP settings.
5-11
Page 60
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
WA R NI N G ! If there is a NAT device in your environment, Trend Micro recommends
assigning a static IP address to the device. Because different port
settings are assigned from your NAT, your device may not work properly
if dynamic IP addresses are used.
3. Type a host name that properly represents the device in the network.
Each device on your network must have a unique host name. Control Manager
uses this unique host name during registration and as the managed product name.
Host names may be up to 30 alphanumeric characters (spaces not allowed). Trend
Micro recommends a unique descriptive host name to represent and identify the
device (through the front panel LCD module) or remotely (through the
management console).
4. After specifying the network settings, press ENTER.
5-12
Page 61
Preconfiguring Network VirusWall Enforcer 1200
NAT Port Forwarding:
Port 2500 —> IP of
NVW device
Network Address
Translation (NAT) device
config. port: 2500 —>
IP: 1.2.3.4
IP: 1.2.3.4
FIGURE 5-4. Network VirusWall Enforcer 1200 deployment in a
Public IP: 11.22.33.55
network environment using a NAT device (with sample IP
address and port)
Note: You need to configure the port forwarding on the NAT device. Configure port
forwarding according to the settings.
5. Log back on to the Web console using the administrator name and password.
Note: System logs contain information useful for troubleshooting. If you experience
issues with the device and contact Trend Micro support, you may be asked to
view the system log. Refer to Viewing Status, Logs, and Summaries and
Troubleshooting in the Administrator’s Guide for more details about
troubleshooting.
5-13
Page 62
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Setting the Interface Speed and Duplex Mode
Use the Preconfiguration console to configure the interface speed and duplex mode.
Note: Both the connected L2/L3 and Network VirusWall Enforcer 1200 devices should
have the same interface setting and duplex mode. Otherwise, the half-duplex mode
setting will take effect. Apply 100Mbps x full-duplex for both the switch and
Network VirusWall Enforcer 1200 device.
To set the interface speed and duplex mode:
1. On the Main Menu of the Preconfiguration console, type 3 to select Interface
Settings. The Interface Settings Screen appears.
FIGURE 5-5. Network VirusWall Enforcer Interface Settings
2. Type 1 to select Interface speed & duplex mode setting.
The Interface speed & duplex mode setting screen displays the current
interface speed and duplex setting for all ports.
3. Select the port by using the up and down arrows.
5-14
Page 63
Preconfiguring Network VirusWall Enforcer 1200
4. Select the speed by using the space bar to scroll through the speed options.
5. Select Return to the previous menu. The Interface Settings screen displays.
6. Type 2 to select Interface setting.
7. Use the down arrow to go to Port 3.
8. Use the spacebar to select MGMT.
9. Type 3 to select Return to Main menu. The Main Menu displays.
10. Select Save and Log Off for changes to take effect.
Logging off the Preconfiguration Console
Log off the Preconfiguration console after completing preconfiguration or modifying
settings (for example, device settings) that require logging off for changes to take
effect.
To log off the Preconfiguration console:
1. On the Main Menu of the Preconfiguration console, select Save and Log Off. A
confirmation message appears.
2. Select OK and press ENTER to log off.
Note: In order to apply new settings, you must log off Network VirusWall Enforcer
1200.
5-15
Page 64
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Performing Preconfiguration Using the LCD Module
With the LCD console, you can only configure the device’s IP address. Use the
terminal interface for access to all preconfiguration options (see Comparison of
available consoles for preconfiguration).
There are five buttons on the LCD console:
• Up arrow – cycle forward through the alphanumeric characters displayed
on the LCD
• Down arrow – cycle backward through the alphanumeric characters
displayed on the LCD
• Left arrow – move the focus or cursor to the left
• Right arrow – move the focus or cursor to the right
Tip: Use the Left and Right arrows to read the logs displayed on the LCD
module.
• ENTER – confirm selection or input
Note: The LCD module and keypad do not work when the system is powered off (even if
the device is plugged in to an AC power source).
5-16
Page 65
Preconfiguring Network VirusWall Enforcer 1200
To configure the IP address through the LCD module:
1. Press ENTER ( ). The Main Menu appears.
2. Use the down arrow ( ) to select Configure NVW. A prompt displays asking
if you want to change settings.
Tip: The LCD module times out in three (3) minutes if there is no activity initiated
using the Control Panel.
3. To continue, ensure that a star (*) is next to Yes. To abort, move the star (*) to
the No position:
(*) Yes ( ) No
4. Press ENTER ().
5. If you selected Yes, a prompt displays asking to have the IP address dynamically
assigned.
To use a dynamic IP address, do the following:
a. Ensure that a star (*) is next to Yes and press ENTER ():
(*) Yes ( ) No
b. Type the Management server IP address.
To manually enter a static IP address, do the following:
a. Ensure that a star (*) is next to No and press ENTER ():
( ) Yes (*) No
b. Type the new IP address, netmask, Gateway address, and DNS server
addresses.
c. Type the Management server IP address.
6. Press ENTER ( ). The console requests the Control Manager IP address.
7. Type the Control Manager IP address.
If you do not want to register to Control Manager continue to step 8.
8. Press ENTER ( ) to save the settings when prompted.
5-17
Page 66
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Connecting to the Network
Be sure to preconfigure the device before attempting to connect the device or devices
to the network. After preconfiguration, switch off the device before connecting it to
the network.
To connect the device to your network:
1. Connect one end of a 10/100Mbps Ethernet cable to a REGULAR port and the other
to a segment of your network
2. Power on the device (see page 5-7).
Note: Network VirusWall Enforcer 1200 can handle various interface speed and duplex
mode network traffic. See
page 5-14.
Setting the Interface Speed and Duplex Mode on
5-18
Page 67
Chapter 6
Configuring Network VirusWall Enforcer 1200
After preconfiguring Network VirusWall Enforcer 1200, you are ready to configure
the device and commence network protection.
Trend Micro recommends performing the following tasks after preconfiguring a
device:
• Configuring PEAgent Settings for Manual Deployment on page 6-2
• Updating Components Manually on page 6-7
• Change the user password
• Configure Policy Enforcement
Refer to the following documentation for instructions relating to changing your
password and configuring policy enforcement:
• Network VirusWall Enforcer 1200 Administrator’s Guide– includes instructions
on how to configure and administer the device from the applicable management
tools
See Getting Started with Network VirusWall Enforcer 1200 in the Administrator’s
Guide for instructions.
• Network VirusWall Enforcer 1200 Online Help– provides instructions on how to
configure Network VirusWall Enforcer 1200 devices Web console
6-1
Page 68
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
See Preface on page 1 for a complete description of Network VirusWall Enforcer
1200 documentation.
Configuring PEAgent Settings for Manual Deployment
You can configure Network VirusWall Enforcer 1200 to use agentless or persistent
agent mode. In persistent agent mode the PEAgent, which installs on the end-users’
client computer, communicates with Network VirusWall Enforcer 1200. You can
configure the Network VirusWall Enforcer 1200 port which communicates with the
PEAgents.
End-users install the PEAgent as they attempt to access the Internet or Intranet. If
remote deployment is unsuccessful, the Web browser they use to access the Internet
is configured to prevent ActiveX from running, or if their Web browser does not
support ActiveX (Firefox), the user needs to install the PEAgent manually.
Installing the PEAgent component requires Windows Installer engine 2.0 on the
client computer, that is included in the Windows XP platform. However, for previous
Windows versions (Windows 98/ME/2000), the client computer will need to
download or update the Windows Installer engine.
6-2
Page 69
Configuring Network VirusWall Enforcer 1200

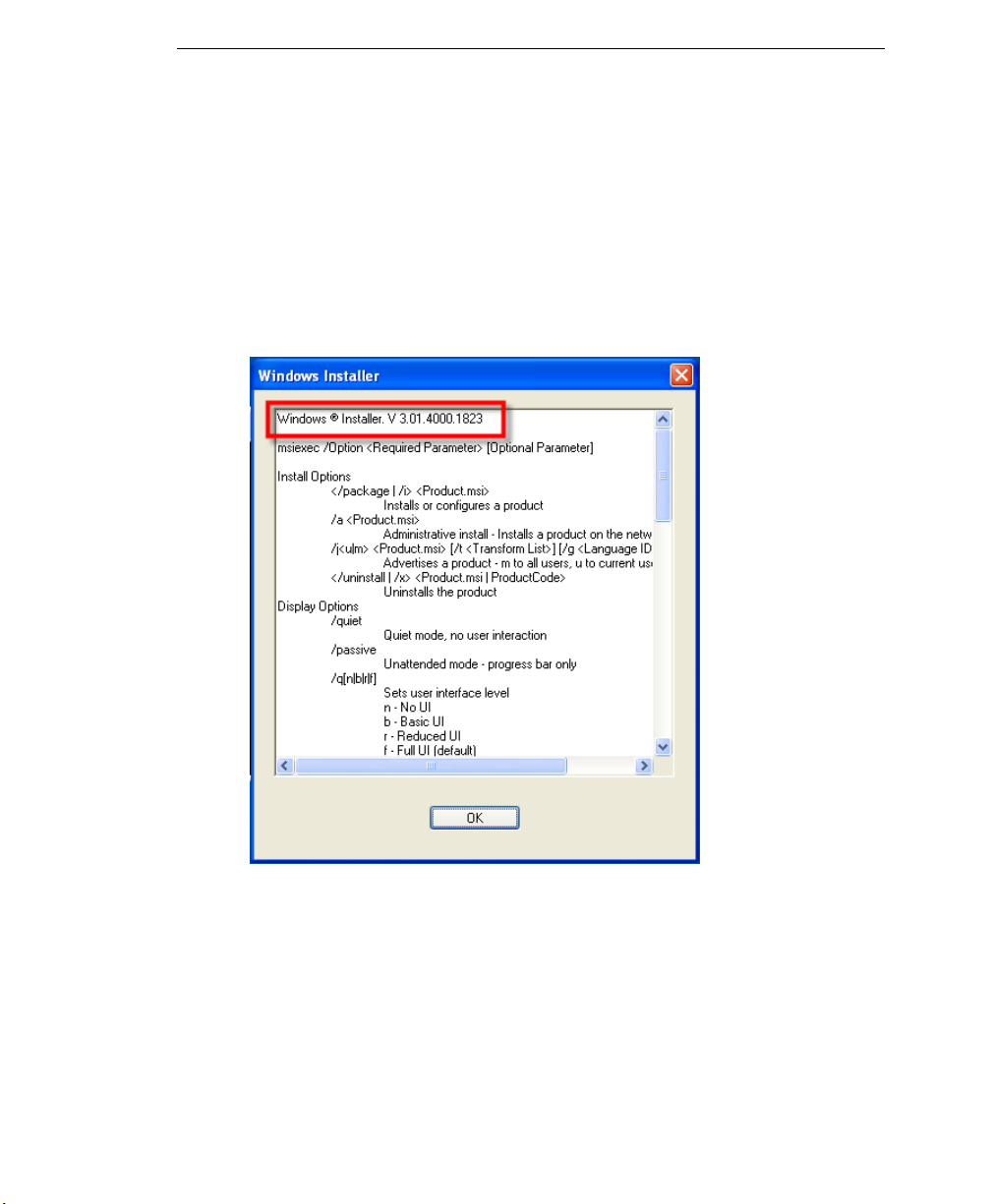

To check the Windows Installer version:
1. Click Start > Run.... The Run dialog box appears.
2. Type
3. Type
cmd in the Open field. The Command Line Interface appears.
msiexec at the command prompt and press Enter. The Windows
Installer dialog box appears.
4. Verify the Windows Installer engine version on the client computer is greater
than 2.0.
Manually installing the PEAgent requires the following from the administrator:
1. A location for the PEAgent installation program
2. Configure the communication port for PEAgent and Network VirusWall
Enforcer 1200 (optional)
3. Customize the Performing Endpoint Assessment endpoint notification.
6-3
Page 70
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Step 1: Provide a location for the PEAgent installation program
1. Insert the Network VirusWall Enforcer 1200 Solutions CD.
2. Locate the PEAgent installation file:
...\Programs\PEAgent\PEAgent.msi.
3. Copy the
can access.
PEAgent.msi file to a shared folder that everyone on your network
Step 2: Configure the communication port for PEAgent and Network
VirusWall Enforcer 1200
This step is optional. Proceed to step 3 if you do not need to change the port number
for PEAgent-Network VirusWall Enforcer 1200 communication.
To configure the communication port for PEAgent:
1. Insert the Network VirusWall Enforcer 1200 Solutions CD.
2. Locate the PEAgent configuration tool file:
...\Programs\PEAgent\PEAgent_Config.exe.
3. Copy the PEAgent configuration tool to the folder where the
file is located.
4. Double-click the
dialog box appears.
5. Specify the location of the
Installer field.
6. Specify the port that the PEAgent uses to communicate with Network VirusWall
Enforcer 1200 in the Client port field.
7. Click OK.
PEAgent_Config.exe. The PEAgent configuration tool
PEAgent.msi file in the Location of PEAgent
PEAgent.msi
To configure the communication port for Network VirusWall Enforcer 1200:
1. In the Network VirusWall Enforcer 1200 Web console, click Policy
Enforcement > PEAgent Settings. The PEAgent Settings screen appears.
2. Type a port number for PEAgent-Network VirusWall Enforcer 1200
communication in the PEAgent port field.
6-4
Page 71
Configuring Network VirusWall Enforcer 1200
WA R NI N G ! Changing this setting will stop communication with all PEAgents until the
PEAgents update their listening port to the same port number as Network
VirusWall Enforcer 1200.
3. Click Save.
Step 3: Customize the Performing Endpoint Assessment endpoint
notification
You should customize the Performing Endpoint Assessment endpoint notification
so that users under the following situations can download and install the PEAgent
manually:
• Remote deployment is unsuccessful
• Users use a Web browser other than Internet Explorer (Firefox, Mozilla)
• User does not allow ActiveX to run on their computers
To customize the Performing Endpoint Assessment endpoint notification:
1. In the Network VirusWall Enforcer 1200 Web console, click Policy
Enforcement > Endpoint notifications. The Endpoint Notifications screen
appears.
2. Click Performing Endpoint Assessment under Web Notifications. The
Performing Endpoint Assessment Endpoint Notification screen appears.
3. Customize the notification text to include a link to the
PEAgent.msi file. For
example:
<!-- axp body begin -->
<br>
<table width="100%" border="0" cellpadding="0" cellspacing="0">
<tr>
<td>
<table width="100%" border="0" cellpadding="0"
cellspacing="0">
<tr><td class="header">
<p>
6-5
Page 72
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Please wait while <%=PRODUCT_NAME%> performs an assessment
of your computer. This may take a few minutes, depending on the
current network traffic.
</p>
<p>
<ul style="list-style: disc;" type=disc>
<li><font size="2" color=#E70009 face="Verdana, Arial,
Helvetica, sans-serif">
If this page does not refresh in a few minutes, close and
re-open your browser. </font></li>
<li>
<font size="2" color=#E70009 face="Verdana, Arial,
Helvetica, sans-serif">
If this screen continues reappearing and you are not able
to view the detection result, contact your network
administrator.</font> </li>
<li>
<font size="2" color=#E70009 face="Verdana, Arial,
Helvetica, sans-serif">
Click Reassess, if you have already installed the PEAgent.
If you have not installed the PEAgent click <A href="<Location
of PEAgent.msi>" target="_blank">Download PEAgent </A> <font>
</li>
</ul>
</p>
</td></tr>
</table>
</td>
</tr>
</table>
<br>
6-6
Page 73
Configuring Network VirusWall Enforcer 1200
<!-- axp body end -->
4. Click Preview to verify the notification is what you require.
5. Click Save.
Tip: When creating policies remember to add the IP address of the server which
PEAgent.msi is located to the Policy URL Exception list (Step 6: Policy URL
Exceptions of policy creation), so that blocked endpoints can access the PEAgent
Installer.
Updating Components Manually
After preconfiguring Network VirusWall Enforcer 1200, download the latest
components (Network Virus Pattern, Cleanup templates, Network Virus Engine) to
help maintain the highest security protection.
To perform a manual update:
1. Click Updates in the side bar. The drop down menu displays.
2. Click Manual. The Manual Update screen displays.
3. Select the Component checkbox to update all components or select checkboxes
to update individual components.
4. Click Update.
Use the Summary screen from the Network VirusWall Enforcer 1200 Web console
to verify whether Network VirusWall Enforcer 1200 updates the selected components
during manual update.
Tip: Visit http://www.trendmicro.com/download/product.asp?productid=45 to view the
latest Network Virus Pattern information.
6-7
Page 74
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
6-8
Page 75
Chapter 7
Troubleshooting Preconfiguration
This chapter addresses troubleshooting issues that may arise during the device
preconfiguration.
Tip: Refer to the Network VirusWall Enforcer 1200 Administrator’s Guide in the Trend
Micro Solutions CD for Network VirusWall Enforcer 1200 for additional FAQs and
troubleshooting.
This chapter contains the following topics:
• Device Issues on page 7-2
• Contacting Technical Support on page 7-3
Note: Troubleshooting in the Administrator’s Guide has more details regarding
Control Manager and Network VirusWall Enforcer 1200 integration
troubleshooting.
7-1
Page 76
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
Device Issues
# Issue Corrective Action/Explanation
1. LEDs do not
illuminate
2. Unable to access
the
Preconfiguration
console
3. Unable to
change settings
with the LCD
module panel
Verify secure power cable and network cable connections.
If the error persists, there may be a hardware issue. Contact your
vendor.
LED Indicators on page 1-4 for details on the Network
See
VirusWall Enforcer 1200 LED.
Verify secure console port connections and terminal communications
software settings.
Preparing the Preconfiguration Console on page 5-6 for
See
details on setting the terminal communications software settings.
Verify whether the LCD module configuration is set to ON.
Otherwise, the OFF LCD module configuration state will prevent you
from configuring Network VirusWall Enforcer 1200 through the LCD
module.
In addition, to change settings with the LCD module panel, you must
first press and hold down the return button .
Tip: Refer to Changing the LCD Module Configuration in the
Administrator’s Guide for instructions on how to toggle this
setting.
If an issue with any LCD module buttons persists, the
hardware may need to be repaired. Contact your vendor.
7-2
Page 77
Troubleshooting Preconfiguration
Contacting Technical Support
If the issue still persists despite following the troubleshooting tips provided in
Troubleshooting Preconfiguration, refer to Getting Support in the Administrator’s
Guide for instructions on how obtain technical support.
7-3
Page 78
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
7-4
Page 79
Index
A
Administrator’s Guide P-2
appliance 2-2
architecture 2-2
audience P-4
C
Cable
console 1-3
cable
Ethernet 1-3
components
downloading 6-7
connections
to the network 5-18
Connectors
ports 1-7
Console
cable 1-3
Contingency plan 3-16
Conventions P-4
document P-4
D
deploying Network VirusWall
overview 2-5
Deployment
number of devices 3-15
planning 3-2
scenario 3-18
strategy redesign 3-17
device 2-2
device settings
configuring 5-11
Document
conventions P-4
Document conventions P-4
Documentation P-2
Duplex mode 5-18
E
Ethernet cable 1-3
Index
Evaluating your pilot 3-16
F
Failopen
deployment 3-18
failopen 2-3
G
Getting Started Guide P-2
about P-3
Glossary 2-3
GSG. See Getting Started Guide.
Guest clients 3-9
H
HyperTerminal 4-2
I
Interface speed 5-18
IP address
static 5-12
Issues
accessing Preconfiguration console 7-2
LCD module configuration 7-2
LED 7-2
Preconfiguration console 7-2
N
Network VirusWall Enforcer
about the appliance 2-2
Administrator’s Guide P-2
components 2-2
device settings 5-11
documentation P-2
audience P-4
conventions P-4
Getting Started Guide P-2
how it works 2-2
introduction 2-2
online help P-2
printed documentation P-3
protection 2-2
Notes
control panel 5-16
deployment with VPN 3-7
duplex mode 5-14, 5-18
I–1
Page 80
Trend Micro™ Network VirusWall™ Enforcer 1200 Getting Started Guide
interface speed 5-14, 5-18
LCD module 1-4, 5-16
LCM console 1-4, 5-16
panel 5-16
Preconfiguration console 5-10
saving configurations 5-15
system logs 5-13
timeout 5-10
Update Center P-2
using control panel 5-16
using LCD module 5-16
VPN 3-7
O
OLH P-2
Online help P-2
P
panel
back 1-7
front 1-4
password
default 5-9
PEAgent 6-2
manually installing 6-3
Pilot
choosing a site 3-16
conducting a pilot deployment 3-16
Preconfiguration Method 5-3
Preface P-1
R
Remote clients 3-5
S
setting interface speed and duplex mode 5-14
Solutions CD 1-3
Speed 5-18
Static IP address 5-12
T
Tips
about this GSG 3-3
addresses 3-4
admin 4-2
before preconfiguring Network VirusWall 5-5
checking package 1-2
control panel 5-16
documentation P-2
FAQs 7-1
glossary 2-3
host names length 5-12
HyperTerminal 5-6
LCD module timeout 5-17
monitor 4-2
Network VirusWall
accounts 4-2
host names 5-12
initial tasks 5-5
IP address 5-12
positioning Network VirusWall 3-5
powering on device 5-7
preconfiguring 5-10
reading LCD module 5-16
static IP address 5-12
timeout 5-17
troubleshooting 7-1
using HyperTerminal 5-6
U
unit 2-2
Update
manually updating components 6-7
Update Center P-2
W
Who should read this document
audience P-4
I–2
