Universal

3.2.1.

Countersink

UNI/CS

Drill not included

UNIVERSAL COUNTERSINK REF. UNI/CS

Thank you for purchasing this Trend countersink, which should give lasting performance if used in accordance with these instructions.

The following symbols are used throughout these instructions.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions.

Refer to the instruction manual of your power tool.

This cutter must not be put into service until it has been established that the power tool to be connected to this unit is in compliance with 98/37/EC (identified by the CE marking on the power tool.

INTENDED USE

This countersink is intended to be clamped to a drill bit of diameter 3mm to 7.2mm which when fitted into a drilling machine will countersink wood and wood based material.

By reversing the countersink on the drill, the UNI/CS can be used as a non-cutting depth stop.

SAFETY

Please read and understand the safety points at the end of this instruction as well as the power tool instructions before use.

PLEASE KEEP THESE INSTRUCTIONS IN A SAFE PLACE.

The attention of UK users is drawn to The Provision and Use of Work Equipment Regulations 1998, and any subsequent amendments.

Users should also read the HSE/HSC Safe Use of Woodworking Machinery Approved Code of Practice and Guidance Document and any amendments.

Users must be competent in using woodworking equipment before using our products.

ITEMS REQUIRED

I Drill bit. I Drilling machine.

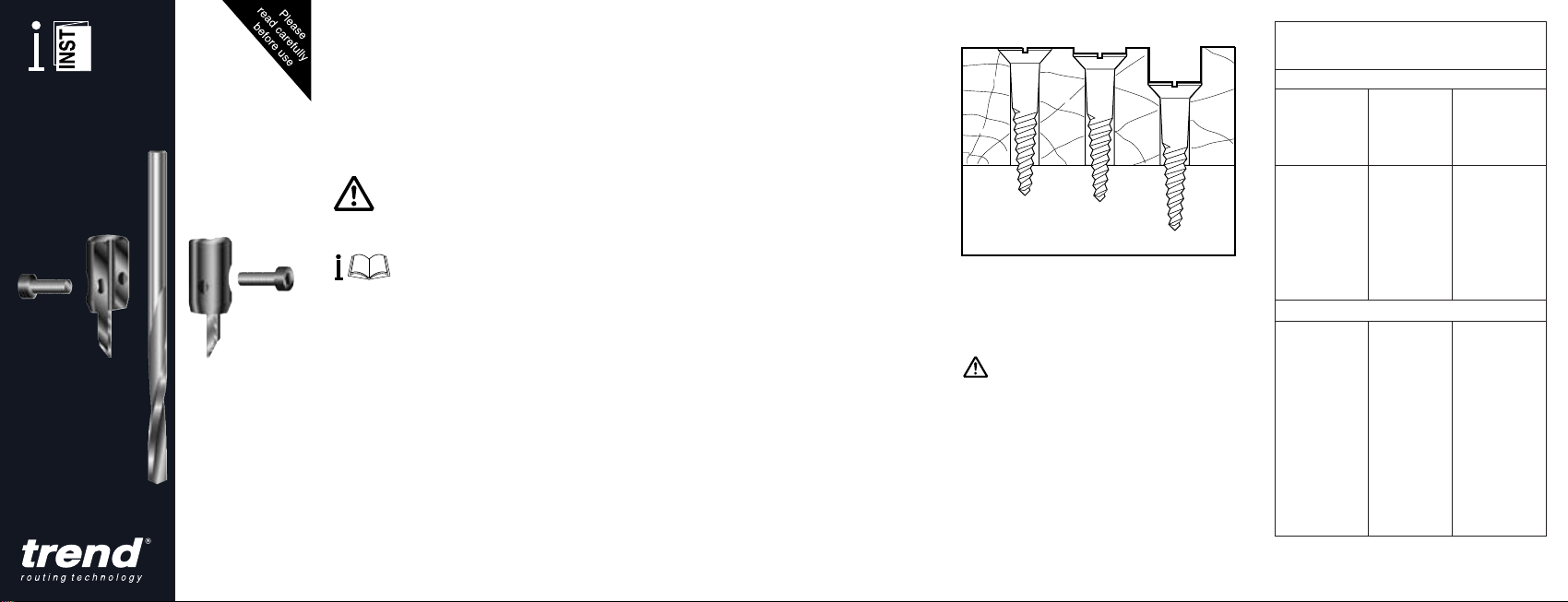

COUNTERSINK STYLES

1. Flush countersunk

2. Below level countersunk

3. Countersunk and counterbore

I Not suitable for ferrous and non-ferrous

material.

I Not suitable for production applications.

Recommended drill and screw sizes

For Wood Screw

Screw Drill size Counterbore gauge (clear hole) (resulting)

(inch) (inch)

No. 4 & 5 1/8 7/16 No. 6 & 7 5/32 31/64 No. 8 & 9 3/16 33/64

No. 10 7/32 17/32

No. 12 & 14 1/4 9/16

No. 16 9/32 39/64

For Machine Screw

Screw Drill size Counterbore

size (clear hole) (resulting)

(mm) (mm) (mm)

M2.5 3 11.0

M3 3.5 11.5 M4 4.5 12.9

M4.5 5 13.1

M5 5.5 13.5

M5.5 6 14.1

M6 6.5 14.5 M7 7.2 15.3

INST/UNI/CS v6.0

Page 2

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing as waste.

Packaging should be sorted for environmental-friendly recycling. The product and its accessories at the end of its life should be sorted for environmentalfriendly recycling.

GUARANTEE

All Trend products are guaranteed against any defects in either workmanship or material, except products that have been damaged due to improper use or maintenance.

Trend Machinery & Cutting Tools Ltd.

Odhams Trading Estate St. Albans Road Watford WD24 7TR England

Enquiries:________________0800 487363 Technical Support:_0044 (0) 1923 224681 Fax:______________0044 (0) 1923 236879 Email:[email protected] Web:________________www.trend-uk.com

RS 28982

Stockholding

& Supply

RECYCLABLE

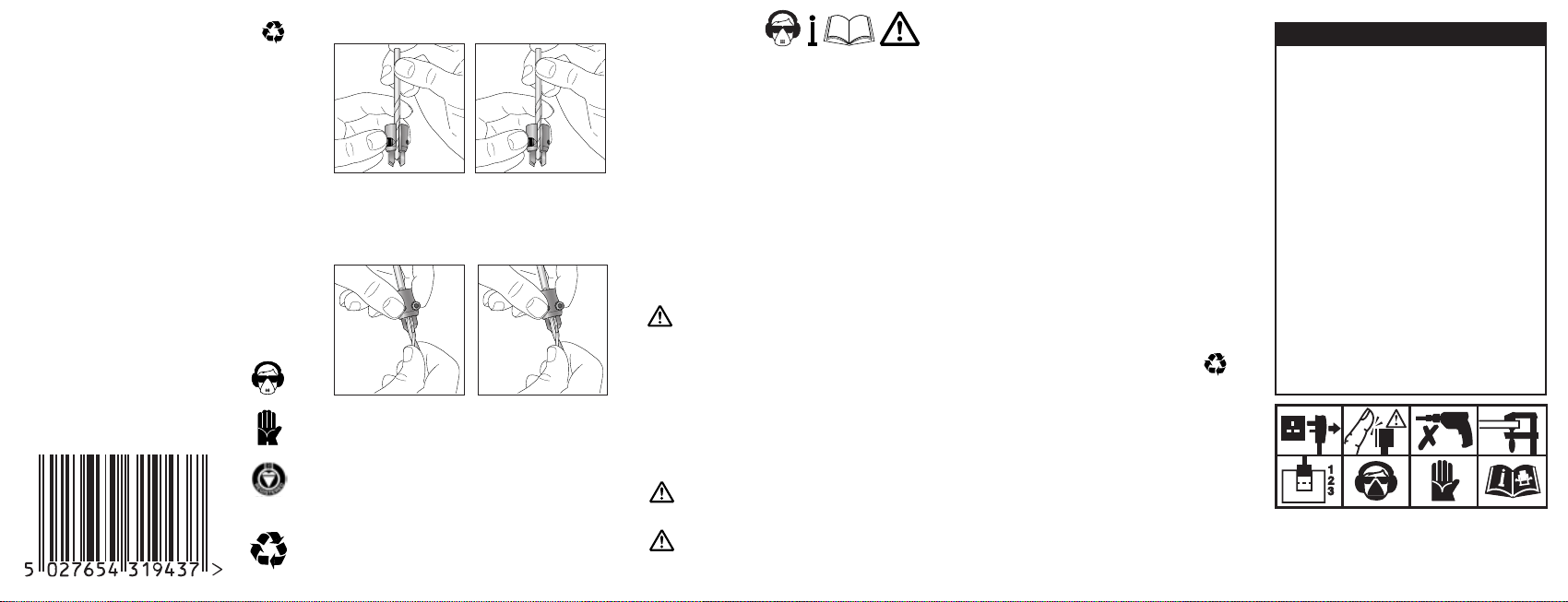

ASSEMBLY

1. 2.

Pass the drill through the centre between the two parts of the countersink.

3. 4.

Adjust countersink onto the drill according to the drill depth.

Align cutting tips of the UNI/CS with cutting edge of the drill to allow for chip clearance.

Tighten screws equally and symmetrically with supplied hex key to ensure strong grip. To avoid tip breakage, do not overtighten.

OPERATION

Fit drill bit with UNI/CS fitted into chuck of a drilling machine. With drilling machine set at correct speed, gently drill into the wood until the required depth is achieved. Retract the drill and switch off.

SPARE PARTS

Only use original Trend spare parts. I Spare part pack comprising hex key and

two screws - Order Ref. SP-O.

I Before using countersink, please

ensure it is correctly assembled and socket head screws are fully tightened.

I Ensure flutes of drill align with flutes of

countersink.

I Do not overtighten hex key as tip

breakage will result.

Use in drilling machines only.

Recommended speed is 1,500rpm.

MAINTENANCE

Continual satisfactory operation depends upon proper tool care and regular cleaning.

Cleaning

I Ensure clamping surfaces are cleaned to

remove dirt, grease, oil and water.

I Remove resin build-up regularly.

I Apply a rust protector to shanks.

Lubrication

I Use a PTFE dry lubricant spray on tool, to

increase cutting edge life.

Storage

I Return cutter to its packaging after use.

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing as waste.

Packaging should be sorted for environmental-friendly recycling. The product and its accessories at the end of its life should be sorted for environmentalfriendly recycling.

GUARANTEE

All Trend products are guaranteed against any defects in either workmanship or material, except products that have been damaged due to improper use or maintenance.

SAFETY POI NTS

1. Disconnect pillar drill and attachment from power supply when not in use, before servicing, when making adjustments and when changing accessories such as cutters. Ensure switch is in “off” position and cutter has stopped rotating.

2. Read and understand instructions supplied with pillar drill, attachment and cutter.

3. Current Personal Protective Equipment (PPE) for eye, ear and respiratory protection must be worn. Keep hands, hair and clothes clear of the cutter.

4. Before each use check cutter is sharp and free from damage. Do not use if cutter is dull, broken or cracked or if any damage is noticeable or suspected.

5. The maximum speed (nmax) marked on tool or in instructions or on packaging shall not be exceeded. Where stated, the speed range should be adhered to.

6. Keep hands, hair and clothing clear of the cutter at all times.

7. Check all fixing and fastening nuts, bolts and screws on pillar drill, attachment and cutting tools are correctly assembled, tight and to correct torque setting before use.

8. Ensure all visors, guards and dust extraction is fitted.

9. Ensure material is securely clamped when using a pillar drill.

10. Do not switch pillar drill on with the cutter touching the workpiece.

11. Trial cuts should be made in waste material before starting any project.

12. Repair of tools is only allowed according to tool manufacturers instructions.

Please see www.trend-uk.com/safety for more safety advice.

Our policy of continuous improvements mean that specifications may change without notice. Trend Machinery & Cutting Tools Ltd. cannot be held liable for any material rendered unusable, or for any form of consequential loss.
