Trend TEMP/TRK User guide

MAINTENANCE

Please use only Trend original spare parts and
accessories.

The accessory has been designed to operate
over a long period of time, with the minimum
amount of maintenance. Continual satisfactory
operation depends upon proper tool
care and regular cleaning.

Cleaning

n Regularly clean jig with a soft cloth.
n Do not use a corrosive cleaning solutions.

Lubrication

n Your accessory requires no additional

 lubricationapartfromthe‘O’ringwhich
may require lubrication to fit onto guide
bush.

Storage

n Always return product to its packaging after
use, or hang on a wall hook

ENVIRONMENTAL
PROTECTION

Recycle raw materials instead of
disposing as waste.

Packaging should be sorted for
environmental-friendly recycling. The product
and its accessories at the end of its life should
be sorted for environmental-friendly recycling.

GUARANTEE

All Trend products are guaranteed against any
defects in either workmanship or material, except
products that have been damaged due
to improper use or maintenance.

Trend Machinery & Cutting Tools Ltd.

OdhamsTradingEstateSt AlbansRoad

Watford WD24 7TR England

Tel: [phone]
[email protected]
www.trend-uk.com

Safety Points

1. Disconnect power tool and attachment from power supply
when not in use, before servicing, when making adjustments
and when changing accessories such as cutters. Ensure
switch is in “off” position. Always ensure cutter has stopped
rotating.

2. Read and understand instructions supplied with power tool,
attachment and cutter.

3. Current Personal Protective Equipment (PPE) for eye, ear
and respiratory protection must be worn. Keep hands, hair
and clothes clear of the cutter.

4. Before each use check cutter is sharp and free from damage.
Do not use if cutter is dull, broken or cracked or if any
damage is noticeable or suspected.

5. The maximum speed (nmax) marked on tool or in instructions
or on packaging shall not be exceeded. Where stated, the
speed range should be adhered to.

6. Insert the shank into the router collet at least all the way to
the marked line indicated on the shank. This ensures at least
3/4 of shank length is held in collet. Ensure clamping surfaces
are clean.

7. Check all fixing and fastening nuts, bolts and screws on
power tool, attachment and cutting tools are correctly
assembled, tight and to correct torque setting before use.

8. Ensure all visors, guards and dust extraction is fitted.

9. The direction of routing must always be opposite to the
cutter’s direction of rotation.

10. Do not switch power tool on with the cutter touching the
workpiece.

11. Trial cuts should be made in waste material before starting
any project.

12. Repair of tools is only allowed according to tool
manufacturers instructions.

13. Do not take deep cuts in one pass, take several shallow
passes to reduce the side load applied to the cutter.

Please see www.trend-uk.com/safety for more safety advice.

Our policy of continuous improvements mean
that specifications may change without notice.
Trend Machinery & Cutting Tools Ltd. cannot be
held liable for any material
rendered unusable, or for any
form of consequential loss.

©CopyrightTrend2014,2016. E&OE.

® All trademarks acknowledged.

RECYCLABLE

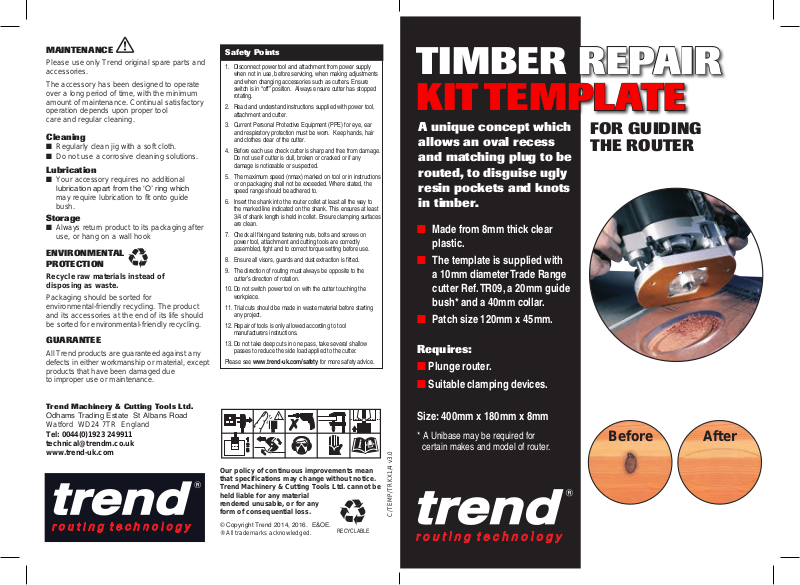

TIMBER REPAIR

KIT TEMPLATE

A unique concept which
allows an oval recess
and matching plug to be
routed, to disguise ugly
resin pockets and knots
in timber.

n Made from 8mm thick clear

plastic.

n The template is supplied with

a 10mm diameter Trade Range
cutter Ref. TR09, a 20mm guide
bush* and a 40mm collar.

n Patch size 120mm x 45mm.

Requires:

n Plunge router.

n Suitable clamping devices.

Size: 400mm x 180mm x 8mm

* A Unibase may be required for
certain makes and model of router.

C/TEMP/TRKX1/4 v3.0

FOR GUIDING
THE ROUTER

Before After

TIMBER REPAIR TEMPLATE
REF. TEMP/TRK

Thank you for purchasing this Trend product
which should give lasting performance if used
in accordance with these instructions.

The following symbols are used throughout
these instructions.

Denotes risk of personal injury,
loss of life or damage to the tool
in case of non-observance of the
instructions.

Refer to the instruction manual of
your power tool.

This unit must not be put into service until it
has been established that the power tool to
be connected to this unit is in compliance with
2006/42/EC (identified by the CE marking on
the power tool).

INTENDED USE

This accessory is intended to be used with a
plunge router with the included router cutter
and guide bush/collar fitted to rout a pocket
and plug in timber to disguise resin pockets
and knots.

SAFETY

Please read and understand these safety
instructions, as well as the power tool
instructions, before use.

PLEASE KEEP THESE INSTRUCTIONS IN A
SAFE PLACE.

The attention of UK users is drawn to The
Provision and Use of Work Equipment
Regulations 1998, and any subsequent
amendments.

UsersshouldalsoreadtheHSE/HSCSafe

Use of Woodworking Machinery Approved
Code of practice and Guidance Document and
any amendments.

Users must be competent in using
woodworking equipment before using our
products.

Consider working environment before using
tools.

Ensure working position is comfortable and
component is clamped securely.

Please keep children and visitors away from
tools and work area. All power tools will have a
residual risk, so must be operated with caution.

OnlyusetoolingthatmeetsEN847-1/2safety

standard and any amendments.

ITEMS REQUIRED

n Plunge router with suitable

size collet fitted.

 Suitable clampingdevices.

n
n Slotted screwdriver.
n Hand tools.

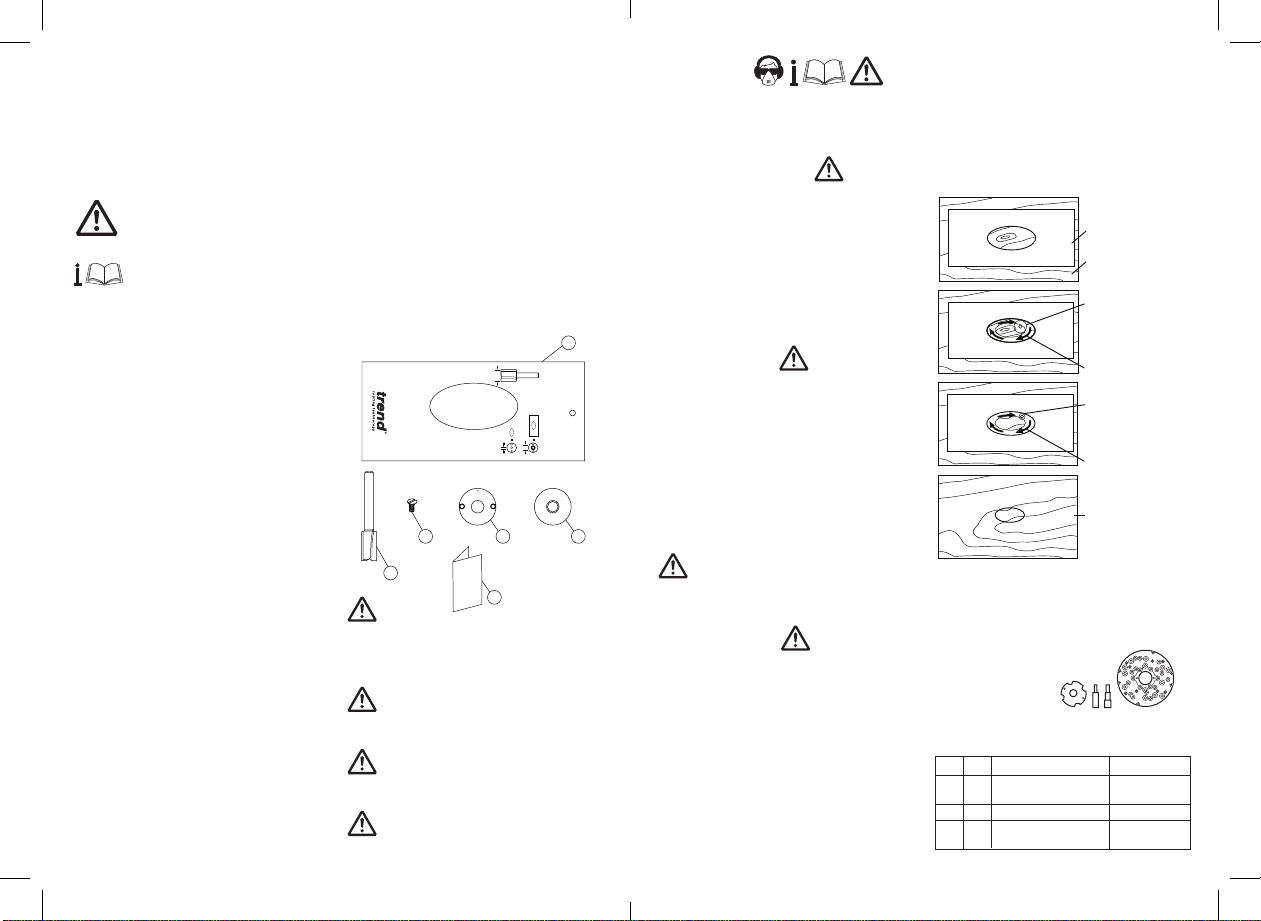

ITEMS ENCLOSED &
DESCRIPTION OF PARTS

A. Template body x1
B. Guide bush 20mm dia. x1
C.

Collar 20mm to 40mm dia. x1

D. Router cutter 10mm dia. x1
E. Guide bush fixing screws x2
F. Instruction x1

10mm

20mm

R

2

0

d

m

n

m

e

r

t

BE

D

F

The material being cut along with the
template/Jig will need to be supported and
clamped securely. Ensure that the router base
will not foul the clamps.

Keep proper footing and balance at
all times.

As templates are made of clear plastic please
be aware of possible glare.

Regularly check fixing screws are tight.

A

TIMBER REPAIR

TEMPLATE

40mm

C

OPERATION

The template will need to be used on a
component that is a suitable size to ensure
template is supported properly and that
component and template can be clamped
securely.

Setting up the Router

n Ensure router is isolated from power before

making any adjustments.

Fit the 20mm guide bush to the router using

n

screws supplied.

Slide20mm to40mmcollaronto the20mm

n

bush spigot with a twisting action, ensure
the chamfered edge is towards the bush

plate.LubricatetheOring ifrequired.

n Fit the 10mm diameter router cutter into

router.

Routing the Pocket

Place template over knot or blemish on the
workpiece. Clamp securely with two clamps

ensuringtheywillnotfoulrouterpath.Setcutter

depth, either to the thickness of repair material
or between 4 - 5mm.
Locate 40mm collar in template aperture, switch
on router, plunge down and lock plunge lever/
knob rout in a clockwise direction.
When this is complete then rout out the centre

oftheaperturetomakeaatbottomedrecess.

Release plunge and switch off router. Remove
clamps from template and workpiece.

Frequently check the guide bush collar is
seated properly on the guide bush and has
not worked loose.

Routing the Plug

For the plug choose material with similar grain
pattern and use double sided tape to secure

ittoasacricialpieceofmaterial.Thedouble

sided tape should be positioned under the plug.
Position template and clamp securely ensuring

the clamps will not foul router path. Remove the
40mm collar from 20mm guide bush.

Re-set the plunge depth of cutter to cut about
1mm deeper than plug thickness. Position
20mm guide bush in template aperture, switch
on router and plunge cut to set depth, rout in
a clockwise direction ensuring guide bush is
against template edge at all times. Take care

when completing the cut to ensure the plug

doesnotcomeloose.Whennishedreleased

plunge, switch off router and remove. Unclamp
template and remove plug. Glue plug into
pocket and when dry use the template again,
set cutter depth so it is slightly above the timber

surfaceandroutoverpluguntilush.

Then sand until smooth.

Template
Workpiece

40mm collar
fitted to 20mm
guide bush for

ʻpocketʼ

Feed direction

40mm collar
removed for

ʻplugʼ material

Feed direction

Plug fitted into
finished
workpiece

After use, store accessory carefully.

ACCESSORIES

Please use only Trend original accessories.

Ref.UNIBASE

For certain makes of router, a
sub-base will be required to
allow the guide
bush to be fitted.

SPARE PARTS

Please use only Trend original spare parts.

Item Qty. Desc. Ref. (1 off)

B 1 SpareGuide  GB20
Bush 20mmØ

 C 1 Collar20mm-40mmØ GB/COLL/2040

D 1 Trade Range 10mmØ TR09X1/4TC
Trade Range 10mmØ TR09X8MMTC
