TREND T30 Instructions Manual

T30

Please read these instructions before use.

T30

Dear Customer

Thank you for purchasing this Trend product,
we hope you enjoy many years of creative and
productive use.

Please remember to return your guarantee card
within 28 days of purchase.

CONTENTS

TECHNICAL DATA ____________________ 1
SAFETY ___________________________ 2-3
ELECTRICAL SAFETY ________________ 4
VACUUM CLEANER SAFETY ___________ 5
EC DECLARATION OF CONFORMITY ___ 6
ITEMS ENCLOSED ___________________ 6
DESCRIPTION OF PARTS ______________ 7
ASSEMBLY _________________________ 8
OPERATION
– Suction of Dry Dust and Dirt ___________ 9
– Suction of Fluids ___________________ 10
MAINTENANCE _____________________ 17
ENVIRONMENTAL PROTECTION_______ 17
GUARANTEE _______________________ 17
ACCESSORIES _____________________ 12
SPARE PARTS

– Spare Parts List __________________ 11-12
– Spare Parts Diagram _________________IB

TECHNICAL DATA

Voltage: UK & Eire 230V
UK & Eire only 110V
Europe 230V
Ampage: 230V 5.2A
110V 10A
Power input 1200W
Autostart: 230V max 200 watts
min 40 watts
110V max 1000 watts
min 40 watts
Airflow 3,300 l/min
Max Vacuum 2300mm H20
Noise 72dB
Hose 5M x 36mm OD
Container volume: Dry 34L
Wet 25L
Dimensions 620 x 400 x 400mm
Weight 11.5kg
Fuse: UK & Eire 230V 13A in plug
UK & Eire 110V 16A in mains
Europe 230V 10A in mains

The following symbols are used throughout this
manual:

Denotes risk of personal injury, loss of

life or damage to the tool in case of non­observance of the instructions in this
manual.

Denotes risk of electric shock.

If you require further safety advice,
technical information or spare parts,
please call Trend Technical Support

%

or visit www.trend-uk.com

Ensure when using the autostart function that the
power tool to be connected to the autostart is in
compliance with 2006/42/EC (identified by the CE
marking on the power tool.

INTENDED USE

The router is intended for routing grooves, edges,
profiles and slots as well as copy routing in wood,
wood based products and plastic. At reduced
speed with the appropriate router cutter fitted non­ferrous alloys can also be routed.

-1-

T30

SAFETY

WARNING:

Observe the safety regulations in the
instruction manual of the power tool
to be used. Please read the following
instructions carefully. Failure to do so
could lead to serious injury. When using
electric tools, basic safety precautions,
including the following should always be
followed to reduce the risk of fire, electric
shock and personal injury. Also observe
any applicable additional safety rules.
Read the following safety instructions
before attempting to operate this product.

PLEASE KEEP THESE
INSTRUCTIONS IN A SAFE PLACE.

The attention of UK users is drawn to The
Provision and Use of Work Equipment
Regulations 1998, and any subsequent
amendments.

Users should also read the HSE/HSC
Safe Use of Woodworking Machinery
Approved Code of Practice and Guidance
Document and any amendments.

Users must be competent with
woodworking equipment before using our
products.

IMPORTANT NOTE:

Residual Risk. Although the safety
instructions and operating manuals for
our tools contain extensive instructions
on safe working with power tools, every
power tool involves a certain residual risk
which cannot be completely excluded
by safety mechanisms. Power tools
must therefore always be operated with
caution!

General

1. Disconnect power tool and attachment

from power supply when not in
use, before servicing, when making
adjustments and when changing
accessories such as cutters. Ensure
switch is in “off” position. Always
ensure cutter has stopped rotating.

2. Always mount the power tool,

accessory or attachment in conformity
with the instructions. Only use
attachment and accessories specified
in the power tool manual. The tool or
attachment should not be modified or
used for any application other than
that for which it was designed. Do not
force tool.

3. Keep children and visitors away. Do

not let children or visitors touch the
tool, accessory or attachment. Keep
children and visitors away from work
area. Make the workshop child proof
with padlock and master switch.

4. Dress properly. Do not wear loose

clothing or jewellery, they can be
caught in moving parts. Rubber
gloves and non-skid footwear
is recommended when working

outdoors. Wear protective hair
covering to contain long hair.

5. Consider working environment. Do

not use the product in the rain or in
a damp environment. Keep work
area well lit. Do not use power tools
near gasoline or flammable liquids.
Keep workshop at a comfortable
temperature so your hands are not
cold. Connect machines that are
used in the open via a residual current
device (RCD) with an actuation
current of 30 mA maximum. Use only
extension cables that are approved for
outdoor use.

6. The accessory or attachment must be

kept level and stable at all times.

7. Keep work area clean. Cluttered

workshops and benches can cause
injuries. Ensure there is sufficient
room to work safely.

8. Secure idle tools. When not in use,

tools should be stored in a dry and
high or locked up place, out of reach
of children.

9. For best control and safety use

both hands on the power tool and
attachment. Keep both hands away
from cutting area. Always wait for the
spindle and cutter to stop rotating
before making any adjustments.

10.Always keep guards in place and in

good working order.

11.Remove any nails, staples and other

metal parts from the workpiece.

12.Maintain tools and cutters with care.

Keep cutters sharp and clean for
better and safer performance. Do
not use damaged cutters. Follow
instructions for lubricating and
changing accessories. Keep handles
dry, clean and free from oil and
grease.

13.Maintain accessories. Do not use

damaged accessories. Only use
accessories recommended by the
manufacturer.

14.Check damaged parts. Before

operation inspect the attachment,
the power tool, the cable, extension
cable and the plug carefully for signs
of damage. Check for alignment of
moving parts, binding, breakage,
mounting and any other conditions
that may effect its operation. Have any
damage repaired by an Authorised
Service Agent before using the tool or
accessory. Protect tools from impact
and shock.

15.Do not use tool if switch does not turn

it on or off. Have defective switches
replaced by an Authorised Service
Agent

16.Don’t over reach. Keep proper footing

and balance at all times. Do not use

awkward or uncomfortable hand
positions.

17.Don’t abuse the cable.Never carry

power tool or accessory by cord or
pull it to disconnect from the socket.
Keep cord from heat, oil and sharp
edges. Always trail the power cord
away from the work area.

18.Connect dust extraction equipment.

If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used.

19.Check all fixing and fastening nuts,

bolts and screws on power tool,
attachment and cutting tools before
use to ensure they are tight and
secure. Periodically check when
machining over long periods.

20.Stay alert. Watch what you are doing.

Use common sense. Do not operate
tools when you are tired, under the
influence of drugs or alcohol.

21.Personal Protective Equipment (PPE)

for eye, ear and respiratory protection
must be worn. All PPE must meet
current UK and EU legislation.

22.Do not leave tools running

unattended. Do not leave tool until it
comes to a complete stop.

23.Always clamp workpiece being

machined securely.

24.Only use cutting tools for

woodworking that meet EN847­1/2 safety standards, and any
subsequent amendments.

25.Vibration levels. Hand held power

tools produce different vibration
levels. You should always refer to
the specifications and relevant Health
& Safety Guide.

Routing Safety

1. Read and understand instructions

supplied with power tool, attachment
and cutter.

2. Keep hands, hair and clothing clear of

the cutter.

3. Remove adjusting keys and

spanners. Check to see that keys
and adjusting spanners are removed
from the router tool, cutter and
attachment before turning router on.
Make sure cutter can rotate freely.

4. Noise. Take appropriate measures

for the protection of hearing if
the sound pressure of 85dB(A) is
exceeded. Routing sound pressure
may exceed 85dB(A), so ear
protection must be worn.

5. Eye protection. Always wear eye

protection in the form of safety
goggles, spectacles or visors to
protect the eyes.

-2-

T30

6. Respiratory protection. Wear a face

or dust mask, or powered respirator.
Dust masks/filters should be changed
regularly.

7. Do not switch router on with the cutter

touching the workpiece. At the end of
the cut, release the router plunge and
allow spindle to stop rotating. Never
use the spindle lock as a brake

8. The direction of routing must always

be opposite to the cutter’s direction of

rotation. Do not back-cut or climb-cut.

9. Check before cutting that there are

no obstructions in the path of the
router. Ensure there are no obstacles
beneath workpiece when cutting full
thickness, and that a sacrificial work
surface is used.

Router Cutter Safety

1. Cutting tools are sharp. Care should

be taken when handling them. Do not
drop cutters or knock them against
hard objects. Handle very small
diameter cutters with extra care.
Always return cutter to its packaging
after use.

2. Always use cutters with a shank

diameter corresponding to the size of
the collet installed in your tool.

3. The maximum speed (n.max) marked

on the tool, or in instructions or on
packaging shall not be exceeded.
Where stated the speed range shall
be adhered to. Recommended speeds
are shown in the Trend Routing
Catalogue and/or website.

4. Always use router cutters in a router.

Drill and boring bits must not be
used in a router. Router cutters
must only be used for the material
cutting application for which they are
designed. Do not use on metal or
masonry.

5. Never use cutters with a diameter

exceeding the maximum diameter
indicated in the technical data of the
powertool or attachment used.

6. Before each use check that the

cutting tool is sharp and free from
damage. Do not use the cutting tool
if it is dull, broken or cracked or if in
any other damage is noticeable or
suspected.

7. Cutters should be kept clean. Resin

build up should be removed at regular
intervals with Resin Cleaner. The use
of a PTFE dry lubricant will reduce
resin build up. Do not use PTFE spray
on plastic parts.

8. When using stacked tooling (multi-

blade, block and groover etc.) on a
spindle arbor, ensure that the cutting
edges are staggered to each other to
reduce the cutting impact.

9. Cutter shanks should be inserted

into the collet all the way to the line
indicated on the shank. This ensures
that at least 3⁄4 of the shank length
is held in the collet. Ensure clamping
surfaces are cleaned to remove dirt,
grease, oil and water.

10.Observe the correct assembly and

fitting instructions in the router
instruction manual for fitting the collet,
nut and cutter.

11.Tool and tool bodies shall be clamped

in such a way that they will not
become loose during operation. Care
shall be taken when mounting cutting
tools to ensure that the clamping is by
the shank of the cutting tool and that
the cutting edges are not in contact
with each other or with the clamping
elements.

12.It is advisable to periodically check the

collet and collet nut. A damaged, worn
or distorted collet and nut can cause
vibration and shank damage. Do not
over-tighten the collet nut

13.Do not take deep cuts in one pass;

take several shallow or light passes
to reduce the side load applied to the
cutter and router. Too deep a cut in
one pass can stall the router.

14.In case of excessive vibrations whilst

using the router stop immediately and
have the eccentricity of the router,
router cutter and clamping system
checked by competent personnel

15.All fastening screws and nuts should

be tightened using the appropriate
spanner or key and to the torque
value provided by the manufacturer.

16. Extension of the spanner or tightening

using hammer blows shall not be
permitted.

17.Clamping screws shall be tightened

according to instructions provided by
the manufacture. Where instructions
are not provided, clamping screws
shall be tightened in sequence from
the centre outwards.

Using Routers In A Fixed Position

1. Attention should be made to the

HSE’s Safe Use of Vertical Spindle

Moulding Machines Information Sheet
No.18 and any revisions.

2. After work, release the router plunge

to protect the cutter.

3. Always use a push-stick or push-

block when making any cut less than
300mm in length or when feeding the
last 300mm of the cut.

4. The opening around the cutter should

be reduced to a minimum using
suitably sized insert rings in the table
and closing the back fence cheeks or
fitting a false fence on the back fence.

5. Whenever possible use a work

holding device or jig to secure
component being machined. Ensure
any attachment is securely fitted to
the workbench, with table surface at
approximately hip height.

6. Use a No-Volt Release Switch. Ensure

it is fixed securely, easily accessible
and used correctly.

7. In router table (inverted) mode, stand

to the front right of the table. The
cutter will rotate anti-clockwise when
viewed from top so the feed direction
is from the right (against the rotation of
the cutter). In overhead mode, stand to
the front left of the machine table and
the feed direction is from the left.

8. Do not reach underneath table or put

your hands or fingers at any time in
the cutting path while tool is connected
to a power supply.

9. Never thickness timber between the

back of the cutter and the backfence.

Useful Advice When Routing

1. Judge your feed rate by the sound

of the motor. Feed the router at a
constant feed rate. Too slow a feed
rate will result in burning.

2. Trial cuts should be made on waste

material before starting any project.

3. When using some attachments e.g.

a router table or dovetail jig, a fine
height adjuster is recommended.

4. When using a template guide bush,

ensure there is sufficient clearance
between cutter tip and inside edge
of bush and that it cannot come into
contact with collet and nut. Ensure
cutter and guide bush are concentric.

Router Cutter Repair/Maintenance

1. Repair of tools is only allowed in

accordance with the manufacturers
instructions.

2. The design of composite (tipped)

tools shall not be changed in process
of repair. Composite tools shall be
repaired by a competent person i.e.
a person of training and experience,
who has knowledge of the design
requirements and understands the
levels of safety to be achieved.

3. Repair shall therefore include, e.g.

the use of spare parts which are in
accordance with the specification
of the original parts provided by the
manufacturer.

4. Tolerances which ensure correct

clamping shall be maintained.

5. Care shall be taken that regrinding

of the cutting edge will not cause
weakening of the body and the
connection of the cutting edge to the
body.

Version 7.2 06/2013

-3-

ELECTRICAL SAFETY

Power Supply

Before any maintenance work, isolate
mains plug from power source.

The electric motor has been designed for one
voltage only. Always check that the power
supply corresponds to the voltage on the rating
plate. Machines marked for 230 volt can also be
operated from a 220 volt supply.

The vacuum cleaner is supplied from
the factory with mains supply cable
which has an earthed plug. It must
only be connected to an approved
earthed socket.

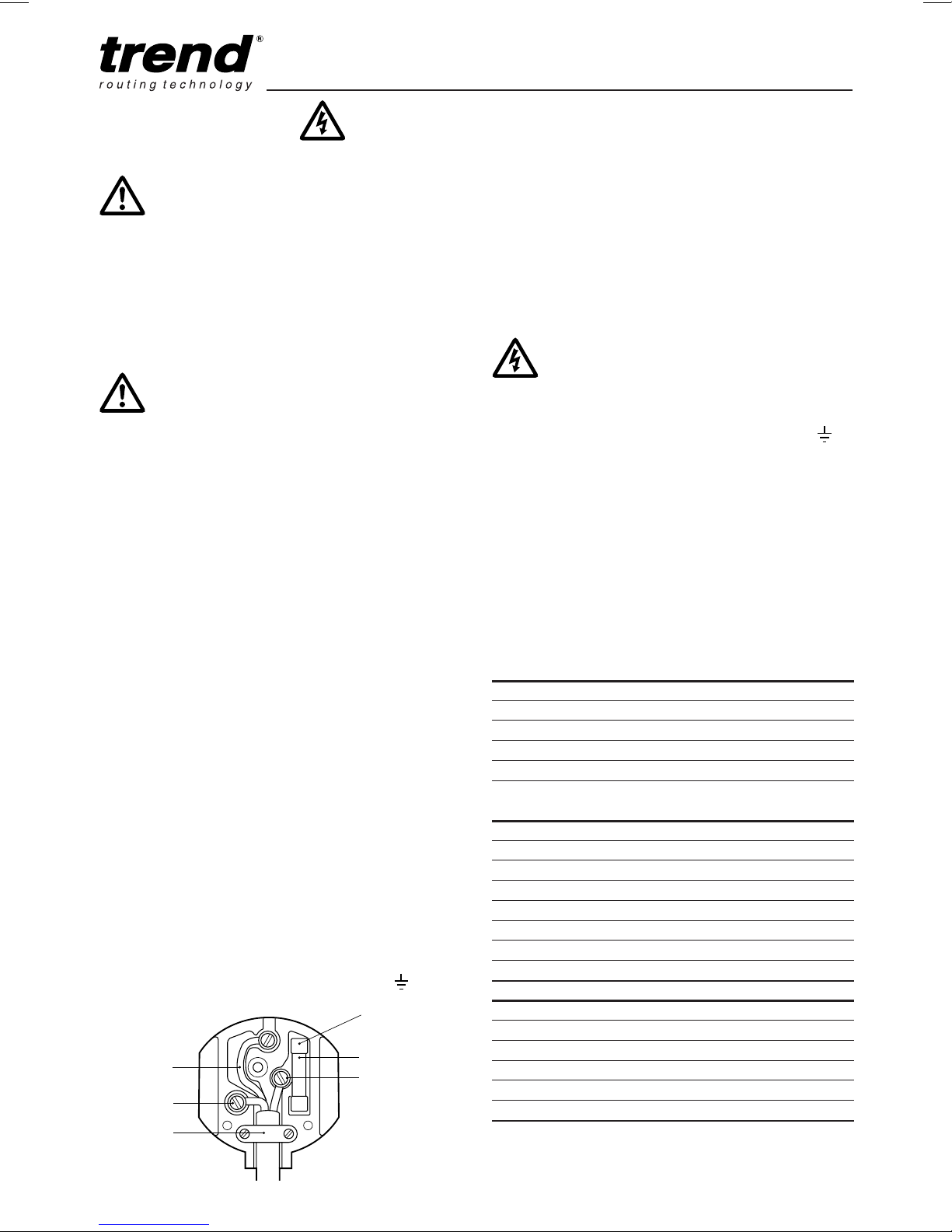

Mains Plug Replacement
(UK & Ireland only)

Always check the condition of the cable and plug
before starting with your work.

Should your mains plug need replacing and you
are competent to do this, proceed as instructed
below. If you are in doubt, contact an authorised
Trend repair agent or a qualified electrician.

n Disconnect the plug from the supply.

n Cut off the plug and dispose of it safely; a plug

with bared copper conductors is dangerous if
engaged in a live socket outlet.

n Only fit 13 Amperes BS 1363A approved plugs

fitted with a 13 Amp A.S.T.A approved
BS 1362 fuse (1).

n The cable wire colours, or a letter, will be

marked at the connection points of most
good quality plugs. Attach the wires to their
respective points in the plug (see below).
Brown is for Live (L) (2) and Blue is for Neutral
(N) (3) and Green/Yellow is for earth (4) .

13 AMP

4

3

5

1
2

T30

n Before replacing the top cover of the mains

plug ensure that the cable restraint (4) is
holding the outer sheath of the cable firmly
and that the two leads are correctly fixed at the
terminal screws.

For 115v units with a power exceeding 1500W,
we recommend to fit a plug to BS4343 standard.

Never use a light socket. Never
connect the live (L) or neutral (N)
wires to the earth pin marked E or .

Using an Extension Cable

n If an extension cable is required, use an

approved triple core extension cable suitable
for the power input of this tool (see technical
data).

n When using a cable reel, always unwind the

cable completely.

n Also refer to the table below.

Conductor size (mm2) Cable rating (Amperes)

0.75 6

1.00 10

1.50 15

2.50 20

4.00 25

Cable length (m)

7.5 15 25 30 45 60
Voltage Amperes Cable rating (Amperes
115 0 - 2.0 6 6 6 6 6 10

2.1 - 3.4 6 6 6 6 15 15

3.5 - 5.0 6 6 10 15 20 20

5.1 - 7.0 10 10 15 20 20 25

7.1 - 12.0 15 15 20 25 25 -

12.1 - 20.0 20 20 25 - - -

230 0 - 2.0 6 6 6 6 6 6

2.1 - 3.4 6 6 6 6 6 6

3.5 - 5.0 6 6 6 6 10 15

5.1 - 7.0 10 10 10 10 15 15

7.1 - 12.0 15 15 15 15 20 20

12.1 - 20.0 20 20 20 20 25 -

-4-

T30

VACUUM CLEANER SAFETY

General Safety

n Never vacuum-clean inflammable fluids, such

as gas, oil, alcohol, solvents, etc. Do not
work near inflammable fluids or gas. Never
vacuum-cleanwarm fluids or material at more
than 60ºC, such as burning cigarettes, ashes,
glowing coals, etc.

Do not vacuum hazardous substances.

n Do not pull the cable and do not damage the

insulation of the cable. When faulty, the cable
must be replaced immediately.

n Always keeps the cartridge filter clean.

General Safety Regulations when
Routing

Noise

The level of noise when routing may exceed
85 dB(A). It is therefore advisable to wear ear
defenders especially if routing for long periods
of time.

Eye Protection

Goggles, safety spectacles or visors should be
worn to protect the eyes from ejected waste
particles.

Dust Protection

The fine dust created when routing presents a
severe health risk if it is inhaled. Always wear
a dust protection mask or respirator and use
the dust spout connected to the T30A/T30AF
extractor. Dust masks should be changed
regularly.

Fire and explosion hazard.

Do Not Vacuum:

n Hot materials (glowing cigarettes, hot ashes,

etc.)

n Inflammable, explosive or aggresive fluids

(e.g. petrol, solvents, acids, alkalines, etc.)

n Inflammable, explosive dusts (e.g.

magnesium or aluminium dust, etc.)

n Always trail the cable away from the working

area.

-5-

T30

EC DECLARATION OF
CONFORMITY

Trend declare that this product mentioned
above complies with Directives 2006/95/EC,
2004/108/EC, 2011/65/EU and the following
harmonised standards EN 55014-1,
EN 55014-2, EN61000-3-2 and EN61000-3-3.

Trend Machinery & Cutting Tools Ltd.
Unit 6 Odhams Trading Estate
St Albans Road, Watford
Herts, WD24 7TR
United Kingdom

INFORMATION ON
NOISE/VIBRATION

The noise level when working
can exceed 85 dB(A).

Wear ear protection!

T30A

Managing Director
Jeff Willcocks

ITEMS ENCLOSED

1 x Cartride (7 micron for T30A)

Filter (0.3 micron for T30AF & T30ALF)

5 x Castors

1 x Filter Bag

1 x Hose 5m x 36mmØ with Spout

2 x Extension Tubes

1 x Universal Spout

1 x Spout for Carpets

1 x Spout for Floors

1 x Spout for Fluids

1 x Power Tool Adaptor

1 x Crevice Tool

1 x Upholstery Tool

1 x Instruction manual

1 x Guarantee card

Also for the T30AF & T30ALF

1 x Nylon Pre-Filter

For extraction of fine dust particles the 0.3
micron cartirdge filter must be used with the
nylon pre-filter and paper filter bag.

Cartirdge Filter Colours

Filter Size Outer Colour Inner Colour Mesh

7 Micron White White Diamond

0.3 Micron Yellow White Diamond

110v unit accepts tools up to 1000
watts only.

-6-

T30

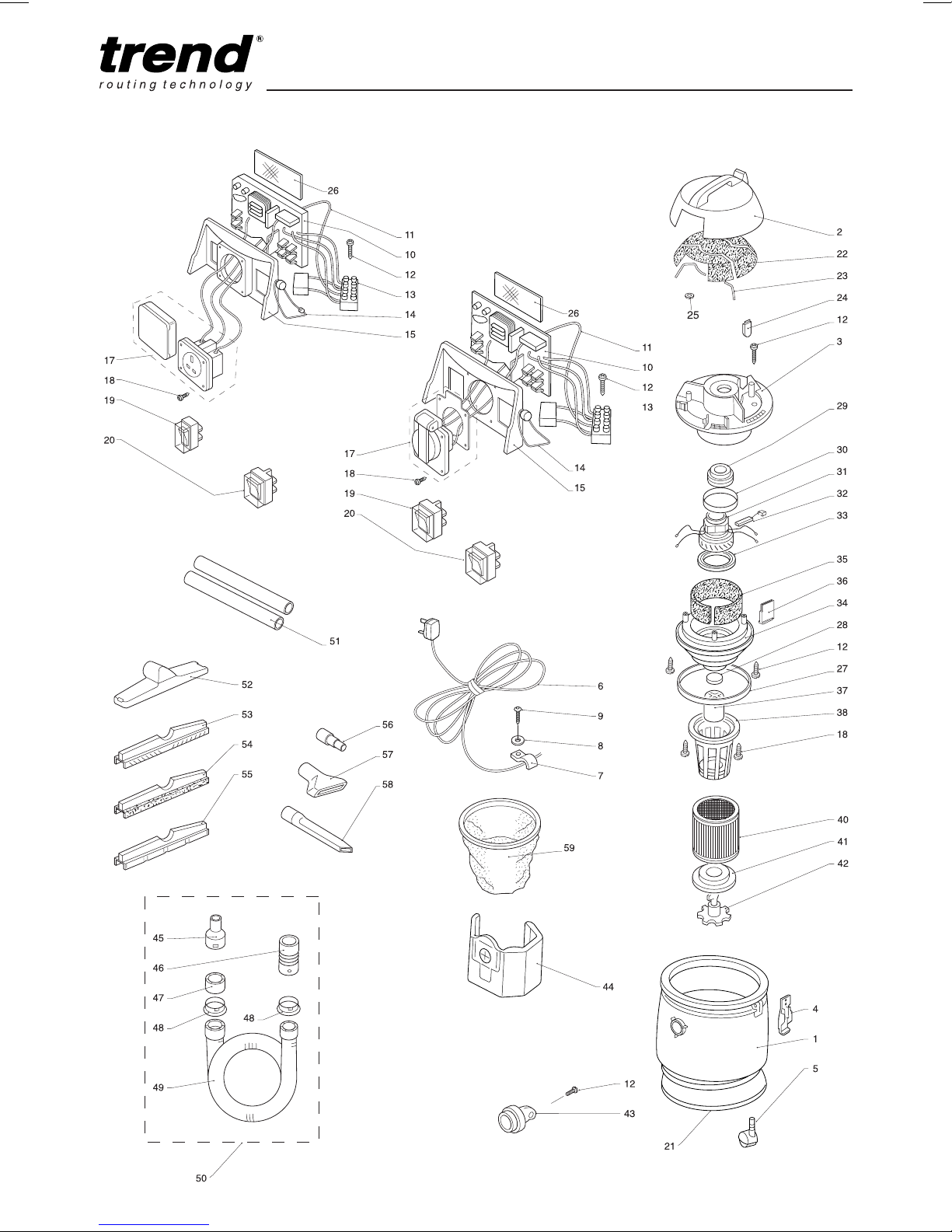

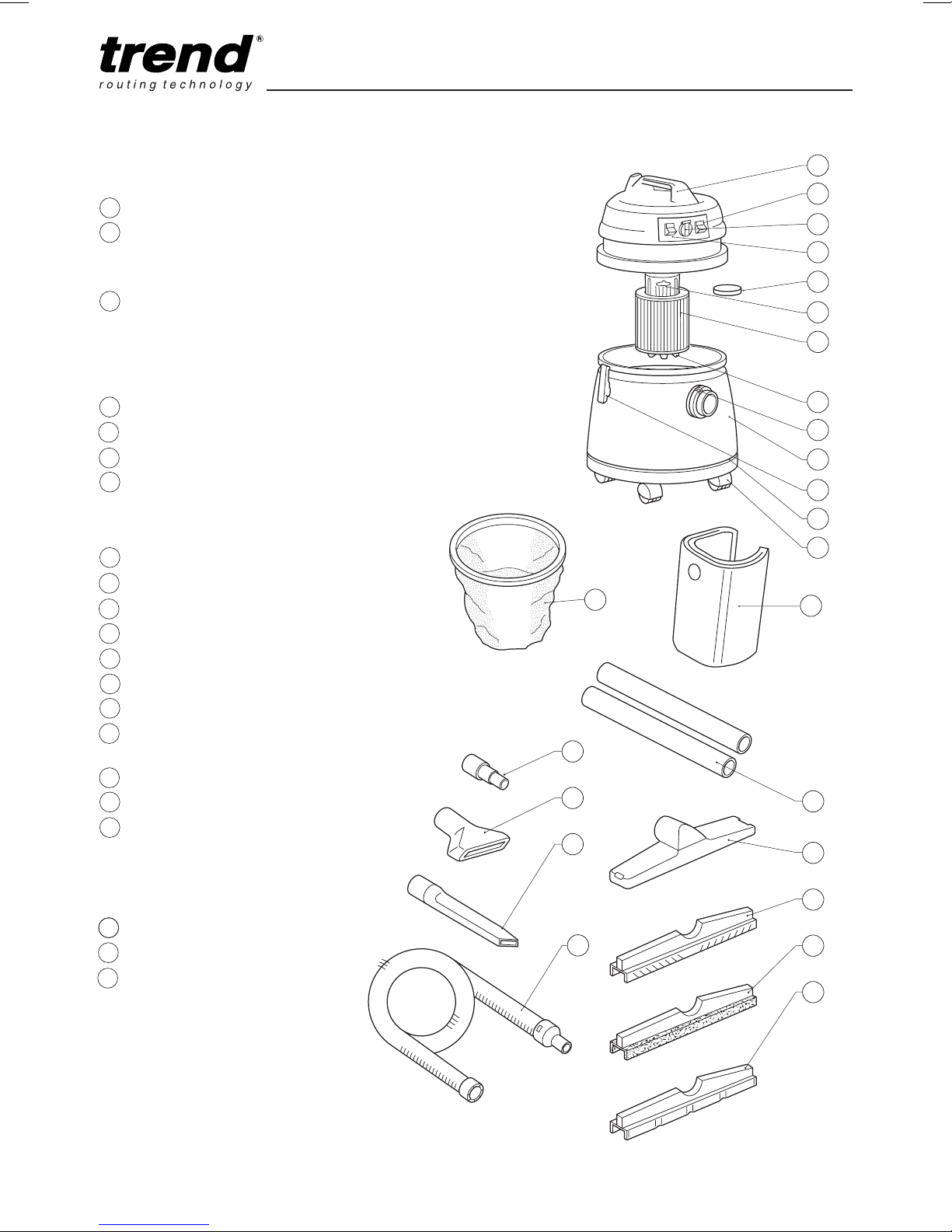

DESCRIPTION OF PARTS

1 Switch ON-OFF

2 Socket for auto-start

230V max. 2000 W safe load

110V max. 1000 W safe load

3 Switch AUTOMATIC:

Position M: vacuum cleaner running

Position A: vacuum cleaner automatically
starts when the accessories
attached to plug are activated.

4 Carrying handle

5 Motor filter

6 Float

7 Cartridge filter

-for T30A & T30/EURO (7 micron)

-for T30AF & T30ALF (0.3 micron)

8 Filter bag

9 Container

10 Cartridge filter cap

11 Container catch

12 Bumper

13 Castors

14 Hose release button

15 Cloth filter (optional) - for T30AF & T30ALF

nylon pre-filter is supplied as standard

16 Hose 5m x 36mmØ

17 Extension tubes

18 Universal spout:

a for carpets

b for floors

c for fluids

19 Crevice tool

20 Upholstery tool

21 Power tool adaptor

21

20

19

16

15

4

1

2

3

5

6

7

10

14

9

11

12

13

8

17

18

a

b

c

-7-

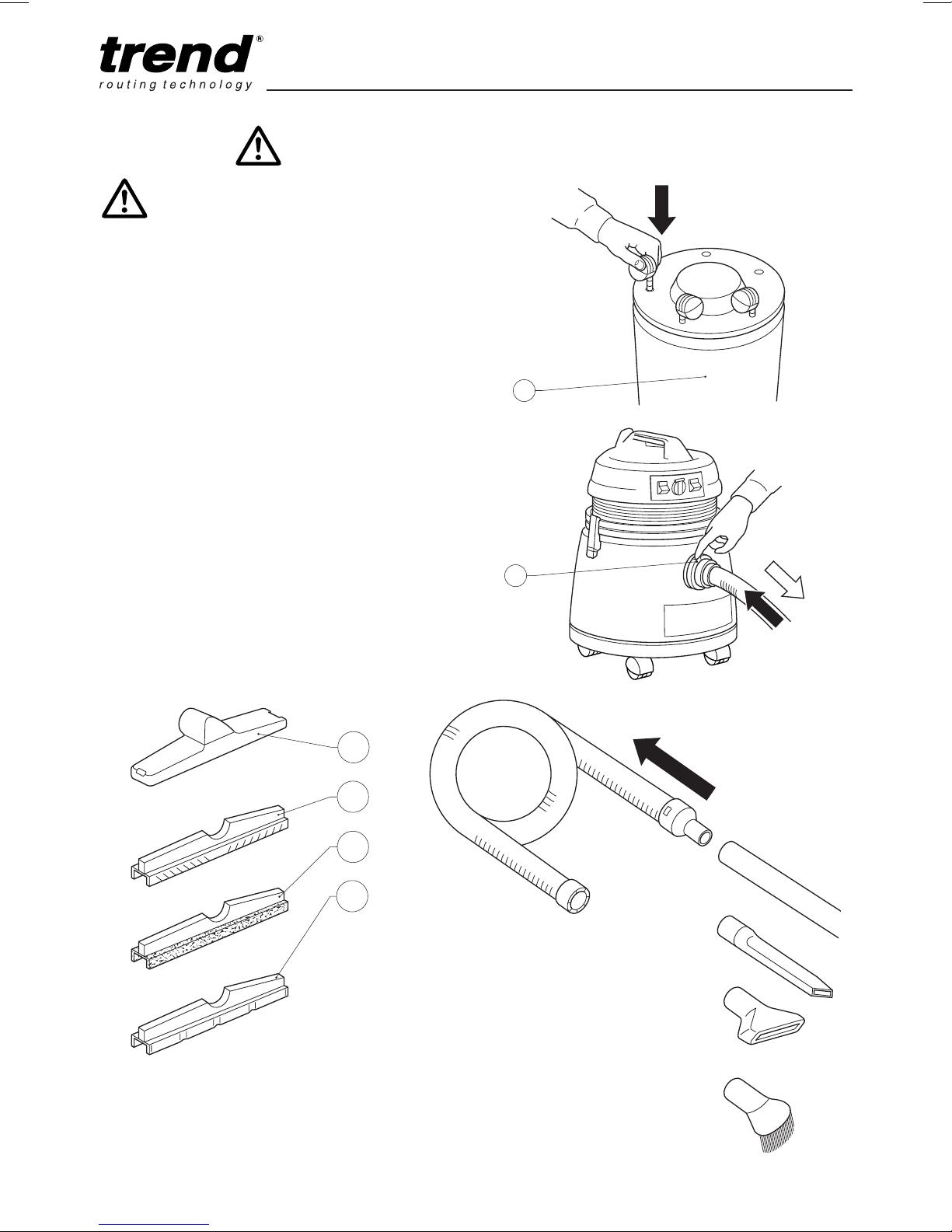

ASSEMBLY













Some of the accessories are supplied
inside the container and so must be
removed before using the unit.

n Insert the five castor wheels in their purposely

provided housings under the container (9).

n Connect the hose to container (9). To

remove it, push button (14) and pull the hose
towards you.

n The connection of the extension tubes and

of its accessories is carried out by exerting a
small amount of pressure. To remove them,
turn the parts in the opposite direction and
draw them apart.

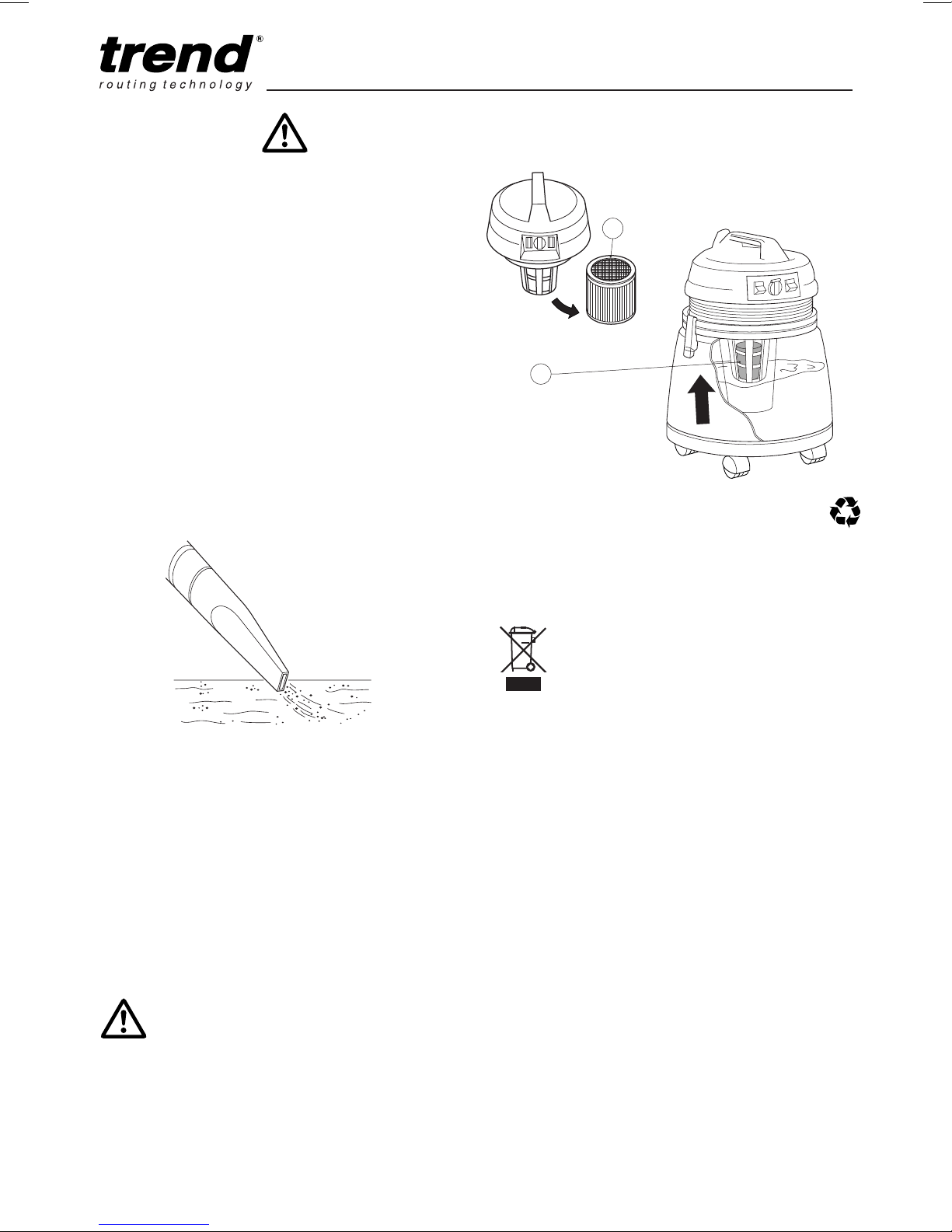

n To use the universal spout (18), follow these

instructions for:

- Carpet - without bristles (18a)

- Floor - with bristles (18b)

- Fluids - with rubber strip (18c)

T30

9

14

18

18a

18b

18c

-8-

OPERATION

Suction of Dry Dust and Dirt

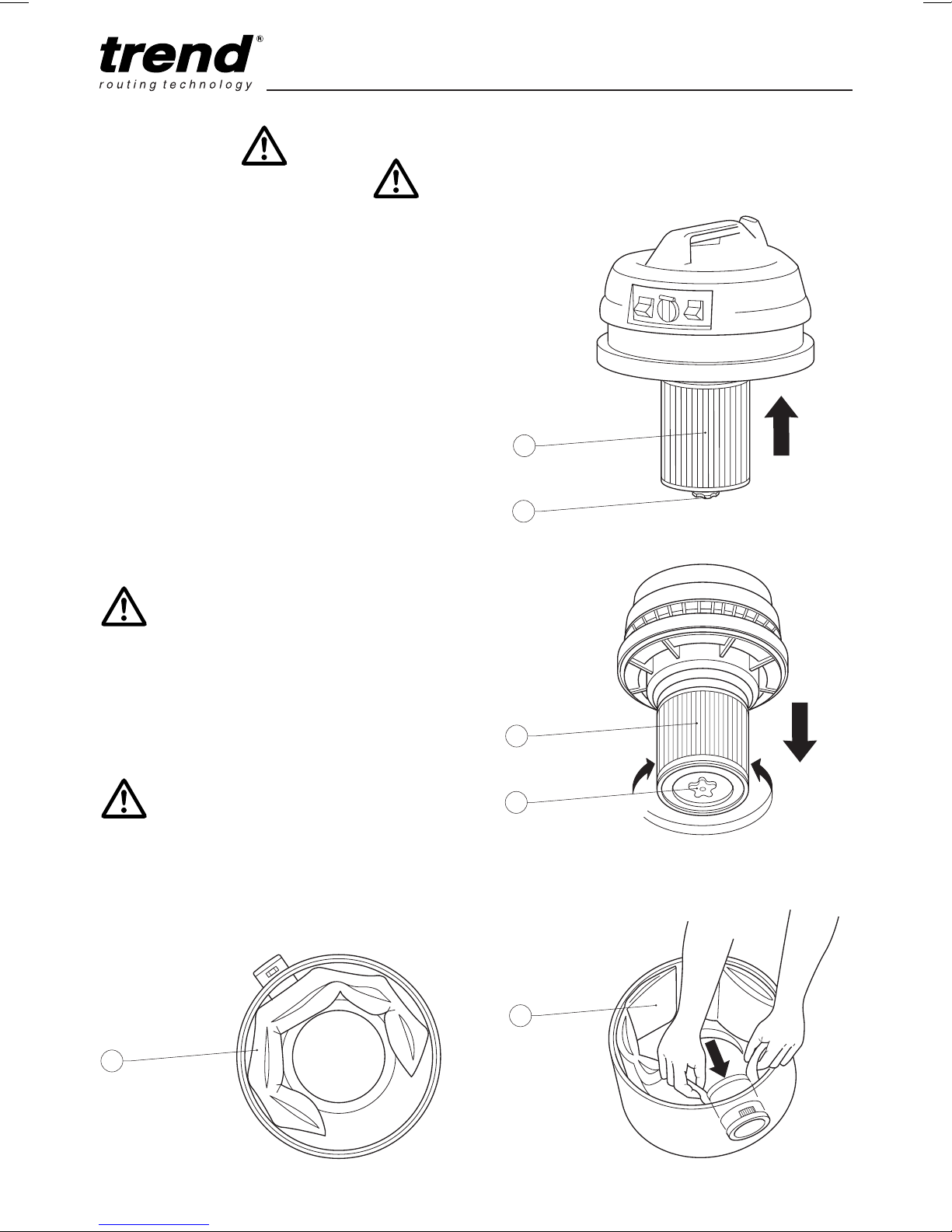

n The filter cartridge (7) has to be completely

pushed in and is secured by turning the filter
cartridge cap (10). Check that it fits correctly.

n In order to remove the cartridge filter (7)

turn the cap (10) anti-clockwise and draw
the cartridge filter. Fix the paper-filter bag
(8) to the inner side of the tube-connection
in the container, ensuring it is fully seated.
When using the paper-filter bag the dirt
can be removed more hygienically and the
life-endurance of the cartridge filter will be
extended. The paper-filter bag (8) should
never replace the cartridge filter, however the
7 micron cartridge filter can be used without
the paper-filter bag. The 0.3 micron cartridge
filter should always be used with a paper filter
bag.

T30

7

10

If suction pressure decreases, replace
the paper-filter bag with a new one.
From time to time the cartridge filter
(7) should be cleaned with a soft
brush, ensuring longer life and at the
same time higher performance.

When vacuum cleaning dry material,
always use a cartridge filter,
otherwise it could damage the motor.

8

7

10

8

-9-

Suction of Fluids

Before picking up fluids, do not forget to:

- empty container (9)

- remove paper-filter bag (8)

- remove cartridge filter (7)

Should the cartridge filter not be removed
by mistake this could lead to motor damage.
In order to guarantee enough air flow it is
recommended not to immerse it completely
in the fluids. When the fluids have reached
the highest permitted level in the container,
the float regulator (6) automatically blocks the
suction and the motor pitch will change: switch
off the vacuum cleaner IMMEDIATELY, pull
out the plug, remove the suction head from the
container and empty the container.

T30

7

6

MAINTENANCE

n After every use empty container (dirt, dust

and fluids). Never leave fluids in the tank,
these could damage the filters and container
in the course of time.

n After having picked-up fluids, dry the

extension tubes, hose and motor-parts
by running the vacuum-cleaner for a few
minutes, having emptied the container.
Always keep a reserve of filter bags and
cartridge filters, so that the vacuum cleaner is
always ready for use.

n After use store the extractor carefully.

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing
as waste.

Accessories and packaging should be sorted for
environmental-friendly recycling.

Separate collection.
This product must not be disposed of
with normal household waste.

Household Users

Local regulations may provide for separate
collection of electrical products from the
household, at municipal waste sites or by retailer
when you purchase a new product.

Please call Trend Customer Services for
advice as to how to dispose of unwanted Trend
electrical products in an environmentally safe
way or visit www.trend-uk.com

Business Users

Please call Trend Customer Services for
disposal of unwanted Trend electrical products.

GUARANTEE

Before plugging in your extractor, make
sure that the power switch of your
power tool has been TURNED OFF to
avoid its accidental starting. Remember
the power tool socket is always live
when your extractor is plugged in.

The unit carries a manufacturers guarantee in
accordance with the conditions on the enclosed
guarantee card.

For the location of your nearest Trend Service
Agent, please call Trend Customer Services or
see our stockist locator at www.trend-uk.com.

-10-

T30

Please use only Trend original spare parts.

T30 - SPARE PARTS LIST v4.1 04/2013
No. Qty. Desc. Ref.

1 1 Container Housing WP-T30/001
2 1 Motor Cover WP-T30/002
3 1 Motor Housing WP-T30/003
4 2 Container Clip WP-T30/004
5 5 Castor WP-T30/005
6 1 3 Core Cable with Plug 230V UK WP-T30/006
1 2 Core Cable with Plug 230V EURO WP-T30EUR/006
1 3 Core Cable with Plug 110V UK WP-T30L/006
7 1 Cable Clip WP-T30/007
8 1 Washer 5.2mm x 11mm x 1.0mm WP-T30/008
9 1 Screw Self Tapping Pan 4.8mm x 19mm Pozi WP-T30/009
10 1 Circuit Board with Leads 230V UK & EURO WP-T30A/010
1 Circuit Board with Leads 110V UK WP-T30AL/010
11 1 Lead Earth (yellow/green x 115mm) WP-T30A/011
12 15 Screw Self Tapping Pan 3.5mm x 19mm Pozi WP-T30/012
13 1 Cable Block UK WP-T30/013
1 Cable Block EURO WP-T30EUR/013
14 1 Circuit Board Band WP-T30/014
15 1 Switch Cover Plate 230V UK WP-T30A/015
1 Switch Cover Plate 230V EURO & 110V UK WP-T30EUR/015
16 - - ­ 17 1 Auto Start Socket 230V UK Plug & Cover WP-T30A/017
1 Auto Start Socket & Plate 230V EURO Plug & Cover WP-T30EUR/017
1 Auto Start Socket & Plate 110V UK Plug WP-T30AL/017
18 7 Screw Self Tapping Csk 3.5mm x 17mm Pozi WP-T30/018
19 1 Switch Autostart AM 230V UK WP-T30A/019
1 Switch Autostart AM 230V EURO WP-T30EUR/019
1 Switch Autostart AM 110V UK WP-T30AL/019
20 1 Switch On-Off 230V UK & EURO WP-T30/020
1 Switch On-Off 110V UK WP-T30L/020
21 1 Rubber Bumper WP-T30/021
22 1 Foam Baffle Set Upper Housing WP-T30/022
23 1 Rubber Seal Set WP-T30/023
24 1 Rubber Grommet Plug WP-T30/024
25 4 Push-on Fastner 5mm Shaft WP-T30/025
26 1 Foam Baffle for Switch WP-T30/026
27 1 Neoprene Seal WP-T30/027
28 1 Foam Filter for Motor WP-T30/028
29 1 Rubber Seal for Motor Small WP-T30/029
30 1 Rubber Gasket for Housing/Motor WP-T30/030
31 1 Motor Assembly c/w Leads 230V WP-T30/031
1 Motor Assembly c/w Leads 110V UK WP-T30L/031
32 1 Carbon brush 230V (1 pair) WP-T30/032
1 Carbon brush 110V (1 pair) UK WP-T30L/032
33 1 Rubber Gasket for Motor Large WP-T30/033
34 1 Lower Motor Housing WP-T30/034
35 1 Foam Baffle Lower Housing WP-T30/035
36 1 Rubber Grummet External WP-T30/036
37 1 Float WP-T30/037
38 1 Float Cage WP-T30/038

-11-

T30

T30 - SPARE PARTS LIST v4.1 04/2013
No. Qty. Desc. Ref.

40 1 Cartridge Filter 12 Micron (T30A) T30/6
1 Cartridge Filter 0.3 Micron (T30AF & T30ALF) T30/5
41 1 Cartridge Filter Cap Plate WP-T30/041
42 1 Cartridge Filter Cap WP-T30/042
43 1 Container Hose Bayonet Fitting WP-T30/043
44 1 Paper Filter Bag T30/1
45 1 Hose Adaptor 36mm WP-T30/045
46 1 Hose Bayonet 36mm WP-T30/046
47 1 Hose Adaptor Fitting WP-T30/047
48 2 Hose Adaptor Clip WP-T30/048
49 1 Hose Only 5m x 36mm WP-T30/049
50 0 Hose 36mm x 5m c/w Fittings WP-T30/050
51 2 Extension Tube WP-T30/051
52 1 Universal Spout WP-T30/052
53 1 Universal Brush for Carpets WP-T30/053
54 1 Universal Brush for Floors WP-T30/054
55 1 Universal Brush for Fluids WP-T30/055
56 1 Power Tool Adaptor 36mm Hose WP-T30/056
57 1 Upholstery Tool 36mm Hose WP-T30/057
58 1 Crevice Tool 36mm Hose WP-T30/058
59 0 Nylon Pre-filter T30/3
(Supplied as standard with T30AF & T30ALF)
60 1 Manual MANU/T30

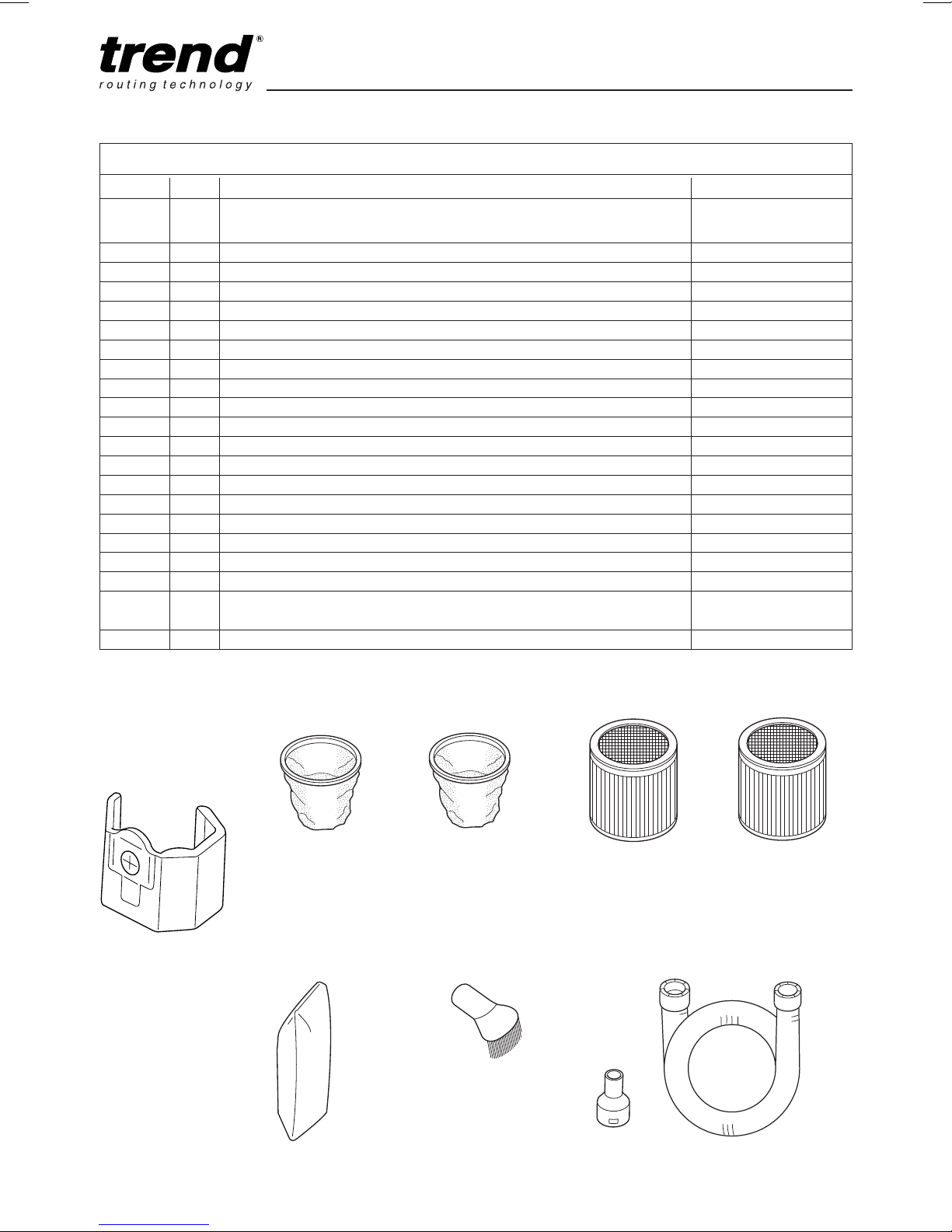

ACCESSORIES

Please use only Trend original accessories.

Cloth pre-filter
for normal/dry
use. Ideal for use
with 12 micron
cartridge filter.

Paper Filter Bag

Ref. T30/1 1 off
T30/15 5 off
T30/10 10 off

Synthetic Filter Bag

Ref. T30/1/A 1 off
T30/15/A 5 off
T30/10/A 10 off

Ref. T30/2

No foam
filter to
prevent
foaming
when used
for wet use.

Ref. T30/4

Nylon pre-filter for
fine dust and wet
& dry use. Use
with 0.3 micron
cartirdge filter.

Ref. T30/3

Hose adaptor joint
57/58mm to 36mm

Ref. T30/21

0.3 micron
cartridge filter for
fine dust. Use with
nylon pre-filter.

Ref. T30/5

Furniture Brush

Ref. T30/20

7 micron
replacement
cartridge filter

Ref. T30/6

Hose
58mm
x 1.5m.

Ref.
T30/22

-12-

T30

T30 - SPARE PARTS DIAGRAM v4.1 04/2013

-IB-

MANU/T30 v9.1

© Copyright Trend 2013. No part of this publication may be reproduced, stored or transmitted in any form without prior permission. Our

policy of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools cannot be

held liable for any material rendered unusable or any form of consequential loss. E&OE

Trend Machinery & Cutting Tools Ltd.

Odhams Trading Estate St Albans Road
Watford WD24 7TR England

Tel: [phone]
[email protected]

RECYCLABLE

® All registered trademarks acknowledged.

www.trend-uk.com
