Trend RBT/1 Additional information

Routabout

RBT

INST/RBT v4.0

ROUTABOUT
REF. RBT

Thank you for purchasing this Trend product,
which should give lasting performance if used
in accordance with these instructions.

The following symbols are used throughout
these instructions.

Denotes risk of personal injury,

loss of life or damage to the tool
in case of non-observance of the
instructions.

Refer to the instruction manual of

your power tool.

This unit must not be put into service until it
has been established that the power tool to
be connected to this unit is in compliance with
2006/42/EC (identified by the CE marking on
the power tool).

INTENDED USE

This accessory is intended to be used with a
plunge router, with suitable guide bush and
cutter fitted to rout access holes in suitable
thickness chipboard, plywood or sterling
board floors. The ring and waste piece is then
placed in the hole.

Access hole diameter 250mm.
Floor thickness 18mm - Ref. RBT/1 or RBT/3.
Floor thickness 22mm - Ref RBT/2 or RBT/4.

Max. load capacity - 200kg.

Please refer to Building Regulations
Approved Document B, and any
amendments before use of the accessory.

Ensure working position is comfortable
and component is clamped securely.

Keeping proper footing and balance at
all times.

Consider working environment before
using tools.

SAFETY

Please read and understand the safety points
at end of this instruction as well as the power
tool instructions before use.

PLEASE KEEP THESE INSTRUCTIONS IN A
SAFE PLACE.

The attention of UK users is drawn to The
Provision and Use of Work Equipment
Regulations 1998, and any subsequent
amendments.

Users should also read the HSE/HSC Safe
Use of Woodworking Machinery Approved
Code of Practice and Guidance Document and
any amendments.

Users must be competent in using woodworking
equipment before using our products.

Ensure working position is comfortable and
component is clamped securely. Consider
working environment before using tools.

Please keep children and visitors away from
tools and work area. All power tools will have
a residual risk, so must therefore be operated
with caution.

ITEMS REQUIRED

n Plunge router with suitable size collet fitted.
n No.2 Pozi® screwdriver.

Ref. Unibase

For certain makes of router, a sub-base will be
required to allow the guide bush to be fitted.

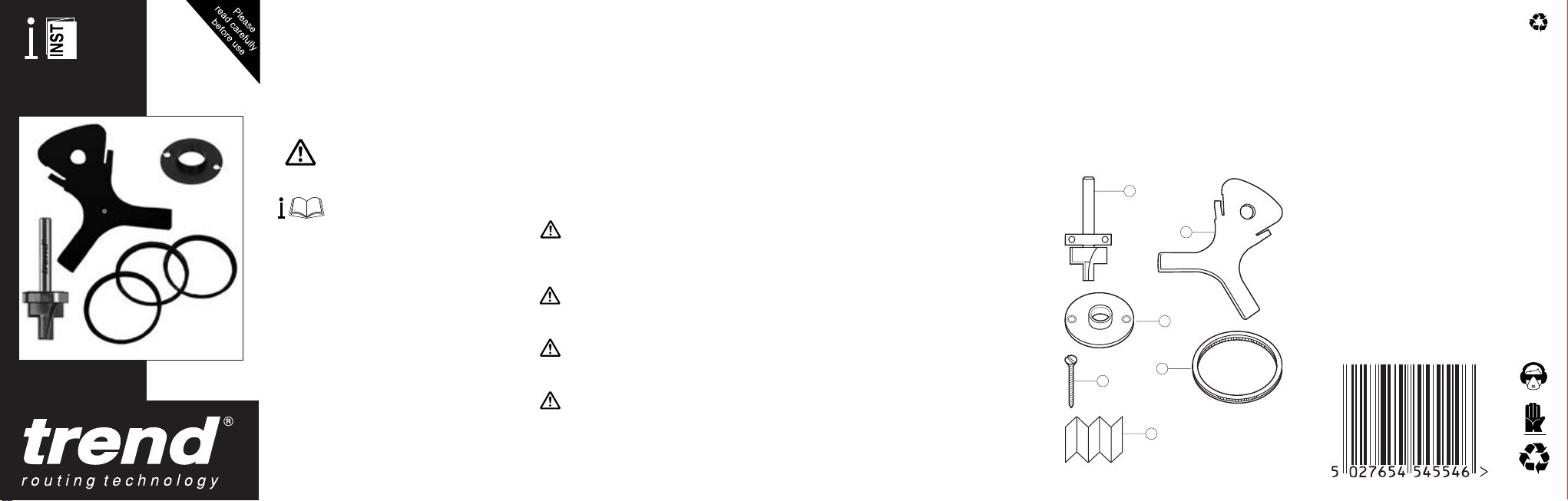

ITEMS ENCLOSED & DESCRIPTION
OF PARTS

A. Template x1
B. Tungsten carbide tipped cutter x1
C. Routabout ring x3
D. 30mm plastic guide bush x1
E. Fixing screw x1
F. Instructions x1

B

A

D

C

E

F

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing
as waste.

Packaging should be sorted for environmental­friendly recycling.
The product and its accessories at the end
of its life should be sorted for environmental­friendly recycling.

GUARANTEE

All Trend products are guaranteed against
any defects in either workmanship or material,
except products that have been damaged due
to improper use or maintenance.

© Trend Machinery & Cutting Tools Ltd. 2013, 2016 E&OE
® All trademarks acknowledged

Trend Machinery & Cutting Tools Ltd.

Odhams Trading Estate St Albans Road
Watford WD24 7TR England

Tel: [phone]
[e-mail]
www.trend-uk.com

PTO

RECYCLABLE

ASSEMBLY

Guide Bushes

The bush supplied with the jig is standard
Trend pattern. It will fit most Trend, Elu and
Dewalt routers directly.

For other makes and model of router a sub­base may be required to allow the guide bush
to be fitted. The Universal sub-base Ref.
UNIBASE has been designed for use with a
variety of routers; it also ensures concentricity
between cutter and guide bush ensuing
accuracy.

Setting up the Router

1. Isolate router from power supply.

2. Fit guide bush to router.

3. Fit router cutter into router.

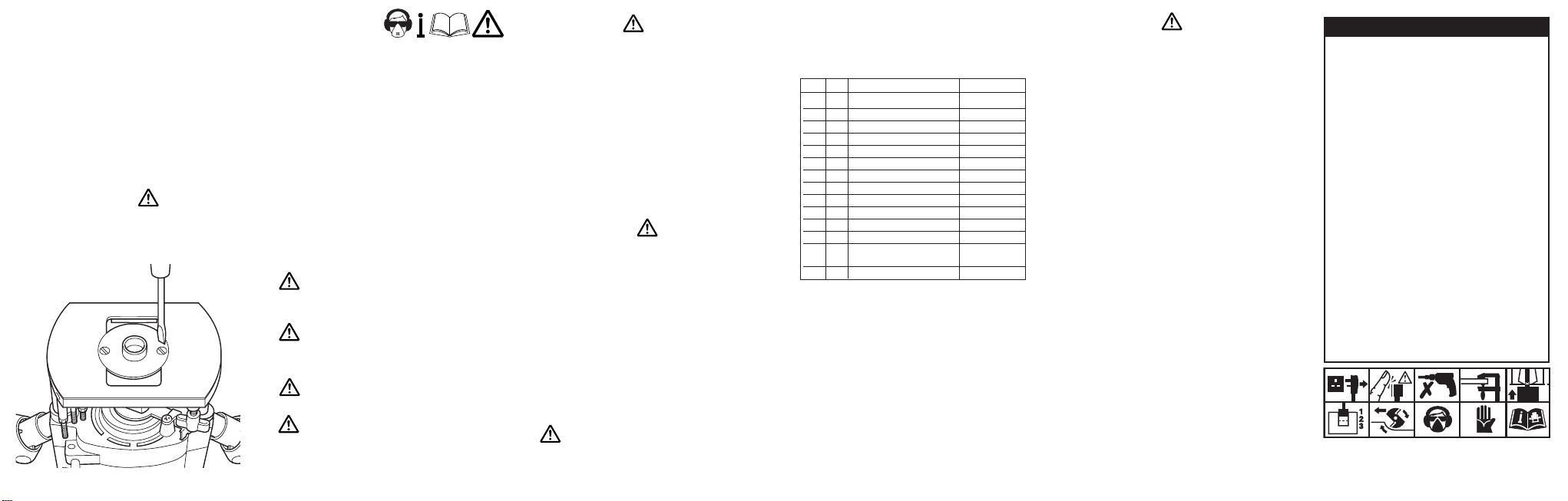

OPERATION

n Screw the template with a No. 8 (4.0mm)

countersink particleboard screw using
a No.2 Pozi® screwdriver. Release
sufficiently to enable template to rotate
freely.

n Locate the router, with the cutter and guide

bush fitted, into the template. Rout at
increased depths in a clockwise direction,
keeping the pressure towards the outside.
Lock the router plunge on each cut.

n Take several shallow passes in a clockwise

direction until the cutter routs through the
flooring.

n Unscrew the template from the waste

piece.

n Place spacer ring into hole, invert the waste

piece, and place this inside the spacer ring.

Ensure fixing screw does not foul the
router base.

The ball bearing on the cutter is used as a
depth stop and is a consumable item.

Recommended speed is 24,000 rpm.

Tips for Use

Remove nails in path of cutter before

n

routing.

Ensure the router, collet and cutter, are

n

aligned correctly with the guide bush.

n

Make sure the bearing on the router cutter

is free and rotates freely before use.

Always rout in a clockwise direction.

n
n

Keep pressure towards the outside handle

of the router when routing.

n Routers will have some lateral movement

on the plunge in relation to the base,
therefore when routing it is advisable to
lock the plunge.

Trouble Shooting
There is an in-built tolerance between the jig

and insert. The ring will be a good fit in the
hole, but not overly tight to allow for easy
access. If the ring or insert is too tight, check:-

Concentricity between guide bush and

n

cutter.

n Routing direction is clockwise.
n A 30mm diameter guide bush is used.
n Pressure is applied to the outside handle

of the router.

n Router plunge is locked for each pass.
After use, store template and cutter carefully.

SPARE PARTS

Please use only Trend original spare parts and
accessories.

Item Qty. Desc. Ref. (1 off)

A 1 Routabout Template RBT/PLATE

B 1 Cutter 18mm x 1/4” Shank TCT RBT/CUT/1
Cutter 18mm x 1/2” Shank TCT RBT/CUT/2
Cutter 22mm x 1/4” Shank TCT RBT/CUT/3
Cutter 22mm x 1/2” Shank TCT RBT/CUT/4
C 1 Rbt Ring 18mm (Pack 10) RBTRNG18/10
Rbt Ring 18mm (Pack 100) RBTRBG18/100
Rbt Ring 18mm (Pack 250) RBTRBG18/250
Rbt Ring 22mm (Pack 10) RBTRNG22/10
Rbt Ring 22mm (Pack 100) RBTRBG22/100
Rbt Ring 22mm (Pack 250) RBTRBG22/250
D 1 30mm Guide Bush GB30
E 1 4.0mm (No. 8) x 25mm

Woodscrew Pozi WP-SCW/100
F 1 Instructions INST/RBT

MAINTENANCE

Please use only Trend original spare parts
and accessories.

This product has been designed to operate
over along period of time with minimum
maintenance.

Continual satisfactory operation depends upon
proper tool care and regular cleaning.

Cleaning

n Ensure clamping surfaces on cutter and

collet are cleaned to remove dirt, grease
and oil.

Apply a rust protector to shanks. Do not

n

use rust protector on ball bearing guides.

Regularly clean jig with a soft cloth.

n

Lubrication

n Your accessory requires no additional

lubrication.

Storage

n Always return product and cutter to its

packaging after use .

Safety Points

1. Disconnect power tool and attachment from power supply when

not in use, before servicing, when making adjustments and when
changing accessories such as cutters. Ensure switch is in “off”
position and cutter has stopped rotating.

2. Read and understand instructions supplied with power tool, attachment
and cutter.

3. Current Personal Protective Equipment (PPE) for eye, ear and
respiratory protection must be worn. Keep hands, hair and clothes
clear of the cutter.

4. Before each use check cutter is sharp and free from damage. Do not
use if cutter is dull, broken or cracked or if any damage is noticeable or
suspected.

5. The maximum speed (nmax) marked on tool or in instructions or on
packaging shall not be exceeded. Where stated, the speed range
should be adhered to.

6. Insert the shank into the router collet at least all the way to the marked
line indicated on the shank. This ensures at least 3/4 of shank length is
held in collet. Ensure clamping surfaces are clean.

7. Check all fixing and fastening nuts, bolts and screws on power tool,
attachment and cutting tools are correctly assembled, tight and to
correct torque setting before use.

8. Ensure all visors, guards and dust extraction is fitted.

9. The direction of routing must always be opposite to the cutter’s
direction of rotation.

10. Do not switch power tool on with the cutter touching the workpiece.

11. Trial cuts should be made in waste material before starting any project.

12. Repair of tools is only allowed according to tool manufacturers
instructions.

13. Do not take deep cuts in one pass, take shallow passes to reduce the
side load applied to the cutter.

Please see www.trend-uk.com/safety for more safety advice.

Before using cutter, please ensure it is
correctly assembled and locking screw is
fully tightened.

The Routabout ring can be cut to ensure a
good fit if necessary. This will not affect its
strength.

Our policy of continuous improvements mean that
specifications may change without notice. Trend
Machinery & Cutting Tools Ltd. cannot be held liable
for any material rendered unusable, or for any form of
consequential loss.
