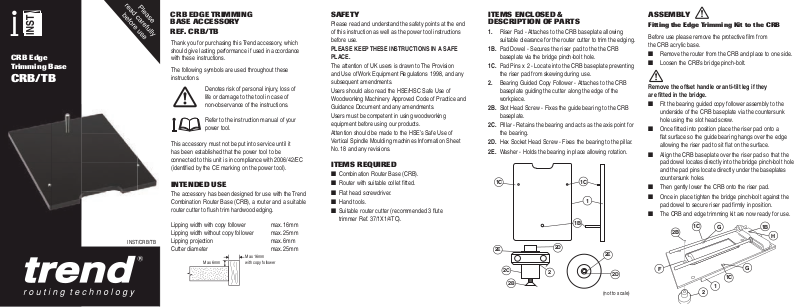

CRB Edge
Trimming Base
CRB/TB
INST/CRB/TB
CRB EDGE TRIMMING
BASE ACCESSORY
REF. CRB/TB
Thank you for purchasing this Trend accessory, which
should give lasting performance if used in accordance
with these instructions.
The following symbols are used throughout these
instructions.
Denotes risk of personal injury, loss of
life or damage to the tool in case of
non-observance of the instructions.
Refer to the instruction manual of your
power tool.
This accessory must not be put into service until it
has been established that the power tool to be
connected to this unit is in compliance with 2006/42/EC
(identifi ed by the CE marking on the power tool).
INTENDED USE
The accessory has been designed for use with the Trend
Combination Router Base (CRB), a router and a suitable
router cutter to fl ush trim hardwood edging.
Lipping width with copy follower max. 16mm
Lipping width without copy follower max. 25mm
Lipping projection max. 6mm
Cutter diameter max. 25mm
Max 6mm
Max 16mm
with copy follower
SAFETY
Please read and understand the safety points at the end
of this instruction as well as the power tool instructions
before use.
PLEASE KEEP THESE INSTRUCTIONS IN A SAFE
PLACE.
The attention of UK users is drawn to The Provision
and Use of Work Equipment Regulations 1998, and any
subsequent amendments.
Users should also read the HSE/HSC Safe Use of
Woodworking Machinery Approved Code of Practice and
Guidance Document and any amendments.
Users must be competent in using woodworking
equipment before using our products.
Attention should be made to the HSE’s Safe Use of
Vertical Spindle Moulding machines Information Sheet
No. 18 and any revisions.
ITEMS REQUIRED
■ Combination Router Base (CRB).
■ Router with suitable collet fi tted.
■ Flat head screwdriver.
■ Hand tools.
■ Suitable router cutter (recommended 3 fl ute
trimmer Ref. 37/1X1/4TC).
ITEMS ENCLOSED &
DESCRIPTION OF PARTS
1. Riser Pad - Attaches to the CRB baseplate allowing
suitable clearance for the router cutter to trim the edging.
1B. Pad Dowel - Secures the riser pad to the the CRB
baseplate via the bridge pinch-bolt hole.
1C. Pad Pins x 2 - Locate into the CRB baseplate preventing
the riser pad from skewing during use.
2. Bearing Guided Copy Follower - Attaches to the CRB
baseplate guiding the cutter along the edge of the
workpiece.
2B. Slot Head Screw - Fixes the guide bearing to the CRB
baseplate.
2C. Pillar - Retains the bearing and acts as the axis point for
the bearing.
2D. Hex Socket Head Screw - Fixes the bearing to the pillar.
2E. Washer - Holds the bearing in place allowing rotation.
1C
2E
2C
2B
2
1C
1
1B
2D
2E
2D
(not to scale)
ASSEMBLY
Fitting the Edge Trimming Kit to the CRB
Before use please remove the protective fi lm from
the CRB acrylic base.
■ Remove the router from the CRB and place to one side.
■ Loosen the CRB’s bridge pinch-bolt.
Remove the offset handle or anti-tilt leg if they
are fi tted in the bridge.
■ Fit the bearing guided copy follower assembly to the
underside of the CRB baseplate via the countersunk
hole using the slot head screw.
■ Once fi tted into position place the riser pad onto a
fl at surface so the guide bearing hangs over the edge
allowing the riser pad to sit fl at on the surface.
■ Align the CRB baseplate over the riser pad so that the
pad dowel locates directly into the bridge pinch-bolt hole
and the pad pins locate directly under the baseplates
countersunk holes.
■ Then gently lower the CRB onto the riser pad.
■ Once in place tighten the bridge pinch-bolt against the
pad dowel to secure riser pad fi rmly in position.
■ The CRB and edge trimming kit are now ready for use.
1C
2B
F
G
1C
1
2
1B
H
G
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing as waste.
Packaging should be sorted for environmental-friendly
recycling.
The product and its accessories at the end of its life
should be sorted for environmental-friendly recycling.
GUARANTEE
All Trend products are guaranteed against any defects
in either workmanship or material, except products that
have been damaged due to improper use or maintenance.
© Trend Machinery & Cutting Tools Ltd. 2012 E&OE
® All trademarks acknowledged
Trend Machinery & Cutting Tools Ltd.
Odhams Trading Estate St Albans Road
Watford WD24 7TR England
Tel: 0044(0)1923 249911
technical@trendm.co.uk
www.trend-uk.com
RS 28982
Stockholding
& Supply
RECYCLABLE
Hardwood & Iron-on Edging
Trim Instructions
The CRB fi tted with the edge trimming kit is a fast and
accurate method of consistently trimming solid hardwood
and iron on edging fl ush with its core panel.
Positioning of the Router Cutter
■ Fit the edge trimming kit to the CRB as detailed above.
■ Slide the router onto the CRB guide rods and butt the
router base edge up against the bridge.
■ Position the CRB baseplate so that the guide bearing
over hangs the workpiece and butts up against the
workpiece edging.
■ Slide the router forward so that the router cutter can
safely pass through the CRB riser pad letterbox and
position the router cutter directly over the edging to be
routed.
■ Lock the router pinch-bolt on the CRB’s adjuster rod
and micro adjuster if required.
Workpiece
Edging
2
Edging
Workpiece
Always isolate router from power supply before
making any adjustments.
If the edging width exceeds 16mm remove the bearing
guided copy follower assembly and take multiple
routing passes. The fi rst pass should slightly overlap
the core board, for subsequent passes incrementally
work outwards over the outside edge of the hardwood
lipping until fl ush with the core board.
Setting the Router Cutter Depth
■ Take the CRB router assembly and position onto a fl at
surface with the guide bearing butted against the edge.
Setting the depth of the router cutter should be
carried out on a separate work surface to avoid
damaging your work piece.
■ Lower the router cutter so that the cutter tip just makes
contact with the surface and lock the router cutter
height in.
■ Test the router cutter depth by sliding the CRB router
assembly over a flat waste board. The router cutter
should just make a slight mark - but not actually
remove any material from the surface of the waste
board.
2
Test surface
OPERATION
Flush Trimming the Edging
■ Return the CRB router assembly so that its resting on
the end of the workpiece.
■ Plug the router into the power supply.
■ Turn the router on and feed the CRB router assembly
along the length of the edging, ensure the guide
bearing remains in contact with the board edge at all
times.
■ The edging should now be flush with the workpiece
surface. At the end of the router pass,
turn off the router.
After use remove accessory and store carefully.
2
Edging
MAINTENANCE
Please use only Trend original spare parts.
Continual satisfactory operation depends upon proper
tool care and regular cleaning.
Cleaning
■ Regularly clean accessory with a soft cloth.
Lubrication
■ Your accessory requires no additional lubrication.
Storage
■ Return accessory to its packaging after use.
Workpiece
Safety Points
1. Disconnect power tool and attachment from power supply when
not in use, before servicing, when making adjustments and when
changing accessories such as cutters. Ensure switch is in “off”
position and cutter has stopped rotating.
2. Read and understand instructions supplied with power tool,
attachment and cutter.
3. Current Personal Protective Equipment (PPE) for eye, ear and
respiratory protection must be worn. Keep hands, hair and clothes
clear of the cutter.
4. Before each use check cutter is sharp and free from damage.
Do not use if cutter is dull, broken or cracked or if any damage
is noticeable or suspected.
5. The maximum speed (nmax) marked on tool or in instructions or
on packaging shall not be exceeded. Where stated, the speed
range should be adhered to.
6. Insert the shank into the router collet at least all the way to the
marked line indicated on the shank. This ensures at least 3/4 of
shank length is held in collet. Ensure clamping surfaces are clean.
7. Check all fi xing and fastening nuts, bolts and screws on power tool,
attachment and cutting tools are correctly assembled, tight and to
correct torque setting before use.
8. Ensure all visors, guards and dust extraction is fi tted.
9. The direction of routing must always be opposite to the cutter’s
direction of rotation.
10. Do not switch power tool on with the cutter touching the workpiece.
11. Trial cuts should be made in waste material before starting any
project.
12. Repair of tools is only allowed according to tool manufacturers
instructions.
13. Do not take deep cuts in one pass, take shallow passes to reduce
the side load applied to the cutter.
Please see www.trend-uk.com/safety for more safety advice.
Our policy of continuous improvements mean that specifi cations
may change without notice. Trend Machinery & Cutting Tools Ltd.
cannot be held liable for any material rendered unusable, or for any
form of consequential loss.
