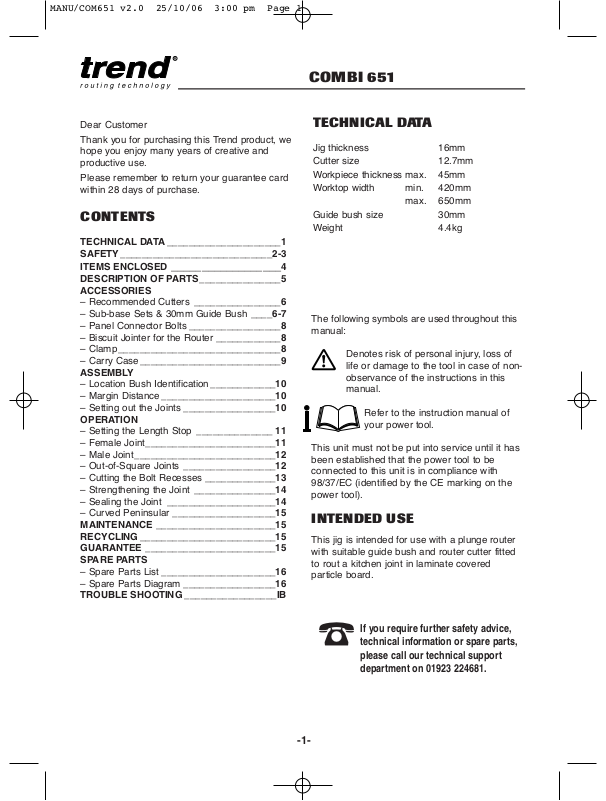

TREND COMBI 651 User Manual

COMBI 651

-1-

Dear Customer

Thank you for purchasing this Trend product, we
hope you enjoy many years of creative and
productive use.

Please remember to return your guarantee card
within 28 days of purchase.

The following symbols are used throughout this
manual:

Denotes risk of personal injury, loss of
life or damage to the tool in case of non­observance of the instructions in this
manual.

Refer to the instruction manual of
your power tool.

This unit must not be put into service until it has
been established that the power tool to be
connected to this unit is in compliance with
98/37/EC (identified by the CE marking on the
power tool).

INTENDED USE

This jig is intended for use with a plunge router
with suitable guide bush and router cutter fitted
to rout a kitchen joint in laminate covered
particle board.

TECHNICAL DATA

Jig thickness 16mm
Cutter size 12.7mm
Workpiece thickness max. 45mm
Worktop width min. 420mm

max. 650mm
Guide bush size 30mm
Weight 4.4kg

CONTENTS

TECHNICAL DATA _____________________1
SAFETY ____________________________2-3

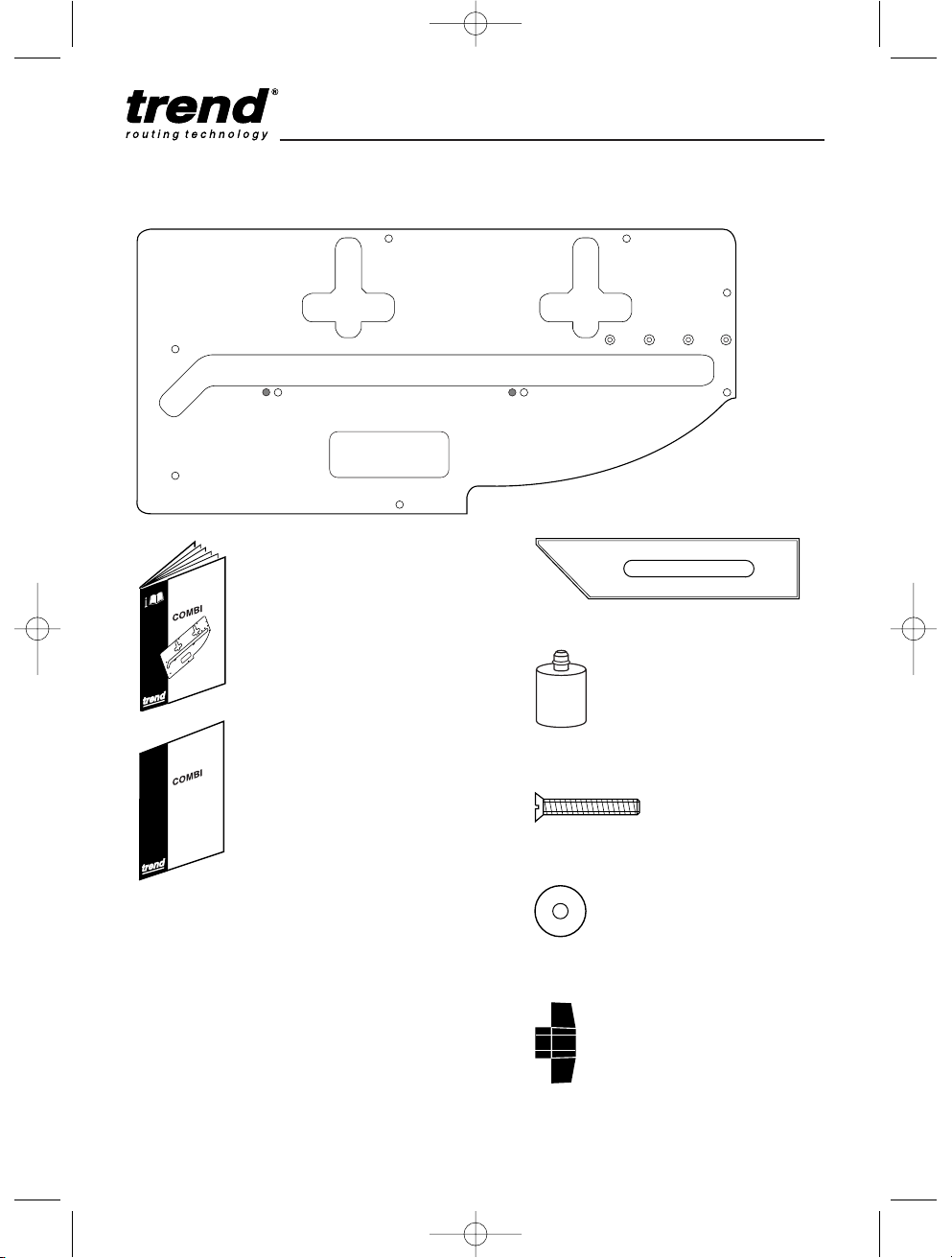

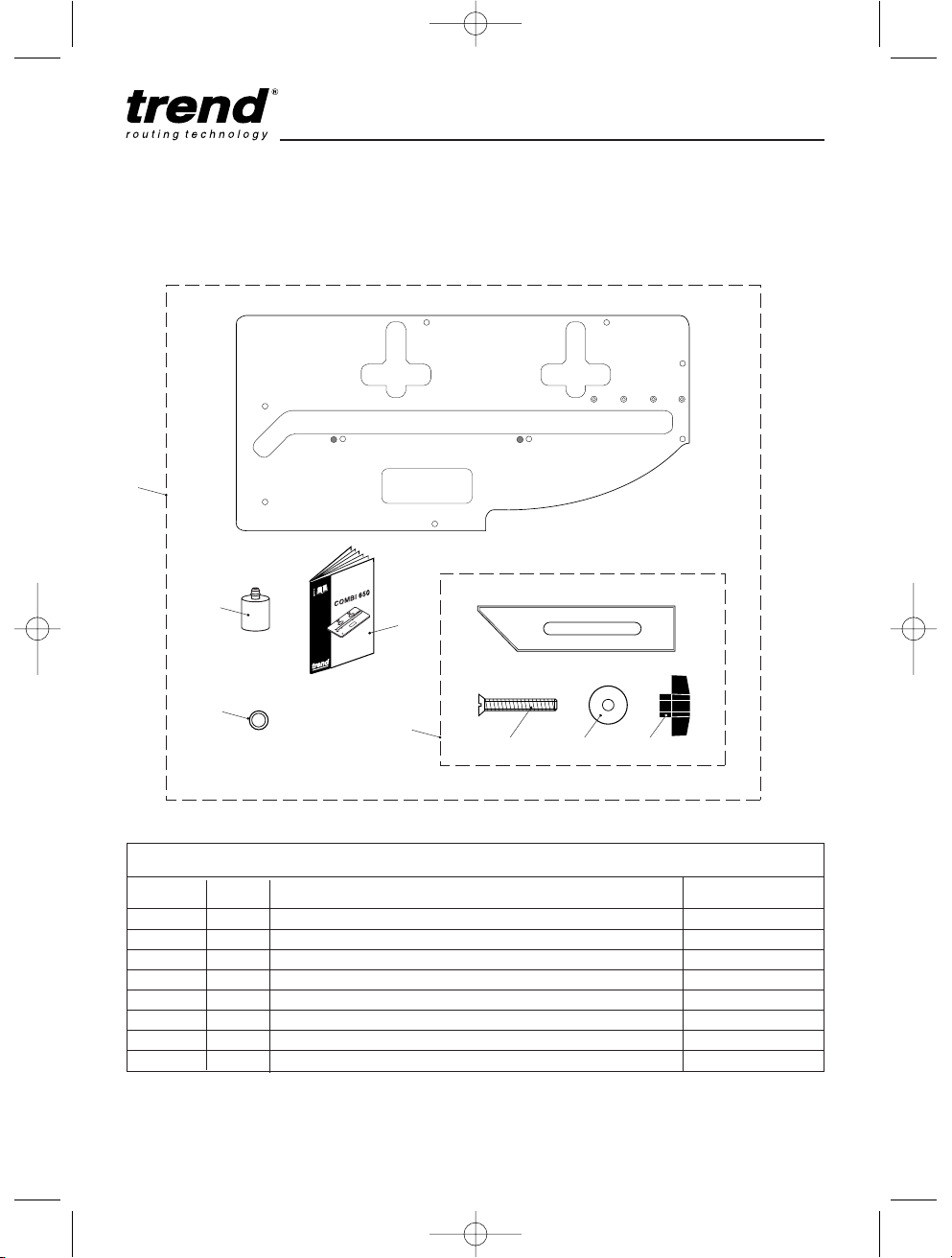

ITEMS ENCLOSED

__________________4

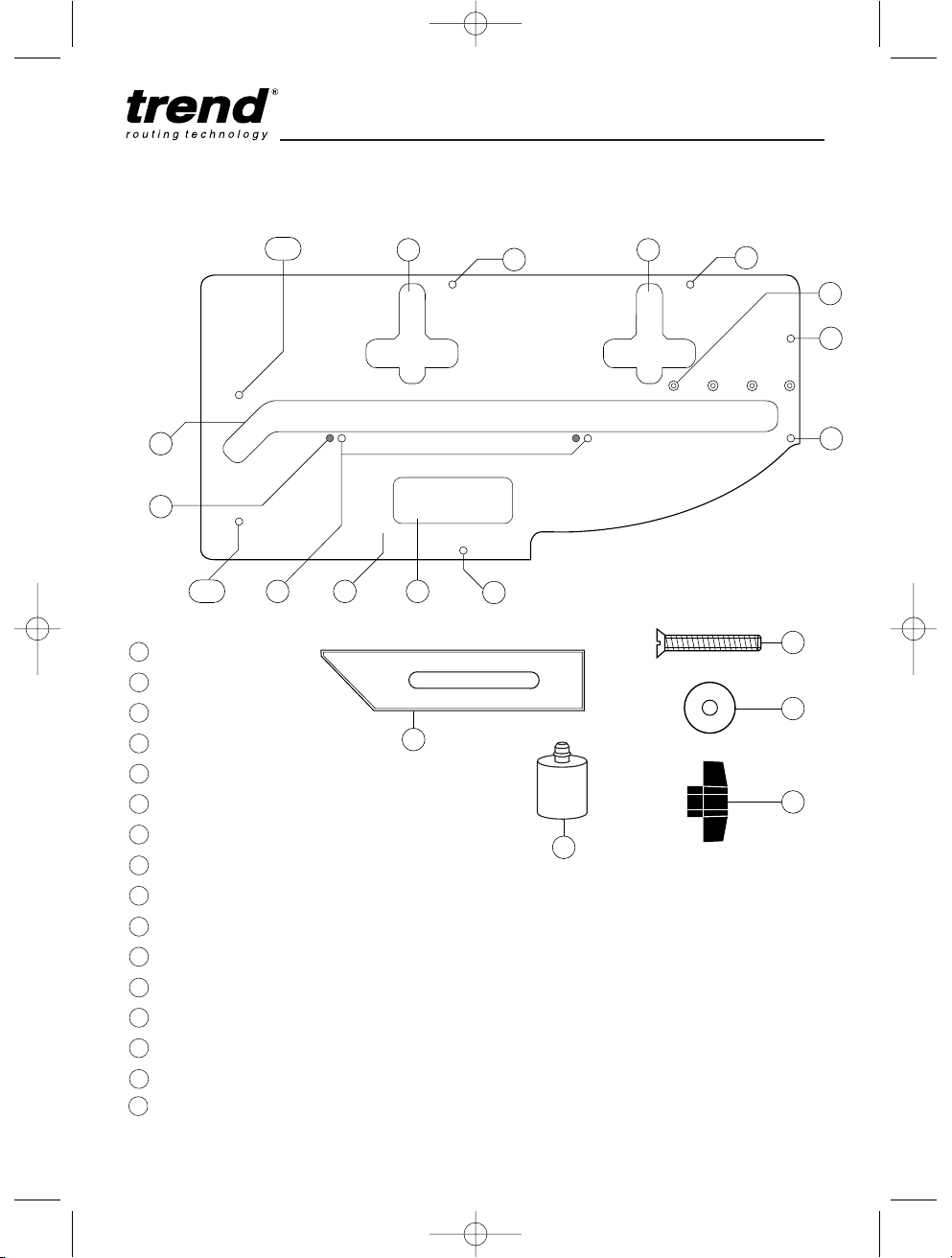

DESCRIPTION OF PARTS_______________5

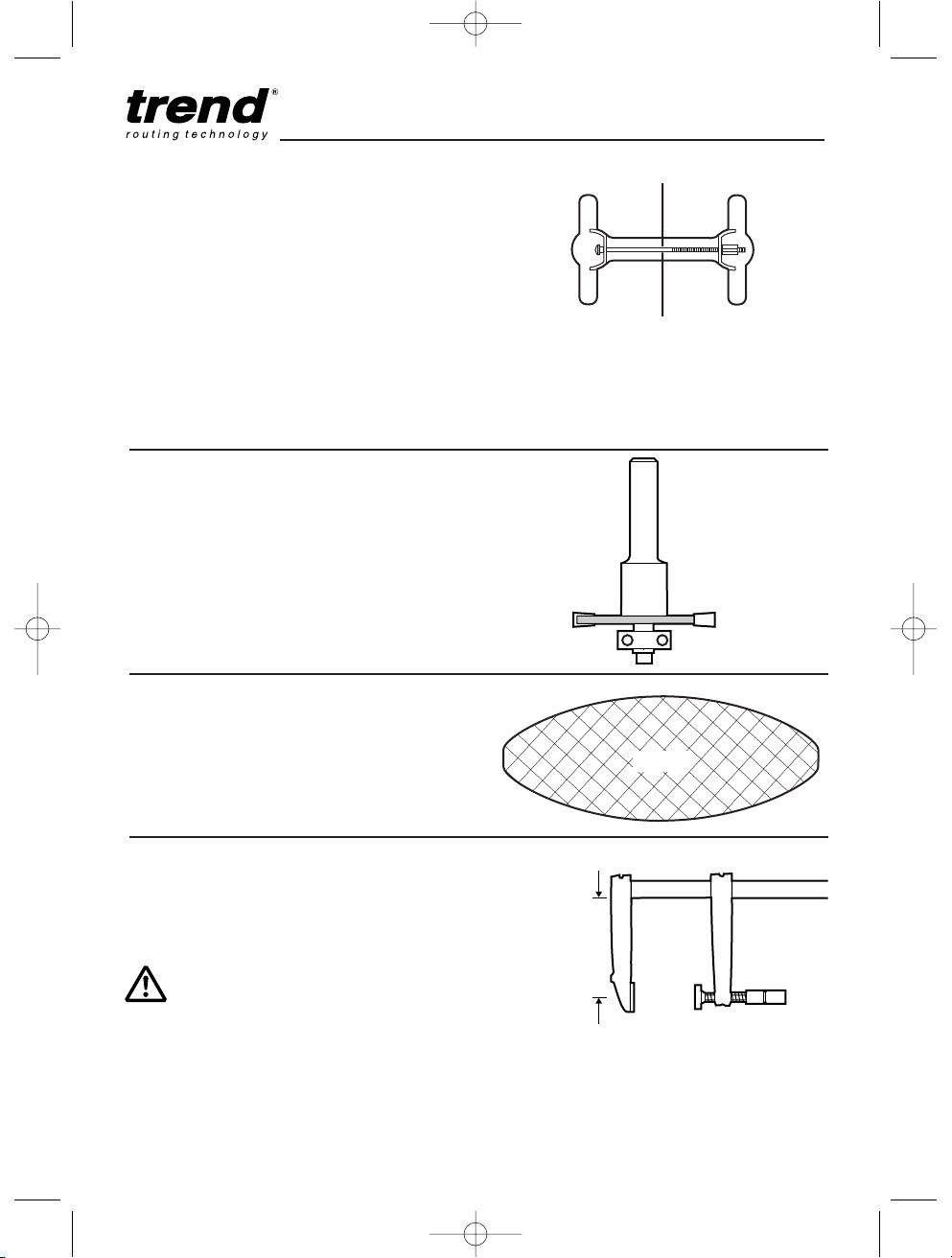

ACCESSORIES

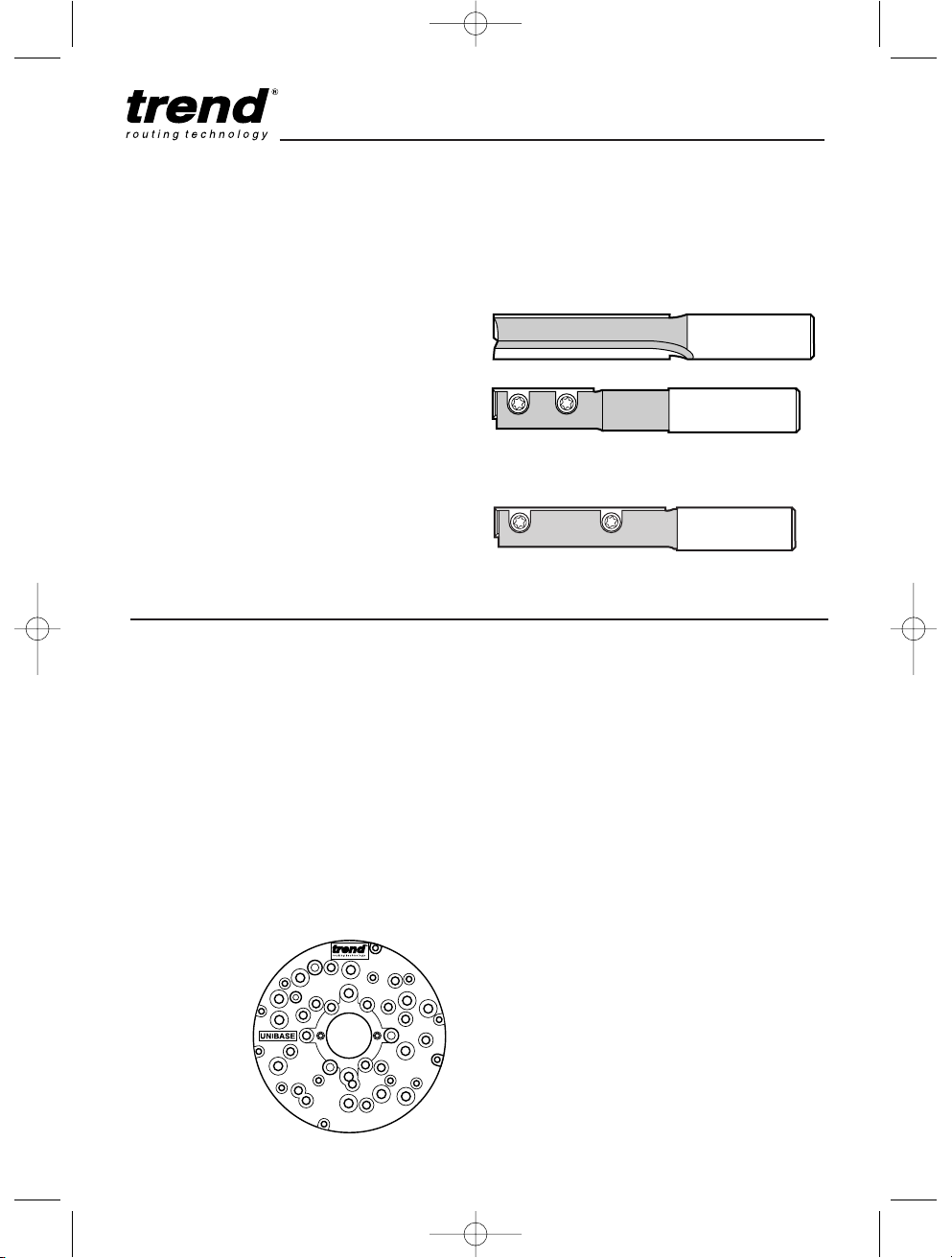

– Recommended Cutters ________________6

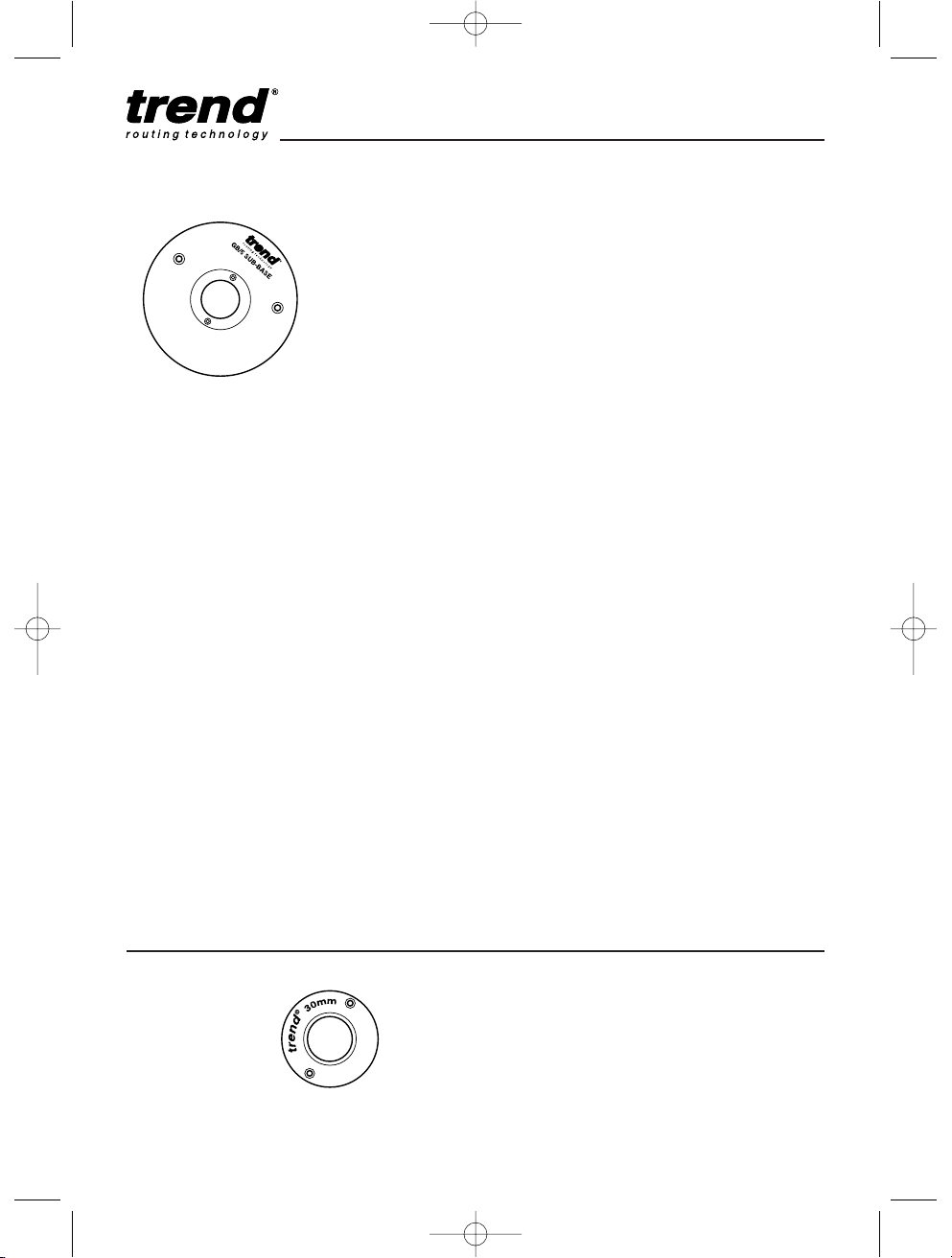

– Sub-base Sets & 30mm Guide Bush ____6-7
– Panel Connector Bolts _________________8
– Biscuit Jointer for the Router ____________8
– Clamp______________________________8
– Carry Case __________________________9

ASSEMBLY

– Location Bush Identification ____________10
– Margin Distance _____________________10
– Setting out the Joints _________________10

OPERATION

– Setting the Length Stop ______________ 11
– Female Joint________________________11
– Male Joint__________________________12
– Out-of-Square Joints _________________12
– Cutting the Bolt Recesses _____________13
– Strengthening the Joint _______________14
– Sealing the Joint ____________________14
– Curved Peninsular ___________________15

MAINTENANCE ______________________15
RECYCLING _________________________15
GUARANTEE ________________________15
SPARE PARTS

– Spare Parts List _____________________16
– Spare Parts Diagram _________________16

TROUBLE SHOOTING _________________IB

☎

If you require further safety advice,
technical information or spare parts,
please call our technical support
department on 01923 224681.

MANU/COM651 v2.0 25/10/06 3:00 pm Page 1

COMBI 651

-2-

SAFETY

WARNING:

Observe the safety regulations in the
instruction manual of the power tool to be
used. Please read the following
instructions carefully. Failure to do so
could lead to serious injury. When using
electric tools, basic safety precautions,
including the following should always be
followed to reduce the risk of fire, electric
shock and personal injury. Also observe
any applicable additional safety rules.
Read the following safety instructions
before attempting to operate this product.

PLEASE KEEP THESE
INSTRUCTIONS IN A SAFE PLACE.

The attention of UK users is drawn to The
Provision and Use of Work Equipment
Regulations 1998, and any subsequent
amendments.

Users should also read the HSE/HSC
Safe Use of Woodworking Machinery
Approved Code of Practice and Guidance
Document and any amendments.

Users must be competent with
woodworking equipment before using our
products.

IMPORTANT NOTE:

Residual Risk. Although the safety
instructions and operating manuals for
our tools contain extensive instructions on
safe working with power tools, every
power tool involves a certain residual risk
which cannot be completely excluded by
safety mechanisms. Power tools must
therefore always be operated with
caution!

General

1. Disconnect power tool and attachment

from power supply when not in use,
before servicing, when making
adjustments and when changing
accessories such as cutters. Ensure
switch is in “off” position. Always
ensure cutter has stopped rotating.

2. Always mount the power tool,

accessory or attachment in conformity
with the instructions. Only use
attachment and accessories specified
in the power tool manual. The tool or
attachment should not be modified or
used for any application other than
that for which it was designed. Do not
force tool.

3. Keep children and visitors away. Do

not let children or visitors touch the
tool, accessory or attachment. Keep
children and visitors away from work
area. Make the workshop child proof
with padlock and master switch.

4. Dress properly. Do not wear loose

clothing or jewellry, they can be
caught in moving parts. Rubber
gloves and non-skid footwear is

recommended when working
outdoors. Wear protective hair
covering to contain long hair.

5. Consider working environment. Do

not use the product in the rain or in a
damp environment. Keep work area
well lit. Do not use power tools near
gasoline or flammable liquids. Keep
workshop at a comfortable
temperature so your hands are not
cold. Connect machines that are used
in the open via a residual current
device (RCD) with an actuation
current of 30 mA maximum. Use only
extension cables that are approved for
outdoor use.

6. The accessory or attachment must be

kept level and stable at all times.

7. Keep work area clean. Cluttered

workshops and benches can cause
injuries. Ensure there is sufficient
room to work safely.

8. Secure idle tools. When not in use,

tools should be stored in a dry and
high or locked up place, out of reach
of children.

9. For best control and safety use both

hands on the power tool and
attachment. Keep both hands away
from cutting area. Always wait for the
spindle and cutter to stop rotating
before making any adjustments.

10. Always keep guards in place and in

good working order.

11. Remove any nails, staples and other

metal parts from the workpiece.

12. Maintain tools and cutters with care.

Keep cutters sharp and clean for
better and safer performance. Do not
use damaged cutters. Follow
instructions for lubricating and
changing accessories. Keep handles
dry, clean and free from oil and
grease.

13. Maintain accessories. Do not use

damaged accessories. Only use
accessories recommended by the
manufacturer.

14. Check damaged parts. Before

operation inspect the attachment, the
power tool, the cable, extension cable
and the plug carefully for signs of
damage. Check for alignment of
moving parts, binding, breakage,
mounting and any other conditions
that may effect its operation. Have any
damage repaired by an Authorised
Service Agent before using the tool or
accessory. Protect tools from impact
and shock.

15. Do not use tool if switch does not turn

it on or off. Have defective switches
replaced by an Authorised Service
Agent

16. Don't over reach. Keep proper footing

and balance at all times. Do not use
awkward or uncomfortable hand
positions.

17. Don’t abuse the cable. Never carry

power tool or accessory by cord or
pull it to disconnect from the socket.
Keep cord from heat, oil and sharp
edges. Always trail the power cord
away from the work area.

18. Connect dust extraction equipment.

If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used.

19. Check all fixing and fastening nuts,

bolts and screws on power tool,
attachment and cutting tools before
use to ensure they are tight and
secure. Periodically check when
machining over long periods.

20. Stay alert. Watch what you are doing.

Use common sense. Do not operate
tools when you are tired, under the
influence of drugs or alcohol.

21. Personal Protective Equipment (PPE)

for eye, ear and respiratory protection
must be worn. All PPE must meet
current UK and EU legislation.

22. Do not leave tools running

unattended. Do not leave tool until it
comes to a complete stop.

23. Always clamp workpiece being

machined securely.

24. Only use cutting tools for

woodworking that meet EN847-1/2
safety standards, and any
subsequent amendments.

25. Vibration levels. Hand held power

tools produce different vibration
levels. You should always refer to the
specifications and relevant Health &
Safety Guide.

Routing Safety

1. Read and understand instructions

supplied with power tool, attachment
and cutter.

2. Keep hands, hair and clothing clear of

the cutter.

3. Remove adjusting keys and

spanners. Check to see that keys
and adjusting spanners are removed
from the router tool, cutter and
attachment before turning router on.
Make sure cutter can rotate freely.

4. Noise. Take appropriate measures

for the protection of hearing if the
sound pressure of 85dB(A) is
exceeded. Routing sound pressure
may exceed 85dB(A), so ear
protection must be worn.

5. Eye protection. Always wear eye

protection in the form of safety
goggles, spectacles or visors to
protect the eyes.

MANU/COM651 v2.0 25/10/06 3:00 pm Page 2

-3-

COMBI 651

6. Respiratory protection. Wear a face

or dust mask, or powered respirator.
Dust masks/filters should be changed
regularly.

7. Do not switch router on with the cutter

touching the workpiece. At the end of
the cut, release the router plunge and
allow spindle to stop rotating. Never
use the spindle lock as a brake

8. The direction of routing must always

be opposite to the cutter's direction of
rotation. Do not back-cut or climb-cut.

9. Check before cutting that there are no

obstructions in the path of the router.
Ensure there are no obstacles
beneath workpiece when cutting full
thickness, and that a sacrificial work
surface is used.

Router Cutter Safety

1. Cutting tools are sharp. Care should

be taken when handling them. Do not
drop cutters or knock them against
hard objects. Handle very small
diameter cutters with extra care.
Always return cutter to its packaging
after use.

2. Always use cutters with a shank

diameter corresponding to the size of
the collet installed in your tool.

3. The maximum speed (n.max) marked

on the tool, or in instructions or on
packaging shall not be exceeded.
Where stated the speed range shall
be adhered to. Recommended speeds
are shown in the Trend Routing
Catalogue and/or website.

4. Always use router cutters in a router.

Drill and boring bits must not be used
in a router. Router cutters must only
be used for the material cutting
application for which they are
designed. Do not use on metal or
masonry.

5. Never use cutters with a diameter

exceeding the maximum diameter
indicated in the technical data of the
powertool or attachment used.

6. Before each use check that the cutting

tool is sharp and free from damage.
Do not use the cutting tool if it is dull,
broken or cracked or if in any other
damage is noticeable or suspected.

7. Cutters should be kept clean. Resin

build up should be removed at regular
intervals with Resin Cleaner

®

. The
use of a PTFE dry lubricant will
reduce resin build up. Do not use
PTFE spray on plastic parts.

8. When using stacked tooling (multi-

blade, block and groover etc.) on a
spindle arbor, ensure that the cutting
edges are staggered to each other to
reduce the cutting impact.

9. Cutter shanks should be inserted into

the collet all the way to the line

indicated on the shank. This ensures
that at least

3

⁄4of the shank length is
held in the collet. Ensure clamping
surfaces are cleaned to remove dirt,
grease, oil and water.

10. Observe the correct assembly and

fitting instructions in the router
instruction manual for fitting the collet,
nut and cutter.

11.Tool and tool bodies shall be clamped

in such a way that they will not
become loose during operation. Care
shall be taken when mounting cutting
tools to ensure that the clamping is by
the shank of the cutting tool and that
the cutting edges are not in contact
with each other or with the clamping
elements.

12. It is advisable to periodically check

the collet and collet nut. A damaged,
worn or distorted collet and nut can
cause vibration and shank damage.
Do not over-tighten the collet nut

13. Do not take deep cuts in one pass;

take several shallow or light passes to
reduce the side load applied to the
cutter and router. Too deep a cut in
one pass can stall the router.

15. In case of excessive vibrations whilst

using the router stop immediately and
have the eccentricity of the router,
router cutter and clamping system
checked by competent personnel

15. All fastening screws and nuts should

be tightened using the appropriate
spanner or key and to the torque
value provided by the manufacturer.

16. Extension of the spanner or

tightening using hammer blows shall
not be permitted.

17.Clamping screws shall be tightened

according to instructions provided by
the manufacture. Where instructions
are not provided, clamping screws
shall be tightened in sequence from
the centre outwards.

Using Routers In A Fixed Position

1. Attention should be made to the

HSE’s Safe Use of Vertical Spindle
Moulding Machines Information Sheet
No.18 and any revisions.

2. After work, release the router plunge

to protect the cutter.

3. Always use a push-stick or push-block

when making any cut less than
300mm in length or when feeding the
last 300mm of the cut.

4. The opening around the cutter should

be reduced to a minimum using
suitably sized insert rings in the table
and closing the back fence cheeks or
fitting a false fence on the back fence.

5. Whenever possible use a work

holding device or jig to secure
component being machined. Ensure
any attachment is securely fitted to the
workbench, with table surface at
approximately hip height.

6. Use a No-Volt Release Switch. Ensure

it is fixed securely, easily accessible
and used correctly.

7. In router table (inverted) mode, stand

to the front right of the table. The
cutter will rotate anti-clockwise when
viewed from top so the feed direction
is from the right (against the rotation of
the cutter). In overhead mode, stand
to the front left of the machine table
and the feed direction is from the left.

8. Do not reach underneath table or put

your hands or fingers at any time in
the cutting path while tool is connected
to a power supply.

9. Never thickness timber between the

back of the cutter and the backfence.

Useful Advice When Routing

1. Judge your feed rate by the sound of

the motor. Feed the router at a
constant feed rate. Too slow a feed
rate will result in burning.

2. Trial cuts should be made on waste

material before starting any project.

3. When using some attachments e.g. a

router table or dovetail jig, a fine
height adjuster is recommended.

4. When using a template guide bush,

ensure there is sufficient clearance
between cutter tip and inside edge of
bush and that it cannot come into
contact with collet and nut. Ensure
cutter and guide bush are concentric.

Router Cutter Repair/Maintenance

1. Repair of tools is only allowed in

accordance with the manufacturers
instructions.

3. The design of composite (tipped) tools

shall not be changed in process of
repair. Composite tools shall be
repaired by a competent person i.e. a
person of training and experience, who
has knowledge of the design
requirements and understands the
levels of safety to be achieved.

4. Repair shall therefore include, e.g. the

use of spare parts which are in
accordance with the specification of
the original parts provided by the
manufacturer.

5. Tolerances which ensure correct

clamping shall be maintained.

6. Care shall be taken that regrinding of

the cutting edge will not cause
weakening of the body and the
connection of the cutting edge to the
body.

Version 7.1 06/2006

MANU/COM651 v2.0 25/10/06 3:00 pm Page 3

COMBI 651

-4-



651



651

GUARANTEE

COMBI JIG

C

O

M

B

I

J

I

G

JIG

ITEMS ENCLOSED

x1

x3

x1

x1

x1

x1

x1

x1

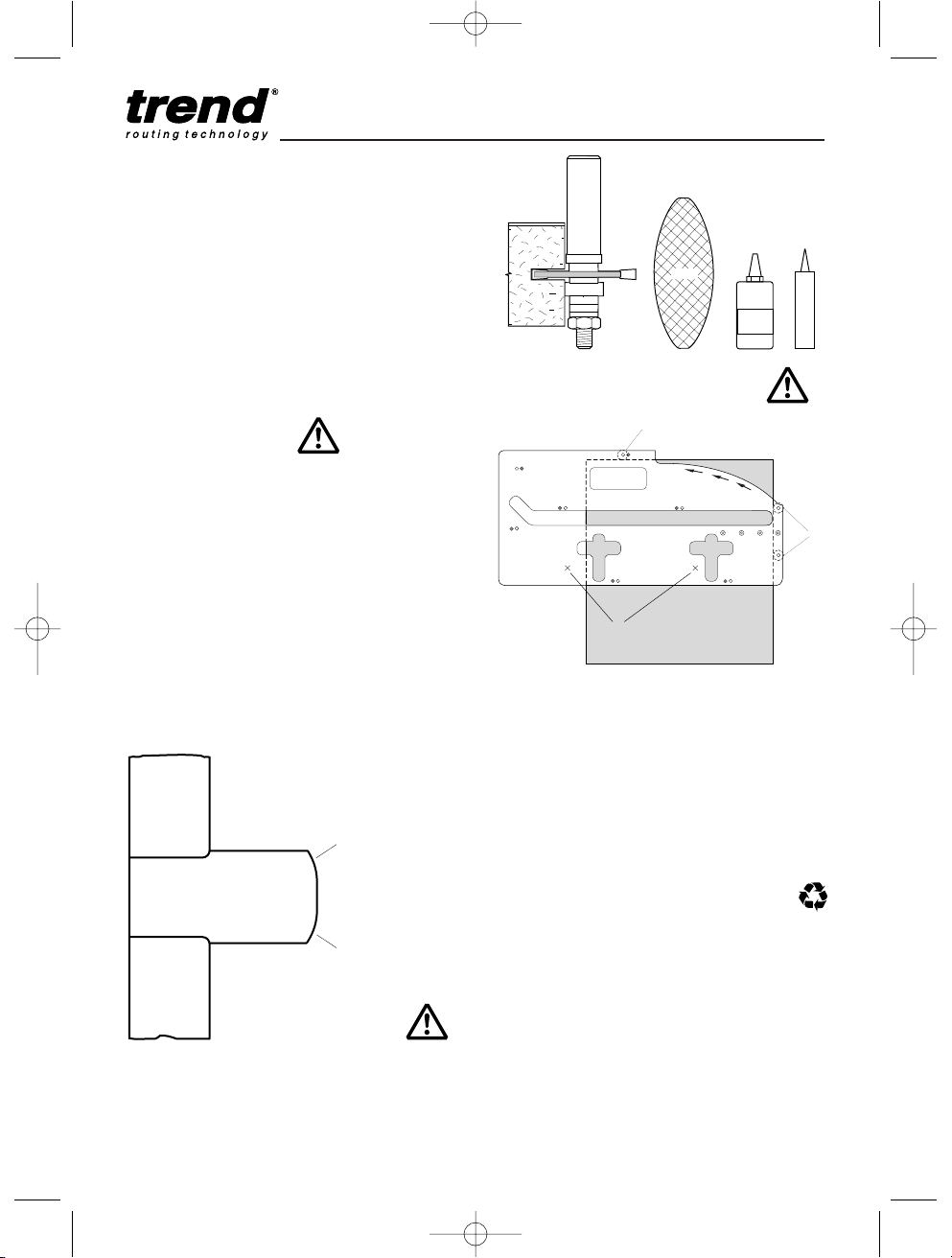

ITEMS REQUIRED

■ 1/2” plunge router

■ 30mm guide bush

■ 12.7 diameter x 50mm cut router cutter with

1/2” shank

■ Trestle x 2

■ 100mm throat clamp x 2

■ Hand tools

■ Panel connector bolts

■ Wooden biscuits size No.20

■ Sealant

MANU/COM651 v2.0 25/10/06 3:00 pm Page 4

COMBI 651

-5-

DESCRIPTION
OF PARTS

COMBI JIG

A

C

G

G

G

K

H

P

I

I

D

J

J

B

E&F

E&F

L

M

N

O

Jig body

Label

Postform joint slot

Female joint bush location hole

Length setting stop location hole

Male joint bush location hole

Peninsular joint bush location hole

Length stop fixing holes

Bolt recess bush location hole

Connecting bolt recess slot

Alloy location bush

Length setting stop

Length setting stop bolt

Length setting stop washer

Length setting stop knob

Colour dot locations

N

O

P

M

L

K

J

I

H

G

F

E

D

C

B

A

MANU/COM651 v2.0 25/10/06 3:00 pm Page 5

COMBI 651

-6-

Sub-base Sets

To obtain a perfect accurate close fitting joint, a
30mm guide bush must be used. The guide bush
must always be fitted concentric with the cutter.
This can be achieved using Trend sub-bases and
30mm outside diameter guide bush ref. GB30.

Trend sub-bases have a central recess to allow
fitting of the Trend guide bush to most makes of
routers and are available ready to fit the most
popular makes.

Two types are offered GB/5 and UNIBASE.

All sub-bases contain screws, a line up bush and
pin. The line up pin and bush ensure exact
alignment of sub-base with router spindle, when
fitted with the relevant collet.

ACCESSORIES

Description Order Ref.
RT/13 Spare blades RB/H (1 off)

RB/H/10 (10 off)

Description Order Ref.
RT/11 Spare blades RB/A (1 off)

RB/A/10 (10 off)

Recommended Cutters

A 12.7mm (1/2”) diameter cutter must be used,
which has a 50mm cutting reach and plunge cut
facility. Router must be plunged in stages of
maximum 8mm in one pass.

Ref. 3/83X1/2TC, 3/83DX1/2TC, TR17X1/2TC,
TR17DX1/2TC, C153X1/2TC, C153DX1/2TC

Fits following router models
Atlas Copco OFSE2000 Bosch GOF 1300ACE, 1600A,
1700ACE Casals FT2000VCE DeWalt DW625EK, 629
Draper R1900V Elu MOF 31, 77, 98, 131, 177(E)
Felisatti TP246(E), R346EC Festo OF2000E Freud

FT2000E Hitachi M12V, M12SA, TR12 Makita 3612BR,
3612(C) Metabo OF1612, OFE1812 Performance Pro
CLM1250R >11/2003, CLM2050R Ryobi RE600N, R600N,
RE601, R500, R502 Skil 1875U1 T-TECH TT/R127
Wadkin R500

Ref. RT/13X1/2TC

Ref. RT/11X1/2TC

Ref. UNIBASE

MANU/COM651 v2.0 25/10/06 3:00 pm Page 6

COMBI 651

-7-

Fits following Router Models

Description Order Ref.

Elu MOF31,77,98,131,177(E),
Bosch GOF1600A & 1700ACE
DeWalt DW625EK, 629
Performance Pro CLM2050R,
CLM1250R >11/2003
Felisatti R346EC, TTECH TTR127

GB/5

Makita 3612BR & 3600B
Ryobi RE600N & R600N, RE601

GB/5/A

Hitachi M12V, M12SA & TR12

GB/5/D

Makita 3612C & 3612

GB/5/J

Flex OFT3121VV, 2926W
Portercable 7539, 7519, 7529, 97529

GB/5/M

Performance Pro CLM1250R <11/2003

GB/5/P

Triton TRB001

GB/5/Q

Felisatti TP246(E)
Festo OF2000E, Mafell L065E,
Metabo OF1612 & OFE1812,
Ryobi R500 & R502, Skil 1875U1,
Wadkin R500 & Nutool XP12

GB/5/S*

*Please state model when ordering.

General instructions for fitting
Sub-bases to Router

1. Fit line up guide bush onto sub-base, with
screws supplied.

2. Fit 12.7mm (1/2”) shank line up pin into collet
of router. Plunge router until pin projects
through base and lock plunge.

3. Locate guide bush and sub-base assembly
over protruding pin.

4. Line up fixing holes and fit screws.

5. Now tighten up screws.

6. Remove line up bush and line up pin.
Alignment should now be correct. Fit 30mm
guide bush and cutter.

7. Periodically check the sub-base is concentric
to the spindle of the router.

30mm Guide Bush

Ref. GB30

30mm guide bush to
fit sub base.

Ref. GB/5

MANU/COM651 v2.0 25/10/06 3:00 pm Page 7

COMBI 651

-8-

Two heavy duty quick action or
gripper clamps with throats of at least
100mm (4”) are required to secure
the jig to the worktop. Whenever fast
action clamps are used, ensure they
do not foul the router path and that
they are securely tightened.

Panel Connector Bolts

Ref. PC/10/M (

Pack of 10)

Ref. PC/50/M (Pack of 50)
Ref. PC/100/M (Pack of 100)
Ref. PC/1000/M (Pack of 1000)

Panel butt connectors are essential for
connecting worktops. They fit into the recess on
the underside of the worktop and are tightened
with a 10mm spanner. The jig has integral bolt
recess slots to allow the bolt recess to be cut in
the underside of the worktop, using the standard
router cutter. The recess is elongated to allow
easy access for the spanner.

Biscuit Jointer for the Router

Ref. 342X1/2TC
Ref. TR35X1/2TC
Ref. C152X1/2TC

Worktops with inadequate support below them
need additional stability by biscuit jointing the
edges. The biscuit jointing set for the router
together with the No.20 biscuits will ensure
worktops do not sag or warp in time.

Clamps

Ref. FC/200

Two heavy duty quick action or gripper clamps
are required to secure the jig to the worktop.

Flat Biscuit Dowels

Ref. BSC/20/100 (Pack of 100 biscuits)
Ref. BSC/20/1000 (Pack of 1000 biscuits)

Biscuits are used to strengthen the joint. When
used with PVA glue they expand ensuring a tight
joint.

100mm (4”) min.
throat depth

MANU/COM651 v2.0 25/10/06 3:00 pm Page 8

No.20

COMBI 651

-9-

Carry Case

Ref. CASE/651

Hard wearing carry case to protect and allow
ease of carrying of the COMBI651 Jig.

MANU/COM651 v2.0 25/10/06 3:00 pm Page 9

COMBI 651

-10-

ASSEMBLY

Location Bush Identification

Three location bushes are used in different holes
in the jig to align the correct template aperture
for the application.

The holes are colour coded for easy
identification with dots as follows:

Green dot – Female Joint
Red dot – Male Joint
Yellow dot – Connector Recess
White dot – Curved Peninsular

The jig has a colour coded key on its label for
quick reference.

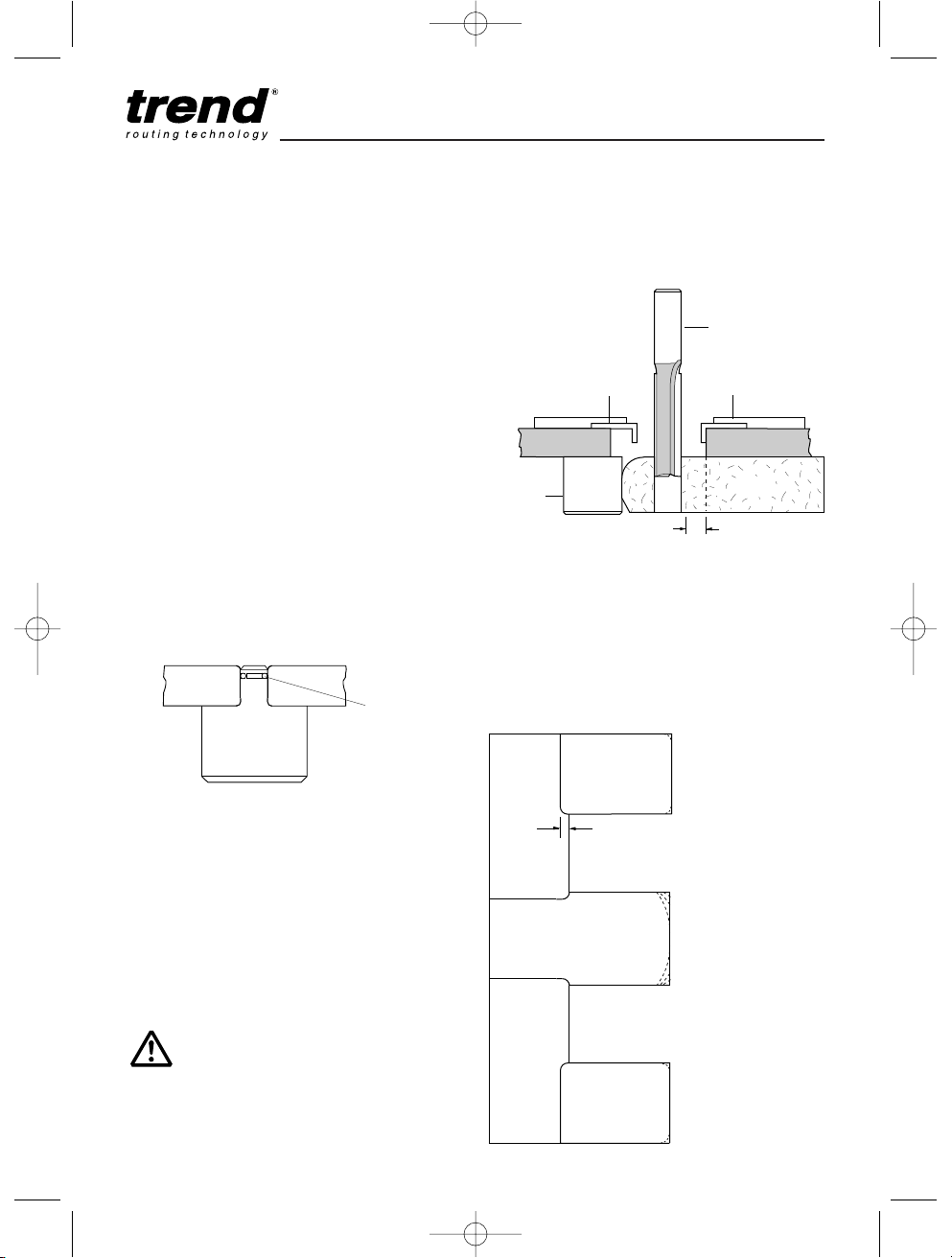

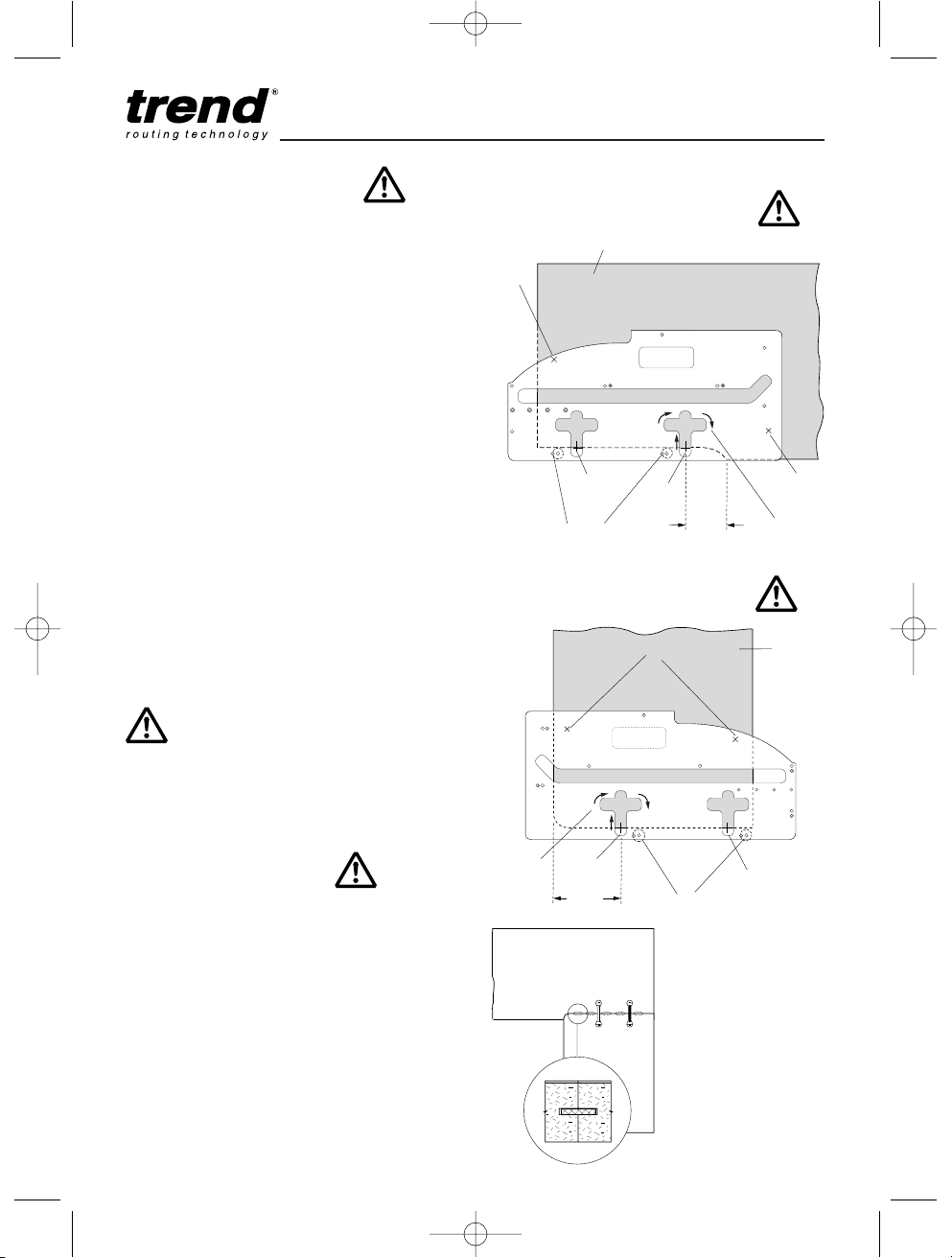

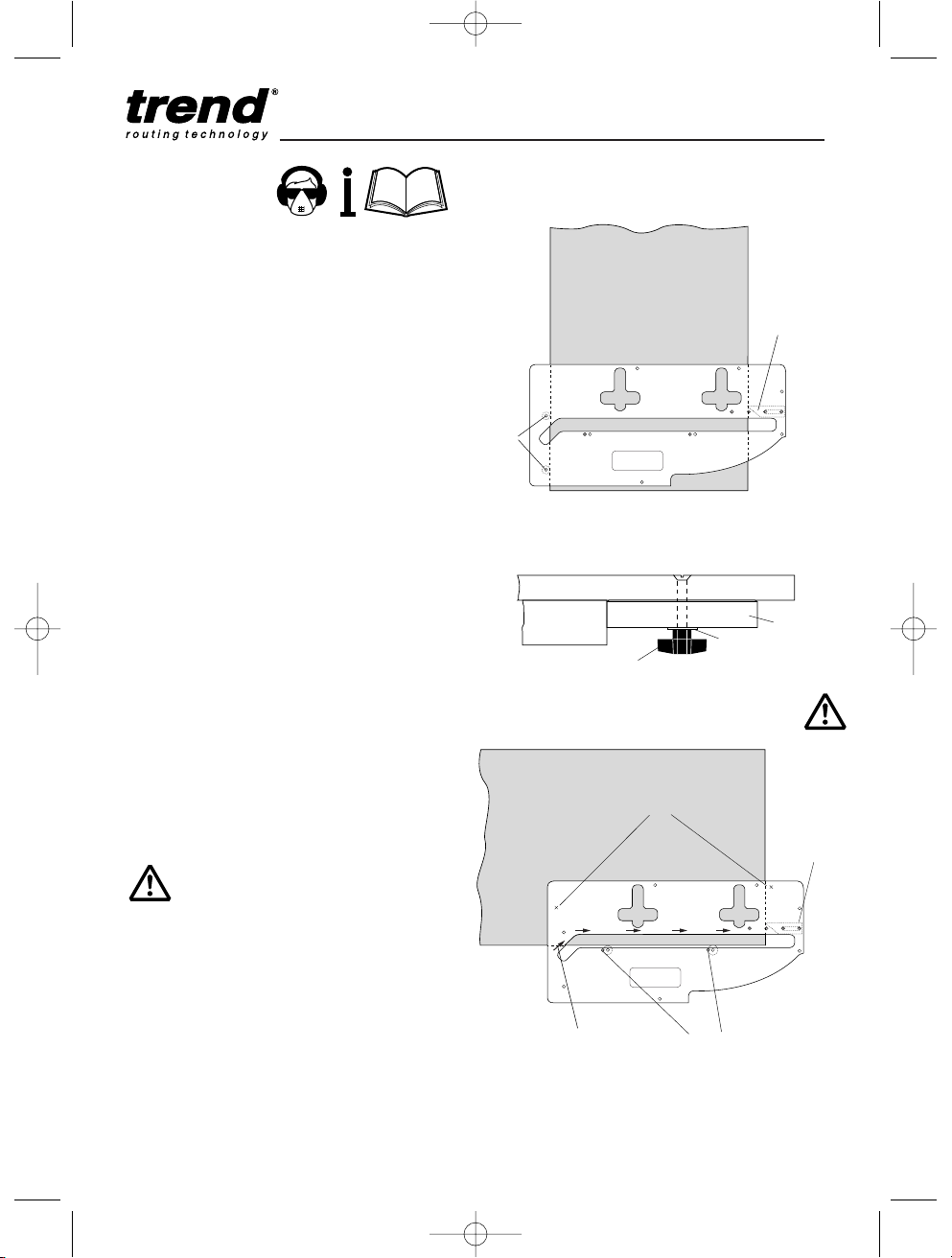

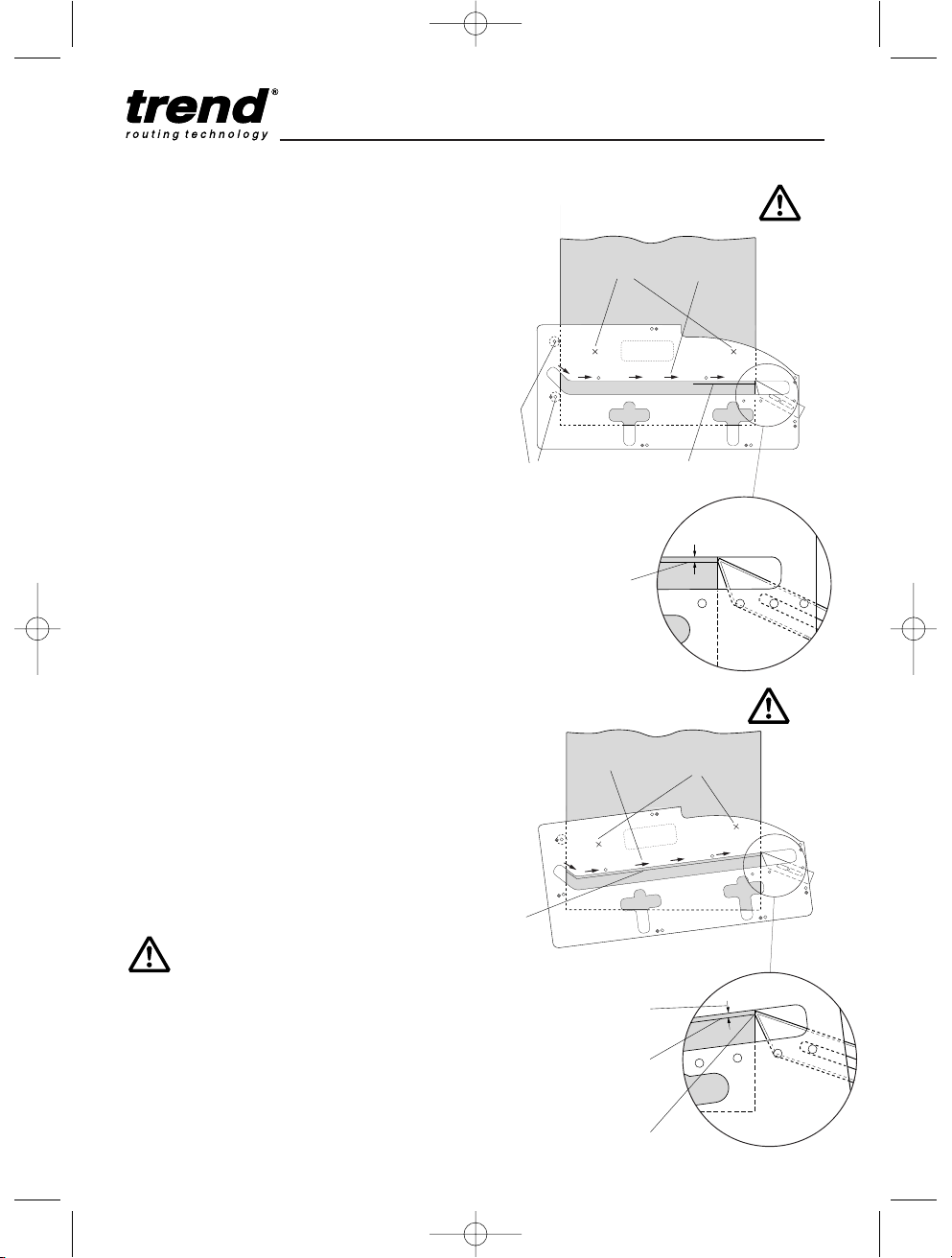

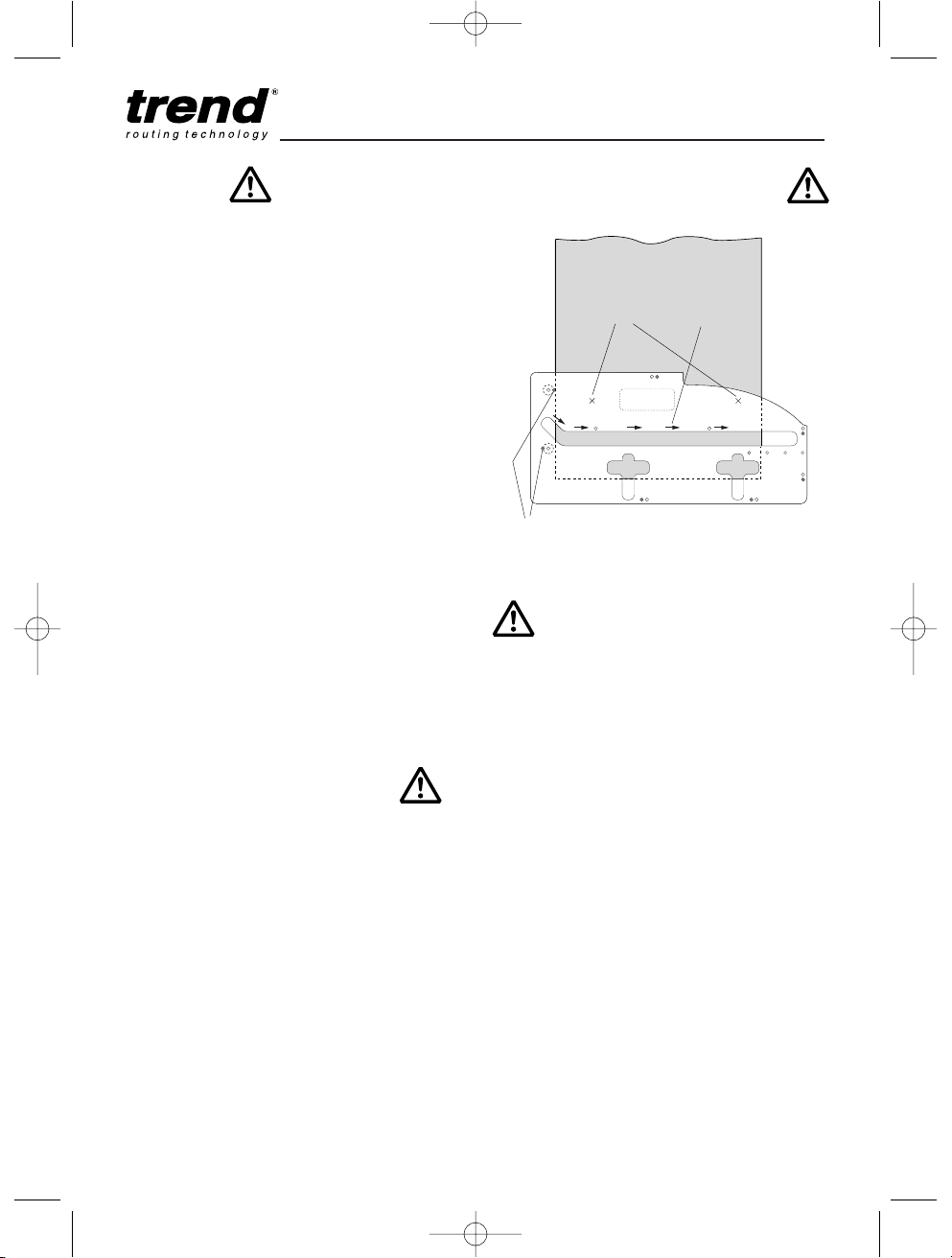

Setting out the Joints

When cutting a joint ensure location bushes
contact the postformed edge of the worktop. For
certain joints the worktop will need to be inverted
so that all cuts are made into the postformed
edge, never out through it. When routing worktop
the balancing paper on the underside may feather
edge – this feather edge should be removed with
abrasive paper.

Location bushes are held in position by ‘O’ rings.
Insert the smallest end of the bush into the hole
by lightly pushing and turning at the same time.
If the bushes are tight use a lubricant on the ‘O’
ring. Ensure bushes are fully home before use.
When using jig ensure location bushes do not
foul workbench.

23mm

In order to prevent breakout of the
laminate, rotation of the cutter and
feed direction must always be into the
postform edge of the worktop.

Margin Distance

Allow 8.5mm when cutting joints. Measure or
use a batten of this
thickness to aid
setting out.

Plan view
of joints

O ring

Location bush

Cutter

Sub base

Guide bush

30mm Ø

Location
bush

Worktop

Template

8.5mm

Right hand joint

Male

Female

Male

Female

Cut male with laminate down

Cut female with laminate up

Postform edge

The joint takes up 23mm, this should
be allowed for with extra material in the
length of the male worktop.

Male

Female

Postform edge

PENINSULAR

Postform edge

Postform edge

Male

Female

Left hand joint

Cut male with laminate up

Cut female with laminate down

MANU/COM651 v2.0 25/10/06 3:00 pm Page 10

COMBI 651

-11-

Length Stop Arrangement

OPERATION

Setting the Length Stop for the
Female Joint

Carry out the setting operation first:

■ Fit bushes into Red dot location holes and

offer the jig to the worktop as shown. The
Green dot location holes will be
uppermost.

■ Position the jig across the width of the
worktop. Loosely fit the length stop.

■ Fasten length stop to template so that it
traps the template across the worktop
between the Red dot location bushes and
the stop. Tighten up the knob.

■ Remove the bushes from Red dot location
hole. The template is now set to cut the
correct length of joint.

COMBI JIG

COMBI JIG

Female Joint

■ Fit two location bushes in Green dot holes.
(The Green dots must be uppermost.)
Leave the length stop bush in position.

■ Place the template onto the worktop to be
cut, ensuring the location bushes are
touching the worktop. Now cramp securely
in position using two quick action clamps
ensuring they will not foul the router path.

■ Set cutter depth.

■ Plunge router and cut joint in a series of

passes, feeding left to right. At the end of
each cut release plunge.

When cutting a joint, hold the router
guide bush hard against the template
and cut from left to right. It is
recommended that the depth stops of
the router are used to set the depths of
cut. Several shallow passes of the
router should be made and it is not
necessary to lean heavily on the router
or the jig. Allow the weight of the router
to rest on the part of the template which
is resting on the worktop. Ensure router
remains parallel and upright at all times.

Routing the female part of the Joint

Setting the Length Stop

Location

bushes

(Red dot)

Postform edge

Length stop on

underside.
Retained with
screw & knob

Location bushes

(Green dot)

Postform

edge

Length stop
set for correct
worktop width

on underside

Router feed

direction

Quick action clamp here

Jig

Worktop

Length stop

Washer

Knob

MANU/COM651 v2.0 25/10/06 3:00 pm Page 11

COMBI 651

-12-

Male Joint

Depending on accessibility lay female worktop
into position on units. Lay male worktop on top
and support other end. Using a pencil draw
round the female cut onto the male. If
inaccessible lay female onto male. Depending on
a right or left hand joint, the pencil line may need
to be transferred on to the other side. Due to the
difference between the cutter and the guide bush
diameters, the cutter path will be 8.5mm over
from the edge of the template, therefore either
measure 8.5mm or use a packing piece of this
size to offset the template by this amount to
ensure the cutter cuts along the pencil line.

The postformed edge of the worktop must always
be in contact with the location bushes, this means
that to cut a male right hand joint, the worktop
must be inverted. Remembering to cut into the
postformed edge.

■ Insert two location bushes into holes marked

Red dot. Face marked Red dot must be
uppermost.

■ Remove the length stop from the female and fit
to the male side of template. Place template
across the width of the worktop and tighten the
knob. Now clamp securely to worktop.

■ Cut the male joint before finally cutting the
worktop to length. All cuts must be fed left
to right. At the end of each cut release plunge.

Out of square Joints (max. 3°)*

It may not be possible to position all joints at 90°,
in this case it is the male part of the joint that has
to be adjusted.

The length stop has a mitred end which is used to
set up for an out-of-square joint up to 3°.

To mark out an out-of square joint, first lay the
female worktop on the cupboard carcass in its
correct position. Next lay the male section of the
worktop on the carcass and on top of the female
section of the worktop. Support the other end of
the male worktop. Using a pencil and from
underneath the worktop mark around the female
joint onto the male section of the worktop, if
access is difficult lay the female worktop onto the
male worktop, support other end and mark with
pencil from above. This drawn line is the male
cut line.

Routing the male part of the Joint

Test fit the joints together, abrasive
paper may be required to clean up the
chipboard core.

Quick action

clamp here

Direction of

router travel

Postform edge

Location bushes

(Red dot)

*Please Note:

Out-of-square joints are possible, but the
finished joint will not be as good as a 90° joint.

MANU/COM651 v2.0 25/10/06 3:00 pm Page 12

COMBI 651

-13-

■ Insert both location bushes into Red dot
holes. Red dot face uppermost.

■ Lay jig across the worktop, ensure the
location bushes touch the postform edge.
Clamp jig in position with quick action clamps.
Draw a line 8.5mm away from the jig slot
edge.

■ With the mitred end of the length stop facing
towards the back of the worktop, as shown.
Fit the length stop onto underside of jig by
using the countersunk bolt, washer and knob
into one of the holes in the jig. The bolt
should be put into the jig from above, do not
tighten. Carefully position the point of the
length stop so that it lines up with the 8.5mm
margin pencil line. When the correct position
has been obtained tighten bolt and knob
sufficiently to prevent length stop from
moving.

■ Remove location bushes.

■ Lay jig with length stop set onto male work

top that is to be cut. Allowing for the 8.5mm
margin and using the length stop as a pivot
point (pivot point on cut line), position the jig
so the jig slot edge is parallel to the drawn
pencil line. Re-check positioning.

■ Clamp jig to worktop securely using quick
action clamps.

■ Remove length stop and bolt assembly as
these are for setting up only and are not
required when routing

■ Set cutter depth.

■ Plunge router and cut the male joint, feeding

left to right in a series of shallow passes,
feeding left to right.

Cutting male joint on out-of­square joints

Direction of
router travel

Postform edge

Quick action

clamp here

Shown

exaggerated

Male joint

cut line

Direction of

router travel

Postform edge

Quick action

clamp here

Setting up length stop for out­of-square joints

Location bushes

(Red dot)

Parallel pencil line

8.5mm from jig slot edge

After setting for out-of-square joint
the length stop must be removed or it
could come in contact with the router
cutter.

8.5mm margin
pencil line

Male joint

cut line

Pivot point on

male joint cut line

Jig slot edge 8.5mm away

from male joint cut line

MANU/COM651 v2.0 25/10/06 3:00 pm Page 13

COMBI 651

-14-

Cutting the Bolt Recesses

When the joint has been tested, proceed as
follows to cut the recess for panel butt
connectors on the underside of the worktop.
The same cutter and guide bush are retained
and used with the integral bolt recess slots in the
jig to produce the recesses for the panel butt
connectors. The bolt recess position can be
gauged approximately 150mm from the edge of
the postform edge, or where access is possible
with kitchen units. Mark with pencil both
positions on the underside of the worktop.

Insert the location bushes into the Yellow dot
holes as shown.

■ The template may need to be inverted
when cutting some bolt recesses.

■ Securely clamp jig to worktop.

■ The bolt recesses should be

approximately 20mm deep although
this will depend upon the thickness
of worktop.

■ Once one bolt recess is cut move jig
over to the remaining pencil lines and repeat.

■ Repeat the procedure for the male joint.

Best results are achieved when the
centre line of the bolt corresponds to
the centre line of the worktop. Clamp
jig securely to worktop.

Strengthening the Joint

If the joint between the worktops is not supported
underneath, after some time the joint may ‘sag’
and become misaligned; to reduce this the joint
should be reinforced with a loose tongue or
biscuit dowels. The biscuit jointing cutter set
Trend Ref. 342 can be used with a portable
router. The size of biscuit used should be No.

20.

Ref. BSC/20/100 (100 biscuits)
Ref. BSC/20/1000 (1000 biscuits)

A 650mm worktop should have at least 5
biscuits.

Routing the bolt recess in the
female part of the joint

Quick action

clamp here

150mm

Location bushes

(Yellow dot)

Pencil

mark

Direction of
router travel

Underside of worktop

Quick action

clamp here

Pencil

mark

Routing the bolt recess in the
male part of the joint

150mm

Location bushes

(Yellow dot)

Pencil

mark

Direction of

router travel

Quick action clamp here

Underside of

worktop

Postform edge

Pencil

mark

Underside View

MANU/COM651 v2.0 25/10/06 3:00 pm Page 14

COMBI 651

Sealing the Joint

The cut edges of the joint should be coated with
a water-resistant adhesive, or Trend Fill & Seal
before assembly, to prevent moisture seeping
into the core of the worktops, which would swell,
and disfigure the worktop.

Use a fine grit abrasive paper to clean up the
torn wood chips of both mating surfaces. Lightly
run the abrasive paper along the edges to de-nib
the cut chipboard edge. This will ensure a tidy
joint is achieved.

No.20

PVA

SEALANT

Waterproof

Biscuit

Curved Peninsular

Insert the three location bushes in holes
marked White dot as shown below.

Locate the template on the worktop as
illustrated ensuring that location bushes are
touching the worktop edge. Clamp into
position with quick action clamps.

When cutting the curved peninsular, hold the
router guide bush against the edge of the
template. Cut from left to right.

It is recommended that depth stops are used
and at least three or four cuts taken. White
dots must be uppermost when routing.

COMBI JIG

Quick action

clamp here

Postform edge

Location bushes (White dot)

Direction of

router travel

Cut with
laminate

down

Cut with
laminate

up

Postform edge

Postform edge

Postform edge

Postform edge

Peninsular

Peninsular End Cuts

Routing the Curved Peninsular

In order to prevent break out of the
laminate, rotation of the cutter and
feed direction of the router must
always be into the postform edge of
worktop.

Location bushes (White dot)

-15-

MAINTENANCE

The jig has been designed to operate over a long
period of time with a minimum of maintenance.
Continual satisfactory operation depends upon
proper tool care and regular cleaning.

Cleaning

■ Regularly clean the jig with a soft cloth.

Lubrication

■ Your jig requires no additional lubrication.

ENVIRONMENTAL PROTECTION

Recycle raw materials instead of disposing as
waste.

Packaging should be sorted for environmental­friendly recycling.
The product and its accessories at the end of their
life should be sorted for environmental friendly
recycling.

GUARANTEE

The jig carries a manufacturers guarantee in
accordance with the conditions on the enclosed
guarantee card.

MANU/COM651 v2.0 25/10/06 3:00 pm Page 15

COMBI 651

-16-

COMBI 651 - SPARE PARTS DIAGRAM

1

2

7

3

8



54 6

COMBI JIG

COMBI 651 - SPARE PARTS LIST v1.0 04/2003

No. Qty. Desc. Ref.

1 1 Combi 651 Jig COMBI/651
2 3 Alloy Bush CJ/BUSH
3 1 Length Setting Stop CJ/LSK
4 0 Machine Screw Csk M8 x 50mm Slot WP-SCW/41
5 0 Washer 8.5mm x 32mm x 1.0mm WP-WASH/17
6 0 Knob M8 WP-KNOB/10
7 0 Combi Jig ‘O’ Ring Pack for Bushes (pack of 5) CJ/ORS
8 1 Manual MANU/651

v1.0 04/2003

MANU/COM651 v2.0 25/10/06 3:00 pm Page 16

COMBI 651

-IB-

Fault Cause Remedy

■ Joint does not fit correctly Cutter or guide bush is the Check concentricity of cutter
at the radius. incorrect diameter or location with guide bush. Cutter 12.7mm

bushes are not against diameter with 30mm diameter
worktop edge. guide bush. Ensure location

bushes touch worktop.

■ The back edge of the joint Either the length stop or Check position of length stop
does not line up. template was in the incorrect and re-cut joints.

position, or the worktop has
not pushed up against the
length stop when the joint
was cut.

■ When clamped together the The guide bush has drifted away Check with a straight edge
joint has irregular gaps. from the edge of the template which part of the joint is uneven

whilst cutting either part of the and re-cut (this can only be
joint, or wood chips in particle done on the male cut) ensuring
board have torn slightly. that the guide bush is kept

against the template by machin­ing from left to right. Use
abrasive paper to remove torn
wood chips.

■ Chipped laminate Can be caused by a blunt cutter Always use sharp cutters and

or removing too much material when cutting through the
at one pass or exiting out of laminate cut 3–4mm of material.
postform edge. Maintain correct feed direction,

to ensure cutter enters
postform edge.

■ Jig slipping on material Clamps not secure or too deep Check clamps for wear. Clamp

a cut being made or cutter is securely, take shallow passes,
blunt. use a sharp cutter.

■ Cut joints not square Router has tilted or operator Ensure jig is supported and do

has leaned heavily on router not push hard on router taking
causing jig flex. shallow passes. Ensure weight

of router is on supported part
of jig and that the router is
upright.

■ Assembled joint not flush Worktop different thickness or Ensure worktop is same thick-
or bowed worktop not flat (cupped). ness and flat.

TROUBLE SHOOTING

MANU/COM651 v2.0 25/10/06 3:00 pm Page 17

MANU/651 v2.0

© Copyright Trend 2006. No part of this publication may be reproduced, stored or transmitted in any form without prior permission.

Our policy of continuous improvement means that specifications may change without notice. Trend Machinery and Cutting Tools

cannot be held liable for any material rendered unusable or any form of consequential loss. E&OE

RECYCLABLE

Trend Machinery & Cutting Tools Ltd.

Odhams Trading Estate St Albans Road
Watford WD24 7TR England

Enquiries: __________________0800 487363
Technical Support:____0044 (0) 1923 224681
Fax: ________________0044 (0) 1923 236879
Email: [e-mail]
Web: __________________www.trend-uk.com

MANU/COM651 v2.0 25/10/06 3:00 pm Page 18

COMBI 651

MANU/COM651 v2.0 25/10/06 3:00 pm Page 19
