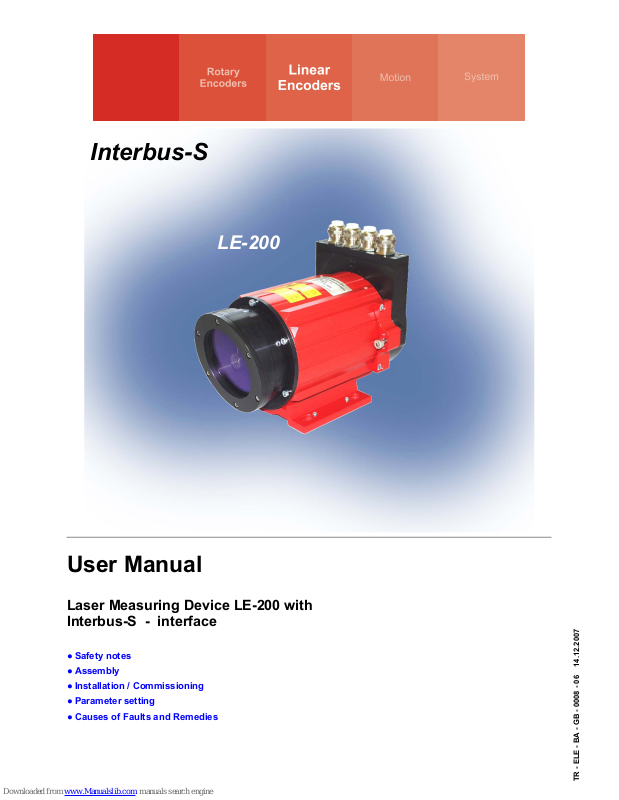

TR - ELE - BA - GB - 0008 - 06 14.12.2007

User Manual

Laser Measuring Device LE-200 with Interbus-S - interface

● Safety notes

● Assembly

● Installation / Commissioning

● Parameter setting

● Causes of Faults and Remedies

LE-200

Interbus-S

Revision History

Page 2 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

TR-Electronic GmbH

D-78647 Trossingen Eglishalde 6 Tel.: (0049) 07425/228-0 Fax: (0049) 07425/228-33 E-mail: info@tr-electronic.de http://www.tr-electronic.de

This Manual, including the illustrations contained therein, is subject to copyright protection. Use of this Manual by third parties in contravention of copyright regulations is forbidden. Reproduction, translation as well as electronic and photographic archiving and modification require the written content of the manufacturer. Offenders will be liable for damages.

Subject to amendments

Any technical changes that serve the purpose of technical progress, reserved.

Document information

Release date/Rev. date: 14.12.2007 Document rev. no.: TR - ELE - BA - GB - 0008 - 06 File name: TR-ELE-BA-GB-0008-06.DOC Author: MÜJ

Font styles

Italic or bold font styles are used for the title of a document or are used for highlighting.

Courier font displays text, which is visible on the display or screen and software menu selections.

″ < > ″ indicates keys on your computer keyboard (such as <RETURN>).

Revision History

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 3 of 37

Revision History

Note

The cover of this document shows the current revision status and the corresponding date. Since each individual page has its own revision status and date in the footer, there may be different revision statuses within the document.

Documents that are in the appendix have their own revision history.

Document created: 16.09.2003

Revision Date

- Revision of the warning label in chapter "Intended purpose" 18.12.2003

- Modification of the Laser Standard DIN EN 60825-1

- Warning bit “Plausibility measured value”

- Additional reflector foils, chap. Ordering information

- Max. measuring range 240 m

14.12.2007

Table of Contents

Page 4 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

Table of Contents

Revision History ...............................................................................................................................3

Table of Contents .............................................................................................................................4

1 Safety..............................................................................................................................................6

1.1 General risk potential.......................................................................................................6

1.2 Safety information............................................................................................................ 6

1.2.1 Hints on installation..........................................................................................7

1.2.1.1 General interference suppression measures ..................................8

1.3 Intended purpose.............................................................................................................9

1.4 Authorized operators .......................................................................................................11

1.5 Safety measures at the installation site...........................................................................11

2 General Description ......................................................................................................................12

3 Transportation / Storage...............................................................................................................13

4 Assembly instructions..................................................................................................................14

4.1 Aligning of the laser light spot to the reflector / foil inclination.........................................14

4.2 Parallel operation of laser linear paths............................................................................ 16

5 Commissioning / Installation .......................................................................................................17

5.1 Electrical connection........................................................................................................17

5.1.1 Supply voltage .................................................................................................17

5.1.2 Interbus-S ........................................................................................................17

5.1.2.1 Remote IN........................................................................................17

5.1.2.2 Remote OUT....................................................................................18

5.1.2.3 Identification of following slaves ......................................................18

5.1.3 Switching input / Switching output ................................................................... 18

5.1.4 RS485 - programming interface ......................................................................18

5.1.5 Wiring examples ..............................................................................................19

5.2 Adjusting of the speed monitoring (optional)...................................................................20

5.3 Interbus-S - Interface.......................................................................................................20

5.3.1 Mapping of Laser Data in the Master (Controller) ...........................................21

5.3.2 Control Word (OUT-data relative to the master) .............................................22

5.3.3 Status Word (IN-data relative to the master)...................................................24

5.3.4 Bus status ........................................................................................................25

6 Configuration / Parameter setting via the Interbus-S master................................................... 26

6.1 Parameter data................................................................................................................26

6.2 Parameter description .....................................................................................................30

6.2.1 Resolution........................................................................................................30

6.2.2 Switching-off laser diode .................................................................................30

6.2.3 Switching-on laser diode .................................................................................30

6.2.4 Preset preselection .......................................................................................... 31

6.2.5 Switch off laser diode automatic if Interbus-S is inactive ................................31

6.2.6 Counting direction............................................................................................31

6.2.7 Speed limit value .............................................................................................31

6.2.8 Error value .......................................................................................................32

Table of Contents

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 5 of 37

6.2.9 Function external input ....................................................................................32

6.2.10 Clear Preset...................................................................................................32

6.2.11 Function external output ................................................................................32

6.2.12 Save parameters ...........................................................................................33

7 Causes of Faults and Remedies ..................................................................................................33

8 Maintenance...................................................................................................................................34

8.1 General Maintenance Information ...................................................................................34

8.2 Repair, Maintenance .......................................................................................................34

9 Appendix ........................................................................................................................................35

9.1 Specifications...................................................................................................................35

9.1.1 Electrical ratings ..............................................................................................35

9.1.2 Environmental conditions ................................................................................36

9.2 Ordering information........................................................................................................37

9.2.1 Laser devices................................................................................................... 37

9.2.2 Accessories .....................................................................................................37

Pin Assignment.......................................................................................... TR-ELE-TI-GB-0008

Drawings

Dimensioned drawing .............................................................................04-K2200-002

Safety

Page 6 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

1 Safety

1.1 General risk potential

The Laser Measuring Device LE-200 Interbus-S cannot be operated independently, but is installed as part of an overall system usually consisting of several interacting components. For this reason, the laser measuring device is not equipped directly with a protective device.

Warning

The corresponding measures must be taken in order to avoid person and property damages.

However, different error reports can be read out via the status word. The error reports are classified over a malfunction code (see page 27). It is therefore essential to integrate the malfunction code into your own safety system via the evaluation software (e.g. a PLC).

All persons responsible for the assembly, start-up and operation of the device must

• be suitably qualified

• adhere strictly to this operating manual.

Your safety and the safety of your equipment depends on this!

1.2 Safety information

This operating manual contains information which must be observed in the interests of your own personal safety and that of your equipment. The safety hints are emphasized by a warning triangle and classified according to the degree of danger as follows:

Warning

means that failure to take the relevant safety precautions can lead to serious damage to property or injuries.

Note

refers to important information and features of the product, plus tips on its application.

Safety

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 7 of 37

1.2.1 Hints on installation

Since the Laser Measuring Device is normally used as part of a larger system, these hints are merely intended as a guide for integrating the device safely into its environment.

Warning

• During the operation of the Laser Measuring Device it isn't allowed to interrupt the laser beam. If it comes nevertheless to an interruption, at the restart of the automatic operation mode first the validity (plausibility) of the measured value has to be checked.

• Precautionary measures must be taken to allow an interrupted program to be properly resumed following a voltage drop or failure. Dangerous operating conditions must not be permitted to arise even for short periods. If necessary, an "EMERGENCY STOP" must be forced.

• EMERGENCY STOP devices according to EN 60204/IEC 204 (VDE 0113) must remain operational in all operating modes of the programmable controller. The release of the EMERGENCY STOP devices must not trigger an uncontrolled or undefined reactivation of the equipment.

• The safety and accident prevention regulations applicable to the specific application must be observed.

• In the case of permanently installed plants or systems without an all-pole mains switch and/or fuses, one of these devices must be installed accordingly and the equipment connected to a PE conductor.

• In the case of 24 V supplies, make sure the extra-low voltage is reliably disconnected. Only use power supply units manufactured to the standards IEC 364 - 4 - 41 / HD 384.04.41 (VDE 0100 Part 410).

• Fluctuations or deviations of the supply voltage from the nominal value must not exceed the tolerance limits stated in the specifications, otherwise operational failures and dangerous states in the electrical assemblies cannot be ruled out.

• Connecting and signal wires must be installed in such a way as to prevent the automation functions from being hampered by inductive and capacitive interference.

• The units of the automation system and their operating elements must be installed in such a way as to ensure adequate protection against accidental actuation.

• In order to prevent a wire or strand breakage on the signal side from causing undefined states in the programmable controller, suitable hardware and software safety precautions must be taken with regard to the I/O interface.

Safety

Page 8 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

1.2.1.1 General interference suppression measures

• Lay the (shielded) connecting cable to the device at a sufficient distance or in a separate room from any power cables which are subject to interference. Otherwise the data transmission of the measured value can be interfered.

• To ensure reliable data transmission, use fully shielded cables and make sure they are well earthed. For differential data transfer (RS422, RS485 etc.), twisted-pair wires must be used in addition.

• Use a minimum cable cross-section of 0.22 mm

for data transfer purposes.

• Use a minimum earthing cable (machine base) cross-section of 10 mm

in order to avoid equipotential currents across the shield. Make sure the resistance of the earthing cable is much lower than that of the shield.

• Avoid crossing cables where possible. If unavoidable, only cross them at right-angles.

• Ensure continuous wiring of the shield and a large contact area on special shield

clampings or cable screw glands, see Figure 1 point (A) and (B).

RDBAU

120

DIP-Switch

OFF

Figure 1: Connection cap with cable screw glands and shield clampings

Shield connection via cable screw glands:

1. Screw the cable screw gland into the housing.

2. Dismount the compression nut (1) and the terminal holder (2).

3. Push the compression nut (1) and the terminal holder (2) over the cable.

4. Strip the cable; push back the braiding around the terminal holder (2) such that the braiding goes over the inner O-ring (3) and does not lie over the cylindrical section or the torsional bars.

5. Insert the terminal holder (2) into the intermediate gland (4) such that the torsional bars fit into the intended lengthwise grooves in the intermediate gland (4).

6. Screw the compression nut (1) to the intermediate gland (4).

Element 1

Compression nut

Element 2

Terminal holder

Element 3

inner O-ring

Element 4

Intermediate gland

Safety

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 9 of 37

1.3 Intended purpose

The measuring system is used for recording linear movements and processing the measured data for a downstream control system with a INTERBUS-S Field Bus interface according to DIN 19258.

The classification of the measuring system is defined according to the profile K3. At this the laser data uses 2-word addresses for IN-data and 2-word addresses for OUTdata in the Master.

Particularly the measuring system is designed for the use of distance measurements for the detection of the position and positioning of:

! High-bay storage devices and lifting gears ! Crane systems ! Side-tracking skates and truck storage vehicles ! Transfer machines

Warning

Switch off the voltage supply before carrying out wiring work or opening and closing electrical connections!

Short-circuits, voltage peaks, etc. can cause operating failures and uncontrolled operating states, as well as serious personal injuries and damage to property.

Check all electrical connections before switching on the system!

Incorrectly wired connections can cause operating failures, while wrong connections can lead to serious personal injuries and damage to property.

Mechanical or electrical modifications to the measuring systems are prohibited for safety reasons!

In particular the following uses are forbidden

- operation in areas where interruption of the laser beam, e.g. by covering the

laser lens opening, can lead to equipment damage or injury to personnel

- in environments, in which strong rain, snow, fog, steams or direct insolations

etc. can influence the laser beam intensity negatively

- operation in rooms with explosive atmospheres

- operation for medical purposes

With use-purposes larger 125m measuring length, a special reflector must to be used! (see chapter "Accessories", page 37)

Safety

Page 10 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

Warning

Laser Light

Do not stare into the beam

Laser Class 2

DIN EN 60825-1: 2003-10

Complies with 21 CFR 1040.10 and

1040.11 except for deviations pursuant to laser notice No. 50, July 2001

P max = 1 mW, = 670 nm

• In the case of Class 2 laser devices, the eye is not endangered if the exposure of

the laser radiation is very short (up to 0.25 s) and accidental. For this reason, devices of this class can be used without additional protective measures, provided for the application it is not necessary to look into the laser beam deliberately for longer periods, i.e. 0.25 s, or to look repeatedly into the laser beam itself or the specular reflected beam.

The existence of the blinking reflex for the protection of the eyes may not be assumed. Therefore the eyes should be closed consciously, or the head should be turned away immediately!

• The device must be installed in such a way that the exposure of persons to the laser beam can only happen accidentally.

• The laser beam may only extend as far as is necessary for the range measurement. The beam must be limited at the end of the useful range by a diffusely reflecting target area in such a way as to minimize the danger from direct or diffuse reflection. For this purpose, you should use the TR-Electronic reflecting foil supplied with the device.

• The area outside the operating range where the unshielded laser beam falls should be limited as far as possible and should remain out of bounds, particularly in the area above and below eye level.

• Observe the legal and local regulations applicable to the operation of laser units.

Note

The start-up, operating and programming instructions contained in this manual are mandatory.

Safety

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 11 of 37

1.4 Authorized operators

The start-up and operation of this device may only be performed by qualified personnel. For the purposes of this manual, the term "qualified personnel" refers to persons who are authorized to operate, earth and label equipment, systems and power circuits according to recognized safety standards.

1.5 Safety measures at the installation site

Warning

Do not perform any welding work once the device is connected and switched on!

Variations in potential can destroy the device or restrict its operation.

Do not touch plug contacts with your hands!

Static charges may destroy electronic components of the device.

Do not connect unused inputs (see pin assignment)!

Observe the voltage supply range:

Standard device: 18-27 V DC (± 5 %) Device with heating: 24 V DC (± 5 %)

Clean lens opening of the laser and the reflecting foil regularly!

(see chapter "Maintenance", page 34)

Note

Make sure that the environment of the installation site is protected against corrosive media (acids, etc.)

General Description

Page 12 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

2 General Description

The laser measuring devices of the series LE are optical sensors, with which larger distances can be measured without contact and serviceable for controller. The measuring system consists of the real measuring device with laser light source, receiving optics, electronic evaluation and data interface as well as a reflector. The device sends out a modulated light beam which is reflected by the reflector. From the phase difference of the sent and received light beam the distance is measured 1000 times per second. Thus the LE is suitable also directly for the position feedback in controller loops.

According to the requirements the laser distance measuring devices of the series LE-200 Interbus-S are configured either directly over the Interbus-S or with the PCprogramming software "TRWinProg".

Principle

Reflecting foil

Transmitter signal

Receiver signal

= Phase displacement

d = Distance

d = f( )

Display range max. 240m (Special Device)

0,2m 125m

Measuring range

Measuring endMeasuring start

Transportation / Storage

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 13 of 37

3 Transportation / Storage

Transport instructions

Do not drop the device or expose it to shocks or vibrations!

Device contains an optical system with glass elements.

Only use the original packaging!

The wrong packaging material can cause damage to the device during transportation.

Storage

Storage temperature : -20 to +75°C

Store in dry conditions.

Assembly instructions

Page 14 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

4 Assembly instructions

The adjustment of the laser measuring device in the vertical plain is carried out via four studs (A) in the mounting plate. The adjustment in the horizontal plane can be made by four hexagon bolts (B). It has to be taken into account that the screw diameter is approx. 1-2 mm smaller than the through bore of the mounting plate. Exact dimensional properties are on the dimensional drawing in the rear part of the document.

Figure 2: Mechanical adjustment possibilities

4.1 Aligning of the laser light spot to the reflector / foil inclination

The measuring device or reflector is attached to the moving object and the reflector/sensor to the fixed remote station in such a way that the reflector always remains within the visual field of the sensor. This can be done using the light spot of the laser diode, which is still clearly visible on the reflecting foil even at long distance. When aligning the laser measuring device, the user may need to take measures to ensure that it can be mechanically adjusted. The size of the reflecting foil must be such that the light spot cannot be displaced from the reflector by vibrations. Since with an increasing distance the light spot gets larger and larger, the edge areas of the foil also have to be avoided. The device comes with a reflecting foil measuring 20 x 20 [cm], but other sizes can be ordered on request.

Note

Reflecting foils by other manufacturers should not be used under any circumstances, as all the information in the "Specifications" chapter refers to the foil already supplied with the device.

Assembly instructions

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 15 of 37

Procedure:

•

Figure 3: Detection of the surface reflectivity:

- At first attaching the reflector foil flatly and drive plant on minimal

distance Laser – Foil.

- Centering paper (C) in front of the laser optics so, that the laser beam

can unhinderedly emerge by an approx. 2 cm hole. Now, the interfering signal (B) should get visible on the paper (C). To the better location of the interfering signal (B) the reflector foil can be moved also a little. Here it is valid: angle of incidence = angle of reflection

•

Figure 4: Transmitting away the surface reflectivity:

- Rotate the reflector foil in the Y- or in the Z-axis so, that the interference

signal (B) always is outside the laser lens. Nevertheless keeping the inclination of the reflector foil as low as possible to minimize measuring errors caused by misalignments in the procedure movement. For example, if the light spot drifts on the reflector foil around, small differences arise as a result of the oblique position.

- Fix reflector foil

Figure 3: Detection of the surface reflectivity

(A)

real wanted signal, is always thrown back 180° independently of the reflector inclination

(B)

Surface reflectivity (interference signal)

(C)

Paper with an approx. 2 cm large hole in the center

Figure 4: Transmitting away the surface reflectivity

Assembly instructions

Page 16 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

4.2 Parallel operation of laser linear paths

It has to be taken care in the parallel operation of laser linear paths that a minimum distance of 1 m is kept. The reflector foil inclination must be made in such a way that the surface reflectivity (see arrows) points not into the other laser linear path. The alignment is carried out as described in chapter 4 / 4.1.

Figure 5: Minimum distance in parallel operation

Commissioning / Installation

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 17 of 37

5 Commissioning / Installation

5.1 Electrical connection

Note

At the realization of the electrical connection the references in chapter 1.2.1, starting from page 7 must be considered.

In order to be able to carry out the connection, the connection cap must be removed from the laser first. For this the screws (A) are loosened and the cap (B) is removed away from the laser.

RDBAU

120

DIP-Switch

OFF

5.1.1 Supply voltage

Pin 7 0V, GND Pin 8 Standard: 18 – 27 V DC

Device with heating: 24 V DC (±5%)

123456 789 10 11121314 151617181920

5.1.2 Interbus-S

5.1.2.1 Remote IN

Pin 15 GNDI, reference potential Remote IN Pin 16 Shield, internal RC-element onto case Pin 17 DO1 inverted Pin 18 DO1 Pin 19 DI1 inverted Pin 20 DI1

123456 7891011121314 15 16 17 1819 20

Commissioning / Installation

Page 18 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

5.1.2.2 Remote OUT

Pin 6 GND, reference potential Remote OUT Pin 11 DO2 inverted Pin 12 DO2 Pin 13 DI2 inverted Pin 14 DI2

123456 789101112 13 14 15 1617 1819 20

5.1.2.3 Identification of following slaves

For the subsequent node to be detected, between PIN 5 "RBST inverted" and PIN 4 "GND" a jumper must be inserted.

Pin 4 GND, reference potential for RBST Pin 5 RBST inverted

1234567891011 12 13 14 15 16 17 18 1920

5.1.3 Switching input / Switching output

The programming of the switching input /switching output is carried out either directly via the bus, or via the PC software "TRWinProg".

Functions of the switching input:

- Preset, - Switch off laser diode, - Failure quit

Functions of the switching output:

- Temperature- , - Intensity- , - Hardware-Fail-Output, - every fail

- Speed-check, Plausibility measured value, Switching output position

Pin 1 GND, reference potential pin 2 Pin 2 Switching output Pin 3 Switching input

123456 7891011121314 1516 1718 19 20

5.1.4 RS485 - programming interface

The RS485 programming interface was developed mainly only as service interface for the technician. Primarily therefore the programming possibilities via the Interbus-S should be used. Via the PC software "TRWinProg" and a PC adapter the connection to the laser measuring device is established. More informations see page 19 or in the TRWinProg software manual.

Pin 9 RS485– Pin 10 RS485+

123456 7891011 1213 14 15 16 17 18 19 20

Commissioning / Installation

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 19 of 37

5.1.5 Wiring examples

* Shield connection, see chapter 1.2.1.1 page 8.

Interbus-S - connection

0V Supply Voltage

GNDI Shield /DO1 DO1 /DI1 DI1

LE-200

DI2

/DI2

DO2

/DO2

RBST

GND

/DI1 DI1

/DO1

GNDI

DO1

REMOTE IN

Jumper for the identification

that a further slave is following

RS485-connection with parameter setting via "TRWinProg"

Commissioning / Installation

Page 20 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

5.2 Adjusting of the speed monitoring (optional)

At active speed monitoring with exceeding of the adjusted speed level the corresponding warning bit in the malfunction code is set, see page 27. This function is optional and can be used only, if the Function-DIP-switch is equipped on the connection circuit board. The switch identification adjusted at the delivery (DIP 6/8 = ON) makes sure that only the DIP-switches have validity. Thereby the settings under parameter "Speed limit value", page 31 will be overwritten. The DIP switches 1 - 4 serves for adjustment of the desired speed level.

DIP-1 DIP-2 DIP-3 DIP-4

0 0 0 0

not active

1 0 0 0

0,7 m/s

0 1 0 0

1 m/s

1 1 0 0

2 m/s

0 0 1 0

3 m/s

1 0 1 0

4 m/s

0 1 1 0

10 m/s

123456 78 91011121314 15 1617 1819 20

DIP-Switch

OFF

5.3 Interbus-S - Interface

The Laser Measuring Device LE-200 with INTERBUS-S interface is designed as a remote bus module with 32 I/O data. This makes it easy to integrate in the bus ring in the same way as a PHOENIX-CONTACT bus terminal. To ensure that the protocol meets INTERBUS-S requirements, an SUPI (serial microprocessor interface) is integrated between the LE-200 and the INTERBUS-S. The SUPI is an INTERBUS-S protocol chip developed by PHOENIX-CONTACT which carries out the following functions:

• BUS interfacing: Directions of reception and transmission

• CRC check

• Preset

• Transfer protocol etc.

The classification of the Laser Measuring Device is defined after the profile K3 and has the Ident-No. 55 dec. According to this profile the Laser Measuring Device delivers 32 bits of process data. These 32 bits contain a 25-bit position actual value and a 7 bit status bit and control bits. The position actual value of the laser is coded binary and right aligned in the bits 0 - 24 of the process data word. Bits 25 – 31 contain the status bit and control bits. They are fixed in this profile class. When all control bits are set to 0 and the OPERATION condition is displayed on the status bits, the laser outputs a valid value for bits 0 to 24.

b31 b25 b24 b0

Control/Status Position actual value

Note

At programming, data is exchanged between the laser and the master in binary code.

Commissioning / Installation

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 21 of 37

5.3.1 Mapping of Laser Data in the Master (Controller)

In the master, the laser data uses two-word addresses for IN-data and two-word addresses for OUT-data. The position of the data in the controller depends on the physical or logical position of the laser within the ring. For detailed information, refer to the manual of the master (controller) used. The laser should be considered to be a PHOENIX I/O bus terminal and the system processes it as such.

Double Input Word ID x (Status Word)

Data byte 3 Data byte 2 Data byte 1 Data byte 0

AV PA X P4 P3 P2 P1

Return Parameter Value, 25 bit

B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

231 230 229 228 227 226 225 224 223 222 221 220 219 218 217 216 215 214 213 212 211 210 29 28 27 26 25 24 23 22 21 20

Input byte x+0 Input byte x+1 Input byte x+2 Input byte x+3

AV = Invalid position actual value PA = Parameterization X = not used P1 – P4 = Return parameter-no. / malfunction code

Double Output Word OD x (Control Word)

Data byte 3 Data byte 2 Data byte 1 Data byte 0

EO SZ X P4 P3 P2 P1

Parameter Value, 25 bit

B15 B14 B13 B12 B11 B10 B9 B8 B7 B6 B5 B4 B3 B2 B1 B0

231 230 229 228 227 226 225 224 223 222 221 220 219 218 217 216 215 214 213 212 211 210 29 28 27 26 25 24 23 22 21 20

Output byte x+0 Output byte x+1 Output byte x+2 Output byte x+3

EO = Enable operation SZ = Set zero shift X = not used P1 – P4 = Parameter-No.

Commissioning / Installation

Page 22 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

5.3.2 Control Word (OUT-data relative to the master)

Via the control word functions activated and the operational states of the laser are defined.

Control Word, relative word address "0"

Bit Name mandatory Bit-Nr. im PD-Kanal

0 Reserved 16 1 Reserved 17 2 Reserved 18 3 Reserved 19 4 Reserved 20 5 Reserved 21 6 Reserved 22 7 Reserved 23 8 Reserved 24

9 Parameter no. X 25 10 Parameter no. X 26 11 Parameter no. X 27 12 Parameter no. X 28 13 Manufacturer-specific 29 14 * Set zero shift X 30 15 Enable operation X 31

* see page 23, "Set zero shift"

Device Control Commands

The device control commands are triggered by the following bit combinations in the control word:

Control Word (bit)

Enable

operation

Set zero

shift

Manufac-

turer-

specific

Parameter-No.

DEVICE CONTROL

COMMAND

15 14 13 12 11 10 9

ENABLE OPERATION 0>1 0 X 0 PARAMETERIZATION 0 0 X 1 . . . 15

Commissioning / Installation

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 23 of 37

Parameter-No.

The bits 9 to 12 (D25 - D28) indicate the number of the parameter at the laser (see also "Parameter data", page 26). The parameter data will transfer via the bits 0 to 24 of the process out data channel. The activation of parameter transfer is receipted within a second in the status word.

Set zero shift

If in parameter-no. 1101 is programmed the value "0 = not clear", an edge change of "0" to "1" of the bit-no. 30 in the process out data channel is setting the laser to the preselected value in parameter-no. 0100 (see also "Parameter overview", page 26).

Manufacturer-Specific

Bits 0 - 8 are reserved. Bit 13 is manufacturer-specific.

Commissioning / Installation

Page 24 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

5.3.3 Status Word (IN-data relative to the master)

Information concerning the state of the laser and messages are shown in the status word.

Status Word, relative word address "0"

Bit Name Mandatory Bit-No. in PD-Channel

0 Reserved 16 1 Reserved 17 2 Reserved 18 3 Reserved 19 4 Reserved 20 5 Reserved 21 6 Reserved 22 7 Reserved 23 8 Reserved 24

9 Parameter no. or malfunction code X 25 10 Parameter no. or malfunction code X 26 11 Parameter no. or malfunction code X 27 12 Parameter no. or malfunction code X 28 13 Manufacturer-specific 29 14 Parameterization X 30 15 Invalid position actual value X 31

Device States

The device states are shown in the status word by the following bit combinations:

Status Word (bit)

Invalid

position

actual

value

Parameteri

zation

Manufac-

turer

specific

Parameter-No.

STATE

15 14 13 12 11 10 9

OPERATION 0 0 X 0 PARAMETERIZATION 1 1 X 1 . . . 15 MALFUNCTION 1 0 X 1 . . . 15

Commissioning / Installation

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 25 of 37

Parameter No. or Malfunction Code

The number of the parameter that was transmitted to the laser is acknowledged via bits 9 to 12, or a malfunction code is transmitted (in "malfunction" state) (see page 27).

Manufacturer-Specific

Bits 0 - 8 are reserved. Bit 13 is manufacturer-specific.

5.3.4 Bus status

At the connection cap the laser has 4 LEDs, which display the bus status of the laser:

RDBAU

RD (red): Following IBS-Interface is disconnected, or bus communication disturbed U (green): SUPI Supply-Voltage RC (green): Remote-Control BA (green) : Interbus-S active

Configuration / Parameter setting via the Interbus-S master

Page 26 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

6 Configuration / Parameter setting via the Interbus-S master

The configuration of the laser occurs alternatively via the configuration software of the Interbus-S - master or via the TRWinProg-software. With a download of the control parameters the parameters, which were configured via the TRWinProg-software, will be overwritten by the control. In this instruction only the configuration via the Interbus-S - master is described. The PC program TRWinProg is described in an instruction of its own.

6.1 Parameter data

The parameter data can be transferred via the bits 0 to 24 of the process out data channel of the master to the laser. To this the laser must be set to the parameterization state. This is achieved by outputting a parameter number unequal to zero on bits 9 to 12 of the control word (bits 25 to 28 of the process out data channel).

Parameter overview

Parameter No.

B12 B9

Function

0000 Output in "operation" state

0001

Resolution:

0 = 10 mm 1 = 1 mm 2 = 0,1 mm 3 = 0,01 mm 4 = 1 Inch

5 = 0,1 Inch 0010 Switch off laser diode

0011 Switch on laser diode

0100 Preselection preset value

0101

Automatic switching-off of the laser diode, if bus 15min. inactively:

0 = disabled

1 = active 0110 Not defined !

0111 Not defined !

1000

Counting direction:

0 = with increasing distance to the laser, values increasing

1 = with increasing distance to the laser, values decreasing

1001

Speed limit value in 0,1m/s:

0 = no check

1 – 200 = 0,1 m/s – 20 m/s

1010

Error value at beam interruption:

0 = NULL

1 = 0xFF

2 = Last valid position value 1011 Not defined !

Configuration / Parameter setting via the Interbus-S master

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 27 of 37

Continuation parameter overview

Parameter No.

B12 B9

Function

1100

Function external input:

0 = disabled

1 = Preset

2 = Switch off laser diode

3 = Failure quit

1101

Clear preset (Zero mark is deleted):

0 = no clearing

1 = clearing

1110

Function external output:

0 = disabled

1 = Temperature

2 = Intensity

3 = Hardware-Fail

4 = every fail

5 = Speed-check

6 = Plausibility measured value

1111 Save parameters, D0 – D24 = "0"

The laser switches over to the "parameterization" state and indicates the successful transmission of the parameter with the return of the corresponding parameter number.

The new parameter takes effect after the user has set the laser to the ’operation’ state with the ’enable operation’ device control command. If it was not possible for the parameter to take effect, the laser switches over to the ’malfunction’ state –after the user has sent the ’enable operation’ device control command - and outputs a malfunction number on bits 9 to 12 of the status word (bit 25 to 28 of the process data channel).

Malfunction code

Malfunction-No.

b12 b9

Meaning

0000 No malfunction 0001 Invalid parameters from the host 0011 Hardware error 1001 Intensity warning (intensity <12%) 1010 Laser diode is switched off 1100 Intensity error (e.g. beam interruption) 1101 Speed-check 1110 Device temperature (outside the range of 0-50 °C) 1111 Plausibility measured value (position jump)

Configuration / Parameter setting via the Interbus-S master

Page 28 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

EXAMPLE 1: Example of a Parameter Transmission

Host to Laser Laser to Host

Control Word Status Word

D31 D25-D28 D0-D24 D30-D31 D25-D28 D0-D24

Comment

1 0 0 X 0 0 0

Actual

value

Normal operation

2 0 P.No. Parameter 0 0 0

Actual

value

Host transmits parameter to laser, laser does not yet react

3 0 P.No. Parameter 0 0 0

Actual

value

Host continues to wait for acknowledgement from laser

4 0 P.No. Parameter 1 1 1) X

Laser has accepted the parameter and begins processing

5 0 P.No. Parameter 1 1 1) X

Parameter processing still running in laser

6 0 P.No. Parameter 1 1 P.No. Parameter

Processing of parameter is completed. Laser remains in "parameterization" state

7 1 0 0 1 1 P.No. Parameter

Device control command "enable operation" from host to the laser. Laser does not yet react

8 1 0 0 0 0 0

Actual

value

Laser once more in "operation" state

9 0 0 0 0 0 0

Actual

value

Normal operating mode once more reached by both devices

1): You must make sure that when a parameter is transmitted, the same parameter number as that which has already been acknowledged by the laser is not sent. The repeated transmission of the same parameter is not valid without first leaving the "parameterization" state.

The parameter number must be consistent. To transmit several parameters, repeat steps 4 to 6.

When transmitting a parameter, make sure that the parameter number is not output before the parameter.

When invalid or inconsistent parameters are sent, the laser goes into the "malfunction" state when trying to enable operation.

Configuration / Parameter setting via the Interbus-S master

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 29 of 37

EXAMPLE 2: Sequence when Transmitting Inconsistent Parameters

Host to Laser Laser to Host

Control Word Status Word

D31 D25-D28 D0-D24 D30-D31 D25-D28 D0-D24

Comment

1 0 0 X 0 0 1)

Actual

value

Normal operation

2 0 1 5 0 0 1)

Actual

value

Host sends the first value for programming of the resolution

3 0 1 5 0 0 1)

Actual

value

Host continues to wait for acknowledgement from Laser

4 0 1 5 1 1 1) X

Laser has accepted the parameter and begins processing

5 0 1 5 1 1 1) X

Parameter processing still running in Laser

6 0 1 5 1 1 1 5

Processing of parameter is completed. Laser remains in "parameterization" state

7 0 8 1 1 1 1 5

Host sends the second value for programming of the counting direction (increasing to the Laser)

8 0 8 1 1 1 1 5

Host continues to wait for acknowledgement from laser

9 0 8 1 1 1 8 1

Processing of parameter is completed. Laser remains in "parameterization" state

10 1 0 0 1 1 8 1

Device control command "enable operation" from host to the laser. Laser does not yet react

11 1 0 0 0 1 1

Actual

value

Laser switches to "malfunction" state, the malfunction code is "1". The position actual value is output on the process data channel.

An illegal parameter value (5) was programmed into line 2 for the parameter "resolution" which at first is accepted by the laser device and remains in the operational state "parameterization" furthermore.

In line 7, the counting direction of the laser was then programmed (increasing to the Laser).

In line 10, after finished programming the device control command "enable operation" was sent to the laser device.

The programmed values are checked only now (line 11) for their validity and the laser passes into the state "malfunction". The position value is output on the process data channel. This value is possibly faulty depending on which programmed parameter was illegal.

Configuration / Parameter setting via the Interbus-S master

Page 30 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

6.2 Parameter description

The range of values of parameter data in D0 - D24 is to be entered in two's complement. In the case of a value limit error, after the device control command "enable operation" the laser is switching over to the "malfunction" state, no programming occurs. (e.g. +1 dec.: Parameter data = 1 HEX

-1 dec.: Parameter data = 1 FF FF FF HEX)

6.2.1 Resolution

Determination of the measuring system resolution

Parameter-No.

B12 B9

Parameter value in D0 - D24

Value range Default

0001

0 = 10 mm 1 = 1 mm 2 = 0,1 mm 3 = 0,01 mm 4 = 1 Inch 5 = 0,1 Inch

0 - 5 1

6.2.2 Switching-off laser diode

For increase the life time of the laser diode the laser diode can be switched inactively with transmission of this parameter-no.. If in parameter-no. 1100 "Function external input", page 32 the parameter value "2" = "Switch off laser diode" was programmed, or the parameter 0101 "Switch off laser diode automatic if Interbus-S is inactive", page 31 is active, this parameter is ineffective.

Parameter-No.

B12 B9

Parameter value in D0 - D24

Value range Default

0010

- -

6.2.3 Switching-on laser diode

With transmission of this parameter-no. the laser diode is switched actively. If in parameter-no. 1100 "Function external input", page 32 the parameter value "2" = "Switch off laser diode" was programmed, or the parameter 0101 "Switch off laser diode automatic if Interbus-S is inactive", page 31 is active, this parameter is ineffective.

Parameter-No.

B12 B9

Parameter value in D0 - D24

Value range Default

0011

- -

Configuration / Parameter setting via the Interbus-S master

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 31 of 37

6.2.4 Preset preselection

Determination of the position value on which the laser is adjusted when the preset function or the preset-input is activated (see " Control Word, relative word address "0" ", page 22 / "Set zero shift", page 23 and "Function external input", page 32).

Parameter-No.

B12 B9

Parameter value in D0 - D24

Value range Default

0100 Freely selectable

Programmed measuring initial value to measuring length in steps

6.2.5 Switch off laser diode automatic if Interbus-S is inactive

If the parameter is active, in case of an inactive Interbus-S the laser diode is switched off automatically after approx. 15 min.. If the Interbus-S will be active again, the laser diode is switched on again immediately.

If in parameter-no. 1100 "Function external input", page 32 the parameter value "2" = "Switch off laser diode" was programmed, this parameter is ineffective.

Parameter-No.

B12 B9

Parameter value in D0 - D24

Value range Default

0101

0 = disabled 1 = active

0 - 1 0

6.2.6 Counting direction

Determination of the measuring system counting direction.

Parameter-No.

B12 B9

Parameter value in D0 - D24

Value range Default

1000

0 = with increasing distance to the laser, values increasing

1 = with increasing distance to the laser, values decreasing

0 - 1 0

6.2.7 Speed limit value

Optional input of the limit value in 0.1 m/s for the speed-monitoring. At active speed monitoring with exceeding of the adjusted speed level the corresponding warning bit in the malfunction code is set, see page 27. This function can be used only, if the hardware function "Adjusting of the speed monitoring (optional)", page 20 is switched off. This is the case, if the DIP-switch is not equipped, or no valid switch identification (DIP 5/7 = ON) is adjusted.

Parameter-No.

B12 B9

Parameter value in D0 - D24

Value range Default

1001

0 = no check 1 – 200 = 0,1 – 20 m/s

0 – 200 0

Configuration / Parameter setting via the Interbus-S master

Page 32 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

6.2.8 Error value

Determination of the error value which is output instead of the actual value at a beam interruption.

Parameter-No.

B12 B9

Parameter value in D0 - D24

Value range Default

1010

0 = NULL 1 = 0xFF 2 = Last valid position value

0 - 2 0

6.2.9 Function external input

Determines, whether the switching input is to be used as

- Preset input, - Switch-off Laser-Diode (LD) or Failure reset - input

With connection of the switching input as Preset-input the laser is adjusted on the predefined position value (see also "Preset preselection", page 31). With connection the switching input as LD-input the laser diode is switched off for the extension of the life time. If in the PC-program "TRWinProg" in the basic parameters the switching-off of the laser diode is carried out automatically, the LD-switching input does not have a function.

Parameter-No.

B12 B9

Parameter value in D0 - D24

Value range Default

1100

0 = disabled 1 = Preset 2 = Switch off laser diode 3 = Failure quit

0 - 3 0

6.2.10 Clear Preset

Via this parameter, the zero-point correction calculated under the parameter "Preset preselection, 0100" is deleted. The correction arises from the difference of the desired preset value to the physical laser position. That means, after deletion of the zero-point correction the laser outputs his "real" physical position.

Parameter-No.

B12 B9

Parameter value in D0 - D24

Value range Default

1101

0 = no clearing 1 = clear Preset

0 - 1 0

6.2.11 Function external output

Specifies the function of the error output (external switching output). Definition of the error see "Malfunction code", page 27 and "Causes of Faults and Remedies", page 33. Options:

Parameter-No.

B12 B9

Parameter value in D0 - D24

Value range Default

1110

0 = disabled 1 = Temperature 2 = Intensity 3 = Hardware-Fail 4 = every fail 5 = Speed-check 6 = Plausibility measured value

0 – 6 0

Causes of Faults and Remedies

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 33 of 37

6.2.12 Save parameters

Via this parameter all programmed parameters are saved permanently. The parameters are also available after switch on the laser again.

Parameter-No.

B12 B9

Parameter value in D0 - D24

Value range Default

1111

0 -

7 Causes of Faults and Remedies

The fault causes are defined according to the malfunction code (see page 27). For the resetting of the malfunction code, at first the error must be eliminated. After this the device control command "Enable Operation" must be sent to the laser. If the switching input was adjusted via the TRWinProg-software for error resetting, the error can be acknowledged also about the external switching input.

Malfunction Code

Cause Remedy

0001 Invalid parameters from the host

Invalid parameter data, a parameter range error is available.

Check all programmed parameters after valid ranges of values (see "Parameter overview", page 26 and "Parameter description", starting from page 30).

0011 Memory error

Hardware error

If the error occurs at repeated service type, the device must be replaced.

1001 Intensity warning

The device determined an intensity of < 12%.

This message is only a warning and means that the measuring system optics, or the reflecting foil is to be cleaned. However, the device operates error-freely furthermore.

1010 Laser diode switched off

The bit is set, if the laser diode was switched off over the bus, or the switching input.

Serves only for information purposes.

1100 Intensity error

The device checks the intensity of the received laser signal continuously, it was detected a belowminimum intensity.

1. Clean measuring system optics

2. Clean reflecting foil

3. Rule out an interruption of the laser beam

If the possibility of soiling or interruption of the laser signal can be ruled out, the device must be replaced.

1101 Speed-check

The adjusted speed level was exceeded.

Serves only for information purposes, whether the adjusted speed level was exceeded. (Function see chapter 5.2, page 20 and chapter 6.2.7, page 31).

1110 Device temperature

The temperature has exceeded or fallen short of the range of 0 - 50°C in the housing of the device.

Appropriate measures must be taken to prevent the device from overheating or undercooling.

1111 Plausibility warning

The plausibility of the measured value couldn't be guaranteed any more.

This message is a warning and means that possibly corresponding measures must be taken, so that no system components will be damaged.

Maintenance

Page 34 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

8 Maintenance

8.1 General Maintenance Information

The Laser Measuring Device does not, in general, require maintenance by the operator.

Note

If the lens opening of the laser or the reflecting foil become dirty, clean with a soft cloth.

Do not use an aggressive cleaning material such as thinner or acetone !

8.2 Repair, Maintenance

Repairs to the devices must only be carried out by the manufacturer.

Contact your TR-Electronic GmbH distributor or service organisation should repairs be required. The addresses are listed on the last page of this description.

Appendix

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 35 of 37

9 Appendix

9.1 Specifications

Note

The electric characteristics have validity, only after an operating time of approximate 30 minutes.

9.1.1 Electrical ratings

Measuring principle: .........................................

Phase delay time measurement

Range (measurement on reflecting foil):........

0,2 – 125 m standard, 170m, 195m, 240m (special devices)

Resolution: ........................................................

selectable, physical resolution 0,7 mm

Linearization

up to 12m (standard):..........................

absolute linearity error ±3 mm

complete measuring length:................

absolute linearity error ±5 mm

Operating voltage

Standard device: .................................

18-27 V DC (± 5%)

Device with heating:............................

24 V DC (± 5%)

Power consumption (no-load): ........................

< 6 watts

Power consumption with heating: ..................

< 60 watts

Opto-transmitter:...............................................

Laser diode (red light)

Wavelength λ: ...................................

670 nm

Max. laser power:..............................

P ≤ 1 mW

Laser protection class: ...................... 2 according to DIN EN 60 825-1: 2003-10

Lifetime:............................................. 50 000 h

Measured value output / refresh cycle: ..........

1000 values / s

Integration time: ................................................

1 ms

Reproducibility:.................................................

± 2 mm

Programming via RS485:..................................

PC IBM compatible (TRWinProg) / Interbus-S

Interbus-S Interface: .........................................

Interbus-S according to DIN 19258 Two-wire remote bus for transmission and receive

direction, RS422 with galvanic isolation

Profile: ................................................. K3

Ident-No.: ............................................ 55 dec.

Number of words:................................ 2 IN / 2 OUT

Baud rate (programmable):................. 300 kbps net, 500 kbps gross or 2Mbaud

(including control and status bytes)

Data refresh: ....................................... 0,5 ms

Output code:........................................ Binary

Special features: ................................. Programming of the following parameters via the

Interbus-S:

- Resolution

- Switch off or switch on laser diode, automatic

- Preset preselection

- Counting direction

- Speed limit value

- Error value

- Programming of the ext. switching input/output

- Clearing zero mark

Switching input / Switching output:................

programmable

Levels switching input: ........................ -level > +8V, 0-level < +2V, up to ±35V, 5 kOhm

Levels switching output:...................... 1-level > US-2V, 0-level < 1 V, up to 100mA

Appendix

Page 36 of 37 TR - ELE - BA - GB - 0008 - 06 14.12.2007

9.1.2 Environmental conditions

EMC: ............................................................................

EN 61000-4-2 (IEC-801-2) / EN 61000-4-4 (IEC-801-4)

Operating temperature range: ..................................

0-50°C

Device with heating:................................... -30 to +50°C

Thermal drift: ..............................................................

1 ppm / °C, related to the max. measuring length of 125 m, 170 m,195 m or 240 m

Storage temperature range:......................................

-20 to +75°C

Relative air humidity:.................................................

98 % (no moisture condensation)

* Degree of protection: ..............................................

IP 65 (DIN 40 050)

Vibration ( 50-2000 Hz Sinusoidal ) DIN IEC 68-2-6:.....

≤ 50 m/s

(5g)

Shock (11ms) DIN IEC 68-2-27:.................................

≤ 300 m/s

(30g)

* The protection class is valid for the device with screwed-together cable glands.

Appendix

14.12.2007 TR - ELE - BA - GB - 0008 - 06 Page 37 of 37

9.2 Ordering information

9.2.1 Laser devices

Article-No.: Description

2200-00200 Laser device Interbus 125 m 2200-00202 Laser device Interbus 125 m, linearized 2200-01200 Laser device Interbus 170 m 2200-01202 Laser device Interbus 170 m, linearized

9.2.2 Accessories

Article-No.: Description

490-00105 TR-PT-15/2: switch cabinet module for PC adapter connection 490-00310 Device: PC adapter (RS485 <--> USB)

490-01001

Soft-No.: 490-00416 "TRWinProg" PC-software with user manual German and English

Reflecting foils for measurements up to 125m 49-500-020 200 x 200 mm, package contents 49-500-038 200 x 300 mm 49-500-031 749 x 914 mm Other sizes upon request.

In addition, the foils can be sticked-on side-by-side up to the desired size. Fresnel Reflecting foils for measurements > 125m 49-500-032 554 x 480 mm, package contents 49-500-034 554 x 480 mm, predrilled 49-500-036 720 x 693 mm 49-500-037 1108 x 960 mm 49-500-039 200 x 200 mm, for measurements approx. up to 130m

TR-Electronic LE-200 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
