Fusion SKI
Operating and maintenance manual
Maximum care has been paid to guarantee the accuracy of this manual. The Manufacturer reserves the right to modify the equipment or the documentation at any time, without notice. Therefore there might be small differences between this manual and the product you have received: we apologise in advance for any inconvenience. The total or partial reproduction of this manual without the Manufacturer's consent is prohibited. Measurements are purely indicative and not binding. The original language of this manual is Italian: the Manufacturer is not responsible for any mistakes in translation/interpretation.
We thank you for choosing a Treesse bathtub and welcome you to our world of total wellness.
We remind you that our products are manufactured with superb quality materials and are accurately tested in compliance with the provisions of the safety regulations in force.
Great innovation and sophisticated design are added to this guarantee of quality and comfort.
Now sit back and relax.
Gruppo Tre S s.p.a.
Introduction
We hope that the use of this bathtub provides you with an experience of pure pleasure.
If you have problems, contact your authorised dealer or the Manufacturer at one of the following addresses:
info@gruppotres.it www.gruppotreesse.it GRUPPO TRE S s.p.a. 01036 Nepi (VT) - Italy S.S. Cassia km. 36.400 Settevene industrial area tel. (+39) 0761 527242 fax (+39) 0761 527223
It is mandatory to keep the original proof of purchase (receipt/invoice etc.) in case servicing is required under warranty.
EN
Fusion SKI bathtub
The serial number is indicated in the equipment compartment.
EXPLANATION OF PICTOGRAMS
Danger! Situation presenting immediate danger, or a hazardous situation that could cause injury or death.
More info: helps the installer understand a topic better
The pictogram refers to text in another document
Ecological notes for respecting the environment
4
Contents
EN
Fusion SKI bathtub
General safety instructions __________________________________6
Use ______________________________________________________6
Use ___________________________________________8
1
BEFORE USING THE BATHTUB... ____________________________________________________ 8
USE ADVICE ____________________________________________________________________________________8
TIME IN THE WATER _____________________________________________________________________________8
CHROMATHERAPY ______________________________________________________________________________9
ESSENCES AND BATH SALTS _____________________________________________________________________9
Use ___________________________________________10
2
BATHTUB FUNCTIONS _____________________________________________________________ 10
FILLING THE BATHTUB ___________________________________________________________________________11
DRAIN AND SUCTION PUMPS ____________________________________________________________________11
WHIRLPOOL ____________________________________________________________________________________12
U
U
CHROMATHERAPY ______________________________________________________________________________12
WHIRLPOOL ____________________________________________________________________________________12
OVERFLOW EDGE _______________________________________________________________________________ 13
3
CONTROL PANEL: HOW TO USE IT __________________________________________________ 14
Documentation _________________________________19
Maintenance _______________________________________________18
HOW TO CLEAN THE BATHTUB _________________________________________________________ 18
Warranty conditions ________________________________________19 Certicate of warranty ______________________________________19 Disposal at end of life _______________________________________19
M
D
5
Safety instructions
EN
Fusion SKI bathtub
GENERAL SAFETY INSTRUCTIONS
This manual has been prepared to help
you get the most out of your bathtub in a safe manner, avoiding circumstances that could void the warranty. Read this guide carefully before using the equipment and performing any maintenance, and keep it on hand for any future needs. If you do not understanding something, contact the manufacturer for an explanation.
Unauthorised actions, tampering or
modications that do not follow the
information provided in this manual can cause damages, injuries or fatal accidents and null and void the warranty.
Any use or maintenance of the bathtub
carried out in a manner different from what is indicated in this manual can void the warranty.
Before performing any installation or
maintenance disconnect the electricity and water supply.
Avoid placing any object or substance
on the surfaces of the bathtub that can damage them.
DANGER!
RISK OF ELECTRIC SHOCK. Do not place any electrical appliance - like hair dryers, lights, radios, phones or TV - closer than 1.5 m from the bathtub.
WARNING! TO REDUCE THE RISK OF INJURY
• The bathtub water must never exceed 40°C in order to avoid hyperthermia.
• Water temperatures between 38° and 40°C are still considered safe for a healthy adult. Lower temperatures are recommended for extended use (exceeding 10 minutes), for children or if you are alone.
• To minimise the risks, always feel the temperature with your hand to verify the temperature and comfort level before allowing children to get into the bathtub.
• Pregnant women or those presumed to be should consult a doctor before using the bathtub.
• People with infectious, skin or contagious diseases should NOT use the bathtub.
• People with health problems should consult a physician before using the bathtub, especially those suffering from obesity, heart disease, low or high blood pressure, circulatory problems, diabetes, clotting problems, pregnant women, etc.
• The use of drugs, alcohol, drugs, medicines before or during bathtub use can lead to unconsciousness and consequent possibility of drowning.
The Manufacturer recommends that you
always place the optional cover when the bathtub is not in use. The cover is not designed to support weights. Do not walk, jump, sit or place any objects on it.
SAFETY INSTRUCTIONS FOR USE
RISK OF DROWNING! To reduce the risk of accidents, do not allow children under
the age of eight years, people with reduced psychological and sensory abilities or those who are inexperienced to use the minipool without close constant surveillance.
Do not dive into the bathtub: risk of
serious personal injury and structural
damage to the equipment.
6
Safety instructions
EN
Fusion SKI bathtub
SAFETY INSTRUCTIONS FOR MAINTENANCE
Perform maintenance on your bathtub
on a regular basis as this will maintain the surfaces and functional parts in optimal condition and also ensure maximum hygiene and safety when using the bathtub.
During the maintenance of the bathtub
and the use of chemicals, always use personal protection (e.g., protective gloves and glasses).
For routine maintenance, use only the
products indicated by the Manufacturer: other types of detergents or disinfectants could irreparably damaging the bathtub surfaces and circuits (damage resulting from the use of unsuitable products is not covered by the warranty).
Unauthorised actions, tampering or
modications that do not follow the
information provided in this manual can cause damages, injuries or fatal accidents and null and void the warranty.
More information
U
HYPERTHERMIA
Prolonged immersion in hot water may cause hyperthermia, a dangerous condition that occurs when the internal temperature of the
body exceeds the normal value (37°C).
The rst symptoms of hyperthermia include dizziness,
fainting, drowsiness, lethargy and a body temperature higher than 37°C. The physical effects of hyperthermia include unawareness of impending hazard, failure to perceive heat, physical inability to exit the bathtub, foetal damage in pregnant women and unconsciousness resulting in a danger of drowning.
The use of alcohol, drugs or medication can greatly increase the risk of fatal hyperthermia in hot spas.
If you suspect hyperthermia pull the person out of the bathtub and immediately call for medical assistance. While awaiting assistance, take the person to a cool place and let him or her to lie on his or her back with the head slightly raised by a pillow.
Being potentially toxic by ingestion and contact, cleaning and disinfectant
products must be kept tightly closed and
out of the reach of children or pets. When not in use, store these chemicals in their
original labelled and well sealed containers in a cool, dark place, away from heat
sources.
Persons not involved with equipment
maintenance may not pass through or occupy the work area.
Before performing any maintenance
disconnect the electricity and water supply.
7
Use
1
BEFORE USING THE BATHTUB...
EN
Fusion SKI bathtub
More information
Read these chapters before using your new bathtub. They will provide you with useful tips to use it safely with
maximum benet.
USE ADVICE
• When using the bathtub, do NOT wear loose clothing,
pendant jewellery and tie up long hair to avoid the risk of becoming caught in moving parts.
• The time in the bathtub should never exceed 20
minutes.
• Use the whirlpool at most three times per week.
• Inside the bathtub DO NOT use foaming detergents,
soaps, bath oils, greasy lotions or products that are not compatible with the bathtub.
• Before entering the bathtub take a shower to remove
any fatty substances (e.g., sweat, suntan lotion, etc.) that could make the water cloudy and oily.
• The paving around the bathtub may become very slip-
pery. Be careful when entering or exiting the water.
TIME IN THE WATER
For a relaxing experience the ideal water temperature is about 33-37°C for a duration of about 20 minutes. In fact, a temperature equal to that of the body fosters vasodilation and muscle relaxation.
For an energising experience, soak for about 10 minutes, preferably in the morning, at about 33°C.
For a draining experience, use the whirlpool for 5-8 min­utes at a maximum of 35°-37°C. After leaving the bathtub relax for a few minutes to allow the pressure altered by the heat and massage to return to normal.
CHROMATHERAPY
Light is made up of seven basic colours: red, orange, yellow, green, blue, indigo and violet. The classic
example of the colour spectrum that we nd in nature
is the rainbow.
The Egyptians, Greeks and Romans practised heliotherapy (exposure to direct sunlight) for the treatment of various disorders.
In India, ayurvedic medicine has always taken into account how colours affect the balance of the Chakras and how they can help the body and psyche to restore their natural balance.
Red: dissipates the deepest fears and maintains the
person well anchored to the present and to the solidity of the earth.
Orange: stimulates feminine creativity, optimism and
serenity.
Yellow: brings out emotions and desires, personal power
and the ability to perceive the qualities and feelings of others.
Green: reawakens love and openness towards others,
selessness, inner goodness.
Blue: promotes the ability to listen to others. It is related to
the expression of one's personality, creativity, imagination, relaxation.
Indigo: has the ability to broaden our understanding
and treat disorders that affect sensory organs like eyes, nose and ears.
Violet: cool colour that promotes spirituality, inspiration
and imagination.
8
Use
EN
Fusion SKI bathtub
ESSENCES AND BATH SALTS
Inside the bathtub DO NOT use foaming detergents, soaps, bath oils, greasy lotions or products that are not compatible with the bathtub. Otherwise the water can become oily or foamy.
To make your bathtub even more relaxing and stimulat­ing, use bath salts in moderate amounts or natural es­sences, ensuring that the products used are formulated to be compatible with the spas in laminated resin.
Products specic for spas must not:
• Be foamy
• Be oily
Be ammable
• Contain soluble substances
Follow the quantities and methods indicated on the labels of the products used.
More information
Sweet orange essence
Sweet orange essence is obtained from Citrus sinensis dulcis, a plant of the Rutaceae family. Having an astringent and cleansing action, it is helpful for anxiety and stress.
Neroli essence
Neroli essence is obtained from Citrus aurantium, a plant of the Rutaceae family. Known for its many properties, it has a calming, balancing and rejuvenating effect.
Ylang Ylang essence
Ylang Ylang essence is obtained from Cananga odorata, a plant of the Annonaceae family. It has a calming, hypotensive and aphrodisiac effect.
Myrrh essence
Myrrh essence is obtained from Commiphora myrrha, a plant of the Burseraceae family. The essence is harmonising and spiritual, increasing openness to the receipt of energy.
U
Lavender essence
Lavender essence is derived from Lavandula angustifolia, a plant of the Lamiaceae family. It performs a rebalancing action on the central nervous system, calming anxiety and nervousness.
Apricot essence
Apricot essence is derived from Prunus armeniaca ­Rosaceae, it has a delicate and pleasant scent with calming, relaxing and anti-stress effects.
Eucalyptus essence
The essence made from eucalyptus provides an experience that is energising, balsamic and fresh.
9
Use
ENEN
Fusion SKI bathtub
2
lling the disinfectant tank shower head extraction
BATHTUB FUNCTIONS
DISINFECTANT
3
2

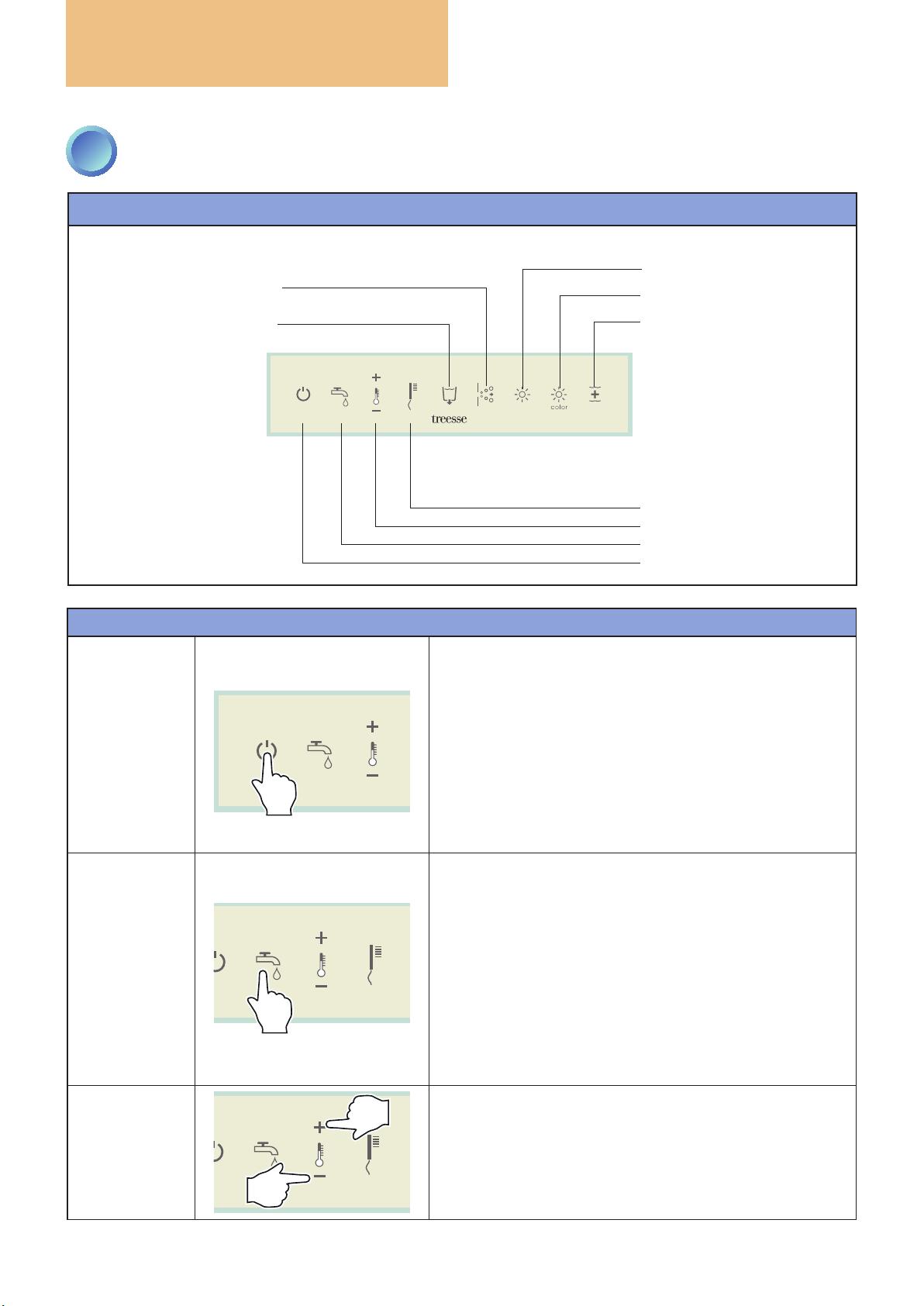

1 - Control panel
2 - Overow edge
3 - Whirlpool 4 - Loading/unloading plate 5 - Disinfectant loading 6 - Hand-held shower head
1
5
6
3
2
1
5
6
4
4
10
Use
FILLING THE BATHTUB
Pressing the "Fill" key starts the automatic lling of the bathtub starting from the bottom. When pressed, the backlight changes from blue to red until the bathtub
reaches a sufcient level for the whirlpool (detected by
the SL1 sensor). If you want to ll the bathtub further to also ll the stor­age tank (all three sensors detect the water level), it will be necessary to press the key again. Filling can be interrupted at any moment by the user (regardless of the level reached) by pressing the "Fill" key.
During tank lling (second phase), it is only possible to
use the whirlpool function.
During bathtub use the system automatically maintains the water level equal to the edge of the bathtub.
EN
Automatic lling using the keypad switch on the bathtub with the
ON/OFF key and then press the "ll" key. This activates the automatic lling of the bathtub, controlled by two level sensors and is conrmed by the xed solid blue colour of the key.
Fusion SKI bathtub
ON/OFF
U
DRAIN AND SUCTION PUMPS
The bathtub drain is positioned on the bottom, hidden
by the nishing plate.
This solution makes the use of the bathtub safer and more comfortable. To clean the drainage grate, just manually remove the
nishing plate since it is simply resting on the bottom.
For this operation see page 14.
11
Use
WHIRLPOOL
This bathtub is equipped with the patented GHOST SYSTEM© whirlpool, a system that is truly invisible, which allows for extremely simple design solutions for spas that are completely free of external nozzles and jets. GHOST SYSTEM©, an exclusive patent of Treesse Group, owes its name to the invisibility of the components, fully incorporated in the bathtub. The system is distinguished by two thin internal perimeter slots that host a large
number of jets that are properly oriented.
For this operation see page 14.
CHROMATHERAPY
Chromatherapy is standard on the innity version, while
on the version with two perimeter slots it is optional. The light "magically" moves the whirlpool in the bathtub.
EN
Fusion SKI bathtub
For this operation see page 14.
More information
WHIRLPOOL
The whirlpool has a very positive effect on disorders like insomnia and anxiety. It also facilitates muscle relaxation
and is therefore great after sports. It increases blood ow and helps to lower blood pressure. It also exerts a
lymphodraining action contributing to the elimination of imperfections like cellulite, also thanks to its massaging
action. It provides numerous benets by stimulating blood and lymphatic circulation. The water temperature
is very important: water at 37-38°C is relaxing and promotes circulation, while the cooler temperatures have a toning and stimulating effect and can increase blood pressure. The whirlpool also promotes mental harmony, relaxation and physical well-being.
12
Use
DISINFECTION FUNCTION
The disinfection function is an automatic cleaning procedure for the bathtub's entire water circuit - tanks included - that must be started only when the bathtub is
completely lled with water.
For this operation see page 14.
EN
Fusion SKI bathtub
U
OVERFLOW EDGE
The overow edge of the bathtub collects excess water
and conveys it to the collection tanks under the bathtub. The water level is always constant, allowing for relaxation and a total wellness experience. The water that overflows is recovered, filtered and automatically recirculated within the bathtub through the intake grille.
The bathtub works exclusively when the bathtub
and tanks are full of water.
The edge is designed to recover the overowing
water, not for abnormal movements caused by an
improper use of the bathtub (e.g., diving). In this regard we strongly recommend entering the bath­tub and getting in the water slowly.
When the recirculation of the water overow is active,
an electric resistance (optional) automatically activates to help maintain the water temperature.
NO
OK
13
Use
EN
Fusion SKI bathtub
3
CONTROL PANEL
CONTROL PANEL: HOW TO USE IT
whirlpool key
emptying key
light key
chromatherapy key
disinfection key (flashing indicates that the disinfectant tank is empty:
rell it with a suitable product)
shower head key temperature key
automatic ll key
ON-OFF key
HOW TO ACTIVATE FUNCTIONS
POWER ON
FILLING
The minipool is powered on by connecting it to the mains. When rst turned on, the "ON-OFF" key will be backlit in blue and all others will be turned off, indicating that all the
functions are disabled for use. With the rst press of the "ON-OFF" key, its backlight changes from blue to red, while all the others are blue: the system is ready for use. Pressing the "ON-OFF" key again puts the bathtub in sleep mode, turning off the backlight of the keys and all the active functions (except for the drain).
Pressing the "Fill" key starts the automatic lling of the bathtub. When pressed, the backlight changes from blue to red until the bathtub reaches a sufcient level for the whirl­pool (detected by the SL1 sensor). If you want to ll the bathtub further to also ll the stor­age tank (all three sensors detect the water level), it will be necessary to press the key again. Filling can be interrupted at any moment by the user (regardless of the level reached) by pressing the "Fill" key.
During tank lling (second phase), it is only possible to use
the whirlpool function.
WATER TEMPERATURE SETTING
The "Temperature" key makes it possible to adjust the temperature of the water in the bathtub and the shower head.
Every time the “+” (increase) or “-” (decrease) keys are pressed, the temperature increases/decreases by +/-0.5°C.
To change the value more quickly hold the key down.
14
Use
EN
Fusion SKI bathtub
HOW TO ACTIVATE FUNCTIONS
SHOWER HEAD HOUSING
WHIRLPOOL
U
Pressing the “shower head” key makes water come out of
the shower head. The water continues to ow until the key
is pressed again or for a maximum of 20 minutes. While the water continues the "shower head" icon is red.
The function can only be activated with the shower head
extracted from its housing: the gure above shows how to
do this.
Pressing the “Whirlpool” key activates the whirlpool func­tion. The function remains active until the key is pressed again or for a maximum of 20 minutes.
When the whirlpool is running the key is red.
If the whirlpool is started but the water level in the minipool
is too low, the key will ash red three times and the whirlpool
will not start.
TURNING ON LIGHTS
TURNING ON CHROMATHERAPY
Pressing the “Lights” key activates the LEDs in white light mode. The function remains active until the key is pressed again or for a maximum of 60 minutes. When the light is on the key is red.
The function can always be activated, even if the water level
is low.
With every quick press of the changes, moving through the 15 available. Choose the one that is best suited to your needs.
A long press (at least four seconds) of the activates a sequence of 15 colours that change automatically.
The function can always be activated, even if the water level
is low.
Chromatherapy” key the colour
Chromatherapy” key
15
Use
HOW TO ACTIVATE FUNCTIONS
DISINFECTION
x2
EN
The disinfection function is an automatic cleaning procedure for the bathtub's entire water circuit, including the tanks. It should be carried out after every use of the bathtub or after long periods of disuse.
HOW TO START IT
Press the "disinfection" key. To prevent accidental use, after the rst press the key
ashes blue. At this point: A) If it is not pressed again, the key returns to xed blue
and nothing happens (the system interprets the rst
press as an accident).
B) If by the third blue ash the "disinfection" key is pressed
again, the function starts and the key turns solid red.
Subsequently:
- It is lled with water until the tank is completely lled (SL3 sensor).
- The two pumps (whirlpool and recirculation) and the solenoid valve of the disinfectant are activated for 30 seconds. The two pumps remain active for an additional
ve minutes.
After ve minutes the bathtub is automatically drained.
It is important to leave the bathtub switched on for at least one hour after the end of the disinfection procedure to al­low for the complete emptying of the pipes.
If the whirlpool is started but the water level in the minipool
is too low or there is no disinfectant in the reservoir, the key will ash red three times and the cleaning will not start. In this case ll the bathtub or top up the reservoir using the
appropriate products.
Fusion SKI bathtub
DISINFECTANT
16
Use
HOW TO ACTIVATE FUNCTIONS
x2
EMPTYING
EN
Pressing the "empty" key activates the bathtub's automatic emptying cycle. To prevent accidental use, after the rst press the "empty"
key ashes blue. At this point: A) If it is not pressed again, the key returns to xed blue
and nothing happens (the system interprets the rst
press as an accident).
B) If by the third blue ash the key is pressed again, the
emptying cycle starts and the key changes from blue to:
- Flashing red in the rst phase of the cycle (it cannot be
interrupted).
- xed red in the second phase of the cycle (in this
moment it is possible to stop the emptying by pressing the key again).
Throughout the entire emptying cycle, both chromatherapy and the shower head can be activated. It is important to leave the bathtub switched on for at least one hour after the end of the disinfection procedure to al­low for the complete emptying of the pipes.
Fusion SKI bathtub
U
17
Maintenance
OK
To maintain ideal levels of hygiene and well-being it is necessary to completely empty the bathtub and clean it after each use.
The surface of your bathtub is in stratied resin, glossy,
polished and resistant: with proper maintenance and
cleaning the surface will remain like new for a long,
long time!
During maintenance of the bathtub, use per­sonal protection equipment all the time (i.e. protective gloves and glasses).
Before carrying out any maintenance disconnect the bathtub's power supply.
HOW TO EMPTY THE Bathtub
Pressing the "empty" key activates the bathtub's automatic emptying cycle. To prevent accidental use, after the rst press the "empty" key ashes blue. At this point:
A) If it is not pressed again, the key returns to xed blue
and nothing happens (the system interprets the rst
press as an accident).
B) If by the third blue ash the key is pressed again, the
emptying cycle starts and the key changes from blue to:
- Flashing red in the rst phase of the cycle (it cannot be interrupted).
- xed red in the second phase of the cycle (in this moment it is possible to stop the emptying by pressing the key again).
EN
How to empty the bathtub: quickly press the indi­cated key two times.
Fusion SKI bathtub
x2
HOW TO CLEAN THE Bathtub
To clean the surfaces use a soft cloth and mild products suited to the bathtub's material (layered resin). They are readily available at any specialised store or upon request to the Manufacturer. Follow the instructions for use stated on the product label. Always finish by drying it perfectly, preferably with deerskin. Absolutely avoid abrasive, aggressive (e.g., solvents or acetone) or alcohol-based cleaners and cloths. Do not use descaling products as they are too aggressive. To restore the brilliance of the surfaces or remove stubborn stains (e.g., nicotine), it is possible to use car polish spread with cotton.
To preserve the surfaces it is recommended to apply
wax specic for spas in layered resin during periods
of inactivity. For methods of use carefully follow the product's instructions.
M
I
N
I
MINIPOOL
e
1000 ml
OK
L
O
P
O
OK
18
Documentation
EN
Fusion SKI bathtub
WARRANTY CONDITIONS
Under this warranty, the manufacturer will repair
or replace free of charge only the parts that have manufacturing defects. Therefore under the warranty
the purchaser cannot request termination of contract, compensation of damages or the complete replacement of the product. Once the warranty has expired, service and repairs will be provided in exchange for payment. The Authorised Technical Service Centre contacted by the customer will apply the current rates, approved by the Manufacturer.
Not covered by the warranty:
- Mirrors.
- Lights.
- Fuses.
- Masonry works which may be necessary for the removal of the defective parts.
- Components that may be defective due to negligence of use, incorrect installation or maintenance, transportation and generally due to causes not directly attributable to defects in the product's manufacture.
The Manufacturer accepts no responsibility for any damage to people, animals or property resulting from failure to follow the instructions provided in the product installation and maintenance manual. For service where there is no evidence of product defect as well as for installation, all expenses will be borne by the customer.
IMPORTANT NOTICE
Service under warranty will only be performed if:
- The purchaser has documents proving the actual date of purchase.
- During installation, operation and maintenance current regulations, the instructions given in the product installation and maintenance manual and the precautions recommended by the manufacturer have all been complied with.
DISPOSAL AT END OF LIFE
As per Legislative Decree no. 49 art. 13 dated 2014 "Implementation of WEEE Directive 2012/19/EU on electric and electronic waste"
The WEEE symbol of a crossed out wheelie bin
with a black line across it species that the product
has been placed on the market after the 13th
August 2005 and that at the end of its life it must not be disposed of together with other wast but must be disposed of separately. All the equipment has been made with recyclable metal materials (stainless steel, iron, aluminium, zinc plate, copper, etc.) that as a percentage make up more than 90% of the weight. The equipment must be made ready for disposal by removing the power cable and any doors for closing compartments or cavities (where present). Attention must be paid to the management of this product at the end of its life, reducing any negative
impact on the environment and improving the efciency
of resources, applying the principles of “who pollutes pays”, prevention, preparation for re-use, recycling and recovery. Please remember that illicit or incorrect product disposal is punishable by law. Information on disposal in Italy WEEE equipment in Italy must be delivered to:
- Collection Centres (also named eco-islands or eco­platforms)
- The dealer where new equipment is purchased who must withdraw it free of charge ("one to one" withdrawal). Information on disposal in European Union countries The EU Directives on WEEE equipment has been adopted in different ways by different countries, therefore in order to dispose of this equipment correctly we suggest that you contact your local authority or your dealer in order to ask the correct method of disposal.
M
CERTIFICATE OF WARRANTY
With this document the manufacturer guarantees the product purchased for a period of:
2 years on breglass parts of tubs and showers. Excluded therefore from the warranty are ttings and electrical and
plumbing equipment that guarantee the operation of the product even if sold together with it.
2 years on the remaining parts sold with the product.
The warranty starts from the date of purchase. Such date will be demonstrated by the receipt or any other document proving the purchase of the goods.
19
www.gruppotreesse.it
GRUPPO TRE S s.p.a.
01036 Nepi (VT) - Italy
S.S. Cassia km. 36.400
Settevene industrial area
tel. (+39) 0761 527242
fax (+39) 0761 527223
info@gruppotres.it
Fusion SKI use - Edition 12-2017
Loading...
