TreasureHouse
Thank you for purchasing our Treasure House Ⅱ private
container with mechanical combination lock. Please read
this User's Manual carefully before using this product.
It is a new type of private container developed
meticulously by Shanghai Diebold, being succinct in
appearance, reliable in structure and easy to operate. It
is one of the best choices for your family.
reasure ouse
This User's Manual applies to model JJB-202, JJB-212, JJB-222,
JJB-232, JJB-242, JJB-252, JJB-252S private containers.
No. : B-05017
Non CCC Certified Chests
TreasureHouse
CONTENTS
Private Containers with Mechanical Combination Lock
Mechanical Combination Lock
To Open
To Close
Useful Items
Accessory List
Customer Support
Maintenance Guarantee
1
3
4
7
9
9
10
11
TreasureHouse
PRIVATE CONTAINERS WITH MECHANICAL
COMBINATION LOCK
Body
Dail
Dail lock
Bolts
Inner door
Inner door
lock
Inner door
key
Shelves
Main key
Door
Figure 1
Body
Bolts
Door
Figure 2
1
PRIVATE CONTAINERS WITH MECHANICAL
COMBINATION LOCK
Dail
Main lock
Knob
Body
Door
小门
Hint: JJB-252S private container (double doors) operates the same as
the single door model.
Figure 3
Shelves
Inner door
小门
Inner door
lock
Figure 4
2
MECHANICAL COMBINATION LOCK
Main Lock
Open Index
Dial Graduation
3
TO OPEN
Step 1
The following unlocking steps are illustrated with combination
46, 22, 51 as an example.

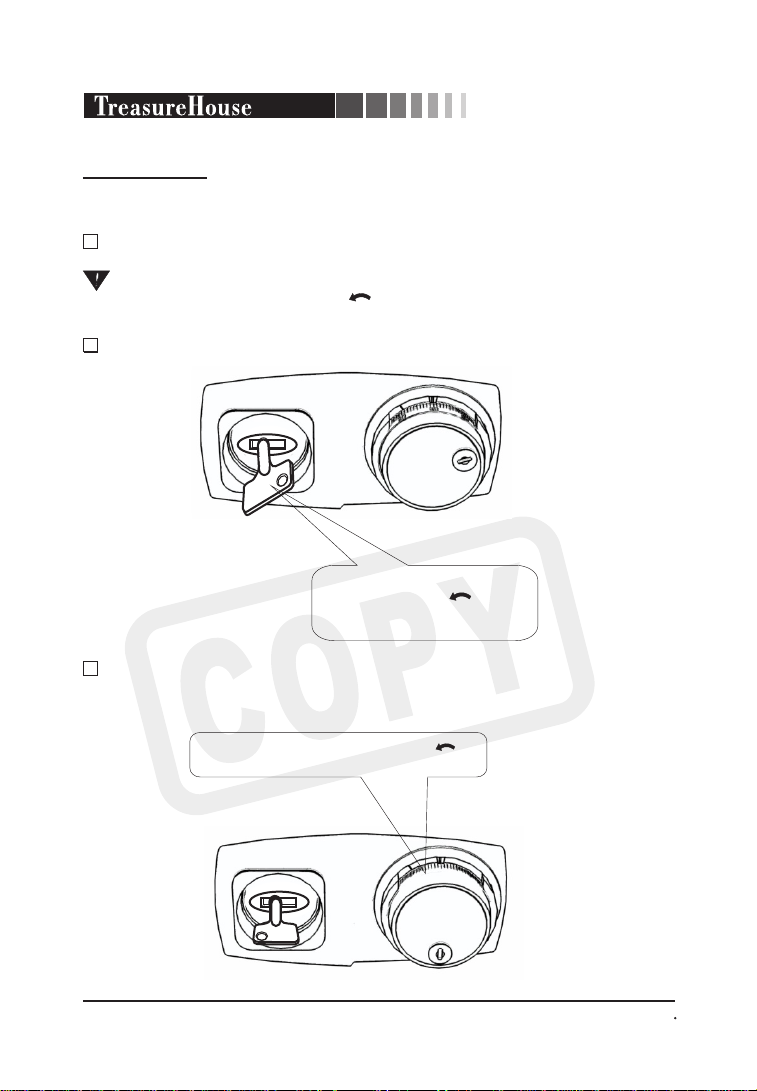

Insert the dial lock key into its
keyhole and turn it clockwise by
180 degrees to unlock the dial lock.
The combination to this mechanical combination lock you
purchased is consisted of three numbers:
_____, _____, _____.
Step 2
Turn the dial counterclockwise ,
and stop turning it when the graduation
of the combination first number ' 46 '
aligns with the open index the third
time or above. (Note: Don't turn the dial
back to regain proper alignment. If the
number is turned beyond the open
index, you can turn the dial one more
round to align with it.)
4
TO OPEN
Turn the dial clockwise , and
Step 3
It will be counted as one time when the dial is turned from the
first combination number to the second combination number.
stop turning it when the graduation
of the combination second number
' 22 ' aligns with the open index the
second time. (Note: If the number
is turned beyond the open index,
you have to restart from Step 2.)
Step 4
It will be counted as one time when the dial is turned from the
second combination number to the third combination number.
Turn the dial counterclockwise ,
and stop turning it when the graduation
of the combination third number ' 51 '
aligns with the open index the first time.
(Note: If the number is turned beyond
the open index, you have to restart
from Step 2.)
5
TO OPEN
Step 5
Turn the main lock key
clockwise by 135 degrees
to open the door.
For model JJB-232, JJB-242, JJB-252 private container, need to
further turn the handle (See Figure 3) clockwise to open the
door.
6
TO CLOSE
Step 1
For model JJB-232, JJB-242, JJB-252 private container, first turn the knob
(See Figure 3) counterclockwise .
Step 2
Step 3
Close the private container door.
Turn the main lock key
counterclockwise by 135
degrees until it assumes a
horizontal position.
Turn the dial counterclockwise for
at least three rounds.
7
TO CLOSE
Step 4
Hint: JJB-252S private container (double
doors) operates the same as the single door
model.
Turn the dial to align the graduation of
' 0 ' with the open index. Then insert the
dial lock key into its keyhole and turn it
counterclockwise by 180 degrees to
lock the dial.
Note: Be sure to remove the dial lock key
Note: Be sure to remove the dial lock key
after locking the private container according
after locking the private container according
to the above steps.
to the above steps.
The combination of this private container
cannot be changed, but it's very safe for you
to use it as it was generated at random.
8
USEFUL ITEMS
With the following items provided to our customer
support people, you will get assistance from us sooner.
Product Factory Number (On the label posted at one side of the product)
Product Model
Product Sales Invoice
Maintenance Guarantee
ACCESSORY LIST
User's Manual
Main key
Conformity Certificate
Dial lock key
Inner door key
1 piece
2 pieces
1 piece
2 piece
2 piece
(Applicable for JJB-212, JJB-222,
JJB-232, JJB-242, JJB-252 and
JJB-252S models)
9
TreasureHouse
CUSTOMER SUPPORT
HOW TO OBTAIN ASSISTANCE
If you have any question that this User's Manual cannot
answer when using this product, please take one of the
following approaches to obtain assistance:
To call SDSEC Technical Advisory Service at
86 21 6480 9355
To send questions through SDSEC's fax response system to
get product specifications.
Fax: 86 21 6480 3291
Service hot line: 13386290300 ext 6320, 6321, 6322 or 6323.
To contact our local dealers or distributors.
To visit our website for diebold:
Http://www.diebold.cn
10
TreasureHouse
MAINTENANCE GUARANTEE
This product is guaranteed for one year from the date when it is purchased.
This guarantee only applies to the product quality problems occurring
under normal operating conditions except man-made damages (e.g.
damages incurred from improper operation or carelessness or damages
incurred from assemble or disassemble, repair and improper installation
without permission), and damages incurred from force majeure.
The original invoice that was issued when this product was purchased must
be presented when guaranteed maintenance service is provided.
Maintenance Record
ＴｒｅａｓｕｒｅＨｏｕｓｅ
ＴｒｅａｓｕｒｅＨｏｕｓｅ
ＭＡＩＮＴＥＮＡＮＣＥ ＧＵＡＲＡＮＴＥＥ
Ｔｈｉｓ ｐｒｏｄｕｃｔ ｉｓ ｇｕａｒａｎｔｅｅｄ ｆｏｒ ｏｎｅ ｙｅａｒ ｆｒｏｍ ｔｈｅ ｄａｔｅ ｗｈｅｎ ｉｔ ｉｓ ｐｕｒｃｈａｓｅｄ．
ＣＯＮＴＥＮＴＳ
Ｔｈｉｓ ｇｕａｒａｎｔｅｅ ｏｎｌｙ ａｐｐｌｉｅｓ ｔｏ ｔｈｅ ｐｒｏｄｕｃｔ ｑｕａｌｉｔｙ ｐｒｏｂｌｅｍｓ ｏｃｃｕｒｒｉｎｇ
ｕｎｄｅｒ ｎｏｒｍａｌ ｏｐｅｒａｔｉｎｇ ｃｏｎｄｉｔｉｏｎｓ ｅｘｃｅｐｔ ｍａｎ－ｍａｄｅ ｄａｍａｇｅｓ （ｅ．ｇ．
Calling
Date
Service
Date
Trouble & Caus e１１
ｄａｍａｇｅｓ ｉｎｃｕｒｒｅｄ ｆｒｏｍ ｉｍｐｒｏｐｅｒ ｏｐｅｒａｔｉｏｎ ｏｒ ｃａｒｅｌｅｓｓｎｅｓｓ ｏｒ ｄａｍａｇｅｓ
ｉｎｃｕｒｒｅｄ ｆｒｏｍ ａｓｓｅｍｂｌｅ ｏｒ ｄｉｓａｓｓｅｍｂｌｅ， ｒｅｐａｉｒ ａｎｄ ｉｍｐｒｏｐｅｒ ｉｎｓｔ ａｌ ｌａｔｉｏｎ
ｗｉｔｈｏｕｔ ｐｅｒｍｉｓｓｉｏｎ）， ａｎｄ ｄａｍａｇｅｓ ｉｎｃｕｒｒｅｄ ｆｒｏｍ ｆｏｒｃｅ ｍａｊｅｕｒｅ．
Ｐｒｉｖａｔｅ Ｃｏｎｔａｉｎｅｒｓ ｗｉｔｈ Ｍｅｃｈａｎｉｃａｌ Ｃｏｍｂｉｎａｔｉｏｎ Ｌｏｃｋ
１
Ｔｈｅ ｏｒｉｇｉｎａｌ ｉｎｖｏｉｃｅ ｔｈａｔ ｗａｓ ｉｓｓｕｅｄ ｗｈｅｎ ｔｈｉｓ ｐｒｏｄｕｃｔ ｗａｓ ｐｕｒ ｃｈａｓｅｄ ｍｕｓｔ
ｂｅ ｐｒｅｓｅｎｔｅｄ ｗｈｅｎ ｇｕａｒａｎｔｅｅｄ ｍａｉｎｔｅｎａｎｃｅ ｓｅｒｖｉｃｅ ｉｓ ｐｒｏｖｉｄｅｄ．
Ｍｅｃｈａｎｉｃａｌ Ｃｏｍｂｉｎａｔｉｏｎ Ｌｏｃｋ
３
Ｍａｉｎｔｅｎａｎｃｅ Ｒｅｃｏｒｄ
Ｔｏ Ｏｐｅｎ
４
Ｃａｌｌｉｎｇ
Ｓｅｒｖｉｃｅ
Ｒｅｐａｉｒｅｒ
Ｔｒｏｕｂｌｅ ＆ ＣａｕｓｅＡｃｔｉｏｎ ＆ Ｒｅｓｕｌｔ
Ｄａｔｅ
Ｄａｔｅ
Ｔｏ Ｃｌｏｓｅ
７
Ｕｓｅｆｕｌ Ｉｔｅｍｓ
９
Ａｃｃｅｓｓｏｒｙ Ｌｉｓｔ
９
Ｃｕｓｔｏｍｅｒ Ｓｕｐｐｏｒｔ
１０
Ｍａｉｎｔｅｎａｎｃｅ Ｇｕａｒａｎｔｅｅ
１１
Action & Result
Repairer
11
TreasureHouse
TO AFFIX THE INVOICE
