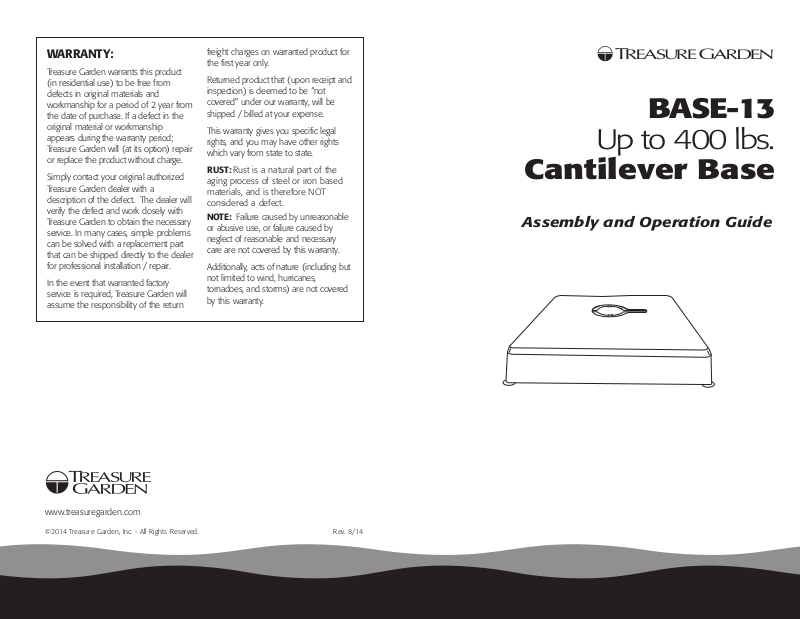

Page 1
BASE-13
Up to 400 lbs.
Cantilever Base
Assembly and Operation Guide
Page 2
Thank you for your purchase of Treasure Garden’s Cantilever Base.
1 Base Cover 1
2 Steel Base Frame 1
3 Add-On Weight Containers 4
4 Feet 4
5 Screws 4
6
Wrench 1
7
Playground Sand (not included) 400 lbs.
BASE-13 PART LIST
Part Description Qty.
6mm Hexagon
Wrench
8mm Hexagon Wrench
Rotating Hub
Main Frame
Please remove all contents from the package, inspect and review parts list.
CAUTION:To reduce personal injury and damage to your base or umbrella, read and
follow this instruction manual. We recommend a two-person team for assembly and
disassembly. Save information for future reference.
IMPORTANT:Prior to assembly it is important to decide on the location of the umbrella.
• Allow ample height to avoid damage to your umbrella during assembly and usage.
• Choose a location that is level and sturdy.
• Avoid any sloping or soft ground.
• Consider a location that will maximize the umbrella’s rotating swivel function. Placing
the umbrella between two entertaining areas is ideal.
NOTE: Some parts may be included in the styrofoam packaging.
DO NOT discard any packaging or box until assembly is complete.
REQUIRED FOR ASSEMBLY:
• 400 lbs. playground sand (not included).
Page 3
6mm Hexagon
Wrench
8mm Hexagon Wrench
Rotating Hub
Main Frame

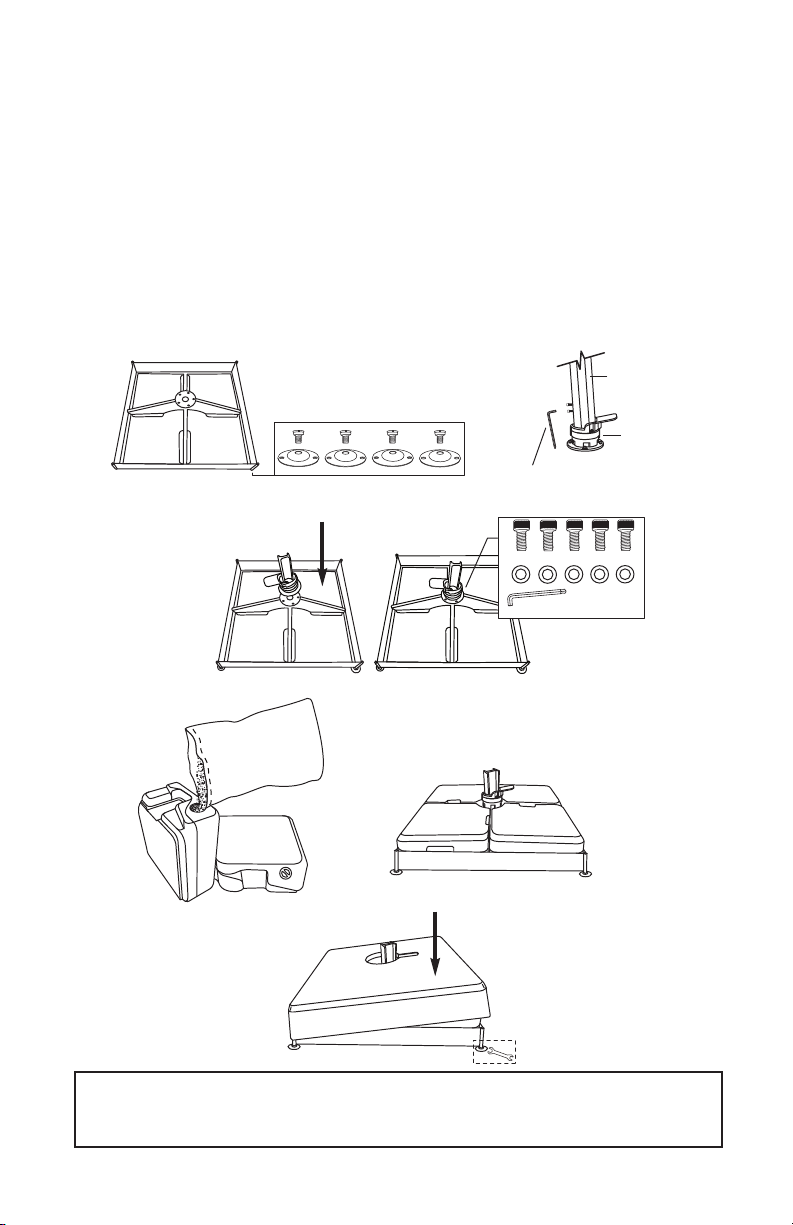

Base Assembly
Select area to set base frame and place in desired location. NOTE: Moving the umbrella will
be difficult once fully assembled. Screw (4) feet onto bottom of base frame with supplied
(4) screws (Fig. 1). Remove rotating hub from the main frame (sold separately) by removing
the (2) bolts and (2) washers (Fig. 2), set aside bolts and washers for later use. Now, place
rotating hub onto base frame and secure with supplied (5) hub bolts and washers included
with umbrella (Fig. 3). Remove caps from each add-on weight container and fill with dry
playground sand (Fig. 4). The containers hold up to 400 lbs. of sand. Fill each add-on weight
with playground sand. Place each add-on weight container into base frame sections (Fig. 5).
Carefully place base cover onto base frame (Fig. 6). LEVELING: If needed, adjust frame
corners using supplied wrench until frame is level (Fig. 7). Your base is now ready for
umbrella installation.
(Fig. 1)
(Fig. 2)
(Fig. 3)
(Fig. 4)
(Fig. 5)
(Fig. 6)
(Fig. 7)
CAUTION: Fully assembled, the umbrella weighs over 500 lbs. Moving the umbrella fully
assembled will increase the risk of damage to your umbrella and/or can cause serious injury. We
recommend a two-person team for assembly and disassembly.
21
Page 4
WARRANTY:
Treasure Garden warrants this product
(in residential use) to be free from
defects in original materials and
workmanship for a period of 2 year from
the date of purchase. If a defect in the
original material or workmanship
appears during the warranty period;
Treasure Garden will (at its option) repair
or replace the product without charge.
Simply contact your original authorized
Treasure Garden dealer with a
description of the defect. The dealer will
verify the defect and work closely with
Treasure Garden to obtain the necessary
service. In many cases, simple problems
can be solved with a replacement part
that can be shipped directly to the dealer
for professional installation / repair.
In the event that warranted factory
service is required, Treasure Garden will
assume the responsibility of the return
freight charges on warranted product for
the first year only.
Returned product that (upon receipt and
inspection) is deemed to be “not
covered” under our warranty, will be
shipped / billed at your expense.
This warranty gives you specific legal
rights, and you may have other rights
which vary from state to state.
RUST: Rust is a natural part of the
aging process of steel or iron based
materials, and is therefore NOT
considered a defect.
NOTE: Failure caused by unreasonable
or abusive use, or failure caused by
neglect of reasonable and necessary
care are not covered by this warranty.
Additionally, acts of nature (including but
not limited to wind, hurricanes,
tornadoes, and storms) are not covered
by this warranty.
www.treasuregarden.com
©2014 Treasure Garden, Inc. - All Rights Reserved. Rev. 8/14
