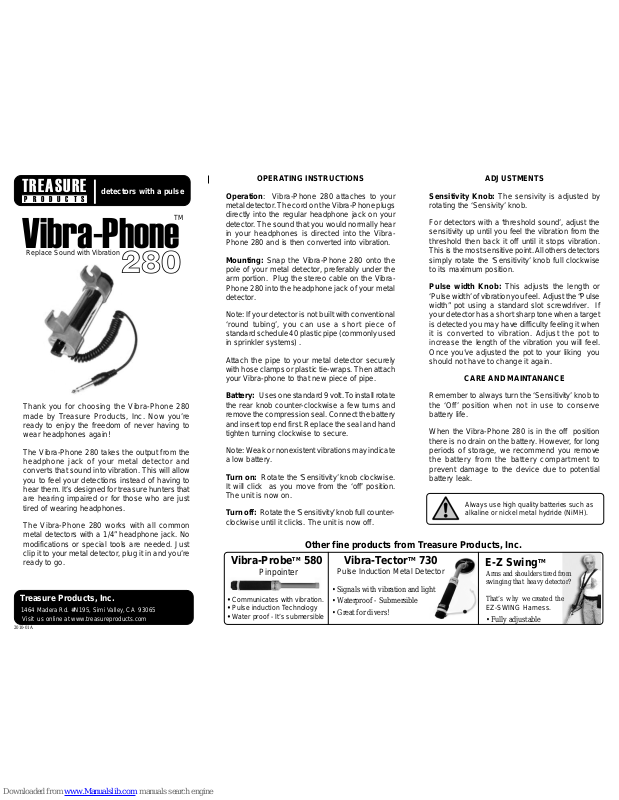

Treasure Vibra-Phone 280 Operating Instructions Manual

OPERATING INSTRUCTIONS

Operation: Vibra-Phone 280 attaches to your

metal detector. The cord on the V ibra-Phone plugs
directly into the regular headphone jack on your
detector. The sound that you would normally hear
in your headphones is directed into the Vibra­Phone 280 and is then converted into vibration.

Mounting: Snap the Vibra-Phone 280 onto the
pole of your metal detector, preferably under the
arm portion. Plug the stereo cable on the Vibra­Phone 280 into the headphone jack of your metal
detector.

Note: If your detector is not built with conventional
‘round tubing’, you can use a short piece of
standard schedule 40 plastic pipe (commonly used
in sprinkler systems) .

Attach the pipe to your metal detector securely
with hose clamps or plastic tie-wraps. Then attach
your Vibra-phone to that new piece of pipe.

Battery: Uses one standard 9 volt. T o install rotate
the rear knob counter-clockwise a few turns and
remove the compression seal. Connect the battery
and insert top end first. Replace the seal and hand
tighten turning clockwise to secure.

Note: Weak or nonexistent vibrations may indicate
a low battery.

Turn on: Rotate the ‘Sensitivity’ knob clockwise.
It will click as you move from the ‘off’ position.
The unit is now on.

Turn off: Rot ate the ‘Sensitivity’ knob full counter­clockwise until it clicks. The unit is now off.

ADJUSTMENTS

Sensitivity Knob: The sensivity is adjusted by

rotating the ‘Sensivity’ knob.
For detectors with a ‘threshold sound’, adjust the

sensitivity up until you feel the vibration from the
threshold then back it off until it stops vibration.
This is the most sensitive point. All others detectors
simply rotate the ‘Sensitivity’ knob full clockwise
to its maximum position.

Pulse width Knob: This adjusts the length or
‘Pulse width’ of vibration you feel. Adjust the “Pulse
width” pot using a standard slot screwdriver. If
your detector has a short sharp tone when a target
is detected you may have difficulty feeling it when
it is converted to vibration. Adjust the pot to
increase the length of the vibration you will feel.
Once you’ve adjusted the pot to your liking you
should not have to change it again.

CARE AND MAINTANANCE

Remember to always turn the ‘Sensitivity’ knob to
the ‘Off’ position when not in use to conserve
battery life.

When the Vibra-Phone 280 is in the off position
there is no drain on the battery. However, for long
periods of storage, we recommend you remove
the battery from the battery compartment to
prevent damage to the device due to potential
battery leak.

Thank you for choosing the Vibra-Phone 280
made by Treasure Products, Inc. Now you’re
ready to enjoy the freedom of never having to
wear headphones again!

The Vibra-Phone 280 takes the output from the
headphone jack of your metal detector and
converts that sound into vibration. This will allow
you to feel your detections instead of having to
hear them. It’s designed for treasure hunters that
are hearing impaired or for those who are just
tired of wearing headphones.

The Vibra-Phone 280 works with all common
metal detectors with a 1/4” headphone jack. No
modifications or special tools are needed. Just
clip it to your metal detector, plug it in and you’re
ready to go.

2010-01A

E-Z Swing

TM

Arms and shoulders tired from
swinging that heavy detector?

That’s why we created the

EZ-SWING Harness.

• Fully adjustable

Vibra-TectorTM 730

Pulse Induction Metal Detector

• Signals with vibration and light

• Waterproof - Submersible

• Great for divers!

Other fine products from Treasure Products, Inc.

Vibra-ProbeTM 580

Pinpointer

• Communicates with vibration.

• Pulse induction Technology

• Water proof - It’s submersible

Vibra-Phone

280

Replace Sound with Vibration

TM

TM

detectors with a pulse

TREASURE

PRODUCTS

Treasure Products, Inc.

1464 Madera Rd. #N195, Simi Valley, CA 93065

Visit us online at www.treasureproducts.com

Always use high quality batteries such as
alkaline or nickel metal hydride (NiMH).

VIBRA-PHONE 280 SPECIFICATIONS

Communication • Vibration

Connection • 1/4” Stereo Phono Plug
Sensitivity • Adjustable

Pulse Width • Adjustable

Overall Length • 7 inches (18 cm)

Weight • 8 oz. (227 grams)

Power • Standard 9 volt battery

Warranty • 1 year

Battery • Included

Specifications are subject to change without notice.

TREASURE PRODUCTS LIMITED WARRANTY

What does this warranty cover?

Treasure Products warrants that its products are free from defects
in material and workmanship under normal use for a period of
one (1) year from the date of purchase.

Warranty extends only to original purchaser and is not transferable.

What is not covered by this warranty?

This warranty does not cover any accessories, or any
consumables, as to which there shall be no warranty or replace­ment. This warranty does not cover conditions or damages caused
by accidents, alterations or misuse. In addition, damage due to
normal wear and tear is not covered by this warranty.

What is needed to keep the warranty in service?

You must provide proof of purchase as a condition of receiving
warranty service. Your dated sales receipt, showing the date of
purchase of your product is your proof of the purchase date.

What will Treasure Products do to correct problems?

Treasure Products will repair or replace, at Treasure Products’
sole discretion, any defective, nonconforming, or malfunctioning
product or any component thereof.

How do you get service?

If you require warranty service, call Treasure Products, Inc. at
[phone] to speak with a Treasure Products technical
support representative or email us at [e-mail]
prior to sending your unit in for service.

This limited warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.

©2011 Treasure Products, Inc. All rights reserved.

Designed and Manufactured by Treasure Products, Inc.

Made in the USA

2011-02A
