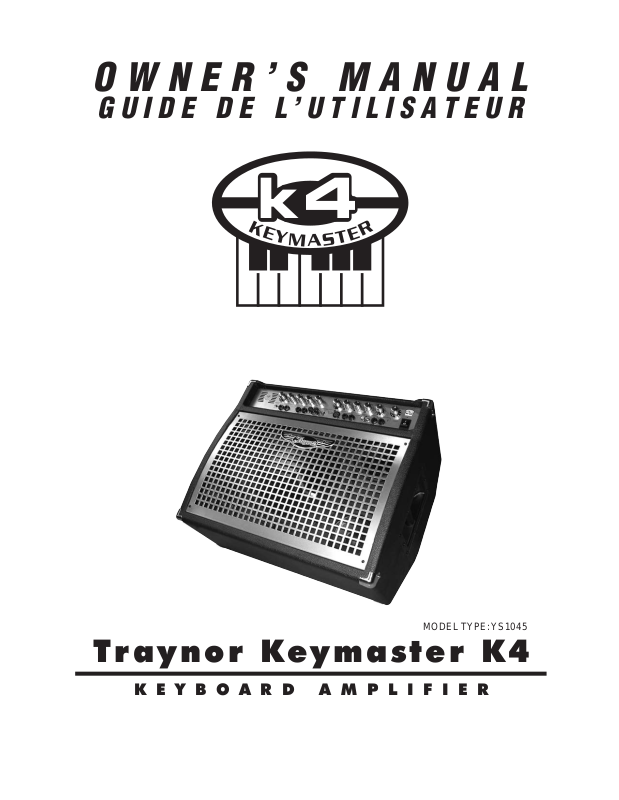

Owner’s Manual
K
E
M
A
S
T
E
R
k4k4
Guide de l’utilisateur
Traynor Keymaster K4
MODEL TYPE: YS1045
KEYBOARD AMPLIFIER
The exclamation point within an equilatereal triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance. Le point d’exclamation à l’intérieur d’un triangle équilatéral
est prévu pour alerter l’utilisateur de la présence d’instructions importantes dans la littérature accompag­nant l’appareil en ce qui concerne l’opération et la maintenance de cet appareil.
This lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Ce symbole d’éclair avec tête de flèche dans un triangle équilatéral est prévu pour alerter l’utilisateur de la présence d’un « voltage dangereux » non-isolé à proximité de l’enceinte du produit qui pourrait être d’ampleur suffisante pour présenter un risque de choque électrique.
IMPORTANT SAFETY INSTRUCTIONS
safety-4v5.eps • April 3/2007
CAUTION
: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
FOLLOW ALL INSTRUCTIONS SUIVEZ TOUTES LES INSTRUCTIONS
Instructions pertaining to a risk of fire,
electric shock, or injury to a person
Read Instructions:
The Owner’s Manual should be read and understood before operation of your unit. Please, save these instruc­tions for future reference and heed all warnings.
Clean only with dry cloth.
Packaging: Keep the box and packaging materials, in case the unit
needs to be returned for service.
Warning: To reduce the risk or fire or electric shock, do not expose
this apparatus to rain or moisture.
Do not use this apparatus near water!
Warning: When using electric products, basic precautions should
always be followed, including the following:
Power Sources
Your unit should be connected to a power source only of the voltage specified in the owners manual or as marked on the unit. This unit has a polarized plug. Do not use with an extension cord or receptacle unless the plug can be fully inserted. Precau­tions should be taken so that the grounding scheme on the unit is not defeated.
Hazards
Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious personal injury and serious damage to the product. Use only with cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Follow the manufacturer’s instructions when installing the product and use mounting accessories recommended by the manufacturer.
The apparatus should not be exposed to dripping or splashing water; no objects
filled with liquids should be placed on the apparatus.
Terminals marked with the “lightning bolt” are hazardous live; the external wiring connected to these terminals require installation by an instructed person or the use of ready made leads or cords.
Ensure that proper ventilation is provided around the appliance. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
Power Cord
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. The AC supply cord should be routed so that it is unlikely that it will be damaged. If the AC supply cord is damaged DO NO T OPERATE THE UNIT.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Service
The unit should be serviced only by qualified service personnel.
AVIS:
AFIN DE REDUIRE LES RISQUE DE CHOC
ELECTRIQUE, N’ENLEVEZ PAS LE COUVERT (OU LE
PANNEAU ARRIERE)
NE CONTIENT AUCUNE PIECE
REPARABLE PAR L’UTILISATEUR.
CONSULTEZ UN TECHNICIEN QUALIFIE
POUR L’ENTRETIENT
Instructions relatives au risque de feu,
choc électrique, ou blessures aux personnes
Veuillez Lire le Manuel:
Il contient des informations qui devraient êtres comprises avant l’opération de votre appareil. Conservez. Gardez S.V.P. ces instructions pour consultations ultérieures et observez tous les avertissements.
Nettoyez seulement avec le tissu sec.
Emballage: Conservez la boite au cas ou l’appareil devait être
retourner pour réparation. Avertissement: Pour réduire le risque de feu ou la décharge
électrique, n'exposez pas cet appareil à la pluie ou à l'humidité.
N’utilisez pas cet appareil près de l’eau!
Attention: Lors de l’utilisation de produits électrique, assurez-vous
d’adhérer à des précautions de bases incluant celle qui suivent:
Alimentation
L’appareil ne doit être branché qu’à une source d’alimentation correspondant au voltage spécifié dans le manuel ou tel qu’indiqué sur l’appareil. Cet appareil est équipé d’une prise d’alimentation polarisée. Ne pas utiliser cet appareil avec un cordon de raccordement à moins qu’il soit possible d’insérer complètement les trois lames. Des précautions doivent êtres prises afin d’eviter que le système de mise à la terre de l’appareil ne soit désengagé.
Risque
Ne pas placer cet appareil sur un chariot, un support, un trépied ou une table instables. L’appareil pourrait tomber et blesser quelqu’un ou subir des dommages importants. Utiliser seulement un chariot, un support, un trépied ou une table recommandés par le fabricant ou vendus avec le produit. Suivre les instructions du fabricant pour installer l’appareil et utiliser les accessoires recommandés par le fabricant.
Il convient de ne pas placer sur l’appareil de sources de flammes nues, telles que
des bougies allumées.
L’appeil ne doit pas être exposé à des égouttements d’eau ou des éclaboussures
et qu’aucun objet rempli de liquide tel que des vases ne doit être placé sur l’appareil.
Assurez que lappareil est fourni de la propre ventilation. Ne procédez pas à l’installation près de source de chaleur tels que radiateurs, registre de chaleur, fours ou autres appareils (incluant les amplificateurs) qui produisent de la chaleur.
Les dispositifs marqués d’une symbole “d’éclair” sont des parties dangereuses au toucher et que les câblages extérieurs connectés à ces dispositifs de connection extérieure doivent être effectivés par un opérateur formé ou en utilisant des cordons déjà préparés.
Cordon d’Alimentation
Ne pas enlever le dispositif de sécurité sur la prise polarisée ou la prise avec tige de mise à la masse du cordon d’alimentation. Une prise polarisée dispose de deux lames dont une plus large que l’autre. Une prise avec tige de mise à la masse dispose de deux lames en plus d’une troisième tige qui connecte à la masse. La lame plus large ou la tige de mise à la masse est prévu pour votre sécurité. La prise murale est désuète si elle n’est pas conçue pour accepter ce type de prise avec dispositif de sécurité. Dans ce cas, contactez un électricien pour faire remplacer la prise murale. Évitez d’endommager le cordon d’alimentation. N’UTILISEZ PAS L’APPAREIL si le cordon d’alimentation est endommagé.
Débranchez cet appareil durant les orages ou si inutilisé pendant de longues périodes.
Service
Consultez un technicien qualifié pour l’entretien de votre appareil.
S2125A
Traynor Keymaster K4
300w, 12 inch / 2x4.5 inch / 2x2.5 inch
The Traynor Keymaster K4 is an extremely versatile stereo keyboard combo-amplifier, designed to provide a wide spectrum of tonal range. Simple yet powerful features result in wonderfully sounding and adaptable unit that is responsive to studio and onstage needs. The Traynor Keymaster K4 gives you complete control of your vision – with a minimum amount of tweaking.
The Traynor Keymaster K4 consists of three built-in amplifiers, providing ample power for true stereo operation and an integral mono-summed subwoofer. A pair of 50 watt amps drive the left and right channels, delivering the mid and high frequencies through a set of 4.5-inch, 30-watt midrange drivers and a pair of 20-watt 2.5-inch compression drivers (with horns). A 200-watt Low Frequency amplifier drives a 12-inch, 200-watt dynamic woofer.
A pair of 12AX7 tubes lends an inspired classic sound to Channel 1’s stereo channel. These preamp tubes supply warmth while smoothing out harsh harmonic overtones (often associated with many modern Digital keyboards). The 12AX7’s natural compression provides the kind of subtle dynamics that can’t be properly emulated by most of today’s digital workstations (DAWs). The warmth and character of vintage synthesizers and organs are also maintained.
Channel 1 also features a Tube Overdrive control, for those who like to add some grit to their playing. Depending on the level selected, your sound can embrace in the warmth of a vintage glow – or burn with the aggression of full-on overdrive. Use this feature to add body to a sterile keyboard tone, or recreate it entirely in the image of classic tube tone. A single-latching footswitch, like our AFS-1, can be used to enable the Lead/Overdrive feature. If a footswitch is connected, control by the front panel switch is disabled. Additional tonal control is provided by the three-band EQ and 5-position voicing preset switch (Bypass, Studio, Live, Piano, Organ). And for those times when the cleanest signal path possible is preferred, a switch toggles between either the tube preamp or a Solid-State signal path (bypassing the tube on the input altogether).
Channel 2 features it’s own Gain control and a 3-band EQ. Inputs include a stereo pair of balanced 1/4-inch TRS inputs and an individual XLR (for mono-only operation with a mic).
Channel 3 also has an independent Gain control to set the levels for the stereo pair of balanced 1/4-inch TRS and stereo RCA inputs. All three channels feature their own input clip LEDs (for simple monitoring of input levels) and a Volume control.
Channel 4’s inputs and Gain control can be found on the rear panel. This auxiliary channel provides an additional input for use with an external click track, drum monitor mix, or even a microphone feed from the FOH (or monitor console). These inputs may even be used for monitoring two different sources if desired. The signal goes directly into the power amplifier, bypassing the Master Volume and Line Outs entirely.
1

Features

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
14
1512
3
4
56789
10
13
11
12

Front Panel

A Master Volume control is located on the front panel along with the Power switch and LED.
Front Panel Controls for Channel 1
Two parallel pairs of balanced 1/4-inch TRS inputs for mono or stereo operation Gain, Bass, Mid, Treble controls with a boost/cut of 15db A 5-position voicing selector (Bypass, Studio, Live, Piano, Organ) Tube/Solid State input switch Lead Level control Overdrive Trim control (use for single instrument patch only!) Lead Bypass switch Input clip LED
Front Panel Controls for Channel 2
Parallel pair of balanced XLR (mono only, for use with mics) and stereo balanced 1/4-
inch TRS inputs for mono or stereo operation Gain, Bass, Mid, Treble controls Input clip LED
Front Panel Controls for Channel 3
Gain control Parallel pair of unbalanced RCA and stereo balanced 1/4-inch TRS inputs for
mono or stereo operation Input clip LED
2

Rear Panel

16
17
18
19
20
21
22
16
17
18
192021
22
Channel 4 Monitor Input
Channel 4 has been added as an extra channel for monitoring purposes. This signal does not mix with the Main stereo bus and therefore the Line Out is not affected. This input has it own level control. The left and right inputs can be used as two separate monitoring sources and the signal goes directly into the amplifiers, bypassing the master volume.
Rear Panel Controls for Channel 4 include
Gain control Stereo balanced 1/4-inch TRS inputs for mono or stereo operation
Subwoofer Out
A Subwoofer out is provided via a TRS 1/4-inch jack. This mono signal features absolutely no filtering,
so it can be used to feed a powered sub, remote powered speakers or any other device requiring a mono-summed fullrange signal.
Balanced Stereo XLR Line Outs
These are used to connect directly to a mixing console, or for direct recording. The Line Out jacks are
Pre-Master control, turning the Master control up or down will not have any affect on the level of the Line Out jacks.
Ground Lift
The ground lift switch is located beside the XLR jacks. It lifts the balanced Line Out ground (Pin 1) when
pushed in. This switch may be used to reduce the hum created by a bad ground circuit.
Footswitch Jack
When used in conjunction with any single button latching footswitch, like our AFS-1, the Tube Overdrive
mode can be activated or deactivated remotely at will.
Headphone Jack
A 1/4-inch headphone jack is provided on the rear panel as well. When the jack is used, it mutes the
signal that comes out of the amplifier, with the exception of the monitor channel 4.
Cooling System
Two 3-inch fans cool the Traynor Keymaster K4, The fans begin operation at a low speed, but are able to adjust the rate of air flow depending on how hard the amplifiers are working. The air intake vent is located at the top of the cabinet and the exhaust vents are located at the front and back of amplifier.
Caution: The top vent must be kept clear in order for the air to enter into the amplifiers.
The rear and front vents are used to allow the warm air out of the unit.
3
