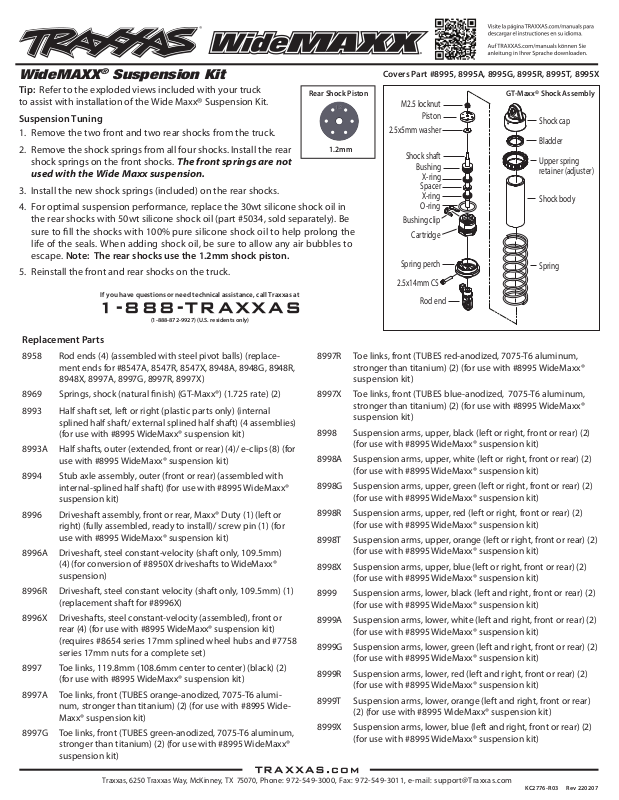

WideMAXX
Tip: Refer to the exploded views included with your truck
®
Suspension Kit
Rear Shock Piston
to assist with installation of the Wide Maxx® Suspension Kit.
Suspension Tuning
1. Remove the two front and two rear shocks from the truck.
2. Remove the shock springs from all four shocks. Install the rear
1.2mm
shock springs on the front shocks. The front springs are not
used with the Wide Maxx suspension.
3. Install the new shock springs (included) on the rear shocks.
4. For optimal suspension performance, replace the 30wt silicone shock oil in
the rear shocks with 50wt silicone shock oil (part #5034, sold separately). Be
sure to fill the shocks with 100% pure silicone shock oil to help prolong the
life of the seals. When adding shock oil, be sure to allow any air bubbles to
escape. Note: The rear shocks use the 1.2mm shock piston.
5. Reinstall the front and rear shocks on the truck.
If you have questions or need technical assistance, call Traxxas at
1-888-TRAXXAS
(1-888-872-9927) (U.S. residents only)
Replacement Parts
8958 Rod ends (4) (assembled with steel pivot balls) (replace-
ment ends for #8547A, 8547R, 8547X, 8948A, 8948G, 8948R,
8948X, 8997A, 8997G, 8997R, 8997X)
8969 Springs, shock (natural nish) (GT-Maxx®) (1.725 rate) (2)
8993 Half shaft set, left or right (plastic parts only) (internal
splined half shaft/ external splined half shaft) (4 assemblies)
(for use with #8995 WideMaxx® suspension kit)
8993A Half shafts, outer (extended, front or rear) (4)/ e-clips (8) (for
use with #8995 WideMaxx® suspension kit)
8994 Stub axle assembly, outer (front or rear) (assembled with
internal-splined half shaft) (for use with #8995 WideMaxx®
suspension kit)
8996 Driveshaft assembly, front or rear, Maxx® Duty (1) (left or
right) (fully assembled, ready to install)/ screw pin (1) (for
use with #8995 WideMaxx® suspension kit)
8996A Driveshaft, steel constant-velocity (shaft only, 109.5mm)
(4) (for conversion of #8950X driveshafts to WideMaxx®
suspension)
8996R Driveshaft, steel constant velocity (shaft only, 109.5mm) (1)
(replacement shaft for #8996X)
8996X Driveshafts, steel constant-velocity (assembled), front or
rear (4) (for use with #8995 WideMaxx® suspension kit)
(requires #8654 series 17mm splined wheel hubs and #7758
series 17mm nuts for a complete set)
8997 Toe links, 119.8mm (108.6mm center to center) (black) (2)
(for use with #8995 WideMaxx® suspension kit)
8997A Toe links, front (TUBES orange-anodized, 7075-T6 alumi-
num, stronger than titanium) (2) (for use with #8995 WideMaxx® suspension kit)
8997G Toe links, front (TUBES green-anodized, 7075-T6 aluminum,
stronger than titanium) (2) (for use with #8995 WideMaxx®
suspension kit)
TRAXXAS.com
Traxxas, 6250 Traxxas Way, McKinney, TX 75070,
Phone: 972-549-3000, Fax: 972-549-3011, e-mail: [email protected]
8997R Toe links, front (TUBES red-anodized, 7075-T6 aluminum,
8997X Toe links, front (TUBES blue-anodized, 7075-T6 aluminum,
8998 Suspension arms, upper, black (left or right, front or rear) (2)
8998A Suspension arms, upper, white (left or right, front or rear) (2)
8998G Suspension arms, upper, green (left or right, front or rear) (2)
8998R Suspension arms, upper, red (left or right, front or rear) (2)
8998T Suspension arms, upper, orange (left or right, front or rear) (2)
8998X Suspension arms, upper, blue (left or right, front or rear) (2)
8999 Suspension arms, lower, black (left and right, front or rear) (2)
8999A Suspension arms, lower, white (left and right, front or rear) (2)
8999G Suspension arms, lower, green (left and right, front or rear) (2)
8999R Suspension arms, lower, red (left and right, front or rear) (2)
8999T Suspension arms, lower, orange (left and right, front or rear)
8999X Suspension arms, lower, blue (left and right, front or rear) (2)
Covers Part #8995, 8995A, 8995G, 8995R, 8995T, 8995X

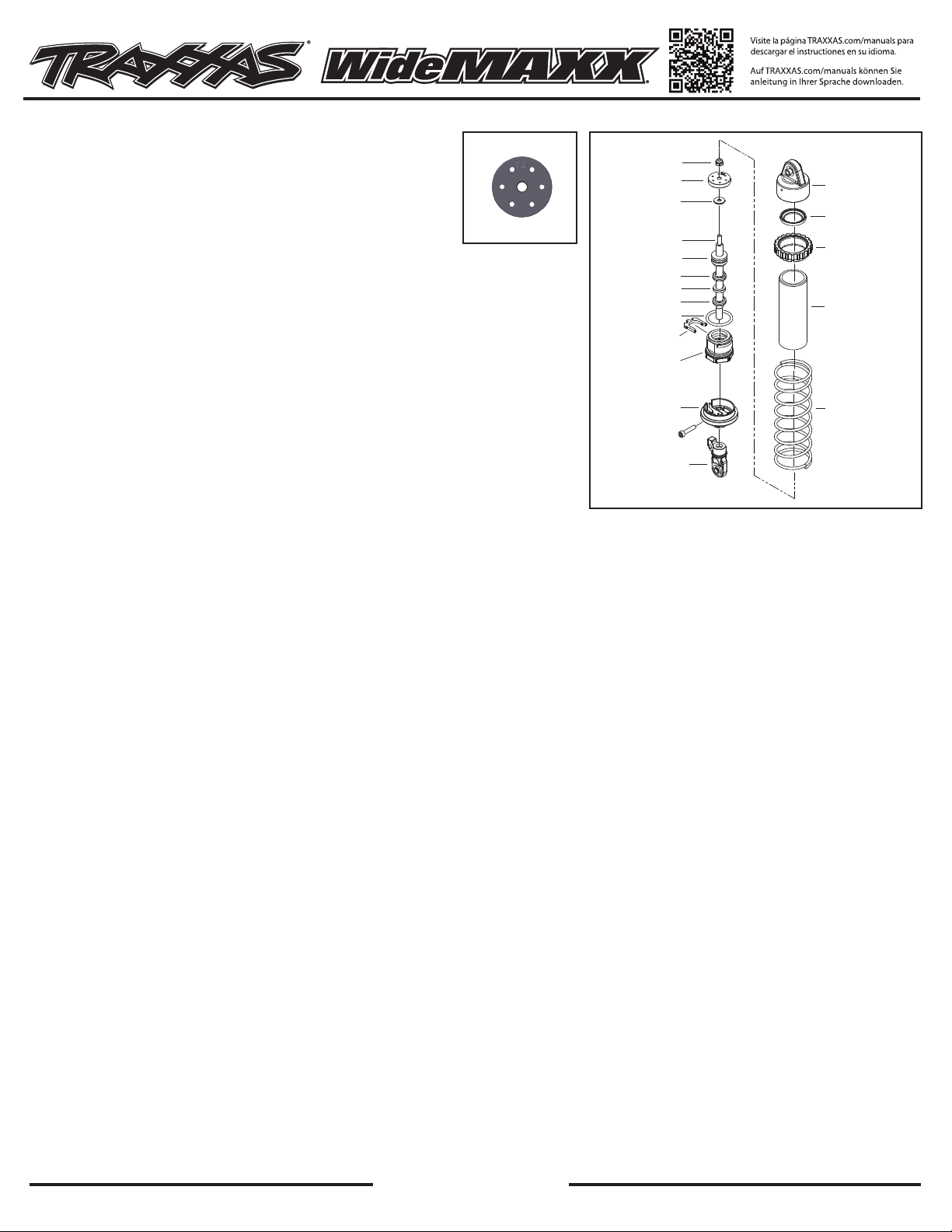

GT-Maxx® Shock Assembly
M2.5 locknut
Piston
Shock cap
2.5x5mm washer
Bladder
Shock shaft
Bushing
X-ring
Upper spring
retainer (adjuster)
Spacer
X-ring
O-ring
Shock body
Bushing clip
Cartridge
Spring perch
Spring
2.5x14mm CS
Rod end
stronger than titanium) (2) (for use with #8995 WideMaxx®
suspension kit)
stronger than titanium) (2) (for use with #8995 WideMaxx®
suspension kit)
(for use with #8995 WideMaxx® suspension kit)
(for use with #8995 WideMaxx® suspension kit)
(for use with #8995 WideMaxx® suspension kit)
(for use with #8995 WideMaxx® suspension kit)
(for use with #8995 WideMaxx® suspension kit)
(for use with #8995 WideMaxx® suspension kit)
(for use with #8995 WideMaxx® suspension kit)
(for use with #8995 WideMaxx® suspension kit)
(for use with #8995 WideMaxx® suspension kit)
(for use with #8995 WideMaxx® suspension kit)
(2) (for use with #8995 WideMaxx® suspension kit)
(for use with #8995 WideMaxx® suspension kit)
