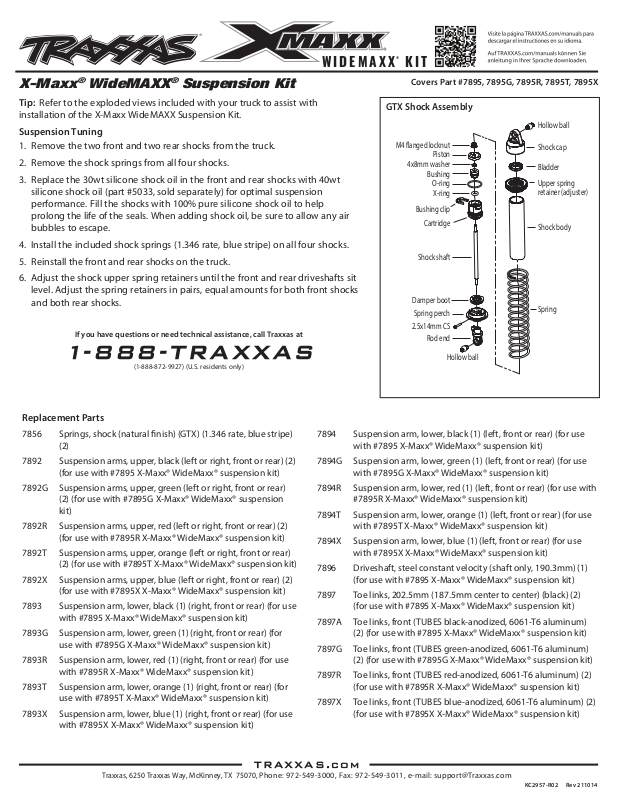

X-Maxx
®
WideMAXX
®
Suspension Kit
WIDEMAXX® KIT
Covers Part #7895, 7895G, 7895R, 7895T, 7895X
Tip: Refer to the exploded views included with your truck to assist with
installation of the X-Maxx WideMAXX Suspension Kit.
Suspension Tuning
1. Remove the two front and two rear shocks from the truck.
2. Remove the shock springs from all four shocks.
3. Replace the 30wt silicone shock oil in the front and rear shocks with 40wt
silicone shock oil (part #5033, sold separately) for optimal suspension
performance. Fill the shocks with 100% pure silicone shock oil to help
prolong the life of the seals. When adding shock oil, be sure to allow any air
bubbles to escape.
4. Install the included shock springs (1.346 rate, blue stripe) on all four shocks.
5. Reinstall the front and rear shocks on the truck.
6. Adjust the shock upper spring retainers until the front and rear driveshafts sit
level. Adjust the spring retainers in pairs, equal amounts for both front shocks
and both rear shocks.
If you have questions or need technical assistance, call Traxxas at
1-888-TRAXXAS
(1-888-872-9927) (U.S. residents only)

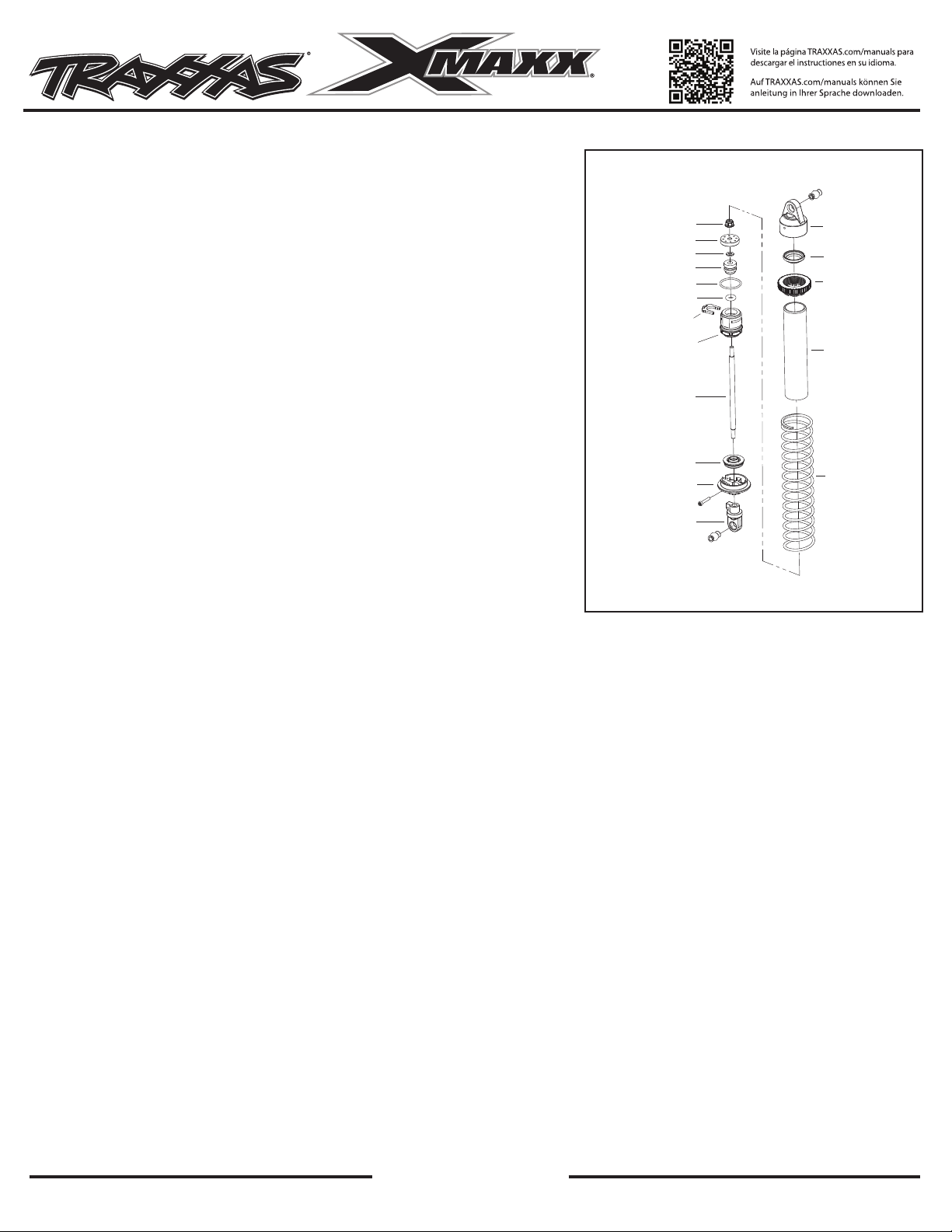

GTX Shock Assembly
M4 anged locknut
Piston
4x8mm washer
Bushing
O-ring
X-ring
Bushing clip
Cartridge
Shock shaft
Damper boot
Spring perch
2.5x14mm CS
Rod end
Hollow ball
Hollow ball
Shock cap
Bladder
Upper spring
retainer (adjuster)
Shock body
Spring
Replacement Parts
7856 Springs, shock (natural nish) (GTX) (1.346 rate, blue stripe)
(2)
7892 Suspension arms, upper, black (left or right, front or rear) (2)
(for use with #7895 X-Maxx® WideMaxx® suspension kit)
7892G Suspension arms, upper, green (left or right, front or rear)
(2) (for use with #7895G X-Maxx® WideMaxx® suspension
kit)
7892R Suspension arms, upper, red (left or right, front or rear) (2)
(for use with #7895R X-Maxx® WideMaxx® suspension kit)
7892T Suspension arms, upper, orange (left or right, front or rear)
(2) (for use with #7895T X-Maxx® WideMaxx® suspension kit)
7892X Suspension arms, upper, blue (left or right, front or rear) (2)
(for use with #7895X X-Maxx® WideMaxx® suspension kit)
7893 Suspension arm, lower, black (1) (right, front or rear) (for use
with #7895 X-Maxx® WideMaxx® suspension kit)
7893G Suspension arm, lower, green (1) (right, front or rear) (for
use with #7895G X-Maxx® WideMaxx® suspension kit)
7893R Suspension arm, lower, red (1) (right, front or rear) (for use
with #7895R X-Maxx® WideMaxx® suspension kit)
7893T Suspension arm, lower, orange (1) (right, front or rear) (for
use with #7895T X-Maxx® WideMaxx® suspension kit)
7893X Suspension arm, lower, blue (1) (right, front or rear) (for use
with #7895X X-Maxx® WideMaxx® suspension kit)
7894 Suspension arm, lower, black (1) (left, front or rear) (for use
with #7895 X-Maxx® WideMaxx® suspension kit)
7894G Suspension arm, lower, green (1) (left, front or rear) (for use
with #7895G X-Maxx® WideMaxx® suspension kit)
7894R Suspension arm, lower, red (1) (left, front or rear) (for use with
#7895R X-Maxx® WideMaxx® suspension kit)
7894T Suspension arm, lower, orange (1) (left, front or rear) (for use
with #7895T X-Maxx® WideMaxx® suspension kit)
7894X Suspension arm, lower, blue (1) (left, front or rear) (for use
with #7895X X-Maxx® WideMaxx® suspension kit)
7896 Driveshaft, steel constant velocity (shaft only, 190.3mm) (1)
(for use with #7895 X-Maxx® WideMaxx® suspension kit)
7897 Toe links, 202.5mm (187.5mm center to center) (black) (2)
(for use with #7895 X-Maxx® WideMaxx® suspension kit)
7897A Toe links, front (TUBES black-anodized, 6061-T6 aluminum)
(2) (for use with #7895 X-Maxx® WideMaxx® suspension kit)
7897G Toe links, front (TUBES green-anodized, 6061-T6 aluminum)
(2) (for use with #7895G X-Maxx® WideMaxx® suspension kit)
7897R Toe links, front (TUBES red-anodized, 6061-T6 aluminum) (2)
(for use with #7895R X-Maxx® WideMaxx® suspension kit)
7897X Toe links, front (TUBES blue-anodized, 6061-T6 aluminum) (2)
(for use with #7895X X-Maxx® WideMaxx® suspension kit)
TRAXXAS.com
Traxxas, 6250 Traxxas Way, McKinney, TX 75070,
Phone: 972-549-3000, Fax: 972-549-3011, e-mail: [email protected]
KC2957-R02 Rev 211014
