TravRoute CoPilot Live User Manual

Contents

Welcome to CoPilot! .........................................................i

About GPS Technology .............................................................................1

Safety Warning ............................................................................................1

Getting Started ..................................................................2

Requirements .............................................................................................2

Hardware Setup .........................................................................................2

Connecting Your Smar tphone .................................................................3

Installing CoPilot ........................................................................................4

Product Key Entry and Activation .........................................................4

Changing the Voice Option at Any Time ...............................................5

Map Download to Your Smartphone ................................6

Selecting a Data Area ................................................................................7

Region ...................................................................................................7

City Radius ..........................................................................................7

Map Area ..............................................................................................8

Trip ........................................................................................................9

Data Download ..........................................................................................10

CoPilot QuickStart Application Download ..................................10

POI Download Options ...........................................................................11

Trip Transfer ................................................................................................11

Importing Custom Places ........................................................................12

Editing Custom Places ..............................................................................13

Using CoPilot for Guidance ..............................................14

Address Entry .............................................................................................14

Stop Menu Options ...................................................................................16

Entering Your Home Address ..................................................................17

Entering Your Work Address ...................................................................17

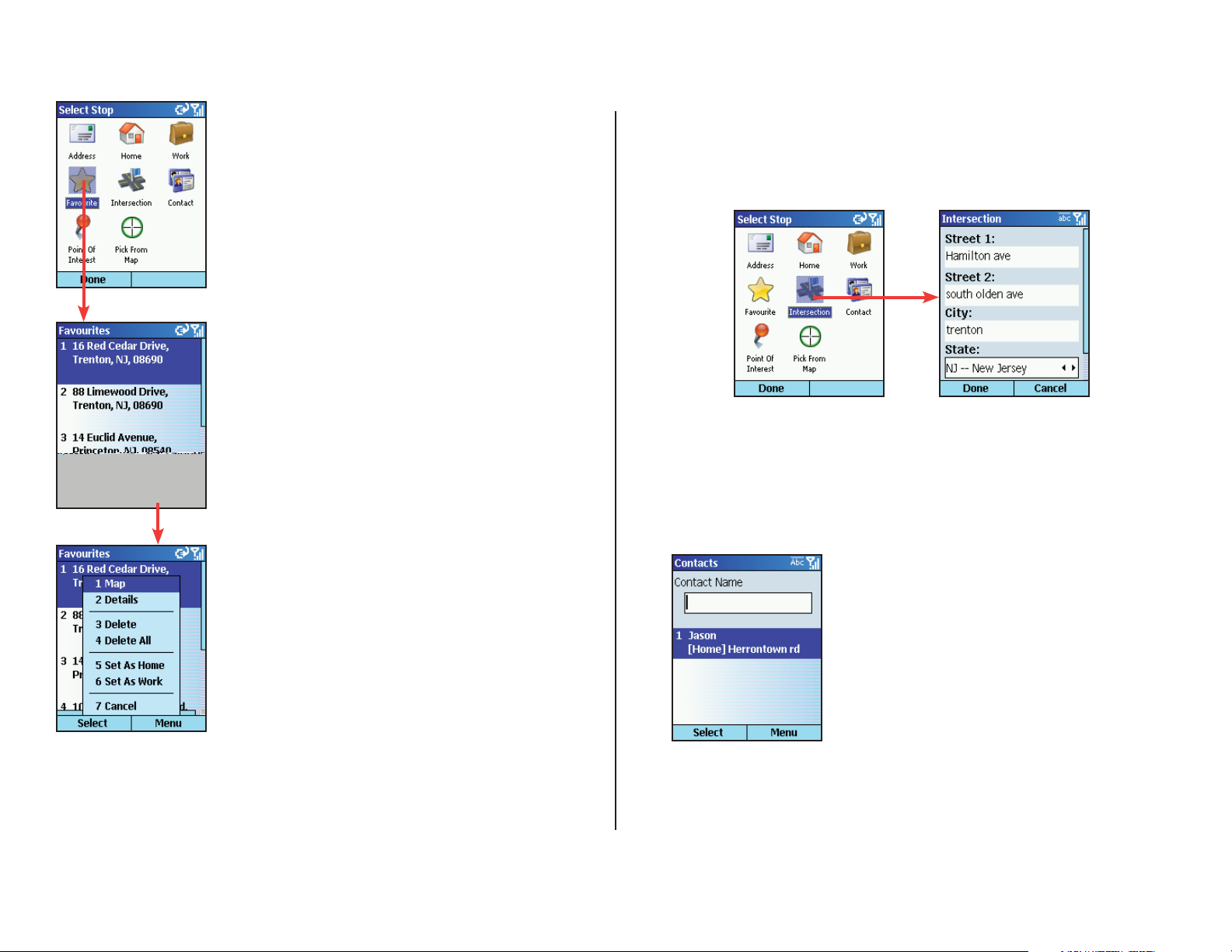

Favorites ......................................................................................................18

Intersections ...............................................................................................18

Entering an Outlook Contact .................................................................18

Finding Points of Interest .........................................................................19

Picking Stops From the Map ...................................................................20

Start Driving! ..............................................................................................21

Safety View ...........................................................................................22

Map Views ............................................................................................21

Itinerary View ......................................................................................22

Trip Editing ..................................................................................................22

Menu Options on the Road ....................................................................23

Hotkeys ........................................................................................................23

Calculating a Detour .................................................................................23

Avoiding Roads ...........................................................................................24

Waypoints ...................................................................................................24

Getting ETA’s and Distances ...................................................................24

Saving a Current Location as a Favorite ...............................................25

Optimizing Your Stop Order ...................................................................25

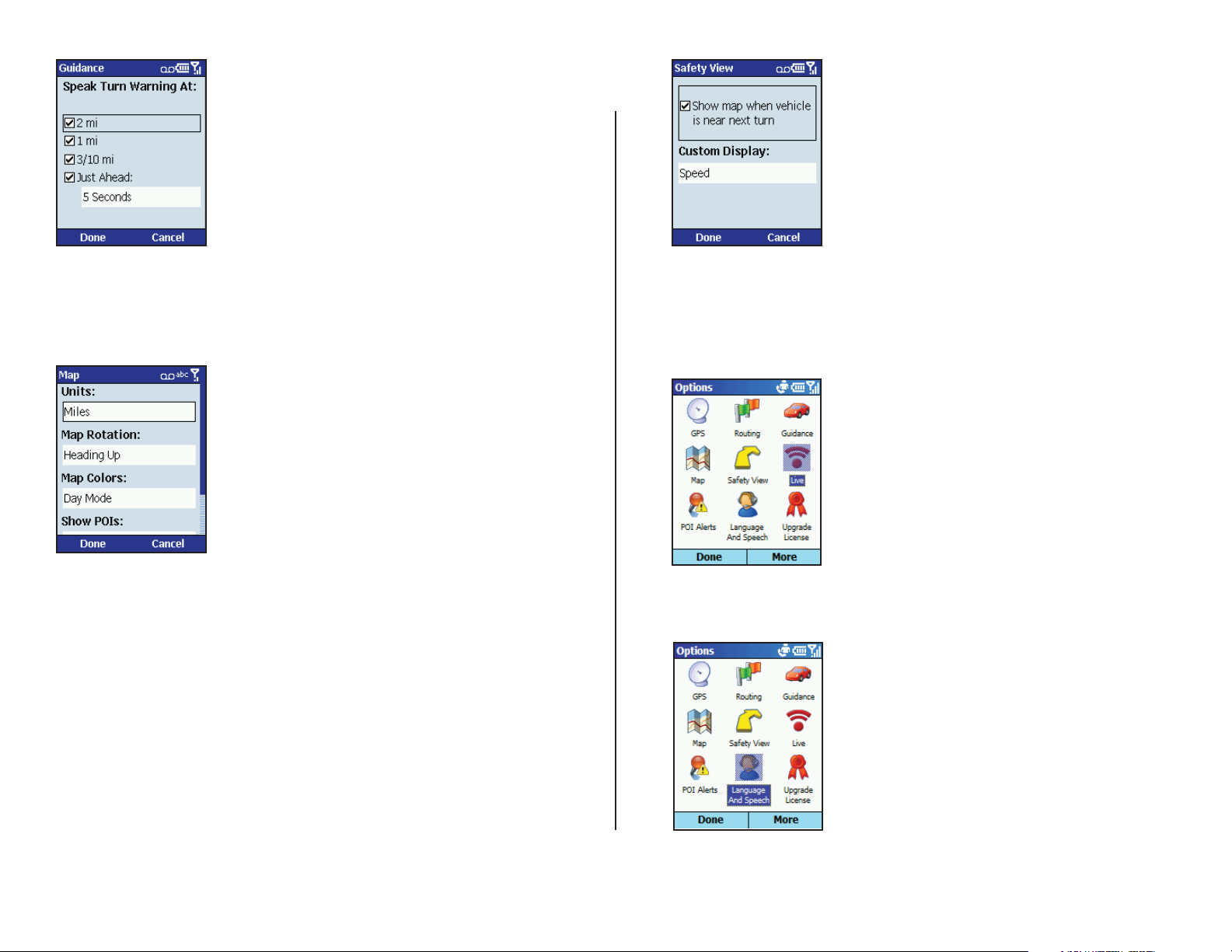

General Options ........................................................................................25

GPS ........................................................................................................25

Routing ..................................................................................................25

Guidance ...............................................................................................27

Map ........................................................................................................27

Safety View ...........................................................................................27

Live .........................................................................................................27

Language & Speech .............................................................................27

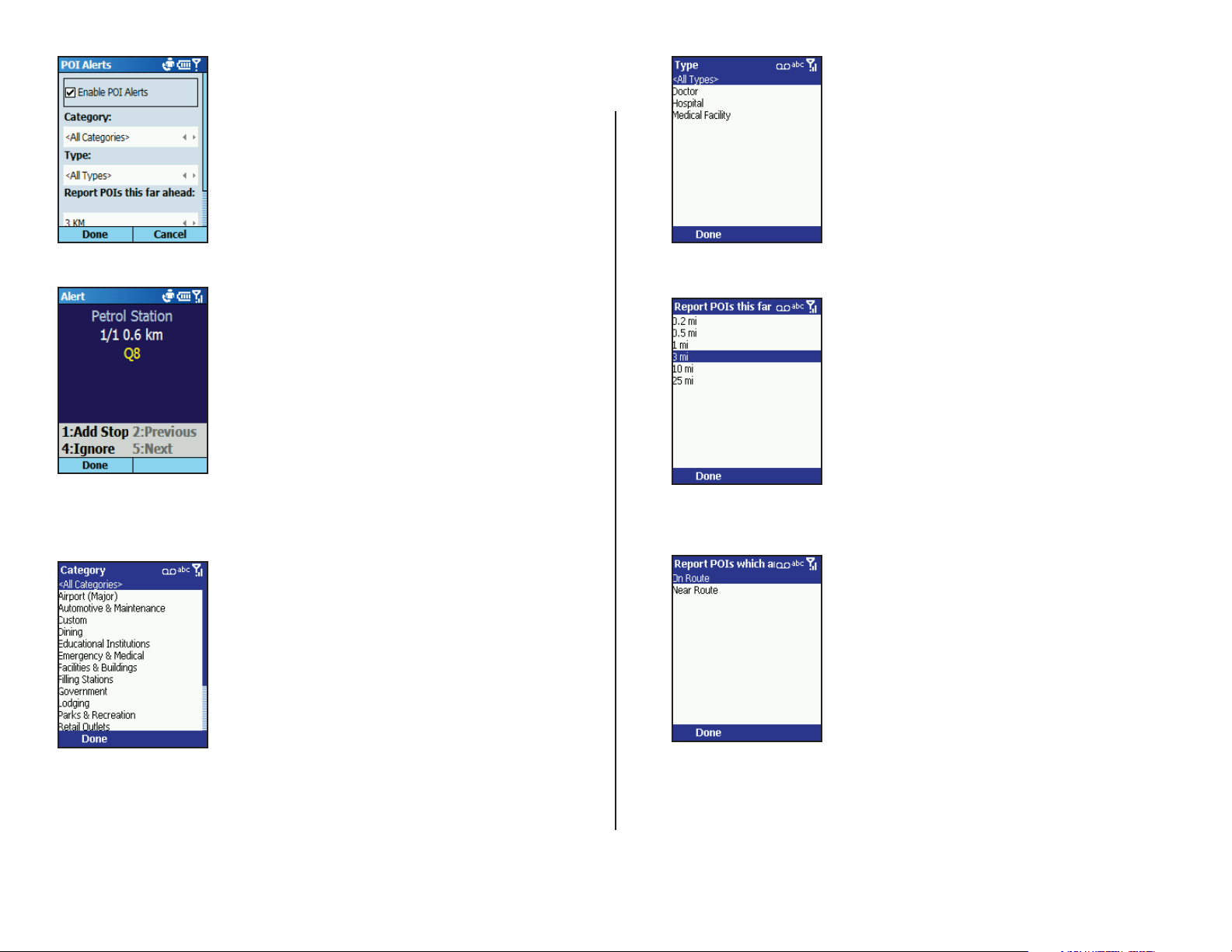

POI Alerts .............................................................................................28

Upgrade License .................................................................................29

Backlight ................................................................................................29

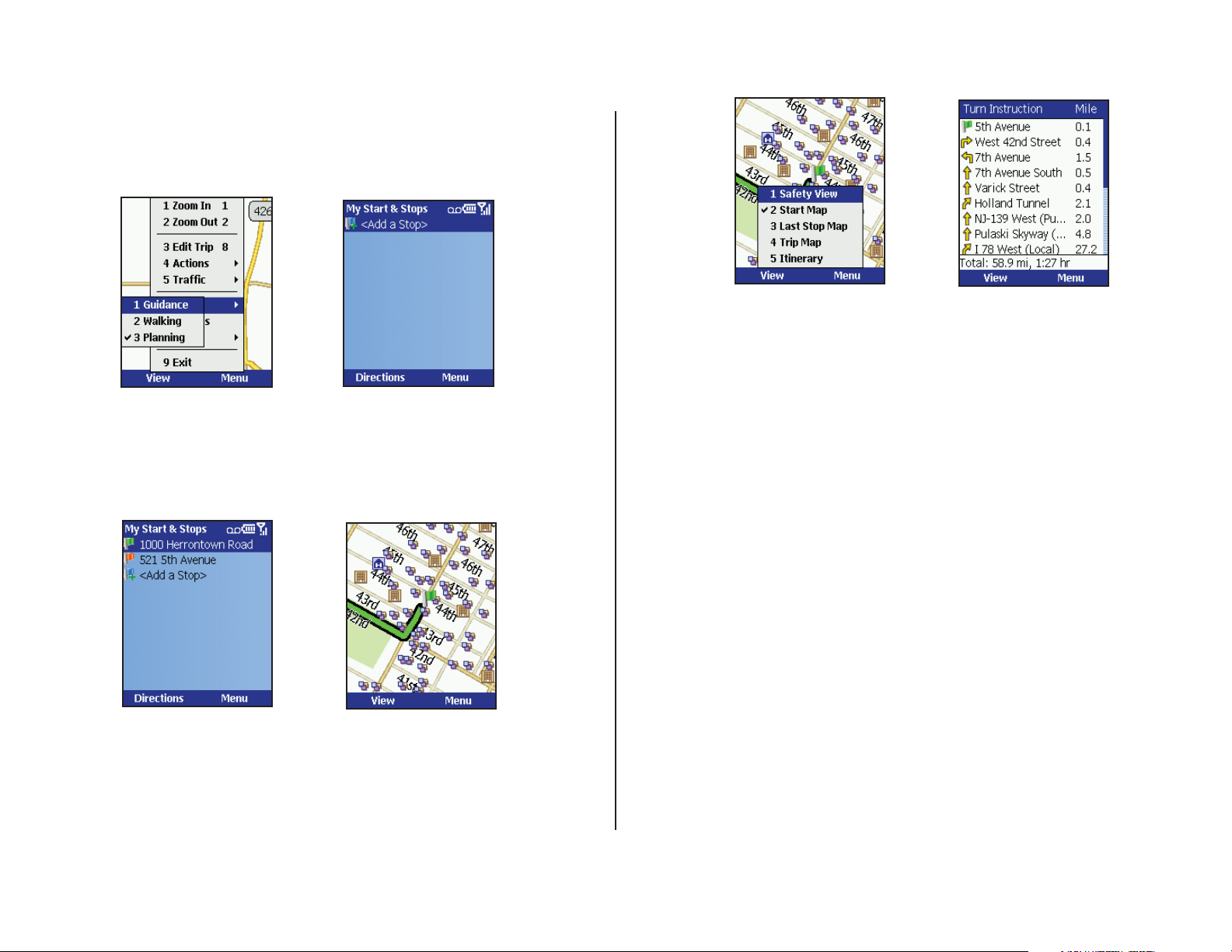

CoPilot Modes ...........................................................................................29

Trip Planning On Your Smartphone .................................30

Trip Planning On Your Desktop ........................................31

Reference: CoPilot On Your Desktop ...................................................35

Copilot Live Communications ..........................................38

Real-Time Trafﬁ c Information ..........................................39

Creating/Using Your Own Voice ........................................41

CoPilot Technical Support .................................................42

License Upgrade ........................................................................................42

Adding a Data Region ...............................................................................42

Region Selection ........................................................................................43

Using Help Files ..................................................................43

Software Registration ........................................................43

License Agreement ............................................................44

Welcome to CoPilot!

Imagine…a CoPilot at your side that always

knows where you are, where you’re going, and exactly how to get there. Now conﬁ dently drive anywhere while CoPilot, using the latest, most accurate GPS technology, shows you all the correct turns to take to reach your destination.

Better yet, if you should miss a turn, encounter heavy trafﬁ c, or simply decide to go a different way, CoPilot’s dynamic directions automatically provide you with an updated route to your destination. Keep your eyes on the road and your hands on the wheel as CoPilot’s unique voice technology speaks the directions to you. In addition, detailed street maps show your passengers the current street location and the route to your destination.

About GPS Technology

The Global Positioning System (GPS), developed by the U.S. Department of Defense, is a constellation of 24 satellites that orbit the Earth twice daily. Each satellite contains an atomic clock that is accurate to the nanosecond and constantly emitts radio waves toward Earth. GPS sensors (hardware devices for receiving data) can receive these signals from the satellites and, using their own internal clock, can calculate the amount of time it has taken for the signal to be received. GPS relies on the fact that radio waves travel at the speed of light to calculate distances, and the exact location of the sensor is ﬁ gured by combining the data received from four satellites.

Using the data from these four satellites, GPS is able to give you the latitude, longitude and elevation of your present location, and also your road speed and direction of travel on a route. Given the right conditions, a GPS sensor can identify your geographic position anywhere in the world within a few meters.

How CoPilot Uses GPS

GPS Accuracy

The GPS signal CoPilot receives from the constellation of satellites has a rated accuracy of within 5 - 10 meters. This means that 95% of the time the reported location is within 15 - 30 feet of your exact position. If CoPilot initially places you on the wrong road (this happens only rarely), keep driving and CoPilot will automatically correct itself and ﬁ nd your proper position.

Occasionally, CoPilot’s GPS tracking will be less accurate or fail to work at all because your GPS receiver is unable to receive satellite signals. Heavy foliage, tall buildings, or any other structures obstructing communications will interfere with CoPilot’s ability to track your location. Like your car radio, GPS tracking can also be affected by weather conditions if severe. CoPilot will continue tracking as soon as adequate signals are available. Despite these limitations, you can expect CoPilot to provide you with useable and accurate information most of the time. CoPilot will alert you if accurate information is unavailable.

CoPilot’s personal, portable GPS navigation system gives you the freedom to explore and the conﬁ dence that you’ll never get lost again!

Safety Warning

Always keep your hands on the steering wheel and eyes on the road when driving!

Do not use this product in any way that interferes with safe and attentive operation of a vehicle. When used in a vehicle, do not place the GPS receiver, antenna, power supply, or your computer where it may strike the driver or passengers if the vehicle turns sharply or stops abruptly. This product is designed, manufactured, and intended as an aid to planning and navigating routes. The accuracy of the map data, driving directions, and GPS tracking system is insufﬁ cient for this product to be used for automated navigation or in any situ0(er gedabe )re wito wue

CoPilot uses the GPS positional data that it receives from your hardware unit to display your current position on a map as you drive. This is called “tracking”. CoPilot also uses the GPS data it receives to guide you along a planned route if you enter a destination on your Smartphone. CoPilot

guides you with audible prompts and on-screen directions as you drive.

- 1 -

Getting Started

Requirements

This User’s Guide includes complete instructions for installing your CoPilot software, downloading map data to the Smartphone, and using CoPilot on your Smartphone to guide you to your destination or to plan trips.

The steps you need to take to get up and running with CoPilot:

Connect your Smartphone to your desktop/laptop (not

necessary if a Quickstart installation memory card was included with your purchase).

Install CoPilot to your desktop and Smartphone using the Product Key found on the printed CoPilot Quick Start or on the supplied Product Key card.

On your desktop, create a map data region and download it to your Smartphone (not necessary if a Quickstart installation memory card was included with your purchase).

Activate CoPilot on your Smartphone.

Enter an address and start driving!

Desktop PC Requirements

To install CoPilot on your desktop or laptop PC, you must have:

• Microsoft Windows 2000, ME, or XP

• 400 MHz processor or better

Hardware Setup

WARNING: Never leave your Smartphone or GPS receiver in a closed vehicle that exceeds 140o F.

Conﬁ guring the Bluetooth GPS Receiver:

Once you have installed CoPilot Live on your phone, you will be prompted to set up your remote Bluetooth GPS receiver from the GPS Status screen. CoPilot uses the Bluetooth GPS receiver to enable you to obtain a GPS ﬁ x for CoPilot to calculate your route and provide navigation guidance.

IMPORTANT NOTE: Please ensure that the correct date and GMT time are set on your phone before commencing with setting up your Bluetooth GPS receiver.

1. Switch on your Bluetooth GPS receiver (slide the switch to 1). Green and blue lights should turn on if the GPS receiver is properly charged (see Troubleshooting, next page, on proper charging).

2. Open CoPilot. CoPilot will now check whether Bluetooth is switched on. If not, select Menu > Turn On Bluetooth.

3. Search for your GPS receiver. Select Menu > Search for GPS. After a few minutes the system should display a list of Bluetooth devices. Your Bluetooth receiver will be identiﬁ ed by a code BTGPS xxxxx .

4. Highlight the GPS receiver and press SELECT. The GPS screen should now change to ´GPS Signal: Found´ and the GPS information displayed.

5. Select Done. Now you can enter a destination and start navigating!

• 16X CD-ROM or better

• 128 MB of RAM and a hard drive with 1 GB of available disk space for map data

• Microsoft ActiveSync version 3.1 or later

Smartphone and GPS Requirements

• Windows Mobile 2003 or Windows Mobile 5

• Bluetooth GPS receiver or built-in GPS

LED STATUS LIGHTS:

Blue LED Light indicates the Bluetooth connection status.

Flashing every 1 second: GPS was just powered on and waiting for a connection. Flashing every 2 seconds: GPS is connected to phone.

Green LED Light indicates GPS status.

Light Constantly on: GPS was just powered on and attempting to acquire a GPS position. Light is Flashing: GPS has acquired a GPS position.

Orange/Red LED Light indicates Battery status.

Red Light Constantly on: Battery is Low. Orange Light is Constantly on: Battery is charging. No Light (off): Battery is fully charged.

- 2 -

GPS Troubleshooting:

1. Unable to switch on Bluetooth

a. Close CoPilot by selecting ‘Exit’ from the menu. b. Switch your phone off and then on again using the power button. c. Restart CoPilot, and select GPS from the CoPilot Welcome

screen. d. Select Menu | Turn on Bluetooth. e. Bluetooth should now be switched ON.

Connecting Your Smartphone

NOTE: If a Quickstart installation memory card was included with your purchase of CoPilot, you do not need to do this.

In order to successfully transfer data from your desktop to your Smartphone, you must have Microsoft ActiveSync 3.1 (or later) installed. This software is necessary to connect the two machines and is provided by your Smartphone manufacturer. If you did not receive this software with your mobile device, contact the distributor immediately.

2. Proper Charging Techniques (IMPORTANT)

The Bluetooth GPS only needs to be charge for a maximum of 1 hour or until the Battery LED is off. Do not leave the Bluetooth GPS receiver connected to the charger at all times, as it will degrade the battery life and eventually drain the battery completely. Normal battery life is 8 hours.

3. ‘No devices found’ in search for GPS

a. Close CoPilot by selecting ‘Exit’ from the menu. b. Ensure that your Bluetooth GPS receiver is switched ON: Switch

the GPS receiver off and on. The green and blue lights will turn

on if the GPS receiver is charged up and working properly. c. Restart CoPilot and select GPS from the CoPilot Welcome

screen. d. Select Menu | Search for GPS. e. Your Bluetooth receiver should appear with the name

‘BTGPS xxxx xxxx’.

4. Unable to get a GPS Fix.

If you can’t get a GPS signal after setting up your receiver, ensure

that your Bluetooth GPS receiver is switched on, charged up, and working properly by switching it on and off. The green and blue lights will turn on if the GPS receiver is properly charged. To avoid unnecessary delays, make sure that your phone’s date and time are properly set.

1. When connecting your Smartphone, if you have not set up a partnership between your Smartphone and your desktop, you will be prompted to do so. This is not required. If you choose not to set up a partnership, select Guest partnership, and you will be logged in as a Guest and ready to transfer data between machines.

2. If you have set up a partnership in the past, or choose to do so at this point, be sure to allow your Smartphone to synchronize with your desktop or laptop prior to launching CoPilot.

NOTE: If your desktop/laptop computer does not seem to be recognizing the connection with your Smartphone, select Connection Settings... from the drop-down File menu, and make sure you’re connected using the appropriate Port. Then click Get Connected... in the File menu and follow the on-screen instructions.

- 3 -

Installing CoPilot

Installing From a Quickstart Installation Memory Card:

1. Set up your phone and charge the battery following the instructions in your phone’s manual.

2. You must set the correct date and GMT time on your phone for optimal GPS functionality.

3. Your CoPilot Live satellite navigation software is supplied preloaded on a storage card. Insert your CoPilot storage card into the slot of your phone.

4. Once the CoPilot storage card is inserted, CoPilot will install automatically. See the instructions below for what to do if installation does not begin automatically.

5. You will be prompted to choose a location for ‘CoPilot Smartphone’. Select ‘phone’ from the pick list and press ‘Done’.

6. You will see ‘copilotsp2003.cab’ being installed. Once completed, the message ‘CoPilot.SP2003.CAB was successfully installed on your device’ will be displayed. Select ‘OK’.

7. Installation is now complete and you will be returned to your phone’s Home screen. Press Start | More | CoPilot to launch CoPilot.

Installing From CD’s:

Your desktop/laptop and Smartphone should both be turned on. The cradle/cable for your mobile device must be connected to your desktop through either a USB or Serial port. Your Smartphone should be connected to your desktop via ActiveSync (see p. 3).

Installation Steps:

Step 1: Insert the CoPilot Install Disc into your CD-ROM drive. After

a few seconds, the Installation Wizard will open. Follow the instructions, entering your Installation Product Key when prompted. This Product Key can be found on the back cover of your printed CoPilot Quick Start Guide or on the supplied Product Key card.

The CoPilot application will be installed to your desktop PC

and to your Smartphone separately. The Smartphone installation will ask if the default location (the device’s storage memory) is where you want the application to be placed.

Step 2: When the installation is complete, a CoPilot icon will appear on

your desktop. Click Finish to close the Installation Wizard.

Step 3: The ﬁ rst time you open CoPilot on your Smartphone, you will

be asked to activate the product.

NOTE: You may receive a message that states “Application came

from an Unknown Source. Would you like to install anyway?” Click “Ye s ” to this message to install CoPilot.

If Installation Does Not Start Automatically:

1. From your phone’s Home screen select Start | Accessories | File Manager.

2. Select the Storage Card folder and then the 2577 folder.

3. Scroll down the page and select AUTORUN.EXE — installation should now begin.

Product Key Entry and Activation

The ﬁ rst time you launch CoPilot on your phone you will be prompted for your product key. You can ﬁ nd this key on the back cover of your printed CoPilot Quick Start Guide. Input the product key carefully. and press Done.

TIP: It is recommended that you switch off T9 predictive text entry when inputting your product key.

You will now be asked to activate your CoPilot license within 3 days. Select one of the three methods below to activate your CoPilot license. Alternatively, press Menu followed by Later if you would prefer to activate afterwards at your convenience, within the next 3 days.

- 4 -

Three Ways to Activate:

1. Recommended: Automatic Activation using your phone’s Wireless Internet Connection

a. Select the ACTIVATE soft key.

b. Select MENU then AUTOMATIC.

c. Enter your e-mail address and press NEXT. CoPilot will now

activate over the Internet.

d. Once complete, you will see the message ‘license activated

successfully’. Select Done.

e. (If installing a Europe region upgrade) You will now be asked to

conﬁ rm the map region that you wish to activate. ‘United States’ should be displayed. Select Done.

f. (If installing a Europe region upgrade) You will be reminded that ‘Yo u r

region cannot be changed once it is selected’. Select Done.

g. Activation is now completed.

2. Automatic Activation via an Internet-connected Desktop PC or Laptop

Connect your Smartphone to an Internet-enabled Desktop or Laptop using the supplied Synchronisation cable, and Microsoft ActiveSync software on your desktop PC or Laptop. Make sure your desktop/laptop is connected to the Internet, then follow the steps outlined above.

3. Manual Activation (requires an Internet-connected computer)

a. Select the ACTIVATE soft key.

b. On the following screen select MENU | MANUAL.

c. On the next screen you’ll see your Product Key and License ID.

You need this information to manually activate CoPilot as follows:

f. Once complete, you will see the message ‘license activated

successfully’. Select Done.

g. (If installing a Europe region upgrade) You must now conﬁ rm the

map region that you wish to activate. ‘United States’ should be displayed. Select ‘Done’.

h. (If installing a Europe region upgrade) You will be reminded that

‘Your region cannot be changed once it is selected’. Select Done.

i. Activation is now completed.

Changing the Voice Option at Any Time

CoPilot offers one or both of the following voice options, depending on your selected language:

• Male Pre-Recorded Sound Files

• Female Pre-Recorded Sound Files

To change the voice option:

1. Open CoPilot.

2. In the Welcome screen select the Options icon; or in the Going

To screen or guidance screen press the Menu soft key and select Options.

3. Select Language & Speech from the Options menu.

4. Under Language use the right or left key to open a pick list of languages and change your language setting.

5. Under Voice use the right or left key to toggle between Male and Female.

6. To hear your selection before exiting this screen, press Test.

7. When ﬁ nished, press Done.

d. On a desktop/laptop go to the Internet site http://activate.alk.

com and enter the information. You will be given an activation code.

e. Enter the activation code into the phone when prompted and

select Next.

- 5 -

Map Download to Your Smartphone

NOTE: If your CoPilot product came with a Quickstart installation memory card, you don’t need to download map data (it’s already on your Quickstart card). You can skip to Using CoPilot for Guidance, p. 14.

To download map data from your Desktop PC or Laptop to your mobile device, you select the data to download from one or more regions that you specify in the CoPilot application on your desktop. It’s a simple process.

CoPilot gives you two options for downloading data:

· Download directly to your Storage Card Reader — follow steps (1), (2), and (3a) below.

· Download to a hard drive on your computer, then manually copy the data to your Smartphone Storage Card using ActiveSync — follow steps (1), (2), and (3b) below.

(1) Choose a Storage Location:

1. Open the CoPilot application on your desktop/laptop, then click the

Data Download Wizard icon in the sidebar on the left. Make sure your Smartphone is synchronized. CoPilot will scan your computer to detect which drive options are available.

2. Click on the Drive Name pick list that appears and select either the drive letter of your Storage Card Reader (if you are using one) or the drive letter of your Hard Drive (e.g. C). Click Next.

(2) Select a Data Area:

Select a data area using one of three methods (see Selecting a Data Area p. 7-9 for a description of each method):

City Radius to select an area around a town or city;

Map Area to select an area directly from the map;

(3) Download the Data:

(3a) Using a Storage Card Reader:

1. Make sure the Storage Card for your Smartphone is inserted in the Storage Card Reader.

2. Clicking the Download icon will take you to a screen where Available Area(s) for download are displayed on the left. To designate an area to include in the download, highlight it and then click on the right arrow button to move it to the Data Included in This Download list on the right. To take an area off the list, highlight it and click the left arrow button.

3. After conﬁ rming that the area(s) you would like to download are in the Data Included in This Download list, click Download to complete the map data download process (see Data Download, p. 10).

4. Remove the Storage Card from the Storage Card Reader and insert it into the Smartphone. Your data is now ready to be used by CoPilot.

(3b) Using ActiveSync:

1. Ensure that your Smartphone is connected to the desktop/laptop via ActiveSync.

off the list, highlight it and click the left arrow button.

3. After conﬁ rming that the area(s) you would like to download are in the Data Included in This Download list, click Download to complete the map data download process (see Data Download, p. 10).

4. On the desktop, double click the My Computer icon. Navigate to the drive letter you downloaded the data to. The data you downloaded will be in a folder named “CoPilot”. For example, if you had chosen Drive C, the data would be in the folder “C:\CoPilot\”.

Trip to select a corridor along a route between two places.

Region to select a whole country or region.

5. Copy the CoPilot folder by right clicking on it and selecting Copy.

6. Open ActiveSync and click on the Explore icon. Navigate to the Smartphone’s Storage Card. Use the menu option Edit > Paste to copy the folder to your Smartphone’s Storage Card.

- 6 -

Selecting a Data Area

After you specify a location where the data will be stored, you will be prompted to select a region on the map to download. CoPilot provides several ways to select a data region, described on p. 7-9 below.

Region

To download a whole country or CoPilot data region, click the Region option in the Data Download Wizard, then select a region in the next screen and click Next.

The country or region you select must be included in the region that was installed on your Smartphone (if not, a warning will appear and you won’t be able to proceed with the download). Region downloads generally take the longest amount of time, depending on the size of the selected region.

City Radius

This method allows you to quickly select data in the shape of a circle surrounding any city on the map. In the Data Download Wizard you type a city name and state abbreviation or ZIP code and enter the number of miles/kilometers you would like the radius to extend around the city, then click Next.

The Wizard displays a map that shows the city and the radius you chose. At this point you can zoom the map in and out using zoom buttons and adjust the size of the data area by altering the radius of the circle.

1. Click the City Radius icon in the Data Download Wizard.

2. Enter a City, State or ZIP code, and a mile radius around the area that you would like to download. Click Next to verify that the area is correct.

3. Using the Data Download Wizard toolbar you can zoom in or out, change the radius, or go back to the previous screen. When you are satisﬁ ed with your selection, click Next.

- 7 -

Note: CoPilot’s available memory calculations subtract a certain amount from the available memory on your storage card (if you are using one) to account for support ﬁ les.

4. Name the selection, then click Next.

5. You will return to the Data Selection menu where you can select another data area if you like, using any method. When you ﬁ nish selecting data areas, click the Download icon and you will be taken to the ﬁ nal screen where you can build your download.

Map Area

This method of selecting data allows you to choose an area of data by drawing a box on the Data Download Wizard’s map screen.

In the Wizard, you enter a city name near which you would like to select data, then click Next. The map will zoom to that location. Then you create a box around the desired area by clicking and dragging your mouse across the map. The street-level data within that box will be selected.

2. Enter a City, State or ZIP code (address optional) within the area that you would like to download. Click Next.

3. Click and hold the left mouse button and drag the cursor to draw a box around a desired area. The size of the area will be displayed in the toolbar. Click Next.

Note: CoPilot’s available memory calculations subtract a certain amount from the available memory on your storage card (if you are using one) to account for support ﬁ les.

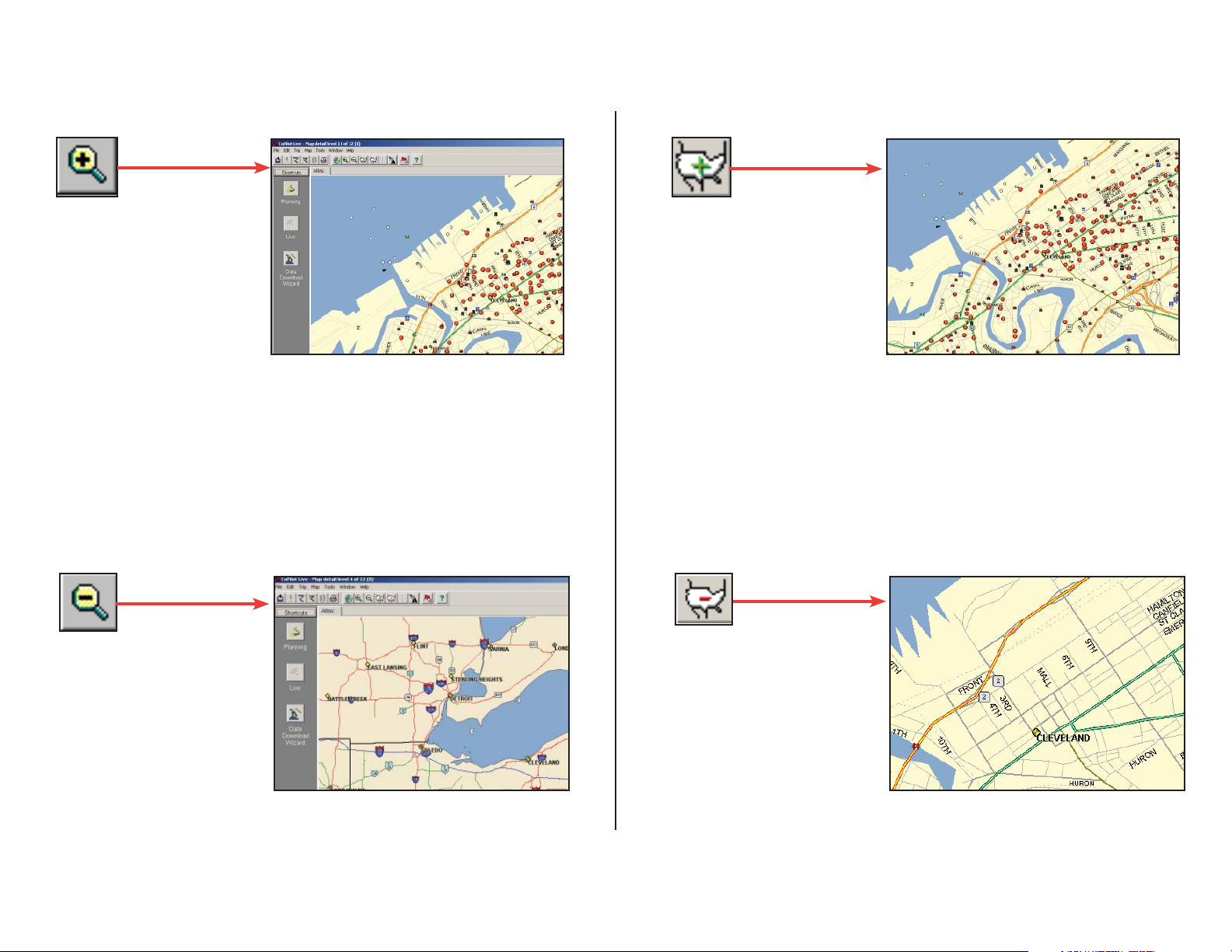

You can zoom the map in and out using the zoom buttons and adjust the size of the data area by redrawing the box.

Follow these steps to download Map Area data:

1. Click the Map Area icon in the Data Download Wizard.

- 8 -

4. Name the selection, then click Next.

Trip

This method of selecting data is by far the most customizable method. It allows you to run a trip and select street-level data speciﬁ c to that trip, thereby avoiding unneeded data and saving valuable memory space.

Once the trip is run, the Data Download Wizard automatically selects circles of data around your origin and destination, and a corridor of data along your route. You can then click Options to adjust the radius of the circles and the width of the corridor.

The Trip Itinerary for each trip you download will be stored on your Smartphone (see Trip Transfer, p. 11). Multiple trips can be downloaded to the Smartphone for later use.

Follow these steps to download Trip data:

1. Click the Trip icon in the Data Download Wizard.

2. Enter at least a start and end place for your trip. In the Cities and Addresses tab, type a City, State or ZIP Code and press <Enter>. Optionally, you can enter an address in the same way. Click the Add Stop button to add this place to your trip.

You may enter one or multiple destinations. Use the buttons to the right of the Itinerary to zoom to a stop on the map, change the order of stops, or delete a stop.

3. To search for a POI, click the Points of Interest tab, enter a City, State or a ZIP Code and click the Find button.

(You can speed up your search by selecting a POI Category and/or Type.) Then highlight a selection on the list, click Select, then Add Stop to add the POI as a stop.

Note: For a more detailed description of trip entry, open CoPilot Help from the desktop application (Help menu > Help Contents and Search).

4. When all your stops have been entered, click Select

Data.

By default a 20 mile (32 kilometer) radius around all stops and a width of 4 miles along the corridor which connects them will be highlighted. Note: CoPilot’s available memory calculations subtract a certain amount from the available memory on your storage card (If you are using one) to account for support ﬁ les.

5. To customize these distances for any trip, click Options and type a distance in the appropriate box.

- 9 -

6. You will return to the Data Selection menu where you can select another data area if you like, using any method. When you ﬁ nish selecting data areas, click Download. Trip itineraries that were created using the Tr ip download method will be transferred along with map data (see p. 11 for details).

Data Download

When you’re ready to execute a download, the Wizard will display a list of Available Area(s) for download on the left side of the window. To designate an area to include, click on it and then click on the right arrow button to move it to the Data Included in This Download list. If you need to move an area off the Included list, click on it and use the left arrow button.

Check Include US Highway Network to download CoPilot’s complete United States Highway Network along with your data. This additional download requires approximately 59 MB of space on your Smartphone. When this network is loaded, major roads, cities, and some points of interest outside your selected data region will be shown on the map and you’ll be able to receive guidance as you drive anywhere in the European Union.

Check Download Favorites to download your Favorites list from the Trip Planner window on your desktop along with map data. These addresses will then be available as Favorites for trip entry on the Smartphone.

RECOMMENDED OPTION: It is recommended that you leave Create QuickStart checked (see below for a description of this feature), but you

may uncheck it if you don’t want the QuickStart copied with your download.

CoPilot QuickStart Application Download

Each time you download data, CoPilot gives you the option to download a complete, ready-to-use “QuickStart” version of CoPilot along with the data. Having the QuickStart version on your mobile device ensures that CoPilot will be available even if you experience technical problems with your Smartphone and need to perform a hard reset. (During a hard reset, all installed applications are deleted from the Smartphone.) The QuickStart

version will automatically install CoPilot after a hard reset, and your map data will already be there!

To delete an area from memory, click on it and click Delete.

Notice that the amount of available map memory and the memory required for all the areas on the Included list is shown beneath the list. NOTE: CoPilot’s available memory calculations subtract a certain amount from your storage card (if you are using one) to account for support ﬁ les.

IMPORTANT: Each data download overwrites the data that is already on your Smartphone. If any data areas are already loaded

on your Smartphone, they will be overwritten by the new download. Therefore, your download must include all areas that you wish to have available on your Smartphone.

To run the QuickStart application on your mobile device after a hard reset, simply turn on your Smartphone. CoPilot will automatically begin installation.

The QuickStart option can be turned on or off in the ﬁ nal step of the download process (see above). By default this option is active and the QuickStart download will be executed each time you download map data.

The QuickStart needs 10 MB of space on your Storage Card. Once the QuickStart has been copied, you can save time the next time you download data by unchecking the Create QuickStart option in the ﬁ nal Data Download Wizard screen before proceeding to download. You will also want to uncheck this option if you do not have enough room on your Storage Card for it.

If the QuickStart is copied onto your Storage Card and you need to remove it, simply delete the folder that contains it. The folder will be named “2577”.

NOTE: CoPilot will need to be activated within 3 days after installation.

- 10 -

POI Download Options

When you download a data region from your desktop PC, you get all roads within that region. Also included are regional points of interest (POI) such as gas stations, hotels, restaurants, visitor attractions, etc.

CoPilot now lets you control the number and types of POI that get downloaded along with map data. You can save space on your Smartphone by eliminating categories of POI that you’re not interested in seeing.

To select which POI categories you want, choose POI Download Options from the Edit menu in the desktop application or, when you ﬁ rst open the Data Download Wizard, click the Options button in the Wizard. Check the categories you wish to select (click the plus sign next to each category to see the included sub-categories).

Click Save Settings to save the set of categories you create. Click

Restore Default to return to CoPilot’s default categories.

Adding OV2 POI Sets

CoPilot supports OV2 POI ﬁ les. You can copy any OV2 ﬁ le into the CoPilot\Save folder on your storage card to get immediate access to the POIs it contains.

EXAMPLE: Copy an OV2 ﬁ le named ‘Speedcams’ to Storage Card\ CoPilot\Save. The next time you do a POI search you will see ‘Speedcams’ as a POI Type in the Custom Category.

Trip Transfer

When you use the Trip download option, CoPilot transfers whole trips to your Smartphone. The trip you create, including its itinerary, is transferred along with the surrounding data corridor, and it becomes the current trip.

The Trip download option creates a .TRP ﬁ le that is placed in the Save directory in the CoPilot installation folder on your Smartphone. Subsequent downloads will add more .TRP ﬁ les to this folder. The number of trips that may be stored is limited only by the available memory on your Smartphone.

- 11 -

Importing Custom Places

CoPilot’s Custom Place Import Wizard enables you to import addresses from your Outlook Contacts database, an Excel ﬁ le, or text ﬁ le. (If you are using another type of database or contact manager, you can export your contacts/ locations to an Excel or text ﬁ le before importing them into CoPilot.) These points are then added to CoPilot’s POI database in a category and type of your choice (the default category is “Custom”). Once in the database, they are displayed on maps as pushpins and included in search results when you search for points of interest on your Smartphone or in the Trip Planner window on your desktop/laptop.

NOTE: CoPilot now allows importing of multiple POIs with the same name (e.g. an entire database of “Starbucks”).

To access the Wizard, choose Import Custom Places from the Tools menu in Planning Mode on the desktop, then follow the step-by-step instructions given by the Wizard.

Steps for Importing:

1. In Planning Mode on your desktop/ laptop, choose Import Custom Places from the Tools menu to open the Import Custom Places Wizard.

2. Choose Import from Microsoft

Outlook or Import from an existing ﬁ le (this can be a .txt or

an Excel ﬁ le). Click Next.

3. In the next Wizard screen, type the path to the ﬁ le you want to import or Browse for it, and use the Category pick list to indicate a POI category for your imported places (by default they are assigned to “Custom”). You can also choose a Type from the pick list. To edit the type name, highlight it on the pick list and click Edit Type Name below. Click Next when ready.

4. In the next screen you’ll see the data from your ﬁ le sorted into columns. If the columns you see in the screen have not sorted the address data correctly, you need to indicate which delimiter CoPilot should recognize when it separates the ﬁ elds in your ﬁ le into columns. Each ﬁ eld — e.g. name, street address, city, state, etc. — needs to be separated by a delimiter such as a tab, semicolon, or comma. If your ﬁ le uses a delimiter other than a comma, tab, or semicolon, click Other and type the delimiter in the box to the right. If the ﬁ rst row of your ﬁ le consists of column headings, you should check Column

headings in ﬁ rst row. Click Next when ready.

5. Now, following the instructions on the screen, click each column heading and match the column headings with your data. To be accepted by CoPilot, each imported place must have at least four ﬁ elds: Name, Address1, City, and State. Click Next when ready.

6. In the next screen, following the instructions, you can assign a name to the set of columns you just deﬁ ned to save you time the next time you import addresses.

To skip this step, uncheck Save

the columns as a new set. Click Finish.

- 12 -

7. When processing is ﬁ nished, the Data Import Status window shows you how many places in your ﬁ le were matched with addresses in the CoPilot database. A plus sign in the Accept column indicates a match. Places that failed to match appear in red and do not have a plus sign.

Editing Custom Places

After custom places have been added to the database, they can be edited at any time. Select Manage Custom Places from the Tools menu, then highlight the custom place you wish to edit, click Edit, and make your changes. Click Apply when ﬁ nished.

NOTE: By default, addresses entered as Custom Places are assigned to the Custom POI category. You can change this assignment at any time by selecting another Category from the drop-down pick list as you edit.

8. To edit a failed or incomplete match, highlight it and click Edit (see Editing Custom Places, next page). POI addresses can also be edited after they are added to the database using the Custom Place Manager.

9. When you are satisﬁ ed with the list of addresses, click Add to add these places to the CoPilot database.

Options below the list let you 1) choose whether to add all addresses

on the list to the database, or just those that were accepted, and 2) determine how CoPilot will handle any address that duplicates one already in the database.

- 13 -

Using CoPilot for Guidance

In CoPilot’s Guidance Mode on your Smartphone, you will receive turn-byturn route guidance information as you travel. For your safety, the Safety View screen will hide maps when your speed exceeds 10 m.p.h. to avoid distractions.

1. To launch CoPilot, select your

Step 1

Smartphone’s Start soft key, then navigate to the CoPilot application in the Start menu and press the Action key.

2. In the Welcome screen, select <Going To > .

3. Press the Action key with <Add a Stop> selected in the Going To screen to enter a destination.

4. The Select Stop screen gives you eight ways to enter a destination. You can:

Step 4

Press the Action key on the option you want (these options are described on the following pages).

There’s no need to enter a starting location. CoPilot uses GPS positioning to determine your location automatically.

When you have entered at least one stop in the Going To screen, you can press the Start Driving soft key and CoPilot will begin guiding you with on-screen and spoken directions.

If you take a wrong turn or decide to take a different route than the one CoPilot has generated, no problem! CoPilot will almost instantly recalculate new directions from your current position. You simply won’t be able to get lost using CoPilot!

1 Enter a new Address 2 Enter your Home address 3 Enter your Work address 4 Select a Favorite 5 Enter an Intersection 6 Enter an Outlook Contact 7 Search for a Point of Interest (POI) 8 Pick From Map

Step 2

Step 3

- 14 -

Address Entry

Step 1

1. Select Address in the Select Stop screen to enter a city or ZIP code and (optionally) a street address as a stop.

+ 36 hidden pages

TravRoute CoPilot Live User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
