21E Artisan Face
Installation Instructions
Packing List
• (2) Cove Covers
• Mounting Bracket
Part Numbers
Artisan (SKU 98500365)
Patina Bronze (SKU 95700140)
Overview
This instruction sheet details installation of the above face onto a 21E electric fireplace.
Cove Cover Installation
The cove covers install over the top corners of the glass and prevent light from exiting the slots on the face.

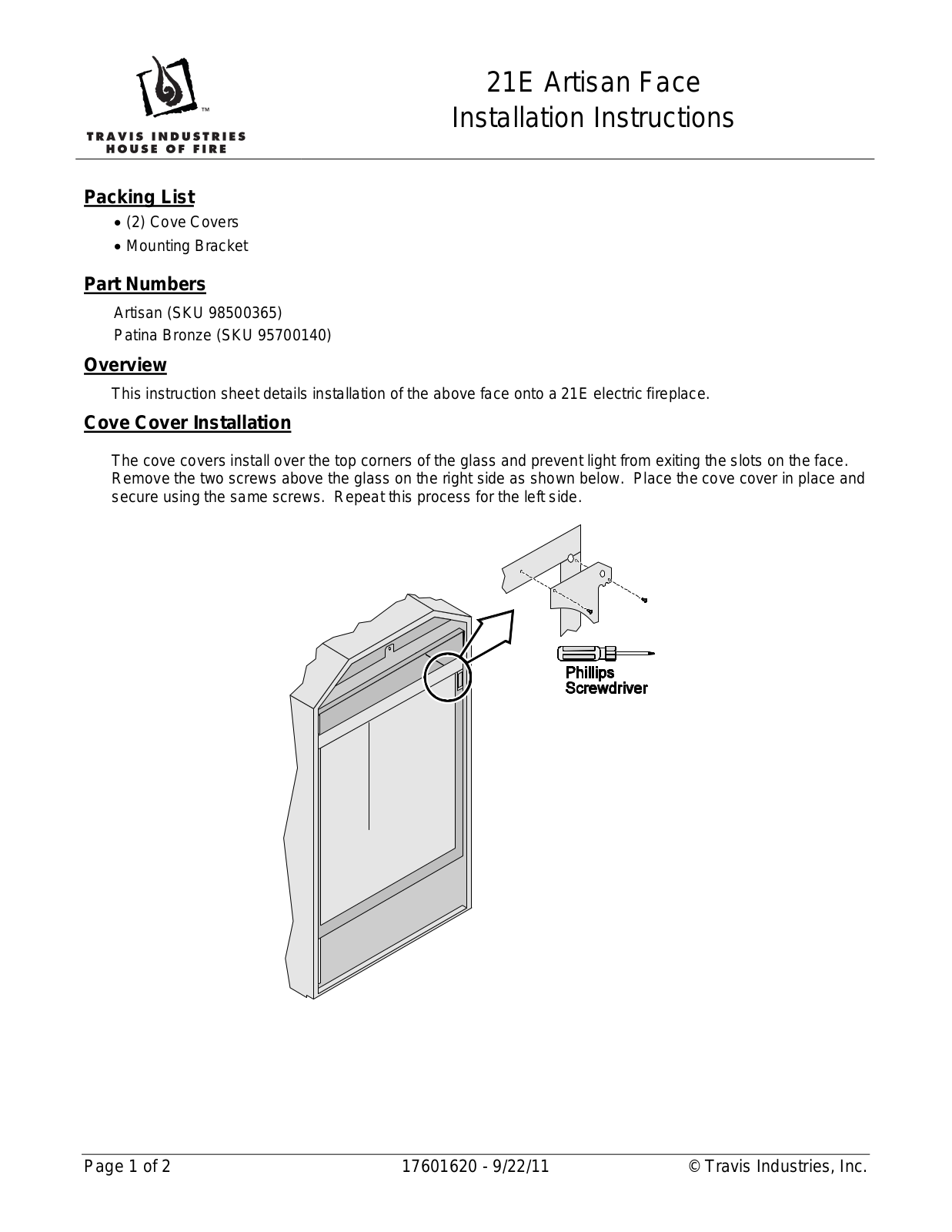

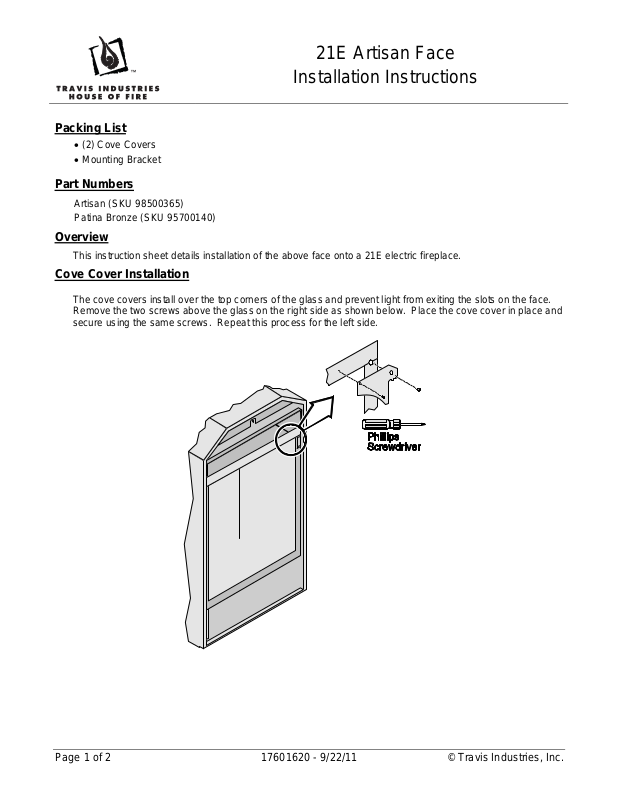

Remove the two screws above the glass on the right side as shown below. Place the cove cover in place and
secure using the same screws. Repeat this process for the left side.
Page 1 of 2 17601620 - 9/22/11 © Travis Industries, Inc.
21E Artisan Face
Installation Instructions
Face Installation

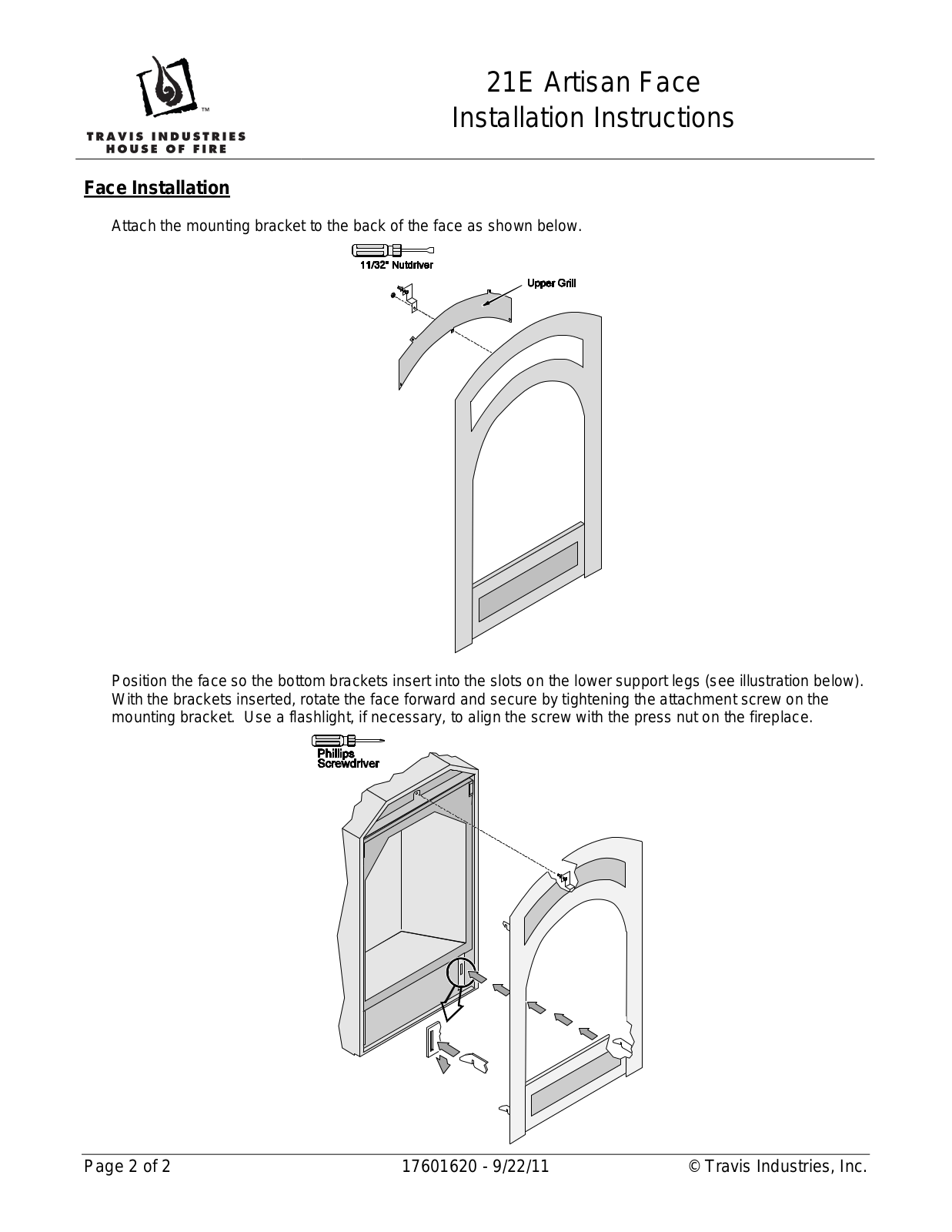

Attach the mounting bracket to the back of the face as shown below.
Position the face so the bottom brackets insert into the slots on the lower support legs (see illustration below).
With the brackets inserted, rotate the face forward and secure by tightening the attachment screw on the
mounting bracket. Use a flashlight, if necessary, to align the screw with the press nut on the fireplace.
Page 2 of 2 17601620 - 9/22/11 © Travis Industries, Inc.
