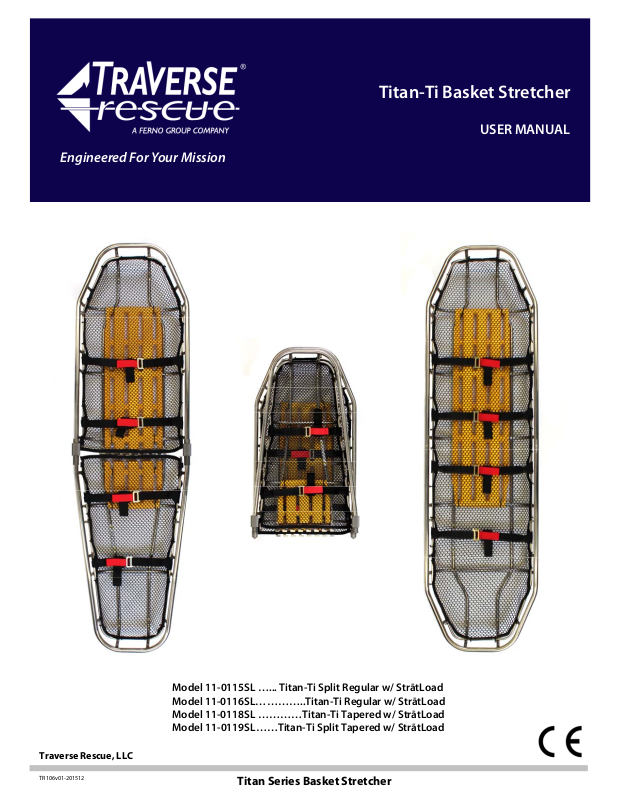

Traverse 11-0119SL User Manual
Engineered For Your Mission
Titan-Ti Basket Stretcher
USER MANUAL
Traverse Rescue, LLC
TR106v01-201512
Model 11-0115SL …... Titan-Ti Split Regular w/ StrātLoad
Model 11-0116SL…………..Titan-Ti Regular w/ StrātLoad
Model 11-0118SL …………Titan-Ti Tapered w/ StrātLoad
Model 11-0119SL……Titan-Ti Split Tapered w/ StrātLoad
Titan Series Basket Stretcher
User Manual Titan-Ti Series Basket Stretcher
W
G
Disclaimer
This manual contains general instructions for the use,
operation and care of this product. The instructions are
not all-inclusive. Safe and proper use of this product is
solely at the discrestion of the user. Safety information is
included as a service to the user. All other measures
taken by the user should be within and under
consideration of applicable regulations. It is
recommended that training on the proper use of this
product be provided before using this product in an actual
situation.
Retain this manual for future reference. Include it with the
product in the event of transfer to new users. Additional
free copies are available upon request from Customer
Care.
Proprietary Notice
The information disclosed in this manual is the property of
Traverse Rescue, LLC., Mississauga, ON Canada.
Traverse Rescue, LLC. reserves all patent rights,
proprietary design rights, manufacturing rights,
reproduction use rights, and sales use rights thereto, and
to any article disclosed therein except to the extent those
rights are expressly granted to others or where not
applicable to vendor proprietary parts.
© Copyright Traverse Rescue, LLC. All Rights
Reserved
Traverse Rescue, LLC.
2460 Tedlo Street
Mississauga, Ontario
Canada L5A 3V3
Telephone: …………………..........................905 279 7866
Toll Free (Canada & US): .........................1 866 998 7866
1.Safety Information
1.1 Warnings
The following are warnings in this manual:
Untrained operators can cause injury or be
injured. Permit only trained personnel to operate
this stretcher.
Improper use of the stretcher can cause injury.
use the stretcher only for the purpose described
in this manual
An unrestrained or improperly restrained patient
can suffer injuries. Always secure the patient in
the stretcher with a restraint system suitable to
the situation
Improper operation can cause injury. Operate
the stretcher only as described in this manual
An un-attended patient can be injured. Stay with
the patient at all times
Helpers can cause injury or be injured. Maintain
control of the stretcher and direct all helpers
Improper maintenance can cause injury and
damage. Maintain stretcher only as described in
this manual
ARNIN
Fax : .............................................................905 615 1367
Web Site: www.traverserescue.com
Traverse Rescue, LLC manufactures its products under a strict Quality
Assurance Program. We also recognize and comply to any applicable
standards that apply to each product.
The CE symbol on Traverse Rescue LLC products signifies they have
been self certified in accordance with the European Community Council Directive 93/42/EEC. Traverse Rescue, LLC declares that products
that bear the CE mark conform with all the provisions of this Directive
that apply to them.
Basket Stretchers manufactured by Traverse Rescue, LLC have been
determined to be Class 1 devices.
Made in Canada.
Traverse Rescue, LLC
Titan-Ti Series Basket Stretcher
Improper parts and service can cause injury.
Use only Traverse-approved parts and service
on the stretcher
Modifying the stretcher can cause injury and
damage. Use the stretcher only as-sold by
Traverse.
Attaching improper or inappropriate items to the
stretcher can cause injury. Use only Traverse-
Approved items on the stretcher
Ferno (UK) Limited
Stubs Beck Lane, Cleakheaton
West Yorkshire BD19 4TZ, United Kingdom
44 (0) 1274 851999
Page 2 of 8
User Manual Titan-Ti Series Basket Stretcher
jury
e
W
G
1.2 Important
Boxes like the one below emphasize important information.
Important
Rescue procedures using ropes, harnesses,
bridles and other Personal Protective Equipment
require special skills and are potentially
hazardous activities. No rescue personnel
should attempt such rescue procedures unless
he or she has received professional
Instruction and training
1.3 Bloodborne Disease Notice
OSHA (Occupational Safety and Health Administration) requires
employers to protect workers from workplace exposure to
bloodborne diseases such as HIV-1 and hepatitus. To reduce
the risk of exposure when using the stretcher, follow disinfecting
and cleaning instructions in this manual.
1.4 Safety Labels
Labels place important information from the Users’ Manual on
the stretchers.
Read and follow label instructions. Replace worn or damages
labels immediately. New labels are available from Traverse.
Load Limit - 1134 kg / 2500 lb
Read and Understand the Manual Before Use
1134 kg.
LOAD LIMIT
www.traverserescue.com
2500 LB.
LOAD LIMIT
3. About The Stretcher
3.1 General Specifications
Polyethylene Netting...-65°F/-54°C to +200°F/+93°C
Restraint Webbing
Tensile Strength.......................975 lbs. / 442 kg
Load Rating ............................500 lbs. / 227 kg
Restraint Buckles
Minimum Tensile Load.........4000 lbs. / 1814 kg
Buckles meet ANSI Z359.1 and CSA Z259.1
Traverse reserves the right to change specifications with out
notice.
ARNIN
Untrained Operators can cause in
injured. Permit only trained personnel to
operate the stretcher.
Important
Rescue procedures using ropes, harnesses,
bridles and other Personal Protective Equipment
require special skills and are potentially
hazardous activities. No rescue personnel
should attempt such rescue procedures unless
he or she has received professional
Instruction and training
Length 83.5” 212 cm
or b
The Load-Limit label shown is affixed to the stretcher.
2. Operator Skills and Training
2.1 Skills
Operators using the stretcher need:
A working knowledge of emergency patient-handling
procedures.
The ability to assist the patient
A complete understanding of the procedures described in
this manual
2.2 Training
Trainees need to:
Follow a training program designed or approved by their
training officer
read this manual. For additional free users’ manuals,
contact Traverse Customer Care.
Practice with the stretcher before using it in regular service
be tested on their understanding of the stretcher
record their training information
Traverse Rescue, LLC
Width - Non Split 23” 58 cm
Width - Split 23.75” 60 cm
Depth 7” 18 cm
Weight (non-split) 13 lbs 6 kg
Weight (Split-Apart) 17 lbs 8 kg
Rated Load Limit 2500 lbs 11 kN
4. Restraints
4.1 About the Restraints
A total of four restraints are included with your purchase of this
stretcher.
These restraints are to supplement what you will typically use to
tie-in a patient in a high-angle situation. We have made them to
a suitable strength in order to complement your own system of
tubular webbing, cord or the like. These restraints are only for
securing the patient into the stretcher, and are not to be used for
lifting or for any other purpose.
Titan-Ti Series Basket Stretcher
Page 3 of 8
