Traulsen VPS90J Service Manual

Quality Refrigeration

OWNER’S MANUAL

Instructions for the proper installation, operation, care

and maintenance of all Traulsen VPS* Pizza Prep Tables

*U.S. Patent No. 6,089,036

Standard 12” Front to Back Rail Models

VPS48S, VPS54S, VPS66S, VPS72S, VPS90S & VPS114S

Jumbo 20” Front to Back Rail Models Models

VPS54J, VPS66J, VPS72J, VPS90J & VPS120J

This Traulsen unit is built to our highest quality standards. We build our refrigerators, freezers, and heated
cabinets this way as a matter of pride. This philosophy has made Traulsen the leader in commercial
refrigeration since 1938. We thank you for your choice and confidence in Traulsen equipment and we know
you will receive many years of utility from this equipment.

All Traulsen units are placed on a permanent record file with the service department. In the event of any
future questions you may have, please refer to the model and serial number found on the name tag affixed
to the unit. Should you need service, however, call us on our toll free number, 800-825-8220 between 7:30
a.m. and 4:30 p.m. CST, Monday thru Friday. It is our pleasure to help and assist you in every possible way.

INSTALLER

COMPLETE THE FOLLOWING INFORMATION PRIOR TO UNIT INSTALLATION

INITIAL START DATE: SERIAL NO.

MODEL TYPE:

COMPANY/INDIVIDUAL NAME:

INSTALLER:

FORM NUMBER TR35747 REVISED 7/05 P/N 375-60178-00

TABLE OF CONTENTS

I. The Serial Tag Page 1

II. Receipt Inspection Page 2

III. Installation

a-Location & Clearance Page 2
b-Power Supply Page 2
c-Packaging Page 2-3
d-Installing Supports Page 3
e-Installing The Optional Ticket Rail Page 3
f-Optional LCD Thermometer Page 3
g-Installing The Shelves Page 3
h-Installing Optional Overshelves Page 3

IV. First Time Start-Up

a-Power Switch Page 4
b-Cord & Plug Page 4
c-Defrost Timer & Temperature Control Page 4

V. Daily Operation

a-Pans Page 4
b-Setting Up The Rail Page 4
c-Loading The Unit Base Page 4
d-Closing Down The Rail At Night Page 4

VI. Routine Cleaning

a-Cleaning The Rail Area Page 5
b-Cleaning The Cabinet Page 5
c-Shelves & Shelf Pins Page 5
d-Sliding Shelf Cover Page 5

VII. Service & Maintenance Information

a-Cleaning The Condenser Page 6
b-Light Bulb Replacement Page 6
c-Gasket Replacement Page 6
d-Door & Hinge Removal Page 6
e-Front Work Surface Removal Page 7
f-Defrost Timer Page 7
g-Temperature Control Page 7-8
h-Service Information Page 8
i-Wiring Diagram Page 8

VIII. Trouble Shooting Guide Page 9

IX. Operational Guidelines Page 9

X. Pan Capacities

a-The VPS System Page 10
b-Pans Page 10
c-Interior Arrangements Page 10

XI. Spare/Replacement Parts List

a-Standard Rail VPS Models Page 11
b-Jumbo Rail VPS Models Page 11

XII. Adapter Bar Chart Page 12

XIII. Warranty Information Page 13

XIV. Index Page 14

FORT WORTH, TX.

SERIAL MODEL
VOLTS Hz PH

TOTAL CURRENT AMPS
MINIMUM CIRCUIT AMPS
MAXIMUM OVERCURRENT PROTECTION AMPS
LIGHTS WATTS
HEATERS AMPS

REFRIGERANT TYPE OZ
DESIGN PRESSURE HIGH LOW

REFRIGERANT TYPE OZ
DESIGN PRESSURE HIGH LOW

370-60294-00 REV (A)

I. THE SERIAL TAG

The serial tag is located on the left interior wall
of thecompressor compartment. It contains
vital electrical andrefrigeration data as well as
the model and serial numberof your Traulsen
product.

READING THE SERIAL TAG

• Serial = The permanent ID# of your Traulsen product

• Model = The model # of your Traulsen product

• Volts = Voltage required to operate

• Hz = Frequency in Hertz 60 (U.S.) or 50

• PH = Phase 1

• Total Current = Maximum amp draw

• Minimum Circuit = Minimum circuit ampacity

• Maximum Overcurrent Protection = Maximum

recommended breaker or fuse

• Lights = Light wattage

• Heaters = Amperage of heater(s)

• Refrigerant = Refrigerant type & amount used

• Design Pressure = High & low side design pressures

• Agency Labels = Designate agency listing(s)

(most export units)

-1-

II. RECEIPT INSPECTION

II. RECEIPT INSPECTION

III. INSTALLATION (cont’d)

All Traulsen products are factory tested for performance
and are free from defects when shipped. The utmost
care has been taken in crating this product to protect
against damage in transit. Casters or legs are boxed
inside to prevent damage.

Upon delivery carefully inspect your Traulsen unit for
shipping damage. If any is detected, note it on the
carrier’s Bill Of Lading and save all the crating
materials. File a freight claim immediately. If concealed
damage is discovered at installation, contact the
carrier and file a freight claim then. Under no
circumstances may any damaged unit(s) be returned
to Traulsen without proper prior authorization.

III. INSTALLATION

NOTE: If the unit is installed or stored near any
incomplete concrete or tile work see the note at the end
of section VI.b

III. a – LOCATION & CLEARANCE:
Select a location for your Traulsen VPS unit away from
extreme heat or cold. These units are designed to

operate in an environment of 86°F (30°C) or less.

Locate the unit so that air drafts (such as heat, A/C or
ventilation) do not blow on or over the rail area.

The condensing unit of your Traulsen VPS unit MUST
have adequate air circulation. Therefore, do not store
anything within of 31” of the condensing unit louvers
(located on the unit front). Allow enough clearance
between the unit and the side wall so that the doors

may open a minimum of 90°. Standard rail models

require at least 61-3/8” vertical clearance (16-1/2” above
the unit) to allow the rail cover to open completely (see
figures 1 & 2).

III. a – LOCATION & CLEARANCE (cont’d):

Fig. 2 Section View - Jumbo Rail Models

III. b - POWER SUPPLY:

WARNING

Electrical Shock Hazard

Do not remove ground prong

Do not use an adapter or extension cord

Plug only into a 3-prong

grounding receptacle

This unit requires a dedicated circuit and 3-prong
grounding receptacle.

Model NEMA Receptacle
Number Required
VPS48 5-15R
VPS54 5-15R
VPS66 5-15R
VPS72 5-15R
VPS90 5-20R
VPS114 5-20R
VPS120 5-20R

Fig. 1 Section View - Standard Rail Models

Verify the supply voltage prior to installation. Do not
plug the unit in before reading this entire manual.

III. c - PACKAGING:
Traulsen VPS units are shipped from the factory on a
wooden pallet and protected by a crate. Remove the
crate but leave the unit secured to the pallet until it
reaches its final location. Remove (4) lag screws that
secure the unit to the pallet. Lift and support the unit

-2-

III. INSTALLATION (cont’d)

III. c - PACKAGING (cont’d):
then slide the pallet out from under it. DO NOT LAY
THE UNIT ON ITS BACK, FRONT OR SIDE.

NOTE: The front work surface of all Jumbo Rail
models can be removed if necessary to facilitate
transport through narrow doorways. See section VII.e
for details.

III. d - INSTALLING SUPPORTS:
Casters are supplied standard with all VPS models.
These are shipped from the factory packed inside a
cardboard box, contained within the unit.

WARNING: THE CABINET MUST BE SUPPORTED ON
BLOCKS AND STABLE BEFORE INSTALLING CASTERS
OR LEGS.

Raise and block the unit a minimum of 9” from the floor.
Slide the casters into the two channels under the front
and back of the cabinet. Casters can be positioned
anywhere along the unit’s entire length to avoid floor
obstructions such as drains and outlet boxes. Secure
all casters in place by tightening the two bolts located
at the base of each caster assembly (see figure 3).

III. e - INSTALLING THE OPTIONAL TICKET RAIL:
Supplied standard with jumbo rail models only. Use of
the ticket rail is optional and not required. Insert the
vertical legs of the ticket rail into the two receptacles
located on the rear of the cabinet (see figure 5).

Fig. 5

Ticket Rail Bracket

III. f - OPTIONAL LCD THERMOMETER:
Activate the optional LCD thermometer (if necessary)
by removing the paper insulator from the battery
contacts. One AA size battery is included. Open or
remove the louvered door to access the back of the
thermometer.

Fig. 3

NOTE: Casters or legs must be installed towards the
four corners of the unit as well as under the
compressor compartment for proper support.

Optional legs are installed in the same manner as
casters (see figure 4).

Fig. 4

Optional Legs

III. g – INSTALLING THE SHELVES:
Shelves are shipped in the bottom of the unit. Remove
the packaging from the shelves and place them on the
pins provided.

III. h – INSTALLING OPTIONAL OVERSHELVES:
Optional overshelves are installed in the same manner
as with the ticket rail. Insert the vertical legs of the
overshelf into the two receptacles located on the rear
of the cabinet (see figure 6).

Fig. 6

Overshelf Bracket

Use a pallet jack or forklift to prevent damage when
moving a unit on legs.

-3-

IV. FIRST TIME START-UP V. DAILY OPERATION

If this equipment has been stored or shipped in an
ambient colder than room temperature, YOU MUST
ALLOW THE COMPRESSOR TO WARM UP TO ROOM
TEMPERATURE PRIOR TO CONNECTING TO THE
POWER SUPPLY. This could take several hours.

IV. a - POWER SWITCH:
The power switch is located at main electrical box
behind the louver panel and is shipped from the
factory in the OFF position.

IV. b - CORD & PLUG:
All self-contained VPS models are supplied with a cord
& NEMA three-prong grounding plug attached. It is
shipped coiled at the bottom of the compressor
compartment, secured by a nylon strip. Plug the power
cord into the proper NEMA receptacle then turn the
power switch ON.

IV. c - DEFROST TIMER & TEMPERATURE CONTROL:
After the unit is plugged in and turned on, set the
defrost timer by turning the small knob (near the outer
edge of the large dial) clockwise until the correct time
of day on the large dial lines up with the TIME pointer.
Defrost times are set from the factory at 10am, 2pm,
8pm, 2am and 6am. Refer to section “VII. f” for more
info (see figure 7).

V. a - PANS:
Standard rail VPS models are designed to operate with
full, half or third size pans without the use of adapter
bars. Other fractional size pans can be used with
optional adapter bars available from Traulsen. (see
section “X. b” for more info).

Jumbo rail VPS models are designed to operate with
full size pans without the use of adapter bars. Other
fractional size pans can be used with optional adapter
bars available from Traulsen. (see section “X. b” for
more info).

Use only stainless steel or aluminum food pans no more
than 4” deep in order to maintain product temperatures
within the current NSF Standard 7 guidelines

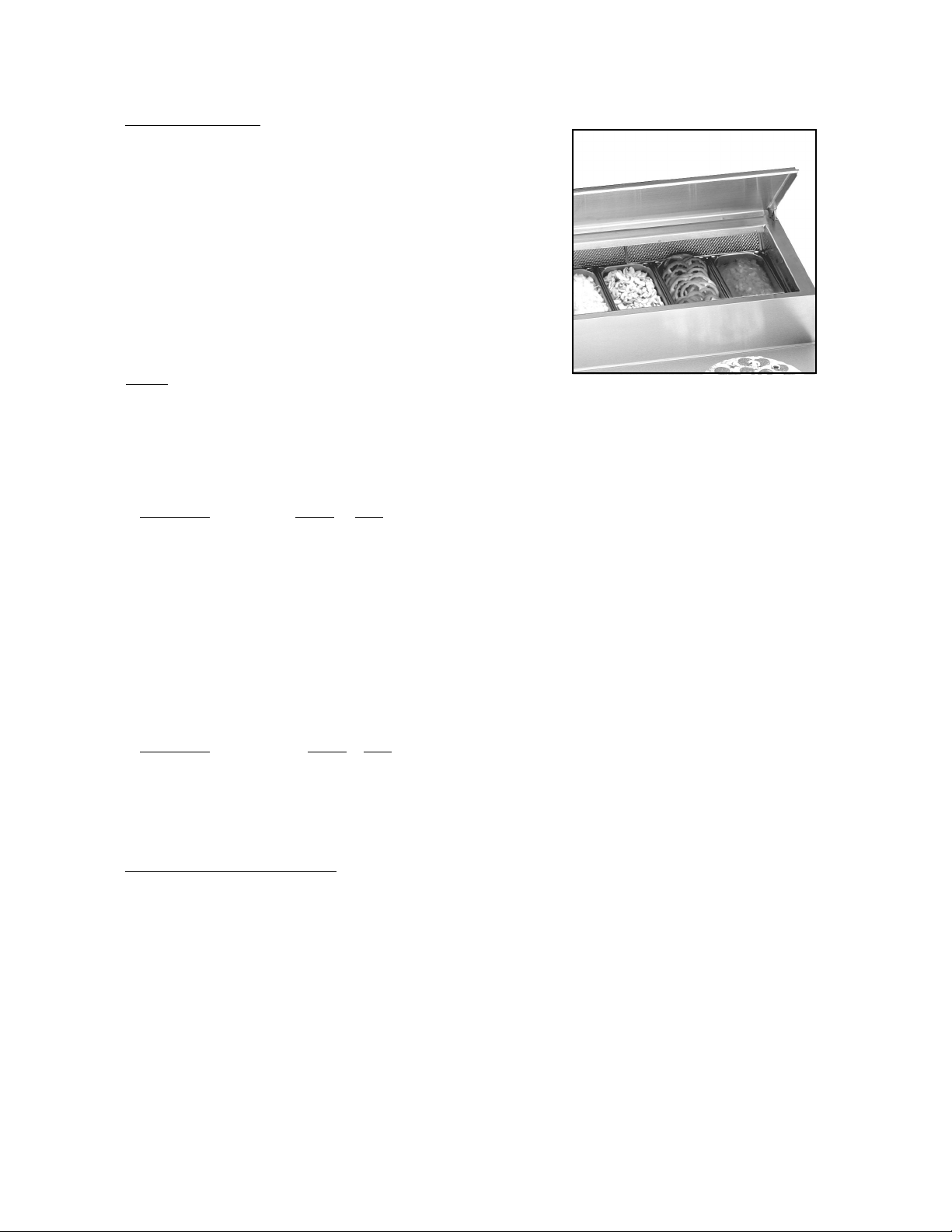

SETTING UP THE RAIL:

V. b ­Install pans in all pan spaces in the rail. Rest each pan
evenly on the front and back support ledges. Do not
use uneven or bent pans, as these will allow
circulating cold air to escape.

Allow the unit to reach operating temperature before
loading any food product. Load only refrigerated
product @ 36

o

F or below.

All pan spaces should be filled, even if some pans are
empty (even during nighttime storage).

When not in constant use, the VPS rail covers should
be kept closed over the pans.

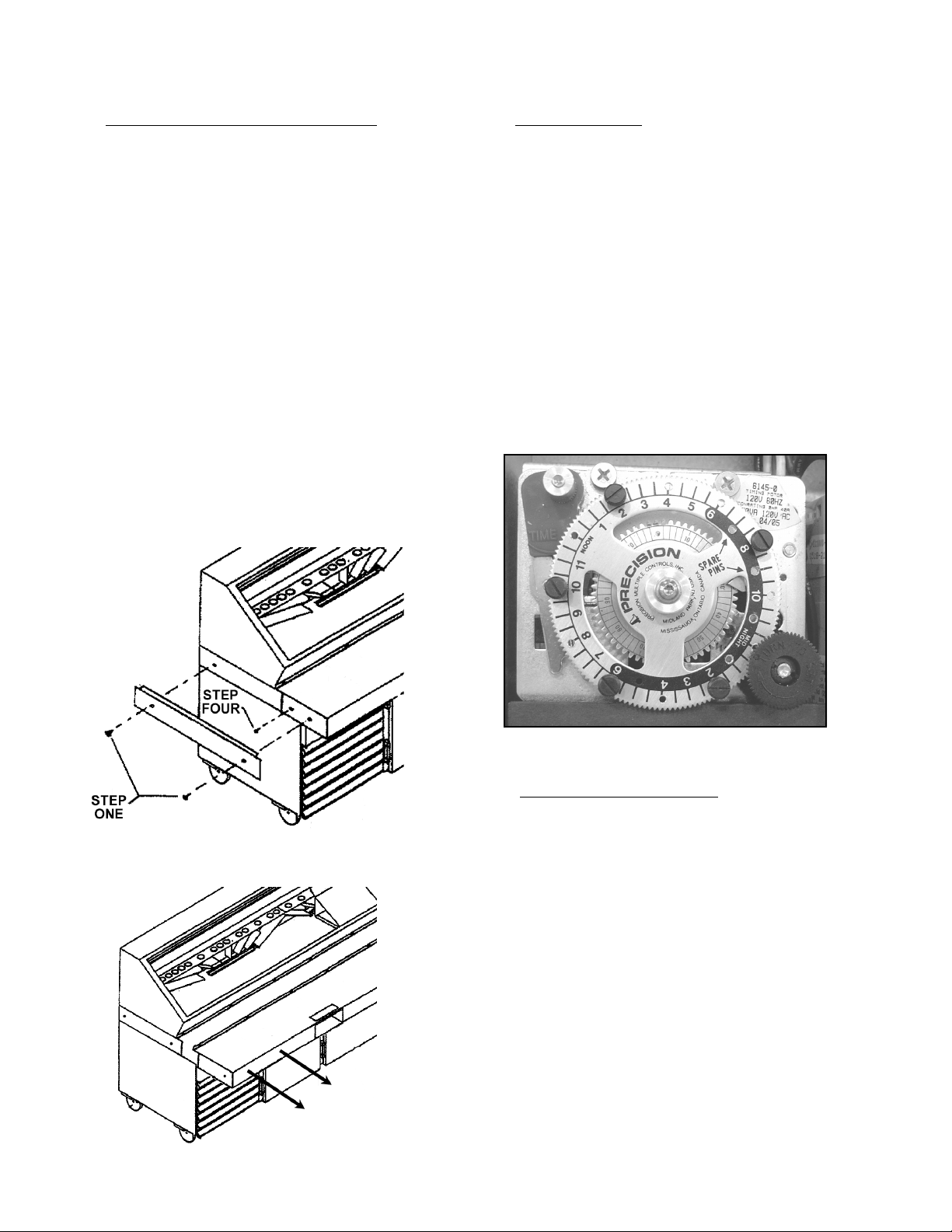

Fig. 7

Defrost Time Clock

NOTE: The defrost time clock will have to be reset to
the current time if the unit loses power or the Power
switch is turned off for any significant amount of time.

Temperature is controlled electronically and needs no
adjustment in normal use. Reprogramming is not
necessary even if the power is interrupted.

V. c - LOADING THE UNIT BASE:
When loading product into the base take care that the
evaporator fans, located at the top of the compartment,
are not obstructed. Secure all paper and plastic wrap
to prevent it being drawn into the fans. Keep the doors
closed except when loading or removing product.

V. d - CLOSING DOWN THE RAIL AT NIGHT:
Food product may be stored in the rail overnight if
needed. Cover the entire rail with plastic wrap prior to
closing the rail covers over the pans.

-4-

VI. ROUTINE CLEANING

Use only cleaning products designed for use on stainless steel in conjunction with the proper tools to retain the
like-new appearance of your Traulsen refrigeration product. Occasional use of a commercial stainless steel
polish, such as “Sheila Shine,” will help protect the stainless steel surface. Follow the directions on the spray
can for proper use.

VI. a - CLEANING THE RAIL AREA:
Remove all food pans and rail inserts for cleaning
separately. Wipe out the rail area being careful not to
wipe debris into any of the raised openings in the rail
bottom. These are air discharge and air returns for the
VPS system, and must be kept clean, clear and open
for proper operation.

VI. b - CLEANING THE CABINET:
Remove the cutting board and crumb cans for cleaning
separately.

Clean all stainless steel surfaces frequently and
thoroughly with mild soap and plenty of water, followed
by a clean water rinse. Wipe dry with a clean soft cloth.
Keeping the unit clean and dry will minimize the risk of
rust and corrosion. Remove food spills before they dry
and harden. The salt and acid in many foods will
promote corrosion of the stainless steel if it is left in
place too long.

Use a nylon brush or scouring pad only if necessary,
scrubbing in the same direction as the grain of the steel.
Don’t use bleach or harsh abrasives, as both will
promote corrosion. You can use a 1% ammonia
solution or a mixture of baking soda and water for
stubborn residue. Always follow any cleaning with a
clean water rinse then wipe dry with a clean cloth.

VI. b ­stainless steel so badly that it is difficult or impossible
to restore to its original appearance.

VI. c - SHELVES & SHELF PINS:
The interior shelves are mounted on shelf pins and are
easily removable for cleaning. Lift the shelf off the shelf
pins, tilting up slightly on one side to allow it to slide
through the door opening.

The shelf pins can be unscrewed by hand if
necessary. Reinstall the pins in their correct
locations, then hand tighten securely. Do not over
tighten.

VI. d ­All jumbo rail VPS models are supplied standard with a
sliding rail cover. To remove this for cleaning, hold the
cover slightly above horizontal, making sure the lower
edge of the “hook” at the rear of the cover clears the
retaining rod, then pull sharply. To reinstall the cover,
place the rear of the cover on top of the retaining rod (it
will wedge between the rod and the top of the unit),
and then bump it into place.

CLEANING THE CABINET (cont’d):

SLIDING RAIL COVER:

Clean all interior surfaces, including the door gaskets
and the gray vinyl breaker strips around the door
openings in the same way. All interior fittings are
removable without tools to facilitate cleaning.

Never use mild steel scrapers, tools or steel wool on
the stainless steel cabinet. In addition to scratching
the surface, they will leave microscopic residue that
will cause rust. Even the cleaning or drying cloth, if
previously used on mild steel (other than stainless) can
leave a residue that promotes rust. Always use a
cloth.

Clean the cabinet exterior thoroughly after every time
the floor is mopped to minimize damage from harsh
floor-cleaning chemicals.

NOTE
Muriatic or Hydrochloric acid is sometimes used to
clean concrete or tile work and can severely damage
the unit, even if it doesn’t make direct contact! Fumes
from an open container in the same room can discolor

clean

-5-

VII. SERVICE & MAINTENANCE INFORMATION

VII. a - CLEANING THE CONDENSER:
Clean the condenser at least monthly (more often if
necessary) to insure long service life. Keeping the
condenser free of lint and dust will allow the
refrigeration system to operate at peak efficiency and
minimize the risk of premature failure.

To clean the condenser, open or remove the front
louver assembly then turn the Power switch OFF. If the
louvered door is not hinged, lift the door out of the lower
cradle and then slide it down and out of the top bracket.
Vacuum and brush any dirt, lint or dust from the finned
condenser coil, taking care not to bend the thin
aluminum fins.

VII. b - LIGHT BULB REPLACEMENT (if equipped):
Turn the power switch OFF, remove the light cover and
unscrew the light bulb. Replace with a bulb of identical
type (115V 40-Watt T-6 1/2 Intermediate Base Clear
Refrigerator Lamp) and reinstall the light cover.

VII. c - GASKET REPLACEMENT :
Allow the new gasket to warm up to room temperature
before unfolding it. Soak the gasket in warm water if
necessary to speed up the warming process. Open (or
remove) the door and carefully pull the old gasket out
of the retainer. Clean the gasket retainer groove and
the area under the gasket. Start in one corner and push
the tongue of the new gasket into the groove for about
3 inches in each direction. Repeat with the other three
corners. The new gasket may appear too large at this
point. Using a rubber mallet, tap on the face of the
gasket to work the remainder of the tongue into the
retainer, starting at the corners and working toward the
middle (see figure 8)

VII. d - DOOR & HINGE REMOVAL:
Remove the hinge cover from both hinges. On the lower
hinge insert a 3/32” pin punch into one of the holes in
the spring retainer. Rotate the retainer clockwise
slightly and remove the locking pin. Allow the punch
to come to rest against the hinge body where the
locking pin was. Insert another 3/32” punch into one
of the holes in the spring retainer and rotate clockwise
slightly so the first punch can be removed. Repeat until
there is no tension on the spring. Grip the upper spring
retainer with Vise-Grips and push it straight down, then
out of the hinge. Be careful not to lose the flat washer
above the upper spring retainer, or the shoulder
bushing below the lower spring retainer. The screws
that secure the hinge to the cabinet and the hinge to
the door are all now accessible (see figure 9).

Fig. 9

Door Hinge

Reinstall in reverse order, first hinges to the door, then
door & hinge assembly to the cabinet. Install the spring
assist parts in the lower door hinge in order from the
bottom up: shoulder bushing, lower spring retainer
(with holes), spring, upper spring retainer and flat
washer. Grip the upper spring retainer with Vise-Grips
and push it straight down, then in and over the pin in
the hinge assembly. Use the two 3/32” punches and
the holes in the lower spring retainer to rotate the spring
clockwise approximately half a turn before inserting the
locking pin. The door should open past 900 and close
completely from any position.

Fig. 8

Gasket Installation

-6-

VII. SERVICE & MAINTENANCE INFORMATION (cont’d)

VII. e - FRONT WORK SURFACE REMOVAL :
To facilitate transport through narrow doorways all
Jumbo Rail VPS models are supplied standard with a
removable front work surface (see figure 10).

WARNING: Excess weight hazard. Use two or more
people and to remove and reinstall. Failure to do so
can result in damage to the unit and/or injury.

1) Remove the side cover (held in place by two screws)
from each side.

2) Remove the screw from each side.

3) Remove the screws under the work surface, above
the louver and hinged doors.

4) Support the work surface securely then remove the
screws from the vertical lip at the rear of the work
surface.

5) Lift the work surface up and away from the cabinet.
Reinstall in reverse order and seal the perimeter with
silicone.

VII. f - DEFROST TIMER:
In normal operation the defrost timer only needs to be
set on startup and after each power loss. Rotate the
small knob (near the outer edge of the large dial)
clockwise until the correct time of day on the large dial
is opposite the TIME pointer. Pins that initiate each
defrost cycle are set at the factory at 2am, 6am, 10am,
2pm and 8pm. If your operation requires different
defrost times simply relocate one or more of the pins
(around the outer edge of the large dial) to the
appropriate time. Leave four hours minimum time
between pins. A minimum of five (5) defrost cycles are
required per day. Defrost is terminated by a non­adjustable temperature-activated switch located in the
evaporator housing. The bronze pointer on the inner
dial controls the time-activated backup termination and
should not be changed from the factory setting of 30
minutes.

Remove the stainless
steel side brackets
from each side.

Fig. 10

Removing the

Work Surface

Lift work surface up
and away from unit
when all screws are
removed.

Fig. 11

Defrost Timer

VII. g - TEMPERATURE CONTROL:
The electronic temperature control is set at the factory
and needs no adjustment in normal use.
Reprogramming is not necessary even if the power is
interrupted. If the control has to be replaced, verify
that the settings match the original factory settings. See
below for factory settings.

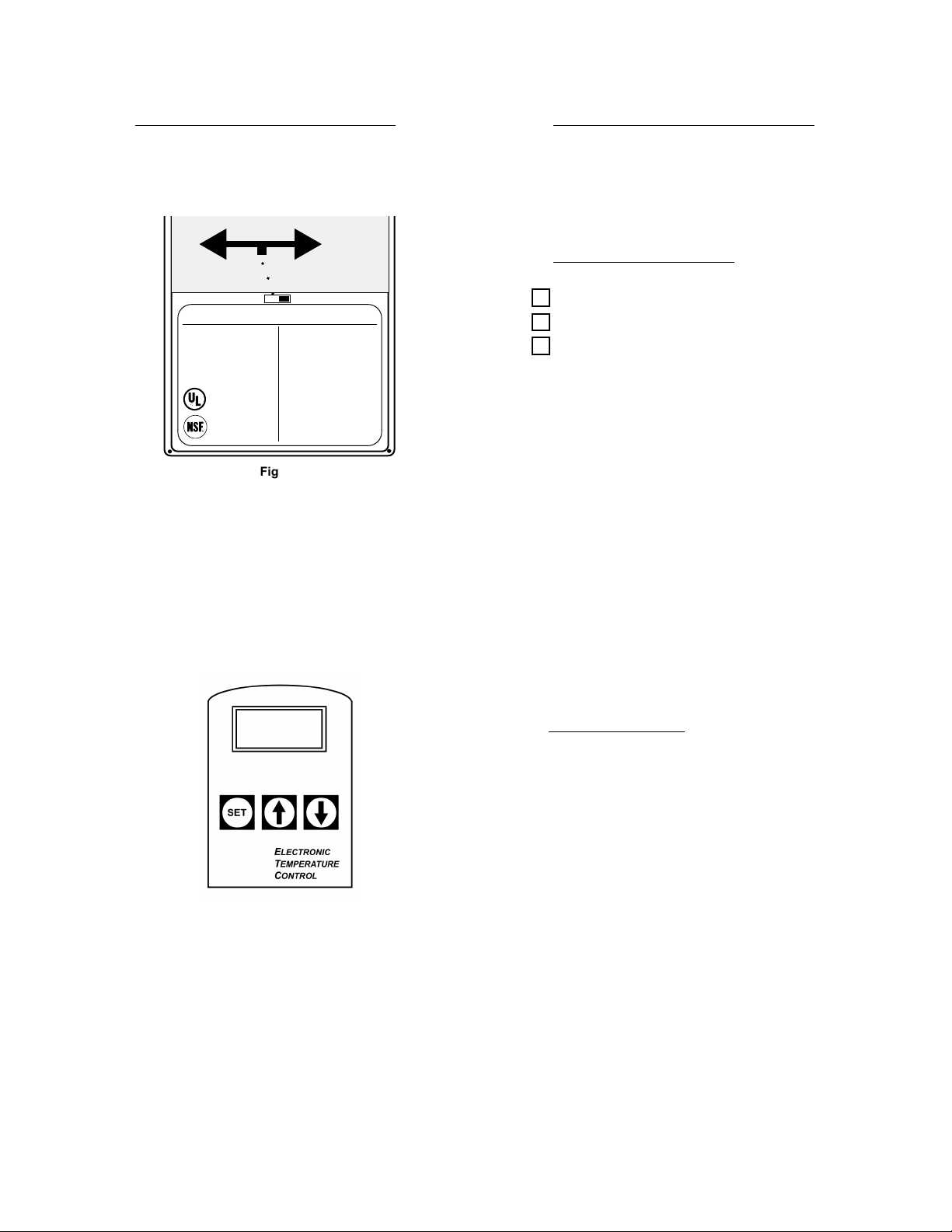

The control is equipped with a lockout switch to
prevent unauthorized tampering. VPS units are shipped
from the factory with this switch in the LOCK position,
with the keypad disabled.

To check or change the settings:
Turn the power switch OFF then loosen the 4 screws

that hold the control cover in place. The lockout switch
is located on the inside cover about two inches above
the bottom (see figure 12). To enable the keypad, slide
the switch to the right (UNLOCK) position. Replace the
control cover and turn the power switch ON. Always
disable the keypad by moving the switch to left (LOCK)
position after checking the settings.

-7-

VII. SERVICE & MAINTENANCE INFORMATION (cont’d)

VII. g - TEMPERATURE CONTROL (cont’d):
With the switch in the UNLOCK position, the settings
can be checked (or changed) in four simple steps
using the LCD display and the three keys on the
control face.

LOCK UNLOCK

LOCKOUT: LOCK UNLOCK

R

○○○

DISPLAY CODES
FFAHRENHEIT
C CELCIUS
H1 HEAT SATGE 1
C1 COOL STAGE 1
EP PROBE FAILURE/

OUT OF RANGE
EE EEPROM ERROR
E1 IMPROPER SET
E2 MEMORY ERROR

Fig. 12

NOTE: The control will automatically end programming
if no keys are pressed for a period of thirty seconds.
The last settings will be saved to the control at that
point.

STEP 1- Press the SET key once to access the
Fahrenheit/Celsius mode. The display will show the
current status, either F for Fahrenheit or C for Celsius.
The up & down arrow keys will toggle between F and
C. Factory setting is F.

VII. g - TEMPERATURE CONTROL (cont’d):
STEP 4- Press the SET key again to access the

cooling/heating mode. The LCD will display the
current mode. Pressing the up and down arrow keys
will toggle between C1 and H1. Factory setting is C1.
Press the SET key once more to end programming.

VII. h - SERVICE INFORMATION:
Before calling for service, please check the following:

Is the electrical cord plugged in?
Is the fuse OK or circuit breaker on?
Is the power switch ON?

If after checking the above items the unit is still not
operating properly, please contact an authorized
Traulsen service agent. A complete list of authorized
service agents was provided along with your Traulsen
unit. You may also obtain the name of a service agent
from the Technical Service section of our company
website: www.traulsen.com.

If service is not satisfactory, please contact our
in-house service department at:

Traulsen
4401 Blue Mound Road
Fort Worth, TX 76106
[phone]

Traulsen reserves the right to change specifications
or discontinue models without notice.

Fig. 13

Temperature

Control

STEP 2- Press the SET key again to access the setpoint.
The LCD will display the current setpoint and blink S1.
Pressing the up and down arrow keys will change the
setpoint. The compressor will shut off when the
cabinet cools to this temperature. Factory setting is

35.
STEP 3- Press the SET key again to access the

differential. The LCD will display the current
differential and blink DIF1. Pressing the up and down
arrow keys will change the differential. The
compressor will come on when the cabinet
temperature rises above the setpoint (step 2) by the
amount of the differential. Factory setting is 3.

VII. i - WIRING DIAGRAM:
A wiring diagram is supplied along with the unit and is
also available by request from the Traulsen Service
Department by calling [phone]. To expedite
service, please have the model and serial number of
the unit involved available to you whenever calling with
any service related questions.

-8-

VIII. TROUBLE SHOOTING GUIDE

OPERATIONAL SYMPTOM POTENTIAL CAUSE/REMEDY

1.Unit fails to start. a. Unit unplugged, breaker tripped or fuse blown.
b. Switch in OFF position.

2. Interior compartment is too warm. a. Door(s) open.
b. Warm product recently loaded.
c. Door gaskets damaged or worn.
d. Pan(s) missing.

3. Condensation on the exterior surface. a. Condensation on the exterior surface of the

unit is perfectly normal during periods of
high humidity.

b. Door(s) misaligned or gaskets faulty.

4. Product temperature in rail too warm. a. Product held in plastic pans.

b. Room ambient temperature exceeds 86°F.

Operate in room ambient below this temperature.
c. Air drafts disrupting air-flow over product pans.
d. Food debris blocking air discharge and/or return

vents.

e. Product loaded in pans above 36°F.

f. Rail inserts missing.
g. Base doors left open.
h. Pan(s) missing.

IX. OPERATIONAL GUIDELINES

Follow these simple guidelines for proper VPS operation:

• Keep the condenser clean. Don’t obstruct the airflow.

• Reset the defrost timer to the proper time of day upon startup after any power loss or

shutdown.

• Rail inserts must be in place (under pans) before loading any pans.

• Use only 4” deep stainless steel or aluminum pans.

• All pan spaces should be filled any time the unit is running, even if some pans are empty.

• Keep the room temperature at 86°F (30°C) or less.

• Do not allow air drafts (such as heat, A/C or ventilation) to blow on or over the rail area.

This will disrupt the air blanket over the product area, resulting in poor holding
temperatures.

• Rail covers should be closed over the rail as much as possible.

• Product should be loaded into the rail at a maximum temperature of 36°F. The VPS unit

was not designed to chill warm product, but to hold refrigerated product at a safe
temperature.

• Keep the area around the evaporator fans clear.

• When cleaning the rail area, do not wipe debris into the raised openings in the rail

bottom. These are air discharge and air returns for the VPS system, and must be kept
clean, clear and open.

-9-

X. PAN CAPACITIES

X. a - THE VPS SYSTEM:
The Venturi Plenum System (VPS) pizza prep tables are
designed to keep all foods fresh, at an even
temperature, without freezing. The VPS system
accomplishes this task by surrounding product with cold
air top to bottom and on all sides without drying the
ingredients. This extends shelf life, eliminating the need
to stir products or rotate pans. It has the added benefit
of eliminating cleanup associated with the frost and
condensation found in “wrapped rail” (cold wall type)
designs. The Standard 12” and Jumbo 20” front-to-back
raised rail places pans in full view, where they are easy
to use and can be completely filled, reducing labor.

X. b - PANS:
The standard rail (12” front to back) VPS models are all
designed to accommodate either full size (12” x 20”),
half or third size pans without the use of adapter bars
(pans supplied by others). See below for individual model
pan capacities.

Model No. Third Full
VPS48S 6 2
VPS54S 7 2-1/3
VPS66S 9 3
VPS72S 10 3-1/3
VPS90S 12 4
VPS114S 16 5-1/3

The jumbo rail (20” front to back) VPS models are all
designed to accommodate full size (12” x 20”) pans
without the use of adapter bars (pans supplied by
others). See below for individual model pan capacities.

Model No. Third Full
VPS54J 12 4
VPS66J 12 4-1/2
VPS72J 16 5-1/3
VPS90J 18 6-1/2
VPS120J 7-1/3

Raised Ingredient Rail Details

X. c - INTERIOR ARRANGEMENTS:
One (1) powder-coated shelf is mounted behind each
door. Optional angle type tray slides may be ordered in
place of shelves on all units EXCEPT 48” or 54” long
models.

-10-

XI. SPARE/REPLACEMENT PARTS LISTING

XI. a - SPARE/REPLACEMENT PARTS LIST FOR ALL STANDARD RAIL VPS PIZZA PREP TABLE MODELS:

Part Description VPS48S VPS54S VPS66S VPS72S VPS90S VPS114S
Door Gasket 341-60070-00 341-60070-00 341-60050-00 341-60050-00 341-60050-00 341-60050-00
Door - Hinged Left 200-60150-00 200-60150-00 200-60144-00 200-60144-00 200-60144-00 200-60144-00
Door - Hinged Right 200-60151-00 200-60151-00 200-60145-00 200-60145-00 200-60145-00 200-60145-00
Temperature Control 403-130-103-100 403-130-103-100 403-130-103-100 403-130-103-100 403-130-103-100 403-130-103-200
Condensing Unit 414-130-104-500 414-130-104-500 414-130-104-600 414-130-104-600 414-130-104-600 414-130-104-200
Metering Device 403-130-103-000 403-130-103-000 403-130-103-000 403-130-103-000 403-130-103-000 403-130-103-000
Evaporator Assembly 325-60091-00 325-60091-00 325-60090-00 325-60090-00 325-60091-00 (2) 325-60091-00 (2)
Evaporator Fan Motor 403-130-051-800 403-130-051-800 403-130-051-800 403-130-051-800 403-130-051-800 403-130-051-800
Evaporator Fan Blade 403-130-051-700 403-130-051-700 403-130-051-700 403-130-051-700 403-130-051-700 403-130-051-700
Evaporator Fan Guard SER-60432-00 SER-60432-00 SER-60432-00 SER-60432-00 SER-60432-00 SER-60432-00
Defrost Heaters 403-130-057-100 403-130-057-100 403-130-090-700 403-130-090-700 403-130-057-100 403-130-090-700
Vertical Pan Support 7000070 7000070 7000070 7000070 7000070 7000070
Short Horiz. Pan Supp. 7000071 7000071 7000071 7000071 7000071 7000071
Long Horiz. Pan Supp. 7000204 7000204 7000204 7000204 7000204 7000204
Nylon Cutting Board 340-60142-00 340-60106-00 340-60144-00 340-60141-00 340-60145-00 340-60146-00
Std. Interior Shelf 410-130-104-900 410-130-104-900 410-130-104-800 410-130-104-800 410-130-104-800 410-130-104-800
Shelf Mounting Pin 344-24759-01 344-24759-01 344-24759-01 344-24759-01 344-24759-01 344-24759-01
Rail Cover (lid) 8700071 8700141 8700158 8700103 8700177 8700009
Air Deflector 8700038 700-60120-00 8700129 700-60132-00 700-60129-00 700-60131-00
Air Diffuser 8700202 8700153 8700252 8700121 8700213 8700050
Door Hinges 409-130-056-200 409-130-056-200 409-130-056-200 409-130-056-200 409-130-056-200 409-130-056-200
Door Hinge Spring Kit 409-130-056-300 409-130-056-300 409-130-056-300 409-130-056-300 409-130-056-300 409-130-056-300
8” Casters - w/Brake 101510 101510 101510 101510 101510 101510
8” Casters - w/o Brake 101509 101509 101509 101509 101509 101509

XI. b - SPARE/REPLACEMENT PARTS LIST FOR ALL JUMBO RAIL VPS PIZZA PREP TABLE MODELS:

Part Description VPS66J VPS90J VPS90J VPS120J
Door Gasket 341-60050-00 341-60050-00 341-60050-00 341-60050-00
Door 200-60287-00 200-60287-00 200-60287-00 200-60287-00
Temperature Control 403-130-113-700 403-130-113-700 403-130-113-700 403-130-113-700
Metering Device 403-130-103-000 403-130-103-000 403-130-103-000 403-130-103-000
6” Casters - w/Brake 500-60350-00 500-60350-00 500-60350-00 500-60350-00
6” Casters - w/o Brake 500-60349-00 500-60349-00 500-60349-00 500-60349-00
Door Hinges 409-130-056-200 409-130-056-200 409-130-056-200 409-130-056-200
Hinge Spring Kit 409-130-056-300 409-130-056-300 409-130-056-300 409-130-056-300
Condenser 414-130-104-600 414-130-104-600 414-130-104-600 321-60140-00
Evaporator Fan Motor 404-130-051-800 404-130-051-800 404-130-051-800 404-130-051-800
Evaporator Fan Blade 404-130-051-700 404-130-051-700 404-130-051-700 404-130-051-700
Evaporator Fan Guard SER-60432-00 SER-60432-00 SER-60432-00 SER-60432-00
Std. Interior Shelf 410-130-104-800 410-130-104-800 410-130-104-800 410-006-039-043
Shelf Mounting Pin 344-24759-01 344-24759-01 344-24759-01 344-24759-01
Defrost Heaters 403-130-090-700 403-130-090-700 403-130-057-100 403-130-090-700
Scrap Pan 405-090-054-000 405-090-054-000 405-090-054-000 405-090-054-000
Ticket Rail 284-206 239-205 240-235 700-60161-00
Sauce Pan Platform* 7000405 7000405 7000405 7000405
Cheese Deflector* n/a n/a n/a 700-60180-00
Light Bulb 378-29776-00 378-29776-00 378-29776-00 378-29776-00

NOTE

To identify or obtain replacement parts for other VPS models, or for parts not

listed above, please contact the Traulsen Parts Department at [phone]

-11-

XII. ADAPTER BAR CHART

(not shown to scale)

p/n 6084006

Vertical Support For Standard Rail Models Only

p/n 7000070A

Vertical Support For Jumbo Rail Models Only

p/n 8700226

Horizontal Support For Standard Rail Models Only

p/n 7000071A

Horizontal Support For Jumbo Rail Models Only

p/n 8700008

Horizontal Support For Jumbo Rail Models Only

p/n 7000204

Horizontal Support For Jumbo Rail Models Only

-12-

XIII. WARRANTY INFORMATION

STANDARD DOMESTIC WARRANTY

TRAULSEN warrants new equipment to the original purchaser, when installed within the United States
against defective material and workmanship for one (1) year from the date of original installation.
Under this warranty, TRAULSEN will repair or replace, at its option, including service and labor, all
parts found to be defective and subject to this warranty. The compressor part is warranted for an
additional four (4) years. During this period TRAULSEN will supply replacement compressor(s) if deemed
defective, however, all installation, recharging and repair costs will remain the responsibility of the
owner.

This warranty does not apply to damage resulting from fire, water, burglary, accident, abuse, misuse,
transit, acts of God, terrorism, attempted repairs, improper installation by unauthorized persons, and
will not apply to food loss.

THERE ARE NO ORAL, STATUTORY OR IMPLIED WARRANTIES APPLICABLE TO TRAULSEN,
INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
ANY PARTICULAR PURPOSE WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF.
TRAULSEN SHALL HAVE NO OBLIGATION OR LIABILITY FOR CONSEQUENTIAL OR SPECIAL
DAMAGES, GROWING OUT OF OR WITH RESPECT TO THE EQUIPMENT OR ITS SALE, OPERATION OR
USE, AND TRAULSEN NEITHER ASSUMES NOR AUTHORIZES ANYONE ELSE TO ASSUME FOR IT ANY
OBLIGATION OR LIABILITY IN CONNECTION WITH THE EQUIPMENT OR ITS SALE, OPERATION OR
USE OTHER THAN AS STATED HEREIN.

INTERNATIONAL COMMERCIAL WARRANTY

(for Canadian warranties see domestic US warranty)

TRAULSEN warrants to the original purchaser the Refrigeration Equipment manufactured and sold by it to be

free from defects in material and workmanship under normal use and service for a period of one (1) year from
date of shipment. Under this warranty, TRAULSEN will reimburse the purchaser for the replacement of any
part of said equipment (excluding dryers & refrigerant gas) which then proves to be defective. This warranty

does not apply to damage resulting from fire, water, burglary, accident, abuse, misuse, transit, acts of
God, terrorism, attempted repairs, improper installation by unauthorized persons, and will not apply to
food loss.

TRAULSEN’S standard warranty does not apply to Export Sales. Rather, for a period of one (1) year from date
of original installation not to exceed Fifteen (15) months from date of shipment from factory, TRAULSEN:

will replace, F.O.B. factory, any defective parts normally subject to warranty.

will not cover the cost of packing, freight or labor such costs being the sole responsibility of the dealer.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EITHER EXPRESSED OR IMPLIED AND
CONSTITUTES TRAULSEN’S FULL OBLIGATION AND LIABILITY. WARRANTIES NOT AVAILABLE ON
REMOTE MODELS.

-13-

XIV. INDEX

A

Adapter Bars 12

B

C

Casters, Installing 3
Cleaning, All 5-6
Clearance 2
Cord & Plug 4

D

Defrost Timer 4, 7
Door, Removal 6

E

F

Freight Damage 2

G

Gasket, Replacement 6

H

Hinge, Removal 6

I

Interior Arrangements 10

J

K

L

Leg Channel Mounting System 3
Legs, Installing 3
Light Bulb, Replacing The 6
Loading, Unit Base 4
Locking Pin, Hinge 6
Lock-Out Switch 7-8

M

N

NEMA Receptacle 2

O

Operating Guidelines 9
Overshelves, Installing The Optional 3

P

Packaging 2
Pans 4
Pan Capacities 10
Parts, Replacement List 11
Power Supply 2
Power Switch 4

R

Return Authorization 2
Rail Cover, Sliding 5
Rail, Closing Down At Night 4
Rail, Setting Up The 4

S

Serial Tag 1
Shelf Pins 5
Shelves, Installing 3, 10
Spring Retainer, Hinge 6
Start-Up, First-Time 4

T

Temperature Control 4, 7-8
Temperature Scale, Changing The 8
Ticket Rail, Installing The Optional 3
Thermometer, Optional LCD 3
Trooubleshooting 9

U

V

Venturi Plenum System, Description 10

W

Warranty 13
Wiring Diagram 8
Work Surface, Removal 7

X

Y

-14-

Z

HOURS OF OPERATION:

Monday thru Friday 7:30 a.m. - 4:30 p.m. CST

Traulsen

4401 Blue Mound Road Fort Worth, TX 76106
Phone: [phone] Fax-Svce: [phone]
Website: www.traulsen.com

Quality Refrigeration

© 2005 Traulsen - All Rights Reserved
