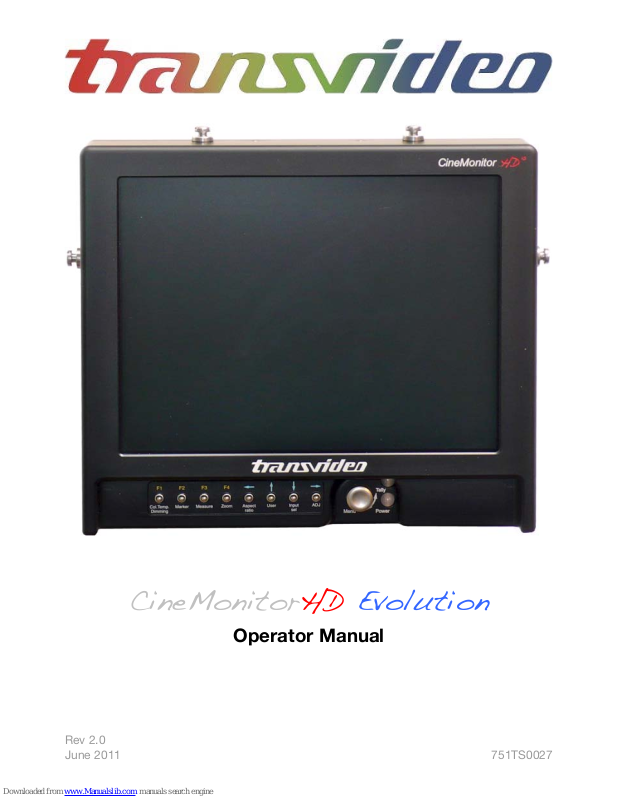

Transvideo CineMonitorHD6 SBL Evolution, CineMonitorHD8 Evolution, CineMonitorHD8 SBL Evolution, CineMonitorHD10 SB Evolution, CineMonitorHD12 SB Evolution Operator's Manual

Rev 2.0
June 2011 751TS0027

CineMonitorHD Evolution

Operator Manual

Page 2 CineMonitorHD Evolution

ABOUT

This Operator Manual describes the use of the Transvideo CineMonitorHD Evolution
family.

The first CineMonitor has been introduced to the Film Industry during year 1995.
The CineMonitorHD Evolution is our latest contribution to the Digital Cinematography
world, including advanced decision tools for the HD world.

The CineMonitorHD Evolution family includes the following products:

CineMonitorHD6 SBL Evolution 6” HD Monitor SuperBright
CineMonitorHD8 Evolution 8” HD Monitor
CineMonitorHD8 SBL Evolution 8” HD Monitor SuperBright
CineMonitorHD10 SB Evolution 10” HD Monitor SuperBright
CineMonitorHD12 SB Evolution 12” HD Monitor SuperBright
CineMonitorHD15 SBL Evolution 15” HD Monitor SuperBright
CineMonitorHD15 Studio Evolution 15” HD Monitor Studio version

If the physical, electrical and optical characteristics of the products are different, the user
interface is the same.

Several configurations are optionally available for this family of products.
There is the choice at the order between several input boards, which gives different
functionalities described in this document. Some options can be not implemented in your
CineMonitorHD Evolution.

This manual describes CineMonitorHD Evolution with Software 6.xx or later and
Firmware 10.xx or later.

Depending of the hardware, it is possible to upgrade the CineMonitorHD Evolution. For
that, contact your local Transvideo representative.

The products described in this manual are professional equipments. They are not
designed for consumer use. Utilization of these products implies knowledge of basics in
video signal management, HDTV and film making concept.

Operator Manual Rev 2.0 Page 3

WARNING & CAUTION

WARNING:
There is very high voltage inside of the component. Risk of injury or death.

WARNING:
This product must be used in a correct grounded electrical environment; ground defects
can create severe problems to the equipment, the picture quality and even cause danger
for the user.

WARNING:
Copyright law and international treaties protect this product, its design and its
software. One or several international patents apply to the CineMonitorHD Evolution.
Unauthorized reproduction or distribution of this product or its design or its
software or any portion of them, may result in severe civil and criminal penalties,
and will be prosecuted to the maximum extent possible under the law.

CAUTION:
Warranty is void is the product is opened. The unit contains electrostatic sensitive
devices, which can be damaged or destroyed if you touch them. Very high voltage is
present in the product and there is some risk of electric shock if opened by a non­accredited technician. Standard ESD procedures must be strictly followed during
disassembly/re-assembly of the unit.
The user and/or technician assume full responsibility or any risk of bodily injury, death or
property damage arising out of the use or disassembly or repair of this equipment. In no
event shall Transvideo S.A. or its local representatives be liable to a user, technician or
third party for any loss of income or any damage of any kind resulting from the use of or
work on the said equipment.

Page 4 CineMonitorHD Evolution

TABLE OF CONTENT

ABOUT ......................................................................................................................................... 2

WARNING & CAUTION .................................................................................................................. 3

TABLE OF CONTENT ..................................................................................................................... 4

INTRODUCTION ............................................................................................................................. 7

Condensed Operating Instructions.................................................................................. 7

Unpacking and Inspection ................................................................................................. 7

Safety Inspection ................................................................................................................ 7

Product Overview................................................................................................................ 8

Installation.......................................................................................................................... 10

Power Requirements........................................................................................................ 11

OPERATION ................................................................................................................................ 13

Sart-Up & Power ............................................................................................................... 13

Using the direct functions ............................................................................................... 13

Using the sub functions F1…F4...................................................................................... 13

Using the rotating knob ................................................................................................... 14

DIRECT FUNCTIONS.................................................................................................................... 15

Colorimetry Temperature Dimming ............................................................................... 15

Markers ............................................................................................................................... 15

Measure (Waveform, Histogram, Vectorscope) ........................................................... 16

Waveform......................................................................................................................................... 16

Histogram......................................................................................................................................... 18

Vectorscope ..................................................................................................................................... 18

Zoom ................................................................................................................................... 19

Aspect Ratio....................................................................................................................... 19

User ..................................................................................................................................... 20

Input Selection (Input Sel) ............................................................................................... 21

Adjust (ADJ) ....................................................................................................................... 21

MENU FUNCTIONS...................................................................................................................... 23

HELP.................................................................................................................................... 23

MONITOR INFO............................................................................................................................... 23

UPDATE ........................................................................................................................................... 23

ADVANCED UPDATE ...................................................................................................................... 23

TABLE OF CONTENT

Operator Manual Rev 2.0 Page 5

DISPLAY MODE ................................................................................................................. 23

COLOR............................................................................................................................................. 23

GREEN * ........................................................................................................................................... 23

B/W................................................................................................................................................... 24

BLUE CHECK..................................................................................................................... 24

COLORIMETRY.................................................................................................................. 24

MANUAL .......................................................................................................................................... 24

D56 CALIBRATED ........................................................................................................................... 24

D65 CALIBRATED ........................................................................................................................... 24

CURVES .............................................................................................................................. 24

LOG C .............................................................................................................................................. 24

LOG F ............................................................................................................................................... 25

PANALOG ........................................................................................................................................ 25

GAMMA ADJUST............................................................................................................................. 25

STANDARD 0.45.............................................................................................................................. 25

LOCK ................................................................................................................................... 25

TOOLS................................................................................................................................. 26

AUDIO .............................................................................................................................................. 26

TIMECODE....................................................................................................................................... 26

I/ LENS ............................................................................................................................................. 26

FOCUS HELPER .............................................................................................................................. 27

FRAMELINE .....................................................................................................................................28

HORIZON ......................................................................................................................................... 28

LIMITS .............................................................................................................................................. 29

MEASUREMENTS ........................................................................................................................... 31

TALLY............................................................................................................................................... 32

PICTURE FX ....................................................................................................................... 32

RANGE: STANDARD / EXTENDED ................................................................................. 33

SCAN ................................................................................................................................... 33

TECHNICAL........................................................................................................................ 34

CVBS STD SELECT *....................................................................................................................... 34

NTSC *.............................................................................................................................................. 34

ACCESSORY * ................................................................................................................................. 34

HDMI MODE: CANON/NORMAL **................................................................................................. 34

GPI.................................................................................................................................................... 34

VOLTAGE ALARM ........................................................................................................................... 35

REVERSE SCROLLING ................................................................................................................... 35

EXIT TEMPO .................................................................................................................................... 35

LED DIMMER ...................................................................................................................................35

MEMORY ............................................................................................................................ 35

MEM 1 … MEM 4 ............................................................................................................................ 35

PRESET............................................................................................................................................ 36

SERVICE & MAINTENANCE.......................................................................................................... 37

General................................................................................................................................ 37

Useful tips .......................................................................................................................... 37

Cleaning ........................................................................................................................................... 37

Full reset........................................................................................................................................... 37

Hardware, Software and Firmware ................................................................................ 38

TABLE OF CONTENT

Page 6 CineMonitorHD Evolution

Updating your CineMonitorHD Evolution...................................................................... 38

Calibration .......................................................................................................................... 39

Product Return.................................................................................................................. 39

SPECIFICATIONS ......................................................................................................................... 41

Common Characteristics ................................................................................................. 41

Connections ....................................................................................................................... 42

List of Standards per Input.............................................................................................. 43

Specific Characteristics ................................................................................................... 43

TRANSVIDEO EQUIPMENT LIMITED WARRANTY............................................................................ 45

Operator Manual Rev 2.0 Page 7

INTRODUCTION

Condensed Operating Instructions

① Connect an appropriate power supply to the XLR4 connector or a battery if any socket

available.

② Connect a video source to the input

③ Switch on the monitor with the back switch

④ Select the correct input with "Input Sel" key

For more information, refer to chapter "OPERATION".

Unpacking and Inspection

The CineMonitorHD Evolution is delivered in a rugged waterproof case. Use this case for
storage and transportation.

Control the content of the package accordingly to the packing list.

Visit our website http://www.transvideo.eu. Login
or Create a new account to register your product
by using "My Products" menu.

Or fill up the warranty card and send
it by mail or by fax to your distributor
or to the factory.

Safety Inspection

Before using the monitor be sure that the product is not damaged, that the protective
glass is not broken and that the connector do not have missing pins, foreign objects
inside the housing.

The cables must be in good condition and adapted to the environment where you are
working. A bad quality or wrong-wired cable may damage this equipment or other
equipment attached to it and/or create interferences. Transvideo offers high quality cables
for cameras, power supplies and other equipment. Contact Transvideo S.A. or its local
representative in case of need.

This product must be used in a properly grounded electrical environment. Ground defects
can create severe problems to the equipment and/or picture quality and may even cause
danger for the user.

INTRODUCTION

Page 8 CineMonitorHD Evolution

The video cable must be adapted for carrying HD SDI signals. Proper 75 Ω connectors
must be used. Always check the connector before plugging a cable to your monitor.

The CineMonitorHD Evolution needs to be in a ventilated area for a proper cooling.
Prolonged use in confined environment without ventilation can damage the monitor.

IMPORTANT:

Do not use damaged cables with this equipment.
Damaged connectors may seriously damage this equipment.
Never seal the monitor in a plastic bag.
Never use the monitor in full sun with a Raincover.

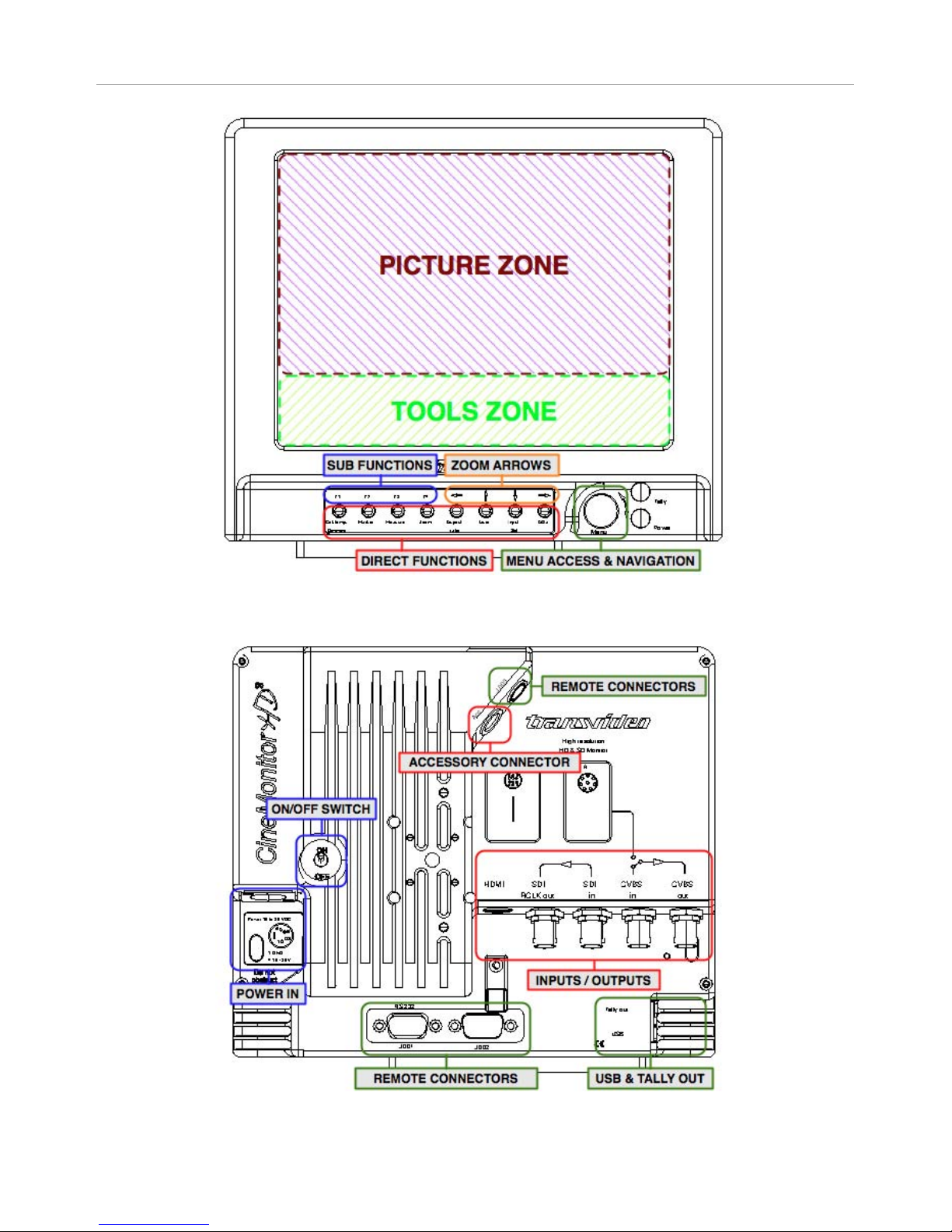

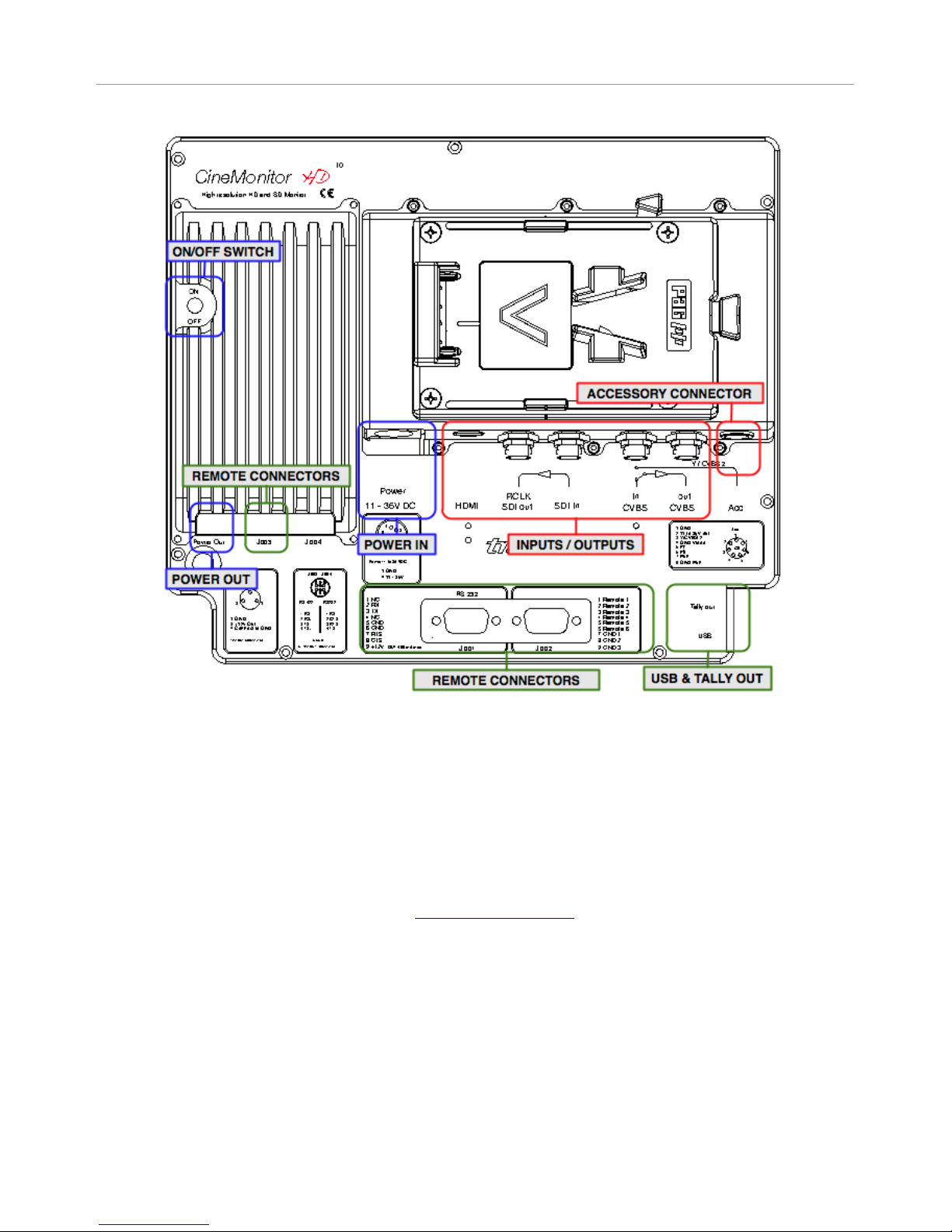

Product Overview

All connectors are on the back of the monitor. Depending on the size of the monitor, the
connectors and their location may differ.

The CineMonitorHD Evolution family offers a user interface common to all sizes. Some
functions are directly accessible from the "direct functions" keypad, others from the menu
with use of the rotating knob.

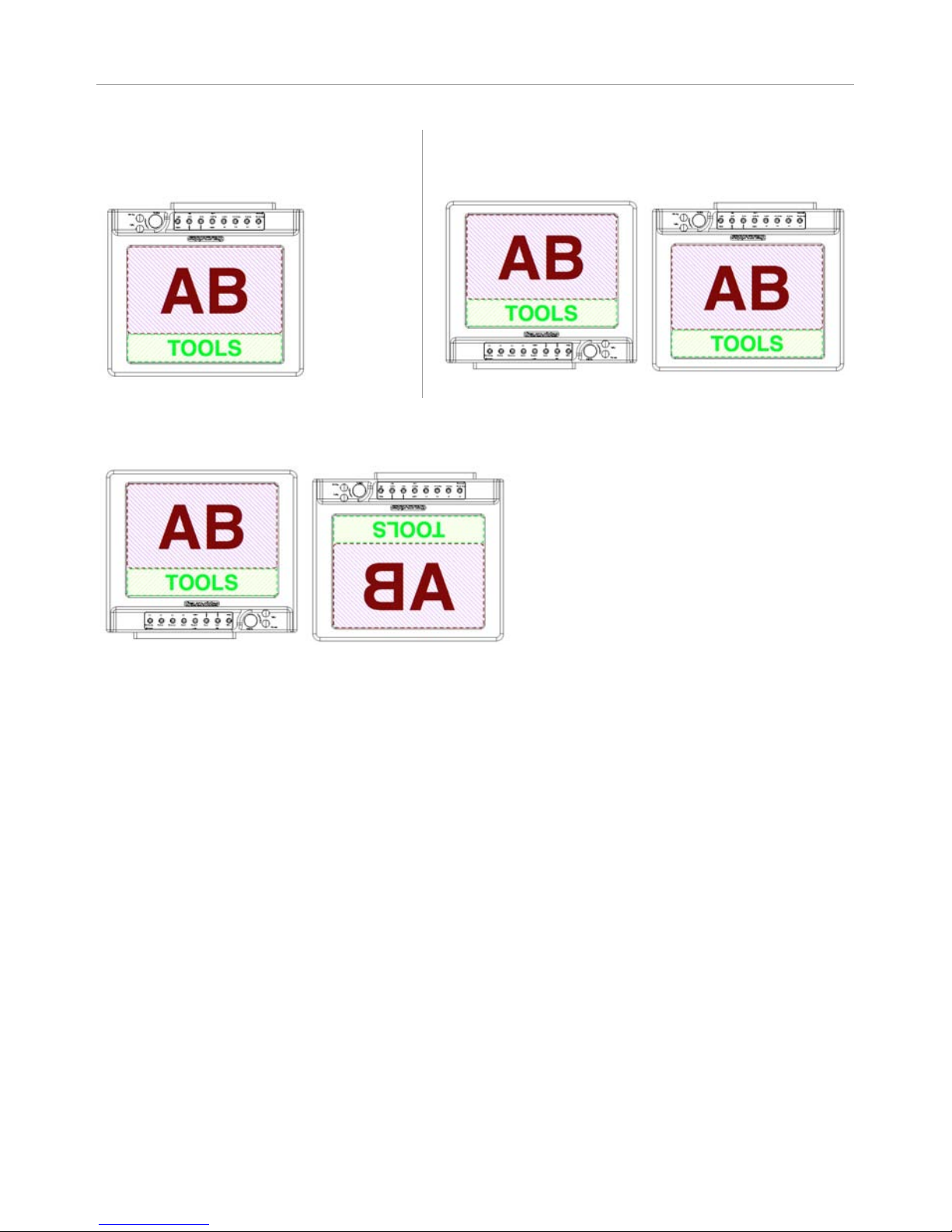

The CineMonitorHD screen is partitioned in two areas:

① The picture zone displays the picture from the camera in 16/9 format
② The tools zone displays tools and measurements in the remaining area of the screen.

The CineMonitorHD Evolution family offers a video connector panel common to all sizes.
10" to 15" monitors also provide a power out connector and a battery plate (more details
in chapter "SPECIFICATIONS").

Figure 1 to 3 show the front and back of a 8" HD monitor and the back of a 10" HD
monitor.

INTRODUCTION

Operator Manual Rev 2.0 Page 9

Figure 1: CineMonitorHD8 Evolution front

Figure 2: CineMonitorHD8 Evolution back

INTRODUCTION

Page 10 CineMonitorHD Evolution

Figure 3: CineMonitorHD10 Evolution back

Installation

The CineMonitorHD Evolution must be securely mounted on the camera or on its location
of use. Transvideo manufactures high quality brackets and accessories for the comfort of
use and security for the equipment and user. Please contact Transvideo S.A. or its local
representative in case of need or visit www.transvideo.eu.

Do not use the monitor with loose fixation or damaged brackets for your own safety and
that of others working with you.

Several mounting points are present on this equipment for a secured professional use.

① A slide with a ¼-20” nut is delivered as standard equipment with the product. This

slide is mounted on the bottom of the monitor.

INTRODUCTION

Operator Manual Rev 2.0 Page 11

② One or several optional slides can be attached to the sides, back or top of the monitor.

2 x M4 screws attach the slides. Several Transvideo’s accessories can be mounting on
it; this mounting system is generic for Transvideo since 1990.

③ One square of 20mm accepts 4xM3 screws.

Power Requirements

Only DC Voltage powers this product.
AC voltage can be used with an appropriate AC/DC converter

Recommended AC power adaptors:

CineMonitorHD6 SBL Evolution Transvideo AL30
CineMonitorHD8 Evolution Transvideo AL30
CineMonitorHD8 SBL Evolution Transvideo AL30
CineMonitorHD10 SB Evolution Transvideo AL63
CineMonitorHD12 SB Evolution Transvideo AL63
CineMonitorHD15 SBL Evolution Transvideo AL80
CineMonitorHD15 Studio Evolution Transvideo AL63

The input power voltage range is extremely wide from 10 to 36 V DC (except specified
differently). The power consumption slightly varies with the input voltage, the operating
temperature and the equipment configuration.
The internal power supply is protected against reverse polarity.
Over voltage may cause severe damages to the equipment and/or to other equipment
connected to it.

For safety of use the CineMonitorHD Evolution family feature a galvanic insulation of the
DC input. Do not connect the power ground to the chassis of the monitor or to the
metallic body of the power connector in order to keep the galvanic insulation. The
galvanic insulation is rated at 1000VDC. The chassis of the monitor is connected to the
video ground.

Operator Manual Rev 2.0 Page 13

OPERATION

Sart-Up & Power

The ON/OFF Switch is on the back of the monitor.
The product needs a certain time to reach its nominal brightness.
This time can vary with the temperature.

When using the optional Battery Holder, the switch of the battery holder overpasses the
switch of the monitor.

In OFF position, the power consumption is null.

WARNING RISK OF FIRE:

It is always recommended to remove the power source from the monitor when you do
not use it and/or when you travel. Especially if you place the monitor in a closed
environment (bag, box, …).

Using the direct functions

Several direct functions are available from the keypad (chapter "INTRODUCTION" section
"Product Overview")

One short press on a key gives access to the function.

One long press (more than 2 seconds) on a key gives access to the sub functions of the
related function (if any). Pressing F1…F4 enables to adjust those sub functions.

Using the sub functions F1…F4

Sub function keypad (F1…F4) is used to adjust optional functionalities of a direct function
(if any).

Depending of the function, options and environment, the content of F1…F4 may differ.
Pressing a key will activate or deactivate the sub function. An activated sub function is
highlighted by an orange text while an inactivated function prompts in white.
In some specific case, F4 may extend the selection to a second page of sub menu.

OPERATION

Page 14 CineMonitorHD Evolution

Using the rotating knob

The menu knob is a rotating encoder with a push function. It is used to access and
navigate in the menus, adjust some parameter values, validate and exit functions by
turning or pushing it.

Pushing the knob gives access to the menu structure while rotating the knob enables to
navigate between the menu items.

Pushing the knob gives access to the sub menu of the highlighted menu item.

Selecting EXIT exits from the current menu level to the previous (if any). A long push on
the knob exits from the menu. Exiting the menu is also possible by automatic
temporization, adjustable in MENU / TECHNICAL.

Operator Manual Rev 2.0 Page 15

DIRECT FUNCTIONS

Colorimetry Temperature Dimming

Switches between 3 color calibration modes:

FULL BRIGHT: Maximum brightness and power consumption, the color calibration is

deactivated.

STANDARD CALIBRATED: Standard mode, the brightness (100Nits) and white point are

calibrated according to the settings of MENU / COLORIMETRY.

USER SET: Turning the rotating knob adjusts the brightness from 10 to 100% while color

calibration is preserved. Allows having a reduced power mode between two takes.

Sub functions gives access to the settings of the Standard Calibration mode:

F1: D56
F2: D65

F3: MANUAL (Adjustable in MENU / COLORIMETRY)
It is necessary to wait a few seconds after pressing the key before loading of the correct
lookup table.

Markers

Displays the marker(s) selected in sub functions with F1…F4.
Not active when ZOOM or FORMAT 2.40:1 are selected.
This menu is contextual; some functions can be unavailable depending of the input
format.

First page

F1: 4:3
F2: 14:9
F3: 16:9
F4: > Go to next page

Second page

F1: SAFE AREA
F2: n/a.
F3: n/a.
F4: < Go to previous page

When SAFE AREA is selected in the sub menu, one short press on the Marker key
displays "TURN TO ADJUST SAFE AREA: XX%". Rotating the knob makes it possible to
adjust the safe area on the picture from 10 to 99%. SAFE AREA is selected by default at
start-up or after a reset and with a value of 90%.

DIRECT FUNCTIONS

Page 16 CineMonitorHD Evolution

Measure (Waveform, Histogram, Vectorscope)

Displays the measurement tools selected in the sub functions F1…F3:

F1: WAVEFORM F2: HISTOGRAM F3: VECTORscope

The brightness of the reticule and of the spot as well as the background transparency in
overlay mode (for waveform and vectoscope) can be adjusted in MENU / TOOLS /
MEASUREMENT.

White and black clipping alert can be configured in MENU / TOOLS / LIMITS. The same
limits are used for the waveform and the histogram. Setting these limits is useful to have a
visual alert on the waveform and histogram representation of the video signal if there is a
risk of overexposure or of loss of black details.

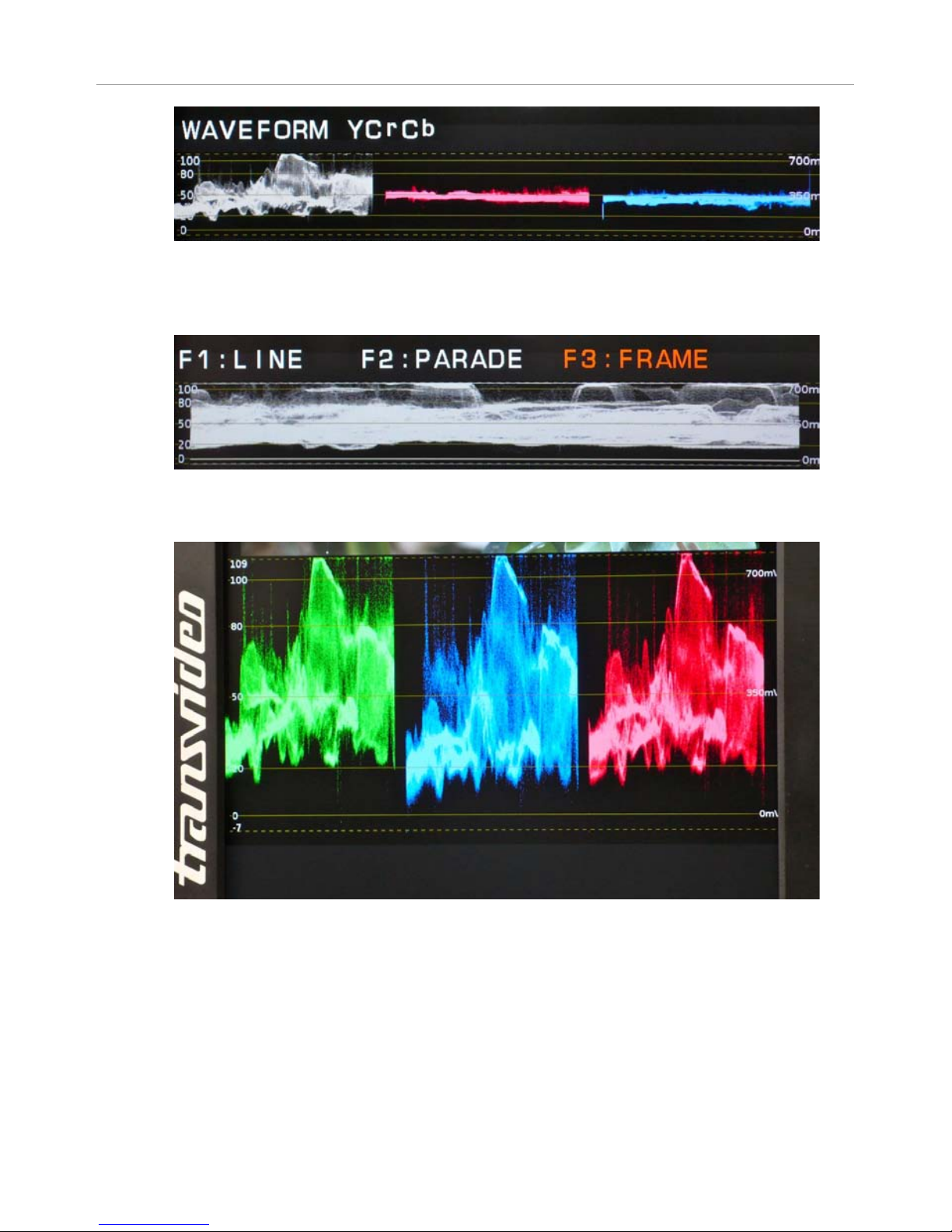

Waveform

Selecting "F1: WAVEFORM" gives access to another sub menu.

Pressing F1…F3 selects waveform mode (line, parade or frame). One short press on the
knob exits from measurement menu. Then pressing the Measure key switches between
the different views of the selected waveform mode (if any).

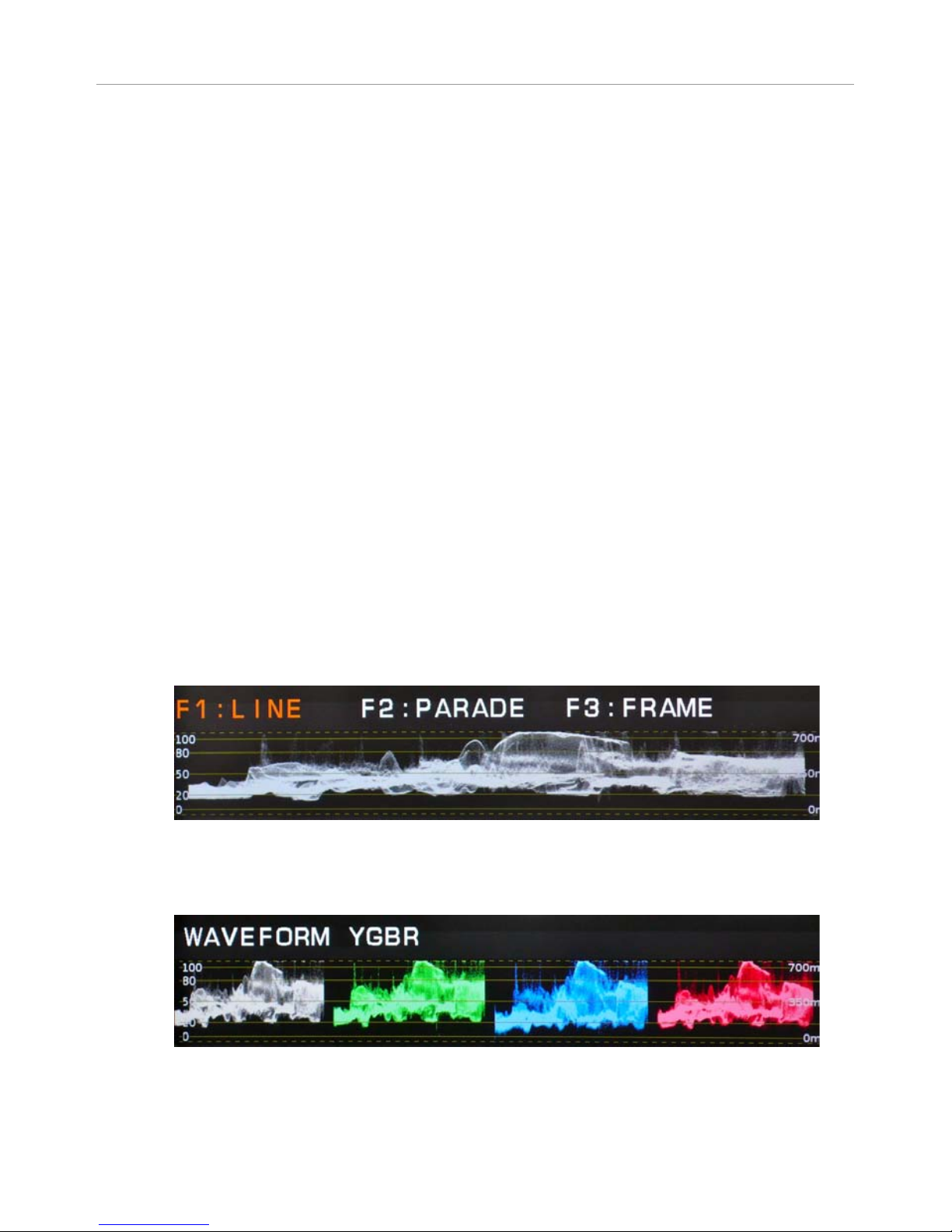

F1: LINE

Displays one single spot (Y, Red, Green or Blue)

F2: PARADE

Displays Y, R, G, B, Cr & Cb in parade mode.
Available modes: YRGB / YGBR / RGB / GBR / YCrCb

DIRECT FUNCTIONS

Operator Manual Rev 2.0 Page 17

F3: FRAME

Displays Y, R, G, B in frame mode (or sweep mode).
The content of one frame/picture is displayed.

Pressing the Measure key gives the possibility to adjust the size of the waveform by using
the rotating knob (3 sizes available).

DIRECT FUNCTIONS

Page 18 CineMonitorHD Evolution

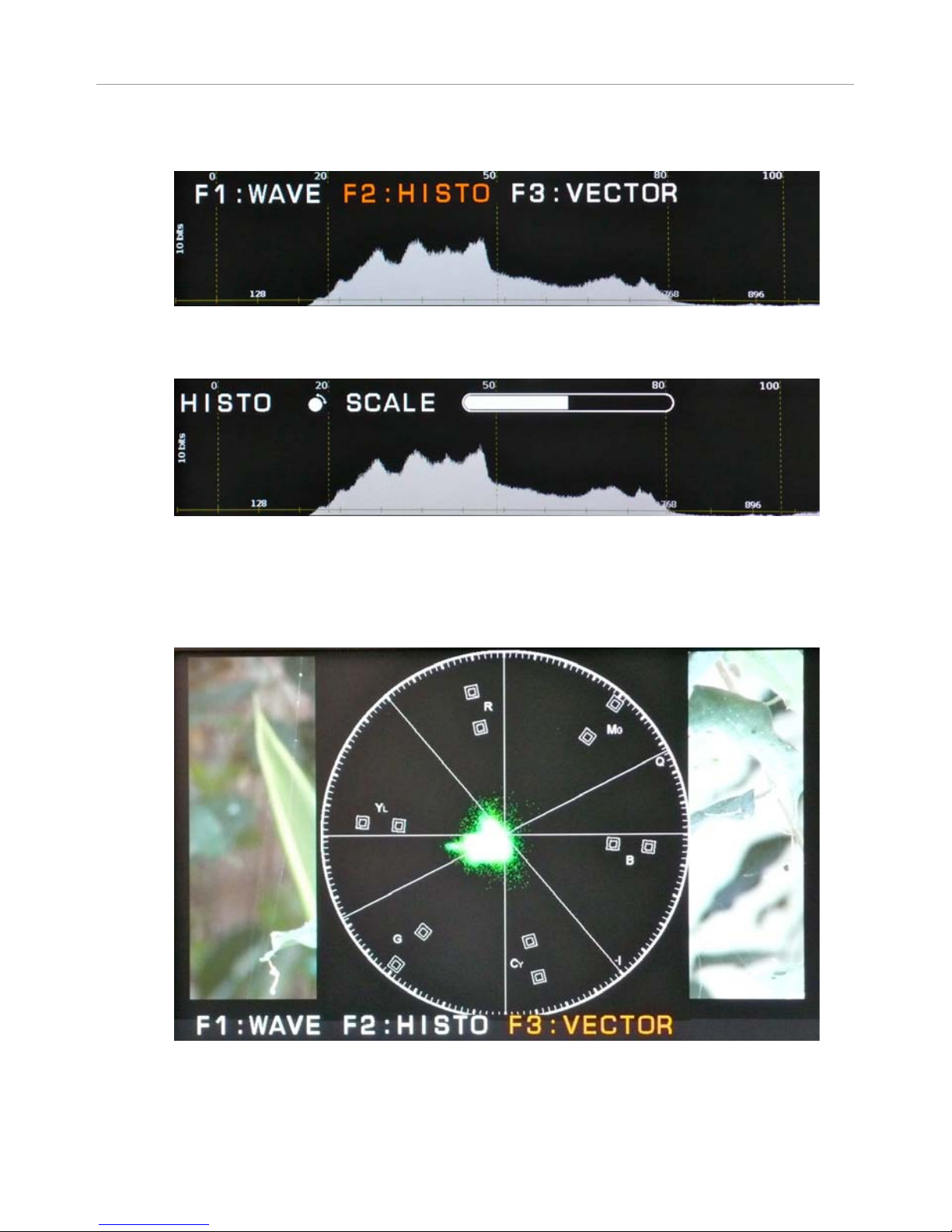

Histogram

Selecting "F2: HISTOGRAM" displays directly the representation.

One short press on the knob exits measurement menu. Then press Measure key gives the
possibility to adjust the scale of the histogram by using the rotating knob.

Vectorscope

Selecting "F3: VECTOR" displays directly the representation in overlay mode.

DIRECT FUNCTIONS

Operator Manual Rev 2.0 Page 19

Zoom

Displays the HD picture in full resolution mode (pixel to pixel).
Depending of the input format, the magnification ratio can be different.

Displays the SD picture in full screen.
In this case there is an important magnification ratio applied to the original picture. The
resultant picture includes created pixels and lines and cannot be considered as a proof. In
this mode the waveform will be superimposed to the picture.

Arrows move the picture on Top/Bottom, Left/Right positions. Moving increments are
proportional to 1/8 of the video standard. Fine adjustment can be made by rotating the
rotating knob.

A long push on the Zoom key centers the picture, the next push sends back to the full
picture display.

During the zoom mode a pictogram is displayed in the right side of the tool zone.
This pictogram indicates the relative position of the magnified zone in the original picture.

Aspect Ratio

Allows the change of aspect ratio between:

1.33:1 4/3 SD only

1.78:1 16/9 HD & SD

2.40:1 HD & SD

3.20:1 HD & SD (2.40 anamorphic lens on a 1.78 sensor)

No sub functions in Aspect Ratio

DIRECT FUNCTIONS

Page 20 CineMonitorHD Evolution

User

User configurable input. This key gives access to the function pre-selected in the
following sub menus:

First page:

F1: STATUS

Displays the status of the monitor and the input voltage from the power supply or
the battery.

F2: FOCUS *

Activates the Focus Helper function as programmed in MENU / TOOLS / FOCUS
HELPER.

F3: EXPO *

Gives access to the OverExposure Control as configured in MENU / TOOLS /
LIMITS

F4: ->

Jump to next page.

Second page:

F1: MEM

Gives access to the memory menu.

F2: HORIZON **

F3: ZONE

Adjusts the acquisition zone for the waveform and vectorscope.
Active when "1 LINE" or "12 LINE" are selected in MENU / TOOLS /
MEASUREMENT

F4: <-

Jump to previous page.

∗

FOCUS and EXPO can be selected simultaneously. If both are activated, pressing User

key set up:

a) FOCUS + EXPO

b) FOCUS

c) EXPO

d) Nothing

∗∗

The horizon is optional. In case it is not implemented, this menu will not appear.

DIRECT FUNCTIONS

Operator Manual Rev 2.0 Page 21

Input Selection (Input Sel)

Switches between video inputs.
At selection, the video standard is displayed. When no signal is detected, displays "NO
SYNC".

Sub menu allows the selection of the active inputs.
Pressing F1…F4 activates or not the selected input. An active input is highlighted in
orange, an inactive in white. An inactivated input cannot be selected by the Input Sel key.

F1: SDI (HD or SD)

F2: CVBS

F3: ACC (YPrPb or RGB or CVBS)

F4: HDMI

Inactivating the accessory input reduces the power consumption of the CineMonitorHD of
about 4 Watts.

The format of the ACC input can be configured in MENU / TECHNICAL when ACC input is
selected. It is possible to select between component YPrPb, component RGB or CVBS.

Adjust (ADJ)

Adjusts Hue (NTSC only), Brightness, Contrast and Saturation.

Select the parameter by pressing the key and adjust the value by rotating the knob.
Validate by pushing the knob.

IMPORTANT:

The settings are different for each input. All settings are stored in setup memories.

There is one memory per input. That means you can setup the ACC input differently of

the SDI input. It is useful with some specific cameras offering a viewfinder menu and a

HD SDI output.

Operator Manual Rev 2.0 Page 23

MENU FUNCTIONS

HELP

Gives access to maintenance menu.

MONITOR INFO

Gives software (SW) and firmware (FW) versions of all electronic boards of the monitor.

Main Board soft1: main board main SW version

Main Board soft2: main board secondary SW version

Main Board firm1: main board FW version

HDMI soft: input board SW version

HDMI firm: input board FW version

UPDATE

Allows the SW and FW updates of all electronic boards of the monitor.

To update a CineMonitorHD Evolution, refer to chapter "SERVICE & MAINTENANCE", section
"Updating your CineMonitorHD Evolution".

ADVANCED UPDATE

Gives access to advanced functions for monitor updates.
For experts only.

DISPLAY MODE

Gives access to 3 display modes: COLOR, GREEN and B/W

COLOR

Standard mode, displays the picture with 16 million colors, 256 gray levels.

GREEN *

Display the picture in green color only.
TINT and SATURATION are not working in this mode.

∗

This mode has been invented by Transvideo in 1990 and is used since this time in Film

& Night Vision systems.

MENU FUNCTIONS

Page 24 CineMonitorHD Evolution

B/W

Displays the picture with 256 gray levels.
TINT and SATURATION are not working in this mode.

BLUE CHECK

Sets the monitor in BLUE ONLY mode.
This mode is used to calibrate the monitor with an incident color bar.

COLORIMETRY

MANUAL

Allows the manual adjustment of RGB gain (from 0 to 2, nominal 1.00) and offset of the
black (-127mV to + 126mV, nominal 0 mV).
The nominal value in manual mode corresponds to the D65 setup.

IMPORTANT:

In MANUAL there is a risk of displaying wrong colors; this option must be used

carefully.

D56 CALIBRATED

Sets the monitor for a white point DAYLIGHT 5600
CIE 1931 Coordinates: x: 0.3310

y: 0.3460

D65 CALIBRATED

Sets the monitor for a white point DAYLIGHT 6500
CIE 1931 Coordinates: x: 0.3127

y: 0.3290

CURVES

LOG C

Adjusts the response of the monitor to a LOG C signal.
The standard EI (Exposure Index) is set to 200. It is possible to adjust the EI to 100, 125,
160, 200, 250, 320, 400, 500, 640, 800.

MENU FUNCTIONS

Operator Manual Rev 2.0 Page 25

LOG F

Adjusts the response of the monitor to a LOG F signal.
The standard EI (Exposure Index) is set to 200. It is possible to adjust the EI to 100, 125,
160, 200, 250, 320, 400, 500, 640, 800.

PANALOG

Adjusts the response of the monitor to a PANALOG signal.

GAMMA ADJUST

Adjusts the grey point of the monitor according to the formula

Vc = Vs

1

"

#

$

%

&

'

(

Where Vc represents the displayed signal and Vs is the incident signal.
The correction is applied with a simulated response of CRT.
Allows continuous adjustment 0.3 < γ < 2.5
The indicated value is for the corrected signal (Vc) and does not indicate the monitor’s
gamma.

IMPORTANT:

When LOG C, LOG F or PANALOG are selected, the Gamma Correction (GAMMA

ADJUST) is automatically set to LINEAR. The limits must be adjusted to the camera

range (MENU / TOOLS / LIMITS)

STANDARD 0.45

Set the monitor to reproduce a signal corrected by a γ of 0.45

LOCK

The lock function prevents errors after configuration and calibration of the monitor.
When the function is activated, “LOCK” is displayed on the screen at each attempt to
enter in the menu or to access a direct function.

Pressing the rotating knob for more than 5 seconds gives the user access to the menu
where she/he will be able to deselect LOCK.

IMPORTANT:

Input Sel key is never locked.

MENU FUNCTIONS

Page 26 CineMonitorHD Evolution

TOOLS

The tools make the richness of the CineMonitorHD Evolution.

AUDIO

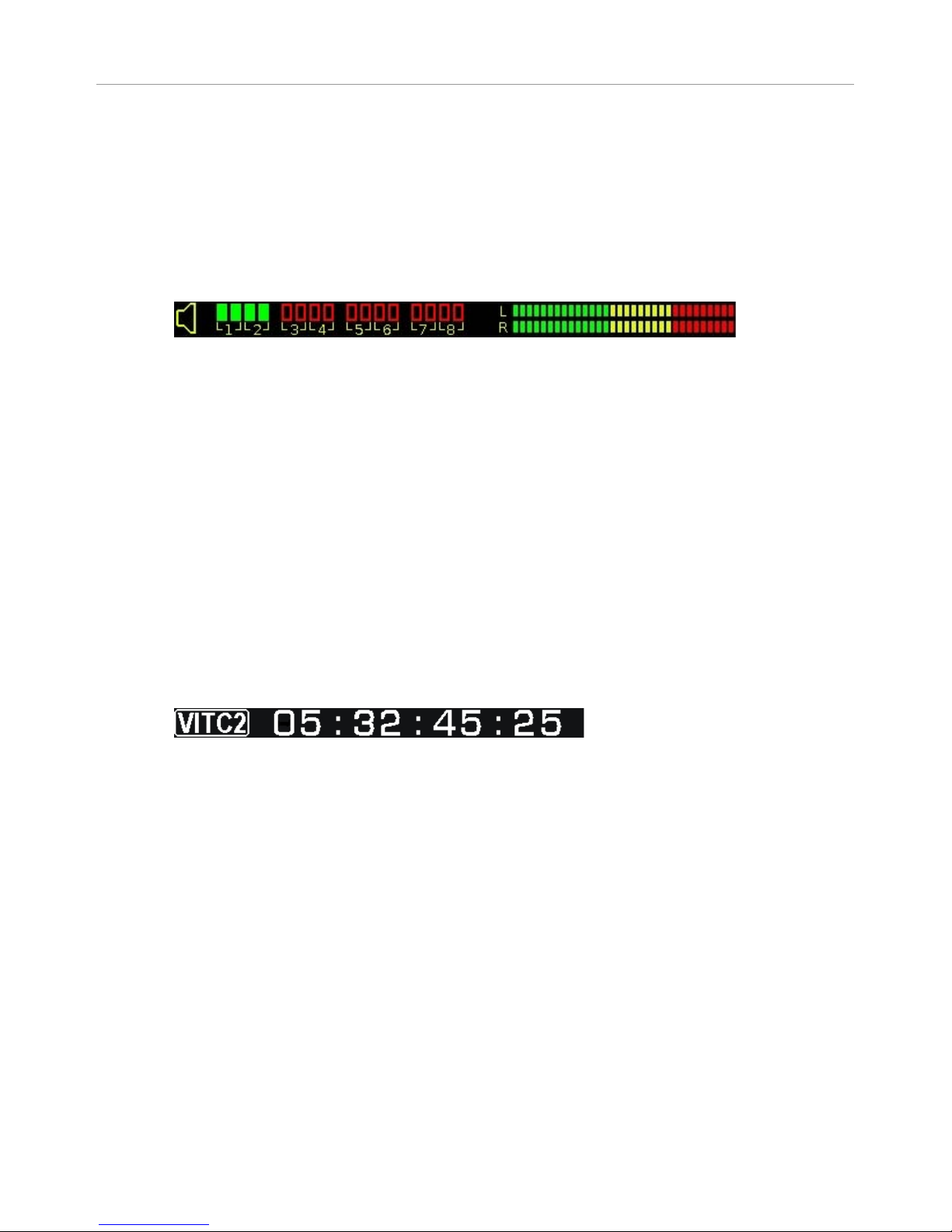

Displays the SDI embedded audio presence and a bargraph showing one audio pair on
the 8 possible pairs.

AUDIO: ON/OFF

Activates or deactivates the function

CHANNEL PAIR: X

Selection of the pair displayed on the bargraph with the rotating knob.

POSITION

Allows the user to place the tool in different position of the screen by using arrows and the
rotating knob when USER is selected in POSITION sub menu. DEFAULT replaces the tool
at the factory preset.

TIMECODE

Displays the embedded VITC 1 or 2 or LTC Timecode.

TIMECODE: ON/OFF

Activates or deactivates the function

ATC: AUTO, LTC, VITC1, VITC2

Selection of the displayed ATC. When AUTO is selected the first time code present is
displayed (1: LTC, 2: VITC1, 3: VITC2)

POSITION

Allows the user to place the tool in different position of the screen by using arrows and the
rotating knob when USER is selected in POSITION sub menu. DEFAULT replaces the tool
at the factory preset.

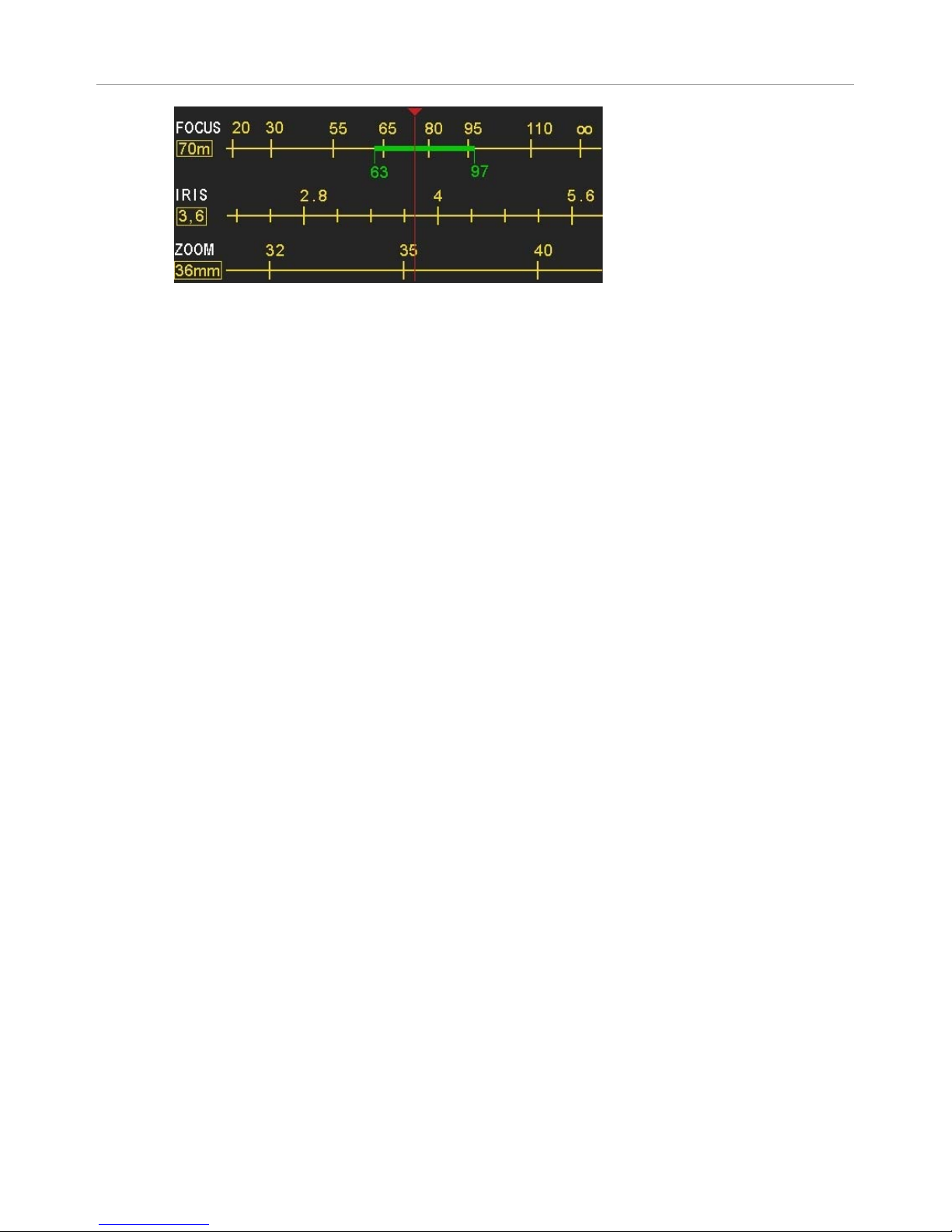

I/ LENS

Displays the datas of a I/lense.
Accepted lenses: COOKE S4/I, COOKE 5/I

MENU FUNCTIONS

Operator Manual Rev 2.0 Page 27

MODULE: ON/OFF

Activates or deactivates the function

ZONE: OP+ASSIT / ASSIST / OFF *

The COOKE 5/I is able to light the focus and iris scales on the operator and/or the
assistant side.
Selection of the lighted zones OPERATOR + ASSISTANT or ASSISTANT ONLY

BRIGHTNESS *

Adjusts the brightness of the LEDs on a COOKE 5/I lens

UNIT

Selection of METRIC or IMPERIAL

FILM

Selection of 16mm or 35mm

∗

Available only if a Cooke 5/I is connected to the monitor

FOCUS HELPER

Activates a precise focus helper displaying in-focus zones with colored dots. The focus
helper is based on a complex multidimensional digital filter.

The focus helper can be remoted by the User key. The settings must have been previously
configured (Press long time User key, then set the function with F1…F4).

COLOR

Selection of the in-focus zone color.
Red, Green, Blue, Yellow, Magenta, Cyan, Black or White.

LEVEL

Adjustment of the selectivity of the filter.
OFF, 1 to 9 (9 gives the highest effect)

MENU FUNCTIONS

Page 28 CineMonitorHD Evolution

FRAMELINE

Enables to displays one locating cross and up to 3 programmable frames with or without
center marker and a matting generator.

CROSS

CROSS ON/OFF Activation of the cross

COLOR Selection of the color of the lines

WIDTH Selection of the width of the lines
V POS Vertical position of the cross
H POS Horizontal position of the cross

FRAME 1…3

FRAME 1…3 ON/OFF Activation of the frame
CENTER ON/OFF Activation of the center cross

COLOR Modification of the color of the frame

DOT Modification of the structure of the frame

SEND TO CENTER Sends the frame to the center of the screen.

V SIZE Size of the frame (bottom part is moving)

H SIZE Size of the frame (right part is moving)

V POS Vertical position of the frame

H POS Horizontal position of the frame

V ZOOM Vertical homothetic modification of the frame

H ZOOM Horizontal homothetic modification of the frame

SEND ALL TO CENTER

Sends all frames to the center of the screen.

BCKGND COLOR (Matting Generator)

Selects the background color outside of the frames.

HORIZON

This option enables to display a virtual horizon on the screen.

IMPORTANT:

HORIZON is an optional function. It must be ordered with the product or can be
implemented by return to Transvideo headquarters. Contact Transvideo S.A. or its
local representative in case of need.

SENSOR

Toggles between INTERNAL and BETZ virtual horizons.
INTERNAL Uses embedded virtual horizon
BETZ * Uses external electronic bubble designed by BETZ Tools

MENU FUNCTIONS

Operator Manual Rev 2.0 Page 29

NORMAL / REVERSE

Toggles the action of the horizon, normal or reversed.

SENSITIVITY

Adjusts the sensitivity of the virtual horizon (True, X2, X4, X8, X16).

STYLE

Displays the Horizon on the monitor and selects the style of the virtual horizon (6 different
models).

0 CAL

Sets the horizon to 0.
A temporization of 5 seconds allows the user to stabilize the position of the system.
Pushing the rotating knob during calibration exits from the timing.

POSITION

Allows the user to place the tool in different position of the screen by using arrows and the
rotating knob when USER is selected in POSITION sub menu. DEFAULT replaces the tool
at the factory preset.

∗

In BETZ position the user must connect an external electronic bubble designed by Betz

Tools. A specific cable is needed to power and remote the bubble through J001
connector. Transvideo do not support this third party equipment.
http://www.betz-tools.com/monitor_electronic-bubble.php

LIMITS

The limits menu is a very important item of the CineMonitorHD Evolution family.
It is used to setup the characteristics of the camera you are using and some safety levels
which will be used in different tools.

MAX LEVEL

Sets the maximum level (White).
Adjustment goes from 100 IRE to 109 IRE
All information over the limit will be displayed in red on the waveform and the
overexposed zone on the picture (if the Overexposure control is activated).
Default value: 109 IRE

WHITE CLIPPING

Sets the top clipping level (White).
Adjustment goes from 70 IRE to 109 IRE
The upper value is limited by the MAX LEVEL setting.
All information over the limit will be displayed in orange on the waveform and the
overexposed zone on the picture (if the Overexposure control is activated).
Default value: 100 IRE

MENU FUNCTIONS

Page 30 CineMonitorHD Evolution

BLACK CLIPPING

Sets the low clipping level (Black).
Adjustment goes from -6.9 IRE to 36 IRE
The lower value is limited by the MIN LEVEL setting.
All information below the limit will be displayed blue on the waveform and dark blue on the
underexposed zone on the picture (if the Black Limits are activated).
Default value: 10 IRE

MIN LEVEL

Sets up the minimum level (Black).
Adjustment goes from -6.9 IRE to 36 IRE
All information below the limit will be displayed violet on the waveform and medium blue
on the underexposed zone on the picture (if the Black Limits are activated).
Default value: 0 IRE

SORIN’s MARKER *

Adjusts the central value of the marker in IRE.
Default value: 50 IRE

SORIN’s MARKER WIDTH *

Adjusts symmetrically the thickness of the marker within the limits of the white and black
clipping values.
All information within the Sorin's marker limits will be displayed in green on the waveform
and the overexposed zone on the picture (if the Sorin's Markers are activated).
Default value: 10 IRE

OVEREXPOSURE: ON/OFF

Activates or deactivates the overexposure control on the picture.
The MAX LEVEL and the WHITE CLIPPING are displayed in false colors when activated.

SORIN’S MARKER: ON/OFF

Activates or deactivates the Sorin’s Marker on the picture.
The Sorin’s area is displayed in false colors when activated.

BLACK LIMITS: ON/OFF

Activates or deactivates the black limits control on the picture.
The MIN LEVEL and the BLACK CLIPPING are displayed in false colors when activated.

∗

About the Sorin’s marker: Sorin Dragoi RSC is a famous Romanian Director of

Photography. He suggested this tool, which he is using mainly to check the exposure
on skin tone. The Sorin’s marker is used to see all light equivalent zones, i.e. to see the
0 stop zone of the picture.

MENU FUNCTIONS

Operator Manual Rev 2.0 Page 31

MEASUREMENTS

Allows different settings for the video measurement tools.
The settings apply to all video measurement tools except the histrogram, which
represents always the full picture.

SIGNAL UNIT

Selects the signal measurement unit.
IRE (default unit) or BINARY

SIGNAL ANALYSIS

Selects 8 bits if the SIGNAL is 8 bits.
Default value: 10 bits

OVEREXPOSURE: ON/OFF

Activates or deactivates the overexposure zoning on the measurement tools.

SORIN: ON/OFF

Activates or deactivates the Sorin’s Marker zoning on the measurement tools.

BLACK LIMITS: ON/OFF

Activates or deactivates the black limits zoning on the measurement tools.

1 LINE

Displays the measurement of one line selected with the rotating knob.

12 LINES

Displays the measurement of a group of 12 lines.
The first line is selected with the rotating knob.

ALL LINES

Displays the measurement of the whole picture.

BACKGROUNG INTENSITY

Adjusts the overlay transparency behind the measurement tools (when displayed in front
of the picture).

SPOT INTENSITY

Adjusts the brightness of the waveform spot.

RETICULE INTENSITY

Adjusts the brightness of the waveform reticule.

MENU FUNCTIONS

Page 32 CineMonitorHD Evolution

TALLY

The Tally is activated via the GPI connector J002 (pins 1 to 4, adjustable in MENU /
TECHNICAL / GPI) or through the ACCessory LEMO8 connector.

LEMO ACTIVE LOW/HIGH

Sets the state for TALLY ON through the Lemo8.

LED ON/OFF

Activates or deactivates the TALLY LED on the front panel.

TALLY BLINKING/FIX

Sets the active mode in TALLY ON

STYLE

Selects the style of the TALLY
Includes the TALLY FRAME which is active on FRAME3 of the frameline.

PICTURE FX

NORMAL

Restores the standard display

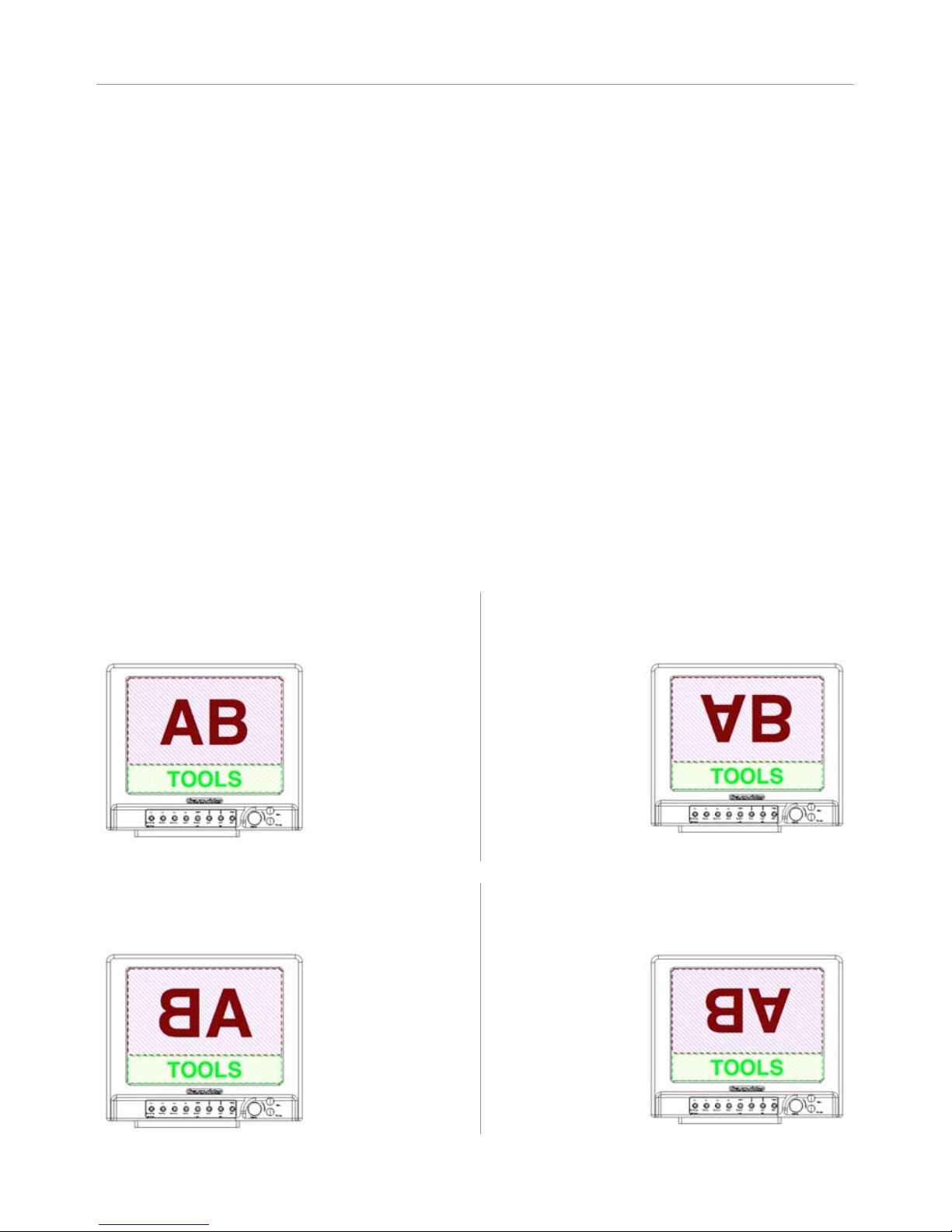

VERTICAL FLIP

Returns the picture vertically

HORIZONTAL FLIP

Returns the picture horizontally

PICTURE REVERSE

Returns the picture horizontally and

vertically (180° rotation of the picture)

MENU FUNCTIONS

Operator Manual Rev 2.0 Page 33

RANGE: STANDARD / EXTENDED

Selects the range depending of the camera.
STANDARD: from 0 to 109 IRE
EXTENDED: from -7 to 109 IRE

SCAN

FULL SCAN as default and only value.

MONITOR REVERSE

Returns the picture, tools and menus
horizontally and vertically

AUTO REVERSE

Makes a MONITOR REVERSE automatically if the

monitor is up side down

AUTO FLIP REVERSE

Returns the picture automatically (vertical axis only) if the monitor is up side down

MENU FUNCTIONS

Page 34 CineMonitorHD Evolution

TECHNICAL

CVBS STD SELECT *

Sets the video composite standard detection.
AUTO DETECT default value
PAL BGHID
NTSC 3.58

NTSC *

Sets NTSC standards:
NTSC Japan (black 0 IRE)
NTSC US (black 7.5 IRE)

ACCESSORY *

Sets the accessory input:

COMPONENT RGB (HD/SD RGB signal with composite synchronization on G)
COMPONENT YPrPb (HD/SD YPrPb signal with composite synchronization on Y)
CVBS (Composite)

HDMI MODE: CANON/NORMAL **

Improves the video standard switching when shooting with a Canon DSLR.

∗

Available when CVBS or ACC input are selected

∗∗

Available when HDMI input is selected

GPI

Assigns functions and trigger conditions to 4 GPIs.

FUNCTION #

Assigns a function to the pin # of the GPI connector (J002)
Available functions: TALLY RED, TALLY GREEN, ZOOM, HORIZON, SWITCH INPUT,
FOCUS HELPER, EXPOSURE

CONDITION #

Sets the trigger condition of the function #
Available conditions (depending on the function): NOT ACTIVE, FALLING EDGE, RISING
EDGE, LOW STATE, HIGH STATE

MENU FUNCTIONS

Operator Manual Rev 2.0 Page 35

VOLTAGE ALARM

VOLTAGE DISPLAY: ON/OFF

Displays constantly the input voltage from the power supply or the battery.

VOLTAGE ALARM LEVEL

Sets the threshold voltage from 10VDC to 36VDC.
Under this voltage an alert can be displayed on screen.

VOLATAGE ALARM DISPLAY

When activated the battery pictogram is displayed in red if the voltage of the power
supply goes under the threshold setting.

POSITION

Allows the user to place the tool in different position of the screen by using arrows and the
rotating knob when USER is selected in POSITION sub menu. DEFAULT replaces the tool
at the factory preset.

REVERSE SCROLLING

Reverses the scrolling direction in the menus.

EXIT TEMPO

Sets of the automatic exit temporization from SLOW to FAST

LED DIMMER

Dimming of the brightness of the “POWER” Led
It is possible to switch of completely the “POWER” Led.

MEMORY

MEM 1 … MEM 4

4 user memories per input are available to save user’s configurations.

SAVE

Saves the current user set-up in the memory.
All configuration except INPUT SEL is stored in the memory, including picture and tools
settings.

RECALL

Recalls the settings stored in the memory.
The standard settings a factory loaded in this memory, they will be replaced at the first
SAVE from the user.

MENU FUNCTIONS

Page 36 CineMonitorHD Evolution

PRESET

Sets the default values in the setting registers.
PRESET does not erase the user presets.

PRESET ALL INPUTS

Presets the active input and other inputs of the monitor.

PRESET SELECTED INPUT

Presets the active input only

Operator Manual Rev 2.0 Page 37

SERVICE & MAINTENANCE

General

Please read carefully the chapter "TRANSVIDEO EQUIPMENT LIMITED WARRANTY" about the
Transvideo S.A. warranty on the equipment described in this manual.

For repairs contact Transvideo S.A. or its local representative or use the RAN procedure in
the chapter "SERVICE & MAINTENANCE", section "Product Return".

Useful tips

Cleaning

The painting of the CineMonitorHD is resistant to general cleaners and solvents. Do not
use abrasive products to clean your product.

The front glass is a high quality optical part. A metallic multi-layers vacuum deposit makes
the anti-reflection coating. Do not use abrasive or acid cleaners. The microfiber cloth
delivered with the CineMonitorHD is strongly recommended to clean the glass. Remove
dust and particles of the glass before using the cloth. No liquid is normally necessary. If
there is some dirt on the screen, it is possible to remove it with clean warm water.
The microfiber cloth collects grease particle in its structure. It is necessary to wash it
when necessary with water and soap.
The microfiber cloth is orderable as spare part (refer to your local Transvideo dealer in
case of need).

Full reset

If needed, a full reset of the monitor may be performed as follows:

① Connect the monitor to a power source (monitor off).
② Press the adjust (ADJ) key
③ Switch on the monitor while keeping pressed the “adjust” key until the display shows

“FULL RESET”

The monitor is back to its factory default settings. This procedure totally erases all user
setup in the memories.

SERVICE & MAINTENANCE

Page 38 CineMonitorHD Evolution

Hardware, Software and Firmware

Basic monitor information is indicated during the startup on the display:

SOFT main board software version (microcontroller #1)
FIRMWARE main board firmware version
HARDAWARE main board hardware version
LOGO graphical user interface version
LOAD MATRIX colorimetry version

This information is useful to write down if trouble-shooting becomes necessary.

The complete list of software and firmware versions of all electronic boards may be found
in MENU / HELP / MONITOR INFO.

Updating your CineMonitorHD Evolution

All software and firmware updates are possible by the sole use of a USB key.
The following procedure sets how to proceed to update your monitor.

For CineMonitorHD Evolution with Hardware 3.xx and Software 6.xx only.

Step 1

Get the last software update package for your CineMonitorHD 3DView Evolution.
An update package is a .zip file that contains softwares and firmwares that are compatible
each other. It can be downloaded on our website for registered users by visiting

www.transvideo.eu/support. You can also ask it directly to your local Transvideo

representative.

Step 2

Uncompress the .zip using your archive utility software. Then paste all the files at the root
of the USB key.

Step 3

Plug in the USB key in the monitor by using the mini USB adapter (included with your
product) and turn on the monitor.

Step 4

Go to MENU / HELP and select UPDATE

Step 5

The update starts. Do not turn off the monitor neither remove the USB key until the update
ends. Follow the instructions on the screen.

SERVICE & MAINTENANCE

Operator Manual Rev 2.0 Page 39

Step 6

Wait for 2 green leds and restart the monitor.

Step 7

Go to MENU / HELP / MONITOR INFO and verify that the software and firmware versions
match with the update package.

Comments

The update duration may vary between 3 minutes and 6 minutes depending of your
hardware and files present on the USB key.
During the first startup following an update, the monitor automatically performs a backup
of all firmwares and a full reset. It can take several seconds before your monitor reach its
normal operation.
You can visit our support section on our website for more information regarding monitor
updates (registered users only).

Precaution

We advise you to format your USB key before an update to avoid hidden files problems.
Do not rename files on the USB key.

Calibration

The white point of the monitor is individually calibrated in factory for D65 and D56.
The calibration doesn’t need to be performed except after some specific service operation
as the replacement of the backlight unit or if you need to match a large inventory of your
CineMonitorHD Evolution after hundreds hours of use.
To perform the calibration, you need to send the product to the factory.

Product Return

For repairs and technical operation you may return the product to the factory. Please use
the following procedure:

➀ Ask for a RAN (Return Authorization Number)

Log in to our website using your user
account and visit the Support section

www.transvideo.eu/support

Or contact us by:
Email [email protected]
Fax [phone]
Tel [phone]

You will need to provide part number & serial number (found on the back of your product)
and to briefly describe the reason for the return.

SERVICE & MAINTENANCE

Page 40 CineMonitorHD Evolution

② Then send the product to the following address:

TRANSVIDEO

RAN # _ _ _ _ _ _ _
ZI - Rue Francois Arago
27130 Verneuil sur Avre

France

User is responsible for shipping and insurance of the equipment as well as for any
damage that may occur during transit.
It is strongly recommended to inform us of the Tracking Number of your shipment and the
RAN so we may track your return while in transit.

Operator Manual Rev 2.0 Page 41

SPECIFICATIONS

Common Characteristics

Supported HD standards *

480p / 576p
720p
1080p, 1080i, 1080psf

Supported SD standards *

NTSC-M / NTSC-J / NTSC-443
PAL-M / PAL-BG / PAL-N
SECAM
SD SDI 525 / 625

Display mode

Color

Picture resolution

Depends of the standard

Display type

AMLCD

Color calibration

D65 ITU-R BT.709-5
D56

Color space

Rec. ITU-R BT.709-5

Latency

Less than 1 frame in 1080i and psf, SD.
Less than 1 image in 720p and 1080p

Storage temperature
Operating temperature

-40°C +80°C

-20°C + 55°C

* HD and SD standards may differ with video input. Refer to the following complete list

of standards per input

SPECIFICATIONS

Page 42 CineMonitorHD Evolution

Connections

Video inputs & outputs

1 x HD/SD SDI in (BNC)
1 x HD/SD SDI Rclk out (BNC)
1 x CVBS in (BNC)
1 x CVBS out (BNC)
1 x ACC (Lemo8)
1 x mini HDMI in

Power In / XLR4

XLR4 connector (-1, +4)
10 – 36 VDC

Power Out / Phoenix 3pts

(except 6" and 8" monitors)

1 GND 3 +12V out (500mA max)
4 Connect to GND

ACCessory / Lemo8

1 GND 5 Pr/R
2 11 to 36V in/out 6 Pb/B
3 Y/CVBS2/G 7 Run
4 GND Video 8 GND Run

J001 / RS232

1 NC 6 GND
2 RX 7 RTS
3 TX 8 CTS
4 NC 9 +12V out
5 GND

J002 / GPIO

1 to 4 Remote
5 NC
6 to 9 GND for pins 1 to 4

J003 / Hirose HR25

1 RX+ (RS422) / RX (RS232)
2 RX- / CTS 5 GND
3 TX+ / RTS 6 +12V out
4 TX- / TX

SERVICE & MAINTENANCE

Operator Manual Rev 2.0 Page 43

List of Standards per Input

HD SDI

(SMPTE 292M)

1280x720p @ 24, 25, 29.97, 30 Hz (SMPTE 296M)
1280x720p @ 50, 59.94, 60 Hz (SMPTE 296M)
1920x1080i @ 50, 59.94, 60 Hz (SMPTE 274M)
1920x1080psf @ 23.98, 24, 25, 29.97, 30 Hz (SMPTE 274M)
1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz (SMPTE 274M)

SD SDI

(SMPTE 259M-C)

720x487i @ 60 Hz (SD SDI 525 - SMPTE 125M)
720x576i @ 50 Hz (SD SDI 625 - ITU-R BT.601)

CVBS

NTSC-M, NTSC-J, NTSC 4.43
PAL B/G H I D, PAL M, PAL N
SECAM

ACC YPrPb / RGB

720x480i @ 60 Hz (SMPTE 253M)
720x576i @ 50Hz
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz (SMPTE 240M)
1920x1080psf @ 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz

HDMI

720x480i @ 59.94, 60 Hz
720x576i @ 50Hz
720x480p @ 59.94, 60 Hz
720x576p @ 50Hz
1280x720p @ 50, 59.94, 60 Hz
1920x1080i @ 50, 59.94, 60 Hz
1920x1080psf @ 25, 29.97, 30 Hz
1920x1080p @ 23.97, 24, 25, 29.94, 30 Hz

Specific Characteristics

6" HD Monitor SuperBright

Dimensions
(l x h x d)

195 x 160 x 58 mm

7.7 x 6.3 x 2.3 inches

Weight

1410g, 3.1lbs

Power Consumption

16W

Contrast ration
Viewing angle
Brightness

Max 600:1
±80° H, +60/-80° V

1000Nits

SPECIFICATIONS

Page 44 CineMonitorHD Evolution

8" HD Monitor / 8" HD Monitor SuperBright

Dimensions
(l x h x d)

215 x 183 x 62 mm

8.46 x 7.20 x 2.44 inches

Weight

1710g, 3.8lbs / 1690g, 3.7lbs

Power Consumption

20W / 22W

Contrast ration
Viewing angle
Brightness

Max 500:1 / 900:1
±85° H&V / ±80° H, +60/-80° V

450Nits / 1000Nits

10" HD Monitor SuperBright

Dimensions
(l x h x d)

268 x 226 x 90 mm

10.55 x 8.89 x 3.54 inches

Weight

2710g, 6.0lbs

Power Consumption

31W

Contrast ration
Viewing angle
Brightness

Max 600:1
±80° H, ±65° V
1000Nits

12" HD Monitor SuperBright

Dimensions
(l x h x d)

297 x 255 x 90 mm

11.7 x 10.04 x 3.54 inches

Weight

3500g, 7.72lbs

Power Consumption

34W

Contrast ration
Viewing angle
Brightness

Max 600:1
±80° H, +60/-80° V

1000Nits

15" HD Monitor SuperBright / 15" HD Monitor Studio

Dimensions
(l x h x d)

343 x 303 x 90 mm

13.5 x 11.93 x 3.54 inches

Weight

4150g, 9.1lbs / 4290g, 9.44lbs

Power Consumption

52W / 44W

Contrast ration
Viewing angle
Brightness

Max 650:1 / 700:1
±80° H& V / ±85° H& V

1000Nits / 350Nits

Operator Manual Rev 2.0 Page 45

TRANSVIDEO EQUIPMENT LIMITED WARRANTY

Transvideo S.A gives the warranty set forward below.
The limited warranty is only effective upon presentation of your Bill of Sale or other proof
of purchase.
Transvideo equipment is warranted under normal use, against defective materials or
workmanship as follows:
Parts: Defective parts will be exchanged for new parts or comparable rebuilt parts for a
period of TWO YEARS from the date of original purchase.
Labor: For a period of TWO YEARS from the date of original purchase, labor will be
provided free of charge by our factory service centers or designated service facilities
located in country where the product have been purchased, or by the factory.
When returning equipment under this warranty, you must pre-pay the shipping charges,
and you must enclose the Bill of Sale or other proof of purchase with a complete
explanation of the problem. During your TWO-YEAR warranty period, repairs will be made
and the equipment return-shipped to you free of charge. After your warranty period is
over, you will be given an estimate of the cost of repair and an opportunity to approve or
disapprove of the repair expense before it is incurred. If you approve, repairs will be made
and the equipment return shipped to you. (shipping charges apply). If you disapprove, we
will return-ship the equipment at no charge to you. (shipping charges apply). Non­Transvideo brand peripheral equipment and software which may be distributed with
Transvideo products are sold “AS IS” without warranty of any kind by Transvideo,
including any implied warranty regarding merchantability or fitness for a particular
purpose. The manufacturer or producer gives the sole warranty with respect to such non­transvideo brand items
Thereof :
Transvideo shall have no responsibility under this limited warranty for use of Transvideo
product in conjunction with incompatible equipment or peripheral equipment.
In order to obtain warranty service, contact the authorized Transvideo retail dealer from
whom you purchased the product or contact the factory :
By phone [phone]
By fax [phone]
By email [email protected]
You will be directed to the nearest service facility for your product.
If there is no service facility in your region, you will receive a RAN (Return Authorization
Number) and instruction to return your product to the factory.
This Limited Warranty covers all defects encountered in normal use of the equipment and
does not apply in the following cases:
Loss or damage to the equipment due to abuse, mishandling, accident, improper
maintenance, or failure to follow operating instructions;

TRANSVIDEO EQUIPMENT LIMITED WARRANTY

Page 46 CineMonitorHD Evolution

If the equipment is defective as a result of leaking batteries, sand, dirt or water damage; If
defects or damages are caused by the use of unauthorized parts or by service other than
our authorized agent.
This Limited Warranty does not cover cabinet (exterior finish).
This warranty does not cover units sold to military operations or avionics. These uses are
covered only by such specific warranty as Transvideo may issue with such sales.
This Limited Warranty does not apply to accessories or consumables for the product,
which are sold “AS IS”, without warranty of any kind by Transvideo.
Please retain this warranty card and your Bill of Sale as a permanent record of your
purchase. This card is most important in order to be sure you are contacted right away
should there be a safety inspection, modification or product recall under applicable laws
or regulations.

NO IMPLIED WARRANTY, INCLUDING MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE APPLIES TO THIS EQUIPMENT AFTER THE APPLICABLE
PERIOD OF EXPRESS WARRANTY OR GUARANTY, EXCEPT AS MENTIONED ABOVE,
GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS
EQUIPMENT SHALL BIND THE UNDERSIGNED.. TRANSVIDEO SHALL NOT BE LIABLE
FOR LOSS OF REVENUES OR PROFITS, EXPENSE FOR SUBSTITUTE EQUIPMENT OR
SERVICE, STORAGE CHARGES, LOSS OF DATA, OR ANY OTHER SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR
INABILITY TO USE THE PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH
THE CLAIM IS BASED, AND EVEN IF TRANSVIDEO HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST
TRANSVIDEO BE GREATER THAN THE PURCHASE PRICE OF THE P>RODUCT SOLD
BY TRANSVIDEO AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE
FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY
TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING
OUT OF USE, MISUSE OR INABILITY TO USE THE PRODUCT NOT CAUSED DIRECTLY
BY THE NEGLIGENCE OF TRANSVIDEO. THIS WARRANTY SHALL NOT EXTEND TO
ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS EQUIPMENT.

NOTES

Operator Manual Rev 2.0 Page 47

Rev 2.0
June 2011 751TS0027

TRANSVIDEO S.A.

Zone Industrielle

F-27135 Verneuil sur Avre

Tel [phone]

Fax [phone]

Email [email protected]

http://www.transvideo.eu

http://www.transvideointl.com
