Transtron DTSC2 User Manual

DTS-C2

Operation Manual

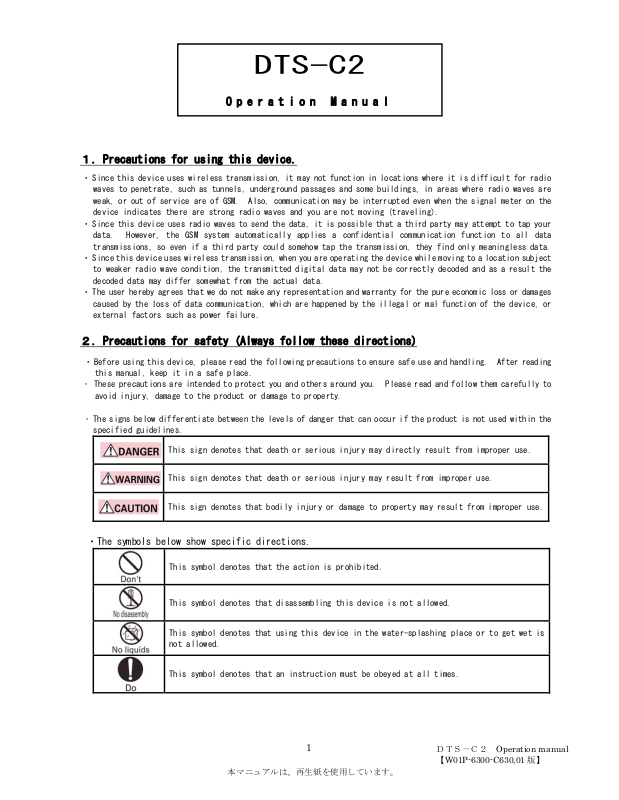

１．Precautions for using this device.

・ Since this device uses wireless transmission, it may not function in locations where it is difficult for radio

waves to penetrate, such as tunnels, underground passages and some buildings, in areas where radio waves are
weak, or out of service are of GSM. Also, communication may be interrupted even when the signal meter on the
device indicates there are strong radio waves and you are not moving (traveling).

・ Since this device uses radio waves to send the data, it is possible that a third party may attempt to tap your

data. However, the GSM system automatically applies a confidential communication function to all data
transmissions, so even if a third party could somehow tap the transmission, they find only meaningless data.

・ Since this device uses wireless transmission, when you are operating the device while moving to a location subject

to weaker radio wave condition, the transmitted digital data may not be correctly decoded and as a result the
decoded data may differ somewhat from the actual data.

・ The user hereby agrees that we do not make any representation and warranty for the pure economic loss or damages

caused by the loss of data communication, which are happened by the illegal or mal function of the device, or
external factors such as power failure.

２．Precautions for safety (Always follow these directions)

・ Before using this device, please read the following precautions to ensure safe use and handling. After reading

this manual, keep it in a safe place.

･ These precautions are intended to protect you and others around you. Please read and follow them carefully to

avoid injury, damage to the product or damage to property.

･ The signs below differentiate between the levels of danger that can occur if the product is not used within the

specified guidelines.

This sign denotes that death or serious injury may directly result from improper use.

This sign denotes that death or serious injury may result from improper use.

This sign denotes that bodily injury or damage to property may result from improper use.

・The symbols below show specific directions.

This symbol denotes that the action is prohibited.

This symbol denotes that disassembling this device is not allowed.

This symbol denotes that using this device in the water-splashing place or to get wet is
not allowed.

This symbol denotes that an instruction must be obeyed at all times.

1

本マニュアルは、再生紙を使用しています。

ＤＴＳ－Ｃ２ Operation manual

【W01P-6300-C630,01 版】

３．For handling of this device

Please do not disassemble or remodel the device.
May cause fire, injuries, electric shock, or mal-function.

Please do not let the device get wet.
Contact with water or other liquids may cause heating, electric shock, fire, mal-functions
or injuries.
Please take care of the place for use and treatment of the device.

Please do not throw, drop, or give hard shock to the device.
May cause the device to mal-function, or fire.

Please keep conductive materials (metal pieces, pencil lead, etc.) from external connection
jack.
Please do not put those materials inside the device.
May cause fire, mal-functions, or injuries subject to electrical short.

If the equipment starts giving off a strange smell, overheats, becomes discolored or deformed
during use, charging of in storage, please immediately turn the device OFF, and remove the
power cable from the device.
May cause fire, electric shock, or mal-functions.

Please turn the device OFF near high-precision electronic control equipment or electronic
equipment using low-power signals.
May cause the electronic equipment to avoid.

※Examples of electronic equipment that I would like you to note it

Healing aids, implanted pacemakers or defibrillators, other electronic medical
equipment. Users wearing these electronic medical equipment should check with the
manufacture or sales outlet about the effect of radio frequencies on the device.

Please do not put magnetic card close to the device or the external antenna.
May cause loss of data in bank card, credit card, phone card, or floppy disk.

Please do not put foreign objects such as liquid like water, metal pieces or burnable things
into the connectors of the device.
May cause fire, electric chock, or mal-function.

Please use only designated SIM card for the device.
Moreover, please do not pulling out or insertion of the SIM card, while the power of the
device ON.
May cause the damage of SIM card.

2

本マニュアルは、再生紙を使用しています。

ＤＴＳ－Ｃ２ Operation manual

【W01P-6300-C630,01 版】

４．For handling this device in the vicinity of a electric medical equipment

These precautions are based on the guidelines produced at the Electromagnetic Compatibility Conference Japan,
regarding the protection of electronic medical equipment form radio from radio waves emitted by mobile phone
units.

Wearers of implanted pacemakers or defibrillators must install and use the external antenna
of the device at least 22cm away from the implanted device.
The signals of the device may affect the operation of implanted pacemakers or defibrillators,
and other devices.

５．For using Bluetooth function

・ In the bandwidth used by this device, in addition to home electric appliances such as a microwave oven and

industrial / scientific / medical devices, in-plant radio stations used to identify mobile objects used in

production lines of a factory that require a license, specified low power radio stations, or amateur ratio

stations that do no require a license (hereafter "other radio stations") can be in operation.

1. Before using Bluetooth function of the device, check whether other radio stations are in operation in
your neighbourhood.

2. If radio wave interference occurs between the terminal and "other radio stations", use the terminal in
a different location or turn the power OFF to avoid the radio wave interference.

６．Handling Precautions

(1) "Information transmission medium" of the digital tachograph
Under the normal operation condition, please note that wireless communication system (GSM communication) and

SD memory card cannot be used simultaneously.

The capacity of the SD memory card that can be used with this device is maximum 2GB.

(2) Installation to the vehicle

For the installation of this device to the vehicle, please follow the instruction described in "Installation

Manual" (separate volume manual).

(3) Precautions in use
While using this device, please pay attention to the precautions below;

① Do not disassemble or remodel the device. The device is out of warranty in case the seal fastening upper

and lower cover of the device indicating that the covers had opened.

② Do not install the device in the following places. It may cause mal-functions.

・ Areas under strong direct sunlight
・ Extremely hot or cold areas
・ Extremely dusty areas
・ Areas with thumping vibration
・ Extremely humid areas

③ Please do not splash water or soft drinks onto the device. In case splashed, please wipe off the liquid

immediately.
④ Please do not drop the device or give hard shock to it.
⑤ In case of long time preservation, please do not store the device in the areas with vibration, dusty, extremely

hot or cold, humid, or under strong direct sunlight.
⑥ In case the device is following mal-status, please detach it from the vehicle.

・ LED doesn't light while writing the data to SD card.
・ The fuse on the harness blew.
In case above situation has happened, please detach the device from the vehicle, and contact the person
in charge of maintenance to order repair.

⑦ In case repair or maintenance, battery change, or attach the loading equipment of the vehicle, please pull

out the connectors of the harness from the device.
(Please note that forcibly pulling out the connectors of the harness may causes the breaking of the wire
in the harness or connectors.)

3

本マニュアルは、再生紙を使用しています。

ＤＴＳ－Ｃ２ Operation manual

【W01P-6300-C630,01 版】
