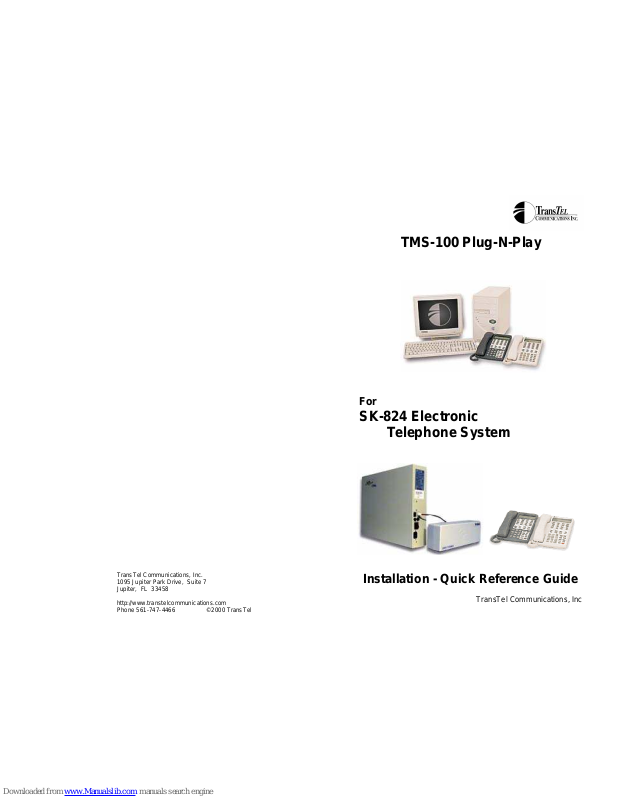

TransTel Communications TMS-100 P, SK-824 Installation Quick Reference Manual

TransTel Communications, Inc.
1095 Jupiter Park Drive, Suite 7
Jupiter, FL 33458

http://www.transtelcommunications.com
Phone [phone] ©2000 TransTel

TMS-100 Plug-N-Play

For

SK-824 Electronic
Telephone System

Installation - Quick Reference Guide

TransTel Communications, Inc

©2000 TransTel Communications, Inc.

Page 3

Notes For SK-824 &
TMS-100 Plug and Play Voice Mail

SK-824 - Information

The table listed below shows the database changes necessary for a
SK-824 Plug and Play KSU in order to install a TMS-100 configured as
a Plug and Play.

First, you must decide which Single Line Telephone Station Circuits
that you wish to use for voice mail. This document assumes you are
using a 4 port TMS-100 voice mail system. If you are using a larger or
smaller TMS-100, you will need to list more or fewer stations. Please
enter the extension numbers and the circuit numbers for the 4 ports
you intend to use.

The circuit numbers consist of a 2 digit code.
The first digit is the physical card in the cabinet. There are three

possible cards in the cabinet of a SK-824.
The second digit of the circuit number is the physical circuit on

the station card. All station cards are 8 circuit cards. If you

connect your voice mail to the last 4 circuits on a station
card, the circuits will be connected on circuits 5, 6, 7 and 8.

This information is necessary in order to properly program the SK-824
for integration with the TMS-100.

Valid circuit numbers are: 11 through 18
21 through 28
31 through 38

Basic Information Extension Number Equipment Number

Voice Mail Port 1

Voice Mail Port 2

Voice Mail Port 3

Voice Mail Port 4
