TransTel Communications TD-1648i, TDS-600 Installation Instructions Manual

Notification

Notification is hereby given that TransTel Communications, Inc. reserves the right to modify, change, update or
revise this document from time to time as required without the prior obligation to notify any person, company or
organization. Further, TransTel Communications, Inc. makes no warranty or representation, either express or
implied, with respect to merchantability, or fitness of its products for a particular purpose.

© 2003 TransTel Communications, Inc.

This document or any parts thereof are not to be reproduced or transmitted in any form or by any means,

electronic or mechanical, including photocopying, recording, or information storage and retrieval systems for any

purpose whatsoever without the express written permission of TransTel Communications, Inc.

Last Update January 21, 2003

IMPORTANT SAFETY INSTRUCTIONS

Installation Safety Precautions:

1. Never install telephone wiring during a lightning storm.

2. Never install telephone jacks in wet locations unless the jack is specifically designed
for wet locations.

3. Never touch un-insulated telephone wires or terminals unless the telephone line has
been disconnected at the network interface.

4. Use caution when installing or modifying telephone lines.

The TransTel TD-1648i/TDS-600 utilizes a 3 pin grounding power supply cord. This cord is not to be attached to any
building surfaces. When using your telephone equipment, basic safety precautions should always be followed to reduce the
risk of fire, electric shock and injury to persons, including the following:

1. Read and understand all instructions.

2. Follow all warnings and instruction marked on the
product.

3. Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.

4. Do not use this product near water, for example, near
a bath tub, wash bowl, kitchen sink, or laundry tub, in
a wet basement, or near a swimming pool.

5. Do not place this product on an unstable cart, stand,
or table. The product may fall, causing serious
damage to the product.

6. Slots and openings in the cabinet and the back or
bottom are provided for ventilation, to protect it from
overheating, these openings must not be blocked or
covered. The openings should never be blocked by
placing the product on the bed, sofa, rug, or other
similar surface. This product should never be placed
near or over a radiator or heat register. This product
should not be placed in a built-in installation unless
proper ventilation is provided.

7. This product should be operated only from the type of
power source indicated on the marking label. If you
are not sure of the type of power supply to your home
or office, consult your dealer or local power company.

8. The socket-outlet shall be installed near the equipment
and shall be easily accessible.

9. This product is equipped with a three wire grounding
type plug, this plug will only fit into a grounding type
power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact your
electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the grounding type plug.

10. Do not allow anything to rest on the power cord. Do

not locate this product where the cord will be
damaged by persons walking on it.

11. Do not overload wall outlets and extension cords as
this can result in the risk of fire or electric shock.

12. Never push objects of any kind into this product
through cabinet slots as they may touch dangerous
voltage points or short out parts that could result in
a risk of fire or electric shock. Never spill liquid of
any kind on the product.

13. To reduce the risk of electric shock, do not
disassemble this product, but take it to a qualified
service man when some service or repair work is
required. Opening or removing covers may expose
you to dangerous voltages or other risks. Incorrect
reassemble can cause electric shock when the
appliance is subsequently used.

14. Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:

A. When the power supply cord or plug is damaged or

frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by

following the operating instructions. Adjust only

those control, that are covered by the operating

instructions because improper adjustment of other

controls may result in damage and will often require

extensive work by a qualified technician to restore

the product to normal operation.
E. If the product has been dropped or the cabinet has

been damaged.
F. If the product exhibits a distinct change in

performance.

15. Avoid using a telephone (other than a cordless type)
during an electrical storm. There may be a remote
risk of electric shock from lightning.

16. Do not use the telephone to report a gas leak in the
vicinity of the leak.

SAVE THESE INSTRUCTIONS







Digital Telephone System

General Description - Installation - Programming Manual

















GENERAL DESCRIPTION – INTRODUCTION .................................................................................................10

FCC RULES AND REGULATION......................................................................................................................10

Ringer Equivalence Number...........................................................................................................................10

Notification of the Telephone Company..........................................................................................................10

Direct Connection to a Party-Line or Coin Operated Telephone Line is Prohibited..........................................10

Incidence of Harm to the Telephone Lines......................................................................................................10

Compatibility of the Telephone Network and Terminal Equipment. .................................................................11

Radio Frequency Interference.........................................................................................................................11

CTR 21 (98/482/EC) DECLARATION NETWORK COMPATIBILITY.................................................................11

ISDN INSTALLATION .......................................................................................................................................11

KEY HIGHLIGHTS OF THE TD-1648I/TDS-600 SERIES INCLUDE:................................................................13

Economy and Efficiency.................................................................................................................................13

Easy Installation .............................................................................................................................................13

Easy Maintenance..........................................................................................................................................13

Flexibility of System Applications....................................................................................................................13

Varied Extension Alternatives.........................................................................................................................13

Digital Twin Port .............................................................................................................................................13

Hybrid Phone..............................................................................................................................................14

Full ISDN features.......................................................................................................................................14

Liquid Crystal Display..................................................................................................................................14

Mechanical Specifications (Key Service Unit) .................................................................................................16

Mechanical Specifications (Battery Back Up Housing) ....................................................................................16

Environmental Specifications..........................................................................................................................16

FEATURES........................................................................................................................................................17

System Features.............................................................................................................................................17

DISA..................................................................................................................................................................17

SYSTEM PROGRAMMING................................................................................................................................17

ADVISORY MESSAGES................................................................................................................................... 19

Optional Features...........................................................................................................................................19

PARTS & PERIPHERALS................................................................................................................................. 20

System Modules.............................................................................................................................................20

Type of Phones..............................................................................................................................................20

Peripheral Devices.........................................................................................................................................20

Optional Interface Cards ................................................................................................................................20

SYSTEM INSTALLATION - INTRODUCTION ..................................................................................................21

SITE REQUIREMENTS..................................................................................................................................... 22

Location......................................................................................................................................................... 22

Choosing the Right Environment.................................................................................................................22

Installation Checklist ...................................................................................................................................... 22

EQUIPMENT REQUIREMENTS........................................................................................................................ 22

INSTALLATION................................................................................................................................................ 23

Installing the Equipment................................................................................................................................. 23

Backboard.................................................................................................................................................. 23

Key Service Unit......................................................................................................................................... 23

Power Supply.............................................................................................................................................. 23

Installing expansion and optional cards..........................................................................................................23

Card Introduction............................................................................................................................................24

Installing CPU and option cards..................................................................................................................25

G2-IPU....................................................................................................................................................... 25

G2-MSU- Multi Service Card...................................................................................................................... 25

G2-STU Digital Station Card....................................................................................................................... 27

G2-SLU Analog Station Card...................................................................................................................... 28

G2-TKU- 4 Port CO Line Card................................................................................................................... 28

G2-CIC- Caller ID Card............................................................................................................................... 29

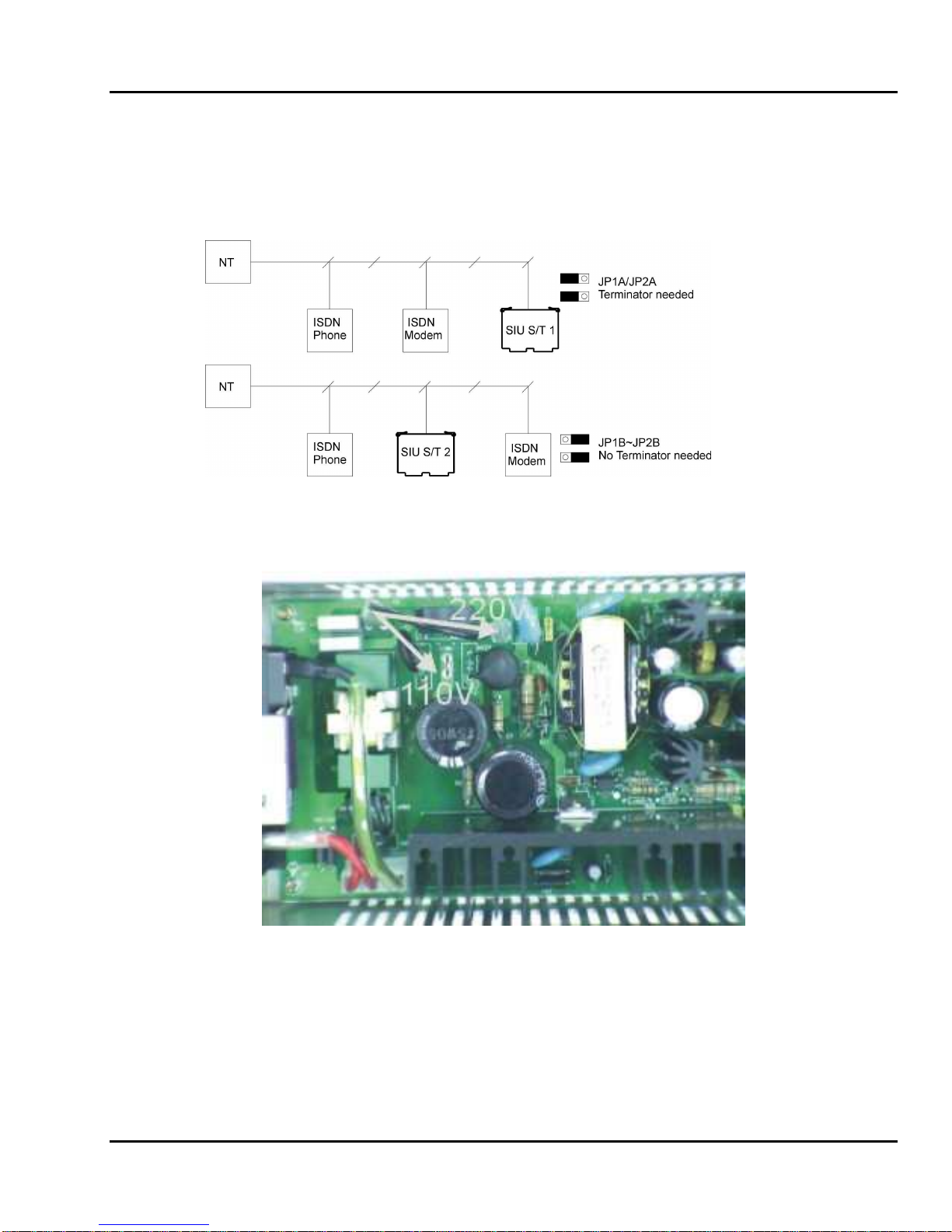

G2-SIU ISDN S/T Interface Card ................................................................................................................ 29

Voltage Selection Check............................................................................................................................. 31

Replace Fuses of Power Supply ................................................................................................................. 32

Replace Cover............................................................................................................................................32

Preparing the External Battery Backup .......................................................................................................32

Charging the Battery...................................................................................................................................33

Installing or Replacing Batteries.................................................................................................................. 33

System Ground...........................................................................................................................................34

Connecting Stations.................................................................................................................................... 34

Digital Key Telephone – DK1 Series, DK2 Phones and DSS Console......................................................... 35

Digital Key Telephone – DK-1D or DK-1S with SLC1 Circuit Pack installed.................................................36

Access Control Telephone – ACP............................................................................................................... 37

Single Line Telephone (connected to G2-SLU) ...........................................................................................38

Door Phone Connection..............................................................................................................................38

Single Line Telephone (connected to ATA).................................................................................................39

CO/PABX Connections............................................................................................................................... 39

ISDN S/T Connections................................................................................................................................ 39

Optional Cabling ............................................................................................................................................42

Door Switch (Relay) Connection ................................................................................................................. 42

Sensor Connection ..................................................................................................................................... 42

Paging Connection......................................................................................................................................42

Music on Hold Connection .......................................................................................................................... 43

RS232 Port Connection ..............................................................................................................................43

Power On and Operational Test .....................................................................................................................44

Operational Tests.......................................................................................................................................44

Special Immunity Protection for System and terminals...................................................................................44

For Power Supply:.......................................................................................................................................44

For Line:......................................................................................................................................................44

SERIES MODEL TD-1648I/TDS-600 - PROGRAMMING MANUAL...................................................................45

Programming Information...............................................................................................................................45

New Systems ..............................................................................................................................................45

To Reset System Memory...........................................................................................................................45

To Enter System Programming: ..................................................................................................................45

Basic Programming Commands..................................................................................................................46

Alphanumeric Entry.....................................................................................................................................47

Form 01 - Day Ringing and Ringing Line Preference Assignment...................................................................48

Form 02 - Night Ringing and Ringing Line Preference Assignment.................................................................48

Form 03 - Door Phone Ringing Assignment Form...........................................................................................49

Form 04 - Console (Operator) Assignment Form ...........................................................................................50

Form 05-01 - System Parameters Form - Timers-1.........................................................................................51

Form 05-02 - System Parameters Form - Timers-2.........................................................................................53

Form 05-03 - System Parameters Form - Codes-1..........................................................................................55

Form 05-04 - System Parameters Form - Codes-2..........................................................................................57

Form 05-05 - System Parameters Form - Codes-3..........................................................................................59

Form 05-06 - System Parameters Form - Timer/Codes...................................................................................61

Form 05-07 - System Parameters Form - Timer/Codes...................................................................................63

Form 05-08 - System Parameters Form - Timer/Codes...................................................................................66

Form 05-09 - System Parameters Form - Misc. ..............................................................................................68

Form 05-10 - Voice Mail Leading Digits..........................................................................................................70

Enhanced Protocol......................................................................................................................................71

Answering Machine Operation.....................................................................................................................71

Record Function..........................................................................................................................................71

Direct To Voice Mail....................................................................................................................................71

Message Waiting Digits...............................................................................................................................72

More About Voice Mail................................................................................................................................72

Form 05-11 - System Parameters Form - Supplemental.................................................................................73

Form 05-12 - System Parameters Form - Miscellaneous.................................................................................75

Form 05-13 - System Parameters Form - Miscellaneous.................................................................................77

Form 05-14 - System Parameters Form - Miscellaneous.................................................................................79

Form 05-16 - System Parameters Form - Miscellaneous.................................................................................80

Form 06-01 - Relay Assignment Form............................................................................................................81

Form 07-gp-IP - Flexible Key Group Assignment...........................................................................................82

DK-2 Key Layout.............................................................................................................................................84

DK-3 Key Layout.............................................................................................................................................85

Form 08-gp-IP - DSS Key Group Assignment................................................................................................86

Form 09-nnn-DP - System Speed Dial...........................................................................................................87

Pre-Assigned CO Line:...................................................................................................................................87

Telephone Number:........................................................................................................................................87

Form 10-gp-IP - Intercom or DISA Single Digit Assignment...........................................................................88

Form 11 - Date and Time Settings..................................................................................................................89

Form 12 - System Alarm Schedule ................................................................................................................89

Form 13 - System Passwords.........................................................................................................................90

Form 14 - Station Message Detail Recording..................................................................................................91

Form 17 - Forced Account Code Assignment..................................................................................................95

Form 18 - Toll Plan Assignment......................................................................................................................96

Form 20 - Day/Lunch/Night Service Switching Schedule.................................................................................98

Form 25 - Reset Data to System Default.........................................................................................................99

Form 29 - CO Line Specifications #1...........................................................................................................100

Form 35 - CO Line Specifications #2...........................................................................................................103

Form 36 - CO Line Groups (Dial 9 Groups)..................................................................................................105

Form 37 - Busy Out CO Trunk......................................................................................................................106

Form 38 - Alternate CO Line Groups (Dial 87 Groups).................................................................................107

Form 39-000-IP - Sensor Assignments .........................................................................................................108

Form 40 - Station Class of Service (Part 1)................................................................................................. 109

Form 41 - Station Specifications................................................................................................................... 111

Form 42 - Personal Speed Dial Table Assignment ....................................................................................... 112

Form 43 - Port Assignments......................................................................................................................... 113

Form 44 - Station Class of Service (Part 2)................................................................................................. 115

Form 45 - Station Class of Service (Part 3)................................................................................................. 117

Form 46 - Station Class of Service (Part 4)................................................................................................. 119

Form 47-st-IP - Hot Line Assignment........................................................................................................... 122

Form 50 - Station Class of Service (Part 5)................................................................................................. 123

Form (51 to 59)-code-IP - Toll Plans – Allowed Digits – Class 1 to 9 ........................................................... 124

Form (61 to 66)-code-IP - Toll Plans – Restricted Digits – Class 1 to 6........................................................ 125

Toll Control Examples............................................................................................................................... 126

Example 2 ................................................................................................................................................ 126

Form 67 - Hunt Group Pilot Number Assignment.......................................................................................... 127

Form 68 - Day Hunt Group Assignments......................................................................................................128

Form 69- Night Hunt Group Assignments.....................................................................................................129

Form 70-Cd-IP - ISDN Interface Specifications Program............................................................................130

Form 71-tk - Reserved for Future Used....................................................................................................... 131

Form 72-St - ISDN Called Party Extension Number Assignment.................................................................131

Form 73-St - ISDN Extension Sub-Address Assignment............................................................................. 132

Form 75-Num-IP - LCR - Analysis Table..................................................................................................... 133

Form 76-Num-Tm - LCR – Routing Table.................................................................................................... 134

Form 77-Num - LCR – Modifying Table.......................................................................................................135

Form 78-st-IP - Station Class of Service – 6................................................................................................ 136

Form 83-st-IP - Caller ID Block Assignment ................................................................................................ 138

Form 84-IP - Home Area Code.................................................................................................................... 139

Form 85-nn-IP - Overlay Area Code............................................................................................................ 139

Form 86-nnn-IP - Office Code Redial Pattern..............................................................................................140

PROGRAMMING CROSS REFERENCE.........................................................................................................141

Incoming Calls ............................................................................................................................................. 141

Ringing Assignment.................................................................................................................................. 141

Outgoing Calls ............................................................................................................................................. 141

Dial ‘9'.......................................................................................................................................................141

PABX Outgoing Code............................................................................................................................... 141

Trunk Specifications ................................................................................................................................. 141

Speed Dial................................................................................................................................................ 141

Auto-Redial............................................................................................................................................... 141

Intercom Calls.............................................................................................................................................. 141

Intercom Call Signaling............................................................................................................................. 141

Step Call................................................................................................................................................... 142

Dial Tone Pattern...................................................................................................................................... 142

Direct Station Select................................................................................................................................. 142

Dial 0 (Call Operator)............................................................................................................................... 142

Intercom Dialing Restriction...................................................................................................................... 142

Busy/During Conversation............................................................................................................................ 142

Hold and Hold Recall................................................................................................................................ 142

Busy Remind / Camp-On.......................................................................................................................... 142

Call Split................................................................................................................................................... 142

Transfer....................................................................................................................................................142

Message Waiting Level............................................................................................................................. 142

Override ...................................................................................................................................................142

DISA............................................................................................................................................................ 142

DISA Single Digit Dialing .......................................................................................................................... 143

Automated Attendant - Voice Service Unit............................................................................................... 143

Night Service ............................................................................................................................................... 143

Group Assignments...................................................................................................................................... 143

Console Assignment.................................................................................................................................143

Flexible Key Group Assignments.............................................................................................................. 143

Dial ‘9' Trunk Groups.................................................................................................................................143

Dial ‘87' Trunk Groups...............................................................................................................................143

Group Assignment for stations (Page Zone, Pick up, Single digit) .............................................................143

Call Control...................................................................................................................................................143

Toll Restriction..........................................................................................................................................143

Forced Account Codes..............................................................................................................................143

Call Limit...................................................................................................................................................143

Passwords.................................................................................................................................................144

Station Lock/Unlock...................................................................................................................................144

Busy out a trunk........................................................................................................................................144

Intercom Dialing restrictions......................................................................................................................144

System Clock ...............................................................................................................................................144

Date and Time Setup ................................................................................................................................144

System Alarm............................................................................................................................................144

Wake Up calls...........................................................................................................................................144

Station Numbering........................................................................................................................................144

Single Line Telephone..................................................................................................................................144

Miscellaneous...............................................................................................................................................144

Monitor......................................................................................................................................................144

Paging.......................................................................................................................................................144

Call Forward No Answer Transfer Time.....................................................................................................144

Hot Line ....................................................................................................................................................145

Optional Services .........................................................................................................................................145

Door phone & Door switch.........................................................................................................................145

Voice Mail Integration................................................................................................................................145

By Program Type in Alphabetical Order........................................................................................................146

System Parameters...................................................................................................................................146

Class Of Service/Station programming......................................................................................................148

TRANSTEL KEY TELEPHONE OPERATION MANUAL.................................................................................150

Introduction...............................................................................................................................................150

1A2 Emulation / Privacy Release..............................................................................................................150

Account Codes – Client.............................................................................................................................150

Advisory Messages...................................................................................................................................150

Alternate Trunk Group Access (Dial 87).....................................................................................................151

Answering Calls.........................................................................................................................................151

Answering a Doorphone ............................................................................................................................152

Answer Paging (Meet Me Page)................................................................................................................152

Automatic Callback ...................................................................................................................................152

Automatic Last Number Redial..................................................................................................................153

Automatic Line Access..............................................................................................................................153

Automatic Redial.......................................................................................................................................153

Automatic Saved Number Redial ..............................................................................................................153

Background Music.....................................................................................................................................154

Barge-In (Override)...................................................................................................................................154

Caller ID Features.....................................................................................................................................154

Call Forwarding.........................................................................................................................................155

To forward busy calls:................................................................................................................................155

To forward calls when you don’t answer or are busy:.................................................................................156

Call Hold...................................................................................................................................................156

Calling the Doorphone...............................................................................................................................156

Call Pickup................................................................................................................................................156

Direct (Extension) Call Pickup...................................................................................................................156

All Group Pickup .......................................................................................................................................156

Pickup within your group...........................................................................................................................156

Pickup a caller in another group................................................................................................................156

Call Swap..................................................................................................................................................157

Call Transfer .............................................................................................................................................157

Call Waiting (Camp On)............................................................................................................................ 157

Conference............................................................................................................................................... 158

Conversation monitor................................................................................................................................ 158

Date and Time Setting (Operator Function)...............................................................................................158

Day / Night Service Switching Setup (Operator function) .......................................................................... 158

Selecting Day or Night Mode When in Manual Switching Mode ................................................................ 159

Dialing Operator .......................................................................................................................................159

Direct Trunk Access.................................................................................................................................. 160

Do Not Disturb.......................................................................................................................................... 160

Environment Monitor ................................................................................................................................160

Exclusive Hold.......................................................................................................................................... 160

Feature Menu........................................................................................................................................... 160

Flash (To an outside telephone line)......................................................................................................... 161

Forced Account Codes.............................................................................................................................. 161

Handsfree Operation.................................................................................................................................161

Immediate CO Line Access....................................................................................................................... 162

Intercom dialing........................................................................................................................................ 162

Last Number Redial.................................................................................................................................. 162

Lock / Unlock SMDR from Console........................................................................................................... 163

Macro Keys............................................................................................................................................... 163

Mute......................................................................................................................................................... 163

Operator Set Timed Reminder or Wakeup (Remote Setup)...................................................................... 163

Operator Timed Reminder or Wake Up.....................................................................................................164

Paging...................................................................................................................................................... 164

Pulse To Tone Conversion........................................................................................................................ 164

Room Monitor........................................................................................................................................... 164

Saved Number Redial............................................................................................................................... 165

Saved Number Redial (SuperSave).......................................................................................................... 165

Shift Key................................................................................................................................................... 165

Speed Dialing........................................................................................................................................... 165

Speed Dial Programming.......................................................................................................................... 166

Speed Dial Programming (Operator).........................................................................................................166

Station Lock / Unlock................................................................................................................................ 167

Switching between Handsfree and Handset mode.....................................................................................167

Timed Reminder or Wake Up................................................................................................................... 168

Trunk Queuing.......................................................................................................................................... 168

Trunk Group Access (Dial 9)..................................................................................................................... 168

Voice Service Unit (Operator Function).....................................................................................................168

To Record (Operator only):....................................................................................................................... 168

To Playback (Operator only):.................................................................................................................... 169

Voice Mail Access..................................................................................................................................... 169

Voice Mail Live Call Recording................................................................................................................. 169

Voice Mail Message Retrieval................................................................................................................... 170

Voice Mail Transfer Key............................................................................................................................ 170

Volume Control......................................................................................................................................... 170

Volume Levels Programming (Permanent) ............................................................................................... 170

Intercom (as doorphone)........................................................................................................................... 171

Outgoing call (as wall mount phone).........................................................................................................171

Access via password................................................................................................................................. 171

Access via proximity card(Touch-N-Go).................................................................................................... 171

Access via password and proximity card...................................................................................................171

Check out (lock) ACP (as wall mount phone)............................................................................................171

Burglary Report......................................................................................................................................... 172

Time Display............................................................................................................................................. 172

As a wall mount phone..............................................................................................................................172

ACP Related Programming.......................................................................................................................... 172

Extension Number length for ACP ............................................................................................................ 172

’Voice’ announce or ‘ring’ announce for ACP............................................................................................. 172

Hunt group for ACP ................................................................................................................................. 172

Hunt Group Pilot Number..........................................................................................................................172

Hunt Group Members................................................................................................................................172

Station Hunt Group Ringing Method..........................................................................................................172

Station Function Form 46-st-08.................................................................................................................173

Dial 9 Access (System Option)..................................................................................................................173

Forced Account Code for ACP (as wall mount phone)...............................................................................173

Password for ACP (as doorphone).............................................................................................................173

General Description – Introduction

The General Description section contains an easy to understand overview of the TransTel® TD-1648i/TDS-600
ISDN Digital Telephone System. It is the intent of this document to provide both technical and non technical
readers with information pertaining to the system building blocks, capabilities, key highlights, electrical, physical
and environmental characteristics of the TransTel TD-1648i/TDS-600 ISDN Digital Telephone System.

FCC Rules and Regulation

In compliance with the requirements of Part 68 of the Federal Communications Commission Rules and
Regulations for connection of terminal system equipment to the telephone network and for your convenience, the
following information is presented.

FCC Registration Number

The TransTel TD-1648i/TDS-600 is registered with the FCC in a dual registration capacity enabling the system
to operate as a key system only or as a hybrid system. The FCC Registration Numbers are 3A7KF03BGDS600
for key systems registration and 3A7MF03BGDS600 for hybrid operation.

Ringer Equivalence Number

Ringer Equivalence

Notification of the Telephone Company

Customers connecting terminal equipment to the telephone network shall, upon request of the
Telephone Company, inform the Telephone Company of the particular line(s) to which such
connection is made, the FCC registration number and ringer equivalence number (REN) of
the registered terminal equipment.

0.3B.

The REN is useful to determine the quantity of devices you may connect to your telephone
line and still have all of those devices ring when your telephone number is called. In most,
but not all areas, the sum of the REN's of all devices connected to one line should not exceed
five (5.0). To be certain of the number of devices you may connect to your line, as
determined by the REN, you should contact your local telephone company to determine the
maximum REN for your calling area.

This equipment is capable of providing users access to Interstate providers of operator
services through the use of access codes. Modification of this equipment by call aggregators
to block access dialing codes is a violation of the Telephone Operator Consumers Act of

1990.

Direct Connection to a Party-Line or Coin Operated Telephone Line is Prohibited.

Incidence of Harm to the Telephone Lines

Should terminal equipment cause harm to the Telephone Network, the Telephone Company shall, where
practical, notify the customer that service may be temporarily discontinued. However, where prior notice is not
practical, the Telephone Company may temporarily discontinue service, if such action is reasonable in the
circumstances. In case of such un-notified temporary discontinuance of service, the Telephone Company
shall:

(a) Promptly notify the customer of such temporary discontinuance of service.
(b) Afford the customer the opportunity to correct the situation which gave rise to the temporary

discontinuance.

(c) Inform the customer of the right to bring a complaint to the FCC pursuant to the procedures

set out in Subpart E of Part 68 of FCC Telephone Equipment Rules.

10

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 - General Description

Compatibility of the Telephone Network and Terminal Equipment.

(a) Availability of telephone interface information.

Technical information concerning interface parameters and specifications not specified in
FCC Rules, including the number of Ringers which may be connected to a particular line,
which is needed to permit Terminal Equipment to operate in a manner compatible with
Telephone Company communications facilities, shall be provided by the Telephone Company
upon customer's request.

(b) Changes in Telephone Company Communications Facilities, Equipment, Operations and

Procedures.
The Telephone Company may make changes in its communications facilities, equipment, operations or
procedures where such action is reasonably required in the operation of its business and is not inconsistent
with the rules and regulations in FCC Part 68 of the FCC Rules and Regulations. If such changes can be
reasonably expected to render any customer Terminal Equipment incompatible with Telephone Company
Communications Facilities, or require modification or alteration of such Terminal Equipment, or otherwise
materially affect its use or performance, the customer shall be given adequate notice in writing to allow the
customer an opportunity to maintain uninterrupted service.

Radio Frequency Interference

This equipment generates and uses radio frequency energy and if not installed and used properly and in strict
accordance with the manufacturer's instructions, may cause interference to radio and television reception. It
has been type-tested and found to comply with the limits for a Class A computing device in accordance with the
specification in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against
such interference in a residential installation. However, this is no guarantee that interference will not occur in a
particular installation. If this equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:

Re-orient the receiving antenna.
Relocate the equipment with respect to the receiver.

Move the equipment away from the receiver.
Plug the equipment into a different outlet so that equipment and receiver are on different branch
circuits.

CTR 21 (98/482/EC) Declaration Network Compatibility

CTR 21 (98/482/EC) Declaration Network Compatibility,The equipment has been approved in accordance with
Council Decision 98/482/EC for pan-European single terminal connection to the public switched telephone

network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the
approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network
termination point. In the event of problem, you should contact your equipment supplier in the first instance.’

ISDN Installation

For the ISDN unit (G2-SIU), TD-1648i/TDS-600 only offers ISDN S/T interface connection behind NT1 device. It
could not be connected to “U” interface directly.

11

Description

The TD-1648i/TDS-600 is an advanced ISDN Digital hybrid telephone system employing a microprocessor
stored program and digitally controlled solid state Time-division switching. The TD-1648i/TDS-600 system is
specifically designed for small business as well as residential applications. At the forefront of the system design
is a universal concept to adapting and connecting with a variety of communications devices. Productive
TransTel Digital Key Telephones offer thoughtfully designed productive feature access to keep you connected
with one another and customers. TransTel technology leads the industry in providing for compatibility with
devices such as fax machines, answering machines, cordless phones, computer modems and other office/home

12

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 - General Description

equipment.

Key highlights of the TD-1648i/TDS-600 series include:

Economy and Efficiency

The base system is equipped to support four (4) CO lines / two (2) or three (3) ISDN BRIs and eight (8) digital
stations. The system may be expanded to a maximum of sixteen (16) CO lines / six (6) ISDN BRIs or Twenty­four 24 ISDN PRI Channels. Station cards may be selected to allow practically any combination ranging from all
TransTel DK1 Digital Sets to all industry standard Single Line Telephone sets, with any combination of the two
types. In addition to being cost effective at the initial phase and for expanding to it's maximum capacity. This
allows a wide variety of applications for the system to work effectively.

Easy Installation

• “Factory Ready” - All TD-1648i/TDS-600 Telephone systems are "ready to go" right out of the box. A well
thought out default database is factory installed on each system which meets the needs for most
installations. This alleviates hours of on site time, minimizing installation costs for both dealer and customer.

• “Small & Compact” - The Key Service Unit's small size takes little space for installation and is about the size
of a legal piece of paper.

Easy Maintenance

• Solid-state design minimizes trouble and eliminates periodic maintenance.

• Easy Expansion. Various Interface Cards for simple, modular expansion.

• Versatile programming and options for ease of selection.

• Database Flash Memory Back Up - Customer data is backed up when the power is turned off and there is no

battery to replace.

• Battery Back Up (System Operation) - TD-1648i/TDS-600 systems can be equipped with an optional battery

back up which keeps the system operational for up to 1 hour in the case of a commercial power failure.

• Customer Care Programming - Customers and service personnel can easily communicate and perform

programming right over the telephone. TransTel telephone systems allow programming and voice
conversations to be performed at the same time.

• Advanced software upgrades – Through the RS232 connection, system software can be upgraded easily

without a chip change.

Flexibility of System Applications

Unlike other conventional systems in the TD-1648i/TDS-600 size range, the installer will find an unprecedented
range of customer database programmability. In "system parameters" there are extensive options for various
timing settings related to features. An array of parameters are programmable for signaling options on outside
lines and internal single line telephone sets. The installer may Enable/Disable many system wide features. And
in class of service, there are over 20 options for each station providing maximum flexibility for nearly any
application.

Varied Extension Alternatives

You can connect an ISDN Modem, ISDN phone, proprietary TransTel DK series Keyphone, Access Control
Phone (ACP), Door Phone and conventional industry standard single line sets – Modem, Answering Machine,
Cordless phone, etc. directly to the KSU. This feature provides you with the choice to select different extension
equipment to suit individual applications.

Digital Twin Port

Install two Digital Keyphones on a single two-wire cable. No Master and Slave difference. Any keyphone can be
plugged in and plugged out with no interference to the other. This feature provides easy cabling, easy expansion
and easy maintenance.

13

Hybrid Phone

Use your current telephone equipment, such as Modems, cordless telephones, Answering machines, etc. Just
plug this equipment into the Analog port of the key telephone and the call can be automatically transferred to the
equipment when you are busy or do not answer. No extra wiring and programming. This feature provides easy
installation and programming-free transfer of calls from the key telephone to Analog Single Line equipment.

Full ISDN features

The TDS 600 system allows you to access different outside line types (PSTN & ISDN BRI, PRI, T1, E1, …) in
one box and enjoy Full ISDN Features when accessing an ISDN Line - such as:

. Call Charge Metering Information
. Caller Identification
. Direct Inward Dialing
. Call Forward Internal / External
. Call Waiting
. MSN (Multiple Subscriber Number)
. Sub-addressing
. User to User Signaling

You can easily control your budget by using different outside line arrangements.

Liquid Crystal Display

The DK1 Series Telephone Model DK-1D is equipped with a large, easy to read LCD display. The LCD is 32
characters total, comprised of 2 rows by 16 characters each.

The DK2 Series Telephone Model DK2-21 is equipped with a large, easy to read LCD display. The LCD is 64
characters total, comprised of 4 rows by 16 characters each

This LCD provides an invaluable tool for simplifying the use of the telephone by identifying the calling extension
by name, outside lines by name and self prompting displays for feature access. Station feature usage is made
simple with the help of the LCD display. Continuous prompting information is displayed during calls so that users
know what to do and when to do it.

32-character LCD Display shows:

• Time • Last number dialed

• Dialed telephone number • The status of operation/function

• Voice Mail Messages • Absent messages

• CO Line Names • Speed Dial Directory

• Last Number Redial • Calling Party Number and Name

• Speed dial number • Input data during system data entry

14

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 - General Description

TransTel Telephone Model DK-1D / DK1-S DK-ACP Access Control Phone

TransTel Telephone Model DK-2 DK-ATA Analog Terminal Adapter

15

MAXIMUM LOOP RESISTANCE/IMPEDANCE
Key Telephone Less than 40 ohms 26 AWG / 200 m
Single Line telephone Less than 800 ohms 26 AWG / 800 m
Doorphone Less than 40 ohms
Music Source Input Impedance 600 ohms
Maximum Input 0.775 VRMS
INTERNAL RELAY CONTACTS
Type SPST
Rating 1 AMP, 24VDC
Function Door Switch, Music on Hold, etc
CABLE REQUIREMENTS
CO/PABX Line Twisted 1 Pair (2 wires)
ISDN BRI Twisted 2 Pair (4 wires)

ISDN PRI

DK1/DK2/ACP Digital Key Telephone Twisted 1 Pair (2 wires)
Doorphone Twisted 1 Pair (2 wires)
Door Switch Twisted 1 Pair (2 wires)
External Sensor Twisted 1 Pair (2 wires)
External Music Source Twisted 1 Pair (2 wires)
Single Line Telephone Twisted 1 Pair (2 wires)

Mechanical Specifications (Key Service Unit)

CABINET DIMENSIONS
357mm W 126mm D 436mm H

14.1” 4.96" 17.2”
WEIGHT 17 Kg (Configuration: 4 x 8)

37.4 lbs

Mechanical Specifications (Battery Back Up Housing)

CABINET DIMENSIONS

15.5” W 3.0” D 5.75” H
WEIGHT With Batteries -16 lbs Without Batteries- 4 lbs.
Mounting Screws 12.25” center to center

Environmental Specifications

OPERATING CONDITIONS STORAGE
Temperature 0º to 45º C -40º to 66º C

(32º to 113º F) (-40º to 150º F)
Humidity 10 to 95% relative 10 to 95% relative

Non-condensing non-condensing

CONDITIONS

16

Issue 1.0 March, 2006

Features

System Features

Account Code Capability
Attendant Console Assignment
Attendant Overflow
Automatic Line Access
Automatic Line Search
Automatic Ringdown
Automatic Wake-up
Battery Charger
Behind PABX Operation
Centrex Operation
Class Of Service
CO Line Groups
CO Line Hunting
CO Line Name Programming
CO Line Ring Types
Linear
Common Audible
Circular
Hunt
Console Assignment
Day/Night Service
Manual/Automatic Switch
Dial 9 Group
Direct In Line
Dial By Name
Dial Mode Selection(DP/DTMF)
Dial Pulse to DTMF Conversion
Distinctive Ringing
DTMF Signaling
Dual Port Capability
End to End Signaling
Easy Installation and Operation
Flash (Programmable)
Flash Memory Backup Memory
Flexible Expansion
Flexible Ringing Assignment
Flexible Key Group Assignment
Flexible Number Plan 2,3 or 4 Digit
Flexible Time Format 12/24 Hour
Forced Account Code Assignment
Intercom
Intercom Single Digit Assignment
Intercom Ring / Voice Select
Intercom Dialing Restriction

TransTel TD-1648i / TDS-600 - General Description

ISDN

Call Charge Metering Information
Caller Identification
Direct Inward Dialing
Call Forward Internal / External
Call Waiting
MSN (Multiple Subscriber Number)
Sub-addressing

User to User Signaling
Host PABX Access
Hot line
Line Group Assignment
Loud Bell Assignment
Multiple Attendant Consoles
Multiple Trunk Groups
Night Transfer
On Call Programming
Paging

Internal
Zone

Meet Me
Password Assignment
DISA
System programming
Toll Override
Pause
Pick Up Groups
Power Fail Transfer
Security Code
Single Digit Dialing
Station Group Assignment
Station Hunting
Station Lock
System Speed Dial and Personal Speed Dial
System Date & Time Setting
System Time-Reminder Service
Telephone Directory
Toll Control
Day / Night
Tone to pulse dialing
Trunk Queuing
Trunk to trunk connections
Uniform Call Distribution
Voice Mail Compatibility

17

Station Features

Advisory Messages
System
Personal
Access to System Programming
Account Code Capability
Auto Hold
Auto Hold Recall
Automatic Call Back
Automatic Answer-Intercom
Automatic Line Access
Automatic Redial
Automatic Volume Increase
Brokers Call
Call Duration Timer (LCD Phones)
Call Waiting
Call Forwarding
All Calls
Busy
No Answer
Busy / No Answer
External
Call Pickup
Call Split
Call Transfer
Calling Name Display (LCD Phones)
Calling Number Display (LCD Phones)
Camp On
Chain Dialing
Conference
Dial By Name (LCD Phones)
Dial Access to Attendant
Direct Station Selection
Doorphone Access
Do Not Disturb (DND)
Dual Color LED
Duration Time Display (LCD Phones)
Executive Override (Barge-In)
External Call Forwarding

TransTel TD-1648i / TDS-600 - General Description

Flash (Open Loop Timed Flash)
Hands-free Answer Back
Hearing Aid Compatibility
Headset Compatibility
Hold (Exclusive / System)
Hold Recall
I Hold Indication
I Use Indication
Intercom
Intercom ring / voice interchange
Intercom Step Call
Intercom Voice Announce
Last Number Redial
Message Waiting
Multi-Language Display
On Hook Dialing
Prime Line Select
Privacy
Privacy Release
Private Line
Pulse/Tone Conversion
Ring Frequency Selection
Ringing Line Preference
Saved Number Redial
Speed Dialing
Station Lock / Unlock
Station Monitor
Store Speed Dial/DSS Number
Timed Reminder Service
System
Station
Toll Restriction Override
Trunk Queuing
Volume Control
Handset
Speaker
Ringer

Optional Features

Access Control Phone
Automated Attendant
Battery Backup (System)
Direct Inward System Access (DISA)
Door phone / Door Latch
Dual Port Operation
External Music Source
Music On Hold
Relay Control
RS232
Security Sensor/Door Open Indication
Station Message Detail Record (SMDR)
Voice Mail

19

Parts & Peripherals

System Modules

Model Description
G2-MMD KSU with Power Modular
G2-MPU G2 128/144/300/600 Main CPU Controller
G2-IPU G2-1648 Main CPU Controller / G2 128/144/300/600 Interface Control Card.
G2-MSU Multi-Service Card (External Paging/ Relay/ Sensor / RS232/ MODEM

Interface/ Door Phone / External MOH Interface)
G2-TKU Trunk Card : 4 CO lines
G2-PIU ISDN PRI Interface: 24 Channels Maximum
G2-SIU-2 ISDN S/T interface with 2 circuits
G2-SIU-3 ISDN S/T interface with 3 circuits
G2-STU Station Card : 4 Digital Twin-ports
G2-SLU Single Line Card : 8 SLT ports
G2-PWU G2 Power Supply

Type of Phones

Model Description
DK1-D/I
DK1-D/G

DK1-S/I
DK1-S/G

DK1-B/I
DK1-B/G

DK1-SLC-1 DK1 Keyphone - SLT port for DK1-2x series. Installs inside of digital
DK-ACP DK1-ACP Access Control Phone – Doorphone or Speakerphone (Ivory
DK-ATA DK1-ATA Analog Terminal Adapter. Converts a digital station port into two
DK-WMK/I

DK-WMK/G

Multifunction Key Telephone. Includes 32 character LCD display,
speakerphone, handsfree, headset jack, 20 dual color keys and 14 function
keys for feature access, DSS, CO Lines and speed dial. (Ivory or Gray)
Multifunction Key Telephone. Includes speakerphone, handsfree, headset
jack, 20 dual color keys and 14 function keys for feature access, DSS, CO
Lines and speed dial. (Ivory or Gray)
Multifunction Key Telephone. Includes speakerphone, intercom handsfree,
headset jack, 8 dual color keys and 14 function keys for feature access,
DSS, CO Lines and speed dial. (Ivory or Gray)

telephone DK1-D and DK1-S to proviide one analog port.
only)
analog (SLT) ports.

Wall Mount Kit for DK1 Series Telephones
(Ivory or Gray)

Peripheral Devices

Model Description

DPU05 Door Phone - 2 Wires
BBOX0 Battery Box without Batteries
BBOX1 Battery Box with Batteries

Optional Interface Cards

Model Description

G2-VMU Voice Mail Unit (4 Channels) / Auto Attendant / Wake-up / Message Waiting
G2-LMU LAN Management Unit
G2-CIC-F Caller ID Card for G2-TKU – FSK Mode
G1-MDC 4 Channel Metering Card for G2-TKU

20

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

System Installation - Introduction

This section provides directions for installing the system and optional equipment.
The installation must be performed by qualified service personnel.

Main components of the system are:

Key Service Unit, which includes:

• Power Supply Unit (G2-PWU)

• Main KSU (G2-MMU)

• CPU Unit (G2-IPU)

• Multi-Service Unit (G2-MSU)

• Trunk Unit (G2-TKU / G2-SIU / G2-PIU)

• Digital Station Unit (G2-STU)

Optional Expansion Cards:

• Trunk Card (G2-TKU / G2-SIU / G2-PIU)

• Digital Station Card (G2-STU – four digital twin

port circuits)

• Single Line Station Card (G2-SLU – eight single
line port circuits)

• G2-CIC Card (Caller ID Card - four port circuits)

• Voice Mail Unit (G2-VMU)

• LAN Management Unit (G2-LMU)

• Metering Card (G1-MDC)

NOTE: Please follow the directions step by step. The TD-1648i/TDS-600 system should be installed in strict
accordance with this manual.

21

Site Requirements

Location
Choosing the Right Environment

• System should be installed in a clean, dry, secure location. This location must have adequate ventilation,
and a temperature from 0  to 45 (32 to 113), with 10% to 95% non-condensing relative humidity.
DO NOT install the equipment near sources of static electricity, excessive vibration, or water. Avoid direct
sunlight.

Installation Checklist

INSTALLATION REQUIREMENTS VERIFICATION
MOUNTING SURFACE Flat surface with adequate space for main cabinet,

power supply, wiring and optional Battery Backup

cabinet.
AC LINE AC line should be dedicated exclusively to the system.
POWER OUTLET Power Outlet must be a

3-wire grounded outlet plug, having parallel blades
and ground pin.

Input power Line capacity requirements - 10 amperes.
SURGE PROTECTION A Surge Protector is recommended on the dedicated

AC line.
VENTILATION AND TEMPERATURE Humidity: 10% to 95% relative non-condensing

Temperature:32 to 113 (0  to 45 ).
EARTH GROUND A proper ground connection. (14 AWG)

SERVICEABILITY Lighting conditions and working space adequate for

future service.

Equipment Requirements

• Unpack, Check and Verify Equipment - Unpack the telephone equipment boxes and verify the contents in
accordance with the packing list provided. If any discrepancies are noticed, please contact TransTel or
Authorized Dealers.

• Damaged Boxes - If you notice any damage to the packages, please notify both the shipper and TransTel or
Authorized Dealers at once.

• List of parts included in basic KSU box:

• KSU Main Cabinet

• Power Supply

• Mounting Template

• Mounting Screws

• Station Quick Connectors

• Spare Fuses

• Cable Cover

22

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Installation

Caution 1. This system should be installed by qualified service personnel.

2. Do not install the Power Supply unless you have read the following instructions and
completed all the installation and wiring.

3. STATIC SENSITIVE DEVICES! Please handle with care.

Installing the Equipment
Backboard

Be sure to plan and allow enough space to mount and
connect the key service unit, power supply and system
battery back up if applicable.

Key Service Unit

Use the enclosed Hanging Template to locate the
mounting position for the Key Service Unit. Drill
appropriately spaced holes to fix the Hanging Template
and mount the KSU on the wall. When mounting the
KSU, make certain that there is adequate room for the
future system expansion and that the connecting power
cable between the power mains and the KSU. The same
applies for the battery back up unit.

Power Supply
Dedicated Power Source - The power supply must be connected to a dedicated AC outlet.

Be sure that the third wire earth ground of the AC circuit is connected to a good electrical ground. If a music
source is installed, it must be connected to a separate AC circuit rather than the system's dedicated AC line cord.

Check Your Voltage Selection Jumper

Verify that the input voltage and input voltage jumper are correct before you power on the system. The input
voltage is set according to the Customer's requirement before shipping. However it is important to verify that the
setting is correct prior to initial system power up.

Power Supply voltage options for the unit:

100-VAC: 100 to 120 V AC (50/60Hz) or 240-VAC: 205 to 265 V AC (50/60Hz).

Installing expansion and optional cards

In this step you will be installing printed circuit cards on to slots of the main board in the basic cabinet. Take your
time and extra care to assure the printed circuit cards are properly aligned. After installing each option and
expansion card, perform a visual inspection to assure the printed circuit card is installed properly.

1. Remove the 4 screws located at the corners of the cabinet and lift the front cover off.

2. Install the specific cards into the dedicated slots of G2-MBU as below card introduction.

23

Card Introduction

1. CN1: Power socket to connect to the main
power unit (G2-PWU)

2. JP1: Reset jumper for flash memory

3. SW1: Cabinet position selection

4. CN2: LNU/MPU slot

5. CN3: VMU 1 slot

6. CN4: VMU 2 slot

7. CN5: MSU slot

8. CN6: IPU slot: G2-IPU slot

9. CN8: DC power output

10. CN9: Cabinet grounding for expansion

11. CN12: STU 1 slot

12. CN13: STU/SLU 2 slot

13. CN14: STU/SLU 3 slot

14. CN15: STU/SLU 4 slot

15. CN16: STU/SLU 5 slot

16. CN17: SLU slot 6

17. CN18: TKU/SIU/PIU 1 slot

18. CN19: TKU/SIU 2 slot

19. CN20: TKU/SIU 3 slot

20. CN21: TKU/SIU 4 slot

24

Issue 1.0 March, 2006

Installing CPU and option cards
G2-IPU

1. SW1: Reset button

2. JP1: Terminators for bus expansion of multi-cabinet.

3. JP2: Terminators for bus expansion of multi-cabinet.

4. Socket for the HDLC controller for bus expansion of multi-cabinet.

5. LED1: Heart beat LED

6. CN6: connector for expanding cabinet

7. CN5: connector for expanding cabinet

8. CN9: LCD connector

TransTel TD-1648i / TDS-600 Programming Manual

25

G2-MSU- Multi Service Card

1. JP1: Grounding Jumper for some specific external paging device

2. MODEM connector for the external MODEM connection to the system

3. RS232 connector

4. Relay / Sensor / External Paging connector

5. CN3: Door Phone Interface (for DPU05)

6. CN2: External Music on Hold Interface

26

Issue 1.0 March, 2006

G2-VSC- Voice Service Card

TransTel TD-1648i / TDS-600 Programming Manual

G2-STU Digital Station Card



Install this G2-STU card on STU1, STU/SLU2, …, STU/SLU5 slot of the G2-MBU.

27

G2-SLU Analog Station Card



Install this G2-SLU card on STU/SLU2, …, STU/SLU5, SLU6 slot of the G2-MBU.

G2-TKU- 4 Port CO Line Card



Install G2-CIC card or G1-MDC card on G2-TKU (optional).



Install this G2-TKU card on TKU1/TKU2/TKU3/TKU4 slot of the G2-MBU.



Connect an attached cable between CN4 of G2-TKU to CN3 of G2-SLU for power failure transfer.

CN6/CN7: G2-CIC-D/G1-CIC-F
CN2/CN3: G1-MDC 12/16

28

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

G2-CIC- Caller ID Card



Adjust JP1 of G2-CIC card for G2 use. And then install G2-CIC card on CN6/CN7 of G2-TKU card.
Misalignment could damage both cards or the system.

29

G2-SIU ISDN S/T Interface Card



Install this G2-SIU card on TKU1/SIU1 or TKU2/SIU2 slot of the G2-MBU.

JP3(A,B,C): DC feeding jumper. Default is no DC output. If the internal ISDN device does not offer local power
and need DC feeding to work. The related jumper of this internal ISDN interface needs to be set to “on”.

30

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Caution:

1. When this jumper is on, users cannot loop “S” interface back to another “T” interface for testing purpose.

Otherwise, it will damage this card!

2. Incorrect jumper set will also damage this card.

JP1(A,B,C)/JP2(A,B,C): Bus Terminator.

Voltage Selection Check



Make a check to assure the power supply jumper setting is for the proper voltage.



When complete, place the power supply cover back on the power supply.

31

Replace Fuses of Power Supply

Replace Cover

Replace the cover and install the 4 screws removed earlier.

Preparing the External Battery Backup

The Key Service Unit can have two battery backup devices BBOX1 connected for emergency power when a
power failure takes place.

If you are installing an optional Battery Backup (BBOX1), make certain that there is adequate room for its
installation. Make certain that the Battery Backup is mounted close enough to the Power Supply that the
interconnecting cable between the Battery Backup and the Power Supply can connect.

Do Not Connect the Battery Backup at this time!

32

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Do Not Connect the Battery Backup at this time! Battery Backup should not be

connected to the System power supply until all power up testing has been
completed!

Charging the Battery

The rechargeable batteries are automatically charged when the KSU is plugged in.
When System is in a full-load condition (eight CO Trunks and twenty-four Extensions all in use), the batteries
provide a minimum of 1 hour's consecutive use. Change the batteries every two years.

Installing or Replacing Batteries
Caution
To Reduce the Risk of Fire or Injury to persons, Read and Follow these Instructions.

1. Use only the following type and size batteries:
12 Volt 6.5 Amp/Hour "Gel-Cell" sealed batteries (2).
Dimensions, approximately 3 1/4" (H), 5 15/16" (W), 2 1/2" (D).
PowerSonic model PS660 or equivalent.

2. Do not dispose of the batteries in a fire. The cell may explode.
Check with local codes for possible special disposal instructions.

3. Do not open or mutilate the batteries. Released electrolyte is corrosive and may

cause damage to the eyes or skin. It may be toxic if swallowed.

4. Exercise care in handling batteries in order not to short the battery with conducting

materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns.

This product is defined as a secondary battery operated device. As such, the following instructions

should also be read and followed:

1. Charge the batteries provided with or identified for use with this product only in accordance with the
instructions and limitations specified in this manual.

2. Observe proper polarity orientation between the batteries and battery charger.

3. Do not mix old and new batteries in this product.

4. Do not mix batteries of different sizes or from different manufacturers in this product.

Before installing or replacing batteries, disconnect the battery supply unit to the KSU by removing the polarized
battery connector at the KSU. Due to the weight of the batteries, it is advised that the battery cabinet be
removed from the wall before working on it.

33

System Ground

It is strongly recommended that the system be grounded by connecting a heavy, insulated copper wire (e.g.,
14AWG or larger) between the grounding bolt on the right-lower side of the cabinet and an earth ground. Without
this System Ground there is no protection against lightning damage to Co lines and warranty will be voided.
Do not connect the grounding wire of the KSU to a computer, telex, or any other external device.

Connecting Stations

The station cabling for the TD-1648i/TDS-600 should be a home run from the jack to the telephone room. The
termination should be at conventional 66 type connecting blocks or Krone or directly to the provided station
connectors. One pair twisted wiring is required for each station location. Attention to proper cabling will go a
long way towards a successful installation and minimizing service calls after installation. Some guidelines for
running station cable are as follows:



Avoid running cable parallel to fluorescent light fixtures or electrical lines not in conduit. If these obstacles
are unavoidable, run the cable at right angles across them.



Do not run station cable inside conduit already occupied by electrical wiring.



Do not run station cable near equipment with electric motors or strong magnetic fields.



Do not place station cable on the ground where it can be stepped on or rolled over by office furniture or
office equipment.

34

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Digital Key Telephone – DK1 Series, DK2 Phones and DSS Console



Terminate the station wires with the connectors that are provided. The stations will connect to the G2-STU
of KSU using the center two pins only (pins 2 - 3).



Connect Tip terminal with GRN terminal (screws) of the modular jack, Ring with RED.



There is no polarity requirement on Tip and Ring.



2-conductor wiring is required for DK1 and DK2 Digital Key Telephones.



DSS Consoles must be connected as the second station. When a DSS is connected, the alternate device on
the pair must be configured as the first station.



On DK-1 telephones, open the overlay covering the function key and select the 1st or 2nd station. Dip switch
to the right for the 1st station. Dip switch to the left for the 2nd station. If you change the switch setting, it is
necessary to unplug the telephone and plug it back in to reset to the alternate port.



On DK-2 Telephones, The recessed pushbutton cycles the telephone between the 1st and 2nd station. This
should be done with the telephone plugged in to the circuit

st

Dip to right: the 1

station.

Dip to left: the 2nd station.

CAUTION!: Avoid shorting Tip and Ring together. It may damage the G2-MBU or G2-STU board.

35

Digital Key Telephone – DK-1D or DK-1S with SLC1 Circuit Pack installed



Terminate the station wires with the connectors that are provided. The digital station will connect to the G2-
STU of KSU. Connections are to the center two pins of the connector (pins 2 – 3).



Connect Tip terminal with GRN terminal (screws) of the modular jack, Ring with RED.



There is no polarity requirement on Tip and Ring.



4-conductor wiring is required for DK-1 w/SLC1 Card from the Handset to Wall socket.



Open the overlay of the function key on DK-1 telephone and select the 1st station.



Connect the single line telephone from the phone box. Connect Tip terminal with YEL terminal (screws) of
the modular jack, Ring with BLK..

Dip to right on DK1

CAUTION!

1. Avoid shorting Tip and Ring together. It may damage the G2-MBU or G2-STU board.

2. System does not allow another Digital key phone to be connected on the same digital twin port as a DK-1
with SLC1 Adapter.

36

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Access Control Telephone – ACP



Terminate the station wires with the connectors that are provided. The stations will connect to the G2-STU
of KSU. Connections are to the center two pins of the connector (pins 2 – 3).



Connect Tip/Ring terminals from KSU(G2-STU) to the ACP connector (6 contacts).



There is no polarity requirement on Tip and Ring.



Connect Relay for applications such like door open to the ACP connector (6 contacts).



Connect Sensor for applications such like door open alarm to the ACP connector (6 contacts).



Mount ACP connector on ACP itself.



Select the 1st or 2nd station. Jumper as below diagram showed.



Mount ACP on the wall.

CAUTION!: Avoid shorting Tip and Ring together. It may damage the G2-MBU or G2-STU board.

37

Single Line Telephone (connected to G2-SLU)



Terminate the station wires with the connectors
that are provided. The stations will connect to
the KSU through the G2-SLU. Pins 2 and 3 of
the connector support the first station. Pins 1
and 4 support the second station.



Connect Tip terminal with GRN terminal (screws)
of the modular jack, Ring with RED.



There is no polarity requirement on Tip and Ring.



2-conductor wiring is required for Single Line
Telephones.

Door Phone Connection



One Door phone may be connected to the TD-1648i/TDS-600 system.



A cable cover is provided with the KSU. Door phone cable can enter from either the top or bottom as
desired. Remove one or both ends of the cover as required and route the door phone cable through the
hole. Terminate the door phone wires with the connectors that are provided. The Door phone will connect
to the G2-MSU (Refer to G2-MSU introduction).



Connect Tip terminal with GRN terminal (screws) of the modular jack, Ring with RED.



Tip and Ring are not polarity sensitive.



2-conductor wiring is required for Door phone.

38

Issue 1.0 March, 2006

Single Line Telephone (connected to ATA)



Terminate the station wires with the
connectors that are provided. The
stations will connect to the G2-SLU of
KSU.



Connect Tip terminal with GRN terminal
(screws) of the modular jack, Ring with
RED.



There is no polarity requirement on Tip
and Ring.



2-conductor wiring is required for ATA
Single Line Telephone Adapter.



Distribute two cords for two single line
telephones.

CO/PABX Connections



Make your CO line connection to the telephone company on this
connector. Pins 3 and 4 of the connector are for the CO line.



RJ-11C (2 wire) modular connector is required.



2-conductor wiring is required.

TransTel TD-1648i / TDS-600 Programming Manual

ISDN S/T Connections



Make your CO line connection to the telephone company on this
connector. Pins 3 to 6 of the connector are
for the CO line.



Cable: Twisted 2 pairs



Connector Type: RJ-45 (4 wire) modular connector is required.



Connector PIN assignment: (Pin 1, 2, 7, 8 are reserved.)



Install/remove the terminators by adjusting the jumper JP1 (A, B, C) and JP2 (A, B, C) on SIU card. If there
is no other ISDN device connected after the ISDN interface of SIU card when using point to multi-point
connection, this ISDN interface port needs the terminator installed. Otherwise, remove the terminator.

39

Example:
The following is the point to multi-point connection.

. The 1st ISDN interface needs the terminator because there is no other ISDN device connected after

this ISDN interface of SIU card.

. The 2nd ISDN interface does not need the terminator because there is an ISDN Modem connected

after this ISDN interface of SIU card.



T-Interface Connection:

If the user has programmed the ISDN interface of SIU to a T-Interface, the wiring should be as follows:

40

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual



S-Interface Connection:

If the user has programmed the ISDN interface of SIU to a S-Interface, the wiring should be as the following:



Bus Configurations on the S/T Interface:

Point to Point:

d1: 750m ~ 1000m; Length limitation by attenuation of 6dB at 96kHz.
Short Passive Bus:

nd trip delay 10us to 14us, not by attenuation.

d3: Recommendation with a cord having a minimum length of 5m and not more than 10m.(5md3

10m)

d2: 100m ~

200
m;
Len
gth
limi
tati
on
by
rou



41

Extended Passive Bus:

d4: 500m ~ 800m; Length limitation by round trip delay 10us to 14us, not by attenuation.
d5: 25m ~ 50m; Length limitation between TEs by differential round trip delay of 2us.

Optional Cabling

Connect a 6 conductor mounting cord from the
KSU to a RJ-25 modular block.

Door Switch (Relay) Connection



One Door Switch (24+-12VDC) may be used
on the TD-1648i/TDS-600 system.



2-conductor wiring is required.



Connect the door switch to pins 1 and 6 of
the RJ-11 connector.

Sensor Connection



The Sensor connector on TD-1648i/TDS-600
may be used for the External Sensor input.



The sensor may be configured for normally
open or normally closed operation.



2-conductor wiring is required.



Connect the sensor to pins 2 and 5 of the
RJ-11 connector.



Refer to System Programming Form 39 -­Sensor Assignment.

Paging Connection



The Paging connector on TD-1648i/TDS-600
may be used for an External Paging input.



2-conductor wiring is required.



Connect the amplifier to pins 3 and 4 of the
RJ-11 connector.

Refer to Illustration Door Switch / Sensor /
Paging cabling:

Door switch/Sensor/Paging cabling

42

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Music on Hold Connection

• Connect the (optional) external music source to the external Music" input labeled on the KSU.

• Use a 1/8” mini plug to connect the music source to the KSU via an approved line isolation unit.

RS232 Port Connection

Use the RJ-11 connector to terminate the RS232 cable. Then connect the RJ-11 to the KSU with a 6 conductor
line cord. Insert the line cord into the connector labeled RS-232.

Notice: Don’t connect the RS232 cable over the length limitation (50 feet.)

43

Power On and Operational Test

Before connecting the G2-PWU to AC power:



Verify that input voltage and input voltage selection jumper on G2-PWU are correct before you power up the
system.



Recheck the cabling for incorrect connections, loose wires and wiring fragments that may cause short­circuits.



Plug the power cord into a power outlet.



Verify the system boots properly by checking the display of a telephone set.



You may now connect the battery back up unit if applicable.

Operational Tests

Check each telephone and CO line to verify that outgoing lines are connected properly.
Check that intercom calls can be made from extension to extension.

WARNING:

DISCONNECT THE POWER SUPPLY FROM THE AC POWER SOURCE BEFORE WIRING OR
CHANGING ANY WIRING.

Connect the Battery Backup AFTER AC power has been connected to the Power Supply.
Disconnect Battery Backup BEFORE disconnecting AC power from the Power Supply.

NOTICE:

ONCE THE SYSTEM OPERATES PROPERLY, PROCEED TO SYSTEM PROGRAMMING.
(REFER TO THE SYSTEM PROGRAMMING MANUAL.)

Special Immunity Protection for System and terminals

Add Noise Filter for below points can enhance the immunity capability of system from outside environment
noise.

For Power Supply:

For Line:

44

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Series Model TD-1648i/TDS-600 - Programming Manual

Programming Information

This document contains the system forms required to program the TD-1648i/TDS-600 and an explanation of the
parameters.

New Systems

We recommend that all new systems have the system memory reset before system programming takes place.
This ensures that any extraneous information that may be present in system memory is erased and that the
system database will not be corrupt.

To Reset System Memory.

Enter System Programming :
From an LCD equipped TransTel DK1-21(H)/DK1-31 Digital Telephone Set:

1. Press [PRG]. Press [2].

2. Enter Password if programmed. (New systems will not have a system password).

3. Press [SAVE].

4. LCD display will show:

PROGRAM MODE: __

(01 – 92)

5. Enter [2][5]. Press [SAVE]. Display will show:

25- Reset Data
0-9 Default

6. Enter [2].

7. System Database is now reset. LCD will display:

PROGRAM MODE: __

(01 – 92)

8. You may commence database entry at this point, or exit system programming by pressing SPK key
or by lifting and replacing the handset.

To Enter System Programming:

1. Press [PRG]. Press [2].

2. Enter Password if programmed. (New systems will not have a system password).

3. Press [SAVE].

4. LCD display will show:

PROGRAM MODE: __
(01 – 92)

5. You may begin system programming at this point.

45

Basic Programming Commands

For the first time or infrequent installer, a programming overlay is provided with each Key Service Unit. This
overlay, when placed on a TransTel LCD telephone set indicates keys used during programming for easy
reference. Experienced installers may program without the overlay. Both key designations are listed below.

Note: Keys listed between [ ] indicate the default keys shown on a telephone set. Keys listed between
{ } indicate keys displayed by the programming overlay. See illustration Programming Overlay on the next

page.

These commands are active while in the system programming mode

[F4]{PRG} Moves to the Top Level Programming Mode Display (does not save information
entered into any field unless [SAVE] is pressed first).

[F3]{SAVE} Commits the data that is showing on the LCD display into the system database.
[DSS 1]{PREV} Moves to the previous section of any multiple part form.
[DSS 2]{NEXT} Moves to the next section in any multiple part form.
[DSS 3]{LEFT} Moves the programming cursor to the left.
[DSS 4]{RIGHT} Moves the programming cursor to the right.
[DND/CN]{DON’T CARE} Enters a Wild Card (don't care) into Account Codes or Toll control

entries. LCD will display d (lower case letter "d") to indicate don't care entry.
[HOLD]{PAUSE} Inserts a Pause when programming a Speed Dial Entry or for Voice Mail

Programming. LCD will display p (lower case "p") to indicate a Pause entry.
[TRF/FL]{FLASH} Enters a FLASH command as part of a Speed Dial Entry. LCD will display F

(upper case "F") to indicate a Flash command. Clears a digit during other entries (Passwords,
etc).

[MSG]{P->T} Enters a command to convert from pulse dialing to DTMF dialing into a Speed Dial
Entry. LCD will display T (upper case "T") to indicate a tone conversion command.

[MIC/AT]{CHANGE} CHANGE key. Depending on form, it will cycle through available
Programming parameters.

[TRF/FL]{CLR DIGIT} Enters a FLASH command as part of a speed dial number. Clears a digit
during other entries (Passwords, etc).

[SPK]{EXIT} Exits Programming. Returns telephone to normal idle mode.
[REDIAL]{CLR ALL} Clears all digits on an entry such as speed dial or account codes.

46

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Alphanumeric Entry

The following table indicates the capabilities of the name programming functions if they are selected on the
system. System Speed Dial, Personal Speed Dial, Stations, CO Lines and Sensors may be programmed with
names.

Key 1 = , . : 1 (Blank Space) Key 2 = A B C 2 ;
Key 3 = D E F 3 / Key 4 = G H I 4 _
Key 5 = J K L 5 - Key 6 = M N O 6 ‘
Key 7 = P Q R S 7 Key 8 = T U V 8 +
Key 9 = W X Y Z 9 Key 0 = ä ü ñ ö 0
Key # = $ ! @ # ) Key * = % ^ & * (
DSS Key 1 = Backspace Cursor (Left) DSS Key 2 = Cursor Forward

If an entry is made that is not within valid system parameters, the TransTel system will not accept the entry when
[SAVE] is pressed. The Speaker on the programming set will return a busy tone and the LCD Display will place
the programming cursor under the offending entry. You may make corrections and press [SAVE] again. If
multiple errors are made, the system will continue to return you to the illegal entries as others are corrected.

It is not necessary to re-enter existing information on a multi-item form. You need enter only the information that
is to be changed. You may move the cursor to the left or right in order to access only the specific entry that you
want to change. You may press [SAVE] without regard for the placement of the cursor on the LCD display.

47

Form 01 - Day Ringing and Ringing Line Preference Assignment
Ring Type : Linear / Circular / Hunt / Private / Common (See Form 35-CO-07)

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16

Default

11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

General:
This program assigns each incoming line to ring the programmed stations. The ringing methods can be LINEAR

(ring the first available station), CIRCULAR (Ring the next station following the last station who just answered an
incoming call), HUNT (Ring the first assigned station for a set period of time (Form 05-08-01) then if no answer
ring the next ring assigned station then the next etc.) COMMON AUDIBLE (All stations will ring simultaneously)
or PRIVATE LINE (First station “owns” the line but all stations assigned will ring). See Program Form: 35-tk-07 to
assign.

Description:

1. This program sets Day Time ringing.

2. The station number can be 2,3,4 digits.

3. A total of 16 stations can be assigned to ring for each trunk.

4. If the location is to be assigned to no station, the location value is set to " 0 ".

5. To clear all entries press [REDIAL].
Note: As you enter stations into the ringing assignment, the top portion of the LCD display will advance, showing

you the corresponding entry. For example: If you start on Form 01-01 (Day ringing for Line 1), the top portion of
your display will show 01-01-01, which corresponds to the first entry. When you dial the digits to add an
extension, the top portion of your display will change to say 01-01-02. That means you are now in position to
enter the second station to ring on this line.

When you press [SAVE] your display will change to 01-02-01, which means the system is now ready for you to
program ringing extensions on Line 2.

Form 02 - Night Ringing and Ringing Line Preference Assignment
Ring Type : Linear / Circular / Hunt / Private / Common (See Form 35-CO-08)

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16

Default

11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

General:
The parameters for this form are the same as for Program Form 01, except it affects Night Service Operation.

Please see the description for Form 01 for available options. See Program Mode: 35-tk-08 to assign LINEAR,
CIRCULAR, HUNT, COMMON AUDIBLE or PRIVATE LINE.

Description:
Description is as above for Form 01.

When you press [SAVE] your display will change to 02-02-01, which means the system is now ready for you to
program ringing extensions on Line 2.

48

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Form 03 - Door Phone Ringing Assignment Form

03 – 01 - 01 02 03 04 05 06 07 08

Extension

General:
This program assigns the door phone to ring the programmed stations.
Description:

1. There is one door phone port available in the TD-1648i/TDS-600.

2. Eight stations can be assigned to ring for the door phone.

3. To clear all entries press [REDIAL].

4. Door phone ringing time is set in Form 05-11-07.

5. Door Relay Unlock Time is set in Form 05-12-04.

6. Door phone Ringing frequency is set in Form 05-03-08.
A Door phone can be programmed to ring up to eight telephone sets. The first station to answer a call from a

Door phone is automatically connected to the Door phone and all other stations are excluded from the
conversation.

Note: Door phones may not be connected to outside telephone lines. They may not be involved in any

station conference. They may not be transferred.
Any station can contact the Door phone by dialing 88 for Door phone
This form is not used for programming of ACP devices as doorphones.

49

Form 04 - Console (Operator) Assignment Form

Console Group 01

04 – 01 -

01 02 03 04

Default 11 12 13 14

General:
This program permits the selection of the consoles (system operators) in each station group.
Description:

1. There are 8 console groups (Operators) available.

2. A total of four stations can be set to be the operator/console in each group.

3. The first assigned station is the master operator/console.

4. To clear all entries press [REDIAL]. Do this in ALL unused groups.
Note: Stations can be programmed into station groups on Form 41-ext-01 (Group Assignment). When stations

are separated into different station groups, Their “Operator” may be different. A station assigned on form 41-ext­10 to group 2 will ring the operator(s) programmed on form 04-02 when the user dials 0.

In default system programming, all stations are assigned to Station Group 1.

50

Issue 1.0 March, 2006

Form 05-01 - System Parameters Form - Timers-1

01 02 03 04 05 06 07 08

Form 05-01-

Range of Entries 0-9 0-9 0-9 0-9 0-9 0-9 0-9 0-9

TransTel TD-1648i / TDS-600 Programming Manual

Default Value

1 1 1 1 4 2 2 1

Item Valid

Settings

Description

Settings

Default

05-01-01 0-9 Hold Recall Time 1=60 Sec
05-01-02 0-9 Exclusive Hold Recall Time 1=60 Sec
05-01-03 0-9 Hold Recall Timeout 1=60 Sec
05-01-04 0-9 DISA Access Delay Time 1=2 Sec
05-01-05 0-9 Busy Remind Cycle Time 4=8 Sec
05-01-06 0-9 Pause Time 2=800 Ms
05-01-07 0-9 DTMF Generation Time 2=83 Ms
05-01-08 0-9 Call Forward No Answer TRF. Time 1=20 Sec

05-01-01 - H

OLD RECALL TIME

:

This parameter sets the time duration from when Hold is initiated to when the held call starts to ring
(recall) the station.

After a pre-determined recall time (see 05-01-03: Hold Recall Timeout), if the station still does not
answer, the hold call will automatically transfer to the Console.

05-01-02 - E

XCLUSIVE HOLD RECALL TIME

:

This parameter sets the time duration from when Exclusive hold is initiated to when the held call starts
to recall the station.

After a pre-determined recall time (see 05-01-03: Hold Recall Timeout), if the station still does not
answer, the held call will recall to the Console in addition to the holding station.

05-01-03 - H

OLD RECALL TIMEOUT

:

This parameter sets the time between a call recalling to a holding or transferring station and then
recalling to the console if unanswered.

See Values below for these timers.
0=30 seconds 1=60 seconds 2=90 seconds 3=120 seconds 4=150 seconds

5=180 seconds 6=210 seconds 7=240 seconds 8=253 seconds 9=No recall

05-01-04 - DISA A

CCESS DELAY TIME

This parameter sets the time duration that a DISA trunk will ring prior to connection to return dial tone
or VSC message. (Stations can answer during this time.)
0 = Automatic connection, no ring to the stations.
1-8 = Automatic connection after 2-254 seconds ringing as listed below.

0=0 second 1=2 seconds 2=4 seconds 3=6 seconds 4=8 seconds
5=15 seconds 6=30 seconds 7=60 seconds 8=120 seconds 9=254 seconds

:

51

Form 05-01 Continued

05-01-05 - B

USY REMIND CYCLE TIME (OFF-HOOK RINGING

):

This parameter selects the length of time an incoming trunk call rings the system before a busy ring
assigned station is reminded of the call. A muted, one-second ring will be given to the station through
the speaker to indicate the call. The tone will be repeated every busy remind time interval.
This parameter also sets the timing for the SLT Camp-On feature (see Mode 05-08-03 to extend timing
for SLT Camp on tone) and the camp on tone for key stations.
0=0 seconds 1=2 seconds 2=4 seconds 3=6 seconds 4=8 seconds

5=15 seconds 6=30 seconds 7=60 seconds 8=120 seconds 9=254 seconds

05-01-06 - P

AUSE TIME:

This parameter sets the system pause time duration for speed dial entry, trunk access time and voice
mail call forwarding tone delay..
0=400 ms. 1=600 ms. 2=800 ms. 3=1000 ms. 4=1200 ms.

5=1400 ms. 6=1600 ms. 7=1800 ms. 8=2000 ms. 9=2200 ms.

05-01-07 - DTMF G

ENERATION TIME

:

This parameter permits the selection of DTMF Generation output time. The generation time may need
to be lengthened to access some Voice Mail or answering machines.
0=48 ms. 1=64 ms. 2=80 ms. 3=100 ms. 4=114 ms.

5=132 ms. 6=156 ms. 7=164 ms. 8=180 ms. 9=196 ms.

05-01-08 - C

ALL FORWARD NO ANSWER TRANSFER TIME

:

This parameter sets the duration between calling a station which has set call forward no answer, and

the transfer of the call to the station to which it has been forwarded.

0=10 seconds 1=20 seconds 2=30 seconds 3=40 seconds 4=50 seconds
5=60 seconds 6=70 seconds 7=80 seconds 8=90 seconds 9=100 seconds

52

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

05-02-08 0-9 Ring Off Time

4=4 Sec.

Form 05-02 - System Parameters Form - Timers-2

Form 05-02- 01 02 03 04 05 06 07 08

Item

Range Of Entries 0-9 0-9 0-9 0-9 0-9 0-9 0-9 0-9

Default

5 5 1 8 4 3 2 6

Item Valid

Settings

05-02-01 0-9 SLT Dial Tone Timeout 5=15 Sec
05-02-02 0-9 SLT Inter-Digit Timeout 5=15 Sec
05-02-03 0-9 Auto Redial Ringing Time 1=10 Sec
05-02-04 0-9 SLT Release Signal 8=1400 ms
05-02-05 0-9 Flash Time - Key Phone 4=640 ms
05-02-06 0-9 SLT Hold Signal 3=200 ms
05-02-07 0-9 Ring On Time 2=240 ms

Description Default

05-02-01 - SLT D

IAL TONE TIMEOUT

:

This parameter is for Single Line Telephones. If a key is not pressed before the assigned time
period expires when Dial Tone is given, a Busy Tone will be heard and the DTMF receiver will be
released.

05-02-02 - SLT I

NTER-DIGIT TIMEOUT

:

This parameter is for Single Line Telephones. If the interval between digits dialed exceeds the
assigned time period, a Busy Tone will be given and the DTMF receiver will be released.

0=0 second 1=2 seconds 2=4 seconds 3=6 seconds 4=8 seconds

5=15 seconds 6=30 seconds 7=60 seconds 8=120 seconds 9=254 seconds

05-02-03 - A

UTO REDIAL RINGING TIME – CO LINES

:

This parameter is the time duration for which the system will redial the telephone number
automatically and then hang up during Auto Redial on CO lines. ISDN lines will hang up
immediately if the called number is busy.

Off Hook

Auto-Redial Pause Time

Off Hook

(Program 05-05-08), Y seconds

Auto-Redial Ringing

On Hook

Auto-Redial Ringing Timer

Timer

0=1 second 1=10 seconds 2=20 seconds 3=30 seconds 4=40 seconds

5=50 seconds 6=60 seconds 7=70 seconds 8=80 seconds 9=90 seconds

05-02-04 - SLT R

ELEASE SIGNAL

This parameter is the time duration of depressing the hook switch of an SLT that the system will
see as a hang up, the system will take it as a hold signal if less than this time but longer than the
SLT hook flash time.

0=40 ms. 1=80 ms. 2=120 ms. 3=400 ms. 4=600 ms.

5=800 ms. 6=1000 ms. 7=1200 ms. 8=1400 ms. 9=1600 ms.

:

53

05-02-05 - K

EY TELEPHONE FLASH TIMER (MS. = MILLISECONDS

):

This parameter permits the selection of Flash time for Key stations when pressing the [TRF/FL]
key or an analog phone which presses flash and then dials 800 while connected to an outside line.
After dialing 800 the flash signal will be sent to the CO line and the analog phone will reconnect to
the line.

0=64 ms. 1=80 ms. 2=104 ms. 3=200 ms. 4=304 ms.

5=400 ms. 6=512 ms. 7=600 ms. 8=704 ms. 9=800 ms.

05-02-06 - SLT H

OLD SIGNAL

:

This parameter permits the selection of the Flash time from a single line telephone that the
system will see as a Hold signal if the time is greater than the hold signal but less than the SLT
release time.

DURING
CONVERSATION

DURING
CONVERSATION

HOOK PRESSED-Period B

HOOK RELEASED

Period B < SLT Release Time Hold

HOOK PRESSED-Period B

HOOK RELEASED

Period B > SLT Release Time Hang Up

0=64 ms. 1=80 ms. 2=104 ms. 3=200 ms. 4=304 ms.

5=400 ms. 6=512 ms. 7=600 ms. 8=704 ms. 9=800 ms.

05-02-07 - M

INIMUM RING DETECTION (RING ON) TIMER (MS. = MILLISECONDS

): Minimum ring burst that

must be present for the system to detect an incoming call.

0=160 ms. 1=200 ms. 2=280 ms. 3=400 ms. 4=480 ms.
5=600 ms. 6=680 ms. 7=800 ms. 8=880 ms. 9=1000 ms.

05-02-08 - R

ING CYCLE (RING OFF) TIMER

: Length of time that the system must have without a ring

signal for the system to stop internal ringing (abandoned calls).

0=2 seconds 1=2 seconds 2=2 seconds 3=3 seconds 4=4 seconds
5=5 seconds 6=6 seconds 7=7 seconds 8=8 seconds 9=9 seconds

54

Issue 1.0 March, 2006

Form 05-03 - System Parameters Form - Codes-1

Form 05-03- 01 02 03 04 05 06 07 08

Code

Range Of Entries 0 - 1 0 - 1 0 - 1 0 - 9 0 - 9 2 - 4 0 - 1 0 - 9

Default

1 0 0 9 0 2 0 9

Item

Valid

Settings Description

05-03-01 0-1 Make / Break Ratio 1=40/60
05-03-02 0-1 Automatic Trunk Search 0=Allowed
05-03-03 0-1 Intercom Call Signaling Method 0=Voice Signaling
05-03-04 0-9 PABX (Centrex) Outgoing Code 9=9
05-03-05 0-9 Toll Access Code 0=0
05-03-06 2-4 Station Numbering Plan 2=2
05-03-07 0-1 Intercom Dial Tone Pattern 0=Steady
05-03-08 0-9 Door Phone Ringing Frequency 9= Background Music

TransTel TD-1648i / TDS-600 Programming Manual

Default

05-03-01 - P

ULSE DIAL - MAKE / BREAK RATIO DIAL PULSE RATIO:

This permits the selection of a Make/Break Ratio for Dial Pulse signaling
0=33/67 1=40/60

05-03 02 - A

UTOMATIC CO LINE SEARCH DURING SPEED DIAL, AUTO REDIAL, SAVED REDIAL, ETC

.:

This allows the system to search for an available trunk according to the assigned dial 9 trunk group
when automatic dialing features are used; i.e., Speed Dial, Save Redial, Redial, etc.
0=Enabled (Allowed) 1=Disabled (Not Allowed)

05-03 03 - I

NTERCOM CALL SIGNALING TO ELECTRONIC TELEPHONE SET

:

This selects the Intercom calling method. The user can still override this selection by dialing 3 after
initiating an intercom call. Individual stations can be set to automatic microphone switch-on in mode
46-st-03 and thus override the system wide ring method.
0=Voice Signaling 1=Ring Signaling

05-03-04 - PABX (C

ENTREX) OUTGOING CODE (REFERENCE FORM

35-CO-01):

This parameter assigns the PABX outgoing call access code for Redial and Save Redial when the
system is installed behind a PABX.

It is used only when Trunk Lines are set to be PABX lines in Mode 35-TK-01.
This assignment also enables the system to identify whether the user's dialing is a PABX's Intercom call

or an Outgoing call for toll restrictions. (Refer to Program 35-TK-01)

0=0 1=1 2=2 3=3 4=4
5=5 6=6 7=7 8=8 9=9

55

05-03-05 - T

OLL ACCESS CODE

:

The first digit that is checked for verification of a toll call. This has no effect on toll restriction
within the system. It is only used to notify SMDR that a particular call is a toll call. See Form 14-01-

03.
In the United States, this parameter (if used) will generally be set to 1.

0=0 1=1 2=2 3=3 4=4
5=5 6=6 7=7 8=8 9=9

05-03-06 - S

TATION NUMBER DIGIT LENGTH

:

This assigns the number of digits used for the station numbering plan. 2, 3, or 4 digits may be used. In
the TD-824i the system will set this parameter to 2 digits automatically at the time of system
initialization
2=2 digit length 3=3 digit length 4=4 digit length

05-03-07 - SLT D

IAL TONE OPTIONS

:

This parameter assigns the pattern of intercom dial tone and other “off hook” tones within the system.
Setting ICM Tone DND Tone CFWD Tone MSG Tone

0 Continuous Special Special Continuous
1 Interrupted Special Special Interrupted
2 Continuous Continuous Continuous Continuous
3 Interrupted Interrupted Interrupted Interrupted
4 Continuous Special Special Interrupted
5 Interrupted Special Special Continuousl
6 Continuous Continuous Continuous Interrupted
7 Interrupted Interrupted Interrupted Continuous
Continuous = Normal Dial tone Interrupted = Normal Busy Tone Special = Three Short Beeps

05-03-08 - D

OORPHONE RINGING FREQUENCY

This parameter allows for different ring patterns for the Door Phone

0= continuous ringing 1~8 = ring frequency of the DK

56

:

9= Background Music

telephone

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Form 05-04 - System Parameters Form - Codes-2

Form 05-04- 01 02 03 04 05 06 07 08

Item

Range of Entries 0 0 - 1 0 - 2

0 - 1 0 0 - 4 0 - 1 1 - 2

5 - 7

Default

0 1 0 0 0 1 0 1

Item

Valid

Settings Description

Default

05-04-01 0-7 RS232 Baud Rate 0=1200bps

05-04-02 0-1 Dial 9 Flag 1=Enable

05-04-03 0-8 Action for Call Duration Limiting 0=Warning

05-04-04 0-1 12/24 Hours Clock 0=12 Hours

05-04-05 0 Reserved 0

05-04-06 2-4 Speed Dialing Distribution 1=200 Sets

05-04-07 0-1 Single Digit Intercom 0=Disable

05-04-08 0-4 Message Waiting Method – SLT Phones 1=Ring

05-04-01 - RS232 B

AUD RATE

:

This parameter sets the baud rate for the RS232 port on G2-MSU card. This RS232 port can be
used for SMDR, CTI signalling, MODEM for remote programming purpose.
Caution: High baud rate could cause system low performance for other applications.

0 = 1200 1 = 2400 2 = 3600 3 = 4800
4 = 9600 5 = 19200 6 = 38400 7 = 56000 (bps)

05-04-02 - D

IAL 9 (HYBRID) ACTIVATION TURNS ON DIAL 9 (POOLED CO LINES

):

This parameter sets if a station can access an outgoing line by dialing 9. If this parameter is
disabled the station can still access an outgoing line by pressing a line key

0=Dial 9 access Disabled 1= Dial 9 access Enable

05-04-03 - C

ALL LIMIT TYPE

:

This parameter decides what action will be taken if a station has limit call duration enabled in
Mode 40-nnnn-03. Settings 0 to 3 are for outgoing calls only. The outside party will also hear the
warning tone.
0=Continuous Warning After Timeout (Outgoing).

1=1 Second Warning at Duration Limit (Outgoing).
2=1 Second Tone 10 seconds Prior to Timeout. Continuous Tone 5 seconds prior.

Line is released at Timeout (Outgoing).

5=Same as 1 above, except affects both Incoming and Outgoing.
6=Same as 2 above, except affects both Incoming and Outgoing.
7=Same as 3 above, except affects both Incoming and Outgoing.

05-04-04 - T

IME FORMAT DISPLAY

0=12 Hour Clock (AM/PM) 1=24 Hour Clock 00:00-23:59

:

57

05-04-05 - R

ESERVED

:

05-04-06 - S

PEED DIAL DISTRIBUTION

:

This parameter sets the number of speed dial numbers allocated to the system speed dial. Adding
extra numbers to system Speed Dial reduces the number of personal Speed Dial numbers
available to share between individual stations

Numbers after backslash indicate sets available with name feature enabled.

System Personal System Personal

0 100 Sets 500/200 Sets 3 400/300 Sets 200/000 Sets
1 200 Sets 400/100 Sets 4 500/300 Sets 100/000 Sets
2 300 Sets 300/000 Sets

05-04-07 - I

NTERCOM SINGLE DIGIT DIALING

:

Single digit intercom allows the stations to call up to 5 other stations by dialing one digit only (1 to

5). This feature is for the Hotel / Motel Environment. Up to eight different groups may be
programmed. If a group is not programmed with any entries then stations which are in the same
number station group will be able to make intercom calls without dialing the room to room dialing
prefix (6).

0=Disabled 1=Enabled

05-04-08 - M

ESSAGE WAITING

(MW) S

TATUS FOR SINGLE LINE PHONES

:

If the setting is Ring, the single line phone will receive 30 seconds intercom ringing every 5
minutes until the station answers.

If the setting is Voice Message, the station which is left a message will hear the voice message
which is stored by the console after answering the message waiting.

If the setting is 250 ms. ring the analogue phone will receive two 250 ms. ring burst every 5
minutes. This is for use with the special telephones to turn on message lamp.
0= Disable All Message Waiting indications

1=MW Ring - Route recipient to message originator.

2=MW - Route to VSU. (Day and Night)
(Day and Night)
3=250 millisecond ring every 5 minutes. (Day and

4=No MW during Night Service
Night)

58

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Form 05-05 - System Parameters Form - Codes-3

Form 05-05- 01 02 03 04 05 06 07 08

Item

Range of Entries 0 - 1 0 0 - 6 0 - 9 0 1 0 - 9 0 - 9

Default

1 0 0 0 0 1 7 0

Item

Valid

Settings Description

Default

05-05-01 0-3 Wake Up Call Type 1=Music
05-05-02 0-1 Meter Pulse Detect 0=Enable
05-05-03 0-5 Speed Dial Unrestricted-1 0=0
05-05-04 0-9 Speed dial Unrestricted-2 0=0
05-05-05 0-7 Name Feature For Extensions, Trunks, Speed dial 7=Enable All
05-05-06 0-1 Dial Tone Detection 1=Enable
05-05-07 0-9 Auto Redial Attempts 1=2 Times
05-05-08 0-9 Auto Redial Pause Time 0=10 Sec

05-05-01 - W

AKE UP CALL SIGNALING

:

This parameter is for the Hotel/Motel environment to decide what an extension will hear upon
receiving a wake up call.
Each station can be set in Mode 44-st-08 to decide whether to hear Background Music or DND
tone
0=VSU (requires Voice Service Unit) 1 = Back-ground music or DND tone.

2 = VSC + Record Wake Up Call History via
SMDR

3 = Back-ground music or DND tone + Record

Wake Up Call History via SMDR

05-05-02 - M

ETER PULSE DETECTOR

:

If setting is Enabled, the system will detect the metering signal from the Exchange during the
conversation. (Not used in North America).

0 = Enable 1 = Disable

05-05-03 - S

PEED DIAL UNRESTRICTED (HUNDREDS GROUP

):

If 05-05-03, 05-05-04 settings are A, B, then the speed dial codes from 100 to AB0 are not toll
restricted. For example if the settings are 1 and 1 then Speed dials up to 110 can be used by
stations whether they conflict with toll restrictions or not. Individual stations can be restricted from
using this feature in Mode 45-st-07.
If 05-05-03, 05-05-04 settings are set to 0, 0, then all speed dial codes are toll restricted if the
station using the speed dial is restricted.
0=000 1=100 2=200 3=300 4=400 5=500 6=600

05-05-04 - S

PEED DIAL UNRESTRICTED (TENS GROUP

See 05-05-03 above
2=20 3=30 4-=40 5=50 6=60 7=70 8=80 9=90

):

0=00 1=10

59

05-05-05 - N

AME FUNCTION

:

This parameter enables the naming feature for trunks, extensions and speed dials.

Features \ Values 0 1 2 3 5 7
Display Name instead of number

for Extension

V V V V

Directory Dial for Speed Dial V V V
Directory Dial for Extension V V

V: The feature is enabled.
Note 1: When any of the above features are enabled the total number of speed dial sets will be

reduced by 300. See Mode 05-04-06.

Note 2: For setting name for Extension/Speed dial/Trunk, Please refer to the programming mode 43 /

09 /35.
Note 3: For setting “Directory Dial” key, Please refer to mode 07.
0=No Names Used 1=Display Names for Extensions

2=Name Speed Dial. (Allow Dial by Name

3=Name Extensions & Speed Dial (Dial by Name)

Speed Dial only)
5=Name Display and Dial by name for

Extensions only

7=Enable Name display and speed Dial. Enabled

Dial by name for Extensions and Speed Dial

05-05-06 - D

IAL TONE DETECTOR

:

If setting is enable, then the system will send out the dialing signals after the system detects the Dial
Tone which is sent from the exchange, if dial tone is not detected by the system then dialing signals
will not be sent out. If setting is disable, then the system will send out dialing signals whether Dial Tone
is detected or not.

0 = Enable 1 = Disable

05-05-07 - A

UTO REDIAL ATTEMPTS

:

This parameter is to set the number of auto redial times which the system will attempt.
0=Disabled 1=3 Attempts 2=6 attempts 3=10 attempts 4=20 attempts

5=30 attempts 6=40 attempts 7=50 attempts 8=60 attempts 9=70 attempts

05-05-08 - A

UTO REDIAL INTER-CALL TIMER (SECONDS

):

This parameter is the time duration between the system hanging up an auto redial attempt and starting
to redial automatically
.

Off Hook

Auto-Redial Pause Time

Off Hook

(Program 05-05-08), Y
seconds

Auto-Redial Ringing Timer

On Hook

Auto-Redial Ringing Timer

0=10 1=20 2=30 3=40 4=50
5=60 6=70 7=80 8=90 9=100

60

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Form 05-06 - System Parameters Form - Timer/Codes

Form 05-06- 01 02 03 04 05 06 07 08

Item

Range Of Entries 0 - 9 0 - 9 0 0 - 1 0 - 1 0-9 0, 1, 3 0

Default

4 4 1 1 0 3 0 0

Item

Valid

Settings

Description

Default

05-06-01 0-9 TRF Busy Recall Timeout 4=30 sec.
05-06-02 0-9 TRF Idle Recall Timeout 4=30 sec.
05-06-03 0-1 ISDN Audio 1=u law
05-06-04 0-9 Polarity Reversal 1=Enable
05-06-05 0-1 Operator Code 0=0
05-06-06 0-9 Unsupervised Conference And ECF Timer 3=3 Min
05-06-07 0-1 Hold Method for SLT 0=Flash
05-06-08 0-2 Station Hunting Group Ring Method 0=Common

05-06-01 - T

RANSFER RECALL TIMEOUT-BUSY (SECONDS):

This parameter sets the time duration between transferring a call to a busy party and automatic
transfer back to the transferring party when the called party remains busy
0=5 1=10 2=15 3=20 4=30

5=40 6=50 7=60 8=70 9=No Recall

05-06-02 - T

RANSFER RECALL TIMEOUT-NO ANSWER (SECONDS

):

This parameter sets the time duration between transferring a call to a station and automatic
transfer back to the transferring party when the called party does not answer.
0=5 1=10 2=15 3=20 4=30

5=40 6=50 7=60 8=70 9=No Recall

05-06-03 - ISDN A

UDIO

:

This parameter sets ISDN Audio type.

0 = a law 1 = u law

61

05-06-04 - P

OLARITY REVERSE DETECTION

:

This parameter is to enable the Polarity Reversal detection feature for incoming caller hang up
detection in Australia and some European countries. See Mode 14-01-08 for SMDR setting.
Telecom will need to enable polarity reversal at the exchange. When reversal is enabled the
system will hang up the exchange line when the incoming caller hangs up and the exchange sends
a reversal to the system.
0 = Disable
1 = Enable for 1 polarity reverse signal
2-9 = Delay for 1-8 Seconds and then detect Polarity Reverse Signal
In North American applications this is not used. Leave it set to 1.

0=Disable 1=Enable

05-06-05 - O

PERATOR ACCESS CODE

:

This parameter is to set whether to dial "0" or "9" for the operator or for accessing a CO. line.

0 = 0 Operator - 9 Outside Line 1= 9 Operator - 0 Outside Line

05-06-06 - CO D

ISCONNECT TIMER FOR

ECF, U

NSUPERVISED CONFERENCE, AND

DISA:

This parameter sets the time that the system will allow an Unsupervised Conference or External
Call Forward to continue before sending a warning tone to the parties and then disconnecting the
call.
If either party sends a DTMF digit (0-9) to the system the timer will reset and allow the call to
continue for the time setting. If reversal supervision is used it will override this setting.
0=Disable 1=1 minute 2=2 minutes 3=3 minutes 4-9=4 minutes

05-06-07 - S

INGLE LINE TELEPHONE HOLD PROCEDURE

:

This parameter is to set whether Single Line Telephones use [FLASH] (or [Hook-switch]) or
[FLASH, 7] (or [Hook-switch, 7]) to place a call on Hold.

0=Flash only 1 +[7=Flash]

05-06-08 - S

TATION HUNTING GROUP RING METHOD

:

3=Flash +[7] (System returns

tone after Flash)

This parameter sets the ring method used in the station hunting groups. Pilot numbers for hunt
groups are set in Mode 67 and Day/Night ring stations are set in Mode 68 & 69. This system wide
parameter can be overridden by programming in Form 67-GP.

0 = Common 1 = Linear 2 = Circular

62

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Form 05-07 - System Parameters Form - Timer/Codes

Form 05-07- 01 02 03 04 05 06 07 08

Item

Range of Entries 0 - 1 0 - 1 0 0 - 1 0 - 7 0 - 9 0 0

Default

0 0 0 0 0 0 0 0

Item

05-07-01 0-1 Intercom Searching 0=Disable
05-07-02 0-1 Toll Override Prevention from quick dial 0=Disable
05-07-03 0 Reserved 0
05-07-04 0-7 DISA Transfer To Console - No Dialing 0=Enable
05-07-05 0-1 KeyPhone Toll Override Prevention 0=Disable
05-07-06 0-9 SMDR Digit Mask 0=Disable
05-07-07 0-9 CO Guard Timer 0=0 ms.
05-07-08 0 Reserved 0

Valid

Settings Description

Default

05-07-01 - I

NTERCOM STEP CALL

:

If setting is enable, when calling an internal station which is busy or does not answer, pressing [4]
will call the station on the next port which is in the same station group as the called station. If
setting is disable then there will be no transfer.
0=Disable 1=Enable on Busy

2=Enable on No Answer 3=Enable on Busy and No Answer

05-07-02 - SLT C

ALLING PROOF

:

In areas where dial tone from the CO is delayed, this option will disallow dialing before dial tone is
available. If dial tone is delayed, SLT users may attempt to bypass toll control by dialing a DTMF
digit before dial tone is available. Enabling this option causes toll checking to not occur until dial
tone is heard on the CO trunk. If digits are dialed before dial tone is available, they are
disregarded by the TD-824i.
0=Disable 1=Enable

05-07-03 - R

ESERVED – SET TO

0

63

* * *

* *

*

*

*

* *

*

*

05-07-04 - DISA O

PERATOR RECALL CAPABILITY (NO DIGITS DIALED

Setting Situation
No dialing after the

first voice
announcement from
the VSU.

The VSU has
announced that the
called station is busy
or no answer

0=
1=
2=
3=

T

T

T T

4=
5=
6=
7=

Note

“*” = Transfer the
incoming call to console
“T”=System will announce
VSU function 06 (if
programmed) to the
incoming call if no digits
dialed timer has expired.
System releases call
(hangs up).

T

T T

T T T

“*”=See Form 46-ST-04
“T”=See Form 46-ST-04.

If 46-ST-04 is no recall to
operator, VSU function 06
will be played to the caller
(if programmed). System
will release call (hang up).

):

The VSU has already
announced the invalid number
or a dialed number that has not
been received completely.

T
T

“*”= System will transfer incoming

caller to system operator if 05-08-07
has expired.
“T”=System will play VSU function
06 (if programmed) to the caller if 05­08-07 has expired. System will
release the call (hang up).

05-07-05 - EKT C

ALLING PROOF

:

If the setting is enabled, then no audio will be sent from the handset until 3 digits are received by
the KSU from the key station dial pad. The intent of this option is to prevent the use of external
dialing devices in order to bypass existing toll restrictions. This parameter will be automatically
disabled on any lines which are set to Pulse dial.

0=Disable 1=Enable

05-07-06 - SMDR D

IALED NUMBER PRINT

:

If setting is "0", then the full length of the telephone number will be output to the SMDR. If setting
is n, then the length of the telephone number will be n digits long.

0=Print All Digits

1=Print 1st digit 2=Print First 2 digits 3=Print First 3 digits

4=Print First 4 digits 5=Print First 5 digits 6=Print First 6 digits 7=Print First 7 digits

8=Print First 8 digits 9=Print First 9 digits

05-07-07 - CO T

RUNK GUARD TIMER:

This parameter is used to insert a pause between a line being released and being able to be re­selected for outward dialing.

0=No delay

1=1 second 2=2 seconds 3=3 seconds 4=4 seconds

5=5 seconds 6=6 seconds 7=7 seconds 8=8 seconds 9=9 seconds

64

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

05-07-08 - R

ESERVED

:

65

Form 05-08 - System Parameters Form - Timer/Codes

Form 05-08-T

Item

01 02 03 04 05 06 07 08

Range of Entries 0 - 9 0 - 1 0 - 9 0 - 1 0 - 8 0 - 9 0-9 0

Default

0 0 0 0 7 1 4 1

Item

05-08-01 0-9 Ring Hunt Interval 0=0 Sec.
05-08-02 0-1 DSS Access To Other Trunk Group 0=Enable
05-08-03 0-9 SLT Camp On Tone 0=Disable
05-08-04 0-1 DISA Transfer Group (No Answer) 0=Station Group
05-08-05 0-8 SLT Programming digit 7=7 + Code
05-08-06 0-9 DISA TRANSFER Time No Answer or Busy 1=16 Sec
05-08-07 0-9 DISA Transfer Time No Dialing 4=4 Sec.
05-08-08 0-1 Music source selection 1=Ext MOH/Int IC

Valid

Settings Description

Default

05-08-01 - R

ING HUNT INTERVAL (SECONDS

):

If setting is n, Then when an incoming call rings the first ring assigned extension and that
extension is busy, after n seconds the call will ring the second of the ring assigned extensions. If
the 2nd extension is busy the call will go to the 3rd extension immediately. All stations which have
been passed by the ring assignment will receive off hook busy remind. Up to 16 stations can be in
the ring hunt group. If the setting is 0 then only the first ring assigned station will ring.

0=0 1=2 2=4 3=6 4=8

5=15 6=30 7=60 8=120 9=250

05-08-02 - D

This feature enables or disables the ability of stations to

IRECT CO ACCESS:

0=Disable 1=Enable

use a DSS key to access CO lines not in their own dial 9
group.

05-08-03 - SLT B

USY REMIND TONE TIMER

:

This feature enables a tone to indicate call waiting for a busy single line telephone and sets the
interval between tones. The interval between tones will be the Off Hook Busy Remind Interval (t) x
by the setting in this parameter. Off Hook Busy Remind Time is set in Mode 05-01-05.

0=Disable 1=1 X Value of Form 05-01-05 2=2 X Value of Form 05-01-05

3=3 X Value of Form 05-01-05 4=4 X Value of Form 05-01-05 5=5 X Value of Form 05-01-05
6=6 X Value of Form 05-01-05 7=7 X Value of Form 05-01-05 8=8 X Value of Form 05-01-05
9=9 X Value of Form 05-01-05

66

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

05-08-04 - DISA O

PERATOR RECALL LOCATION (NO ANSWER

):

This parameter decides to which Console group an unsuccessful DISA call will be transferred if
the called station has transfer enabled in 46-st-04.

0=Console for the Called Station's group (41-st-01)
1=Console for the Incoming Trunk's group (36-gp)

05-08-05 - SLT F

EATURE PROGRAMMING ACCESS CODE FIRST DIGIT

:

This feature changes the programming digit used by an Analog phone to perform its
programmable features. For example call forward is normally 701, If this parameter is set to 3 the
call forward code will be 301. If the setting is 0 then the analogue phones cannot do programming.
If the setting is 8 it is necessary to press [*][#] before accessing programming or dialing any 8
codes. This will allow the use of digits 1 to 8 as the first digit of a station number

0=Disabled 1=1 2=2 3=3 4=4

5=5 6=6 7=7 8=[*][#][7]

05-08-06 - DISA NO A

NSWER RECALL TIMER (SECONDS

):

An incoming call is answered by the DISA voice message and transferred to the called extension.
If the called extension does not answer after this time duration the voice card will announce the
status of the station (no answer). Or if the station is busy will announce the status (busy)
immediately and then retry the station the number of times set in Mode 05-11-06 and depending
on the settings for individual stations in Mode 46-st-03 will also transfer the call to the console of
the group specified in Mode 05-08-04, transfer the call to the console only or disconnect the call.

0=8 1=16 2=24 3=32 4=40

5=48 6=56 7=64 8=72 9=80

05-08-07 - DISA T

RANSFER TIME (NO DIGITS DIALED) TRANSFER TO CONSOLE

:

This parameter sets the time that a DISA call will wait after the voice message is completed before
transferring to the console if no digits are dialed by the caller. Do not set this to less than about 3
seconds for normal operation

0=Immediate 1 = 1 second 2 = 2 seconds 3 = 3 seconds 4 = 4 seconds

5 = 5 seconds 6 = 6 seconds 7 = 7 seconds 8 = 8 seconds 9 = 9 seconds

05-08-08 - M

USIC SOURCE SELECTION

:

This parameter sets the Music Source for the Internal Background Music and CO Music on Hold
and Doorphone Ringback Tone.

Set Data B.G.M M.O.H Doorphone Ringback

0 Melody IC Melody IC Melody IC
1 External Source Melody IC Melody IC
2 Melody IC External Source External Source
3 External Source External Source External Source
4 Melody IC External Source SLT Music Port
5 External Source External Source SLT Music Port
6 Melody IC Double Beep Tone Silence

67

Form 05-09 - System Parameters Form - Misc.

Form 05-09-T

ITem

01 02 03 04 05 06 07 08

Range of Entries 0 0 - 1 0-9 0 0 0 0 0

Default

0 0 0 0 0 0 0 0

Item

05-09-01 0 Reserved 0
05-09-02 0-1 Busy Console Queuing (Intercom Calls) 0=Disable
05-09-03 0-9 Loop Disconnect Detection (CPC) 3=320 ms
05-09-04 0-9 DISA Busy Tone Detection 0=Disable
05-09-05 0 Reserved 0
05-09-06 0-9 UCD-1 Enable Time 0=5 Sec
05-09-07 0-9 UCD-1 Segment 2 Recall Time 0=Disable
05-09-08 0-9 UCD-1 Release Time 0=No Release

Valid

Settings Description

Default

68

05-09-01 - R

05-09-02 - C

ESERVED

ONSOLE AUTOMATIC QUEUING:

:

This feature enables the busy console(s) to have an intercom call(s) queued to it(them). If the
station dials the operator (by 0 or 9) and all the consoles are busy, the system will put this call in the
queue to wait for the operators to be free. The calling station will hear ring back tone instead of busy
tone and the first operator in the group will receive the Busy Remind Signal. The first operator to go
on-hook will receive the call.

0=Disable 1=Enable

05-09-03 - CO L

OOP DISCONNECT (CALLING PARTY CONTROL):

This option enables Calling Party Control so that held calls that are abandoned are dropped by the
system and callers who abandon while listening to voice mail do not continue processing. Calling
Party Control is sent from the telco Central Office as an open loop (loop current dropped). Open
loop interval is listed below in milliseconds

0=Disabled 1=80 ms 2=160 ms 3=240 ms 4=320 ms
5=400 ms 6=480 ms 7=560 ms 8=640 ms 9=720 ms

05-09-04 - DISA Busy Tone Detection:

This feature allows the system to recognize busy tone from the CO line during DISA operation for
clearing down the call.
Type 1 = busy tone is 250 ms. on, 250 ms. off.
Type 2 = 500 ms. on and 500 ms. off.
Type 3 = Continuous busy tone (>3.2 seconds).
Type 4 = 375 ms. on and 375 ms. Off.

0 = Disable 1 = Type 1 2 = Type 2 3 = Type 1 and 2 4 = Type 3
5 = Type 1 and 3 6 = Type 2 and 3 7 = Type 1, 2, 3 8 = Type 4

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

05-09-05 - R

ESERVED

:

05-09-06 - UCD E

NABLE TIME:

This parameter is to set the time duration before the system answers an incoming call when the ring
assigned station(s) are busy, if a VMU card is installed. The incoming call will show as a normal ring
signal on the DSS key and can be answered by the operator at any time even while the voice
message is playing to the caller.

0=5 seconds 1=10 seconds 2=15 seconds 3=20 seconds 4=25 seconds
5=30 seconds 6=35 seconds 7=40 seconds 8=45 seconds 9=50 seconds

05-09-07 - UCD H

OLD RECALL TIME

:

After the assigned time duration, if a station in the hunt group or the system operator has not
become free, the caller will recall the VMU and VMU 2nd UCD recording will be played. This time
sets the hold value. The message will be played to the caller every time the recall time is reached
until answered by the operator or the caller hangs up.
0=disabled (Does
not recall)

1=30 seconds 2=45 seconds 3=60 seconds 4=75 seconds

5=90 seconds 6=105 seconds 7=120 seconds 8=135 seconds 9-150 seconds

05-09-08 - UCD D

URATION TIME

:

If a call has not been answered by a live person by the time this timer expires, the system will
disconnect the outside caller. The system will play a warning message to the caller before releasing
the call

0=Timer Disabled 1=5 minutes 2=10 minutes 3=15 minutes 4=20 minutes
5=25 minutes 6=30 minutes 7=35 minutes 8=40 minutes 9=45 minutes

69

Form 05-10 - Voice Mail Leading Digits

Form 05-10-T

01 02 03 04 05 06 07 08

Range of Entries

Default

d d d d d d d d

Item

05-10-01 Leading Digit 1 For Voice Mail Forwarding d = None
05-10-02 Leading Digit 2 For Voice Mail Forwarding d = None
05-10-03 Leading Digit 3 For Voice Mail Forwarding d = None
05-10-04 Leading Digit 4 For Voice Mail Forwarding d = None
05-10-05 Leading Digit 5 For Voice Mail Forwarding d = None
05-10-06 Leading Digit 6 For Voice Mail Forwarding d = None
05-10-07 Leading Digit 7 For Voice Mail Forwarding d = None
05-10-08

Valid

Settings Description

0 -9,*,#

DND

HOLD

Leading Digit 8 For Voice Mail Forwarding d = None

Default

Description:

This parameter allows the system to insert digits before the call forwarded station number when the call forward
is received by the voice mail port if Standard Protocol is selected. If the station numbering is only 2 or 3 digits the
system will insert additional digits if the Voice Mail requires more. The last digits of the voice mail box number
will still have to be the same as the station numbering for correct recognition. The HOLD key can be used to
insert a pause in the DTMF tone sending and will display as a (p). The DND key is no digits sent and is shown as
(d).

Example:
The TransTel is set to 2 digit numbering but the voice mail requires 4 digits. The voice mail also requires a pause

between answering the call and the tones being sent. Set this parameter to the following

05-10-IP SYS PAR
p 9 9 d d d d d

When the call forwarded station 11 is answered by the voice mail port after the pause time the digits 9911 will be
sent to the port by the system. If station 11's voice mail box is 9911 then the mailbox number 9911 will be
automatically opened by the tones.

There are 2 different Voice Mail Protocols available in the TransTel G series depending on the setting in Mode
05-12-05. If this mode is set to 0 then the Protocol will be the leading digits entered in this Mode plus the Station
Number of the forwarded station. If Mode 05-12-05 is set to 1 then the Enhanced Protocol shown on the following
page will be used.

70

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Enhanced Protocol

Enhanced Protocol is a more sophisticated means of integration with most voice mails. Its use is preferable to
that of the integration of 05-10 in most cases. Within the enhanced protocol the TD-824i defines specific types of
calls. Depending on the application and the type of voice mail, this allows for the maximum flexibility in the
processing of calls. Each digit string will be unique to the type of call and the user.

The format is as follows:
1 + extension number = Call Forwarding All Calls
2 + extension number = Call Forward Busy
3 + extension number = Call Forward No Answer
4 + extension number = Direct Call to Voice Mail (Auto Login)
5 + extension number = Call Record
6 + extension number = Recall to Voice Mail
7 + CO Trunk Number = Incoming CO Call
9# + extension number = Direct to Mailbox (Take A Message)

In the case of codes 1+ through 6+ and 9#+ the actual string will be the identifier digit plus the actual extension
number.
Systems using two digit numbering will send a total of three digits (identifier plus 2 digit extension number).
Systems using three digit numbering will send a total of four digits (identifier plus 3 digit extension number).
Systems using four digit numbering will send a total of five digits (identifier plus 4 digit extension number).

If the Incoming trunk indentifier is enabled in the TD-824i on Form 05-12-05 the dial string will be 7+ a two digit
trunk number, so an identifier for trunk 1 will be 701, trunk 2 is 702 and so on.

Answer Digit When a called station answers the System will play [DTMF A] to the voice mail port.
Busy Digit. When a called station is busy the system will play [DTMF B] to the voice mail port.
Disconnect Digit. The system will play [DTMF C] when an inside station disconnects or when a V/M is

connected to a CO trunk which receives polarity reversal or Loop Disconnect.
These 3 functions will considerably speed up the operation of the V/M as it will not have to wait to listen to tones
to see what is happening with calls.

Answering Machine Operation

When activated this function allows the caller to set call forward to the Voice Mail as usual but then monitor calls
to the Voice Mail from his key phone (on hook) and if they wish can lift the handset and take the call back from
the Voice Mail. To enable the user presses [SPK] [7][7][3][1] and to disable presses [SPK] [7][7][3][0]. You
may have a button on your telephone programmed for Answering Machine Emulation. If so, Press the Answering
Machine button. It will light up, indicating your telephone is in Answering Machine Mode. To remove from
Answering Machine Mode, press the Answering Machine button again. The light will extinguish, indicating your
exit from Answering Machine Mode.

Record Function

This function is dependent on the Recording Unit being capable of inserting the recording tone to alert the caller
they are being recorded. To record it is necessary for the Key phone to have a [RECORD] key which is FN 48 .
During a call the STN presses the [RECORD] button and the Voice Mail will answer if a port is available and the
system will send the Protocol 15 + STN NO + STN No.

Direct To Voice Mail

Direct to Voice Mail allows a station to place another caller directly in a user’s mailbox without the need to dial
special codes. A station user presses the “Transfer to Voice Mail Key” and then either dials the extension user’s
number or presses their DSS button. The call is immediately routed to their voice mail box and their greeting
without the need to transfer to a station and allow forwarding to take place. Assign FN:25 to a key (Form 07­group-key) for the phones you want.

71

Message Waiting Digits

Message Waiting is a non-programmable string that is sent by the voice mail system to the TD-824i in order to
activate message waiting on telephones. The TD-824i accepts the following codes for Message Waiting
utilization:

Message Waiting ON: 7071 + Extension Number
Message Waiting OFF: 7072 + Extension Number

More About Voice Mail

Voice Mail Ports are configured on Form 43-Port-02. Setting this parameter to a value of 8 identifies it as a
voice mail port. It will then receive the integration digits selected for the system. All voice mail ports in a system
must be set to type 8.

All Message Waiting levels for Voice Mail ports must be 9. Message Waiting level is set on Form 46-ext-02.
Voice mail ports must be assigned to Hunt Group 1 in the TD-1648i. The Pilot number for Hunt Group 1 is

assigned on Form 67-01. Individual member of Hunt Group 1 are programmed on Form 68-01-01 for Day
Service and 69-01-01 for Night Service.

When a voice mail port sets a message waiting on an LCD display set, the callback number displayed will be the
first member of the hunt group. Message callbacks will call the station displayed. If it is busy, the system will
hunt, just as if you had dialed the pilot number of the hunt group.

72

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Form 05-11 - System Parameters Form - Supplemental.

Form 05-11-T

Item

01 02 03 04 05 06 07 08

Range Of Entries 0 0 0 0 0-3 0-9 0-9 0-8

Default

0 0 0 1 0 0 5 0

Item

05-11-01 0 Reserved 0=
05-11-02 0-1 DISA Password – 1 / 24 Sets 0=1
05-11-03 0-2 Select Music on Hold or Ring Back Tone
05-11-04 0-1 DISA Queuing if VSU is busy or absent 1=Queue
05-11-05 0-3 DISA Special Digit Access 0=[8],[9],[*],[#]
05-11-06 0-9 DISA Transfer Timer: 0=2 Times
05-11-07 0-9 Door Phone Ringing Time 5=30 Sec.
05-11-08 0-8 DISA Single Digit Dialing 0=Disable

Valid

Settings

Description

Default

1=MOH

05-11-01 - R

05-11-02 - DISA P

ESERVED

ASSWORD:

:

This parameter when enabled will increase the number of DISA passwords from 1 to 24. At the
default setting of 0 the DISA password will be set in Form 13-02. If the parameter is set to 1, 24
passwords are available and they will be the same as the forced account codes numbers (25-48).
Forced account codes are set in Form 17-(00-48).
0=Disable 1=Enable

05-11-03 - M

USIC ON HOLD/RINGBACK ON TRANSFER:

This parameter selects what the incoming caller will hear during Ring Transfer and Hold Recall
conditions. The feature is designed for the U.S. to prevent the caller from hearing recognizing the
TD-824i International Ring Back Tone and mistake it as a disconnect or busy signal and hanging
up even though their call is still in progress.
0 = Ring Back Tone 1 = Music On Hold 2 = Silence

05-11-04 - DISA Q

UEUING TO

VSU (N

OT APPLICABLE ON

TD-1648I):

This parameter is not valid on the TD-1648i. It must be set to 0 = disable queuing in order for
DISA to operate.
0 = Disable Queuing 1 = Enable Queuing

05-11-05 - DISA D

IGIT ACCEPTANCE

This parameter sets which of the system functions are accessible by DISA callers
0=All special digits allowed 1=[#] Allowed - [9],[0] Disallowed

2=[9],[0] Allowed - [*],[#] Disallowed 3=No Special Digits Allowed

:

73

05-11-06 - DISA T

RANSFER COUNT

:

This function sets the number of times that an unsuccessful DISA call will attempt to retry a station
and or transfer to a console after the ringing time set in Mode 05-08-06. A setting of 9 may cause
trunks to lock up on systems that are completely unattended overnight. Please use care if you
select 9 as the value for this parameter.

0=2 1=3 2=4 3=5 4=6
5=7 6=8 7=9 8=10 9=Infinite

05-11-07 - D

OOR PHONE RING TIMER

:

This parameter sets the time that Door Phone ring assigned stations will ring for when the Door
Phone button is pressed.

0=5 seconds 1=10 seconds 2=15 seconds 3=20 seconds 4=25 seconds

5=30 seconds 6=35 seconds 7=40 seconds 8=45 seconds 9=50 seconds

05-11-08 - DISA S

INGLE DIGIT DIALING:

This feature allows a DISA caller to dial stations by 1 digit (1-5) using the settings in Form 10-gp­IP to set which station will be dialed by each digit

0=No Single Digit Dialing
1=Single Digit Group 1 2=Single Digit Group 2
3=Single Digit Group 3 4=Single Digit Group 4
5=Single Digit Group 5 6=Single Digit Group 6
7=Single Digit Group 7 8=Single Digit Group 8

74

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

stations as a busy line (steady illuminated red pushbutton).

Form 05-12 - System Parameters Form - Miscellaneous

Form 05-12-T

Item

01 02 03 04 05 06 07 08

Range Of Entries 0 0 0-1 0 - 4 0-1 0 0 0

Default

0 0 0 2 0 0 0 0

Item

05-12-01 0-1 Call Transfer Method – Key Telephone 0=Key Phone
05-12-02 0 Reserved 0
05-12-03 0-1 Exclusive hold capability 0=Enable
05-12-04 0-9 Door Unlock Relay Activation Time 2=3 Sec
05-12-05 0-7 Voice Mail Call Forward Protocol Type / mute digits
05-12-06 0-1 Linear/Circular Trunk group access 0=Linear
05-12-07 0-9 LED indication of Check in / Check out on DSS console 0=Disable
05-12-08 0 Reserved 0

Valid

Settings Description

Default

7=Muted DTMF

05-12-01 - K

EYPHONE TRANSFER METHOD:

If set to 0, transfer procedure requires that the TRF/FL

0=Must use TRF/FL key, 1=Can transfer by hanging up

05-12-02 - R

ESERVED:

05-12-03 - E

XCLUSIVE HOLD

:

A call on exclusive hold cannot be readily retrieved by any other station. On all TransTel digital telephone
stations, a call on exclusive hold will appear to other
The call owner will see a slow flash, to differentiate the exclusive call from other calls in the system.

0=Enable 1=Disable

05-12-04 - D

OOR RELAY ACTIVATION TIMER:

This parameter sets the time that the door unlock relay will remain activated after the Door Unlock function is
activated by the user. The Door unlock relay is programmed in Mode 06
0=1 second 1=2 seconds 2=3 seconds 3=4 seconds 4=5 seconds

5=6 seconds 6=7 seconds 7=8 seconds 8=9 seconds 9=10 seconds

75

05-12-05 - V

OICE MAIL INTEGRATION TYPE

:

This parameter selects between Standard Voice Mail Call Forward Protocol and the Digit+ Extension protocol.
For a full description of Voice Mail Protocol see Mode 05-10. This parameter will also enable or disable muting
of the leading digits to the outside caller.
0=Use Form 05-10 DTMF Not Muted 1=Use Digit + Extension spec. DTMF Not Muted

2=Use Form 05-10 DTMF Muted 3= Use Digit + Extension spec. DTMF Muted
4=Same as 0. 5= Use Digit + Extension spec. Not Muted. Does Not

send Direct CO Call Code

6=Same As 2 7= Use Digit + Extension spec. DTMF Muted. Does

Not send Direct CO Call Code.

05-12-06 - T

RUNK GROUP ACCESS TYPE:

If this parameter is set to 0 then line selection will be the first available trunk in the users dial (9-0) group. If the
parameter is set to 1 then the lines will be selected in a Circular fashion till all lines have been used and then
the selection will start again. Do NOT use Circular with CO lines unless there is a very good reason as call
collision is more likely to occur as a result.
0=Linear Hunt 1=Circular Hunt

05-12-07 - LED

INDICATION OF CHECK IN / CHECK OUT:

This parameter disables or enables the LED indication for Check in/Check out features for the DSS consoles
and DSS Keys

The LED indications are as follows:
Red and slow flash: If the Reception has checked out an extension, the LED for extension will
slow flash red.
Green: When the checked out extension’s room has been cleaned by the

cleaner(maid), they can dial [776] from the phone and hang up. The LED for
that extension will go Green. This means the room is ready for a new guest
Red: The room is checked in and the phone is in use.

Off: The room is checked in and idle.

0 = Disable 1= Enable

05-12-08 - R

76

ESERVED:

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

applications are similar to this example could use this feature.

Form 05-13 - System Parameters Form - Miscellaneous

Form 05-13-T 01 02 03 04 05 06 07 08

Item

Range Of Entries 0-1 0-1 0-3 0 0-1 0-1 0-7 0-7

Default 1 0 0 0 1 0 7 6

Item

05-13-01 0-1 Hot Dialing 1=Enable
05-13-02 0-1 Immediate SMDR output 0=Disable
05-13-03 0-3 Caller ID Buffer Block Size 0=10 Sets
05-13-04 0-9 Reserved 0
05-13-05 0-1 Display CO Caller ID Name 1=Display name
05-13-06 0-1 CTI-Trunk Status Report 0= Disable
05-13-07 0-7 Least Call Routing(LCR) – 1st Special Rate Day 7= Sunday
05-13-08 0-7 Least Call Routing(LCR) – 2nd Special Rate Day 6= Saturday

Valid

Settings Description

Default

05-13-01 - I

NTERCOM HOT KEY DIALING

:

This parameter when enabled allows stations to dial an intercom call On Hook without having to lift the
handset or press the SPK key.

0 = Disable 1= Enable

05-13-02 - I

MMEDIATE

SMDR

OUTPUT:

This parameter when enabled, is for external software to know who is dialing out at this moment. When
enabled, if a station user dials out, system will send out the SMDR information immediately. The external
software could start to count the cost in the beginning of the call. If the credit is 1 hour and time is expired, the
external software could cut the connection by sending some commands back to KSU. Or any other

0 = Disable 1= Enable

Example:

Extension 18 accesses Trunk 01 and dials 1234567

18 01 N 1 05/23 08:30'00"
18 01 N 12 05/23 08:30'00"
18 01 N 123 05/23 08:30'00"
18 01 N 1234 05/23 08:30'00"
18 01 N 12345 05/23 08:30'00"
18 01 N 123456 05/23 08:30'00"
18 01 N 1234567 05/23 08:30'00"

18 01 # 1234567 05/23 08:30'00" Hold line 1
18 01 * 1234567 05/23 08:30'00" Retrieve line 1
18 01 * 1234567 05/23 08:30'00" Hang up line 1

05-13-03 - C

ALL ID MEMORY BLOCK SIZE

:

0 = 10 Records per Block 1 = 20 Records per Block
2 = 30 Records per Block 3 = 40 Records per Block

77

This parameter

enables trunk status reports for CTI applications (Not currently available in North America).

Related system Programming: 05

-13-

07. 05

-13-

08, 75, 76, 77, 78

-st-

01, 78

-st-

02

Related system Programming: 05

-13-

07. 05

-13-

08,

75, 76, 77, 78

-st-

01, 78

-st-02

05-13-04 - R

ESERVED

:

05-13-05 - C

ALLER ID DISPLAY METHOD

:

defines whether the system will display the incoming name or number when new calls arrive at the system
0 = Display Number of incoming call 1 = Display Name of incoming call
5 = Display Name and number of incoming call

05-13-06 - CTI-T

RUNK STATUS REPORT

:

0 = Disable 1 = Enable

05-13-07 - 1

ST

SPECIAL RATE DAY

:

This parameter sets an exception day to the standard day schedule. Use when the scheduling information
changes on a specific day, such as the first day of the weekend.

0 = No Special Rate Day 1 = Monday
2 = Tuesday 3 = Wednesday
4 = Thursday 5 = Friday
6 = Saturday 7 = Sunday

05-13-08 - 2

ND

SPECIAL RATE DAY:

This parameter sets an exception day to the standard day schedule. Use when the scheduling information
changes on a specific day, such as the second day of the weekend.

0 = No Special Rate Day 1 = Monday
2 = Tuesday 3 = Wednesday
4 = Thursday 5 = Friday
6 = Saturday 7 = Sunday

78

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

envi

ronment.

Form 05-14 - System Parameters Form - Miscellaneous

Form 05-14-T 01 02 03 04 05 06 07 08

Item

Range Of Entries 0 0 0-1 0 - 4 0-1 0 0 0

Default 0 0 0 0 0 0 0 0

Item

Valid

Settings

Description

Default

05-14-01 0-1 ISDN Recovery 0=Disable
05-14-02 0 Reserved 0=Reserved
05-14-03 0 Reserved 0=Reserved
05-14-04 0 Reserved 0=Reserved
05-14-05 0 Reserved 0=Reserved
05-14-06 0 Reserved 0=Reserved
05-14-07 0 Reserved 0=Reserved
05-14-08 0 Reserved 0=Reserved

05-14-01 - ISDN R

ECOVERY:

This parameter enables different recovery functions for ISDN line under the worst case ISDN connection or

0 = Disable 1= Recovery every 1 minute while idle 2= Recovery every 1 minute always

05-14-02 - R

ESERVED

:

05-14-03 - R

ESERVED

:

05-14-04 - R

ESERVED

:

05-14-05 - R

ESERVED

:

05-14-06 - R

ESERVED

:

05-14-07 - R

ESERVED

:

05-14-08 - R

ESERVED

:

79

Form 05-16 - System Parameters Form - Miscellaneous

Form 05-16-T 01 02 03 04 05 06 07 08

Item

Range Of Entries 0 0 0 0 0 0 0 0-3

Default 0 0 0 0 0 0 0 0

Item

Valid

Settings

Description

Default

05-16-01 0 Reserved 0=Disable
05-16-02 0 Reserved 0=Reserved
05-16-03 0 Reserved 0=Reserved
05-16-04 0 Reserved 0=Reserved
05-16-05 0 Reserved 0=Reserved
05-16-06 0 Reserved 0=Reserved
05-16-07 0 Reserved 0=Reserved
05-16-08 0-3 ISDN Event Monitor 0=Disable

05-16-01 - R

ESERVED

:

05-16-02 - R

ESERVED

:

05-16-03 - R

ESERVED

:

05-16-04 - R

ESERVED

:

05-16-05 - R

ESERVED

:

05-16-06 - R

ESERVED

:

05-16-07 - R

ESERVED

:

05-16-08 - ISDN E

VENT MONITOR

:

This feature allows system to record the ISDN event for some maintenance purpose. All output will go through
RS232 port.

0 = Disable ISDN Event Monitor feature 1 = Enable ISDN Layer 2 Event Monitor feature
2 = Enable ISDN Layer 3 Event Monitor feature 3 = Enable ISDN Layer 2 & Layer 3 Event Monitor

SMDR and CTI feature must be disabled before using this feature.

80

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Form 06-01 - Relay Assignment Form

TD-MSC card has 1 dry contact relay.

No voltage is provided by the system, the installer will have to provide their own source to suit the
application. Only use the relays to switch 24V. They are only designed for low voltage control circuits.
All Relays are Normally Open contacts and will close on activation of the function for which they have
been programmed.

00-10

Valid Settings:

00=Non-Operational (Default) 04=CO Line Loud Bell
01=Music On Hold 05=Station Loud Bell
02=Door Latch Release 06=System Alarm

81

Form 07-gp-IP - Flexible Key Group Assignment

General:

This program assigns 8 groups of Flexible key plans for Key phones.
Each Key phone can be assigned to use two groups (Form 41-st-(02 & 03)).
Database Entry is as follows: 07-Gp-Key.
For example: Form 07-01-01 Refers to Form 07 – Key Group 1 – Button 1.
Form 07-01-29 Refers to Form 07 – Key Group 1 – Button 29.
Description:
Each key can be assigned as either a Trunk, a Station or a Function.
To change the assignment from TK to Station or to Function or vice versa, press the [MIC/AT] key before
setting.
nn = 01-10 - Trunk Key (1 to 10) xx = 10-69 - Station Key (2 digits)
fn = 00-65 - Function Key (0 to 65)

Form 07 - Key Assignment Parameters

Description Entry Description Entry
CO Lines 01-08 CO:XX Any valid Station Number XXXX
1A2 Emulation FN:24 Lock/Unlock Station FN:14

Account Code (Forced) FN:09 Lock Override (One Call) FN:16
Alarm Assign (Wakeup) FN:47 Message Waiting / P/T FN:03
Caller ID History FN:32 Microphone / Auto Answer FN:04
Call Forward FN:53 Paging All Internal FN:20
Call Pickup Own Group FN:35 Paging All External FN:21
Call Pickup All Groups FN:36 Paging All Internal/External FN:22
Call Pickup Group FN:37 Paging External 1 FN:33
Loop Key Trunk Group 1 FN:38 Paging Internal Zone FN:23
Loop Key Trunk Group 2 FN:39 Page Meet Me FN:56
Loop Key Trunk Group 3 FN:40 Program Key FN:01
Loop Key Trunk Group 4 FN:41 One Touch Speed Dial Key FN:00
Loop Key Trunk Group 5 FN:42 Redial FN:07
Loop Key Trunk Group 6 FN:43 Reminder Key (Operator only) FN:48
Loop Key Trunk Group 7 FN:44 Save FN:06
Loop Key Trunk Group 8 FN:45 Shift Key FN:57
Date / Time Set up (Console) FN:50 Speed Dial FN:05
Do Not Disturb/Conference FN:02 Split/Swap Key FN:26
Directory Key FN:62 Voice Mail Transfer Key FN:25
Day/Night Key FN:52 Voice Mail Answer Machine

FN:27

Emulation

Door Phone FN:60 Voice Mail Live Call Recording FN:34
Headset Mode FN:29 Volume Level Setup FN:10
Hotel/Motel FN:59

82

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Program Template For Key Assignment

Form 07

Key 26

Key 17 Key 18 Key 19

Key 15 Key 14 Key 13

Key 5 Key 6 Key 6 Key 8

Key 1 Key 2 Key 3 Key 4

Key 29 Key 28 Key 27

Key 20

Key 16

Key 12 Key 11 Key 10 Key 9

Instructions:

gramming Form 07 to assign
various features to key
groups, use the following key
numbers and assign the de­sired feature accordingly. Ex­ample, if you want to make
key 22 as it appears on the
DSS paper to be a Zone Pag­ing Key, you would enter the
data as 07-GP-20. The data
would be FN:23. Note the ac­tual key number for program­ming differs from that of the
DSS paper. This is done so
the station numbers begin
with 11, after the 8th line in
the system.

MIC/AT– Change Functions
Key 1– Go down a key
Key 2– Go up a key
Key 3– Move Left
Key 4– Move Right

When pro-

Key 26 Key 27 Key 28 Key 29

Key 7 Key 6 Key 5

Key 8

Key 4 Key 3 Key 2 Key 1

Key 21

Key 22

Key 23

Key 24

Key 25

83

DK-2 Key Layout

Note: Keys 1 through 29 are programmable. Keys 30 – 34 are not currently usable on the TD-1648i

84

Issue 1.0 March, 2006

DK-3 Key Layout

TransTel TD-1648i / TDS-600 Programming Manual

Note: Keys 31 – 32 are not currently usable on the TD-1648i.

85

Form 08-gp-IP - DSS Key Group Assignment

General:

This program assigns 2 groups of Flexible key plans for DSS Consoles. There are a total of 8 key groups
available in the TD-1648i.
Form 08-01 = DSS Key Group 1
Form 08-02 = DSS Key Group 2
Form 08-03 = DSS Key Group 3
….
Form 08-08 = DSS Key Group 8

The DSS Key Group to which a particular DSS console belongs is assigned on Form 43-port-03.
Database Entry is as follows: 08 – Group – Key Number.

For example: Form 08-01-01 Refers to Form 08 – Key Group 1 – Button (Key) 1.
Form 08-01-59 Refers to Form 08 – Key Group 1 – Button 59.
Assignment Values are the same as in Form 07 of this document.

Note: DSS Consoles are associated with individual stations.This is done through form 43-port-01. In order to
make this association, the DSS console is assigned the same extension number as the telephone to which it will
be associated. Please see Form 43 in this manual.

For example, If the DSS console connected to port 12 will operate in conjunction with extension 11, then 43-12­01 must be set to 11.

86

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Form 09-nnn-DP - System Speed Dial

General:

This program permits the assignment of up to 500 sets of system speed dialing codes.
Description:
nnn = 100-599 = Speed dial code, up to 500 sets in total.

DP = 01-30 = Digit Pointer for telephone number.
30 digits per speed dial code.
tt = 01-10 = Pre-assigned CO line number.

Pre-Assigned CO Line:

Press the {Change} key to change or clear the Pre-assigned CO line number. This CO line is the dedicated
outgoing line for the speed dial code. If the user presses a speed dial code without selecting a CO line first, the
system will select this CO Line automatically. If no CO line is assigned, the system will select an available CO
line according to the assigned Dial 9 group (Program 41-nnnn-04). A line may also be selected directly by the
user.

Telephone Number:

30 digits maximum may be entered in each memory.
In addition to the digits 1 to 0, *, # the following can also be stored: Pause, Flash, Pulse to DTMF. Each function
occupies one digit.

"Pause" is represented by the [HOLD] key. -- P
"Flash" is represented by the [TRF/FL] key. -- F
"Pulse to DTMF" is represented by the {P->T} key. -- T

i) Pause:
During dial procedures on CO line, the dialing will pause for a programmable period (See Program 05-01-06).
During dial procedures on ISDN line, the dialing will wait for the called party answers the call.

For example,

Store 2961135ppp506 in speed dial and use this speed dial on CO line to dial out. System will dial DTMF

after three pause periods and send ‘506’ by using DTMF code.
ii) Flash : This will make a loop disconnection of a pre-assigned duration.
(Refer program mode 05-02-05).
iii) Pulse to DTMF : If the dialed signal is "pulse", it will change to "DTMF".

Note: Pressing {Don’t Care} will erase the digit which the cursor is on.
Pressing [REDIAL] will erase all the assigned digits.
Note: An indication of TK:00 will cause the system to utilize the first free line in a station's dial 9 group.

An indication of 01-08 will cause the system to always select the same CO Line.

Note: To enter a name, press the CHG (Volume Down) key until the letter "N" appears in the upper

right corner of the LCD display. Letters and numbers may be entered through the keypad. For
Dial by name to operate, 05-05-05 must be enabled.

Phone numbers may not exceed 30 digits in length (including special characters). Names may be entered up to
30 characters, but will only be displayed to 16 characters.

87

Form 10-gp-IP - Intercom or DISA Single Digit Assignment

General:

This program permits the stations in one or more station groups to call a specific station by dialing one digit only.
To enable station Single Digit Dialing, Form 05-04-07 must be set to 1 = Enabled.
The settings in this Form are also used by DISA Single Digit Dialing (Form 05-11-08 to enable for DISA use).

Description:
S

INGLE DIGIT INTERCOM

When single digit dialing is enabled and a group (1-8) selected in Form 41-stn-01 then extensions will be able to
dial the stations in the group selected by dialing the digits 1 to 5. The digit 1 will call the first station in the group,
2 will dial the second station in the group and so on up to digit 5. The caller can also dial 6 and then dial a full
extension number to call other extensions or dial (0 or 9) to call the operator.
If a particular group has no entries programmed, the stations in the same number station group will not have
single digit dialing and will not have to use the station to station prefix.

Note: Default programming places all stations in Single Digit Group 1.

S

INGLE DIGIT

When single digit dialing is enabled and a group (1-8) selected in Form 05-11-08 then DISA callers will be able to
dial the stations in the group selected by dialing the digits 1 to 5. The digit 1 will call the first station in the group,
2 will dial the second station in the group and so on up to digit 5. The caller can also dial 6 and then dial a full
extension number to call other extensions or dial (0 or 9) to call the operator.
If a position is left programmed to 0 then station numbers starting with the digit, which corresponds, to this
position can be dialed in full.

DISA:

:

Example

10-gp-IP S.D.I.
11 13 22 00 55

In the above example an incoming DISA caller who dials 1 will call station 11, dialing 2 will call station 13, 3 will
call Station 22. Dialing 4 will allow the caller to dial the full extension number of any extension, which starts with
4, e.g. 44. 55 has been assigned as a Hunt Group Pilot number so a DISA caller dialing 5 will call the Station
hunting group which has 55 as it's pilot Number. Pilot numbers are set in Mode 67 and Hunt groups are
programmed in Mode 68 and 69.

Form 10 - Single Digit Dialing Assignment

Form 10 - Single Digit Group ___ (01-08) Form 10 - Single Digit Group ___ (01-08)
Item 01 02 03 04 05 Item 01 02 03 04 05

Station

Form 10 - Single Digit Group ___ (01-08) Form 10 - Single Digit Group ___ (01-08)
Item 01 02 03 04 05 Item 01 02 03 04 05

Station

88

Station

Station

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Form 11 - Date and Time Settings

Form 11 - Date and Time
Item 01 02 03 04 05 06

Input

01= Month 02=Date 03=Year 04=Hour 05=Minute 06=Day of Week
(2 digits) (2 digits) (2 digits) (2 digits) (2 digits) (1digit)
General:

This program permits the setting of system Date & Time.
Description:
The Date & Time will be held during a power failure on the TD-824I if G1-MSC is fitted, there is no need to reset

the Time after power is restored.

All entries are two digit, except 06 which begins with Sunday as 0, Monday as 1, Tuesday as 2, etc.

Form 12 - System Alarm Schedule

General:

This program permits the assignment of 10 time schedules for alarm clock purposes.
Description:
When the assigned time is reached, Background music will be broadcast over all Key telephones, which are idle.

The time duration for alarm clock music is programmable (00 to 99 minutes.).
Note: A duration of 00 will deactivate a system alarm
Time entry format: 12 midnight until 11:59 AM = 00:00 to 11:59.
12 Noon until 11:59 PM = 12:00 to 23:59.

Form 12 - System Alarm Schedule

Schedule: Alarm Time

(24 Hour Format 00:00-23:59)

Duration

(01-98 minutes)

01

89

Form 13 - System Passwords

General:

This program permits the assignment of 9 different passwords in the system.
Description:
The password length is from 1 to 8 digits. All unused digit positions must have ’d’ entered in them.
Password No. 1 = Programming Password. System Default is None.
Password No. 2 = DISA Password. System Default is 3472.
Password No. 3 = Toll Free. System Default is 8655.
Password No. 4 = DISA Monitor Password.
Password No. 5 to 9 = Future.

Form 13 - System Passwords

d(on't care) = DSS Key 4. All other digits are entered from the station keypad.

13-01 - S

Password

YSTEM PROGRAMMING PASSWORD

:

Default
13-02 - DISA P

Password

ASSWORD

d d d d d d d d

:

Default
13-03 - T

Password

OLL OVERRIDE PASSWORD

3 4 7 2 d d d` d

:

Default
13-04 - M

Password

ONITOR PASSWORD

8 6 5 5 d d d d

:

Default

d d d d d d d d

90

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Form 14 - Station Message Detail Recording

Form 14 -01-

01 02 03 04 05 06 07 08
Item
Options 0-9 0-1 0-1 0-1 0-1 00-99 0 0-1
Default

0 0 0 0 0 21 0 0

Item Valid Settings Description Default

14-01-01 0-9 Call Duration Start Time 0=00 Sec.
14-01-02 0-1 Record Incoming Call 0=Record
14-01-03 0-1 Record Local Call 0=Record
14-01-04 0-1 Record Incoming Call No Answer 0=Record
14-01-05 0-1 Print out the Title 0=Yes
14-01-06 00-99 Number of records between titles 21=21
14-01-07 0 Reserved 0=
14-01-08 0-3 Polarity Reversal 0=No

14-01-01 - R

ECORDING START TIME

:

This parameter determines a “grace period” before call costing begins. This allows for calls that
are made but unanswered. Calls that last less than the amount of time specified in this parameter
will not be reported via the SMDR port.
0=immediate
start

1=5 seconds 2=10 seconds 3=15 Seconds 4=20 Seconds

5=25 Seconds 6=30 Seconds 7=35 Seconds 8=40 Seconds 9=45 Seconds

14-01-02 - R

ECORD INCOMING CALLS

:

This parameter determines if inbound calls generate a record via SMDR
0=Enable (Record Incoming Calls) 1=Disable (Do Not Record Incoming Calls)

14-01-03 - R

ECORD CALLS LOCAL CALLS (NO TOLL ACCESS CODE

):

Outbound calls that begin with the toll access code programmed on Form 05-03-05 are considered
toll calls in this parameter. If this option is enabled, calls that do not begin with the selected toll
code, they will still be recorded via SMDR. If this option is disabled, calls do not begin with the toll
access code in 05-03-05 will not be recorded via SMDR.
0=Enable (Record local calls) 1=Disable (Do Not Record local calls)

04-01-04 - R

ECORD UNANSWERED INCOMING CALLS

:

This parameter determines if an unanswered incoming call is recorded via SMDR.
0=Enable
(Record Unanswered Incoming Calls)

1=Disable
(Does Not Record Unanswered Incoming Calls)

14-01-05 - P

RINT PAGE HEADER

This parameter decides whether the system will output the description of each column.
0=Enable 1=Disable

:

91

14-01-06 - N

UMBER OF CALL RECORDS TO BE PRINTED BETWEEN HEADERS:

This parameter permits the assignment of the number of records between each Header.
If the Number = 00, The whole SMDR feature will be disabled.

00=Disable SMDR

01-99=Actual Number Of Call Records Between Headers

14-01-07 - RESERVED:

14-01-08 - D

ETECT POLARITY REVERSAL

:

If reversal is disabled, the system will start the call timer after accessing a CO line.
If reversal is enabled, the system will start the call timer after the called party answers.
0= Not Detect P.R. / Normal SMDR format

1= Detect P.R. / Normal SMDR format output
output
2= Not Detect P.R. / Simple SMDR format

3= Detect P.R. / Simple SMDR format output
output

SMDR OUTPUT DATA FORMAT

ST. TK S TELEPHONE NUMBER Account MM/DD START DURATION RING UNIT

112 01 001188629645752 12345678 10/02 08:35 00:02'35"
115 02 Incoming 87654321 10/02 08:45 00:10'20" 00'10"
000 03 Incoming no answer 10/02 12:00 00'35"
112 04 001188629645752 FAC:01 10/02 12:10 00:02'00"
112 03 X FAC or PSW error 10/02 12:30
112 05 X 001 10/02 12:35 00:00'05"
121 01 # 0294150100 10/02 14:15 00:00'55"
117 01 * 0294150100 10/02 14:15 00:03'10"
D3 05 0418220212 10/02 21:01 00:02'30"
D-03 D << D I S A OFF >> 10/02 21:00 00:02'40"
112 02 DDI Num: 94150112 10/02 08:45 00:10'20" 00'10"
03 CLI NoAns:294176288 10/02 12:00 00:00'00" 00'35"
111 05 CLI Num: 294150100 10/02 12:35 00:00'05" 00'05"
05 DDI NoAns:94150112 10/02 12:37 00:00'00" 00'27"

TITLE DESCRIPTION:
ST = Station No. : 11 to 6999, D = DISA
TK = Trunk No. : 01 to 10,
S = Status : # = Hold, * = Answered the hold, X = Cut off by toll restrictions.
Telephone Number : First 24 digits
Account : 8 digits in total
MM/DD : Month/Day
Begin_Time hh:mm : The start time of accessing the trunk line.
Duration_Tm hh:mm:ss : Time duration of the call.
Ring_Tm mm:ss : Incoming ring time.
Unit 00000 : Meter Pulse Count

92

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

CASE EXPLANATION:
CASE 1: October 2, 08:35 A.M., Station 112 made a call (telephone No. is 00116495256611) through line 1. The

call lasted 2 minutes and 35 seconds, Account code No. 12345678 was entered for the call and 12-meter pulses
were recorded.

CASE 2: October 2, 08:45 A.M., An incoming call on line 2, rang for 10 seconds, station 115 answered the call
and stored an Account No. 87654321.

CASE 3: October 2, 12:00 P.M., An incoming call through line 3, rang for 35 seconds, no one answered and the
call was abandoned.

CASE 4: October 2, 12:10 P.M., Station 112 made a Long Distance call through line 4 by Forced Account Code
1 and 23 meter pulses were recorded.

CASE 5: October 2, 12:30 P.M., Station 112 made a call by Forced Account Code but was denied because of a
wrong code.

CASE 6: October 2, 12:35 P.M., Station 116 made a call, which was restricted.
CASE 7: Line 1 was used by station 121 for 55 seconds then put on hold. One meter pulse was recorded against

this station for its section of the call.
CASE 8: The held line 1 was answered by station 117 and he occupied the line for 3 minutes and 10 seconds.

Four meter pulses were recorded against this station for its section of the call.
CASE 9: Incoming Line 3, using the DISA function, made an outside call 018220212 on line 5. The Duration time

is for line 5. 3 meter pulses were recorded for this call.

CASE 10: DISA is completed. The Duration time is for line 3.
CASE 11: Incoming call on an ISDN system. The number displayed is the Indial number dialed by the calling

party. The system can be programmed on a station by station basis to select whether calls to that station will
display the Indial number dialed or the CLI information of the incoming caller

CASE 12: An incoming call rang for 35 seconds and no one answered. The CLI number of the calling station is
displayed.

CASE 13: An incoming call on line 5 (ISDN) was answered by station 111. The SMDR displayed the CLI number
(294150100) of the calling party and the extension number (112) of the calling party. The extension number
shown is what the system will receive if the call is from another TransTel with ISDN. The format may be different
or non-existent from other telephone systems or on PSTN lines. The system can be programmed on a station by
station basis to select whether calls to that station will display the Indial number dialed or the CLI information of
the incoming caller. The number 94150100 is the pilot number of the Indial group.

CASE 14: An incoming call rang for 27 seconds and no one answered. The Indial number the calling station
dialed is displayed.

93

SMDR OUTPUT DATA FORMAT - NEW W

ITH

CLI O

UTPUT

ST. TK S TELEPHONE NUMBER Account MM/DD START DURATION RING UNIT
112 01 001188629645752 12345678 10/02 08:35 00:02'35" 00012
112 02 DDI Num:94150112 10/02 08:45 00:10'20" 00'10"
03 CLI NoAns:294176288 10/02 12:00 00:00'00" 00'35"
111 05 CLI Num:294150100*11 10/02 12:35 00:00'05" 00'05"

Case 1: Outgoing call. All information remains as before.
Case 2: Incoming call on an ISDN system. The number displayed is the Indial number dialed by the calling

party. The system can be programmed on a station by station basis to select whether calls to that station will
display the Indial number dialed or the CLI information of the incoming caller

Case 3: An incoming call rang for 35 seconds and no one answered. The CLI number of the calling station is
displayed.

Case 4: An incoming call on line 5 (ISDN) was answered by station 111. The SMDR displayed the CLI number
(294150100) of the calling party and the extension number (112) of the calling party. The extension number
shown is what the system will receive if the call is from another TransTel with ISDN. The format may be different
or non existent from other telephone systems or on PSTN lines. The system can be programmed on a station by
station basis to select whether calls to that station will display the Indial number dialed or the CLI information of
the incoming caller. The number 94150100 is the pilot number of the Indial group.

Note: Maximum 25 SMDR records can be stored in the system temporarily.

94

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Form 17 - Forced Account Code Assignment

This program creates 48 Forced Account codes.
Description:

Format: dddddddd DN
The forced account code will temporarily override a station's toll restrictions. 48 codes of up to 8 digits maximum

are allowed. If the system is fitted with a call accounting output the entry for a call made using a forced account
code will display the code used in the account code column. The actual numbers of the code will not be displayed
for security reasons, the reading will show FAC:XX. XX is the forced account code number 01 to 48.

The Forced Account Code will not be displayed on the screen of Executive phones when it is entered.
Digit "d" is keyed in by {Don’t care} button and means " Any digit " ("don't care").
Digit "_" is keyed in by [TRF/FL] button and means " No digit ".
Clear all digits by pressing [TRF/FL] to insert a line in place of the original entry.

The ninth and tenth digits (DN) allow you to assign specific toll class during Day Service and Night Service.
When an account code is dialed, the chosen toll classification will govern the call.
The ninth digit assigns Day Service Toll Class. The tenth digit assigns Night Service Toll Class.

Do not use Redial to clear forced account code entries as this will insert "don't care" which will allow
any digit as a forced account code.

The Forced Account Codes may also be used as DISA passwords to allow call accounting to show which user
was making an external call using DISA from outside the system. In the TD-1648i/TDS-600 , Forced Account
Codes 25 to 48 can be used for this purpose. This feature will need to be enabled in Mode 05-11-02.

Form 17 - Forced Account Code Assignment

Entries less than eight digits should have "d" in all trailing locations, (e.g., 123245ddd).
## Actual Code ## Actual Code ## Actual Code
01 17 33
02 18 34
03 19 35
04 20 36
05 21 37
06 22 38
07 23 39
08 24 40
09 25 41
10 26 42
11 27 43
12 28 44
13 29 45
14 30 46
15 31 47
16 32 48

95

Form 18 - Toll Plan Assignment

This Form assigns Toll Plans to trunk lines. The Toll plans are to be written in Forms 51 to 59 and 61 to 66.
Description:
10 toll plans can be used.
Each Toll Plan assigns each trunk line a Toll Class. It is possible to allow a toll class to have different restriction

level on a line by line basis.
Example 1: Mode 18-00 is set to 000000dddddddddd. Any station in the system which is set to toll class 0 will be

unrestricted on lines 1 to 6 but will be unable to dial out on lines 7 to 16.
Example 2: Mode 18-01 is set to 111100dddddddddd. Any station in the system which is set to toll class 1 will be

restricted by toll class 1 on lines 1 to 4, will be unrestricted on lines 5 and 6 but will be unable to dial out on lines
7 through 16.
To assign toll plans to stations, see Program 41-st-05, 41-st-06.

Toll Classes:

Class Function Prog. Mode
0

1
2
3
4
5
6
7
8
9

*
D Cannot access the trunk line.

Unrestricted Default
Use Mode 51 for the Unrestricted numbers. Use Mode 61 for the Restricted numbers
Use Mode 52 for the Unrestricted numbers. Use Mode 62 for the Restricted numbers
Use Mode 53 for the Unrestricted numbers. Use Mode 63 for the Restricted numbers
Use Mode 54 for the Unrestricted numbers. Use Mode 64 for the Restricted numbers
Use Mode 55 for the Unrestricted numbers. Use Mode 65 for the Restricted numbers
Use Mode 56 for the Unrestricted numbers. Use Mode 66 for the Restricted numbers
Use Mode 57 for the Unrestricted numbers.
Use Mode 58 for the Unrestricted numbers.
Use Mode 59 for the Unrestricted numbers.

Mode 51,61
Mode 52,62
Mode 53,63
Mode 54,64
Mode 55,65
Mode 56,66
Mode 57
Mode 58
Mode 59

Use Mode 51-56 for unrestricted numbers. Use Mode 61-66 for all restricted numbers

96

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Form 18 - Toll Plan Assignment

18-00 - ITem 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16

Item Default 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

18-01 - ITem 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16

Item Default 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

18-02 - ITem 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16

Item Default 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2

18-03 - ITem 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16

Item Default 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3

18-04 - ITem 01 02 03 04 05 06 07 08 09 19 11 12 13 14 15 16

Item Default 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4

18-05 - ITem 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16

Item Default 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5

18-06 - ITem 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16

Item Default 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6

18-07 - ITem 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16

Item Default 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7

18-08 - ITem 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16

Item Default 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8

18-09 - ITem 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16

Item Default 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9 9

97

Form 20 - Day/Lunch/Night Service Switching Schedule

This program assigns daytime from Sunday to Saturday for automatic night switching and sets lunchtime to allow
the VSU to play a different message for this period. All times must be in 24 hour format.

Schedule Day

20-00 Sunday 00 00 00 00 00 00 00 00
20-01 Monday 00 00 00 00 00 00 00 00
20-02 Tuesday 00 00 00 00 00 00 00 00
20-03 Wednesday 00 00 00 00 00 00 00 00
20-04 Thursday 00 00 00 00 00 00 00 00
20-05 Friday 00 00 00 00 00 00 00 00
20-06 Saturday 00 00 00 00 00 00 00 00

The system is capable of switching automatically between day / lunch break / night settings using the time
parameters set in this Mode. To change from manual to automatic night switching the console presses [PRG]
[TRF/FL] *. Pressing * toggles between the 2 modes.

If a Function key has been set to function 52 then pressing this key will change from Day to night mode by one
touch but will not change between Automatic and Manual switching.
Example

20-01 Day Time

08 30 17 00 12 30 13 30

Day Service

Start

Day Service

End

Lunch Service

Start

Lunch Service

End

On Monday the system will switch from nighttime to daytime start at 8:30 in the morning, will switch to lunchtime
start at 12:30, switch back to daytime at 13:30 and switch to Nighttime at 17:00. To program no lunchtime leave
the entries for items on 00.

98

Issue 1.0 March, 2006

TransTel TD-1648i / TDS-600 Programming Manual

Form 25 - Reset Data to System Default

This program resets all data to System Default. All new systems must be reset to default before any
programming in case corruption has been caused during handling or shipping. When using item 3 or 4
these must be done AFTER the system reset is performed.

General:
This program resets all data to System Default. All new systems must be reset to default before any

programming in case corruption has been caused during handling or shipping. It will also be necessary to reset
to default after a software upgrade is installed. When using item 3 or 4 these must be done AFTER the system
reset is performed.

Description:

1 = System data will be reset to system default except System Speed Dial Programming.
2 = The system data will be totally reset to system default.

WARNING: All user-defined data will be lost.

3 = For all Stations set
44-st-02=1 (Hold Feature restricted)
44-st-03=1 (Call Split Feature restricted)

This feature is for Hotel/Motel operation. After setting this Mode it is necessary to reprogram the

Console and any Administration phones in Mode 44-st-02 to allow them to place calls on hold.

4 = For all stations set
40-st-01=0 (Barge In not allowed)
40-st-02=0 (Monitor not allowed)

It is strongly recommended that this parameter is used on ALL systems to prevent accidental

Barge In operations being misinterpreted as cross talk.

All other system programming information remains unchanged when using 3 or 4.

99

Form 29 - CO Line Specifications #1

Data  01 02 03 04 05 06 07 08

Range 0-2 0-8 0-9 0-8 0-8 0-1 0-9 0-9

Default 0 0 0 0 0 0 0 0

Item Valid

Settings

29-tk-01 0 CO Line Length 0=0 km
29-tk-02 0-8 UCD-1 Function Enable 0=Disable
29-tk-03 0-9 ISDN Incoming Call Type 0= InBlock
29-tk-04 0-8 Set Ring Frequency (KPU Only) 0=H/set Setting
29-tk-05 0-9 Allow Audible Ring for Incoming Calls 0=All Stations
29-tk-06 0-1 1A2 Emulation feature 0=Disable
29-tk-07 0-9 CO Delayed Ring Timer to Hunting Group 0=Disable
29-tk-08 0-9 CO Delayed Ring Overflow Hunting Group 0= Hunt Group

Description Default

29-XX-01-– CO L

INE LOOP RESISTANCE

:

This parameter allows adjustment of the system’s analog trunk interface to adapt to different CO loop
resistance.

0 = 0 Km (default) 1 = 3 Km 2 = 5 Km

29-XX-02 - UCD F

UNCTION SELECTION

:

This parameter enables or disables the UCD function for each trunk individually and is able to select whether
UCD operates in Day or Night or Both Modes.
0 Day Disable - Night Disable 1 Day Disable - Night Enable 1

2 Day Disable - Night Enable 2 3 Day Disable 1 - Night Disable
4 Day Enable 1 - Night Enable 1 5 Day Enable

1 -

Night Enable 2
6 Day Enable 2 - Night Disable 7 Day Enable 2 - Night Enable 1
8 Day Enable 2 - Night Enable 2

*1: Enable UCD-1 function only when all ring assigned stations are busy.
*2: Enable UCD-1 function when time set in mode 05-09-06 has elapsed even if the ring
assigned stations are idle.

100
